Front Subframe: Installation

  1. Raise the subframe assembly and position it to the vehicle. Use Special Service Tool: 300-OTC1585AE Powertrain Lift.Use the General Equipment: Wooden Block

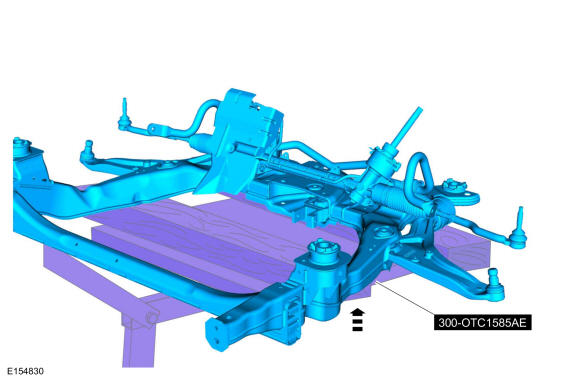

    GFD598823Courtesy of FORD MOTOR COMPANY
  2. NOTE: Align reference marks made during removal.
    NOTE: Only tighten the bolts finger tight at this stage.

    Install the new forward subframe bolts.

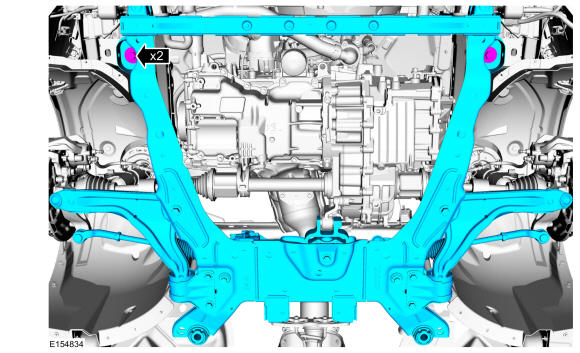

    GFD598824Courtesy of FORD MOTOR COMPANY
    1. NOTE: Only tighten the bolts finger tight at this stage.

      Install the subframe brackets and the bolts.

    2. NOTE: Only tighten the bolts finger tight at this stage.

      Install the new rearward subframe bolts.

    GFD598825Courtesy of FORD MOTOR COMPANY
  3. NOTE: While tightening the subframe bolts, make sure the front subframe does not move.

    Tighten the new forward subframe bolts.

    Torque: 173 lb.ft (235 Nm)

    GFD598824Courtesy of FORD MOTOR COMPANY
  4. NOTE: While tightening the subframe bolts, make sure the front subframe does not move.

    1. Tighten the new rearward subframe bolts.

      Torque: Stage 1: 76 lb.ft (103 Nm)Stage 2: 270 deg.

    2. Tighten the subframe bracket bolts.

      Torque: 35 lb.ft (48 Nm)

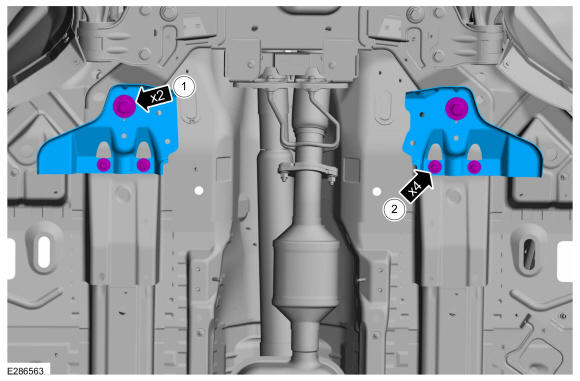

    GFD598825Courtesy of FORD MOTOR COMPANY
  5. NOTE: 2.0L EcoBoost.

    • Clip the harness and connect the EPAS electrical connectors.

    • Connect the catalyst monitor sensor connector.

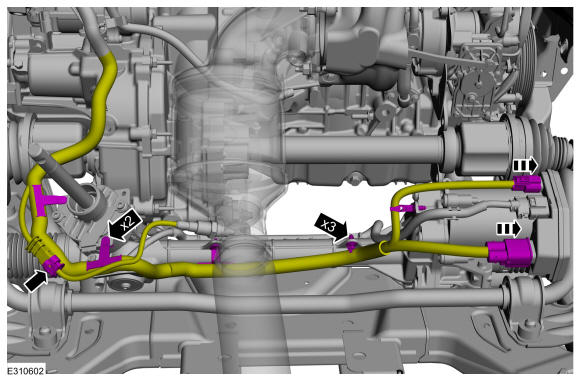

    GFD598826Courtesy of FORD MOTOR COMPANY
  6. NOTE: 2.7L EcoBoost.

    Clip the harness and connect the EPAS electrical connectors.

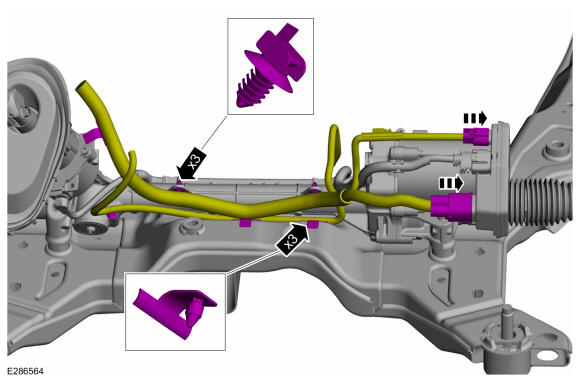

    GFD598827Courtesy of FORD MOTOR COMPANY
  7. If equipped Position the steering gear heat shield and install the retainers.

    Torque: 71 lb.in (8 Nm)

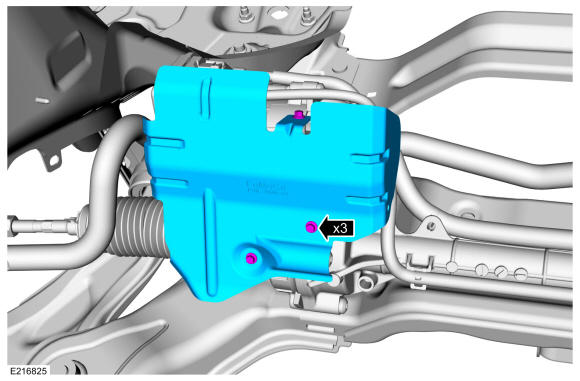

    GFD598816Courtesy of FORD MOTOR COMPANY
  8. Connect the body harness pushpin to the front of the subframe.

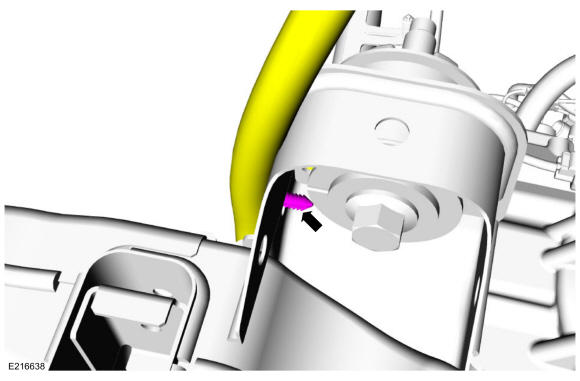

    GFD598815Courtesy of FORD MOTOR COMPANY
  9. NOTE: 2.0L EcoBoost.

    Install the exhaust support bracket and the retainers.

    Torque: 18 lb.ft (25 Nm)

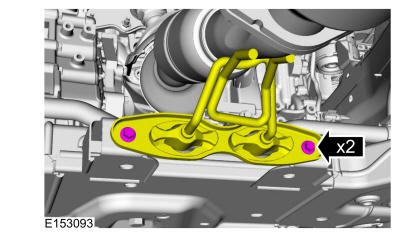

    GFD598814Courtesy of FORD MOTOR COMPANY
  10. NOTE: 2.0L EcoBoost vehicle shown, others similar.

    • Install the front crossmember brace and the retainers.

      Torque: 30 lb.ft (40 Nm)

    • Attach the wiring harness retainers.

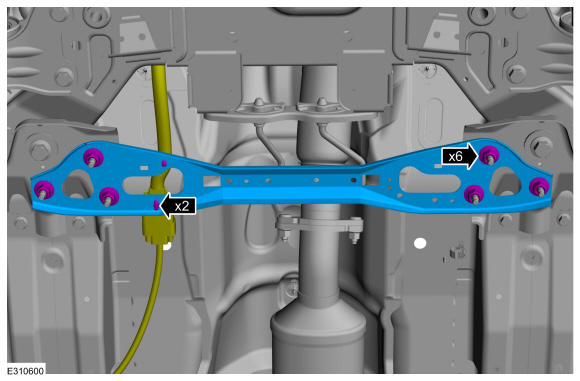

    GFD598813Courtesy of FORD MOTOR COMPANY
  11. NOTE: 2.0L EcoBoost.

    Clean, apply adhesive and install the roll restrictor bolt.

    Material

    : Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 85 lb.ft (115 Nm)

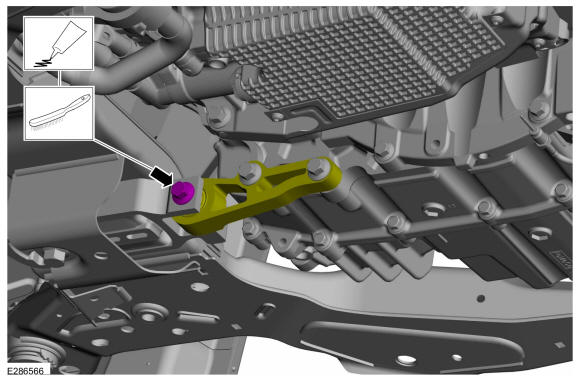

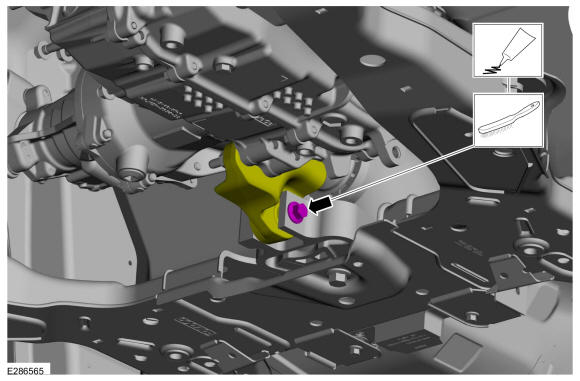

    GFD598828Courtesy of FORD MOTOR COMPANY
  12. NOTE: 2.7L EcoBoost.

    Clean, apply adhesive and install the roll restrictor bolt.

    Material

    : Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 85 lb.ft (115 Nm)

    GFD598829Courtesy of FORD MOTOR COMPANY
  13. NOTE: 2.7L EcoBoost.

    Install the exhaust flexible pipe. Refer to: Exhaust Flexible Pipe

  14. On both sides. Position the ball joint into the wheel knuckle and install the new ball joint pinch bolt and nut.

    Torque: 76 lb.ft (103 Nm)

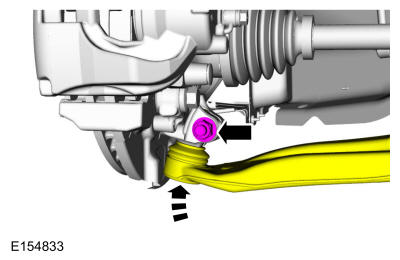

    GFD598830Courtesy of FORD MOTOR COMPANY
  15. NOTE: The front suspension height sensor must be disconnected from the lower control arm prior to servicing suspension components or damage to the suspension height sensor and/or the vehicle dynamic suspension system may occur. The sensor will need to be recalibrated after reassembly.

    If equipped

    1. Connect the front height sensor electrical connector.
    2. Position the front height sensor wire harness and clip the harness to the front height sensor.
    3. Position the front height sensor arm bracket and install the front height sensor arm bracket bolt.

      Torque: 177 lb.in (20 Nm)

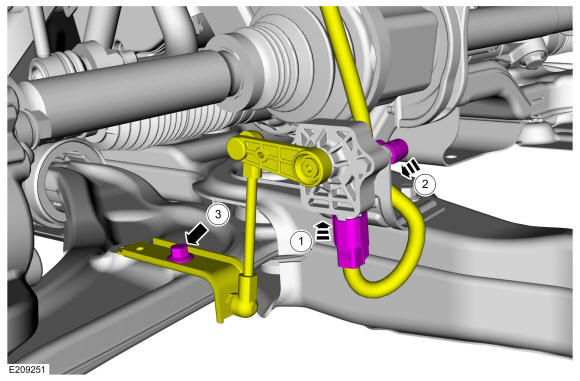

    GFD598831Courtesy of FORD MOTOR COMPANY
  16. Calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine, following the scan tool directions.
  17. To install, reverse the removal procedure.
  18. Install the wheels and tires. Refer to: Wheel and Tire
  19. Connect the battery ground cable. Refer to: Battery Disconnect and Connect
  20. Check and if necessary adjust front toe. Refer to: Front Toe Adjustment . Refer to: Front Toe Adjustment - Vehicles With: Active Steering
