Component Bleeding

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Master Cylinder Bleeding Set

Bleeding

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

Master Cylinder

NOTE: When a new brake master cylinder has been installed, it should be primed to prevent air from entering the system.

NOTE: Make sure the area around the master cylinder cap is clean and free of foreign material.

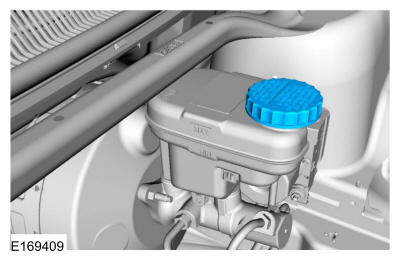

Remove the brake fluid reservoir cap.

Courtesy of FORD MOTOR COMPANY

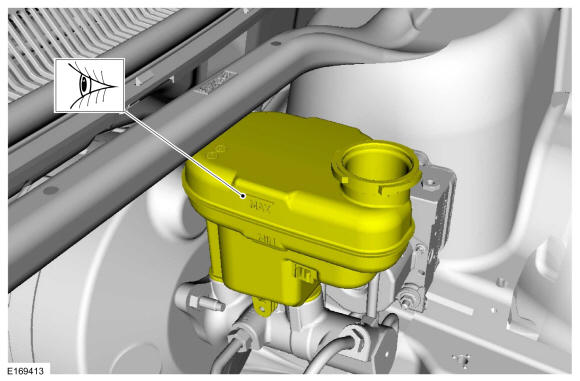

Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

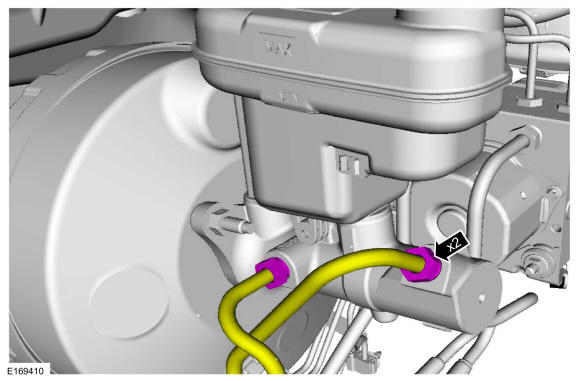

Loosen and remove the brake tube fittings.

Courtesy of FORD MOTOR COMPANY

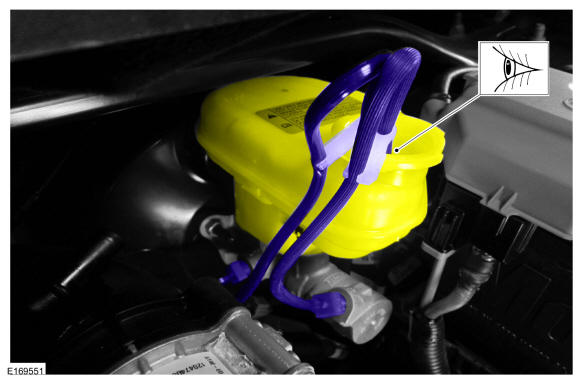

Install the master cylinder bleeding set. Use the General Equipment: Master Cylinder Bleeding Set

Courtesy of FORD MOTOR COMPANY

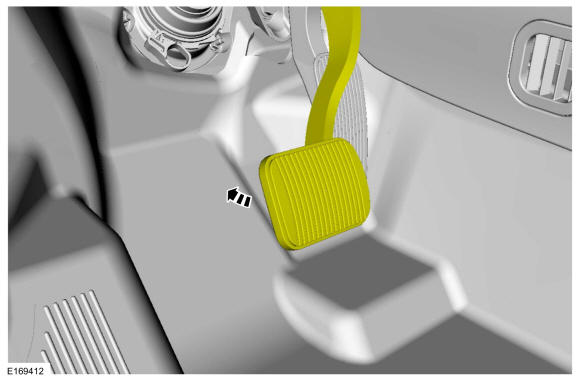

Have an assistant pump the brake pedal slowly until clear bubble free fluid flows from the brake tubes.

Courtesy of FORD MOTOR COMPANY
Remove the master cylinder bleeding set. Remove the General Equipment: Master Cylinder Bleeding Set

Courtesy of FORD MOTOR COMPANY
Tighten the brake tube fittings. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Refer to: Brake System Pressure Bleeding .
Brake Caliper, Wheel Cylinder, Brake Hose or Brake Tube
NOTE: Pressure bleeding the brake system is required anytime a hydraulic brake system component has been disconnected.

Refer to: Brake System Pressure Bleeding .
