Cruise Control Module (CCM): Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Cruise control module

NOTE: If installing a new CCM, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new CCM after installation.

Remove the front bumper trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the CCM nuts.

Courtesy of FORD MOTOR COMPANY

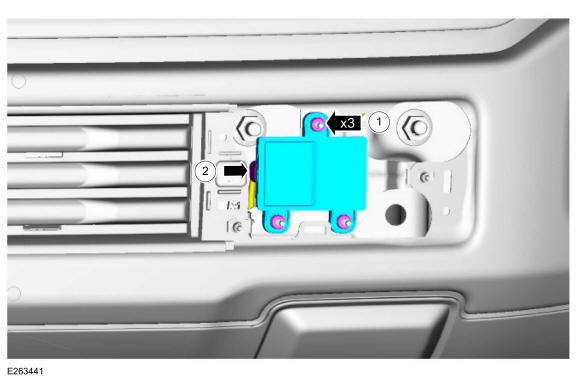

Remove the CCM.
- Release the CCM grommets from the ball studs.
- Disconnect the CCM electrical connector.
Courtesy of FORD MOTOR COMPANY

Cruise control module bracket
Remove the front bumper. Refer to: Front Bumper .
Remove the bolts and the front bumper bracket.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the CCM bracket.

Courtesy of FORD MOTOR COMPANY
