Front Wheel Speed Sensor - RWD: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

    F-250/F-350

    NOTE: Vehicles with Twin I-Beam axle.
  2. Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material.

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

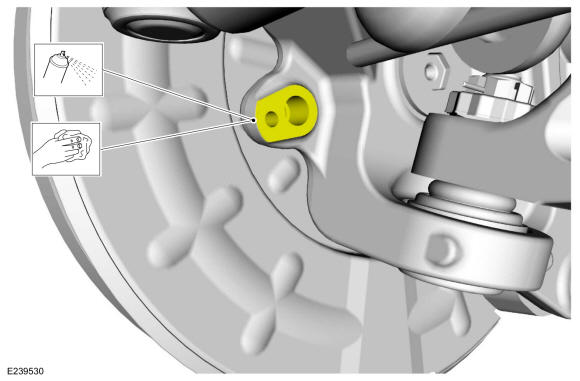

    GFD200993Courtesy of FORD MOTOR COMPANY

    F-450/F-550

    NOTE: Vehicles with Mono-Beam axle.
  3. Before installing a new sensor, inspect the sensor housing to make sure the sensor cavity is clean and free of foreign material.

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

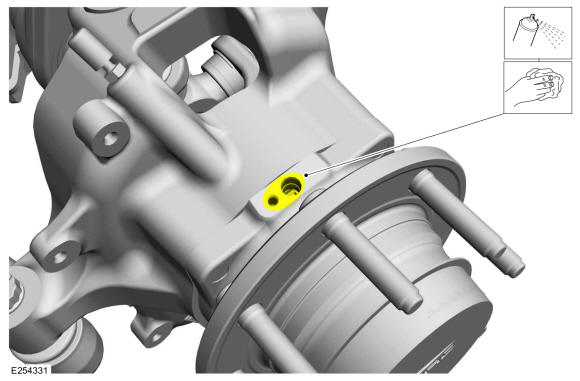

GFD200994Courtesy of FORD MOTOR COMPANY
