Section 69 (Engine - 6.2L V8): Assembly: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

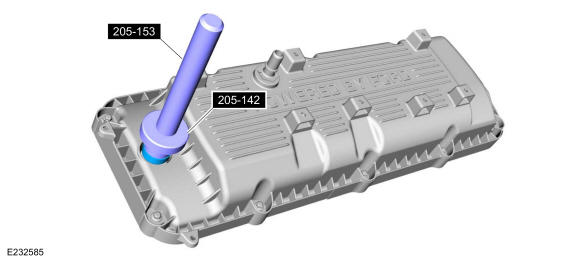

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-142 (T80T-4000-J) Installer, Differential Bearing Cone
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle

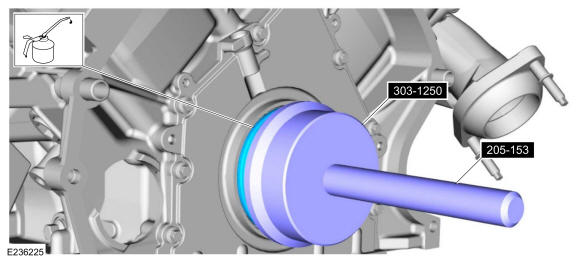

Courtesy of FORD MOTOR COMPANY	303-1250 Seal Installer, Rear Main TKIT-2006UFFLM

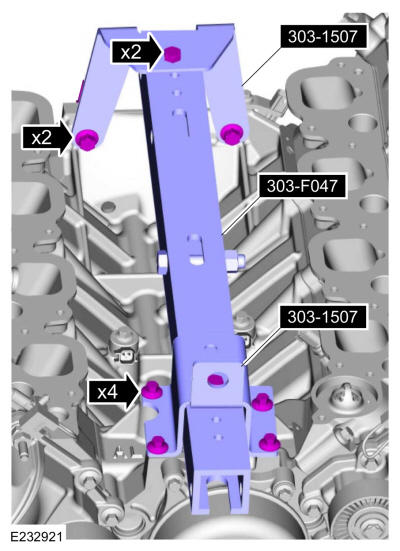

Courtesy of FORD MOTOR COMPANY	303-1507 Brackets, Support
Courtesy of FORD MOTOR COMPANY	303-1508 Installer, Front Crank Seal
Courtesy of FORD MOTOR COMPANY	303-335 (T88T-6701-A) Installer, Front Cover Oil Seal TKIT-1988-FLM TKIT-1988-F
Courtesy of FORD MOTOR COMPANY	303-F047 Lifting Bracket, Engine
Strap Wrench
Floor Crane
Mounting Stand
Piston Ring Compressor
Vise

Materials

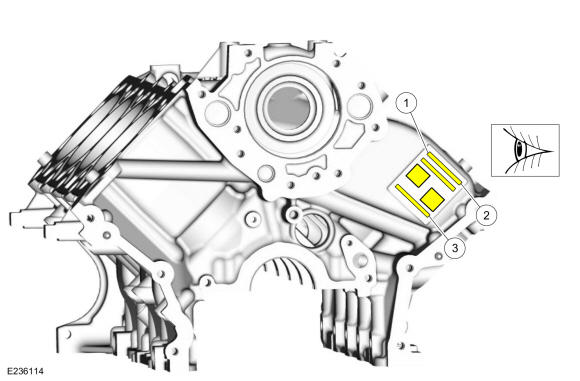

1. Record the main bearing code and cylinder bore grades.
   1. Select-fit main bearings.
   2. Cylinder bore grades.
   3. Cylinder block serial number.

   Courtesy of FORD MOTOR COMPANY

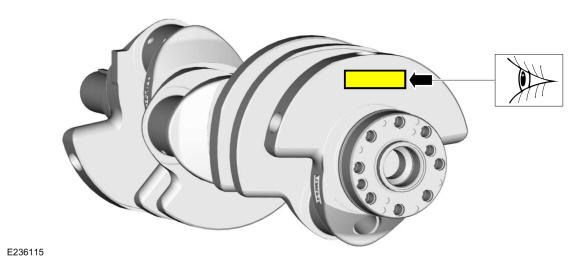

2. Record the main bearing code found on the rear of the crankshaft.

   Courtesy of FORD MOTOR COMPANY

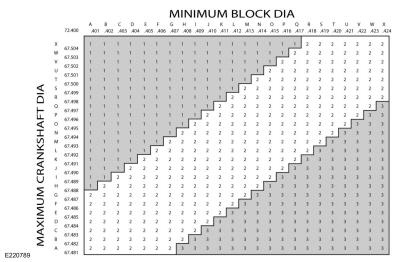

3. Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for each main bearing.
   • Read the first letter of the engine block main bearing code and the first letter of the crankshaft main bearing code.
   • Read down the column below the engine block main bearing code letter, and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade for the No. 1 crankshaft main bearing.
   • As an example, if the engine block code letter is "F" and the crankshaft code letter is "D", the correct bearing grade for this main bearing is a "2".
   • Repeat this process for the remaining 4 main bearings.

   Courtesy of FORD MOTOR COMPANY

4. If oversize bearings are being used, use the procedure in the previous step and the Bearing Select Fit Chart, Oversize Bearings to determine the required bearing grade for each main bearing.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.

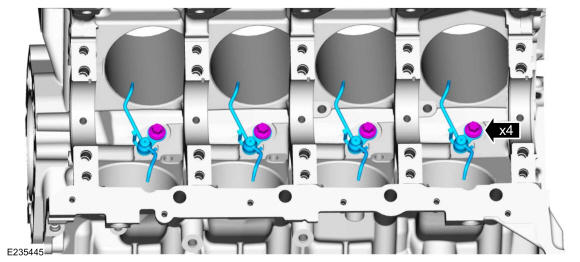

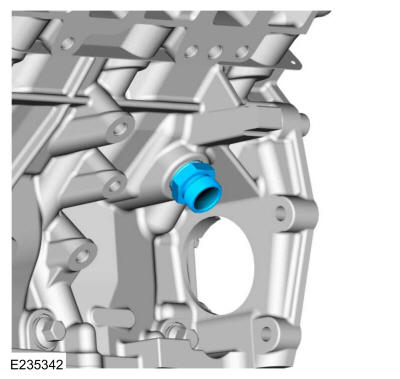

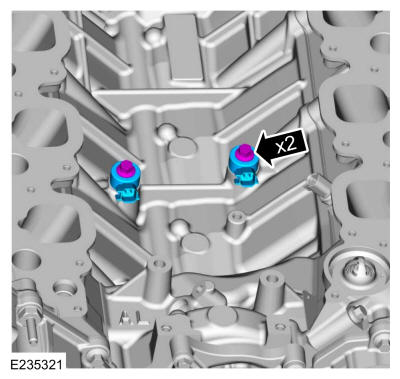

   Install the piston oil cooler valves and the bolts.

   Torque:

   Stage 1: 177 lb.in (20 Nm)

   Stage 2: 60 °

   Courtesy of FORD MOTOR COMPANY

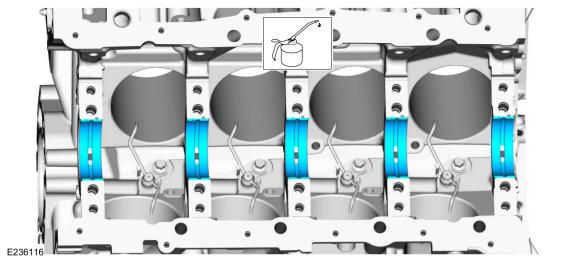

6. Lubricate with clean engine oil and install the upper crankshaft main bearings.

   Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

   Courtesy of FORD MOTOR COMPANY

7. NOTE: Do not allow the crankshaft to come into contact with the piston oil cooler valves during assembly or engine damage may occur.

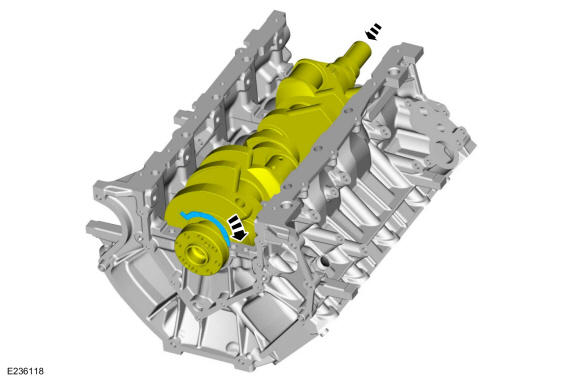

   Lubricate with clean engine oil and install the crankshaft.

   Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

   Courtesy of FORD MOTOR COMPANY

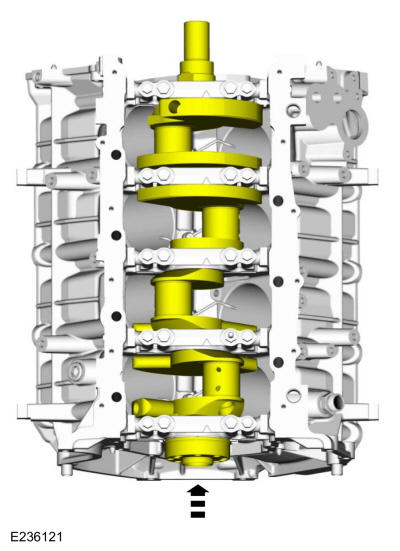

8. Lubricate with clean engine oil and push the crankshaft rearward and install the rear crankshaft upper thrust washer at the back of the No. 5 main boss.

   Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

   Courtesy of FORD MOTOR COMPANY

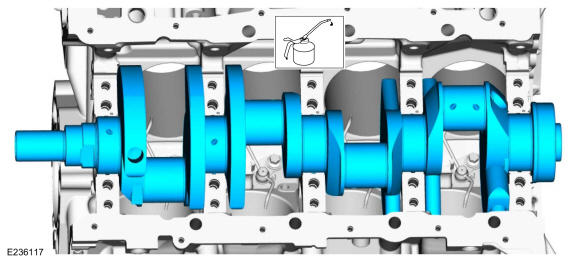

9. Lubricate with clean engine oil and install the lower crankshaft main bearings and the lower thrust washer.

   Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

   Courtesy of FORD MOTOR COMPANY

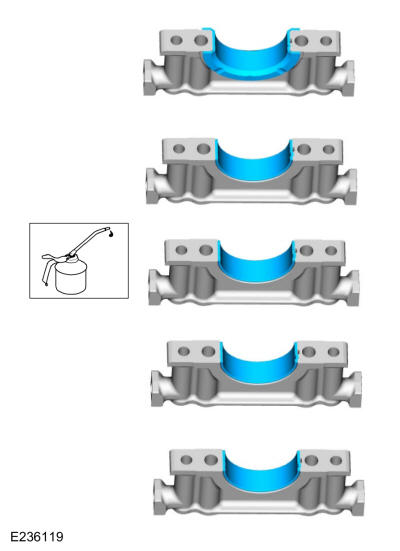

10. Lubricate with clean engine oil and install the main bearing caps and bolts on the cylinder block, keeping the cap as square as possible, alternately draw the cap down evenly using the cap fasteners.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

11. Push the crankshaft forward to seat the crankshaft thrust washer.

    Courtesy of FORD MOTOR COMPANY

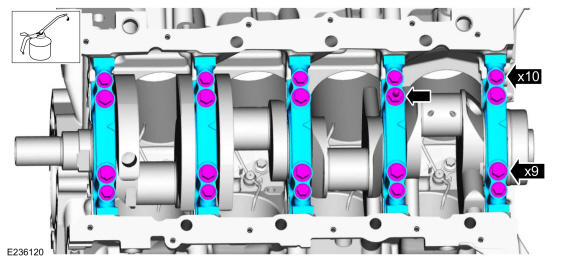

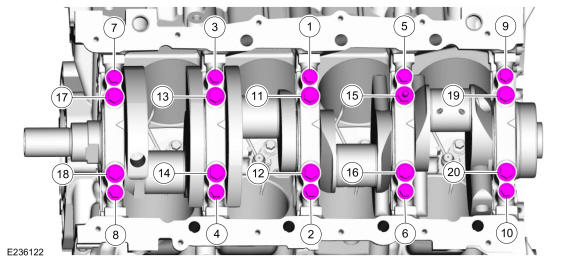

12. Tighten the vertical main bearing cap fasteners in sequence shown.

    Torque:

    Stage 1: Tighten bolts 1 through 10 to: 26 lb.ft (35 Nm)

    Stage 2: Tighten bolts 1 thought 10 to: 37 lb.ft (50 Nm)

    Stage 3: Tighten bolts 1 thought 10 an additional: 90 °

    Stage 4: Tighten bolts 11 thought 20 to: 26 lb.ft (35 Nm)

    Stage 5: Tighten bolts 11 thought 20 to: 48 lb.ft (65 Nm)

    Stage 6: Tighten bolts 11 thought 20 an additional: 90 °

    Fig 1: Vertical Main Bearing Cap Tightening Sequence

    Courtesy of FORD MOTOR COMPANY

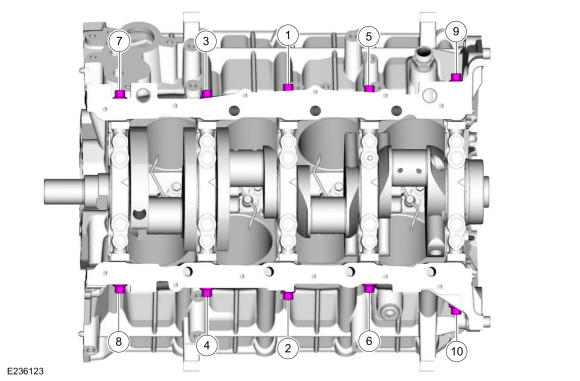

13. Install the cross-mounted main bearing cap fasteners and tighten in sequence shown.

    Torque:

    Stage 1: 177 lb.in (20 Nm)

    Stage 2: 26 lb.ft (35 Nm)

    Stage 3: 60 °

    Fig 2: Cross-Mounted Bearing Cap Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
14. • Check the crankshaft end play clearance. Refer to: Specifications .
    • Check the piston-to-cylinder bore clearance. Refer to: Specifications .
    • Assemble the pistons and position the piston ring gaps. Refer to: Piston .

15. Lubricate with clean engine oil and install the connecting rod bearings.

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Do not allow the piston connecting rods to come in contact with the piston cooling jets or engine damage may occur.
    NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal. Failure to follow this instruction may result in engine damage.

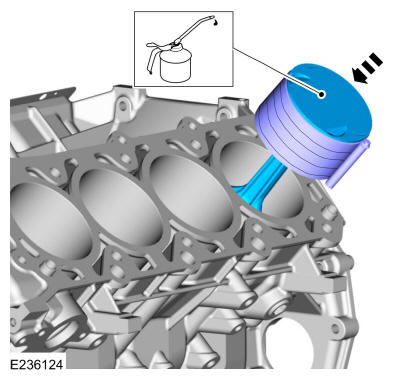

    NOTE: Lubricate the pistons, piston rings, connecting rod bearings and the entire cylinder bores with clean engine oil.
    • Using a piston ring compressor, install the piston and connecting rod assembly. Use the General Equipment: Piston Ring Compressor

      Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    • Repeat for each piston.

    Courtesy of FORD MOTOR COMPANY

17. • Install the bearings, connecting rod caps and the new bolts finger tight.
    • Repeat for each set of pistons.

    Courtesy of FORD MOTOR COMPANY

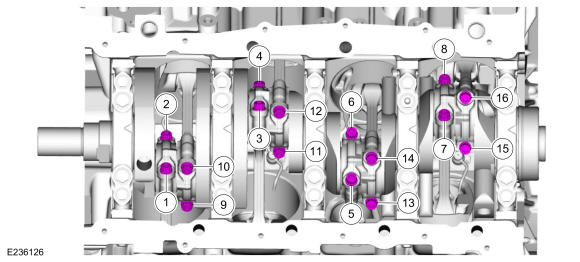

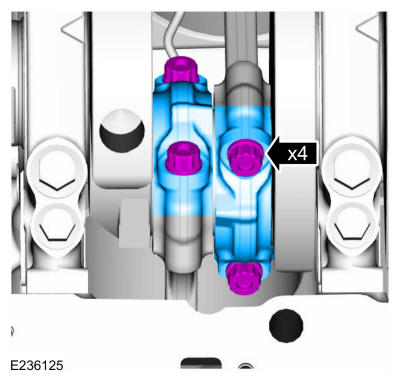

18. Tighten the connecting rod bolts in 3 stages, in the sequence shown.

    Torque:

    Stage 1: 177 lb.in (20 Nm)

    Stage 2: 28 lb.ft (38 Nm)

    Stage 3: 105 °

    Fig 3: Connecting Rod Bolts Tightening Sequence

    Courtesy of FORD MOTOR COMPANY

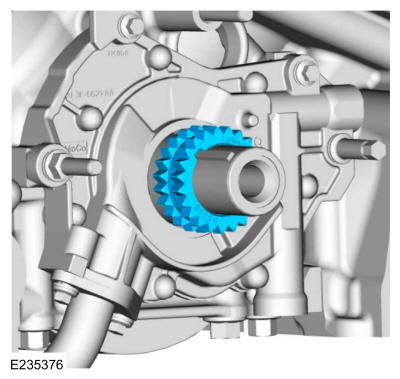

19. Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

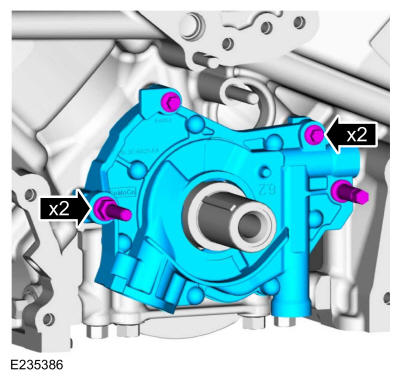

20. Install the oil pump, upper bolts and the lower stud bolts.

    Torque:

    Stage 1: Tighten all fasteners to: 18 lb.in (2 Nm)

    Stage 2: Tighten the upper bolts to: 89 lb.in (10 Nm)

    Stage 3: Tighten the lower stud bolts to: 177 lb.in (20 Nm)

    Stage 4: Tighten the upper bolts an additional: 45 °

    Stage 5: Tighten the lower stud bolts an additional: 60 °

    Courtesy of FORD MOTOR COMPANY

21. Lubricate with clean engine oil and install the oil pump screen and pickup tube O-ring seal.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

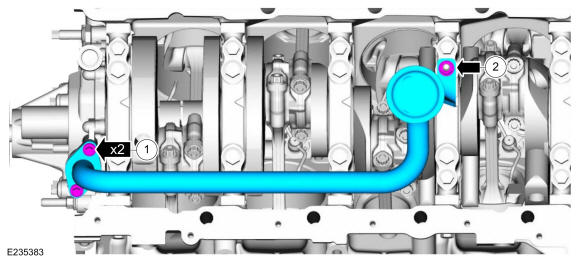

22. • Install the oil pump screen and pickup tube and the bolts.

      Torque: 89 lb.in (10 Nm)

    • Install the oil pump screen and pickup tube nut.

      Torque: 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

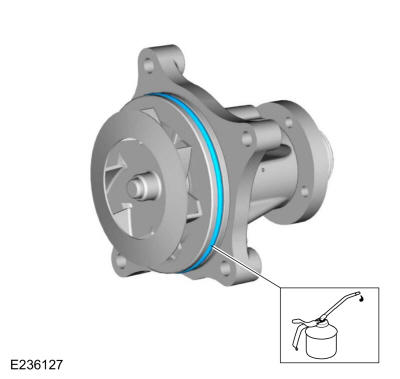

23. Install the new coolant pump O-ring seal and lubricate with clean engine coolant.

    Material: Motorcraft ® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

    Courtesy of FORD MOTOR COMPANY

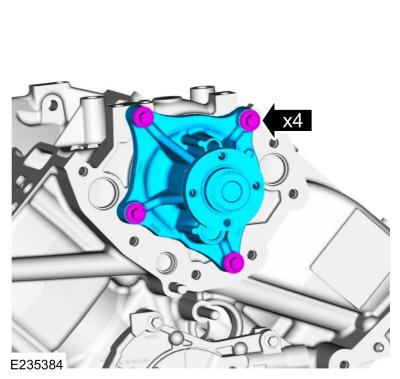

24. Install the coolant pump and the bolts.

    Torque:

    Stage 1: 177 lb.in (20 Nm)

    Stage 2: 45 °

    Courtesy of FORD MOTOR COMPANY

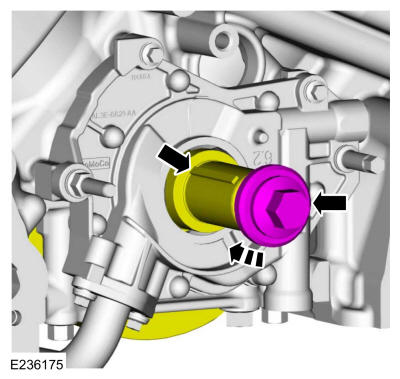

25. NOTE: Only rotate the engine in a clockwise direction.
    • Install the crankshaft bolt.
    • Using the crankshaft bolt, rotate the engine in a clockwise direction and position the crankshaft keyway at the 11 o'clock position.
    • Remove the crankshaft bolt.

    Courtesy of FORD MOTOR COMPANY

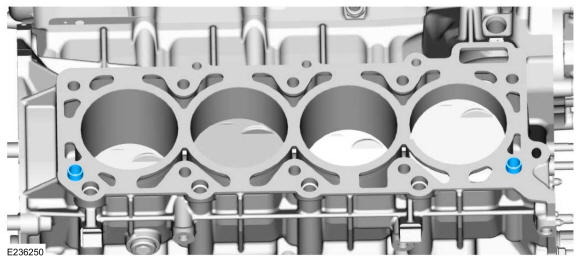

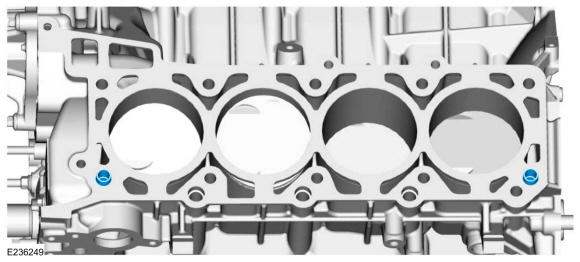

26. Install the dowels on the LH bank of the cylinder block.

    Courtesy of FORD MOTOR COMPANY

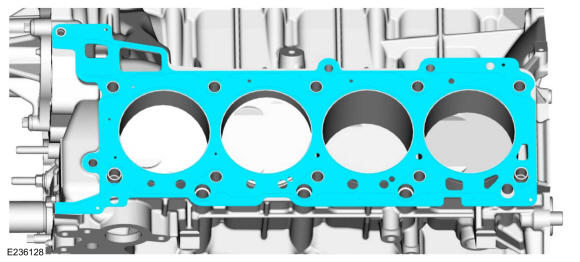

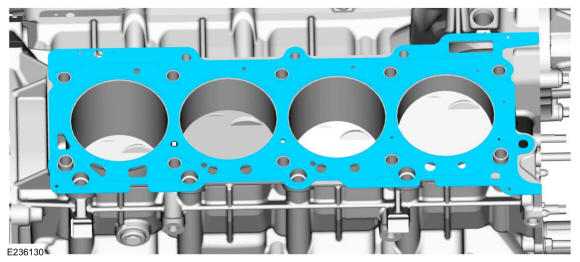

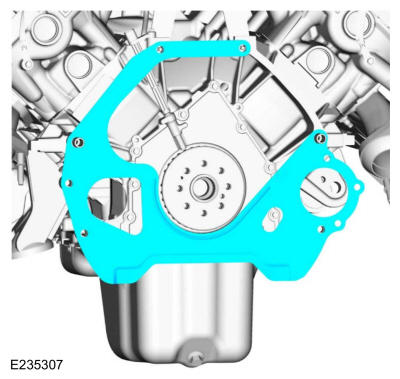

27. Install a new LH cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

28. NOTE: Make sure all coolant residue and foreign material are cleaned from the block surface and cylinder bore.
    NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

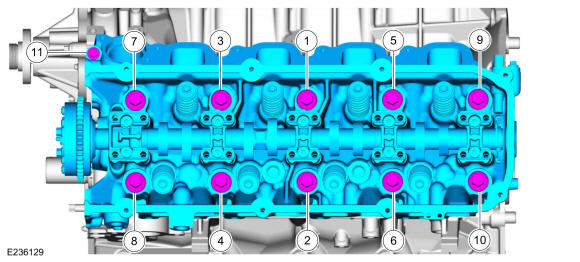

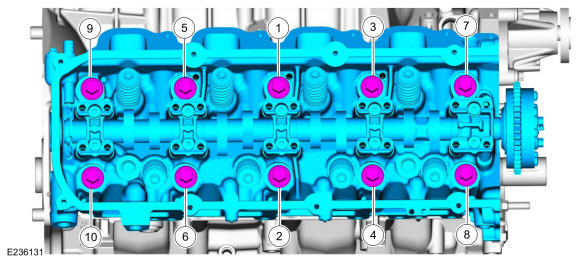

    Install the LH cylinder head and the new bolts and tighten in 10 stages.

    Torque:

    Stage 1: Tighten bolts 1 through 10 to: 18 lb.ft (25 Nm)

    Stage 2: Tighten bolts 1 through 10 to: 55 lb.ft (75 Nm)

    Stage 3: Loosen: 180 °

    Stage 4: Tighten bolts 1 through 10 to: 18 lb.ft (25 Nm)

    Stage 5: Tighten bolts 1 through 10 to: 37 lb.ft (50 Nm)

    Stage 6: Tighten bolt 11 to: 89 lb.in (10 Nm)

    Stage 7: Tighten bolts 1 through 10 an additional: 90 °

    Stage 8: Tighten bolts 1 through 10 an additional: 90 °

    Stage 9: Tighten bolt 11 to: 177 lb.in (20 Nm)

    Stage 10: Tighten bolt 11 an additional: 45 °

    Courtesy of FORD MOTOR COMPANY

29. Install the dowels on the RH bank of the cylinder block.

    Courtesy of FORD MOTOR COMPANY

30. Install a new RH cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

31. NOTE: Make sure all coolant residue and foreign material are cleaned from the block surface and cylinder bore.
    NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

    Install the RH cylinder head and the new bolts and tighten in 7 stages.

    Torque:

    Stage 1: Tighten bolts 1 through 10 to: 18 lb.ft (25 Nm)

    Stage 2: Tighten bolts 1 through 10 to: 55 lb.ft (75 Nm)

    Stage 3: Loosen: 180 °

    Stage 4: Tighten bolts 1 through 10 to: 18 lb.ft (25 Nm)

    Stage 5: Tighten bolts 1 through 10 to: 37 lb.ft (50 Nm)

    Stage 6: Tighten bolts 1 through 10 an additional: 90 °

    Stage 7: Tighten bolts 1 through 10 an additional: 90 °

    Courtesy of FORD MOTOR COMPANY

32. Install the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

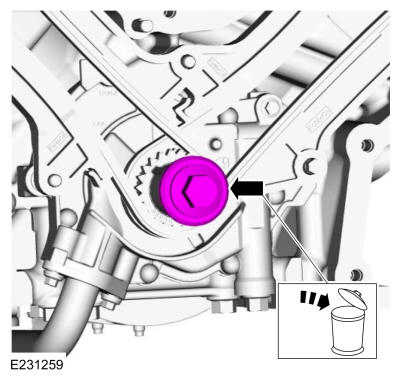

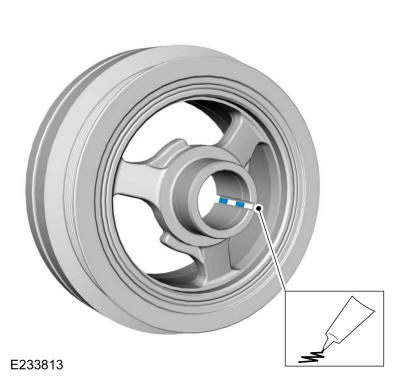

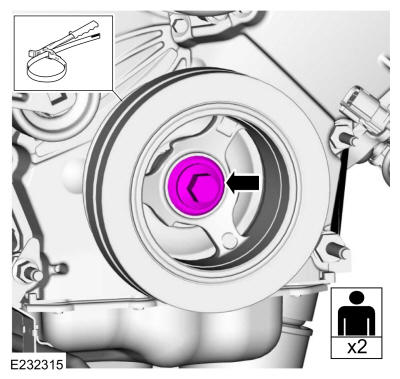

33. Install the crankshaft pulley bolt and washer.

    Courtesy of FORD MOTOR COMPANY

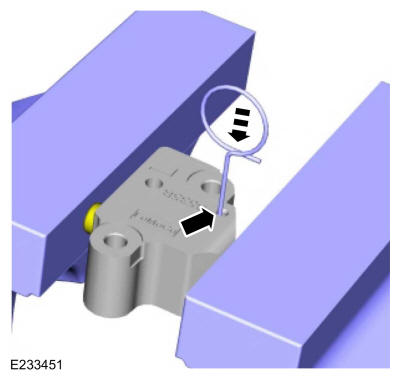

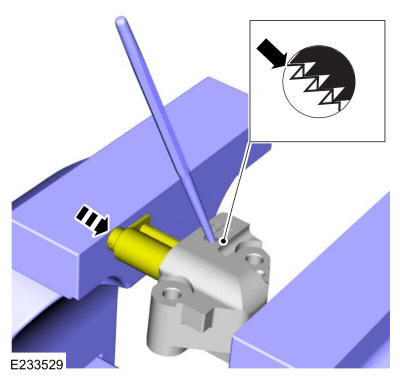

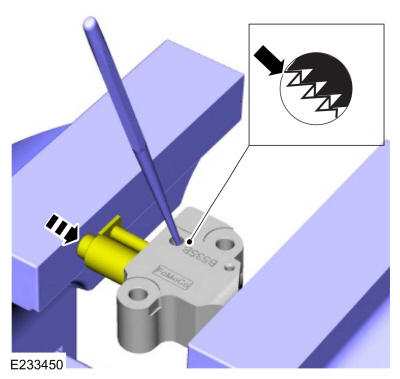

34. Using a small pick, carefully push the LH tensioner rack pawl retainer away from the rack pawl and compress the tensioner plunger and rack using a vise. Use the General Equipment: Vise

    Courtesy of FORD MOTOR COMPANY

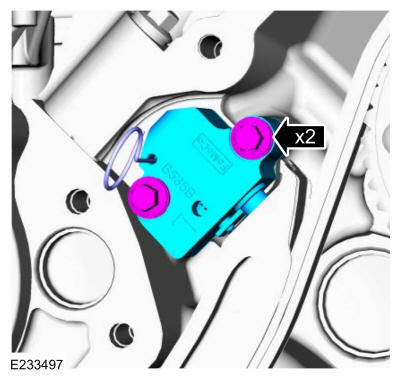

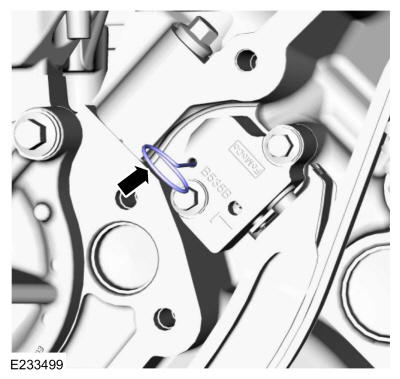

35. • Install a retaining clip into the tensioner to hold the rack pawl and plunger in the seated position for tensioner installation.
    • Remove the LH tensioner from the vise.

    Courtesy of FORD MOTOR COMPANY

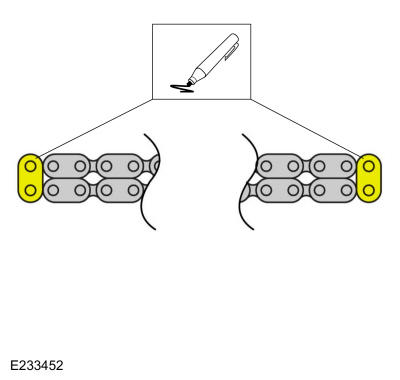

36. If the copper links are not visible, mark the links on each end, and use as timing marks.

    Courtesy of FORD MOTOR COMPANY

37. NOTE: Verify the crankshaft keyway is at the 11 o'clock position.
    NOTE: Make sure the upper half of the timing chain is below the tensioner arm dowel and above the chain guide pin.

    Install the LH timing chain.

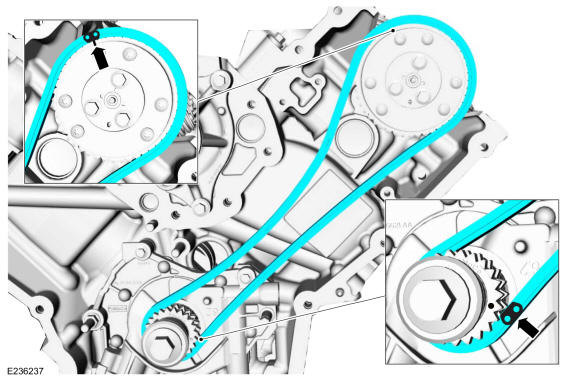

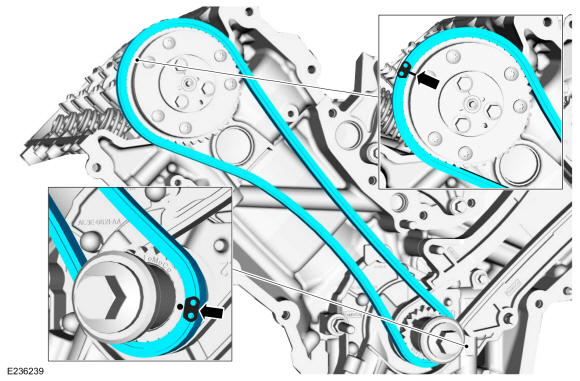

    • Align the colored link on the timing chain with the timing mark on the LH VCT assembly.
    • Align the colored link on the timing chain with the timing mark on the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

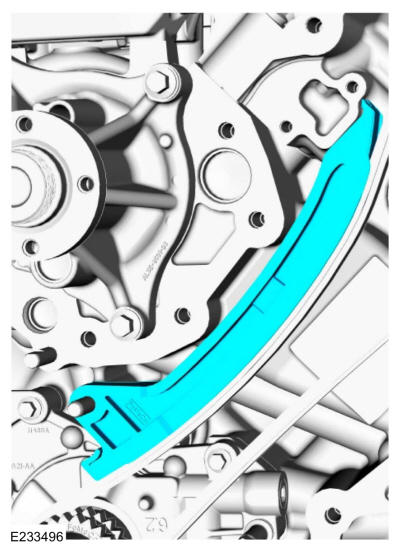

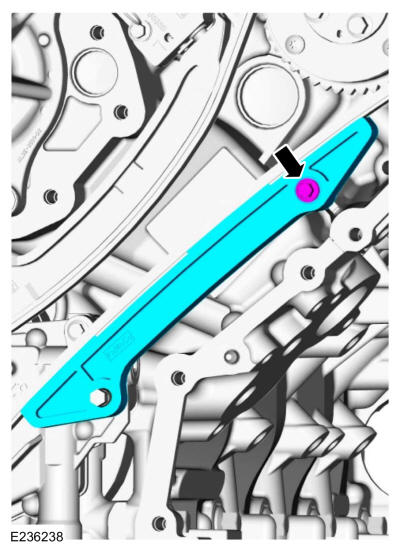

38. Install the LH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

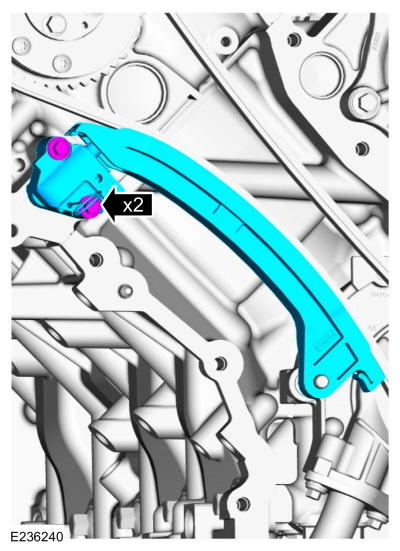

39. Install the LH primary timing chain tensioner and bolts.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 45 °

    Courtesy of FORD MOTOR COMPANY

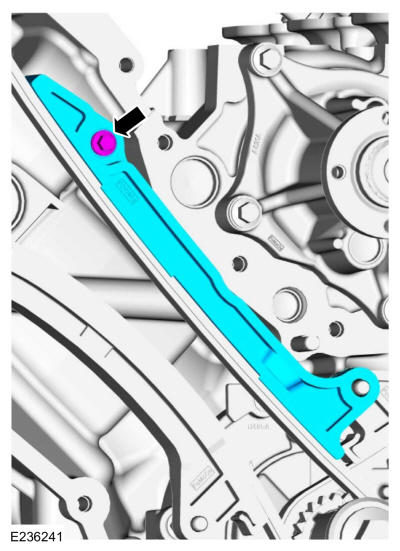

40. Install the LH timing chain guide and the bolt.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 45 °

    Courtesy of FORD MOTOR COMPANY

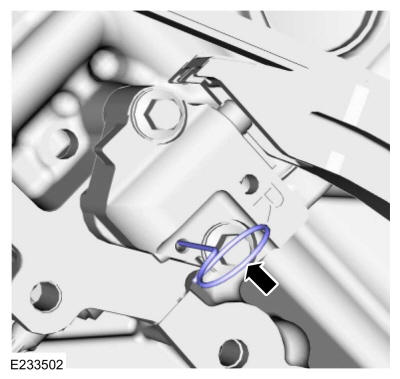

41. Remove the retaining clip from the LH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

42. Using a small pick, carefully push the RH tensioner rack pawl retainer away from the rack pawl and compress the tensioner plunger and rack using a vise. Use the General Equipment: Vise

    Courtesy of FORD MOTOR COMPANY

43. • Install a retaining clip into the tensioner to hold the rack pawl and plunger in the seated position for tensioner installation.
    • Remove the RH tensioner from the vise.

    Courtesy of FORD MOTOR COMPANY

44. If the copper links are not visible, mark the links on each end, and use as timing marks.

    Courtesy of FORD MOTOR COMPANY

45. NOTE: Verify the crankshaft keyway is at the 11 o'clock position.

    Install the RH timing chain.

    • Align the colored link on the timing chain with the timing mark on the crankshaft sprocket.
    • Align the colored link on the timing chain with the timing mark on the RH VCT assembly.

    Courtesy of FORD MOTOR COMPANY

46. Position the RH timing chain tensioner arm on the dowel pin and install the RH timing chain tensioner and the bolts.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 45 °

    Courtesy of FORD MOTOR COMPANY

47. Install the RH timing chain guide and bolt.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 45 °

    Courtesy of FORD MOTOR COMPANY

48. Remove the retaining clip from the RH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

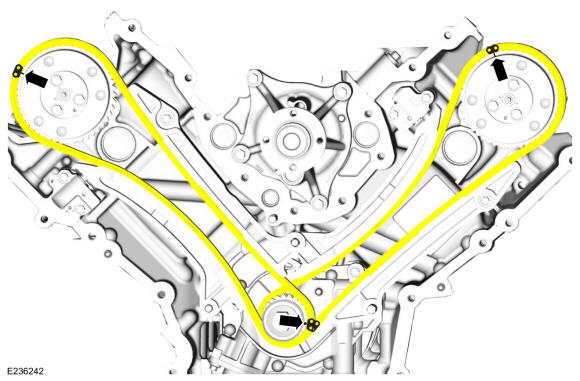

49. As a post-check, verify correct alignment of all timing marks.

    Courtesy of FORD MOTOR COMPANY

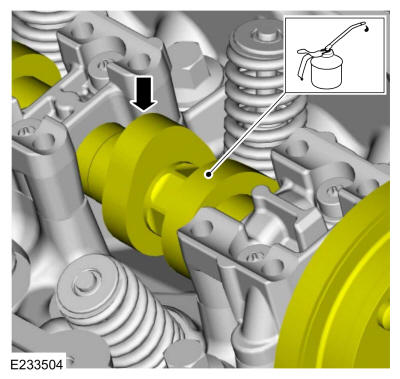

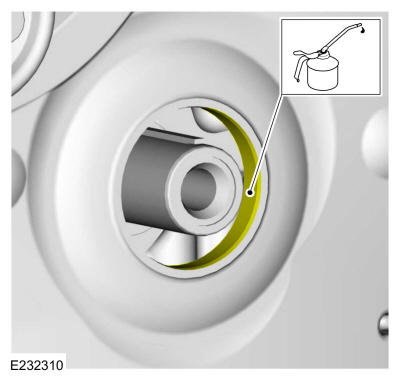

50. • Using the crankshaft bolt, rotate the engine clockwise until the No. 1 cylinder camshaft intake lobe is positioned so that the intake valve would be fully opened.
    • Lubricate the all RH camshaft lopes with clean engine oil.

      Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

51. NOTE: LH shown, RH similar.

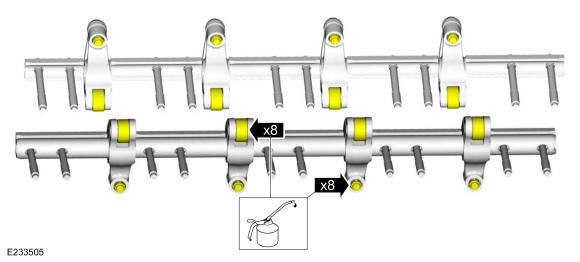

    Lubricate the LH and RH rocker arm shaft-to-valve tip and rocker arm-to-camshaft lobe contact area with clean engine oil prior to installation.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

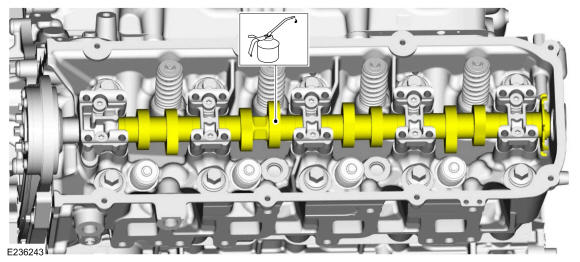

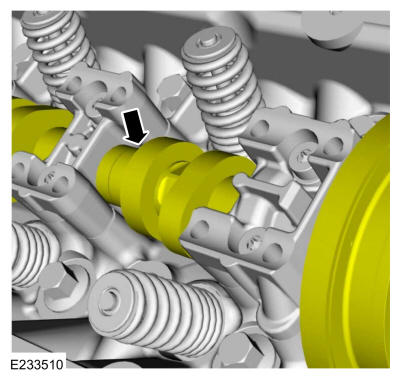

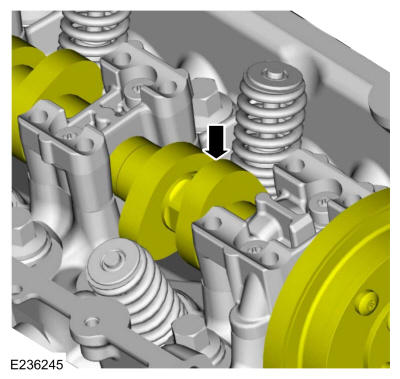

52. Lubricate the all LH camshaft lopes with clean engine oil.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

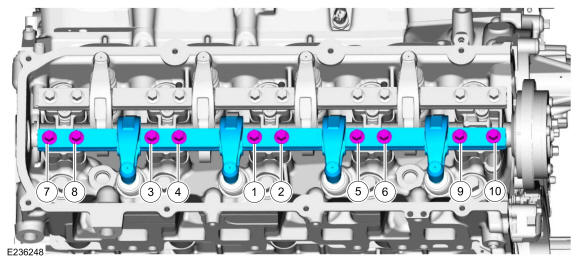

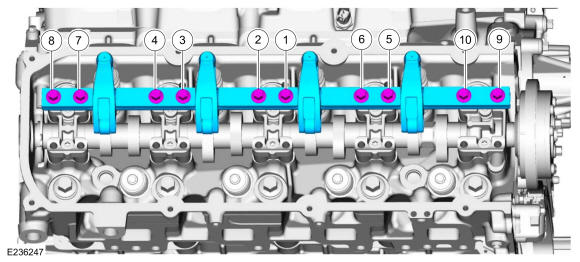

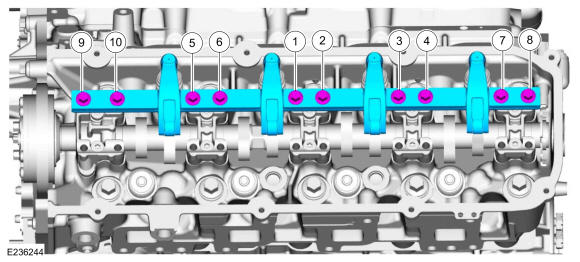

53. Install the LH intake rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 177 lb.in (20 Nm)

    Stage 3: 60 °

    Courtesy of FORD MOTOR COMPANY

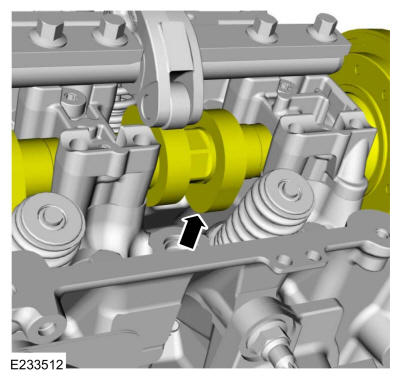

54. Using the crankshaft bolt, rotate the engine clockwise until the No. 1 cylinder camshaft exhaust lobe is positioned so that the exhaust valve would be fully opened.

    Courtesy of FORD MOTOR COMPANY

55. Install the LH exhaust rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 177 lb.in (20 Nm)

    Stage 3: 60 °

    Courtesy of FORD MOTOR COMPANY

56. Using the crankshaft bolt, rotate the engine clockwise until the No. 1 cylinder camshaft intake lobe is positioned so that the intake valve would be fully closed.

    Courtesy of FORD MOTOR COMPANY

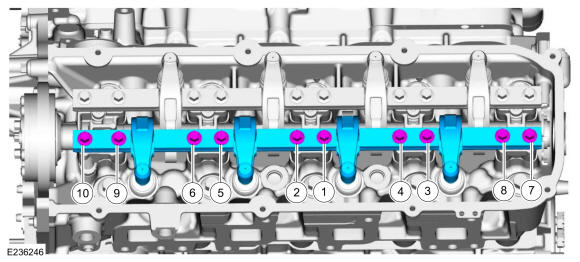

57. Install the RH intake rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 177 lb.in (20 Nm)

    Stage 3: 60 °

    Courtesy of FORD MOTOR COMPANY

58. Using the crankshaft bolt, rotate the engine clockwise until the No. 1 cylinder camshaft exhaust lobe is positioned so that the exhaust valve would be fully closed.

    Courtesy of FORD MOTOR COMPANY

59. Install the RH exhaust rocker arm shaft assembly and the bolts finger-tight and tighten the bolts sequence shown, in 3 stages.

    Torque:

    Stage 1: 89 lb.in (10 Nm)

    Stage 2: 177 lb.in (20 Nm)

    Stage 3: 60 °

    Courtesy of FORD MOTOR COMPANY

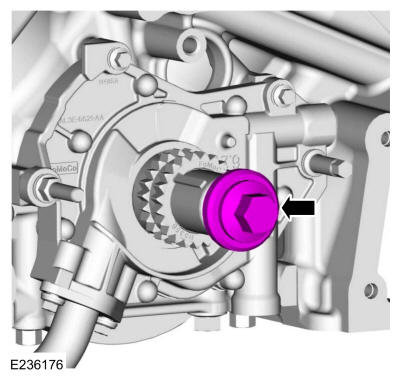

60. Remove and discard the crankshaft pulley bolt and washer.

    Courtesy of FORD MOTOR COMPANY

61. Install the new gaskets on the engine front cover.

    Courtesy of FORD MOTOR COMPANY

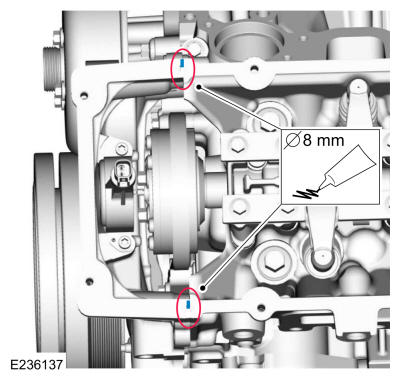

62. NOTE: If the engine front cover is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned.
    NOTE: Make sure that the engine front cover gaskets are in place on the engine front cover before installation.

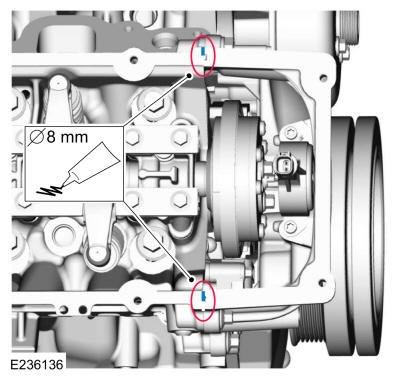

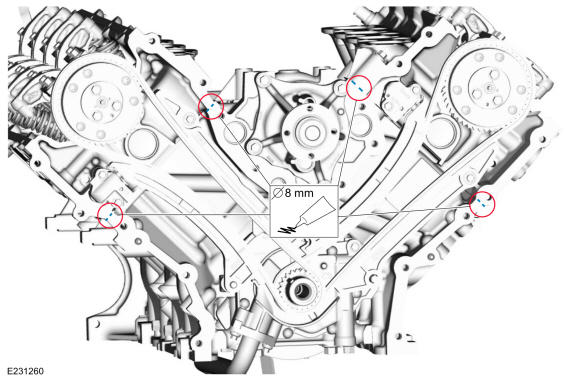

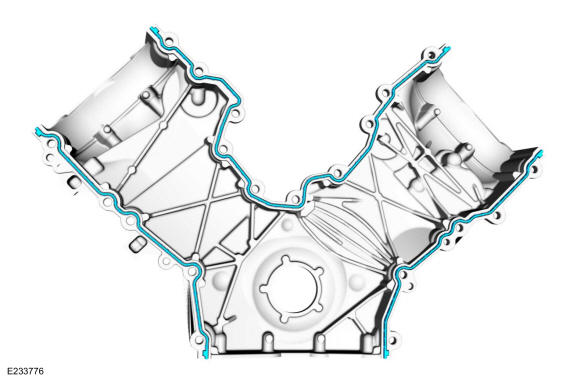

    Apply a bead of silicone gasket and sealant 8 mm (0.314 in) along the cylinder head-to-cylinder block surface, at the locations shown.

    Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

    Courtesy of FORD MOTOR COMPANY

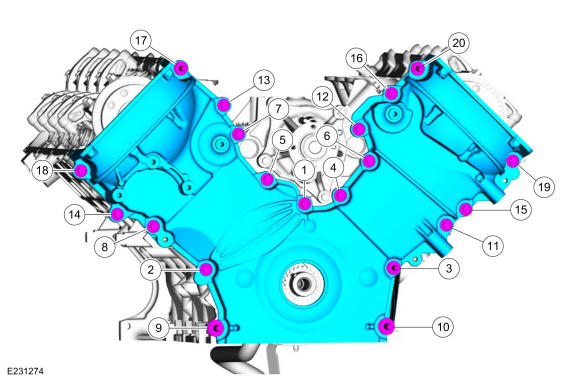

63. • Install the engine front cover bolts and studs bolts finger-tight.
    • Tighten the engine front cover bolts and studs bolts in sequence shown.

      Torque:

      Tighten bolts 1 through 20 to: 89 lb.in (10 Nm)

      Tighten bolts 1 through 20 to: 177 lb.in (20 Nm)

      Tighten bolts 1 through 20 an additional: 30 °

    Courtesy of FORD MOTOR COMPANY

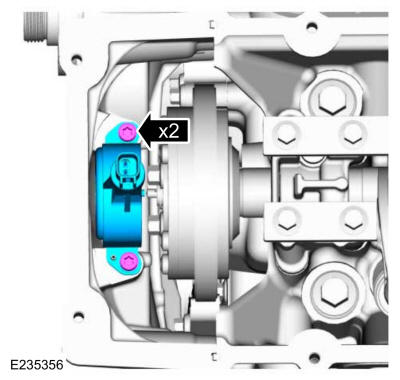

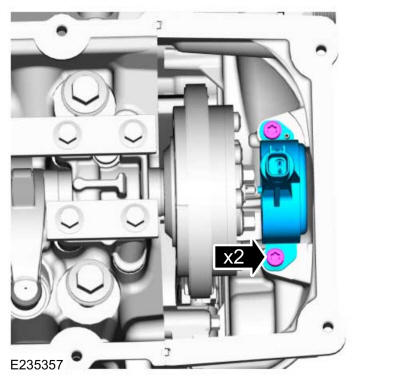

64. Install the RH VCT oil control solenoid and tighten the bolts.

    Torque:

    Stage 1: 71 lb.in (8 Nm)

    Stage 2: 30 °

    Courtesy of FORD MOTOR COMPANY

65. Install the LH VCT oil control solenoid and tighten the bolts.

    Torque:

    Stage 1: 71 lb.in (8 Nm)

    Stage 2: 30 °

    Courtesy of FORD MOTOR COMPANY

66. NOTE: If the rear crankshaft seal retaining plate is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure may cause future oil leaks.
    NOTE: The silicone must be applied on the groove along the retainer plate.

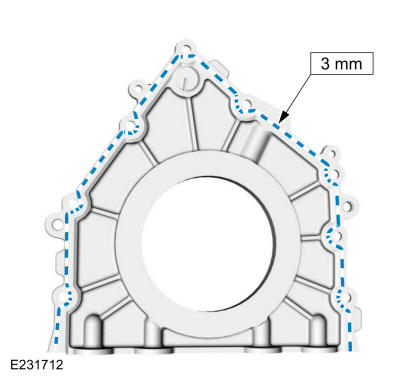

    Apply a 3 mm (0.12 in) bead of silicone gasket and sealant around the crankshaft rear seal retainer plate sealing surface.

    Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

    Courtesy of FORD MOTOR COMPANY

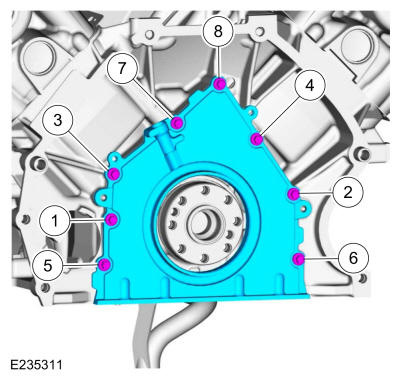

67. • Install the crankshaft rear seal retainer plate and the bolts finger-tight.
    • Tighten the bolts in sequence shown.

      Torque:

      Stage 1: 89 lb.in (10 Nm)

      Stage 2: 30 °

    Courtesy of FORD MOTOR COMPANY

68. NOTE: If not secured within 5 minutes, the sealant must be removed and the sealing area cleaned.

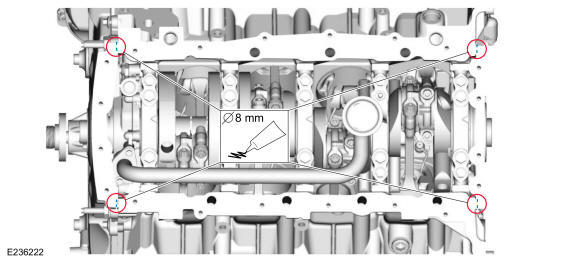

    Apply 8 mm (0.314 in) silicone gasket and sealant at the crankshaft rear seal retainer plate-to-cylinder block and engine front cover-to-cylinder block sealing surface.

    Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

    Courtesy of FORD MOTOR COMPANY

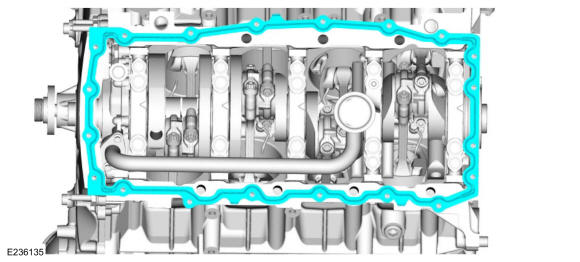

69. Install a new oil pan gasket.

    Courtesy of FORD MOTOR COMPANY

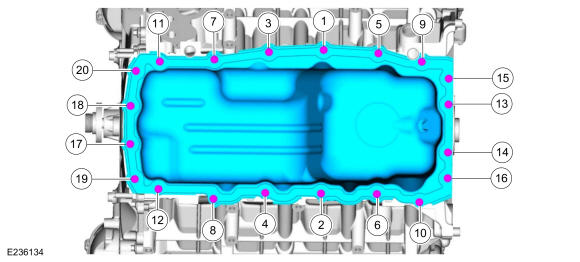

70. Install the oil pan and the bolts finger tight and tighten in 2 stages in the sequence shown.

    Torque:

    Stage 1: 106 lb.in (12 Nm)

    Stage 2: 40 °

    Courtesy of FORD MOTOR COMPANY

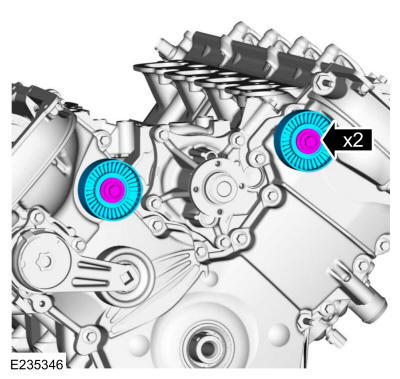

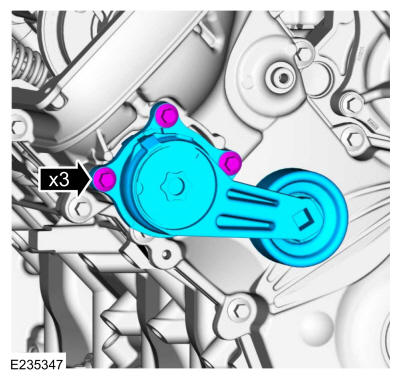

71. Install the accessory drive belt tensioner and the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

72. Install the accessory drive belt idler pulleys and the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

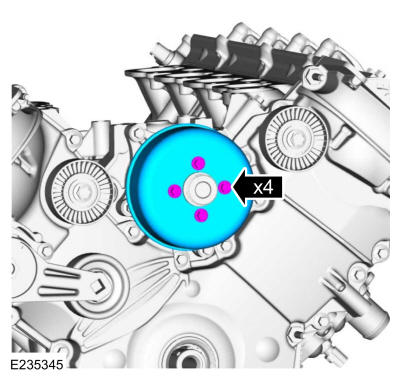

73. Install the coolant pump pulley and the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

74. Lubricate the engine front cover bore with clean engine oil.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

75. Using the special tools, install the new crankshaft front seal. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-1508 Installer, Front Crank Seal.

    Courtesy of FORD MOTOR COMPANY

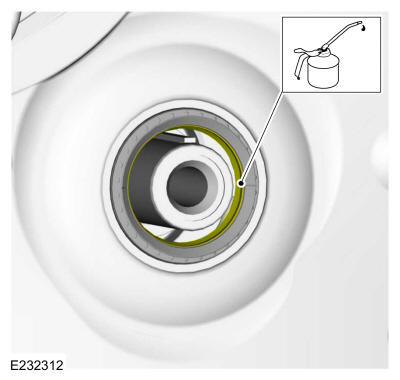

76. Lubricate the crankshaft front seal inner lip with clean engine oil.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

77. NOTE: If the crankshaft pulley is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned.

    Apply a bead of silicone gasket and sealant to the woodruff key slot.

    Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

    Courtesy of FORD MOTOR COMPANY

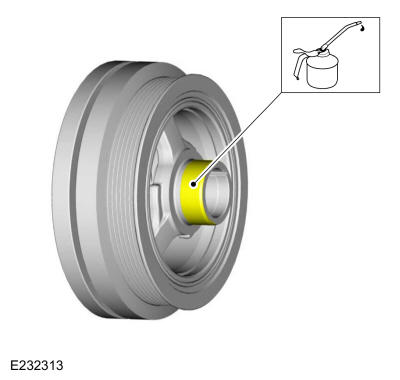

78. Lubricate the crankshaft pulley sealing surface with clean engine oil prior to installation.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

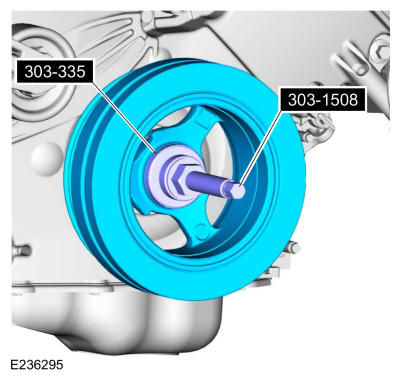

79. Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-1508 Installer, Front Crank Seal.

    Courtesy of FORD MOTOR COMPANY

80. Using the strap wrench, install a new crankshaft pulley bolt and tighten in 2 stages.Use the General Equipment: Strap Wrench

    Torque:

    Stage 1: 129 lb.ft (175 Nm)

    Stage 2: 90 °

    Courtesy of FORD MOTOR COMPANY

81. If equipped, install the engine block heater.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

82. Install new oil filter adapter O-ring seals.

    Courtesy of FORD MOTOR COMPANY

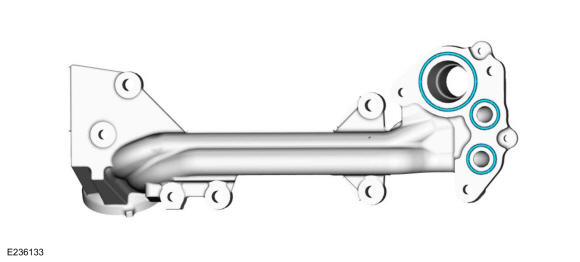

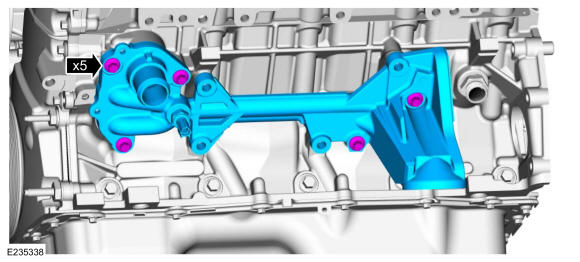

83. Install the oil filter adapter and the bolts.

    Torque:

    Stage 1: 177 lb.in (20 Nm)

    Stage 2: 60 °

    Courtesy of FORD MOTOR COMPANY

84. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the special tools, install a new VCT oil control solenoid seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.

    Courtesy of FORD MOTOR COMPANY

85. Install the oil fill cap.

    Courtesy of FORD MOTOR COMPANY

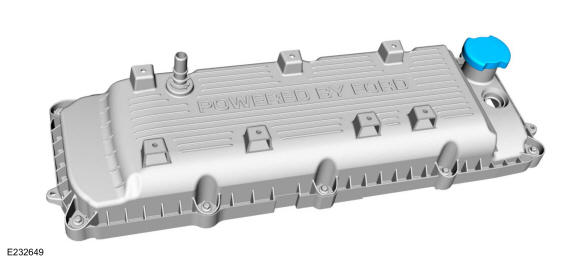

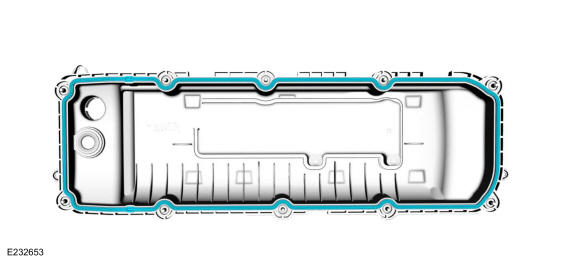

86. Install a new RH valve cover gasket.

    Courtesy of FORD MOTOR COMPANY

87. NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 8 mm (0.31 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

    Courtesy of FORD MOTOR COMPANY

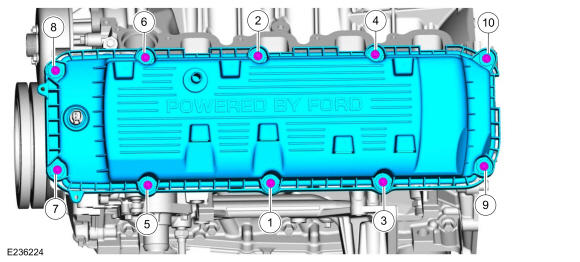

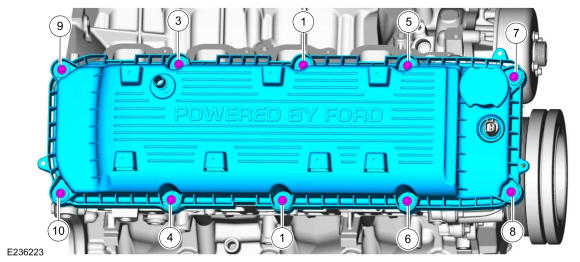

88. Install the RH valve cover and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

89. NOTE: Installation of new seals is only required if damaged seals were removed.

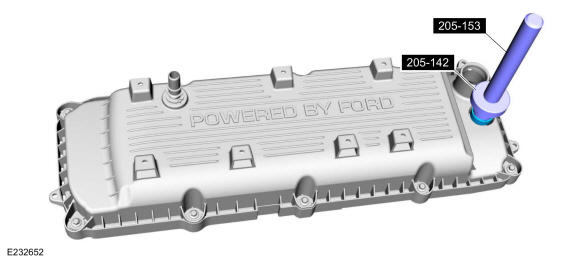

    Using the special tools, install a new VCT oil control solenoid seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.

    Courtesy of FORD MOTOR COMPANY

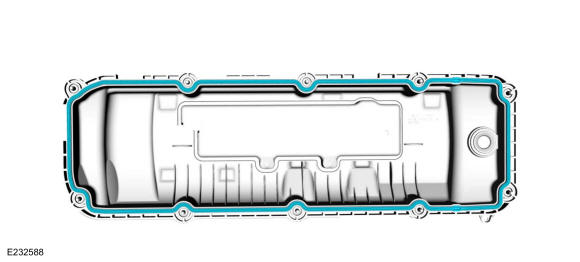

90. Install a new LH valve cover gasket.

    Courtesy of FORD MOTOR COMPANY

91. NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 8 mm (0.31 in) bead of Motorcraft ® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

    Courtesy of FORD MOTOR COMPANY

92. Install the LH valve cover and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

93. Lubricate oil level indicator tube O-ring seal and with clean engine oil.

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

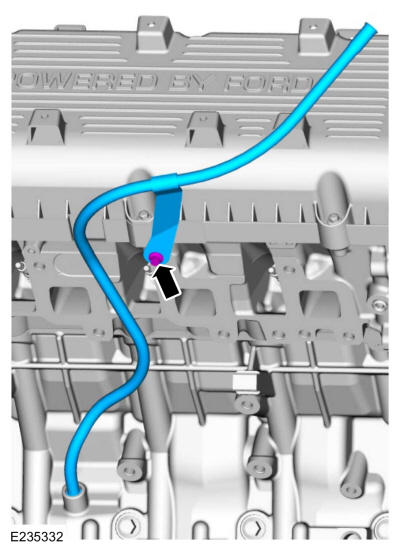

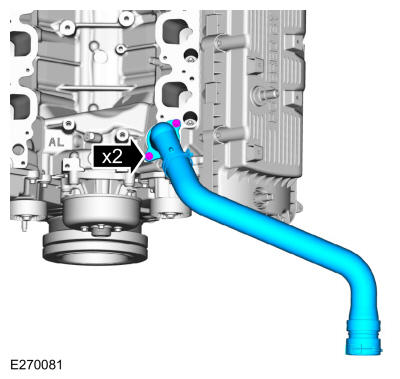

94. Install the oil level indicator tube and the bolt.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

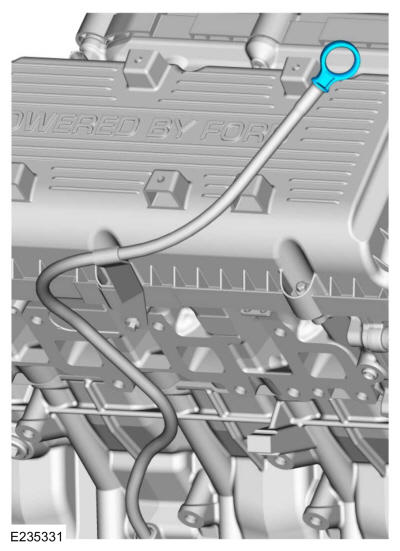

95. Install the oil level indicator.

    Courtesy of FORD MOTOR COMPANY

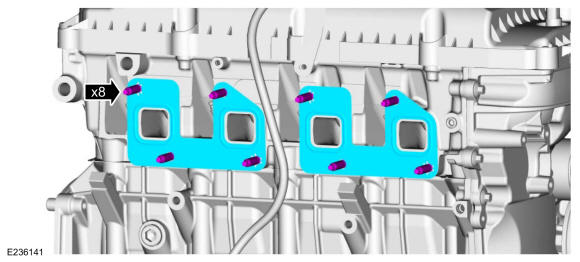

96. • Install the new LH exhaust manifold studs.

      Torque: 18 lb.ft (25 Nm)

    • Install the new LH exhaust manifold gaskets.

    Courtesy of FORD MOTOR COMPANY

97. • Install the LH exhaust manifold and the new nuts finger-tight.
    • NOTE: Torque sequence must be performed twice.

      Tighten the exhaust manifold nuts in sequence shown.

      Torque:

      Stage 1: 18 lb.ft (24 Nm)

      Stage 2: 23 lb.ft (31 Nm)

    Courtesy of FORD MOTOR COMPANY

98. Install the LH exhaust manifold heat shield and the bolts.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

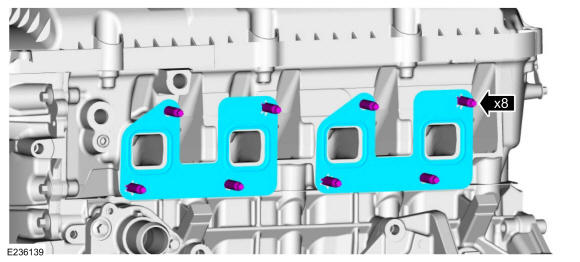

99. • Install the RH new exhaust manifold studs.

      Torque: 18 lb.ft (25 Nm)

    • Install the new exhaust manifold gaskets.

    Courtesy of FORD MOTOR COMPANY

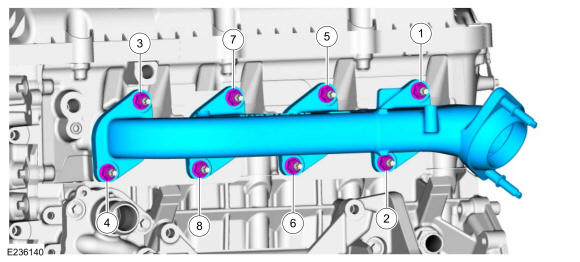

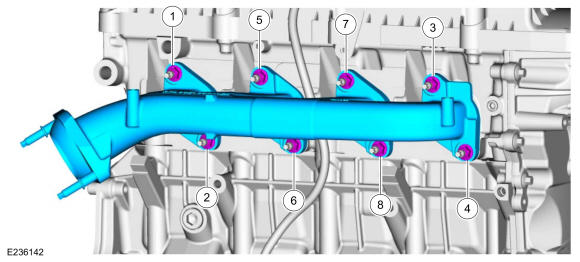

100. • Install the RH exhaust manifold and the new nuts finger-tight.
     • NOTE: Torque sequence must be performed twice.

       Tighten the exhaust manifold nuts in sequence shown.

       Torque:

       Stage 1: 18 lb.ft (24 Nm)

       Stage 2: 23 lb.ft (31 Nm)

     Courtesy of FORD MOTOR COMPANY

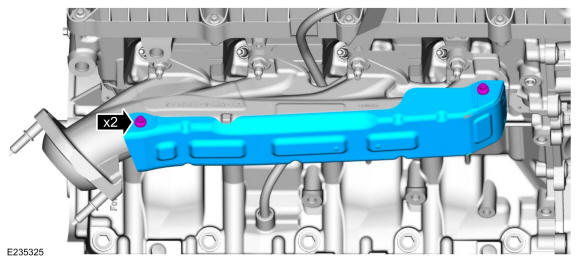

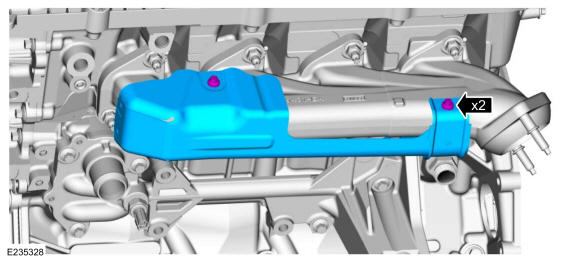

101. Install the RH exhaust manifold heat shield and the bolts.

     Torque: 106 lb.in (12 Nm)

     Courtesy of FORD MOTOR COMPANY

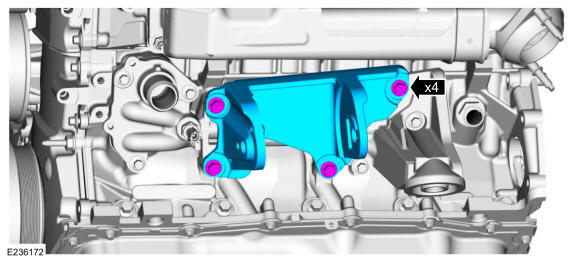

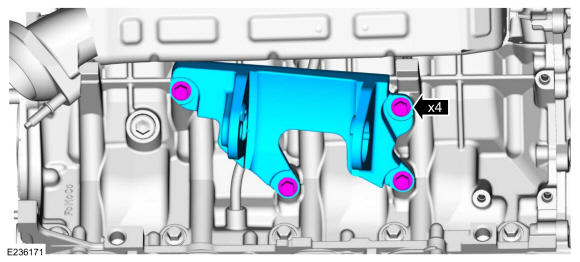

102. Install the RH engine mount bracket and the bolts.

     Torque:

     Stage 1: 22 lb.ft (30 Nm)

     Stage 2: 60 °

     Courtesy of FORD MOTOR COMPANY

103. Install the LH engine mount bracket and the bolts.

     Torque:

     Stage 1: 22 lb.ft (30 Nm)

     Stage 2: 60 °

     Courtesy of FORD MOTOR COMPANY

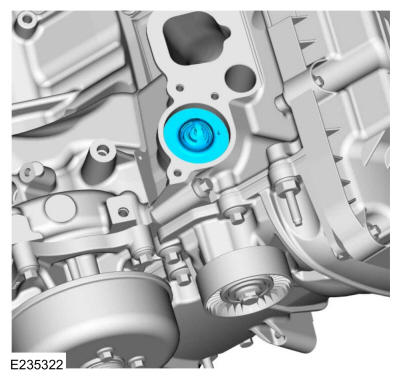

104. Install the thermostat.

     Courtesy of FORD MOTOR COMPANY

105. Install and lubricate the thermostat housing O-ring seal.

     Courtesy of FORD MOTOR COMPANY

106. Install the thermostat housing and upper radiator hose assembly and the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

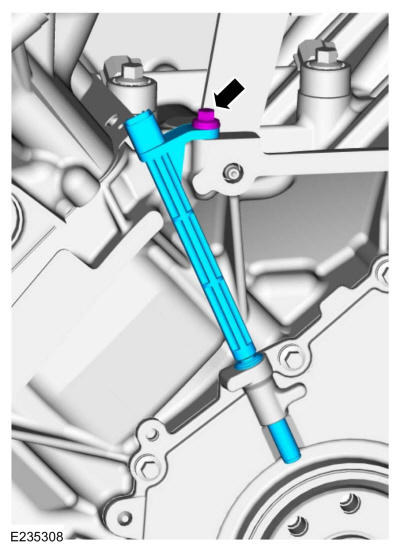

107. Install the KS and the bolts.

     Torque: 177 lb.in (20 Nm)

     Courtesy of FORD MOTOR COMPANY

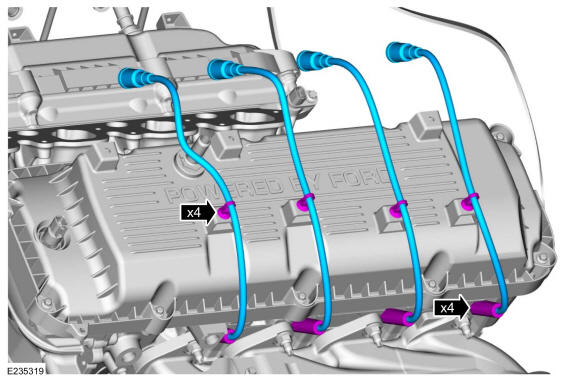

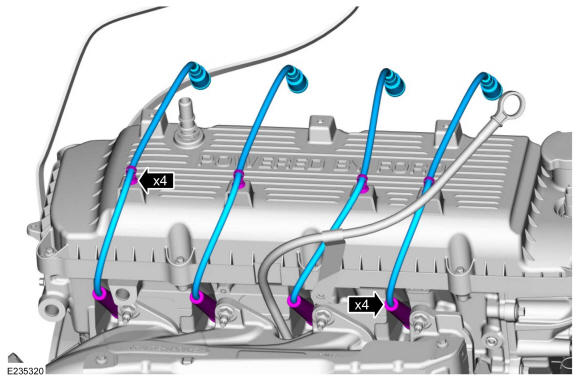

108. Connect the RH spark plug wires to the lower spark plugs and attach the retainers to the valve cover.

     Courtesy of FORD MOTOR COMPANY

109. Connect the LH spark plug wires to the lower spark plugs and attach the retainers to the valve cover.

     Courtesy of FORD MOTOR COMPANY

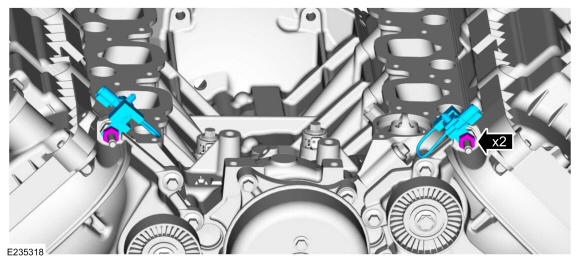

110. Install the radio ignition interference capacitors and the nuts.

     Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

111. Install the special tools and the bolts. Install Special Service Tool: 303-1507 Brackets, Support., 303-F047 Lifting Bracket, Engine.

     Courtesy of FORD MOTOR COMPANY

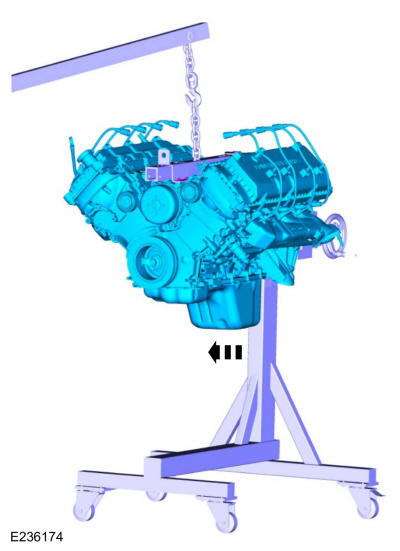

112. Using the floor crane, remove the engine from the mounting stand. Use the General Equipment: Floor Crane Use the General Equipment: Mounting Stand

     Courtesy of FORD MOTOR COMPANY

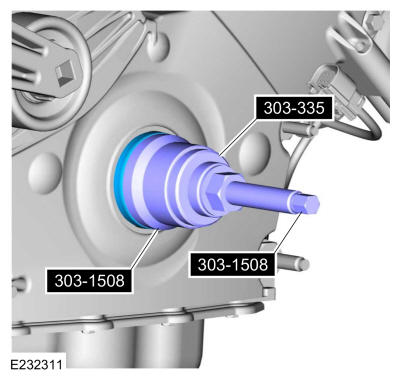

113. NOTE: Lubricate the crankshaft rear seal with clean engine oil prior to installation.

     Using the special tools, install the new crankshaft rear seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1250 Seal Installer, Rear Main.

     Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

     Courtesy of FORD MOTOR COMPANY

114. Install he CKP sensor and the bolt.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

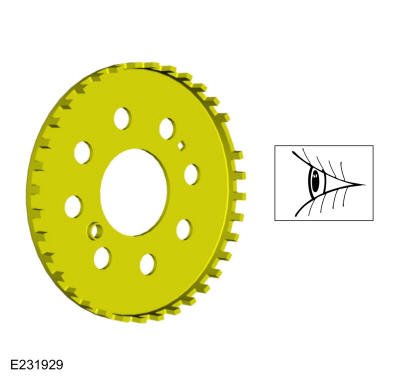

115. Inspect the ignition pulse ring for damage. If the ignition pulse ring has been dropped or has any visual damage, it must be replaced.

     Courtesy of FORD MOTOR COMPANY

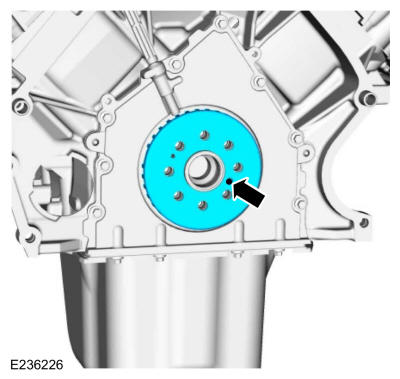

116. With the inset hole on the crankshaft ignition pulse ring aligned with the inset hole on the crankshaft flange, install the crankshaft ignition pulse ring.

     Courtesy of FORD MOTOR COMPANY

117. Install the engine-to-transmission spacer plate.

     Courtesy of FORD MOTOR COMPANY

118. NOTE: Flexplate shown, flywheel similar.

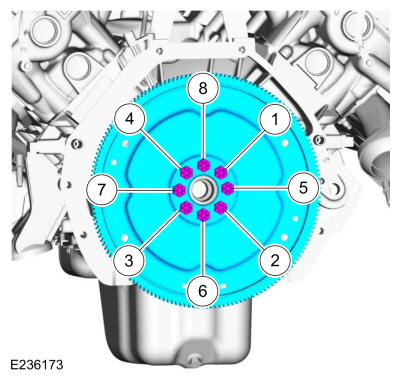

     • Install the flexplate and the new bolts finger-tight.
     • Tighten the bolts in sequence shown in 6 stages.

       Torque:

       Stage 1: Tighten fasteners 1 through 4 in sequence to: 177 lb.in (20 Nm)

       Stage 2: Tighten fasteners 1 through 4 in sequence to: 26 lb.ft (35 Nm)

       Stage 3: Tighten fasteners 1 through 4 in sequence an additional: 60 °

       Stage 4: Tighten fasteners 5 through 8 in sequence to: 177 lb.in (20 Nm)

       Stage 5: Tighten fasteners 5 through 8 in sequence to: 26 lb.ft (35 Nm)

       Stage 6: Tighten fasteners 5 through 8 in sequence an additional: 60 °

Courtesy of FORD MOTOR COMPANY
