Section 69 (Engine - 6.2L V8): Disassembly: Engine

WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

GFD201179Courtesy of FORD MOTOR COMPANY
 100-001 (T50T-100-A) Slide Hammer
GFD201613Courtesy of FORD MOTOR COMPANY
 205-142 (T80T-4000-J) Installer, Differential Bearing Cone
GFD200310Courtesy of FORD MOTOR COMPANY
 205-153 (T80T-4000-W) Handle
GFD201321Courtesy of FORD MOTOR COMPANY
 303-1507 Brackets, Support
GFD201228Courtesy of FORD MOTOR COMPANY
 303-409 (T92C-6700-CH) Remover, Crankshaft Seal TKIT-1992-FH/FMH/FLMH TKIT-1993-LMH/MH
GFD201244Courtesy of FORD MOTOR COMPANY
 303-519 (T95P-6701-EH) Remover, Crankshaft Rear Oil Seal TKIT-1995-FH/FLMH TKIT-1995-LMH/MH
GFD201575Courtesy of FORD MOTOR COMPANY
 303-F047 Lifting Bracket, Engine
Floor Crane
Three Leg Puller
Mounting Stand
Plastic Scraper

Materials

Name Specification
Motorcraft ® Silicone Gasket Remover ZC-30-A -
Motorcraft ® Metal Surface Prep -
Motorcraft ® Metal Brake Parts Cleaner PM-4-A, PM-4-B -
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: Remove the cylinder heads before removing the crankshaft. Failure to do so can result in engine damage.
NOTE: If the components are to be reinstalled, they must be installed in their original location. Mark the components for installation into their original location.
NOTE: Refer to the exploded view under the Engine Component View in the Description and Operation. See Engine Component View
NOTE: Early build engine shown, late build engine similar.
  1. NOTE: Flexplate shown, flywheel similar.

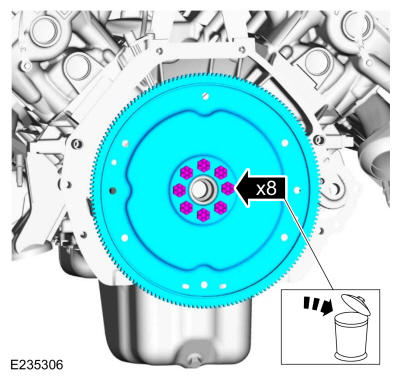

    • Remove the bolts and the flexplate.

    • Discard the bolts.

    GFD201614Courtesy of FORD MOTOR COMPANY
  2. Remove the engine-to-transmission spacer plate.
    GFD201615Courtesy of FORD MOTOR COMPANY

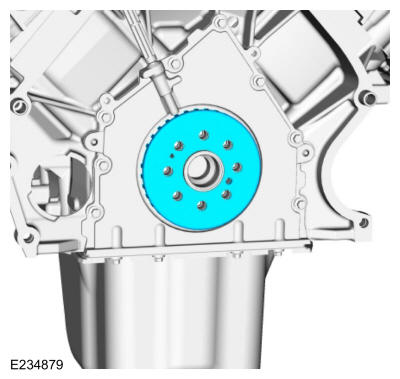

  3. Remove the crankshaft ignition pulse ring.
    GFD201616Courtesy of FORD MOTOR COMPANY
  4. Remove the bolt and the CKP sensor.
    GFD201617Courtesy of FORD MOTOR COMPANY

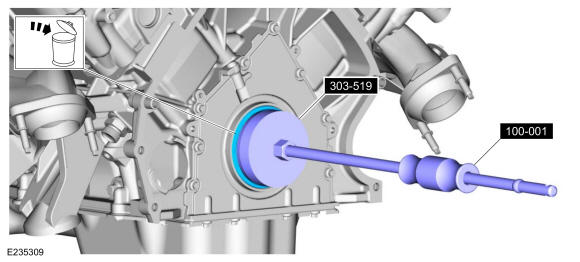

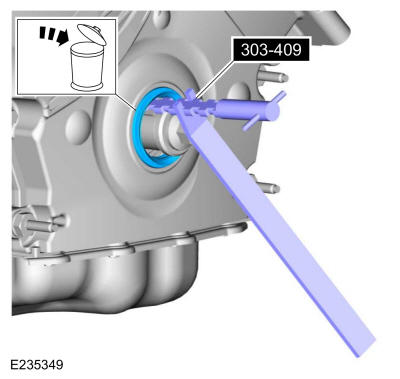

  5. Using the special tools, remove and discard the crankshaft rear seal. Use Special Service Tool: 303-519 (T95P-6701-EH) Remover, Crankshaft Rear Oil Seal., 100-001 (T50T-100-A) Slide Hammer.
    GFD201618Courtesy of FORD MOTOR COMPANY

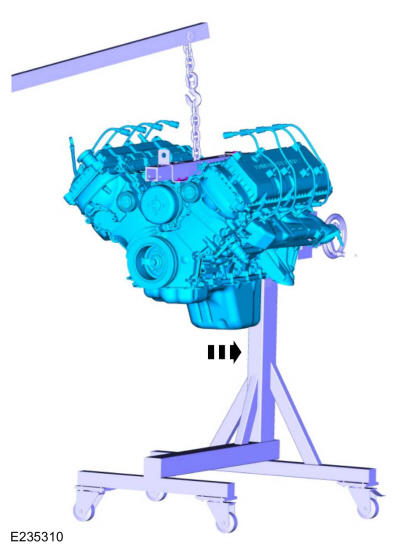

  6. Using the floor crane, mount the engine to a mounting stand. Use the General Equipment: Floor Crane Use the General Equipment: Mounting Stand
    GFD201619Courtesy of FORD MOTOR COMPANY
  7. Remove the bolts and the special tools. Remove Special Service Tool: 303-1507 Brackets, Support., 303-F047 Lifting Bracket, Engine.
    GFD201608Courtesy of FORD MOTOR COMPANY
  8. Remove the nuts and the radio ignition interference capacitors.
    GFD201620Courtesy of FORD MOTOR COMPANY
    • Disconnect the LH spark plug wires from the valve cover retainers.

    • Remove the spark plug wires from the lower spark plugs.

    GFD201621Courtesy of FORD MOTOR COMPANY
    • Disconnect the RH spark plug wires from the valve cover retainers.

    • Remove the spark plug wires from the lower spark plugs.

    GFD201622Courtesy of FORD MOTOR COMPANY
  11. Remove the bolts and the KS.
    GFD201623Courtesy of FORD MOTOR COMPANY
  12. Remove the bolts and the thermostat housing and upper radiator hose assembly.
    GFD201267Courtesy of FORD MOTOR COMPANY
  13. Remove and discard the thermostat housing O-ring seal.
    GFD201268Courtesy of FORD MOTOR COMPANY
  14. Remove the thermostat.
    GFD201624Courtesy of FORD MOTOR COMPANY

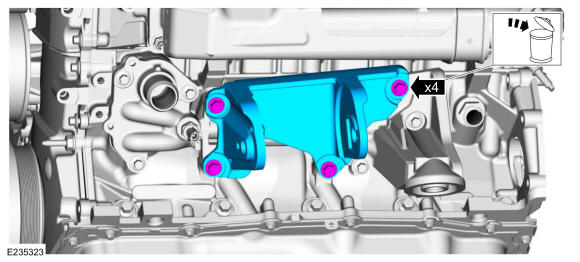

    • Remove the bolts and the LH engine mount bracket.

    • Discard the bolts.

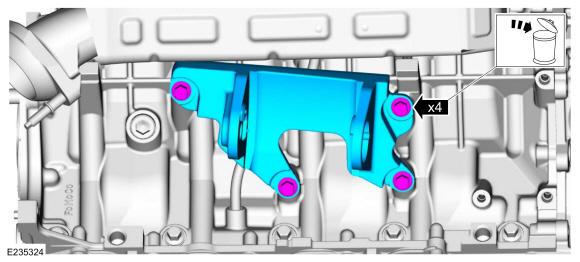

    GFD201625Courtesy of FORD MOTOR COMPANY
    • Remove the bolts and the RH engine mount bracket.

    • Discard the bolts.

    GFD201626Courtesy of FORD MOTOR COMPANY
  17. Remove the bolts and the RH exhaust manifold heat shield.
    GFD201627Courtesy of FORD MOTOR COMPANY
    • Remove the nuts and the RH exhaust manifold.

    • Discard the nuts.

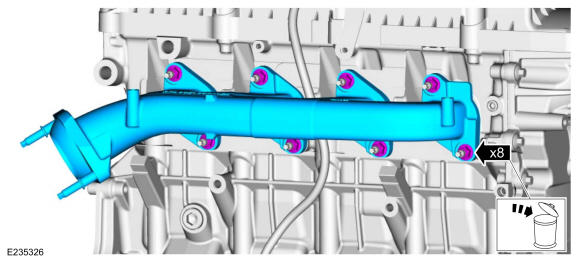

    GFD201628Courtesy of FORD MOTOR COMPANY

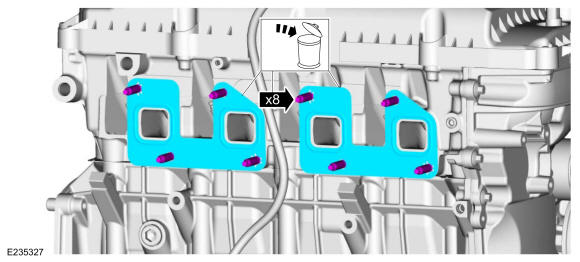

  19. Remove and discard the RH exhaust manifold stud and gaskets.
    GFD201629Courtesy of FORD MOTOR COMPANY
  20. Remove the bolts and the LH exhaust manifold heat shield.
    GFD201630Courtesy of FORD MOTOR COMPANY
    • Remove the nuts and the LH exhaust manifold.

    • Discard the nuts.

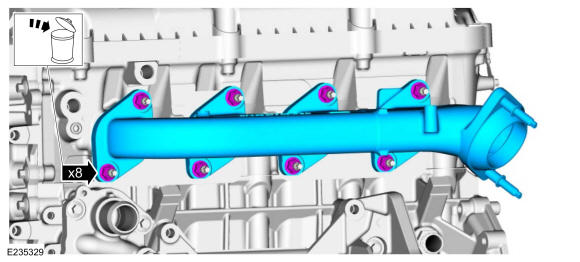

    GFD201631Courtesy of FORD MOTOR COMPANY

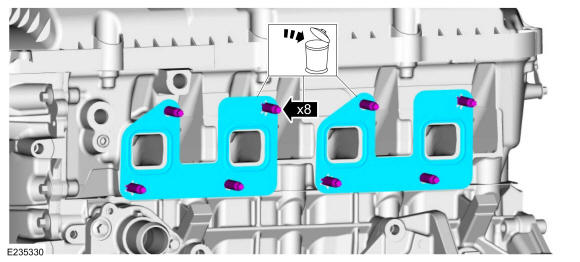

  22. Remove and discard the LH exhaust manifold stud and gaskets.
    GFD201632Courtesy of FORD MOTOR COMPANY
  23. Remove the oil level indicator.
    GFD201633Courtesy of FORD MOTOR COMPANY
  24. Remove the bolt and the oil level indicator tube.
    GFD201634Courtesy of FORD MOTOR COMPANY
  25. Inspect the oil level indicator tube O-ring seal for damaged.
    GFD201635Courtesy of FORD MOTOR COMPANY

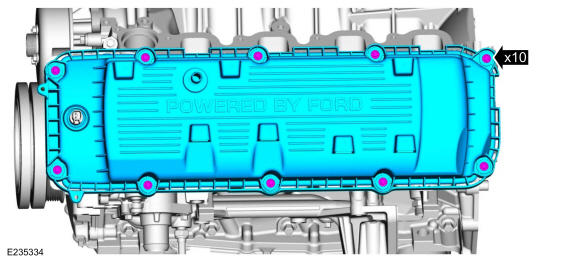

  26. Loosen the bolts and remove the LH valve cover.
    GFD201636Courtesy of FORD MOTOR COMPANY
  27. Remove and discard the LH valve cover gasket.

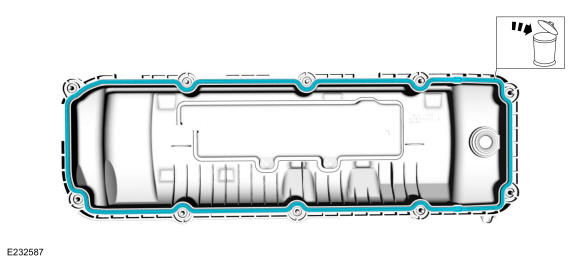

    GFD201637Courtesy of FORD MOTOR COMPANY

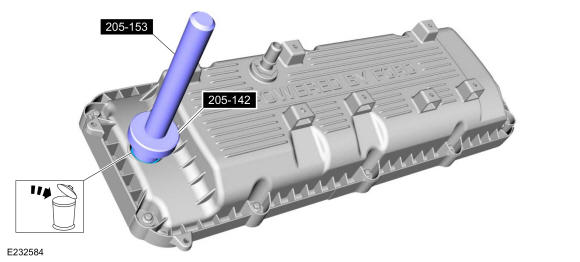

  28. Inspect the VCT oil control solenoid seal. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.
    GFD201638Courtesy of FORD MOTOR COMPANY
  29. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

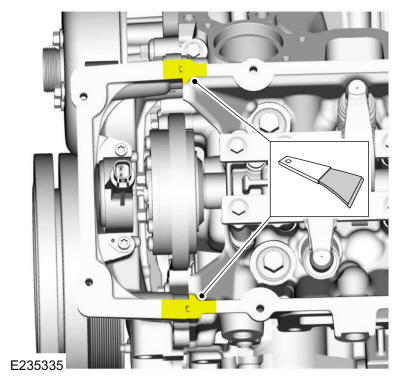

    GFD201639Courtesy of FORD MOTOR COMPANY

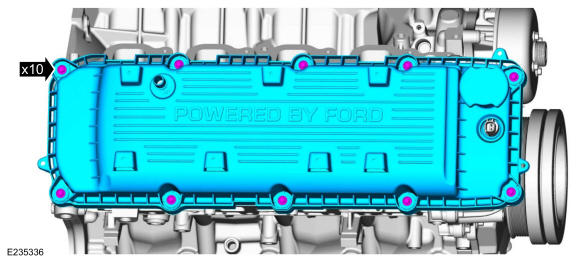

  30. Loosen the fasteners and remove the RH valve cover.
    GFD201640Courtesy of FORD MOTOR COMPANY

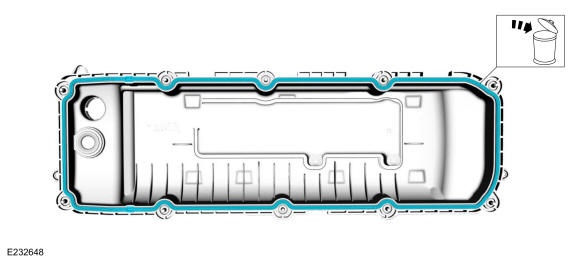

  31. Remove and discard the RH valve cover gasket.
    GFD201554Courtesy of FORD MOTOR COMPANY
  32. Remove the oil fill cap.
    GFD201555Courtesy of FORD MOTOR COMPANY

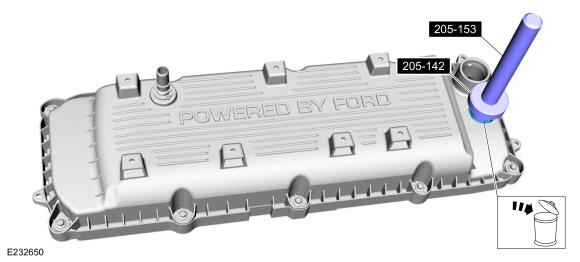

  33. Inspect the VCT oil control solenoid seal. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-142 (T80T-4000-J) Installer, Differential Bearing Cone.
    GFD201556Courtesy of FORD MOTOR COMPANY
  34. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to: RTV Sealing Surface Cleaning and Preparation .Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    GFD201641Courtesy of FORD MOTOR COMPANY
  35. Remove the bolts and the oil filter adapter.
    GFD201642Courtesy of FORD MOTOR COMPANY
  36. Remove and discard the oil filter adapter O-ring seals.

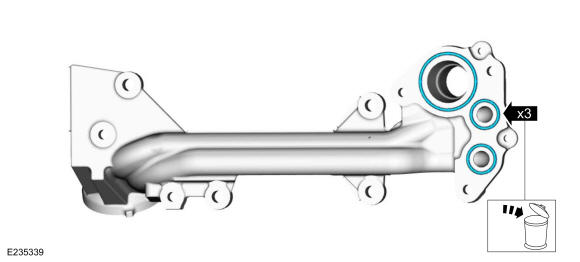

    GFD201643Courtesy of FORD MOTOR COMPANY

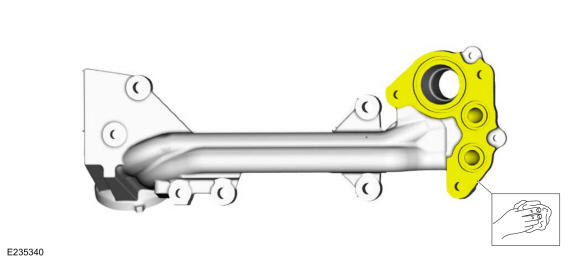

  37. Clean the oil filter adapter mating surface.
    GFD201644Courtesy of FORD MOTOR COMPANY

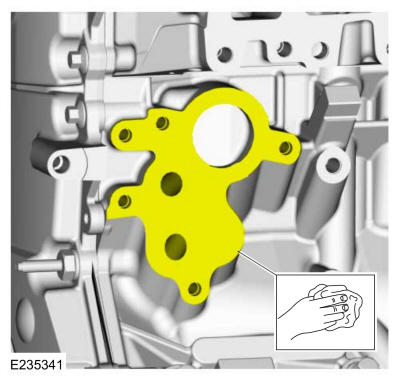

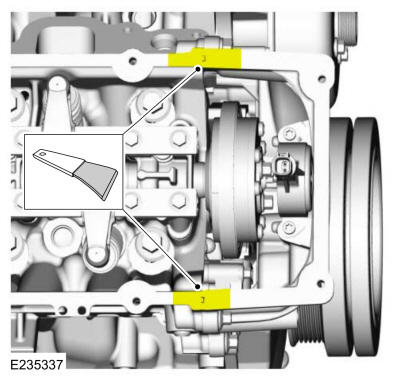

  38. Clean the engine block mating surface of the oil filter adapter.
    GFD201645Courtesy of FORD MOTOR COMPANY
  39. If equipped, remove the engine block heater.
    GFD201646Courtesy of FORD MOTOR COMPANY

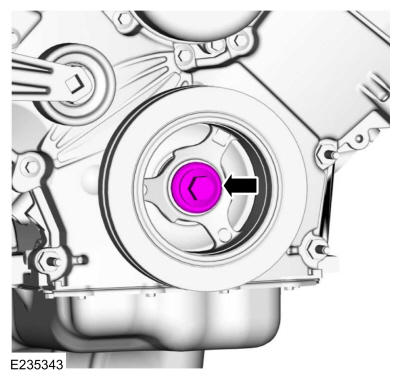

  40. NOTE: Do not discard the crankshaft pulley bolt and washer, it will be used to turn the crankshaft in disassembly and assembly.

    Remove the crankshaft pulley bolt and washer.

    GFD201647Courtesy of FORD MOTOR COMPANY

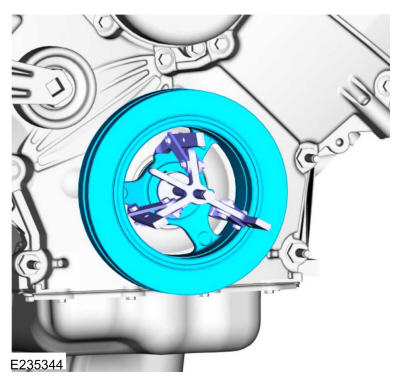

  41. Using the special tool, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller
    GFD201648Courtesy of FORD MOTOR COMPANY
  42. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the crankshaft pulley woodruff key slot. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

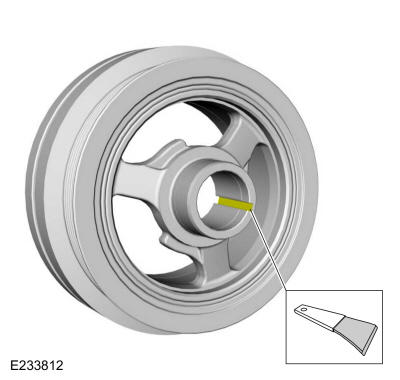

    GFD201232Courtesy of FORD MOTOR COMPANY
  43. Remove the bolts and the coolant pump pulley.
    GFD201649Courtesy of FORD MOTOR COMPANY
  44. Remove the bolts and the accessory drive belt idler pulleys.
    GFD201650Courtesy of FORD MOTOR COMPANY
  45. Remove the bolts and the accessory drive belt tensioner.
    GFD201651Courtesy of FORD MOTOR COMPANY

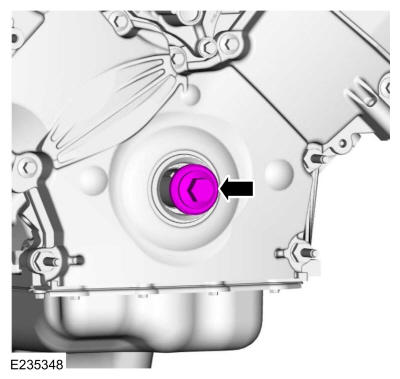

  46. Install the crankshaft pulley bolt and washer.
    GFD201652Courtesy of FORD MOTOR COMPANY
  47. Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    GFD201653Courtesy of FORD MOTOR COMPANY

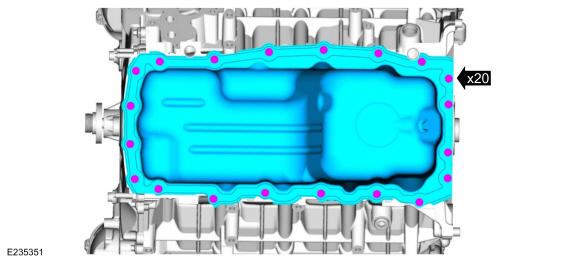

  48. Remove the bolts and the oil pan.
    GFD201654Courtesy of FORD MOTOR COMPANY
  49. Remove and discard the oil pan gasket.
    GFD201655Courtesy of FORD MOTOR COMPANY

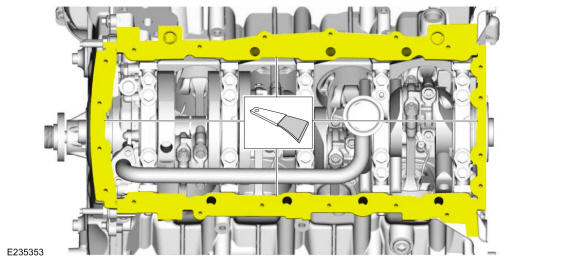

  50. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

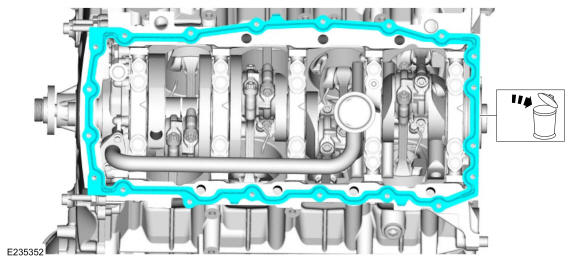

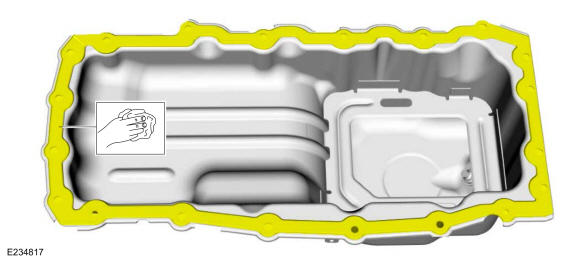

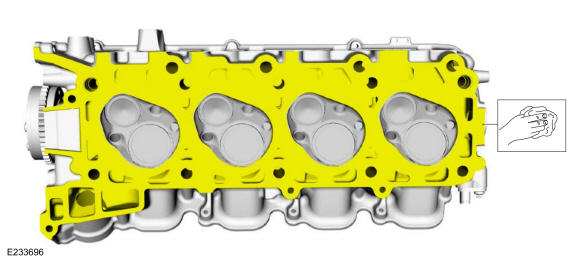

    GFD201656Courtesy of FORD MOTOR COMPANY
  51. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the oil pan. These tools cause scratches and gouges, which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD201657Courtesy of FORD MOTOR COMPANY

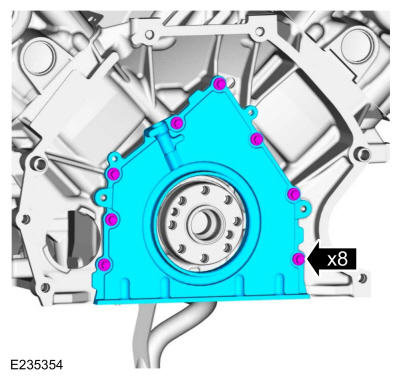

  52. Remove the bolts and the crankshaft rear seal retainer plate.
    GFD201658Courtesy of FORD MOTOR COMPANY
  53. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

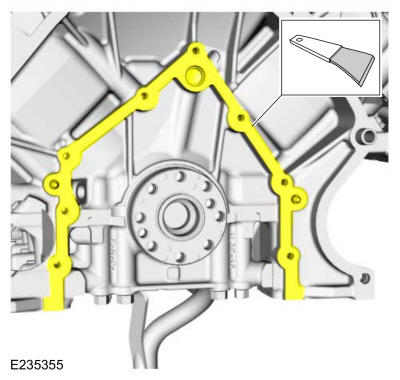

    GFD201659Courtesy of FORD MOTOR COMPANY
  54. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

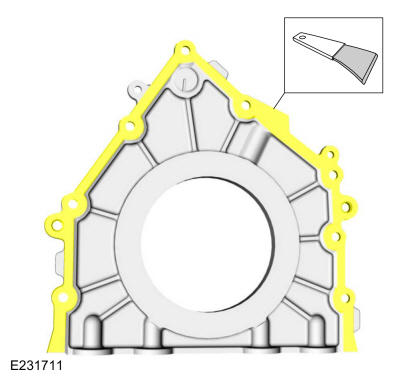

    GFD201258Courtesy of FORD MOTOR COMPANY
  55. Loosen the bolts and remove the LH VCT oil control solenoid.
    GFD201660Courtesy of FORD MOTOR COMPANY
  56. Loosen the bolts and remove the RH VCT oil control solenoid.
    GFD201661Courtesy of FORD MOTOR COMPANY

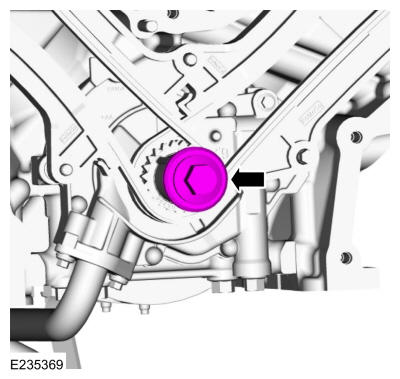

  57. Remove the crankshaft pulley bolt and washer.

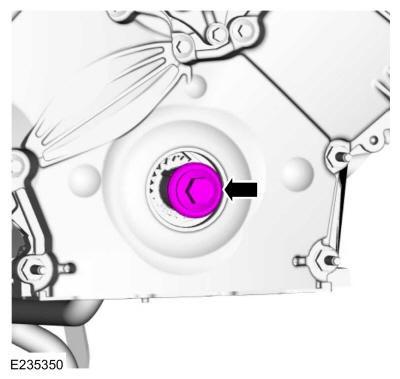

    GFD201662Courtesy of FORD MOTOR COMPANY
  58. Remove the bolts and the engine front cover.

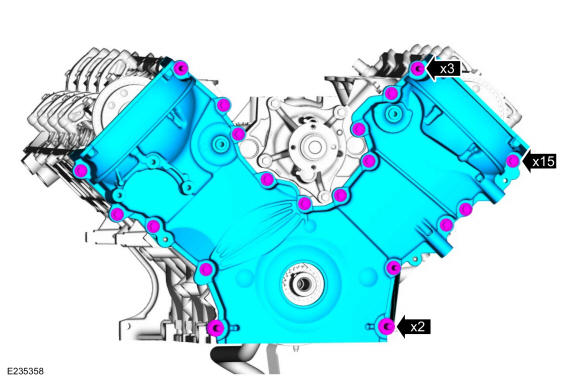

    GFD201663Courtesy of FORD MOTOR COMPANY
  59. Remove and discard the engine front cover gaskets.
    GFD201313Courtesy of FORD MOTOR COMPANY
  60. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the engine front cover. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

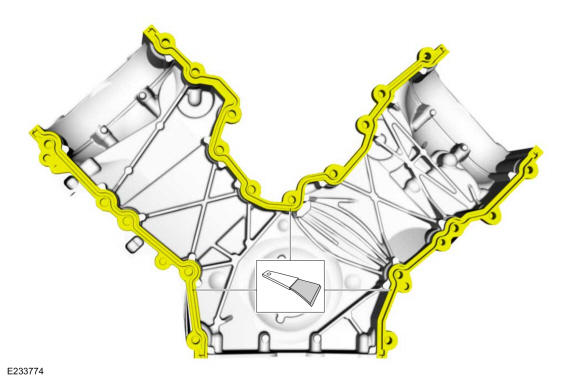

    GFD201314Courtesy of FORD MOTOR COMPANY
  61. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean engine front cover surface. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .Use the General Equipment: Plastic Scraper

    Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

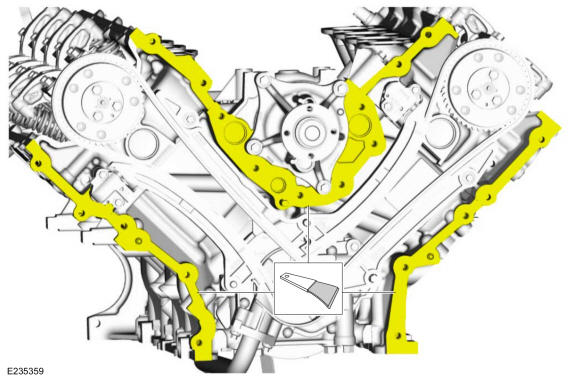

    GFD201664Courtesy of FORD MOTOR COMPANY

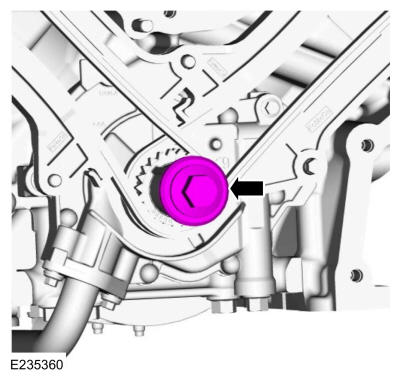

  62. Install the crankshaft pulley bolt and washer.
    GFD201665Courtesy of FORD MOTOR COMPANY

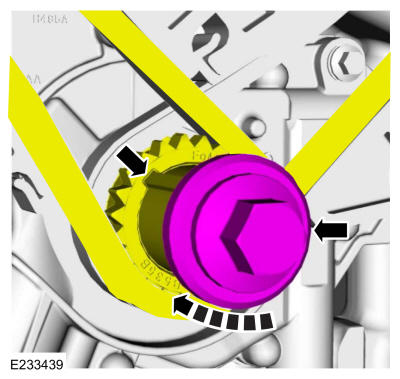

  63. NOTE: Only rotate the engine in a clockwise direction.

    Using the crankshaft bolt, rotate the engine clockwise until the No. 1 intake valve is open.

    GFD201666Courtesy of FORD MOTOR COMPANY

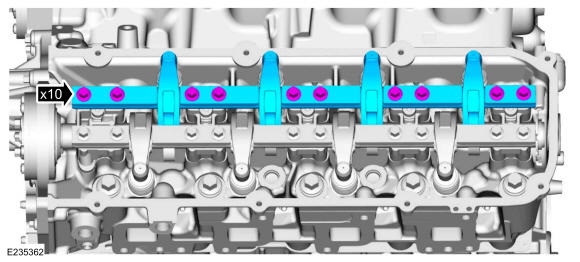

  64. Remove the bolts and the LH intake rocker arm shaft assembly.
    GFD201667Courtesy of FORD MOTOR COMPANY

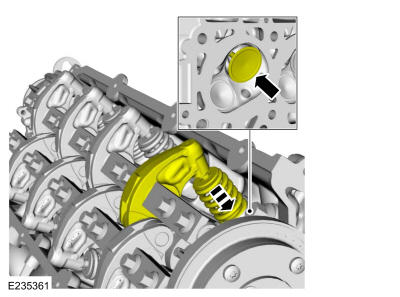

  65. NOTE: Only rotate the engine in a clockwise direction.

    Using the crankshaft bolt, rotate the engine clockwise until the No. 1 exhaust valve is open.

    GFD201668Courtesy of FORD MOTOR COMPANY

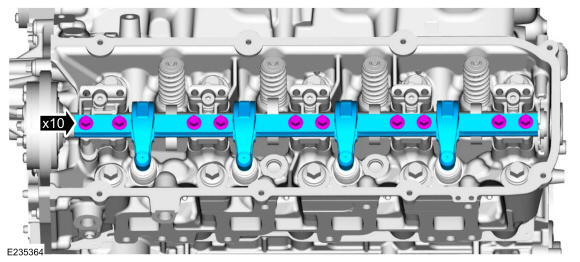

  66. Remove the bolts and the LH exhaust rocker arm shaft assembly.
    GFD201669Courtesy of FORD MOTOR COMPANY

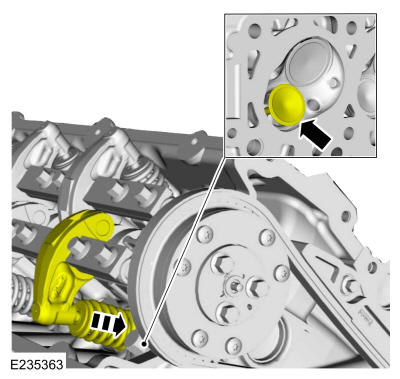

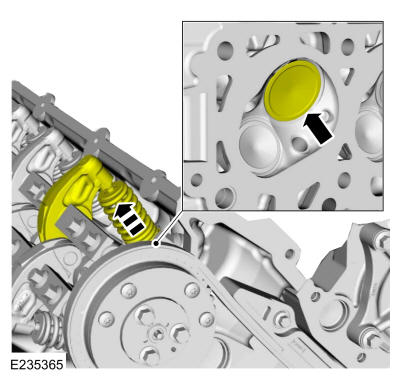

  67. NOTE: Only rotate the engine in a clockwise direction.

    Using the crankshaft bolt, rotate the engine clockwise until the No. 1 intake valve is closed.

    GFD201670Courtesy of FORD MOTOR COMPANY

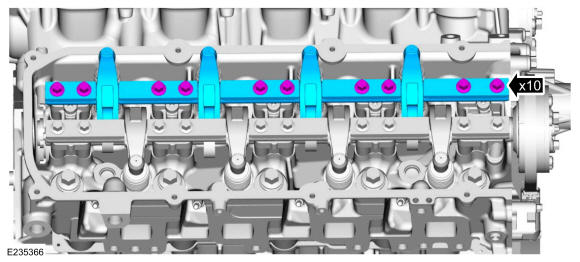

  68. Remove the bolts and the RH intake rocker arm shaft assembly.
    GFD201671Courtesy of FORD MOTOR COMPANY

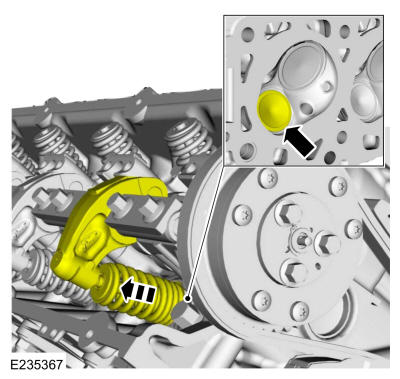

  69. NOTE: Only rotate the engine in a clockwise direction.

    Using the crankshaft bolt, rotate the engine clockwise until the No. 1 exhaust valve is closed.

    GFD201672Courtesy of FORD MOTOR COMPANY

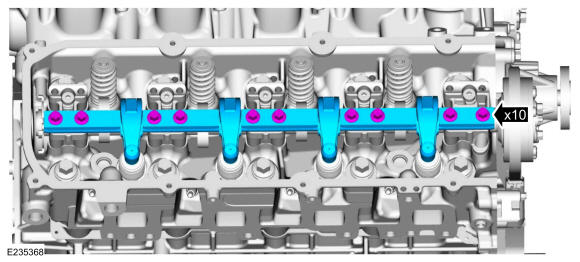

  70. Remove the bolts and the RH exhaust rocker arm shaft assembly.
    GFD201673Courtesy of FORD MOTOR COMPANY
  71. NOTE: Only rotate the engine in a clockwise direction.

    Using the crankshaft bolt, rotate the engine in a clockwise direction and position the crankshaft keyway at the 11 o'clock position.

    GFD201674Courtesy of FORD MOTOR COMPANY
  72. Remove the crankshaft pulley bolt and washer.
    GFD201675Courtesy of FORD MOTOR COMPANY

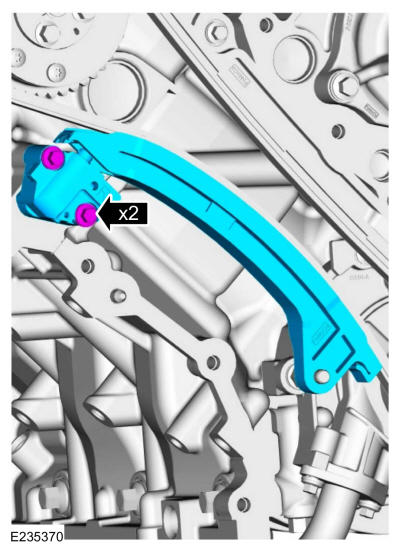

  73. Remove the bolts, the RH primary timing chain tensioner and tensioner arm.
    GFD201676Courtesy of FORD MOTOR COMPANY

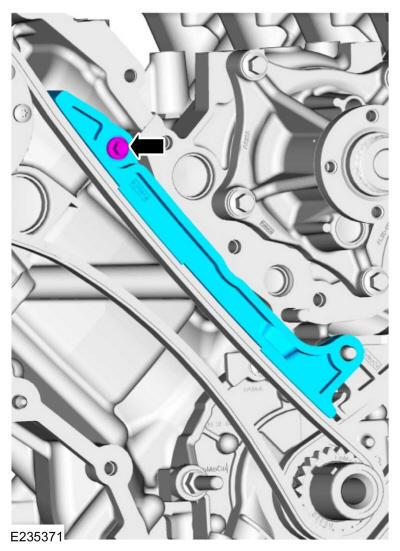

  74. Remove the bolt and the RH timing chain guide.
    GFD201677Courtesy of FORD MOTOR COMPANY
  75. Remove the RH timing chain.

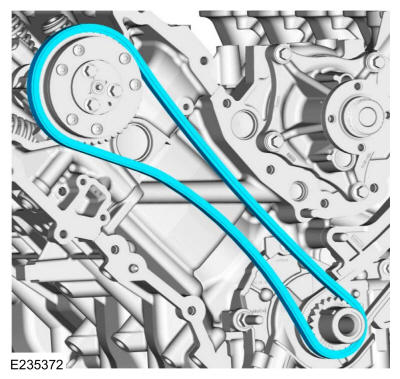

    GFD201678Courtesy of FORD MOTOR COMPANY

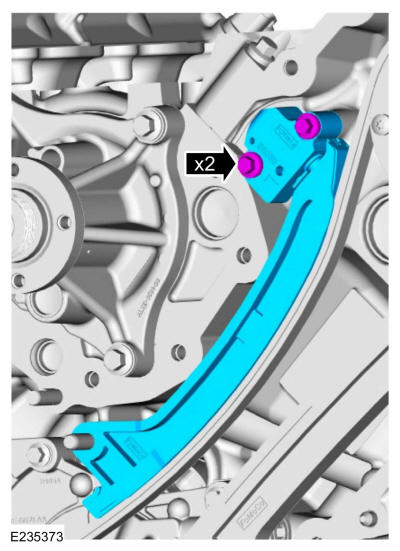

  76. Remove the bolts, the LH primary timing chain tensioner and tensioner arm.
    GFD201679Courtesy of FORD MOTOR COMPANY

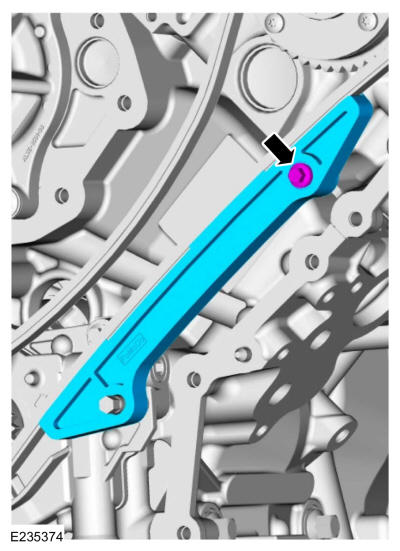

  77. Remove the bolt and the LH timing chain guide.
    GFD201680Courtesy of FORD MOTOR COMPANY

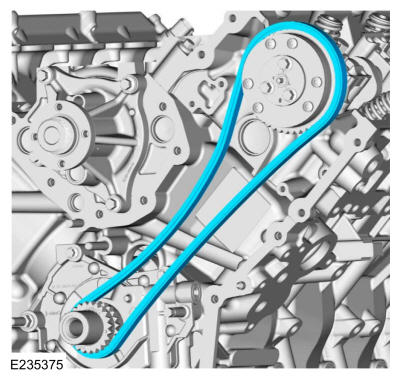

  78. Remove the LH timing chain.
    GFD201681Courtesy of FORD MOTOR COMPANY
  79. Remove the crankshaft sprocket.
    GFD201682Courtesy of FORD MOTOR COMPANY
  80. NOTE: The cylinder head must be cool before removing it from the engine. Cylinder head warpage may result if a warm or hot cylinder head is removed.
    NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Failure to follow this instruction may cause engine damage.
    NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.

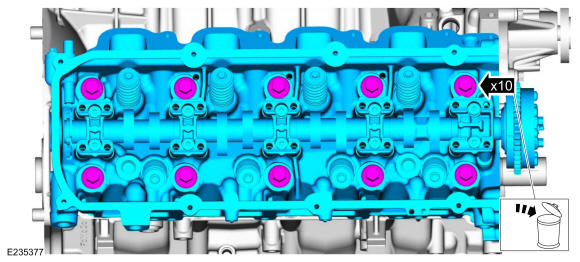

    • Remove and discard the RH cylinder head bolts.

    • Remove the RH cylinder head.

    GFD201683Courtesy of FORD MOTOR COMPANY

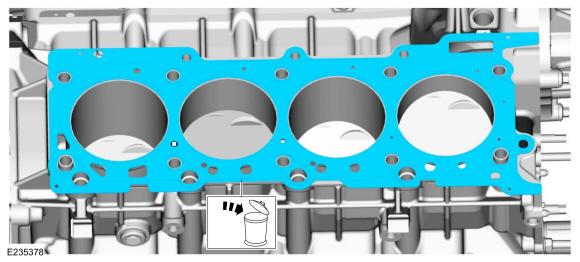

  81. Remove and discard the RH cylinder head gasket.
    GFD201684Courtesy of FORD MOTOR COMPANY
  82. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface. Failure to follow this instruction may cause engine damage.
    NOTE: Clean the cylinder block bolt holes using compressed air. Make sure all coolant, oil or other foreign material is removed.

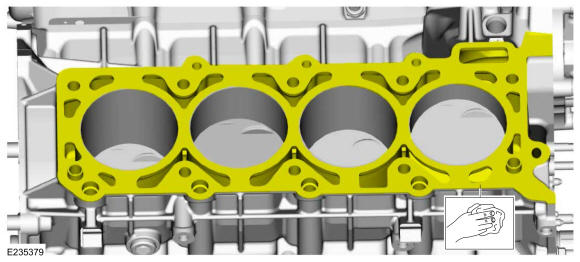

    • Clean and inspect the cylinder block mating surface.

    GFD201685Courtesy of FORD MOTOR COMPANY
  83. Remove the dowels from the RH bank of the cylinder block.
    GFD201686Courtesy of FORD MOTOR COMPANY
  84. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface. Failure to follow this instruction may cause engine damage.
    NOTE: Clean the cylinder head bolt holes using compressed air. Make sure all coolant, oil or other foreign material is removed.

    • Clean and inspect the RH cylinder head mating surface.

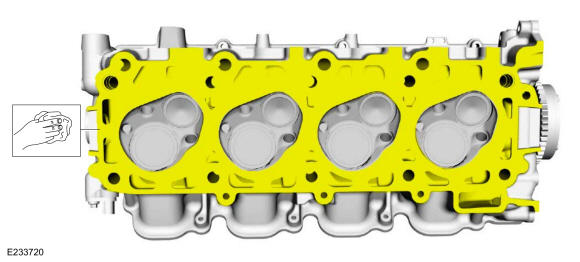

    GFD201296Courtesy of FORD MOTOR COMPANY
  85. NOTE: The cylinder head must be cool before removing it from the engine. Cylinder head warpage may result if a warm or hot cylinder head is removed.
    NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Failure to follow this instruction may cause engine damage.
    NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.

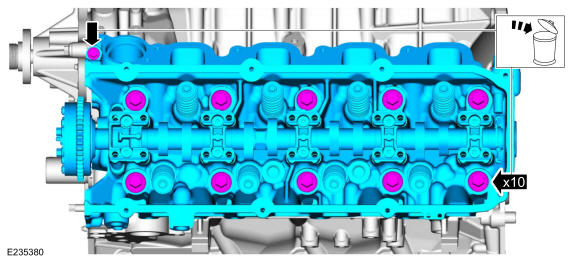

    • Remove and discard the LH cylinder head bolts.

    • Remove the cylinder head.

    GFD201687Courtesy of FORD MOTOR COMPANY

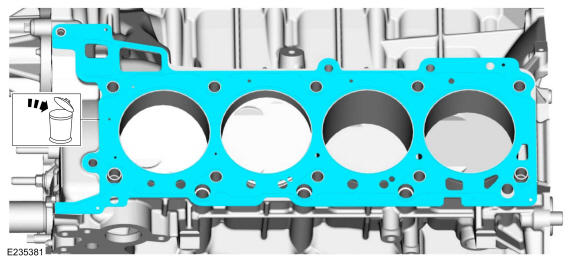

  86. Remove and discard the LH cylinder head gasket.
    GFD201688Courtesy of FORD MOTOR COMPANY
  87. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface. Failure to follow this instruction may cause engine damage.
    NOTE: Clean the cylinder head bolt holes using compressed air. Make sure all coolant, oil or other foreign material is removed.

    • Clean and inspect the LH cylinder block mating surface.

    GFD201689Courtesy of FORD MOTOR COMPANY
  88. Remove the dowels from the LH bank of the cylinder block.
    GFD201690Courtesy of FORD MOTOR COMPANY

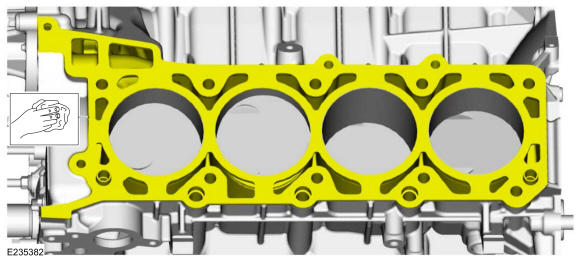

  89. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface. Failure to follow this instruction may cause engine damage.
    NOTE: Clean the cylinder head bolt holes using compressed air. Make sure all coolant, oil or other foreign material is removed.

    • Clean and inspect the LH cylinder head mating surface.

    GFD201274Courtesy of FORD MOTOR COMPANY
  90. Remove the bolts and the coolant pump.
    GFD201691Courtesy of FORD MOTOR COMPANY

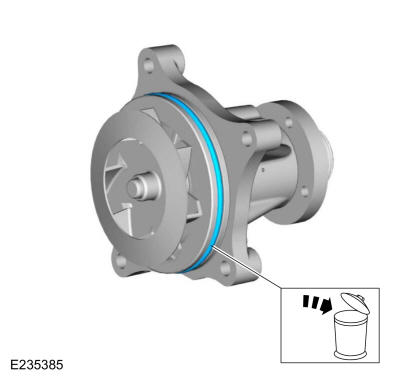

  91. Remove and discard the coolant pump O-ring seal.
    GFD201692Courtesy of FORD MOTOR COMPANY
    1. Remove the oil pump screen and pickup tube bolts.
    2. Remove and nut and the oil pump screen and pickup tube.
    GFD201693Courtesy of FORD MOTOR COMPANY
  93. Remove and discard the oil pump screen and pickup tube O-ring seal.
    GFD201694Courtesy of FORD MOTOR COMPANY
  94. Remove the upper bolts, lower stud bolts and the oil pump.
    GFD201695Courtesy of FORD MOTOR COMPANY
  95. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD201468Courtesy of FORD MOTOR COMPANY

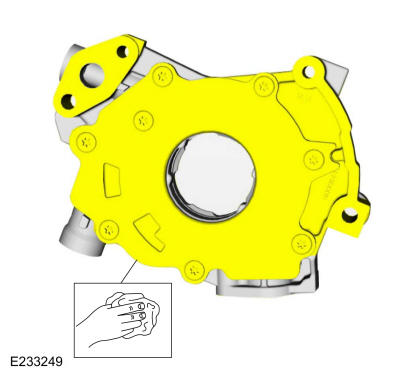

  96. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD201469Courtesy of FORD MOTOR COMPANY

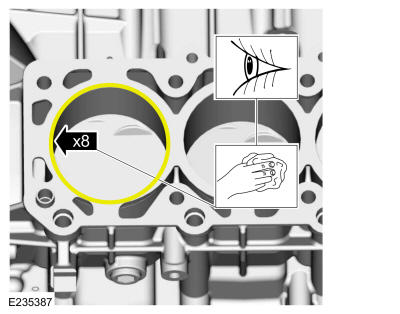

  97. Before removing the pistons, inspect the top of the cylinder bores. If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad or equivalent.
    GFD201696Courtesy of FORD MOTOR COMPANY

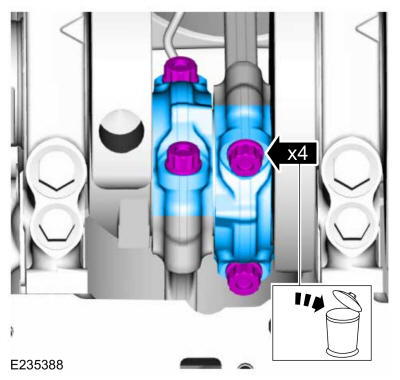

  98. NOTE: Verify that the connecting rods and rod caps have orientation numbers cast into them. If not, number the connecting rods and rod caps for correct orientation. Failure to follow these instructions may result in engine damage.

    • Remove the bolts and the connecting rod caps and bearings.

    • Discard the bolts.

    • Repeat for each set of pistons.

    GFD201697Courtesy of FORD MOTOR COMPANY
  99. NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod. Failure to follow this instruction may result in engine damage.

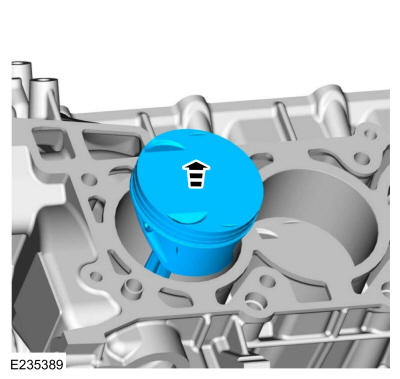

    • Remove the piston through the top of the cylinder block.

    • Repeat for each piston.

    GFD201698Courtesy of FORD MOTOR COMPANY
  100. Disassemble the pistons. Refer to: Piston .

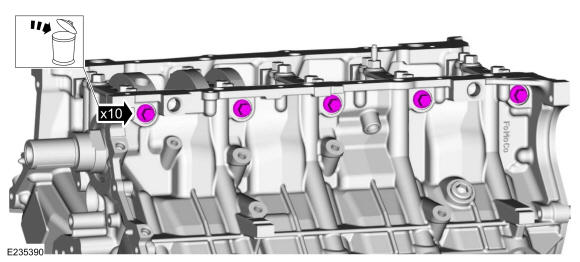

  101. Remove and discard the LH cross-mounted main cap bolts.
    GFD201699Courtesy of FORD MOTOR COMPANY

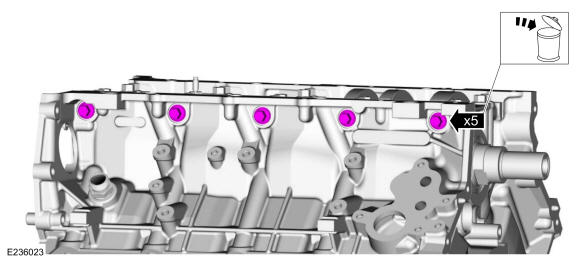

  102. Remove and discard the RH cross-mounted main cap bolts.
    GFD201700Courtesy of FORD MOTOR COMPANY
  103. NOTE: Correct stud bolt location is essential for assembly procedure. Record the stud bolt location.

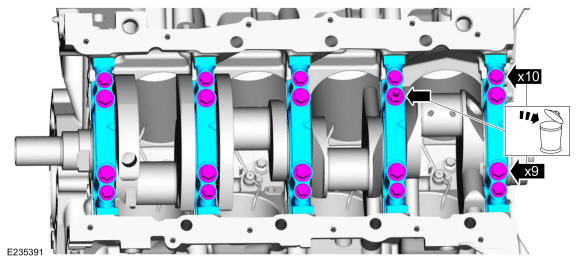

    • Remove and discard the main bearing cap bolts and the stud bolt.

    • Remove the main bearing caps.

    GFD201701Courtesy of FORD MOTOR COMPANY

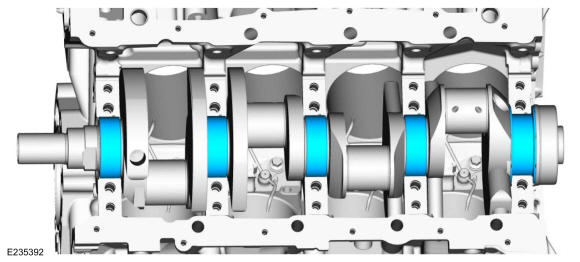

  104. Remove the lower crankshaft main bearings and the lower thrust washer.
    GFD201702Courtesy of FORD MOTOR COMPANY

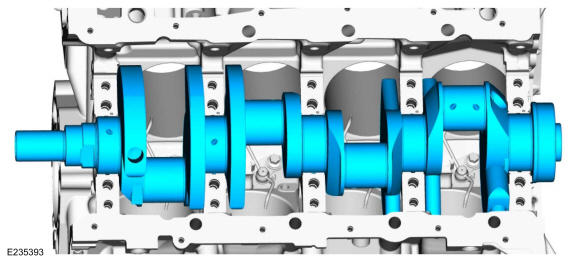

  105. Remove the crankshaft.
    GFD201703Courtesy of FORD MOTOR COMPANY

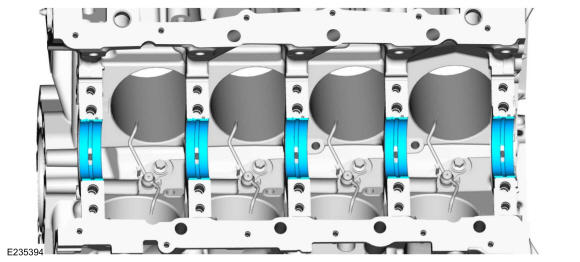

  106. Remove the upper crankshaft main bearings.
    GFD201704Courtesy of FORD MOTOR COMPANY

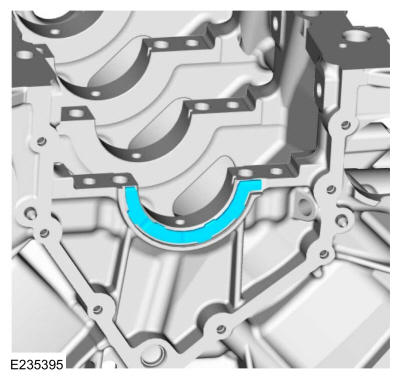

  107. Remove the upper crankshaft main bearing thrust washer.
    GFD201705Courtesy of FORD MOTOR COMPANY
  108. Remove the bolts and the piston oil cooler valves.
    GFD201706Courtesy of FORD MOTOR COMPANY
  109. Inspect the cylinder block distortion. Refer to: Cylinder Block Distortion .
scientia non olet · About LEMON Manuals
