Section 69 (Engine - 6.2L V8): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1507 Brackets, Support
Courtesy of FORD MOTOR COMPANY	303-214 (T83T-6312-B) Wrench, Fan Clutch Nut
Courtesy of FORD MOTOR COMPANY	303-478 (T94T-6312-AH) Holding Wrench, Fan Clutch Pulley TKIT-1994-FHFMHFLMHLTH
Courtesy of FORD MOTOR COMPANY	303-F047 Lifting Bracket, Engine
Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A) Retainer, Torque Converter TKIT-1998-LM (NavigatoR) TKIT-1997-F/FLM/LT
Magnetic Socket
Floor Crane
Trolley Jack
Hose Clamp Remover/Installer
1/2 Inch Square Drive Breaker Bar
Wooden Block

Materials

6-Speed Automatic Transmission - 6R100/6-Speed Automatic Transmission - 6R140

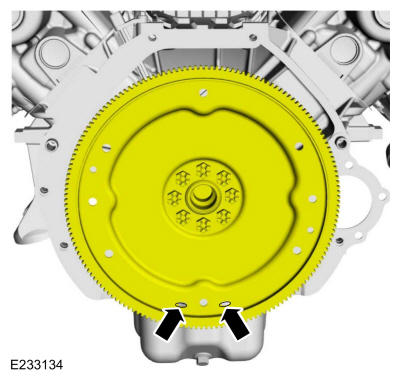

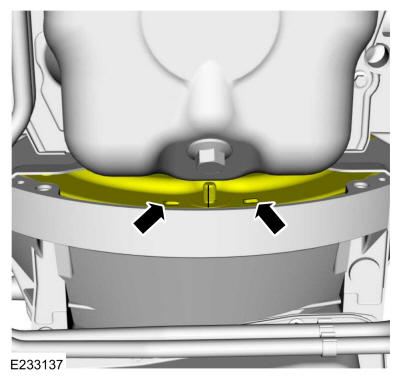

1. NOTE: Only rotate the crankshaft in a clockwise direction.

   Rotate the flexplate to align the 2 slots at the 6 o'clock position.

   Courtesy of FORD MOTOR COMPANY

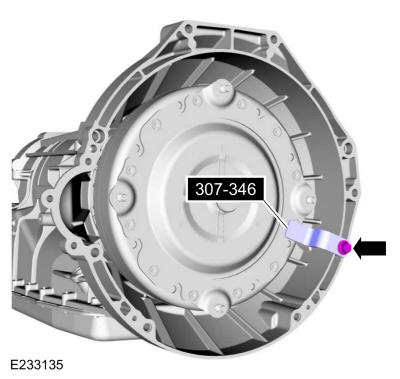

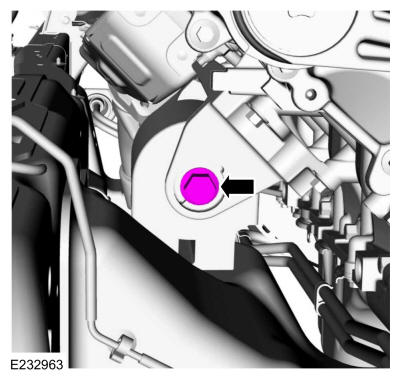

2. Remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

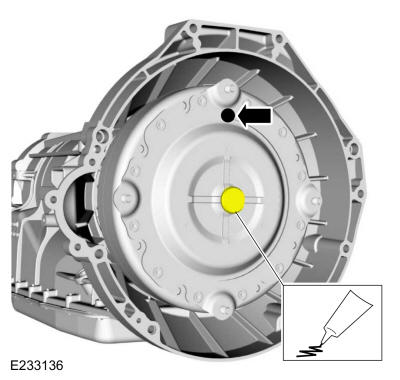

3. • Lubricate the torque converter pilot hub with multi-purpose grease.

     Material: Motorcraft ® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   • Align the paint dot on the torque converter in the 12 o'clock position.

   Courtesy of FORD MOTOR COMPANY

   5-Speed Manual Transmission - TR4050/6-Speed Automatic Transmission - 6R100/6-Speed Automatic Transmission - 6R140

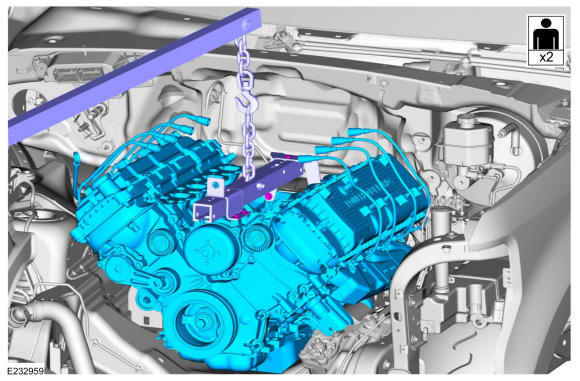

4. NOTE: Clean the engine support insulator frame bracket-to-crossmember mating surfaces of any dirt or foreign material prior to engine installation.

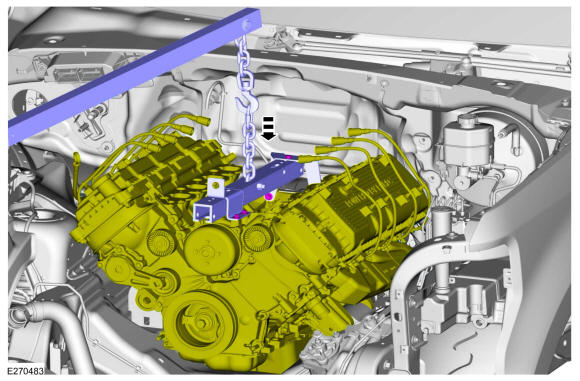

   With the help of an assistant and using the floor crane, position the engine assembly into the vehicle and onto the transmission.

   Courtesy of FORD MOTOR COMPANY

   6-Speed Automatic Transmission - 6R100/6-Speed Automatic Transmission - 6R140

5. NOTE: The torque converter must be installed in it's original orientation to the flexplate or engine damage may occur.

   Check that the flexplate is positioned so that the 2 slotted holes are shown at the 6 o'clock position and the index marks are aligned.

   Courtesy of FORD MOTOR COMPANY

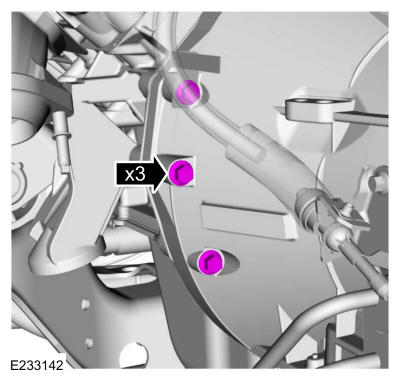

6. NOTE: Do not tighten at this time.

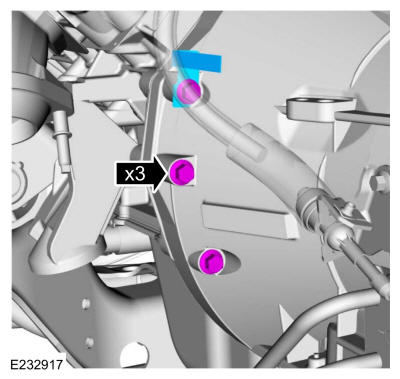

   Install the shift cable bracket and the LH transmission-to-engine bolts.

   Courtesy of FORD MOTOR COMPANY

7. Instal the RH transmission-to-engine bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Tighten the transmission-to-engine bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

   5-Speed Manual Transmission - TR4050/6-Speed Automatic Transmission - 6R100/6-Speed Automatic Transmission - 6R140

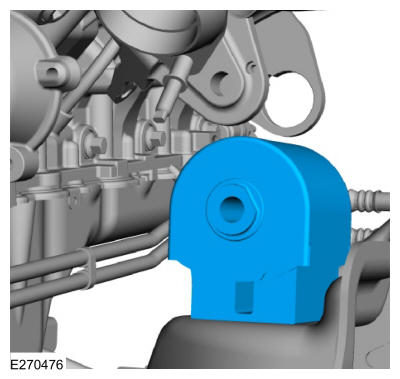

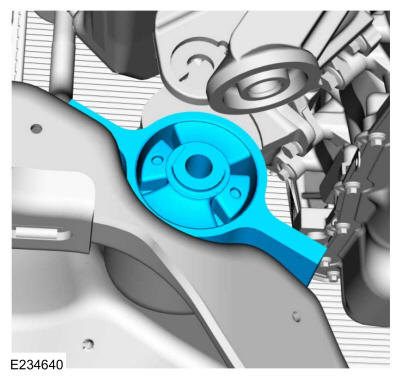

9. Install the RH engine mount.

   Courtesy of FORD MOTOR COMPANY

10. Install the LH engine mount.

    Courtesy of FORD MOTOR COMPANY

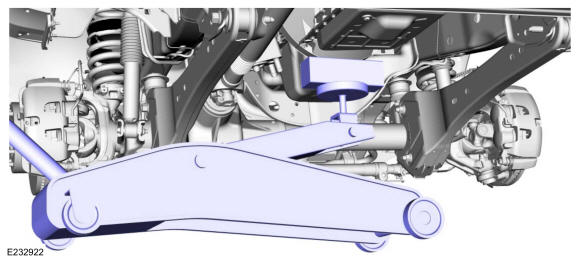

11. Remove the floor jack and block of wood. Use the General Equipment: Trolley Jack Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

12. • Using the floor crane and the special tool, lower the engine onto the engine mounts.
    • Remove the floor crane, special tool and the bolts. Use Special Service Tool: 303-1507 Brackets, Support., 303-F047 Lifting Bracket, Engine. Use the General Equipment: Floor Crane

    Courtesy of FORD MOTOR COMPANY

    6-Speed Automatic Transmission - 6R100/6-Speed Automatic Transmission - 6R140

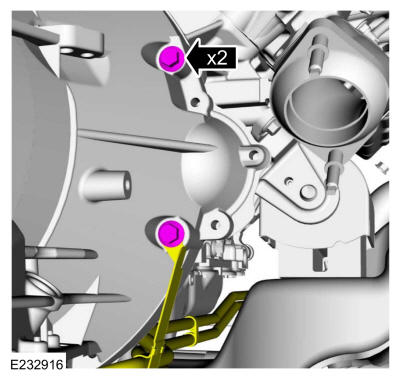

13. Install the upper transmission-to-engine bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

    5-Speed Manual Transmission - TR4050/6-Speed Automatic Transmission - 6R100/6-Speed Automatic Transmission - 6R140

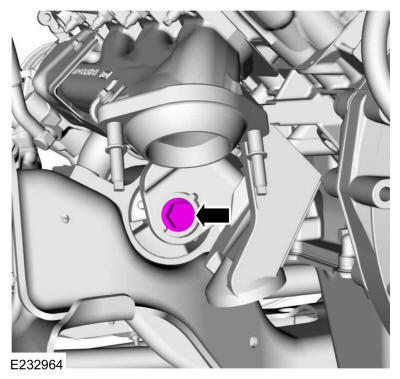

14. NOTE: Do not tighten the fastener at this time.

    Install the new LH engine mount through bolt.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: Do not tighten the fastener at this time.

    Install the RH engine mount through bolt.

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Only use hand tools when tightening the engine mount bolts or damage to the engine mount may occur.

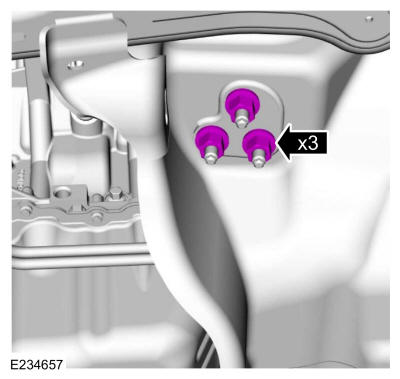

    Install the new LH engine support insulator bracket nuts.

    Torque: 148 lb.ft (200 Nm)

    Courtesy of FORD MOTOR COMPANY

17. NOTE: Only use hand tools when tightening the engine mount bolts or damage to the engine mount may occur.

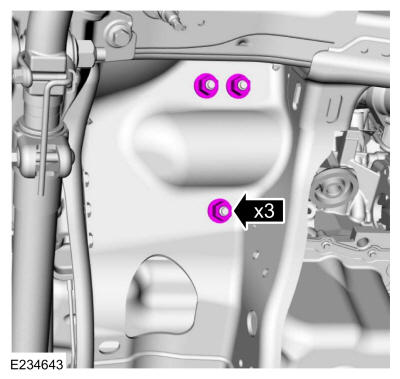

    Install the new RH engine support insulator bracket nuts.

    Torque: 148 lb.ft (200 Nm)

    Courtesy of FORD MOTOR COMPANY

18. NOTE: Only use hand tools when tightening the engine support insulator nuts or damage to the engine support insulator may occur.

    Tighten the LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    Courtesy of FORD MOTOR COMPANY

19. NOTE: Only use hand tools when tightening the engine support insulator nuts or damage to the engine support insulator may occur.

    Install and tighten the RH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    Courtesy of FORD MOTOR COMPANY

    6-Speed Automatic Transmission - 6R100/6-Speed Automatic Transmission - 6R140

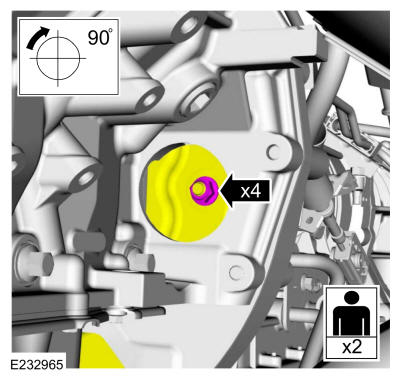

20. NOTE: Only rotate the crankshaft in a clockwise direction.

    Install the new the torque converter nuts. Use the General Equipment: Magnetic Socket

    Torque: 26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

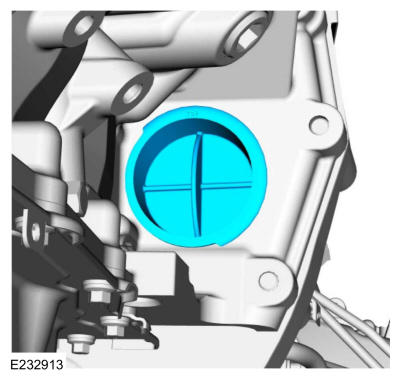

21. Install the torque converter nut access cover.

    Courtesy of FORD MOTOR COMPANY

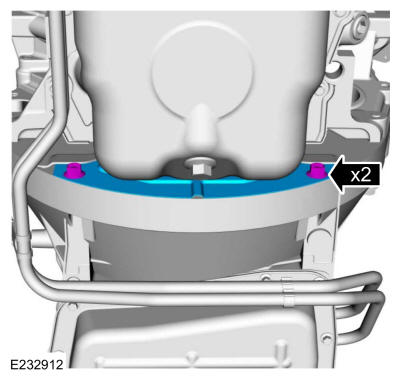

22. Install the transmission inspection plate and the bolts.

    Torque: 25 lb.ft (34 Nm)

    Courtesy of FORD MOTOR COMPANY

    5-Speed Manual Transmission - TR4050/6-Speed Automatic Transmission - 6R100/6-Speed Automatic Transmission - 6R140

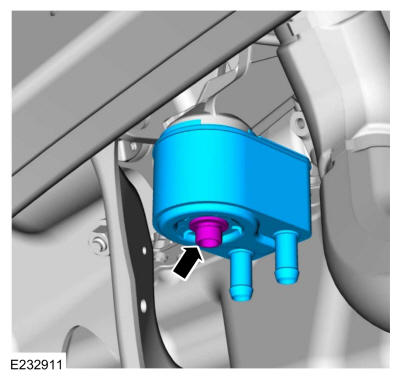

23. Install a new engine oil cooler and the retainer.

    Torque: 43 lb.ft (58 Nm)

    Courtesy of FORD MOTOR COMPANY

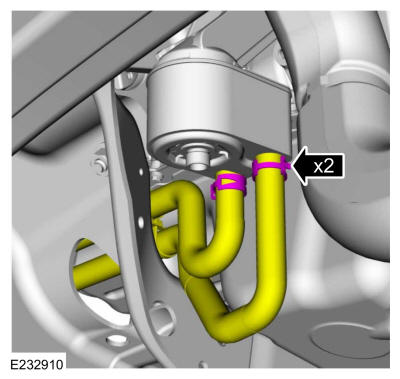

24. Connect the oil cooler coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

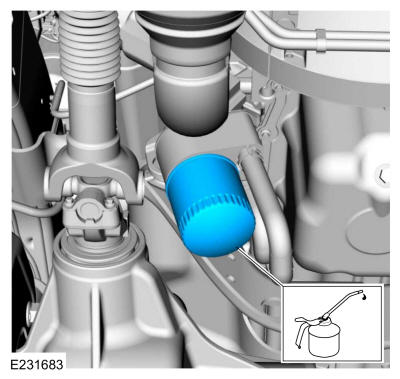

25. NOTE: Lubricate the oil filter gasket with clean engine oil.

    Install a new engine oil filter.

    Torque:

    Stage 1: 44 lb.in (5 Nm)

    Stage 2: 180 °

    Courtesy of FORD MOTOR COMPANY

26. If equipped with an engine block heater, position the wiring harness and connect the engine block heater electrical connector.

    Courtesy of FORD MOTOR COMPANY

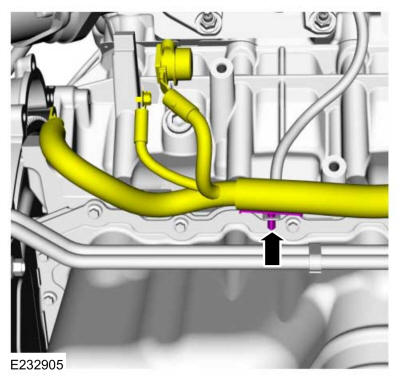

27. Attach the starter motor wiring harness pin-type retainer to the oil pan.

    Courtesy of FORD MOTOR COMPANY

    6-Speed Automatic Transmission - 6R100/6-Speed Automatic Transmission - 6R140

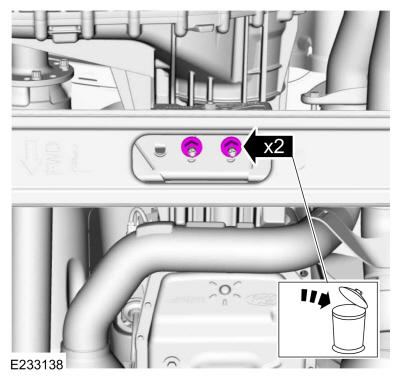

28. NOTE: The transmission support insulator-to-crossmember nuts must be discarded and new nuts installed, or damage to the vehicle or transmission support insulator may occur.

    Remove and discard the transmission support insulator nuts.

    Courtesy of FORD MOTOR COMPANY

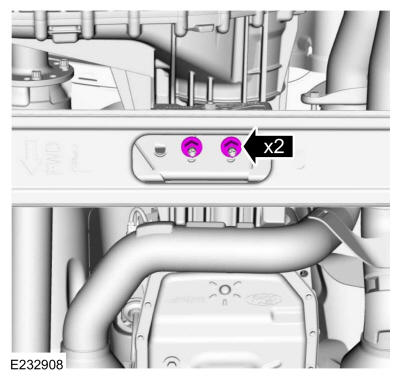

29. • NOTE: The transmission support insulator studs may come out of the insulator while removing the nuts.

      If required, tighten transmission support insulator studs.

      Torque: 66 lb.ft (90 Nm)

    • If the transmission support insulator studs can not be tightened, the transmission support insulator must be replaced. Refer to: Transmission Support Insulator 6-Speed Automatic Transmission - 6R100 . Refer to: Transmission Support Insulator 6-Speed Automatic Transmission - 6R140 .
    • Install new transmission support insulator nuts.

      Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

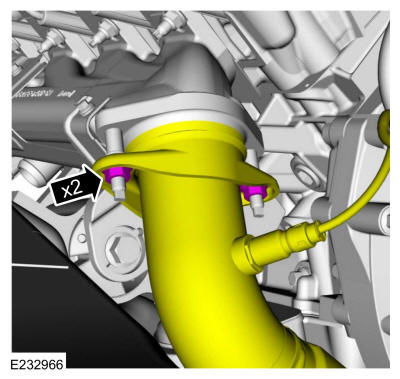

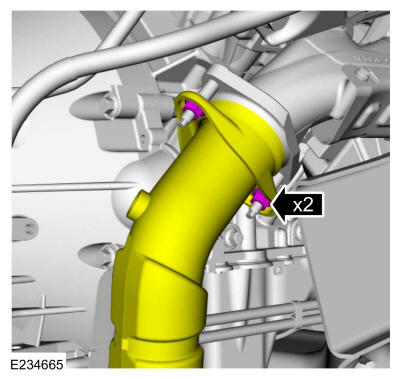

30. Install the new LH catalytic converter pipe-to-manifold nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

31. Install the new RH catalytic converter pipe-to-manifold nuts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

32. Install the starter motor. Refer to: Starter Motor .
33. Install the RH HO2S. Refer to: Heated Oxygen Sensor (HO2S) .

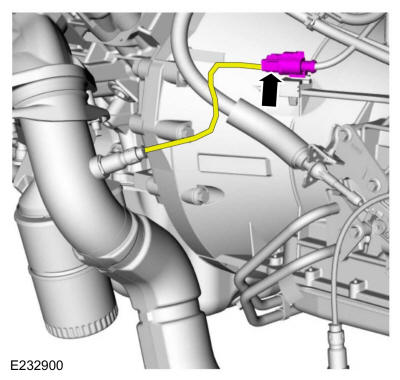

34. Connect the LH HO2S wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

35. Install and lubricate the transmission fluid level indicator tube O-ring seal.

    Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

    Courtesy of FORD MOTOR COMPANY

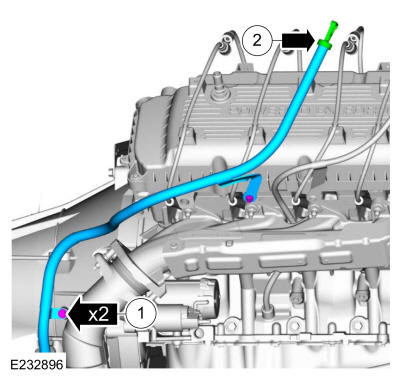

36. 1. Install the transmission fluid level indicator tube and the bolts.

       Torque: 89 lb.in (10 Nm)

    2. Install the transmission fluid indicator.

    Courtesy of FORD MOTOR COMPANY

    5-Speed Manual Transmission - TR4050/6-Speed Automatic Transmission - 6R100/6-Speed Automatic Transmission - 6R140

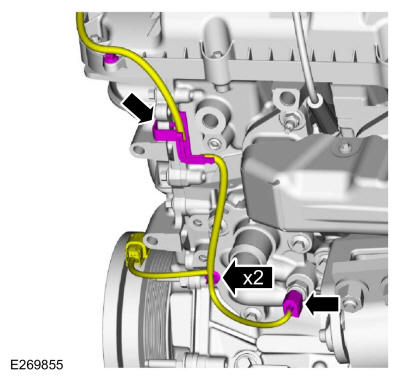

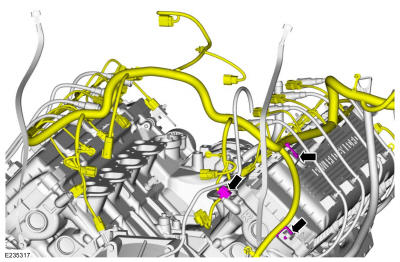

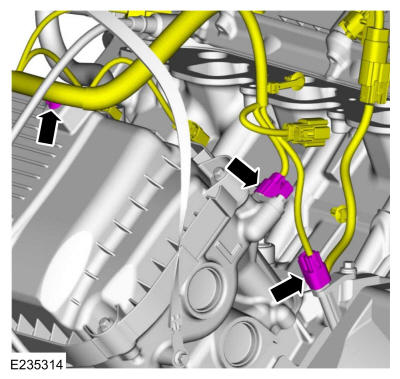

37. Position the engine wiring harness and connect the wiring harness electrical connector and the retainers.

    Courtesy of FORD MOTOR COMPANY

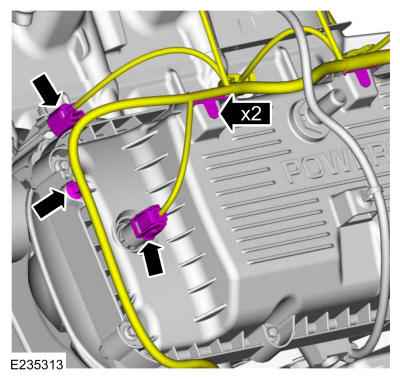

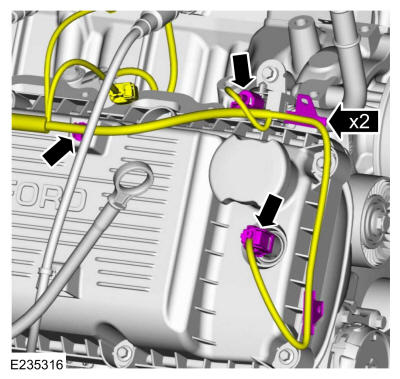

38. Connect the wiring harness electrical connector and the retainers.

    Courtesy of FORD MOTOR COMPANY

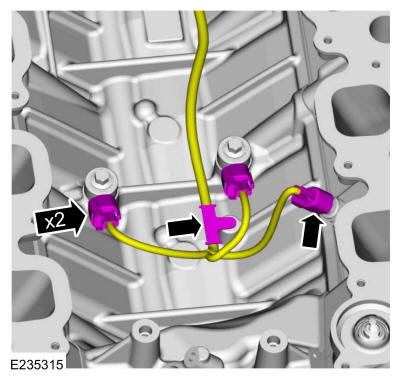

39. Connect the wiring harness electrical connectors and the retainer.

    Courtesy of FORD MOTOR COMPANY

40. Connect the wiring harness electrical connectors and the retainer.

    Courtesy of FORD MOTOR COMPANY

41. Connect the wiring harness electrical connectors and the retainers.

    Courtesy of FORD MOTOR COMPANY

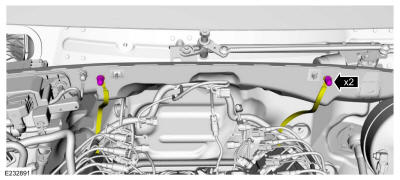

42. Position the engine ground straps and install the nuts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

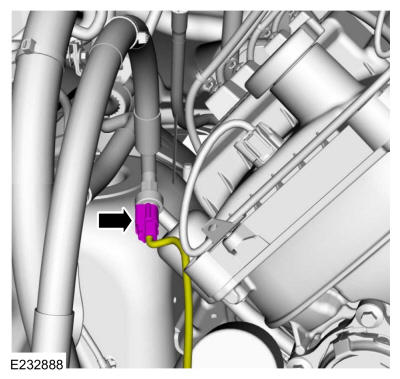

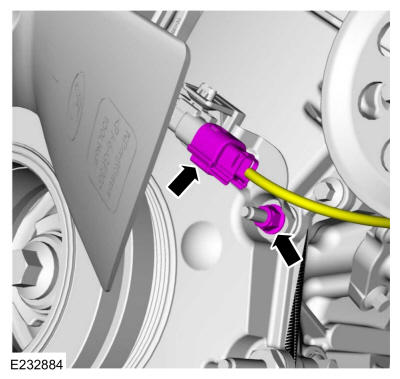

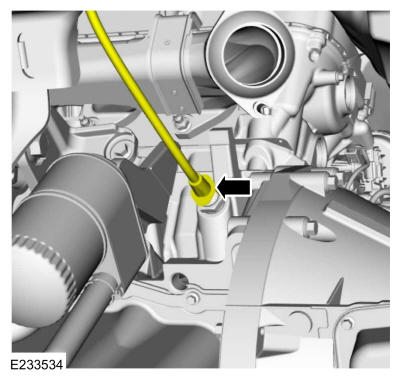

43. Connect the oil pressure switch wiring harness electrical connector and the retainers.

    Courtesy of FORD MOTOR COMPANY

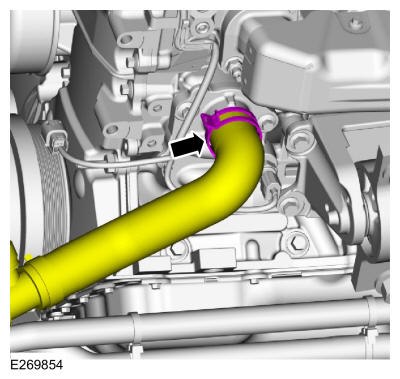

44. Connect the lower radiator hose to the block. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

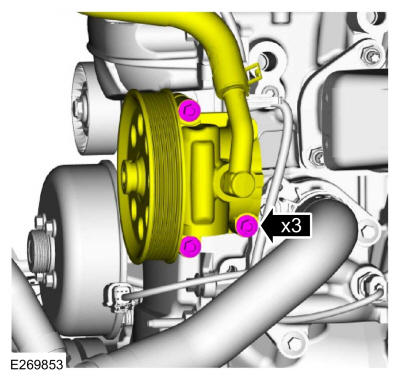

45. Position the power steering pump and install the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

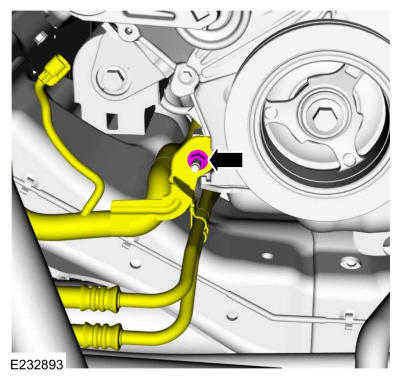

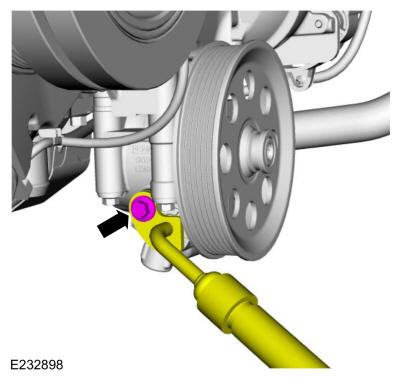

46. Install the power steering pump pressure line and the bolt.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

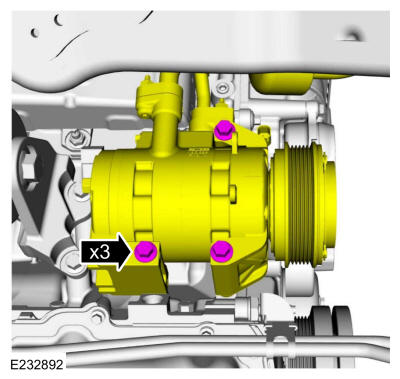

47. Position the A/C compressor and install the bolts.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

48. • Install the starter motor wiring harness bracket.
    • If equipped with automatic transmission, install the transmission cooler lines bracket.
    • Install the nut.

      Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

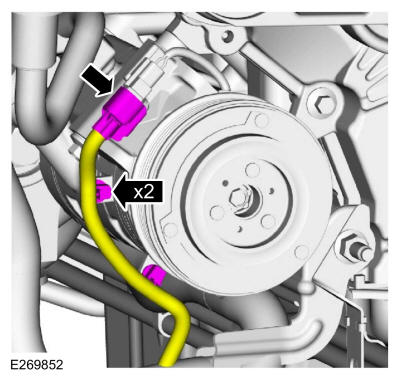

49. Connect the A/C compressor electrical connector and attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

50. Connect the A/C pressure switch wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

51. NOTE: Primary battery vehicles shown, secondary battery vehicles similar.

    Attach the generator wiring harness pin-type retainers.

    Courtesy of FORD MOTOR COMPANY

52. Install and lubricate the coolant tube O-ring seal.

    Material: Motorcraft ® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

    Courtesy of FORD MOTOR COMPANY

53. Install and lubricate the coolant tube O-ring seal.

    Material: Motorcraft ® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

    Courtesy of FORD MOTOR COMPANY

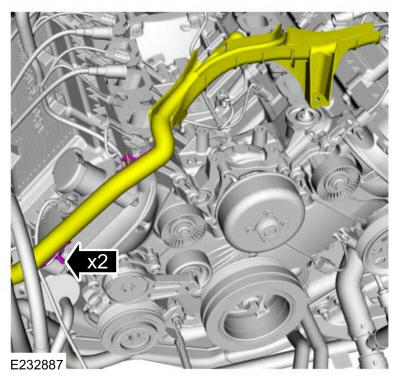

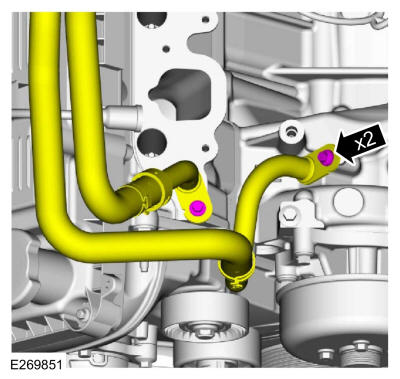

54. Position the coolant tubes and install the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

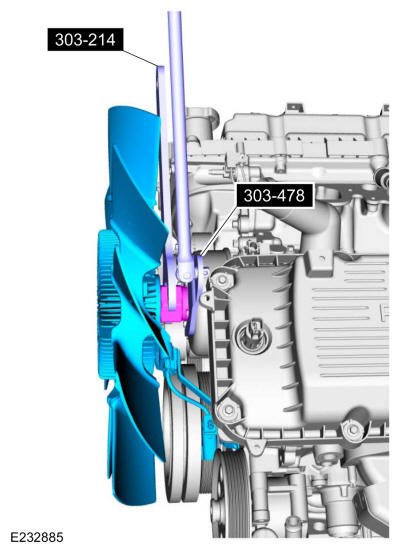

55. Using the special tools, install the cooling fan. Use Special Service Tool: 303-478 (T94T-6312-AH) Holding Wrench, Fan Clutch Pulley., 303-214 (T83T-6312-B) Wrench, Fan Clutch Nut. Use the General Equipment: 1/2 Inch Square Drive Breaker Bar

    Courtesy of FORD MOTOR COMPANY

56. • Install the cooling fan wiring harness support bracket nut.

      Torque: 177 lb.in (20 Nm)

    • Connect the cooling fan wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

    5-Speed Manual Transmission - TR4050

57. 5-Speed Manual Transmission - TR4050/6-Speed Automatic Transmission - 6R100/6-Speed Automatic Transmission - 6R140

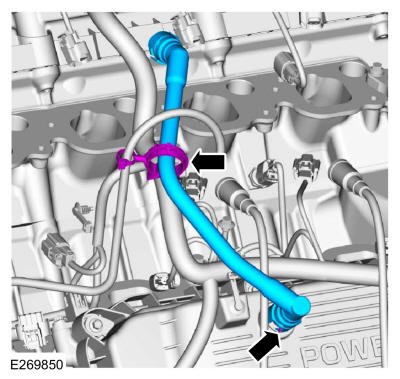

58. Install the PCV tube and attach the retainer. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

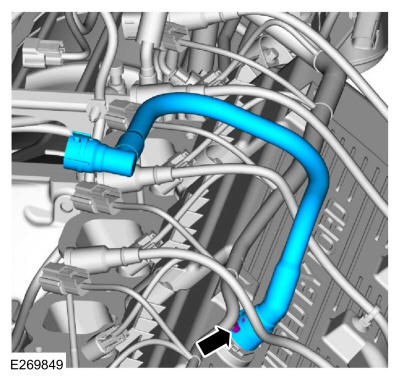

59. Install the crankcase vent tube. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

60. Install the following items:
    1. Install the air cleaner. Refer to: Air Cleaner .
    2. Install the cooling module. Refer to: Cooling Module .
    3. Install the intake manifold. Refer to: Intake Manifold .
    4. Install the accessory drive belt. Refer to: Accessory Drive Belt .
    5. Install the cowl panel. Refer to: Cowl Panel .

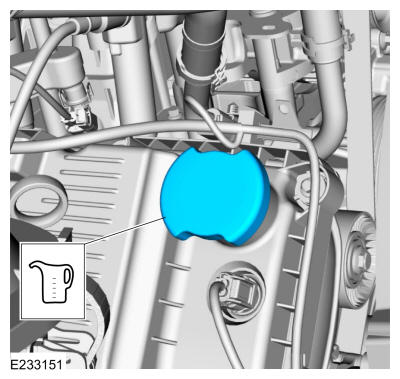

61. Fill the engine with clean engine oil. Refer to: Specifications .

    Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

    Courtesy of FORD MOTOR COMPANY

62. Fill and bleed the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
63. If equipped with an automatic transmission, check the transmission fluid.
    • 6R100 Refer to: Transmission Fluid Level Check .
    • 6R140 Refer to: Transmission Fluid Level Check .

64. Fill the power steering system. Refer to: Power Steering System Filling .
65. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
