Memory Seats

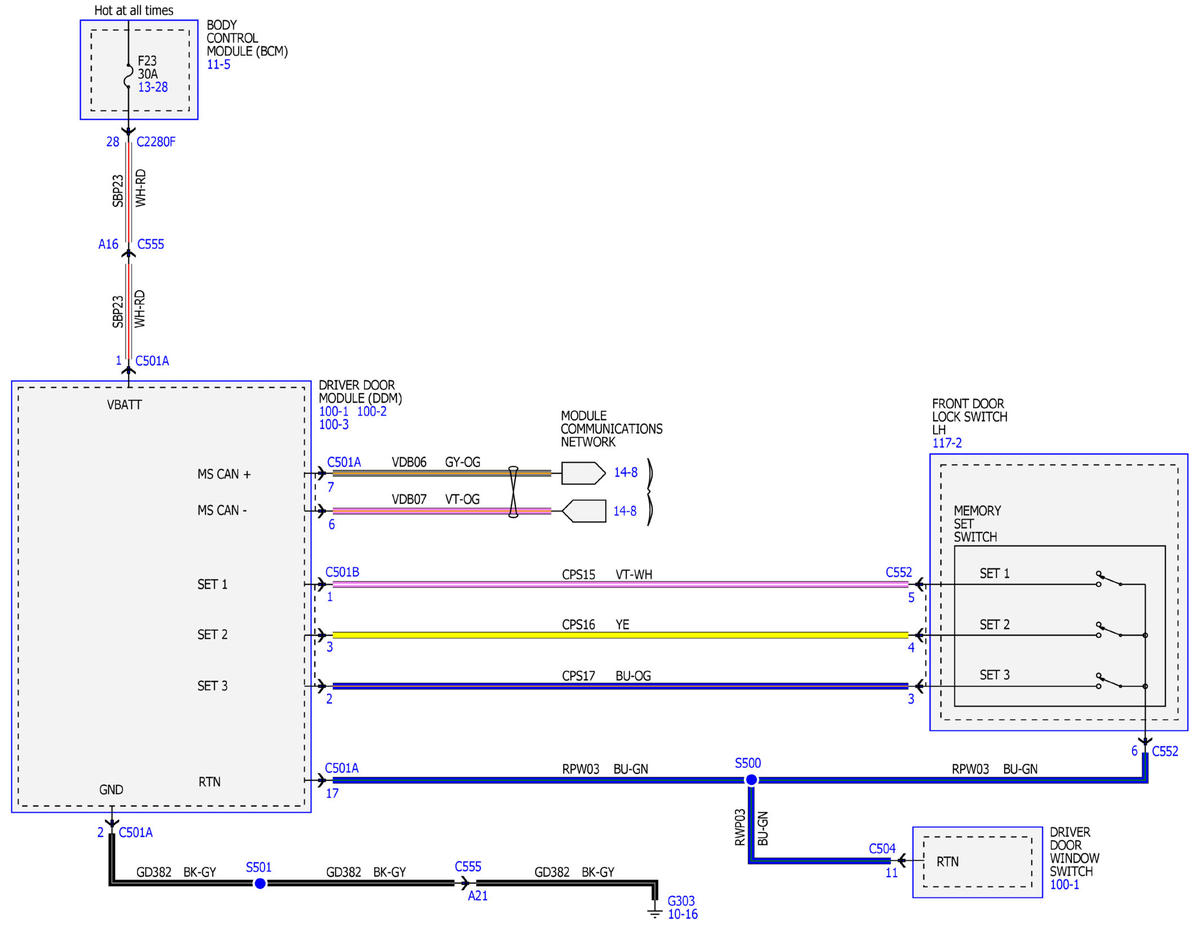

Fig 1: Memory Seats Wiring Diagram (1 Of 5)
GFDWR139184Courtesy of FORD MOTOR COMPANY

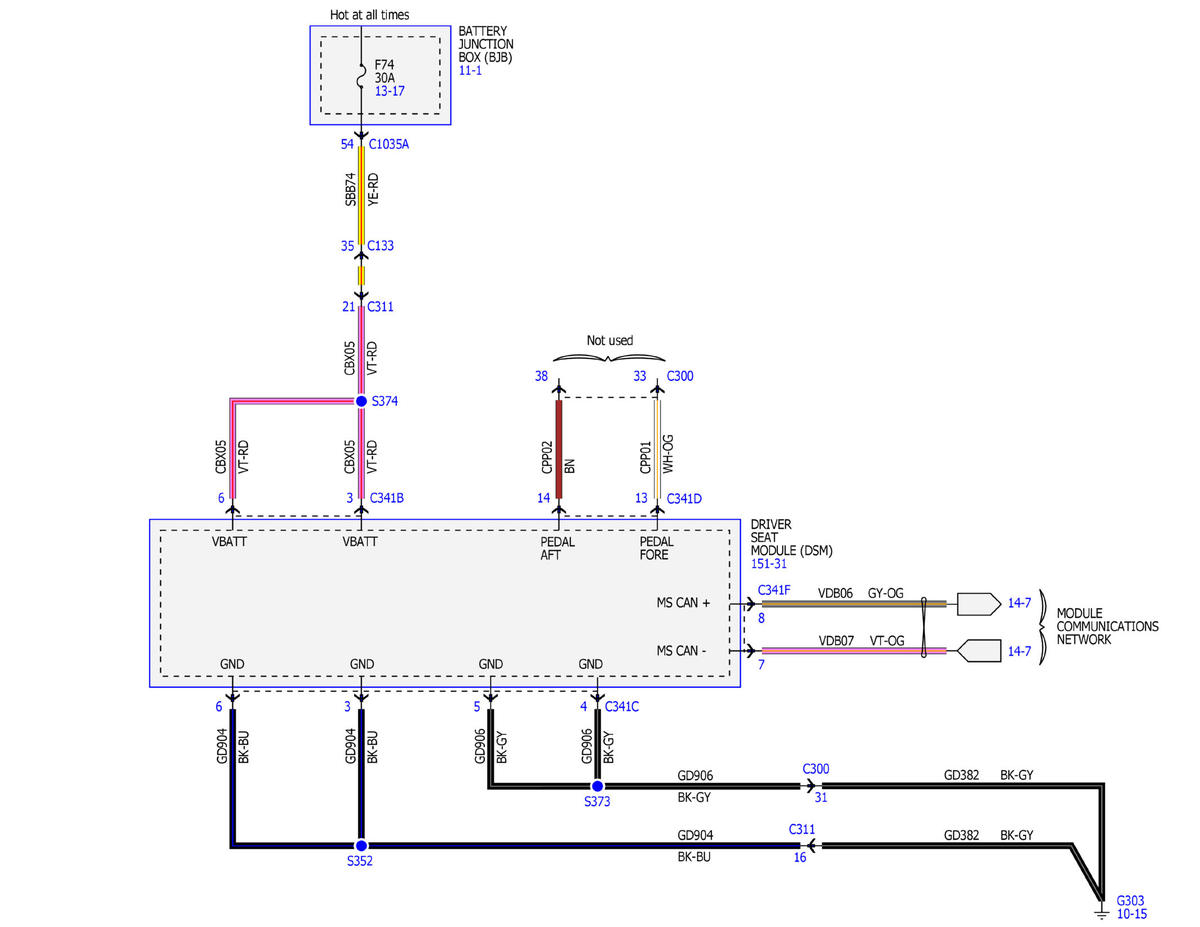

Fig 2: Memory Seats Wiring Diagram (2 Of 5)
GFDWR139185Courtesy of FORD MOTOR COMPANY

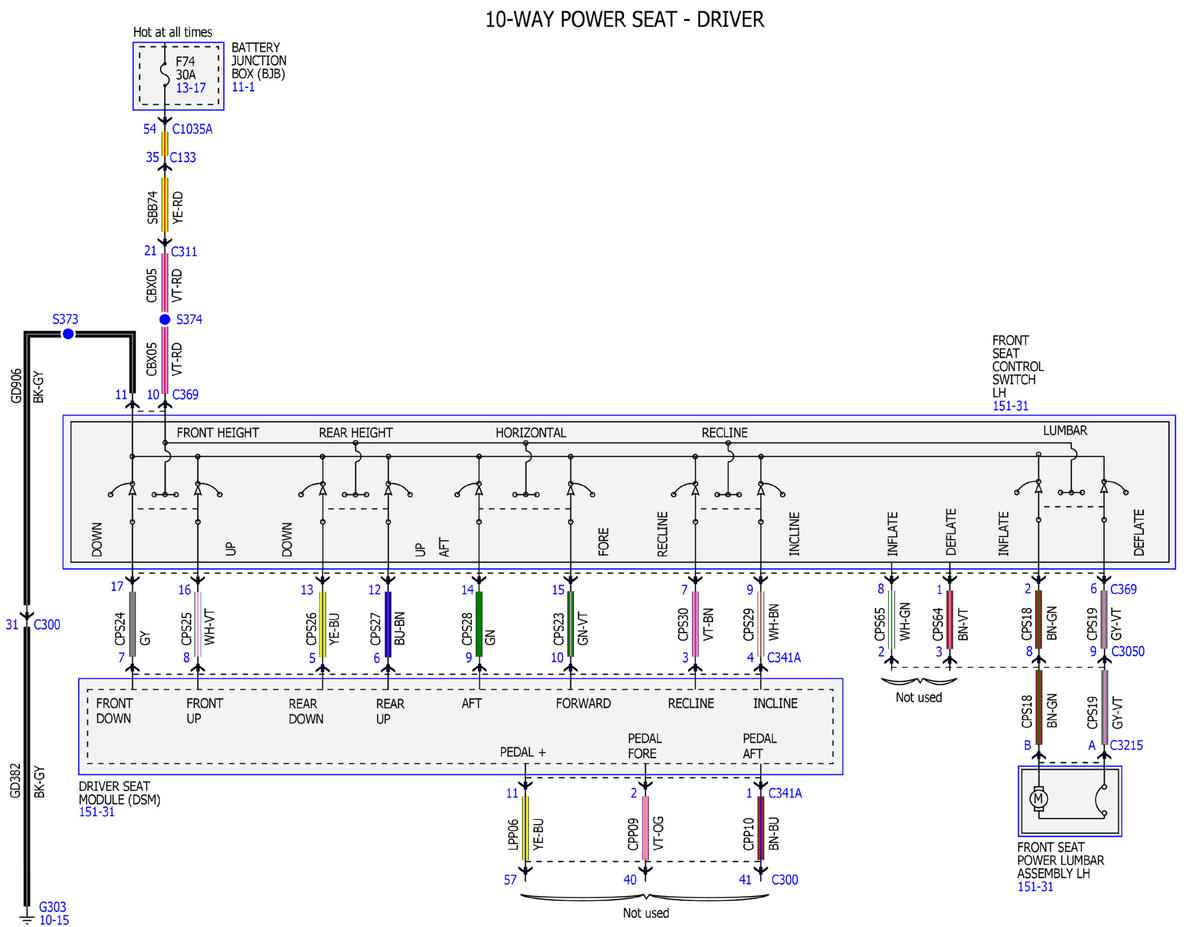

Fig 3: Memory Seats Wiring Diagram (3 Of 5)
GFDWR139186Courtesy of FORD MOTOR COMPANY

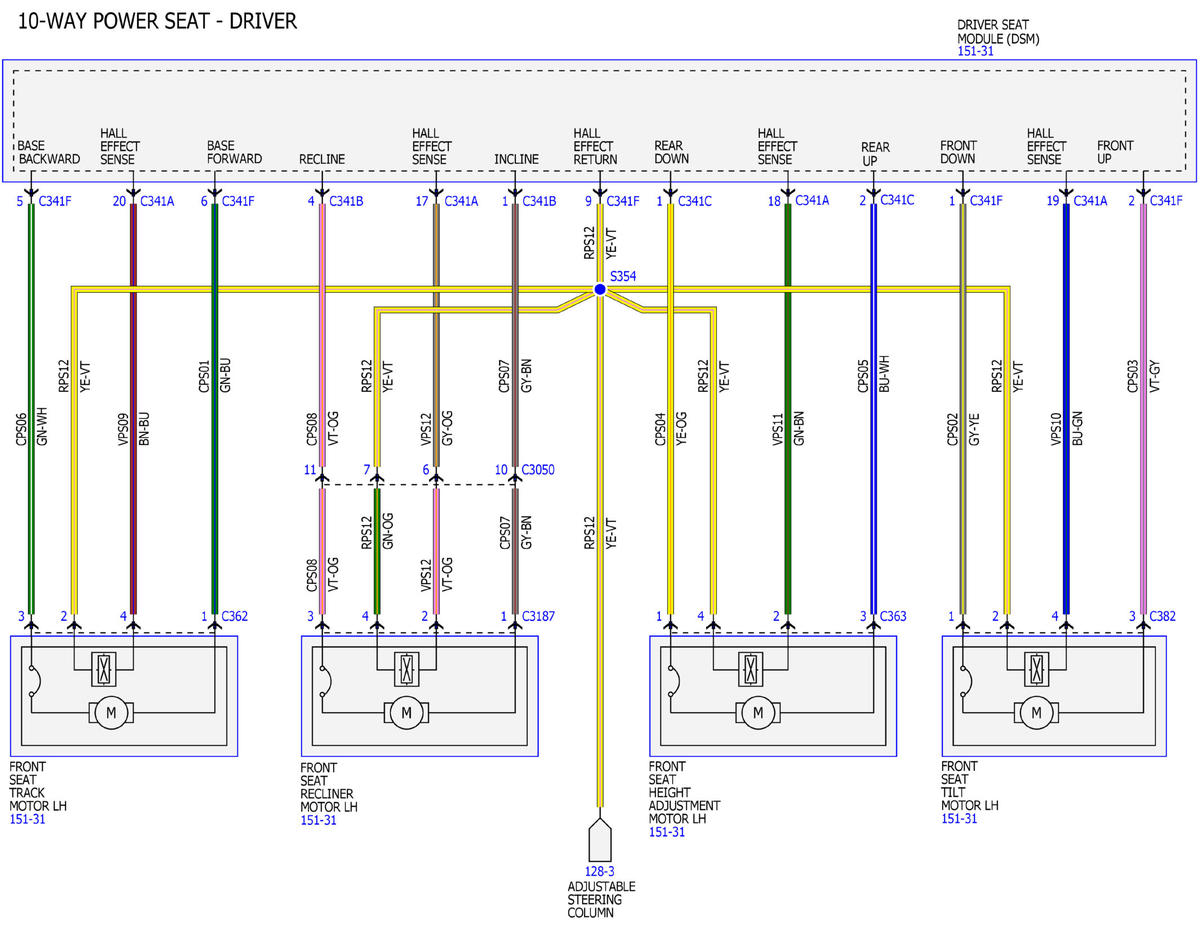

Fig 4: Memory Seats Wiring Diagram (4 Of 5)
GFDWR139187Courtesy of FORD MOTOR COMPANY

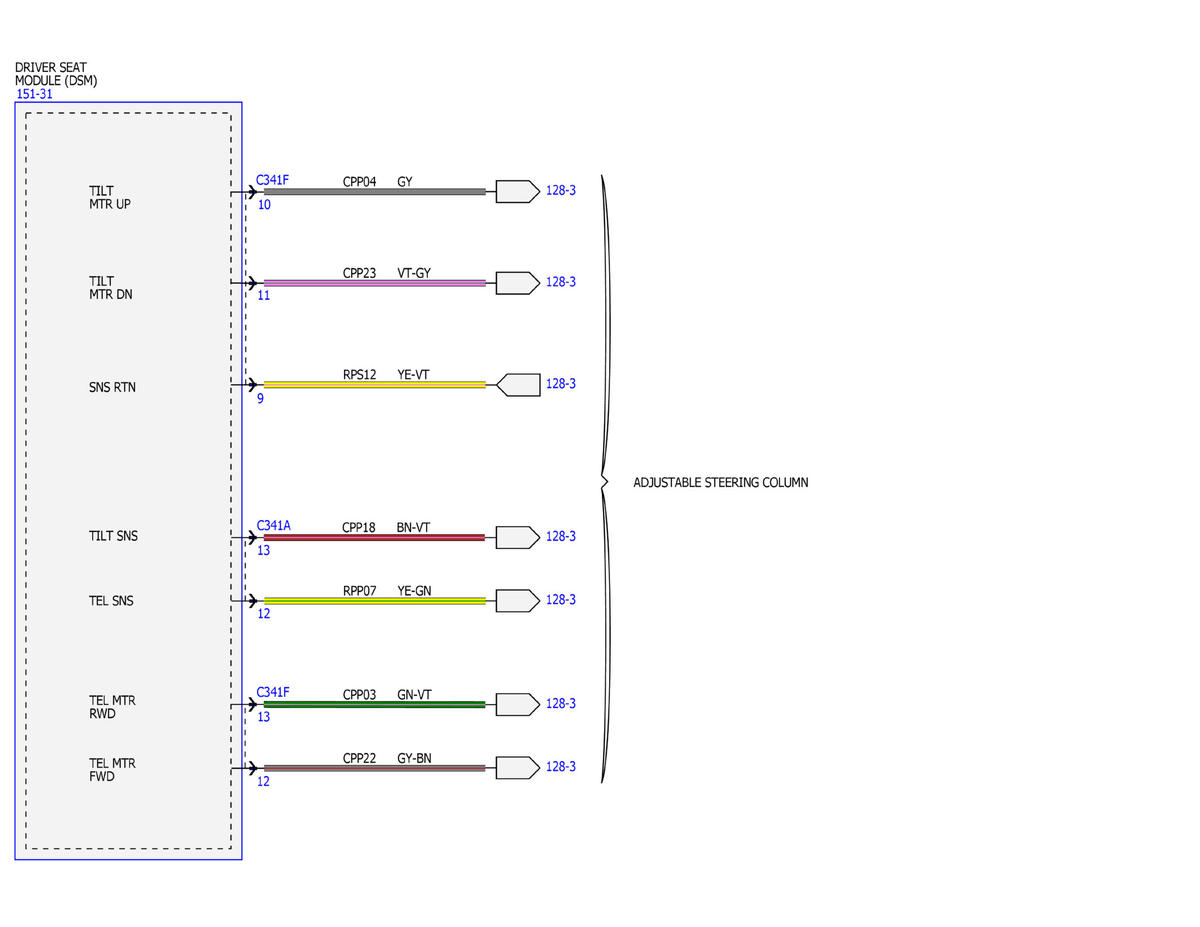

Fig 5: Memory Seats Wiring Diagram (5 Of 5)
GFDWR139188Courtesy of FORD MOTOR COMPANY
