Starting System

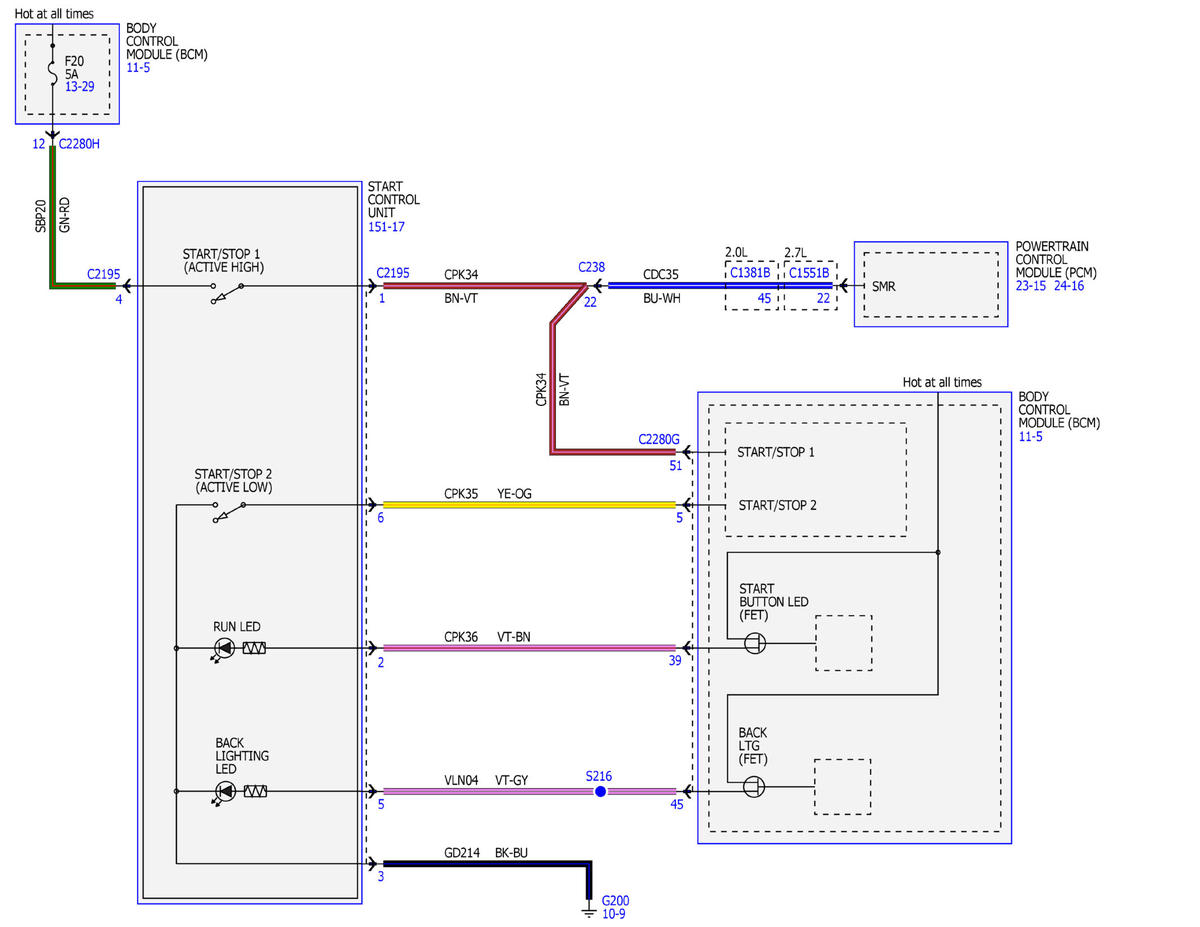

Fig 1: Starting System Wiring Diagram (1 Of 2)
GFDWR139304Courtesy of FORD MOTOR COMPANY

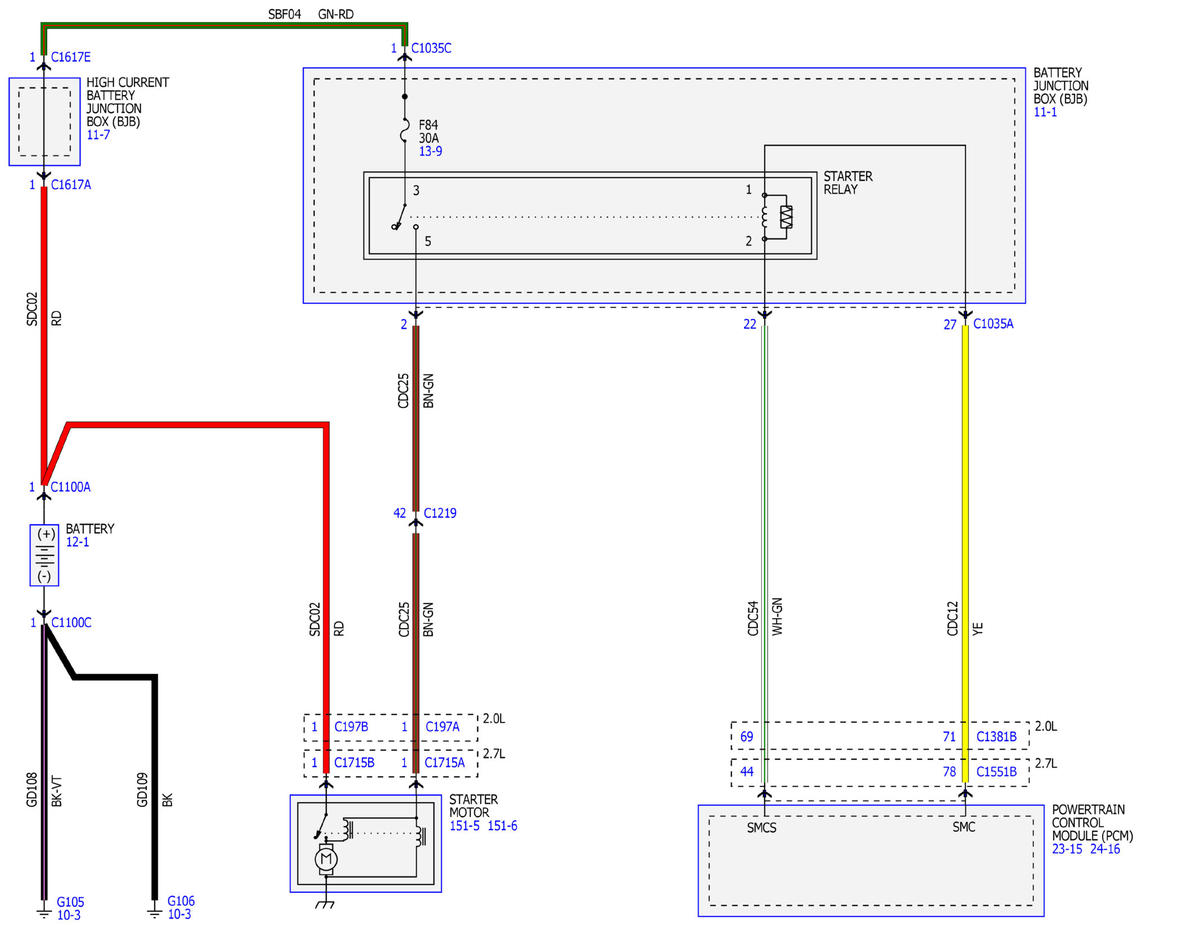

Fig 2: Starting System Wiring Diagram (2 Of 2)
GFDWR139305Courtesy of FORD MOTOR COMPANY
