Quick Release Coupling

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 1
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

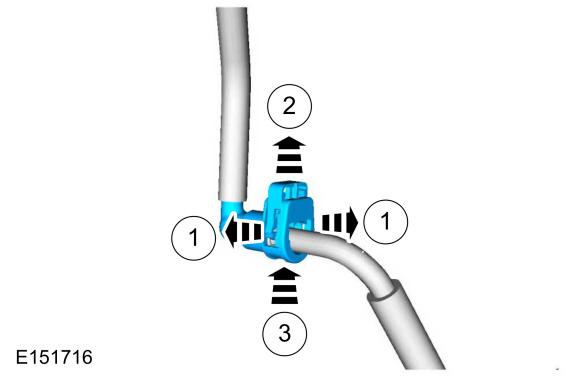

GFD596853Courtesy of FORD MOTOR COMPANY
GFD596854Courtesy of FORD MOTOR COMPANY

Connect

  1. Push the quick release coupling onto the tube.
    GFD596855Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.

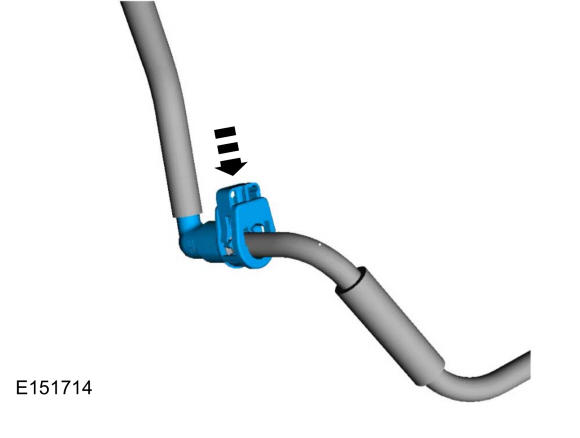

    GFD596856Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 2
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .
    GFD596857Courtesy of FORD MOTOR COMPANY
    GFD596924Courtesy of FORD MOTOR COMPANY

    Connect

    GFD596925Courtesy of FORD MOTOR COMPANY
    GFD596926Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 3
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .
    GFD596861Courtesy of FORD MOTOR COMPANY

    Connect

    GFD596862Courtesy of FORD MOTOR COMPANY
    GFD596863Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 4
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

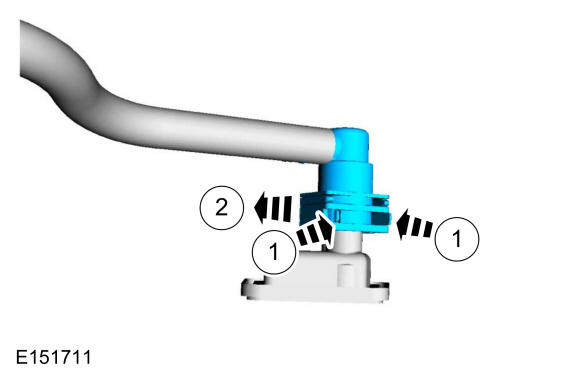

    GFD596927Courtesy of FORD MOTOR COMPANY

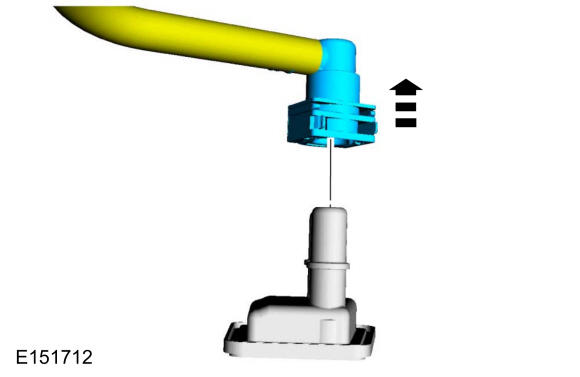

    GFD596865Courtesy of FORD MOTOR COMPANY

    Connect

    GFD596866Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 5
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .
    GFD596867Courtesy of FORD MOTOR COMPANY
    GFD596868Courtesy of FORD MOTOR COMPANY

    Connect

    GFD596869Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 6
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .
  3. Press the tabs of the rear retainer clip and pull it to the outward position.
GFD596928Courtesy of FORD MOTOR COMPANY
GFD596929Courtesy of FORD MOTOR COMPANY

Connect

  1. Pull on the quick release coupling to make sure it is securely fastened.
    GFD596872Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 7
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .
GFD596873Courtesy of FORD MOTOR COMPANY
GFD596874Courtesy of FORD MOTOR COMPANY

Connect

  1. Pull on the quick connect coupling to make sure it is securely fastened.
    GFD596875Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 8
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .
    GFD596867Courtesy of FORD MOTOR COMPANY
    GFD596868Courtesy of FORD MOTOR COMPANY

    Connect

    GFD596869Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 9
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

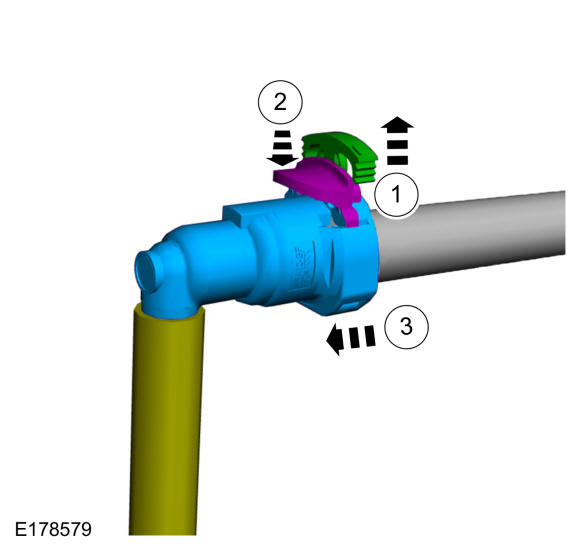

    1. Release the secondary locking tab.
    2. Depress the primary locking tab.
    3. Separate the quick release coupling from the tube.
GFD596876Courtesy of FORD MOTOR COMPANY

Connect

    1. Push the quick release coupling onto the tube.
    2. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Lock the secondary locking tab.

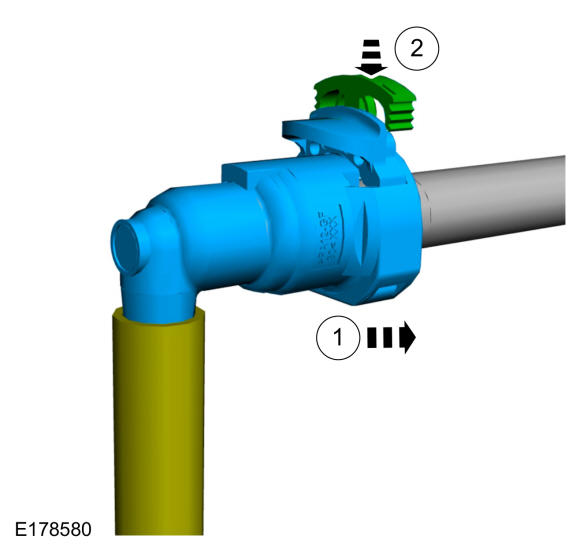

    GFD596877Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 10
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

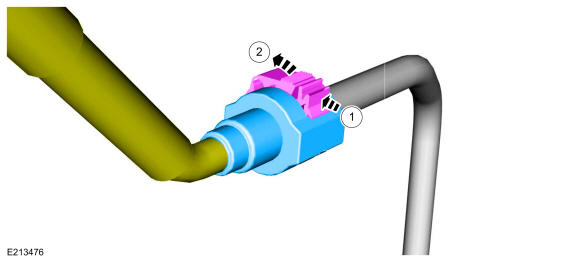

    1. Push on the locking tab.
    2. Lift the clip.
    GFD596878Courtesy of FORD MOTOR COMPANY

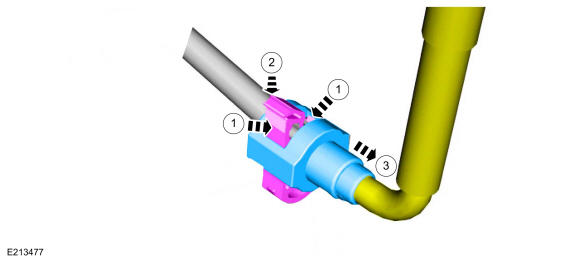

    1. Depress the tabs inward.
    2. Push the clip downward.
    3. Separate the quick release coupling from the fuel line.
GFD596879Courtesy of FORD MOTOR COMPANY

Connect

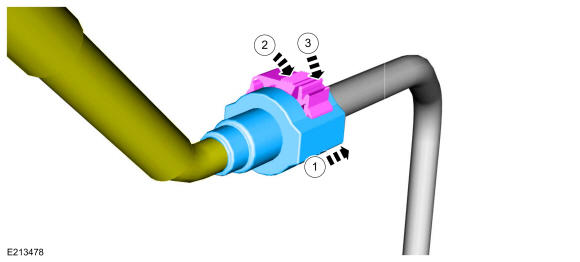

    1. Push the quick release coupling onto the tube.
    2. Push the clip down into the quick release coupling.
    3. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD596930Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 11
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

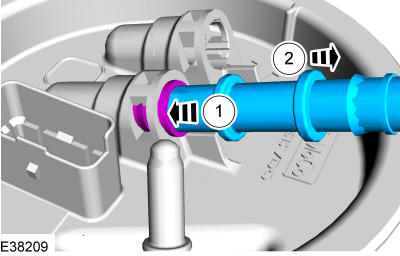

GFD596881Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD596881Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 12
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .
GFD596931Courtesy of FORD MOTOR COMPANY
GFD596883Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD596884Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 13
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .
GFD596885Courtesy of FORD MOTOR COMPANY

Connect

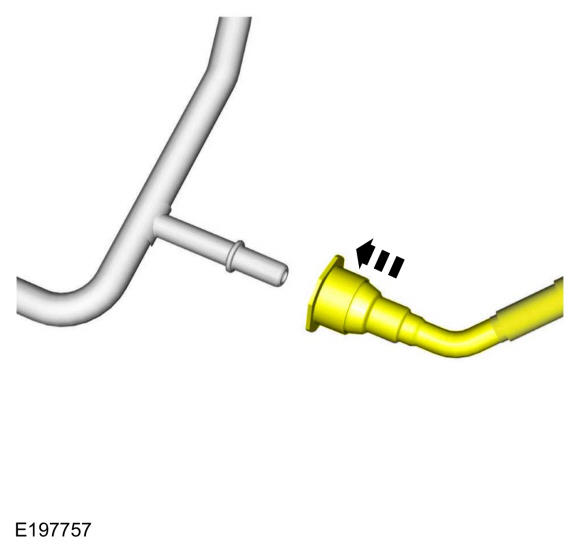

  1. GFD596886Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 14
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .
    GFD596887Courtesy of FORD MOTOR COMPANY

    Connect

    GFD596888Courtesy of FORD MOTOR COMPANY
  3. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 15
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Press both retaining tabs inward and remove quick release coupling from fuel tube.
GFD596889Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Inspect and clean both quick release coupling ends.

    Install the quick release coupling onto the tube until it is fully seated.

    GFD596890Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 16
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

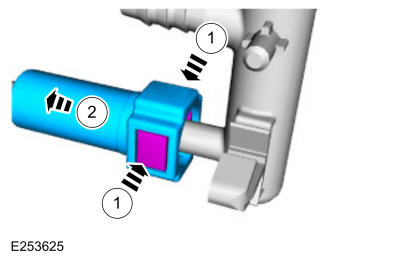

GFD596891Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD596891Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 17
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .
GFD596892Courtesy of FORD MOTOR COMPANY

Connect

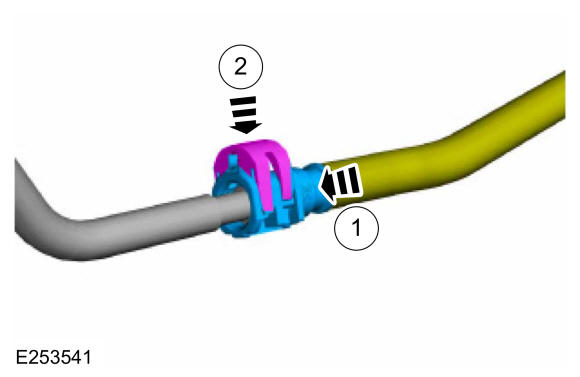

  1. GFD596893Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 18
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to:BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

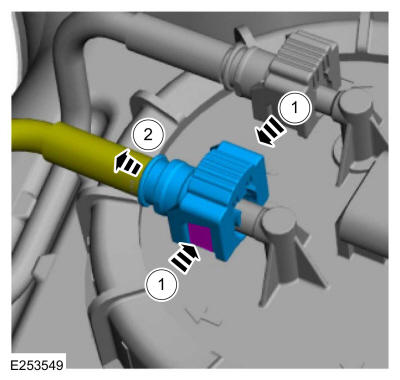

GFD596894Courtesy of FORD MOTOR COMPANY

Connect

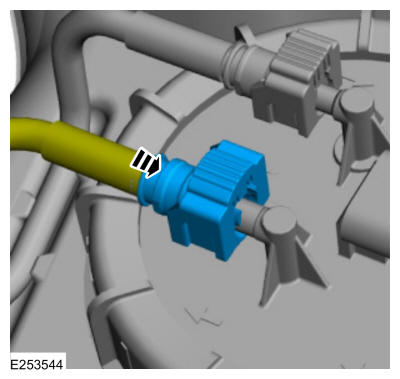

  1. GFD596895Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 19
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

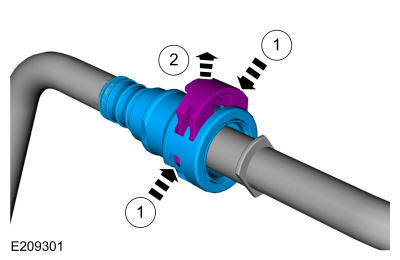

GFD596896Courtesy of FORD MOTOR COMPANY

Connect

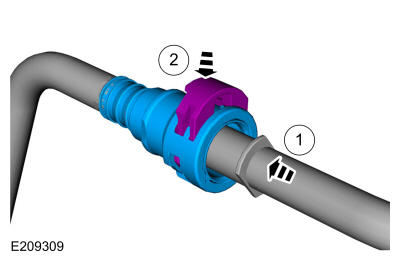

  1. GFD596897Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 20
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

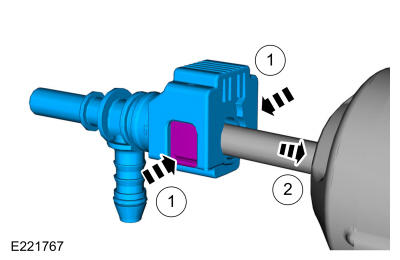

GFD596932Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD596933Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 21
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

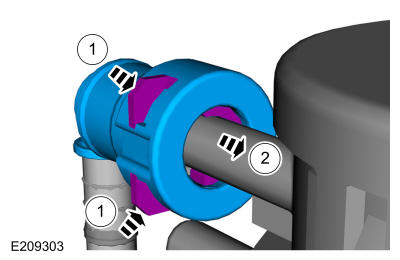

GFD596934Courtesy of FORD MOTOR COMPANY

Connect

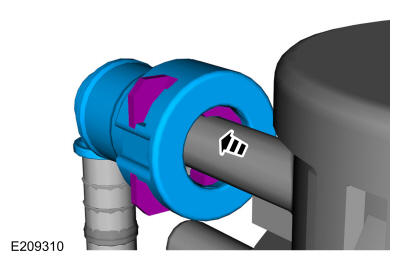

  1. GFD596901Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 22
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

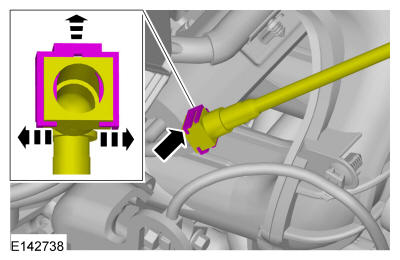

    GFD596935Courtesy of FORD MOTOR COMPANY

    Connect

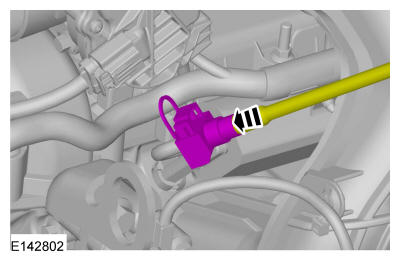

    GFD596903Courtesy of FORD MOTOR COMPANY

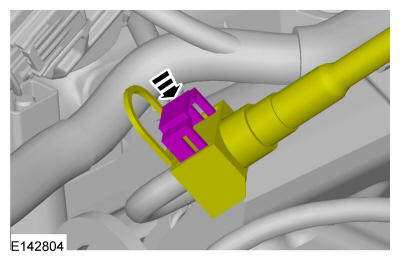

  3. GFD596904Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  4. NOTE: Make sure that all fuel connections are checked for leaks.
    NOTE: This step is only necessary if a new component is installed.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

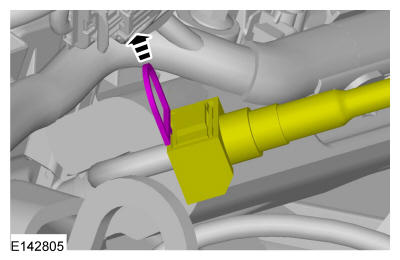

    GFD596905Courtesy of FORD MOTOR COMPANY
  5. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 23
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

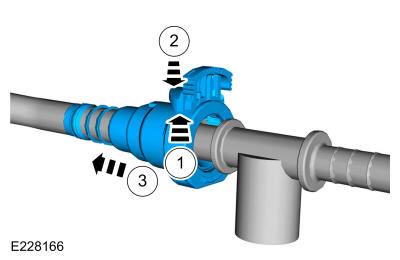

GFD596906Courtesy of FORD MOTOR COMPANY

Connect

  1. NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick connect coupling.

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

    GFD596907Courtesy of FORD MOTOR COMPANY
  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 24
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .
GFD596908Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD596936Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 25
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

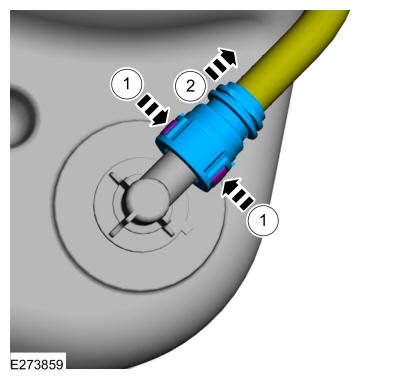

    1. Depress the clip into the quick release coupling.
    2. Separate the quick release coupling from the tube.
GFD596910Courtesy of FORD MOTOR COMPANY

Connect

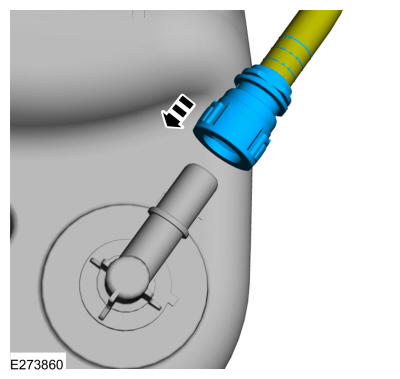

  1. GFD596937Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 26
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

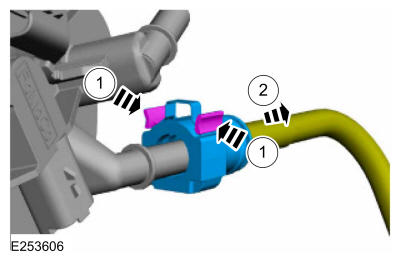

    1. Remove the quick release coupling from the tube.
GFD596912Courtesy of FORD MOTOR COMPANY

Connect

  1. GFD596913Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

Disconnect

NOTE: When reusing liquid or vapor tube connections, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube or damage to the tube or connector retaining clip may occur.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is essential that absolute cleanliness is observed when working with these components or component damage may occur. Always install blanking plugs to any open orifices or tubes.
NOTE: Do not use any tools. The use of tools may cause a deformity in the clip components which may cause fuel leaks.
NOTE: Type 27
  1. If servicing a liquid fuel tube quick release coupling, release the fuel system pressure.
  2. Disconnect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .

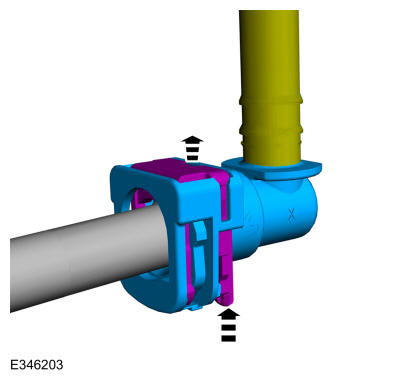

    GFD596914Courtesy of FORD MOTOR COMPANY

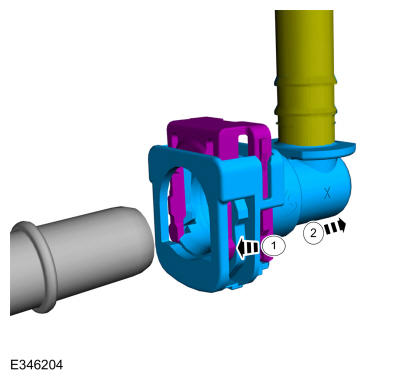

  3. Remove the quick release coupling from the tube.
GFD596915Courtesy of FORD MOTOR COMPANY

Connect

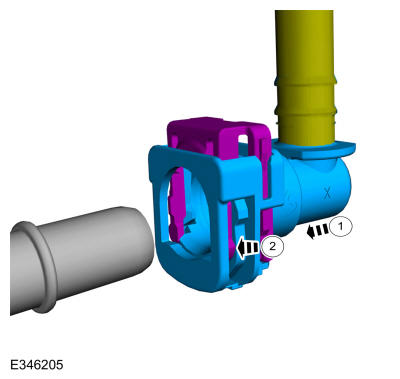

  1. GFD596916Courtesy of FORD MOTOR COMPANY

    1. NOTE: Pull on the quick release coupling and the fitting to make sure it is securely fastened.

      Snap the locking tab into place.

  2. Connect the battery ground cable. Refer to: BATTERY CABLES - 2.7L ECOBOOST (238KW 324PS) .
scientia non olet · About LEMON Manuals
