OEM Electrical Wiring Diagram Introduction: Introduction

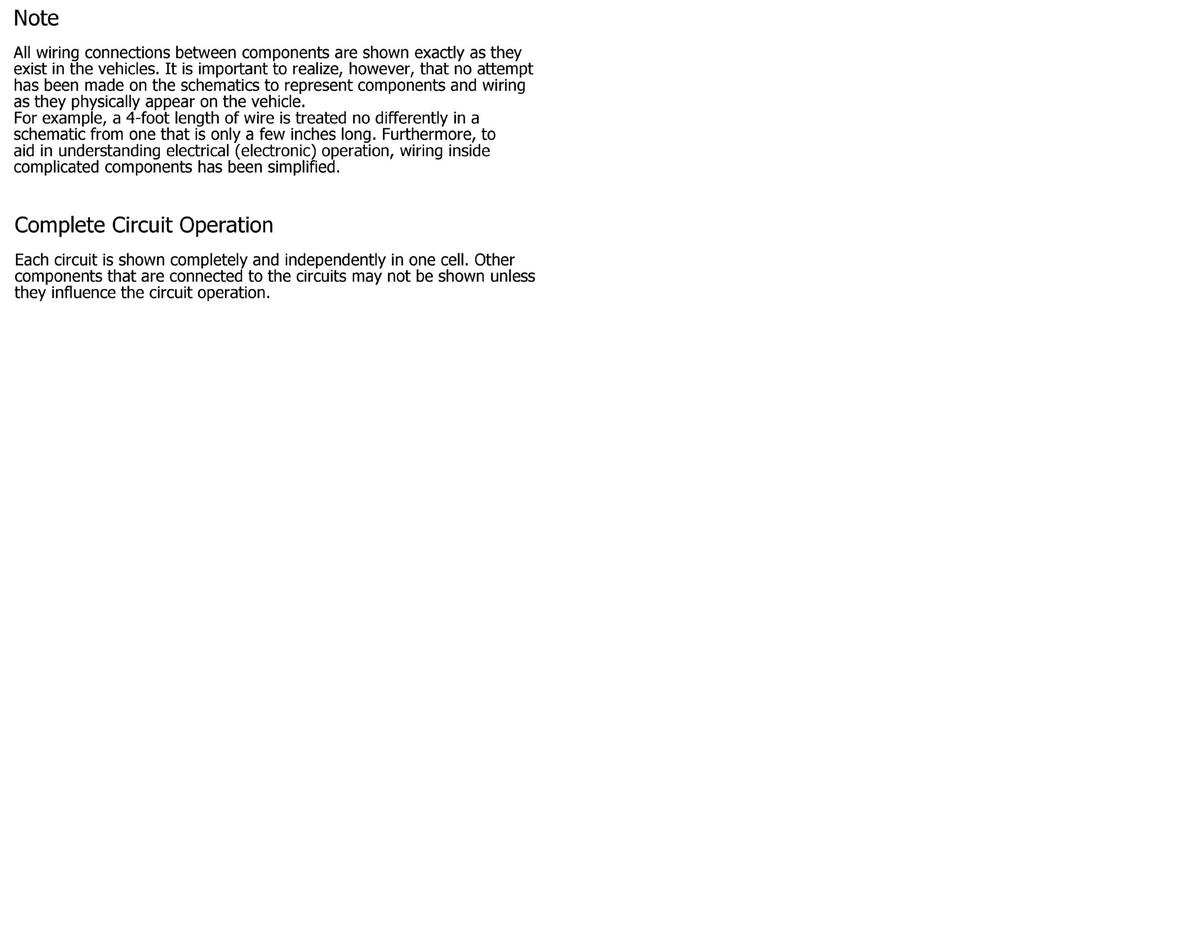

GFDWR139010Courtesy of FORD MOTOR COMPANY

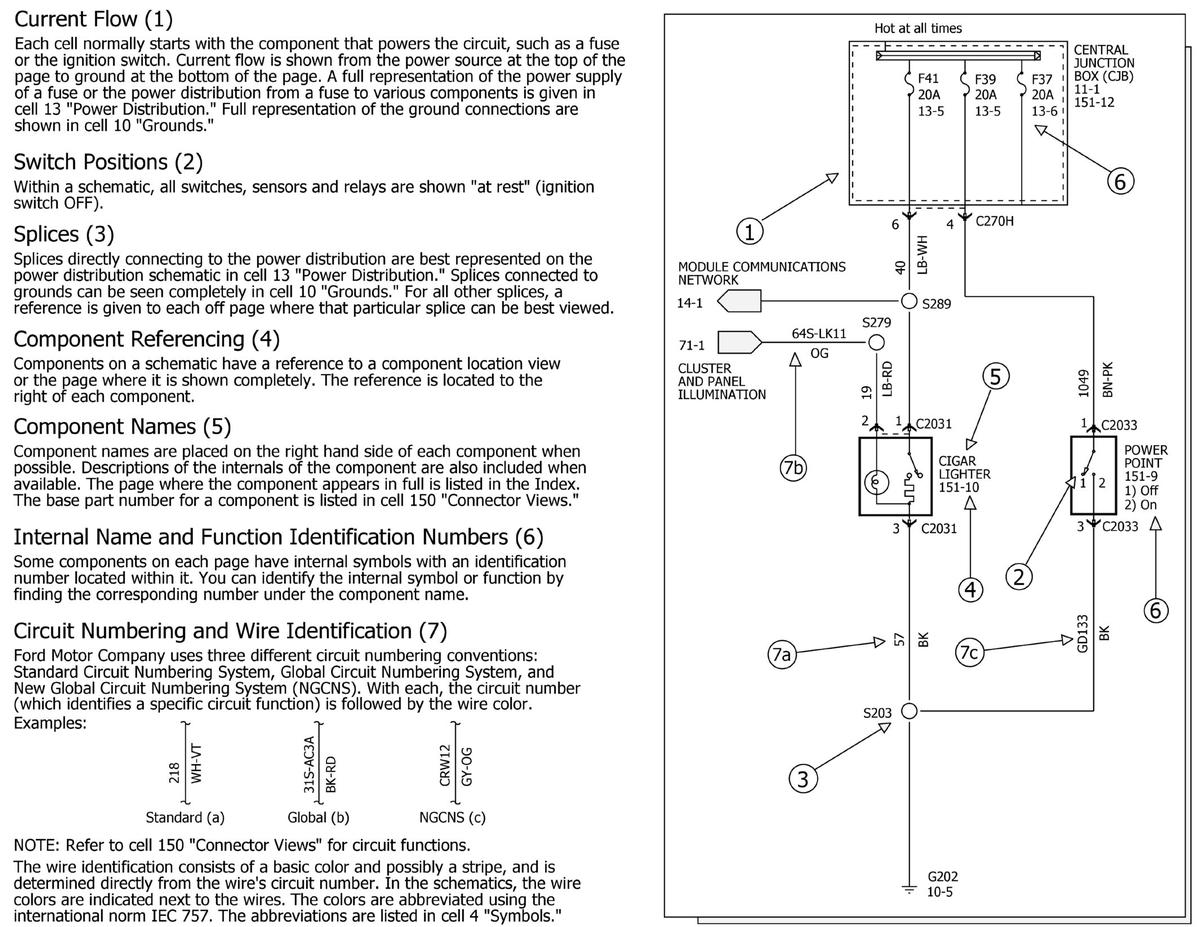

GFDWR139011Courtesy of FORD MOTOR COMPANY

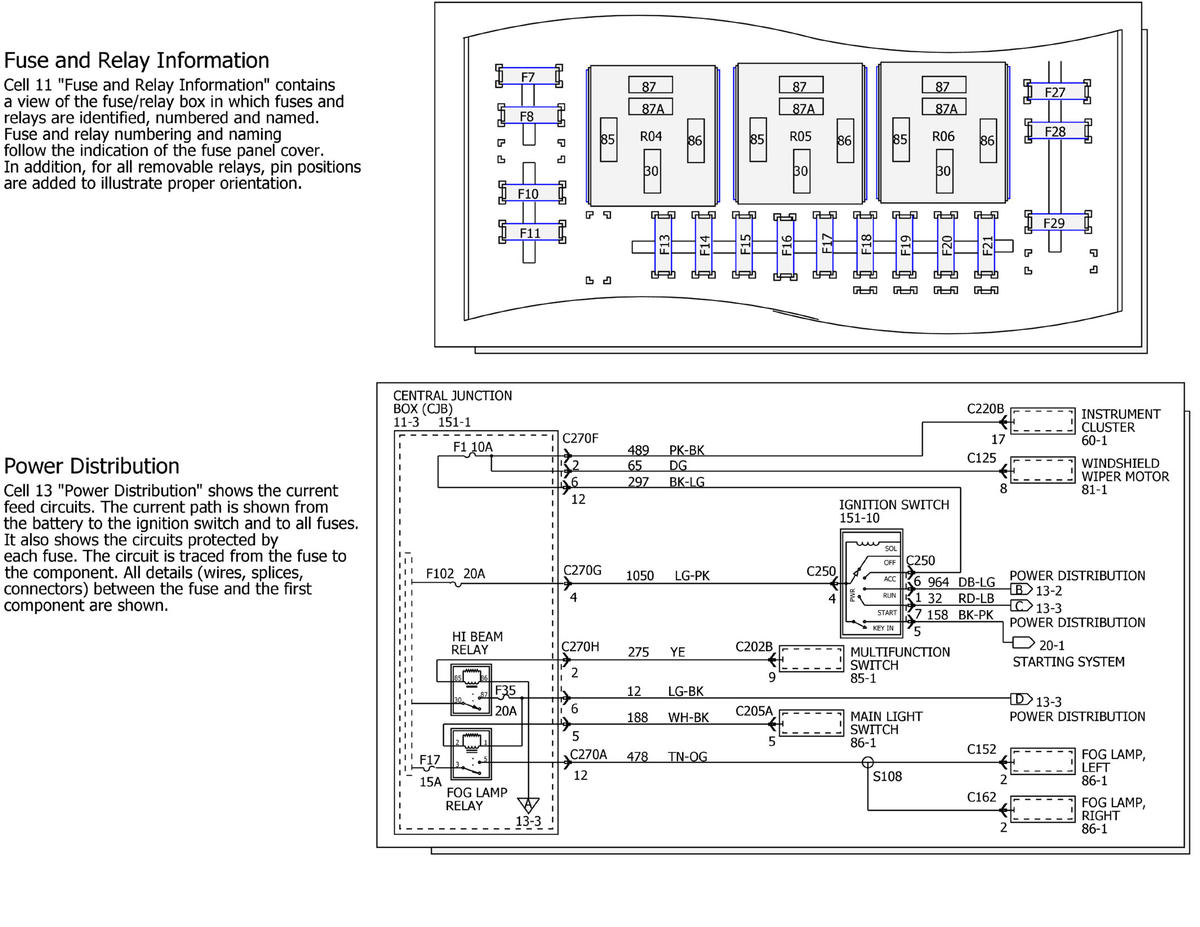

GFDWR139012Courtesy of FORD MOTOR COMPANY

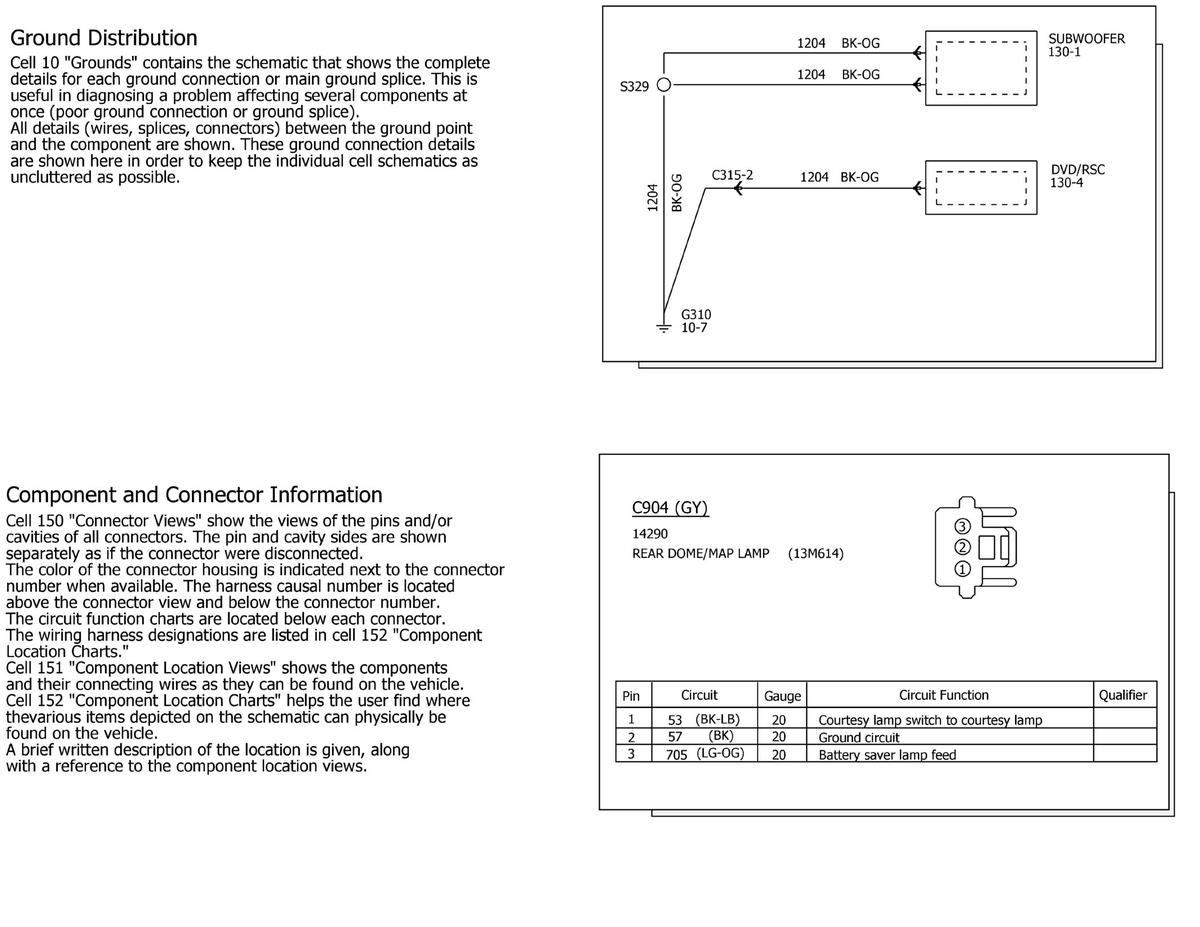

GFDWR139013Courtesy of FORD MOTOR COMPANY

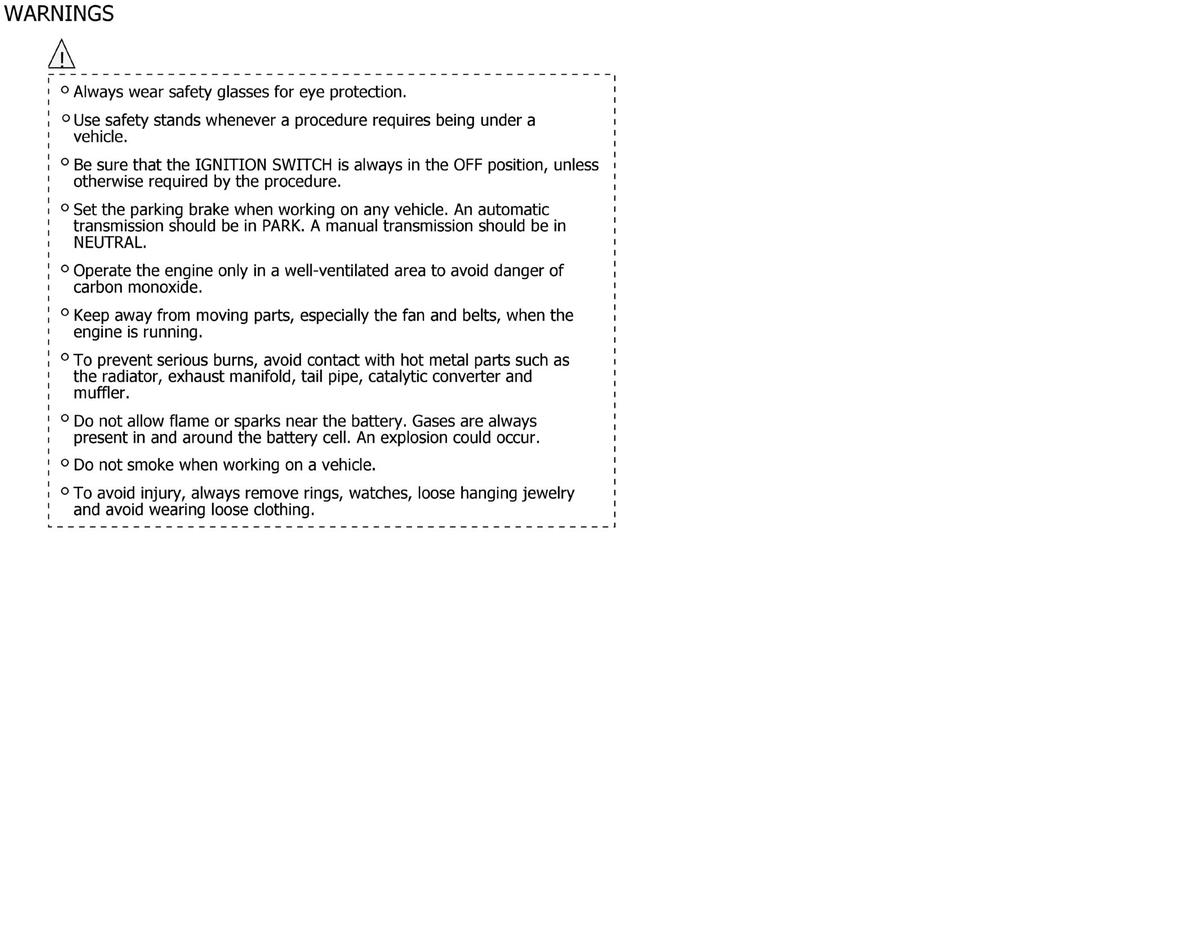

GFDWR139014Courtesy of FORD MOTOR COMPANY
