Disassembly And Assembly Of Subassemblies: Differential: Disassembly

1. Inspect the differential bearings for damage or excessive wear. Install new bearings if necessary.

   Courtesy of FORD MOTOR COMPANY

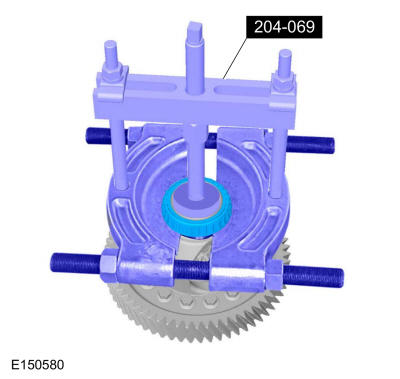

2. Using special tools, remove the bearing. Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub. Use the General Equipment: Puller

   Courtesy of FORD MOTOR COMPANY

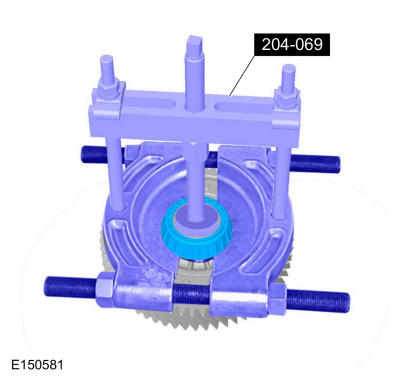

3. Using special tools, remove the bearing. Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub. Use the General Equipment: Puller

   Courtesy of FORD MOTOR COMPANY

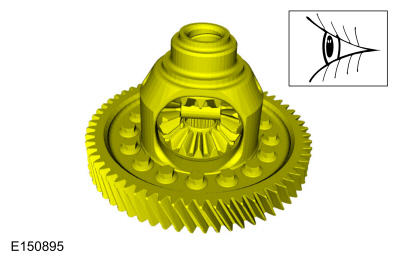

4. NOTE: If the ring gear is replaced, a new transfer shaft must also be installed.

   Check the differential assembly and the ring gear for damage.

   Courtesy of FORD MOTOR COMPANY

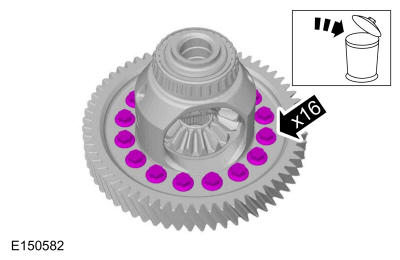

5. Remove and discard the ring gear bolts.

   Courtesy of FORD MOTOR COMPANY

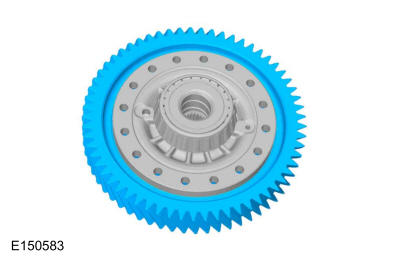

6. Remove the ring gear.

Courtesy of FORD MOTOR COMPANY
