Transmission Fluid Level Check

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Materials

Check

1. Start the engine and allow to run for 1 minute. Turn engine off and wait 5 minutes.
2. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

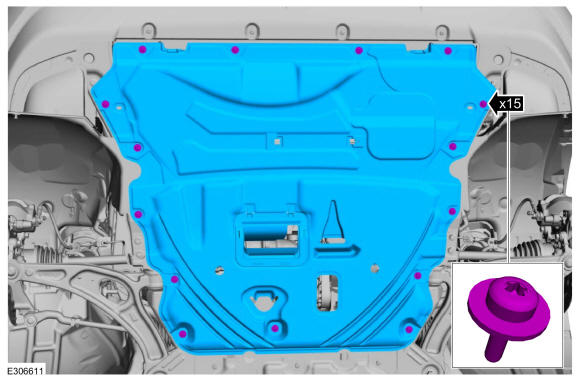

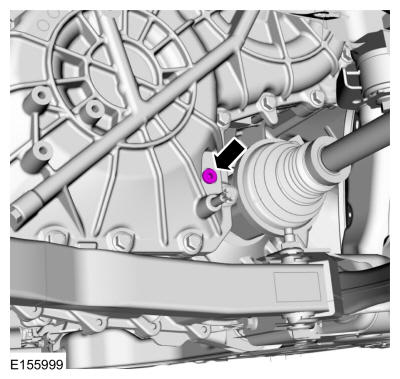

3. Remove the screws and the engine front undershield.

   Courtesy of FORD MOTOR COMPANY

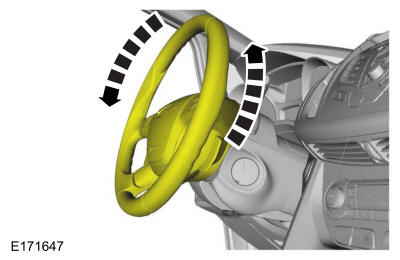

4. Rotate the steering wheel counter clockwise to access the transmission fluid leveling plug.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: The transmission fluid should be even with the bottom of the transmission fluid leveling plug hole.

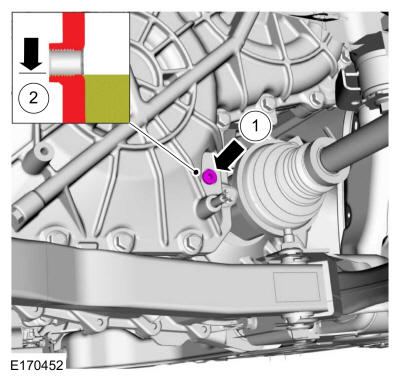

   Remove the transmission fluid leveling plug and check the transmission fluid level.

   Courtesy of FORD MOTOR COMPANY

   Adding Additional Transmission Fluid

   NOTE: The following procedure uses the Mityvac MVA7212 ATF Refill System.

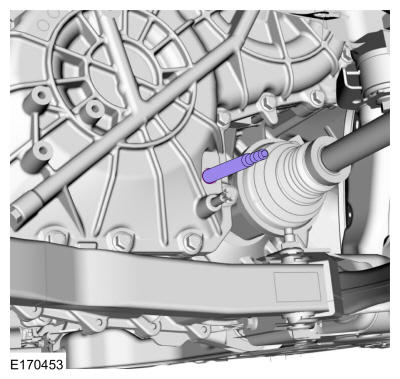

6. Install the adapter into transmission fluid leveling plug hole hand tight.

   Courtesy of FORD MOTOR COMPANY

7. Fill the transmission with transmission fluid.
   1. Fill the Mityvac MVA7212 with transmission fluid.

      Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

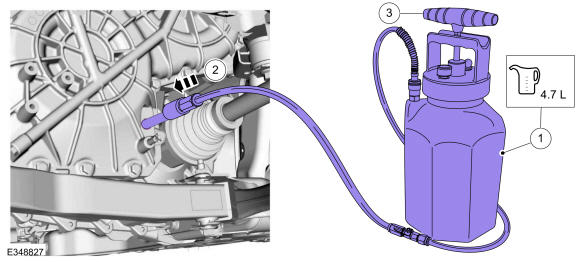

   2. Connect the Mityvac MVA7212.
   3. Follow the manufacturer instructions to dispense the fluid into the transmission.

   Courtesy of FORD MOTOR COMPANY

8. Release the pressure and remove the Mityvac MVA7212. Allow all excess fluid to drain into a pan.
9. Install the transmission fluid leveling plug.

   Torque: 26 lb.ft (35 Nm)

   Courtesy of FORD MOTOR COMPANY

10. Install the engine front undershield and the screws.

Courtesy of FORD MOTOR COMPANY
