Component Bleeding
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| Master Cylinder Bleeding Set |
|---|
Bleeding
NOTE:
If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
Master Cylinder
NOTE:
When a new brake master cylinder has been installed, it should be primed to prevent air from entering the system.
-
NOTE: Make sure the area around the master cylinder cap is clean and free of foreign material.

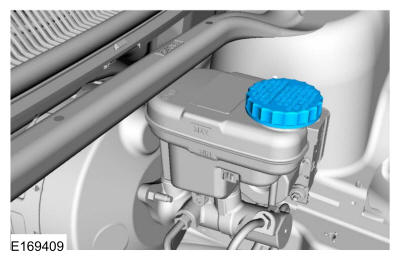

Remove the brake fluid reservoir cap.

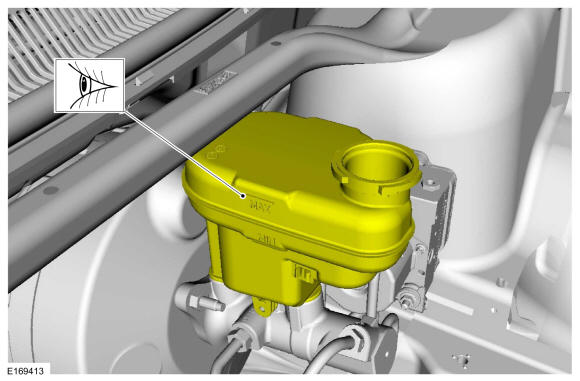

- Fill the reservoir with clean, specified brake fluid. Refer to: SPECIFICATIONS

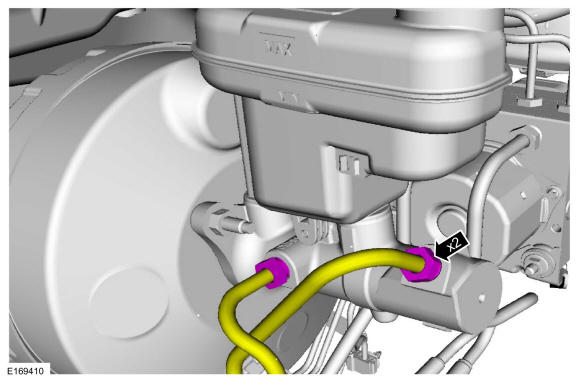

- Loosen and remove the brake tube fittings.

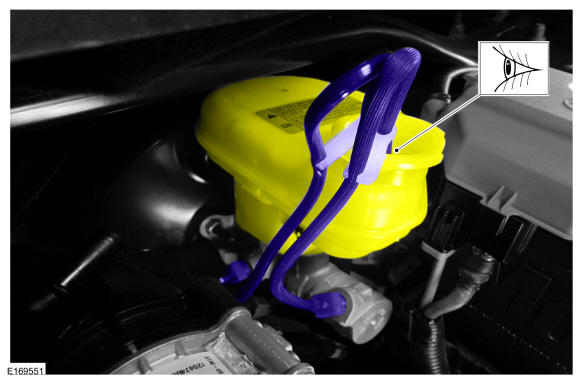

- Install the master cylinder bleeding set. . Use the General Equipment: Master Cylinder Bleeding Set

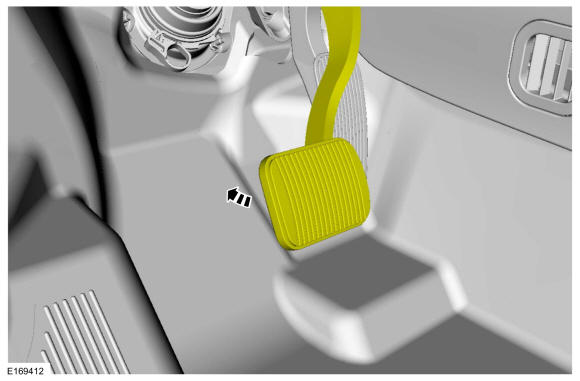

- Have an assistant pump the brake pedal slowly until clear bubble free fluid flows from the brake tubes.
- Remove the master cylinder bleeding set. Remove the General Equipment: Master Cylinder Bleeding Set
- Tighten the brake tube fittings. Refer to: SPECIFICATIONS
- Fill the reservoir with clean, specified brake fluid. Refer to: SPECIFICATIONS
- Refer to: Brake System Pressure Bleeding .
Brake Caliper, Wheel Cylinder, Brake Hose or Brake Tube
-
NOTE: Pressure bleeding the brake system is required anytime a hydraulic brake system component has been disconnected.
Refer to: Brake System Pressure Bleeding .
