Differential Fluid Level Check

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Materials

Name	Specification
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL	WSS-M2C942-A

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
NOTE: If equipped.

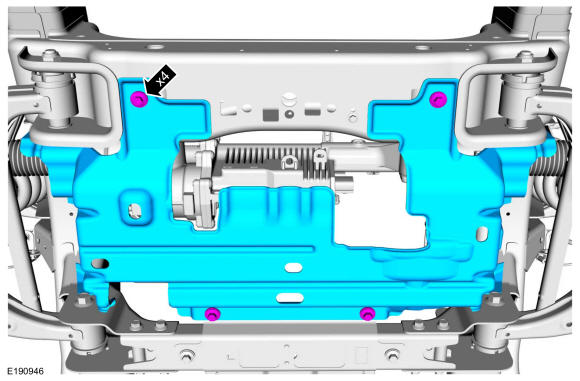

Remove the bolts and remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

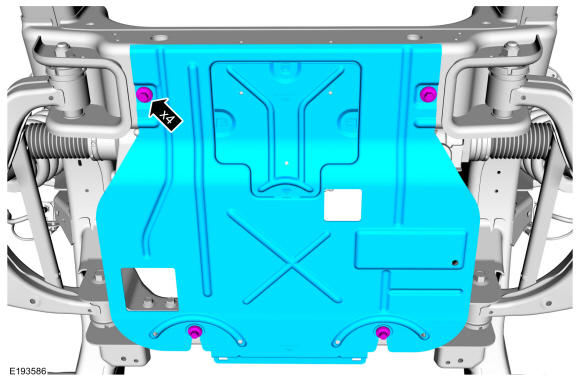

Remove the bolts, and remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

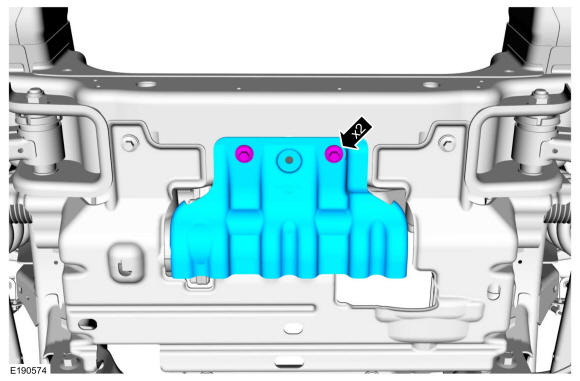

Remove the bolts and remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

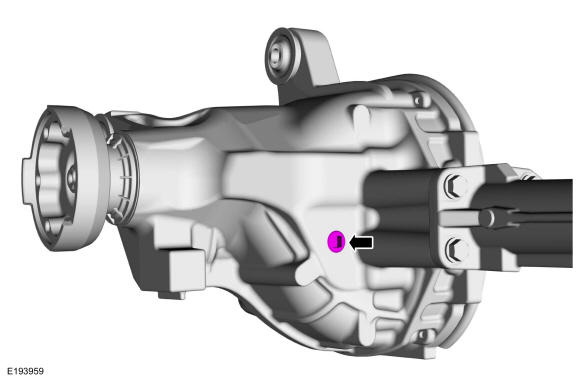

Remove the front differential fill plug.

Courtesy of FORD MOTOR COMPANY

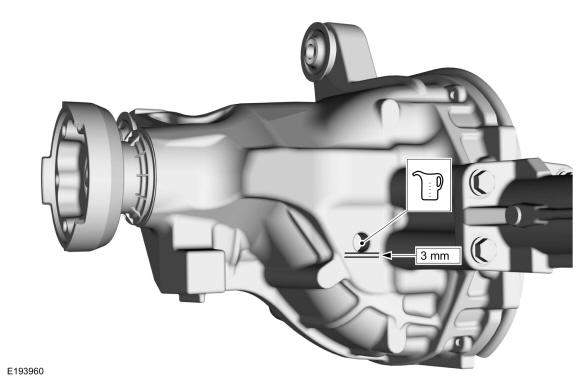

Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 3 mm (0.118 in.) from the fluid level fill plug opening. Install the differential fill plug.
Material

: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY
Install the front differential fill plug.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and underbody shield bolts.

Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and the bolts.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Install the underbody shield and the bolts.

Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
