Engine Control Components: Turbocharger
The turbocharger assembly is an exhaust driven centrifugal compressor. Expanding exhaust gases drive the turbine shaft assembly to speeds over 100, 000 RPM. The turbocharger increases the power output of an engine by increasing the mass of air entering the engine.
Three types of turbocharger are currently being used.
The first type of turbocharger has an integrated wastegate and a remote bypass valve.

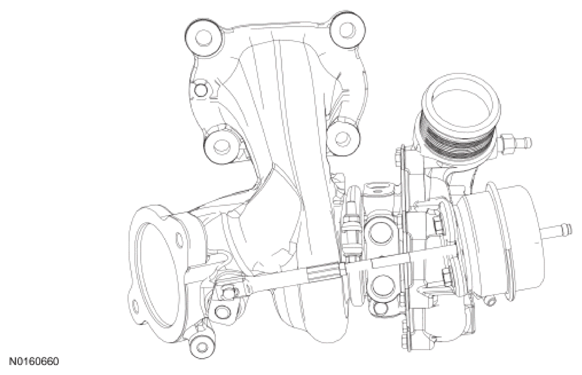

Typical Turbocharger With Integrated Wastegate And Remote Bypass Valve.
The second type of turbocharger has an integrated wastegate, an electric wastegate motor and a remote bypass valve.

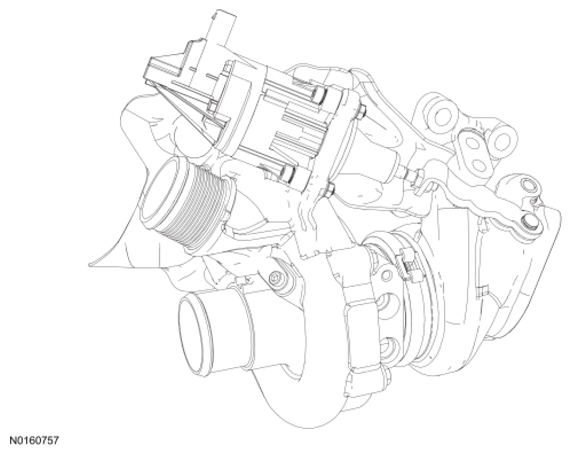

Typical Turbocharger With Integrated Electric Wastegate Motor And Remote Bypass Valve.
The third type of turbocharger has an integrated wastegate and an integrated bypass valve in the turbocharger housing.

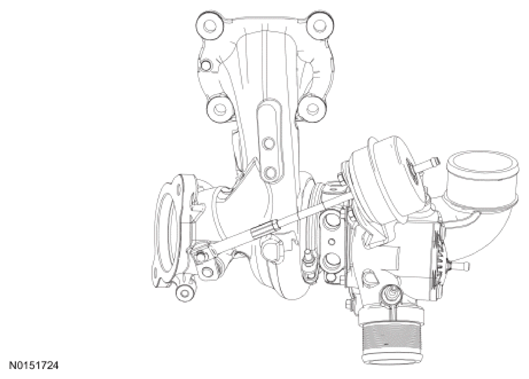

Typical Turbocharger With Integrated Wastegate And Integrated Bypass Valve.
