Powertrain Control Module (PCM): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: This step is only necessary when installing a new component.
Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation and Component Description . Use the General Equipment: Ford Diagnostic Equipment

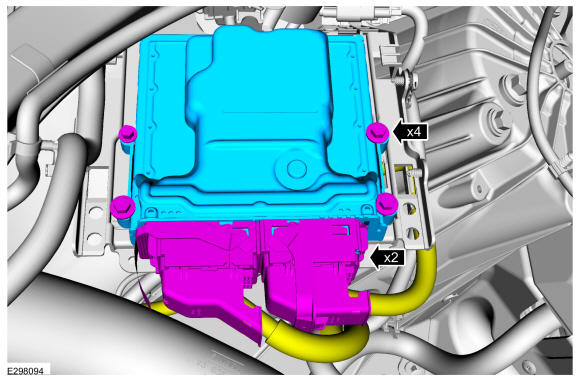

- Disconnect the electrical connectors. Remove the bolts and the PCM.
Torque: 97 lb.in (11 Nm)
