Section 13 (Engine - 2.3L ECOBOOST (201KW/273PS)): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-050 (T70P-6000) Lifting Bracket, Engine
Adjustable Mounting Arm
Oil Drain Equipment
Side Cutter Pliers
Vehicle/Axle Stands
Cable Ties
Hose Clamp Remover/Installer
Powertrain Jack
Wooden Block

LHD AWD/LHD RWD

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2. Using a holding device, hold the steering wheel.

   Courtesy of FORD MOTOR COMPANY

3. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
4. Disconnect the negative and positive battery cables. Refer to: BATTERY CABLES - 2.3L ECOBOOST (201KW 273PS) .
5. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
6. Evacuate the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
7. If equipped, remove the bolts and the suspension support bar.

   Courtesy of FORD MOTOR COMPANY

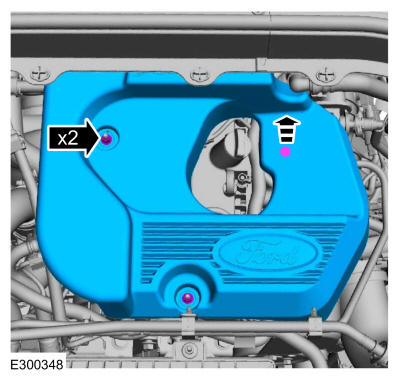

8. NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
   1. Remove the engine appearance cover nuts.
   2. Place your hand under the engine appearance cover at the grommet location and push straight up to release the grommet from the stud.
   3. After the grommet has been released from the stud, remove the appearance cover from the engine.

   Courtesy of FORD MOTOR COMPANY

9. Remove the following items:
   1. Remove the cowl panel. Refer to: Cowl Panel .
   2. Remove the EVAP canister purge valve. Refer to: Evaporative Emission Canister Purge Valve .
   3. Remove the air cleaner. Refer to: Air Cleaner .
   4. Remove the CAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
   5. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

10. Disconnect the EVAP canister tube quick release coupling and the retainer and remove. Refer to: QUICK RELEASE COUPLING - 2.3L .

    Courtesy of FORD MOTOR COMPANY

11. Disconnect the EVAP canister tube quick release coupling and remove from the intake manifold. Refer to: QUICK RELEASE COUPLING - 2.3L .

    Courtesy of FORD MOTOR COMPANY

12. Using cable ties or mechanics wire through the upper location holes, to support the cooling module. Use the General Equipment: Cable Ties

    Courtesy of FORD MOTOR COMPANY

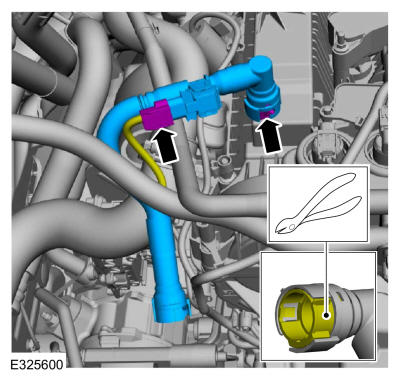

13. NOTE: The crankcase vent tube may have either a permanent or quick connect connector at one or both ends. If the tube needs to be removed for any reason, the permanent connector(s) must be cut to remove the tube. The tube will then need to be replaced.
    NOTE: If the crankcase vent tube is replaced, the replacement part may not come with a crankcase pressure sensor. If so, the PCM will need to be reprogrammed.
    • If equipped, disconnect the wiring harness electrical connector.
    • If necessary, cut the lock tab. Use the General Equipment: Side Cutter Pliers
    • If either crankcase vent tube connector was cut, remove and discard the crankcase vent tube.

    Courtesy of FORD MOTOR COMPANY

14. Loosen the CAC tube clamp and position aside.

    Courtesy of FORD MOTOR COMPANY

15. Remove the bolt (Enhanced Hexalobular or TORX PLUS ® Acument Intellectual Properties, LLC as the owner) and the shield.

    Courtesy of FORD MOTOR COMPANY

16. Detach the retainers, remove the bolt and position the ground wire aside.

    Courtesy of FORD MOTOR COMPANY

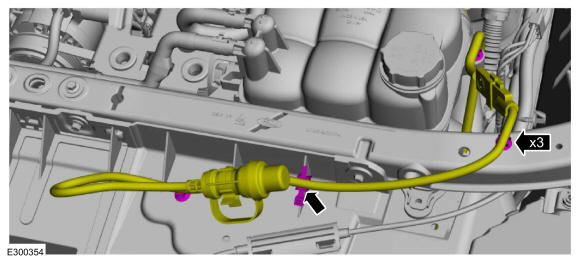

17. If equipped, detach the block heater electrical wiring harness retainers and position the wiring harness on the engine.

    Courtesy of FORD MOTOR COMPANY

18. Release the clamp and position the coolant hose on engine. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

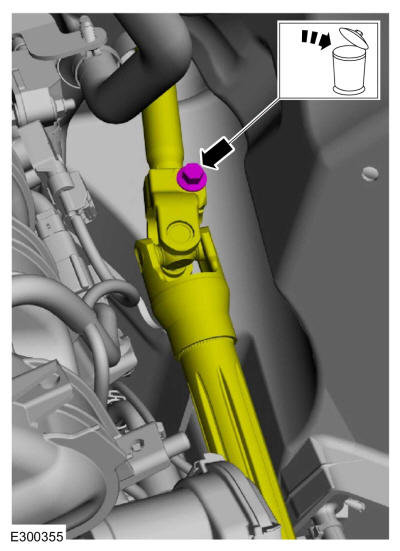

19. • Remove the bolt and disconnect the steering shaft.
    • Discard the bolt.

    Courtesy of FORD MOTOR COMPANY

20. Disconnect the HO2S sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

21. • Disconnect the PCM electrical connector.
    • Disconnect the engine harness electrical connector, retainer and position the engine wiring harness on the engine.

    Courtesy of FORD MOTOR COMPANY

22. Loosen the clamp and detach the coolant hose retainer and position the degas bottle coolant hose aside.

    Courtesy of FORD MOTOR COMPANY

23. Loosen the upper radiator hose clamp and position the hose aside.

    Courtesy of FORD MOTOR COMPANY

24. • Release the clamp and position the coolant hose aside. Use the General Equipment: Hose Clamp Remover/Installer
    • Disconnect the coolant hose quick connect couplings and position the coolant tubes aside.

    Courtesy of FORD MOTOR COMPANY

25. Disconnect the A/C pressure switch and detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

26. • Remove the nuts and the A/C lines from A/C compressor.
    • Discard the O-ring seal.
    • Make sure that all openings are sealed.

    Courtesy of FORD MOTOR COMPANY

27. Release the clip, retainer and position the lower coolant hose aside.

    Courtesy of FORD MOTOR COMPANY

28. Disconnect the coolant tube from the coolant hoses that are over engine.

    Courtesy of FORD MOTOR COMPANY

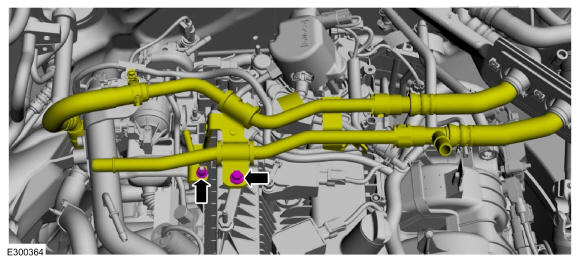

29. Remove the nut, bolt for the coolant tubes.

    Courtesy of FORD MOTOR COMPANY

30. Detach the fuel tube retainer and position the coolant tubes aside.

    Courtesy of FORD MOTOR COMPANY

31. NOTE: When removing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

    Remove the high-pressure fuel pump noise insulator.

    Courtesy of FORD MOTOR COMPANY

32. Disconnect the fuel tube quick release coupling and position aside. Refer to: QUICK RELEASE COUPLING - 2.3L .

    Courtesy of FORD MOTOR COMPANY

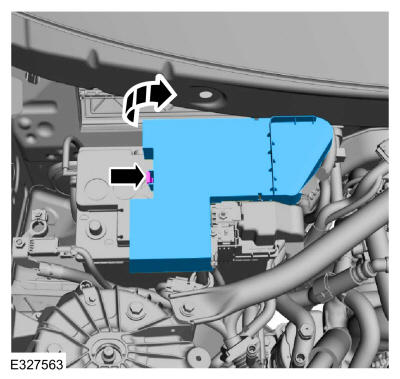

33. Release the tab and remove the cover.

    Courtesy of FORD MOTOR COMPANY

34. 1. Remove the bolt and position the ground aside.
    2. Remove the nuts and position the B+ battery cables aside.

    Courtesy of FORD MOTOR COMPANY

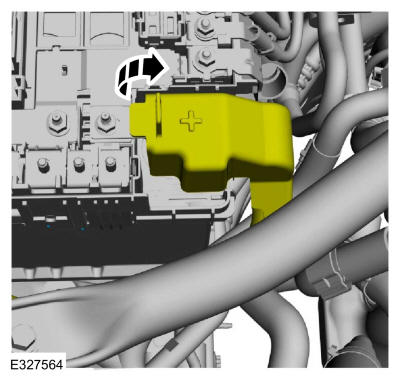

35. Position the battery cable cover aside.

    Courtesy of FORD MOTOR COMPANY

36. Remove the nut and position the battery wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

37. Disconnect the wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

38. Position the wiring harness electrical grommet aside.

    Courtesy of FORD MOTOR COMPANY

39. Cut the wiring harness cable tie. Use the General Equipment: Cable Ties

    Courtesy of FORD MOTOR COMPANY

40. • Remove the bolt and position the ground wire aside.
    • Remove the wiring harness retainer nut and position the wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

41. Remove the LH and RH front wheels and tires. Refer to: Wheel and Tire .
42. Remove the wiring harness retainer bolt from the frame rail.

    Courtesy of FORD MOTOR COMPANY

43. Remove the engine rear undershield. Refer to: Engine Rear Undershield .
44. • Remove the oil pan drain bolt and drain the engine oil. Use the General Equipment: Oil Drain Equipment
    • Install the oil pan drain bolt.

      Torque: 20 lb.ft (27 Nm)

    Courtesy of FORD MOTOR COMPANY

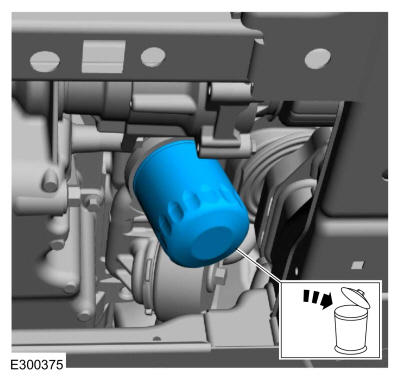

45. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

    Courtesy of FORD MOTOR COMPANY

46. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Remove both front brake disc. Refer to: Brake Disc .

    LHD AWD

47. Remove the RH and LH halfshafts. Refer to: Halfshaft .
48. • Disconnect the vent hose from the LH axle connector.
    • Detach the wiring harness retainer from the vent tubes.
    • Disconnect the vent hose from the front axle assembly and position the vent tubes aside.

    Courtesy of FORD MOTOR COMPANY

49. Disconnect the wiring harness electrical connector from the LH axle connector.

    Courtesy of FORD MOTOR COMPANY

50. Disconnect the wiring harness electrical connector from the front axle assembly.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD RWD

51. Remove the transmission. Refer to: Transmission - 2.3L EcoBoost (201kW/273PS) .
52. NOTE: AWD shown, RWD similar.

    Position a 1 x 6 board, 13 in (330.2 mm) in length on the subframe as shown to support the engine from moving forward after the stand is removed. Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

53. Remove the stand. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

54. • Loosen the clamp and position the transmission cooler coolant tube aside.
    • Disconnect the coolant tube and remove the transmission cooler.

    Courtesy of FORD MOTOR COMPANY

55. • Disconnect the auxiliary coolant pump wiring harness electrical connector and the retainer.
    • Remove the bolts and position the auxiliary coolant pump aside.

    Courtesy of FORD MOTOR COMPANY

56. If equipped, remove the steering shield pin-type retainers from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

57. If equipped with AWD, remove the RH fender splash shield nut.

    Courtesy of FORD MOTOR COMPANY

58. If equipped, remove the pin-type retainers and the steering shield from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

59. Remove the splash shield pin-type retainer from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

60. Detach the HO2S wiring harness retainers from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

61. If equipped with AWD, remove the LH fender splash shield nut.

    Courtesy of FORD MOTOR COMPANY

62. If equipped, remove the pin-type retainers and the steering shield from the LH subframe.

    Courtesy of FORD MOTOR COMPANY

63. Remove the splash shield pin-type retainer from the LH subframe.

    Courtesy of FORD MOTOR COMPANY

64. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the LH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

65. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

    LHD RWD

66. NOTE: LH side shown, RH side similar.

    On both sides, remove the wheel speed sensor bolt on the wheel knuckle and position aside.

    Courtesy of FORD MOTOR COMPANY

67. NOTE: LH side shown, RH side similar.

    On both sides, remove bolt and position the front brake hose aside.

    Courtesy of FORD MOTOR COMPANY

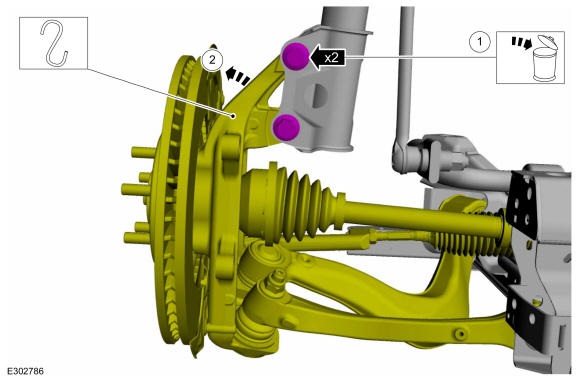

68. NOTE: Two different styles of lower strut-to-wheel knuckle bolts are available: with and without splines. Bolts without splines are used to adjust camber and should be installed when the strut, knuckle, or subframe have been replaced or if the subframe or either lower arm to subframe bolts have been loosened.
    NOTE: LH side shown, RH side similar.
    1. On both sides, remove and discard the lower strut-to-wheel knuckle nuts and bolts.
    2. Separate the wheel knuckle from the front strut and spring assembly.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD RWD

69. Remove the bolt and position the RH underbody shield aside.

    Courtesy of FORD MOTOR COMPANY

70. Remove the bolt and position the LH underbody shield aside.

    Courtesy of FORD MOTOR COMPANY

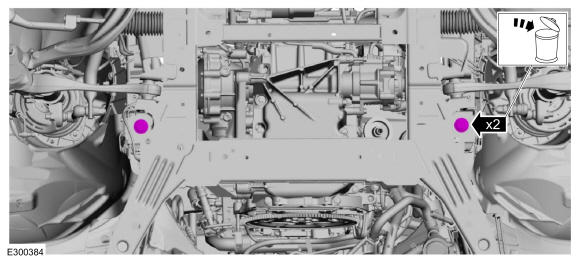

71. • Remove the middle subframe bolts.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

72. NOTE: The middle board will help keep the engine aligned in a even position.

    Position three boards onto the powertrain jack as shown.

    Courtesy of FORD MOTOR COMPANY

73. Position the powertrain jack and blocks of wood under the powertrain and subframe. Use the General Equipment: Powertrain Jack, Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

74. Install, adjust and tighten the adjustable mounting arm bolts. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

75. Mark the front subframe location.

    Courtesy of FORD MOTOR COMPANY

76. Mark the rear subframe location.

    Courtesy of FORD MOTOR COMPANY

77. Remove the front radiator support bar bolts.

    Courtesy of FORD MOTOR COMPANY

78. Detach the coolant tube retainers from the front of the subframe.

    Courtesy of FORD MOTOR COMPANY

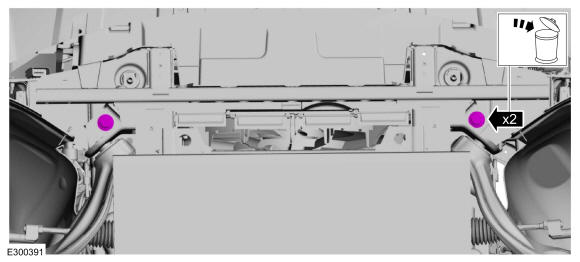

79. • Remove the front subframe bolts.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

80. • Remove the rear subframe bolts.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

81. 1. With the aid of an assistant and using the powertrain jack, lower the powertrain and subframe 25.4 mm (1 in).
    2. With the aid of an assistant and using the powertrain jack, position the powertrain and subframe rearwards 50.8 mm (2 in).

    Courtesy of FORD MOTOR COMPANY

82. With the aid of an assistant and using the powertrain jack, lower the powertrain and subframe as an assembly.

    Courtesy of FORD MOTOR COMPANY

83. Disconnect the A/C compressor electrical connectors and the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

84. • Release the coolant hose clamp and retainer. Use the General Equipment: Hose Clamp Remover/Installer
    • Remove the bolt and the auxiliary coolant pump and hoses.

    Courtesy of FORD MOTOR COMPANY

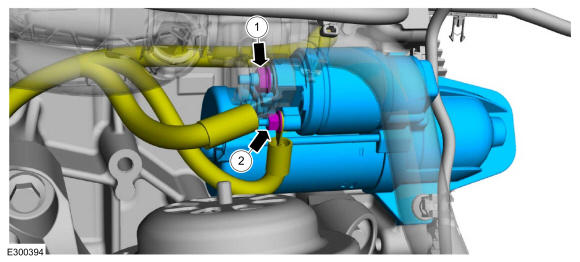

85. 1. Remove the nut and disconnect the battery positive cable from the starter motor.
    2. Remove the nut and the starter motor control wire from the starter motor and remove the starter motor.

    Courtesy of FORD MOTOR COMPANY

86. Remove the bolt, detach the wiring harness retainer and position the wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

87. • Position the B+ wire protective cover, remove the nut and position the B+ wire.
    • Disconnect the generator electrical connector.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

88. Using the ground wire bolt, install the special tool. Install Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Courtesy of FORD MOTOR COMPANY

89. Install the floor crane and chain.

    Courtesy of FORD MOTOR COMPANY

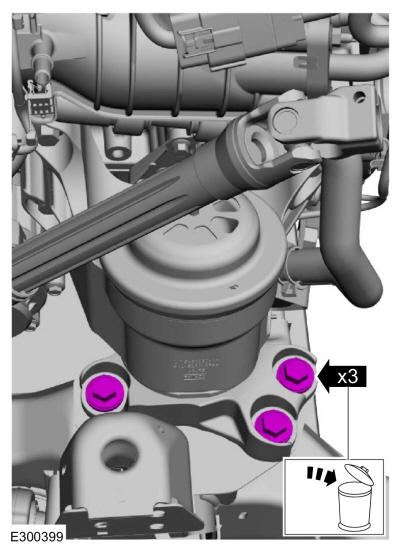

90. Remove the LH motor mount bolts.

    Courtesy of FORD MOTOR COMPANY

91. Remove the RH motor mount bolts.

    Courtesy of FORD MOTOR COMPANY

92. Remove. Use the General Equipment: Adjustable Mounting Arm

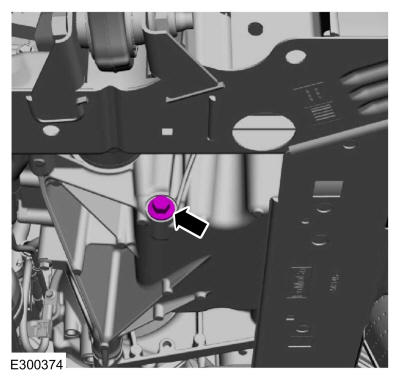

    Courtesy of FORD MOTOR COMPANY

93. Using the floor crane and chain, remove the engine from subframe.

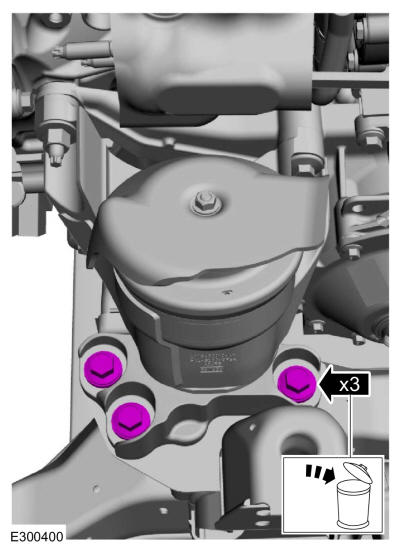

Courtesy of FORD MOTOR COMPANY
