Front Strut and Spring Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that the components are installed to the position noted before removal.

To assemble, reverse the disassembly procedure.

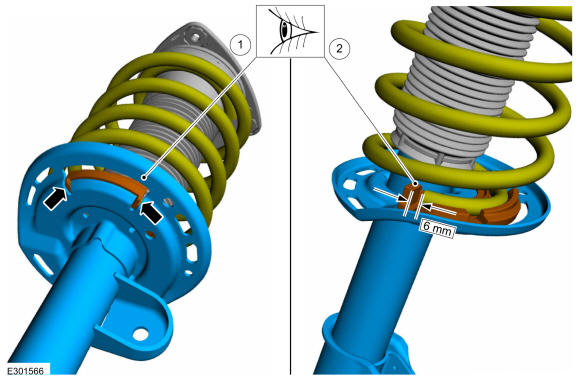

NOTE: Make sure that the spring is centered in the lower spring seat.

Make sure that the lower spring insulator is properly seated on spring seat.

Courtesy of FORD MOTOR COMPANY

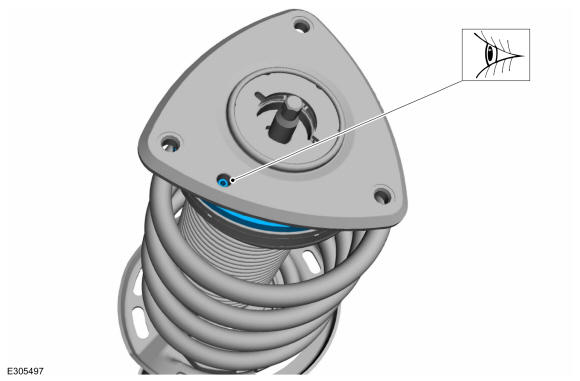

Make sure that the bearing locator pin is properly positioned in top mount hole.

Courtesy of FORD MOTOR COMPANY

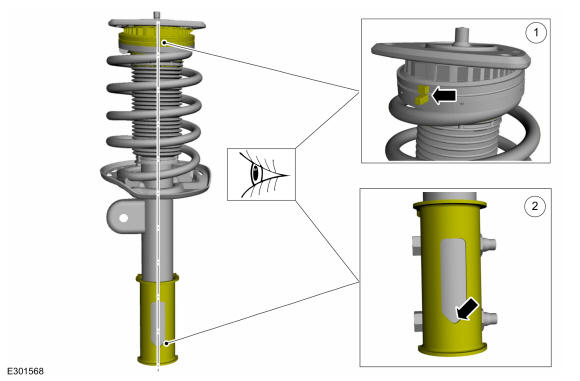

NOTE: Make sure the components are correctly aligned during assembly.
1. Make sure that the bearing tabs is properly aligned with each other.
2. Bearing tabs should be pointed inboard and inline with the point strut bracket cutout.
Courtesy of FORD MOTOR COMPANY

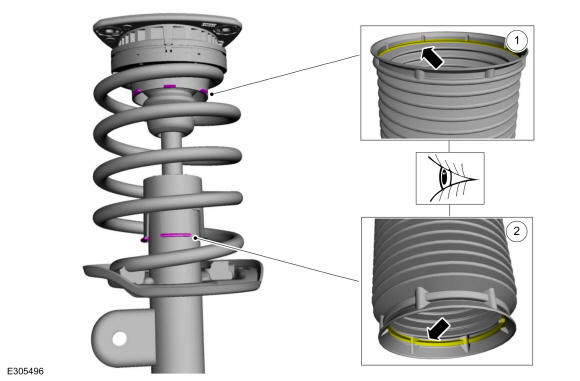

1. Make sure that the dust cover is clipped into all 6 tabs on the bearing.
2. Make sure that the dust cover is clipped into all 4 tabs on the bearing.
Courtesy of FORD MOTOR COMPANY
WARNING: Take extra care when handling a compressed spring. Failure to follow this instruction may result in personal injury.

NOTE: Make sure that the spring coating is not damaged during assembly process.

NOTE: Typical strut and spring assembly shown.

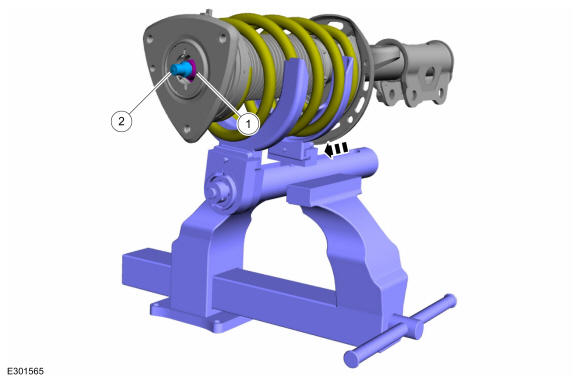

1. NOTE: Utilize the hex holding feature to prevent the strut rod from turning while installing the strut rod nut.

  Install the new strut rod nut. Use the General Equipment: Spring Compressor Use the General Equipment: Vise

  Torque: 98 lb.ft (133 Nm)
2. Install the cap.
Courtesy of FORD MOTOR COMPANY
Install the front strut and spring assembly. Refer to: Front Strut and Spring Assembly .
