Front Strut and Spring Assembly: Installation

WARNING: This page is about a different variant/trim than selected.

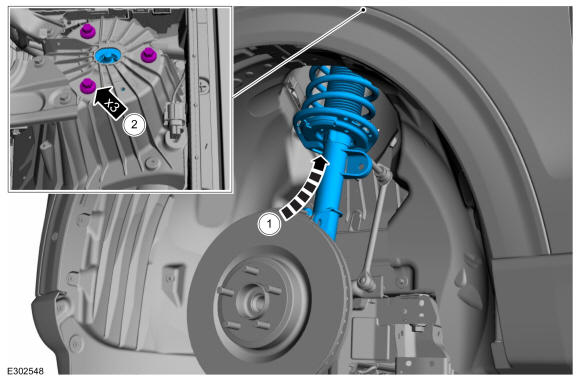

    1. Position the front strut and spring assembly
    2. Install the new front strut and spring assembly upper bolts.

      Torque: 41 lb.ft (55 Nm)

    GFD509775Courtesy of FORD MOTOR COMPANY
  1. Install the cowl panel grille. Refer to: Cowl Panel Grille .

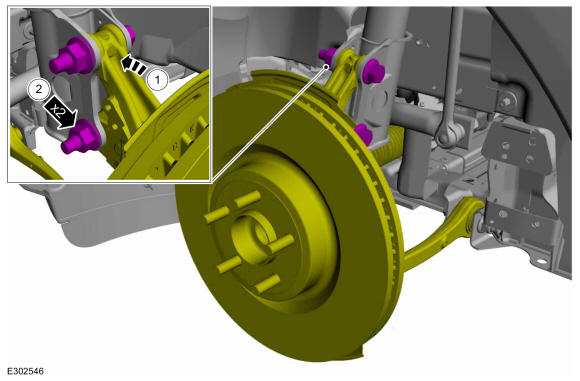

    1. Attach the wheel knuckle to the front strut and spring assembly.
    2. NOTE: Tighten the nuts until the rotational torque reaches the appropriate specification.

      Install the new front strut and spring assembly-to-wheel knuckle bolts without splines and nuts.

      Torque: 166 lb.ft (225 Nm)

    GFD509776Courtesy of FORD MOTOR COMPANY

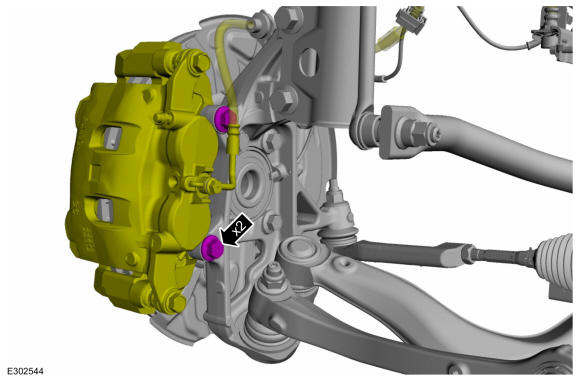

  2. Position the brake caliper assembly and install the 2 new brake caliper anchor plate bolts.

    Torque: 129 lb.ft (175 Nm)

    GFD509777Courtesy of FORD MOTOR COMPANY

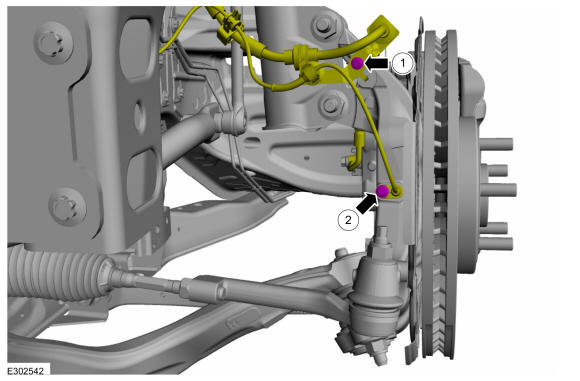

    1. Position the brake hose and install the brake hose bracket bolt.

      Torque: 133 lb.in (15 Nm)

    2. Position the wheel speed sensor harness and install the bolt.

      Torque: 106 lb.in (12 Nm)

    GFD509770Courtesy of FORD MOTOR COMPANY

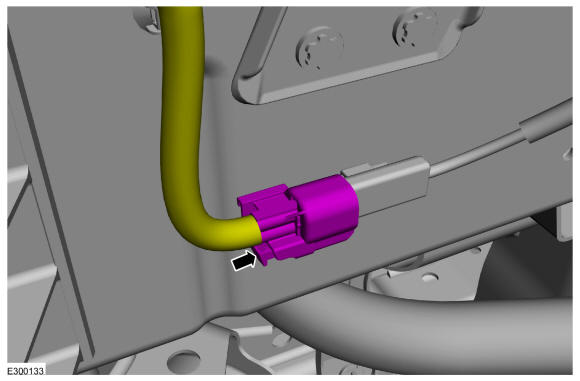

  3. Connect the front wheel speed sensor electrical connector.
    GFD509769Courtesy of FORD MOTOR COMPANY

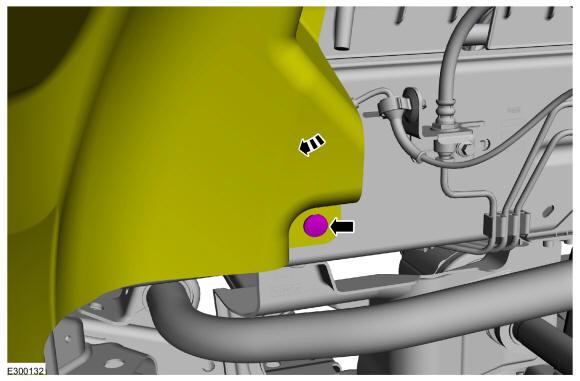

  4. Position the fender splash shield and Install the pin-type retainer.
    GFD509768Courtesy of FORD MOTOR COMPANY
  5. NOTE: If equipped.

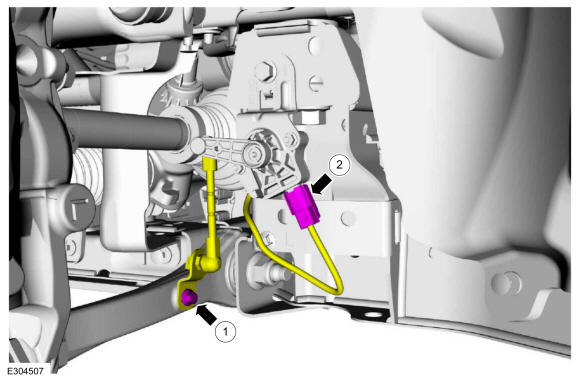

    1. Install the front ride height sensor arm anchor plate bolt.

      Torque: 97 lb.in (11 Nm)

    2. Connect the ride height sensor electrical connector.

    GFD509778Courtesy of FORD MOTOR COMPANY
  6. NOTE: Do not use power tools to remove or install the stabilizer bar link nuts. Damage to the stabilizer bar link ball joints and boots may occur.
    NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.
    NOTE: Use the TORX PLUS® holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut. Torx® and TORX PLUS® is a reg. tm of Acument Intellectual Properties, LLC.

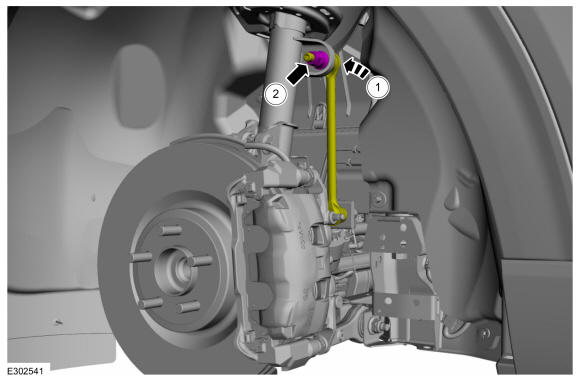

    1. Position the front stabilizer bar link.
    2. Install the new front stabilizer bar link upper nut.

      Torque: 129 lb.ft (175 Nm)

    GFD509779Courtesy of FORD MOTOR COMPANY
  7. Install the wheel and tire. Refer to: Wheel and Tire .
  8. Check and if necessary adjust front camber. Refer to: Front Camber and Caster Adjustment .
