Power Fold Seat Control Switch: Removal

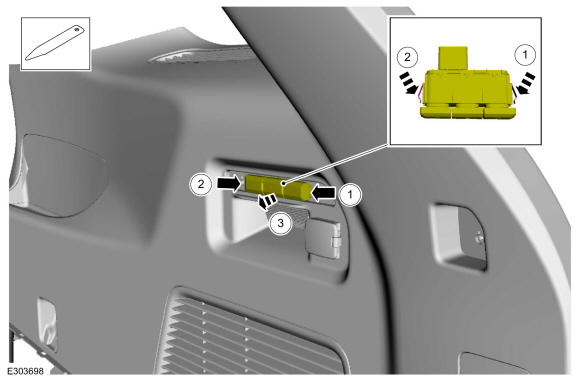

    1. Depress the power fold seat control switch retaining clips. Use the General Equipment: Interior Trim Remover
    2. Depress the power fold seat control switch retaining clips. Use the General Equipment: Interior Trim Remover
    3. Position the power fold seat control switch out of the loadspace trim panel.
    GFD516865Courtesy of FORD MOTOR COMPANY

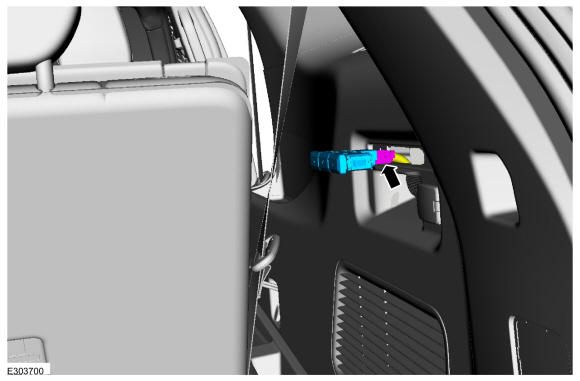

  2. Disconnect the electrical connector and remove the power fold seat control switch.
GFD516866Courtesy of FORD MOTOR COMPANY
