Section 14 (Engine - 3.3L DURATEC-V6): Assembly: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge
Courtesy of FORD MOTOR COMPANY	205-142 (T80T-4000-J) Installer, Differential Bearing Cone
Courtesy of FORD MOTOR COMPANY	205-149 (T80T-4000-R) Installer, Spindle Bearing
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	303-102 Installer, Crankshaft Pulley
Courtesy of FORD MOTOR COMPANY	303-1245 Engine Lift Eye TKIT-2006UF-FLM TKIT-2006UF-ROW

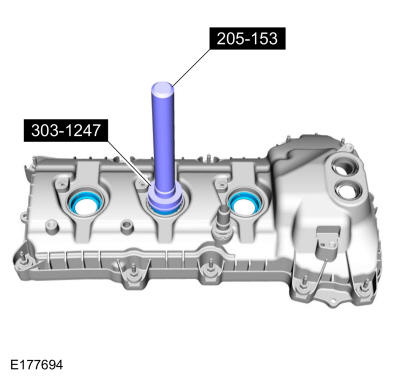

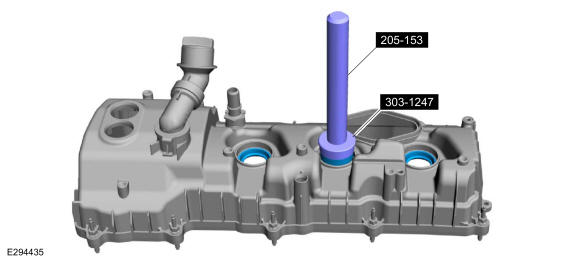

Courtesy of FORD MOTOR COMPANY	303-1247 VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1248 Camshaft holding tools TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1250 Seal Installer, Rear Main TKIT-2006UFFLM

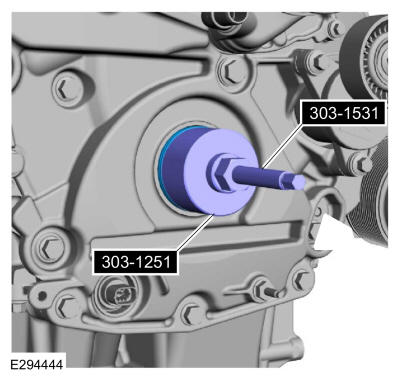

Courtesy of FORD MOTOR COMPANY	303-1251 Installer, Front Seal TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1529 Lift Eye, Engine TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW

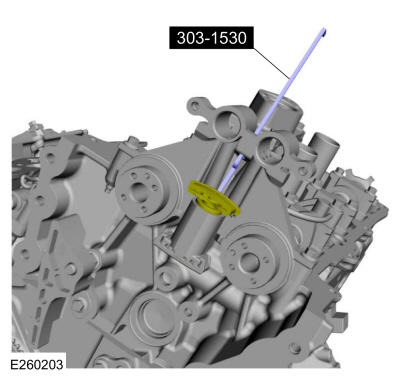

Courtesy of FORD MOTOR COMPANY	303-1530 Tool, Chain Tensioner Hold Down TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW

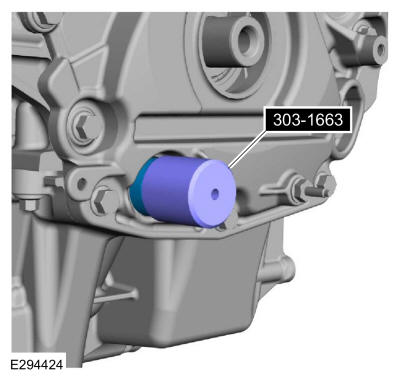

Courtesy of FORD MOTOR COMPANY	303-1663 Installer, VDOP Seal

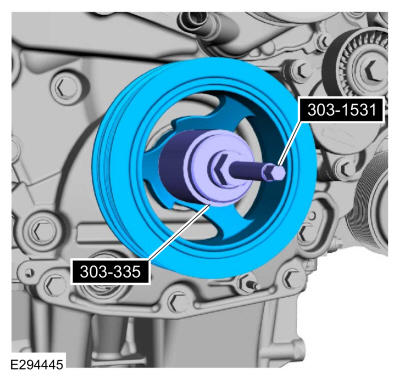

Courtesy of FORD MOTOR COMPANY	303-335 (T88T-6701-A) Installer, Front Cover Oil Seal TKIT-1988-FLM TKIT-1988-F

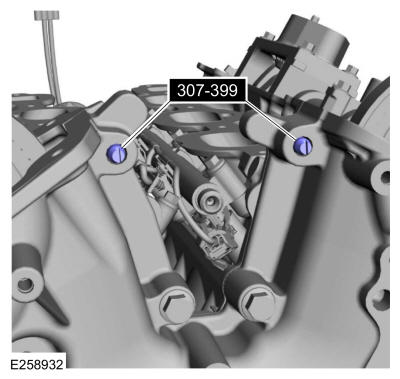

Courtesy of FORD MOTOR COMPANY	307-399 Alignment Pins, Transmission Fluid Pump TKIT-2002N-DEW TKIT-2000AP-FLM/LM
Feeler Gauge
Floor Crane
Mounting Stand
Piston Ring Compressor

Materials

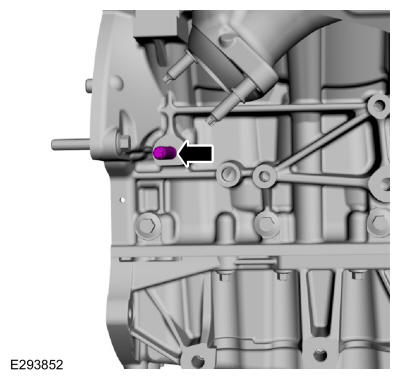

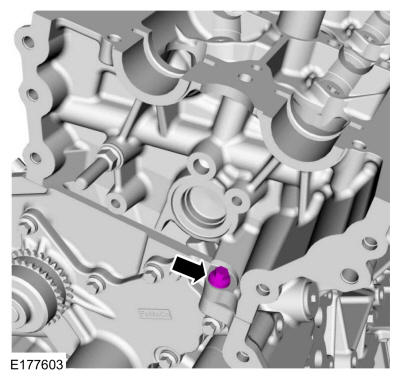

1. Using a hex bit, install the piston oil cool valves.

   Torque: 35 lb.in (4 Nm)

   Courtesy of FORD MOTOR COMPANY

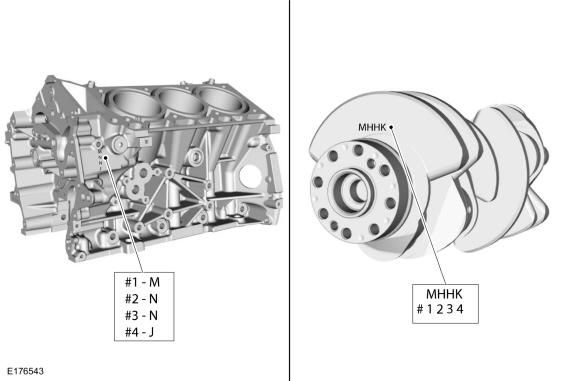

2. NOTE: This step is for selecting the correct main bearings.
   NOTE: The #1 main bearing is at the front of the engine block.
   • Select the crankshaft main bearings for each crankshaft journal.
   • Record the code that is on the cylinder block face.
   • Record the code that is on the crankshaft flange.
   • The first letter is for main No. 1 and the next letters are for mains 2, 3 and 4.

   Courtesy of FORD MOTOR COMPANY

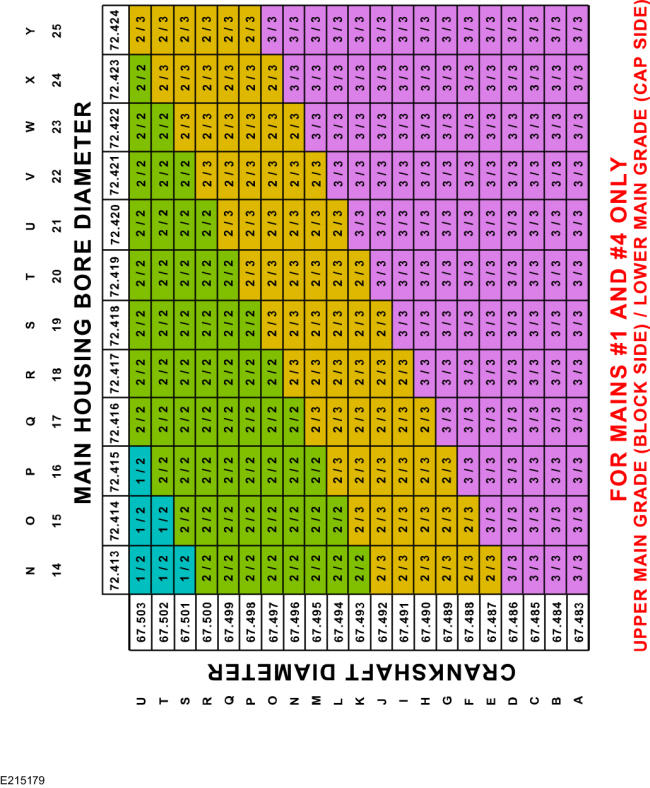

3. NOTE: This chart is continued in the next step.
   NOTE: This chart is for selecting main bearings 1 and 4 only.
   • Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for main bearings 1 and 4.
   • Read the first letter of the engine block main bearing code and the first letter of the crankshaft main bearing code.
   • Read down the column below the engine block main bearing code letter and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade(s) for the No. 1 crankshaft main bearing.
   • As an example, if the engine block code letter is "M" and the crankshaft code letter is "M", the correct bearing grade for this main bearing is a "2" for the upper bearing and a "2" for the lower bearing.
   • Repeat the above steps using the fourth letter of the block and crankshaft codes to select the No. 4 bearing.

   Courtesy of FORD MOTOR COMPANY

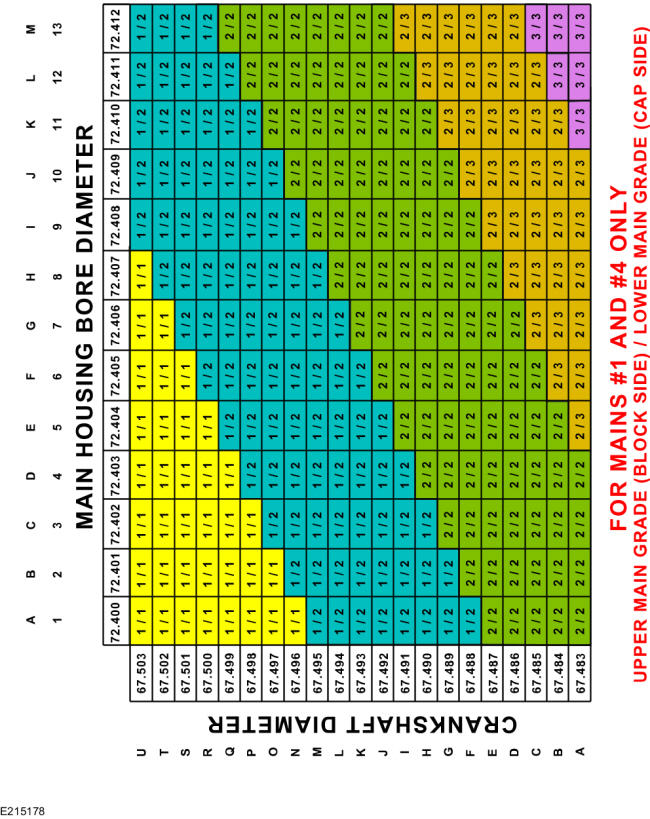

4. NOTE: This chart is for selecting main bearings 1 and 4 only.

   Courtesy of FORD MOTOR COMPANY

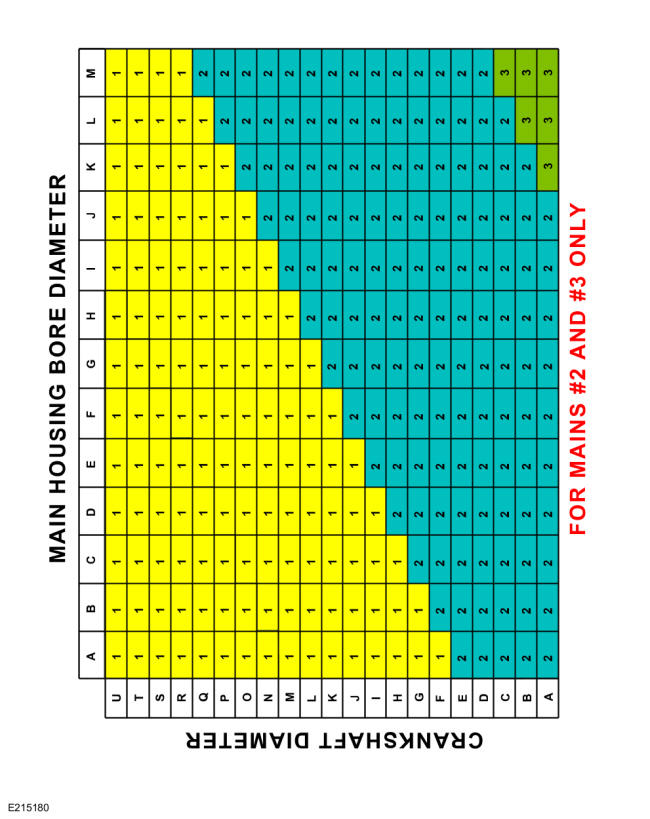

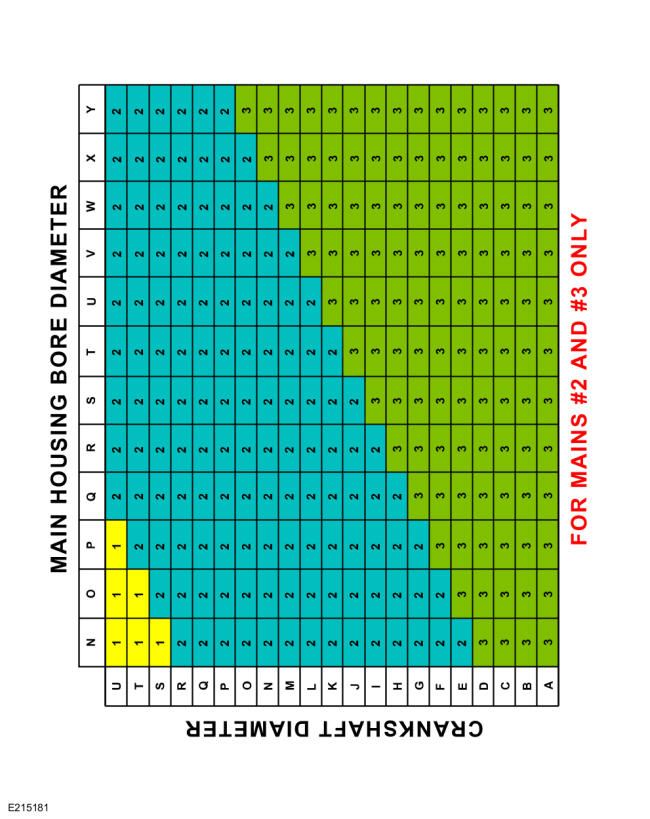

5. NOTE: This chart is continued in the next step.
   NOTE: This chart is for selecting main bearings 2 and 3 only.
   • Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for main bearings 2 and 3.
   • Read the second letter of the engine block main bearing code and the second letter of the crankshaft main bearing code.
   • Read down the column below the engine block main bearing code letter and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade for the No. 2 crankshaft main bearing.
   • As an example, if the engine block code letter is "N" and the crankshaft code letter is "H", the correct bearing grade for this main bearing is "2".
   • Repeat the above steps using the third letter of the block and crankshaft codes to select the No. 3.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: This chart is for selecting main bearings 2 and 3 only.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.

   Using the original connecting rod cap bolts, install the connecting rod caps and bolts.

   Torque: Stage 1: 17 lb.ft (23 Nm) - Stage 2: 32 lb.ft (43 Nm) - Stage 3: 105°

   Courtesy of FORD MOTOR COMPANY

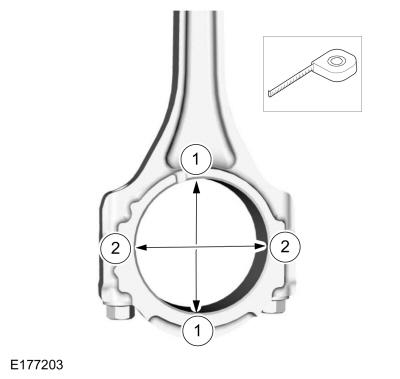

8. Measure the connecting rod large end bore in 2 directions.

   Courtesy of FORD MOTOR COMPANY

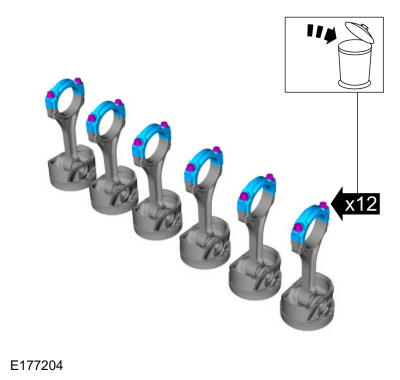

9. • Remove the bolts and the rod cap.
   • Discard the bolts.

   Courtesy of FORD MOTOR COMPANY

10. Measure each of the crankshaft connecting rod bearing journal diameters in at least 2 directions.

    Courtesy of FORD MOTOR COMPANY

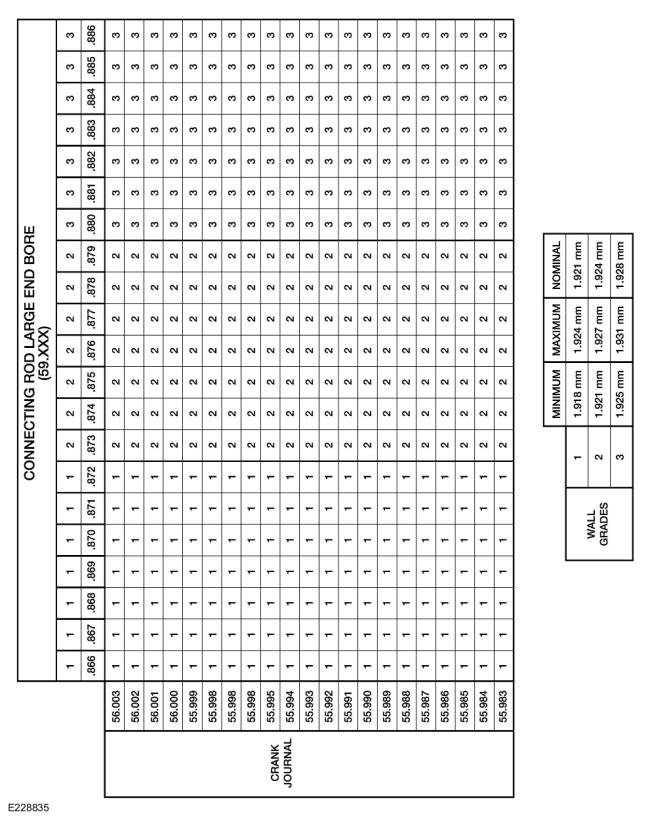

11. Using the chart, select the correct connecting rod bearings for each crankshaft connecting rod journal.

    Courtesy of FORD MOTOR COMPANY

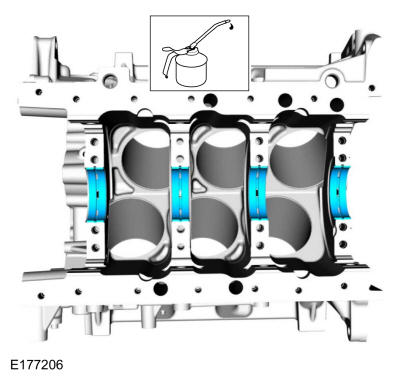

12. NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.

    Lubricate the upper crankshaft main bearings with clean engine oil and install in the cylinder block.

    Courtesy of FORD MOTOR COMPANY

13. NOTE: Do not install the upper thrust bearings until the crankshaft is installed.
    NOTE: Lubricate the thrust surfaces of the crankshaft with clean engine oil.

    Install the crankshaft.

    Courtesy of FORD MOTOR COMPANY

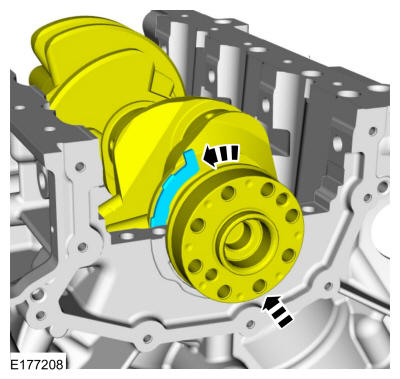

14. NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.

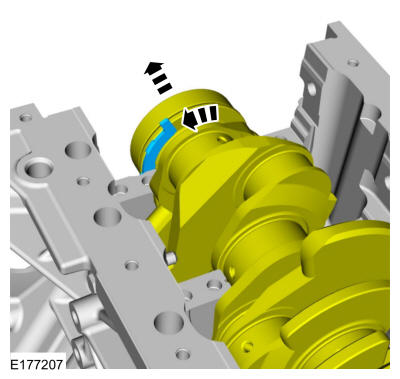

    Push the crankshaft rearward and install the rear crankshaft upper thrust washer at the back of the No. 4 rear bulkhead.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.

    Push the crankshaft forward and install the front crankshaft upper thrust washer at the front of the No. 4 rear bulkhead.

    Courtesy of FORD MOTOR COMPANY

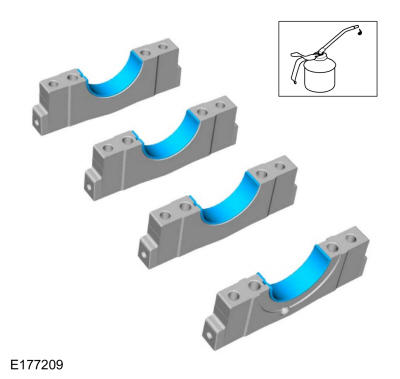

16. Lubricate the crankshaft lower main bearings with clean engine oil and install them into the main bearing caps. Check seating and squareness of the bearings to make sure of proper seating in caps.

    Courtesy of FORD MOTOR COMPANY

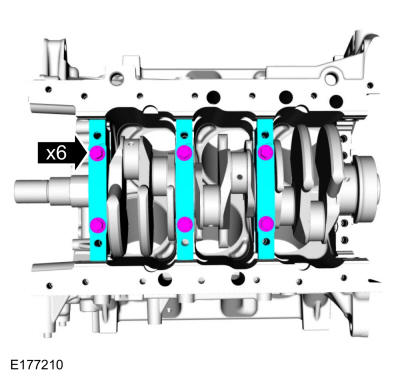

17. Position the No. 1, No. 2 and No. 3 main bearing caps on the cylinder block and, keeping the caps as square as possible, alternately draw the caps down evenly using the new bolts until the main bearing caps are seated.

    Courtesy of FORD MOTOR COMPANY

18. NOTE: Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.
    NOTE: To aid in assembly, apply petroleum jelly to the back of the crankshaft thrust washer.

    Install the lower crankshaft thrust washer to the back side of the No. 4 rear main bearing cap, with the tab aligned with the cutout in the main bearing cap.

    Courtesy of FORD MOTOR COMPANY

19. Position main bearing cap No. 4 on the cylinder block and keeping the cap as square as possible, alternately draw the cap down evenly using the new bolts until the main bearing cap is seated.

    Courtesy of FORD MOTOR COMPANY

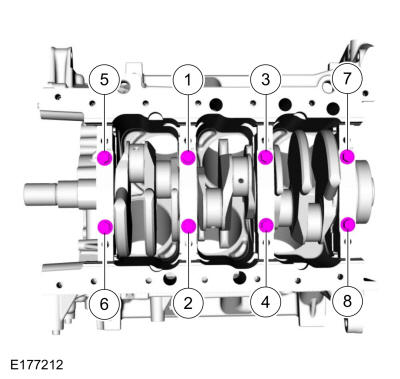

20. NOTE: While tightening the main bearing vertical bolts, push the crankshaft forward and the No. 4 main bearing cap rearward to seat the crankshaft thrust washers.

    Tighten the main bearing bolts.

    Torque: Stage 1: 20 lb.ft (27 Nm) - Stage 2: 180°

    Fig 1: Main Bearing Tightening Sequence (1 of 2)

    Courtesy of FORD MOTOR COMPANY
21. Install the new main bearing cap side bolts.

    Torque: Stage 1: 33 lb.ft (45 Nm) - Stage 2: 90°

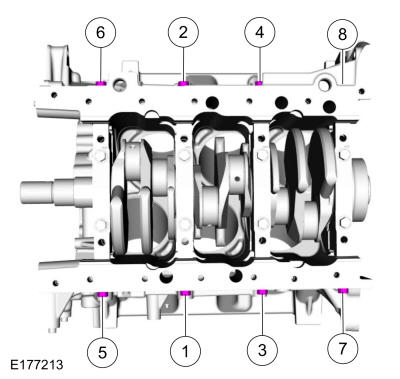

    Fig 2: Main Bearing Tightening Sequence (2 of 2)

    Courtesy of FORD MOTOR COMPANY

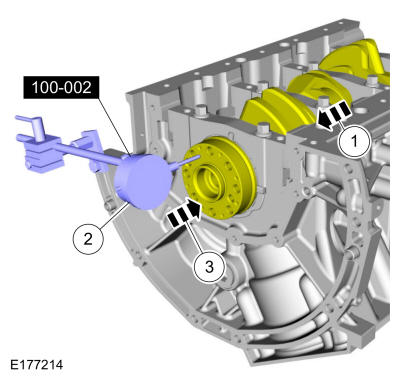

22. 1. Position the crankshaft to the rear of the cylinder block. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.
    2. Zero the Dial Indicator Gauge.
    3. Move the crankshaft to the front of the cylinder block. Measure and record the crankshaft end play.

    Courtesy of FORD MOTOR COMPANY

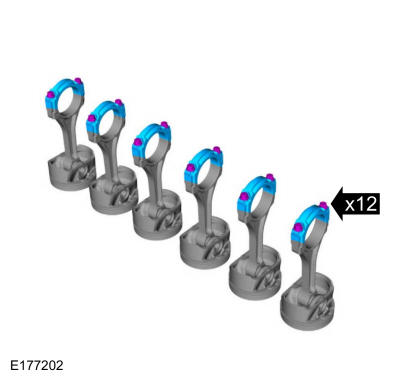

23. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
    • Prepare the connecting rod and cap
    • Insert the new bolts in the rod cap.
    • Insert the upper and lower rod bearings into the rod and cap.

    Courtesy of FORD MOTOR COMPANY

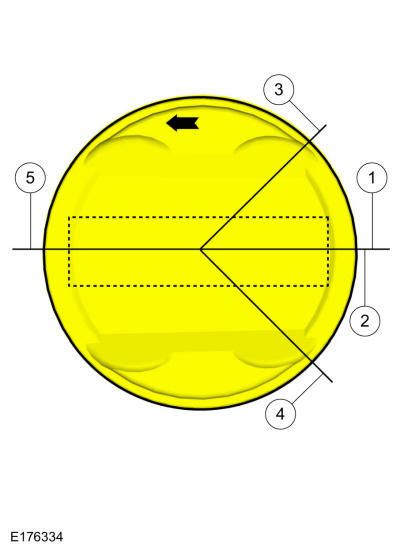

24. NOTE: The piston compression upper and lower ring should be installed with the "O" mark on the ring face pointing up toward the top of the piston.
    NOTE: The arrow on the top of the piston indicates the front of the engine.
    1. Center line of the piston parallel to the wrist pin bore.
    2. Upper compression ring gap location.
    3. Upper oil control segment ring gap location.
    4. Lower oil control segment ring gap location.
    5. Expander ring and lower compression ring gap location.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.
    NOTE: Lubricate the pistons, piston rings, connecting rod bearings and the entire cylinder bores with clean engine oil.
    NOTE: Make sure the piston rings are positioned to specifications for installation. Refer to Piston  .
    NOTE: If the piston and or connecting rod are being installed new, the piston rod orientation marks and the arrow on the top of the dome of the piston should be facing toward the front of the engine block.
    NOTE: If the piston and connecting rod are to be reinstalled, they must be installed in the same orientation as disassembled.

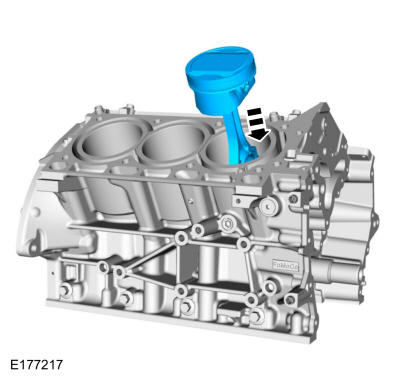

    • Using the piston ring compressor, install the piston and connecting rod assemblies. Use the General Equipment: Piston Ring Compressor
    • Repeat until all 6 piston assemblies are installed.

    Courtesy of FORD MOTOR COMPANY

26. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
    NOTE: After installation of each piston, connecting rod, rod cap and bolts, rotate the crankshaft to verify smooth operation.

    Install the connecting rod cap and the new bolts.

    Torque: Stage 1: 17 lb.ft (23 Nm) - Stage 2: 32 lb.ft (43 Nm) - Stage 3: 105°

    Courtesy of FORD MOTOR COMPANY

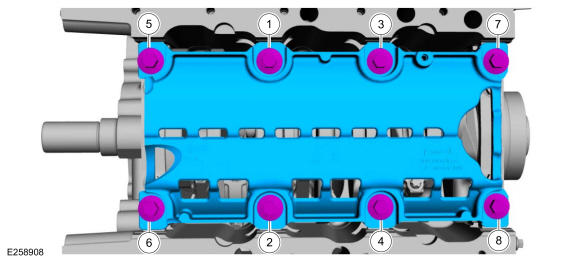

27. Install the main bearing cap support brace and the new bolts.

    Torque: Stage 1: 20 lb.ft (27 Nm) - Stage 2: 225°

    Fig 3: Main Bearing Cap Support Brace Tightening Sequence

    Courtesy of FORD MOTOR COMPANY

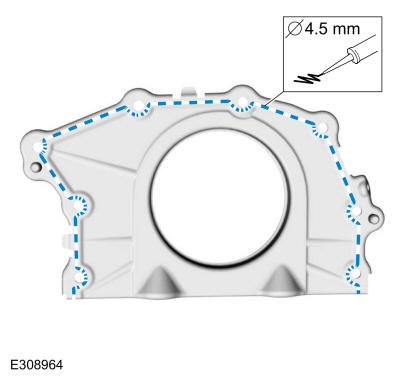

28. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

    Apply a 4.5 mm (0.177 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the crankshaft rear seal retainer.

    Courtesy of FORD MOTOR COMPANY

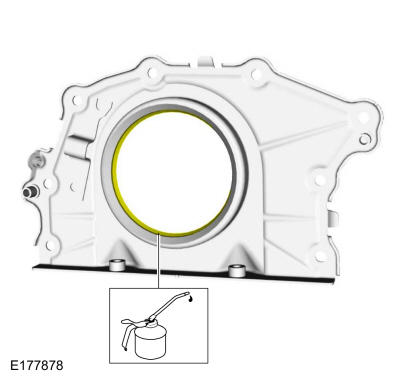

29. Lubricate the crankshaft rear seal with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

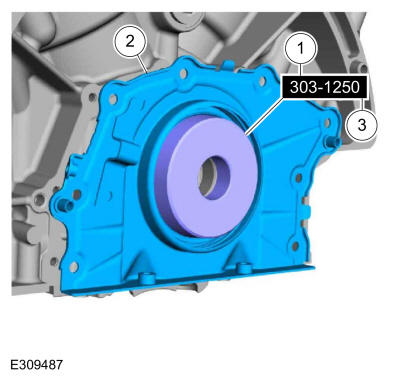

30. 1. Install the special tool. Install Special Service Tool: 303-1250 Seal Installer, Rear Main.
    2. NOTE: Inspect and ensure that the crankshaft rear seal lip is not rolled before proceeding to step 31.

       Install the crankshaft rear seal.

    3. Remove the special tool. Remove Special Service Tool: 303-1250 Seal Installer, Rear Main.

    Courtesy of FORD MOTOR COMPANY

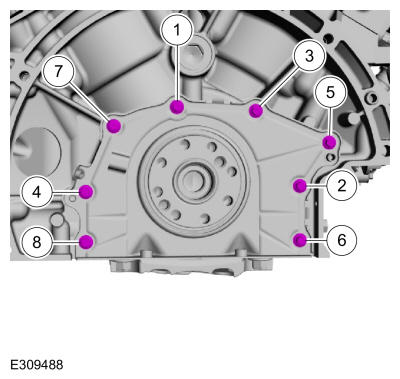

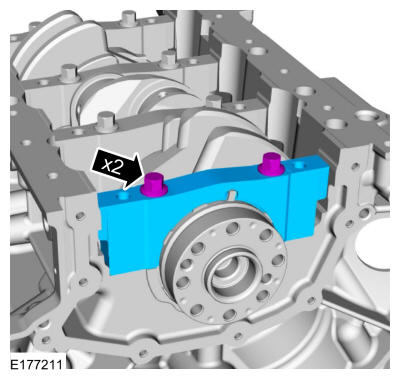

31. NOTE: The crankshaft rear seal retainer must be installed and the bolts tightened within 10 minutes of sealant application.

    Install the crankshaft rear seal bolts and tighten in sequence shown.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

32. Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
33. Install the oil pump and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

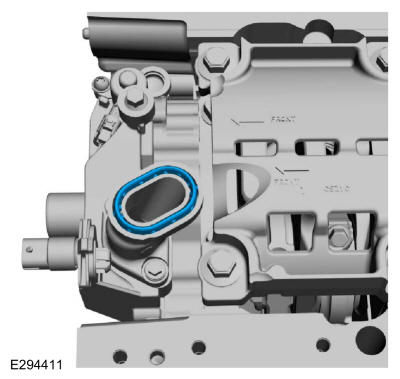

34. Install a new oil pan-to-oil pump seal.

    Courtesy of FORD MOTOR COMPANY

35. Install a new oil pump screen and pickup tube O-ring seal and lubricate with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

36. Install the oil pump screen and pickup tube and the bolt.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

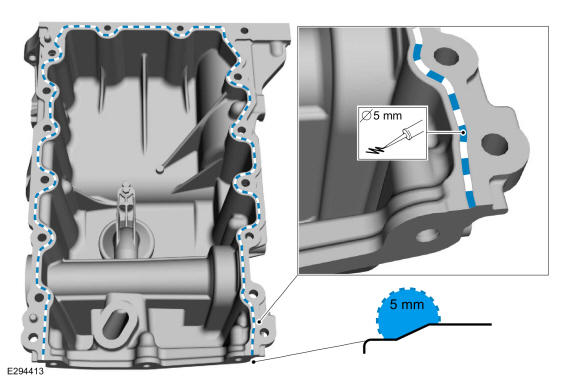

37. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    Apply a 5 mm (0.2 in) bead of Motorcraft® High Performance Engine RTV Silicone on the chamfer, as shown.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

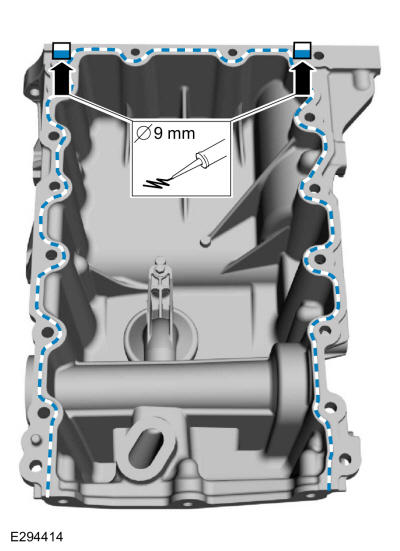

38. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    Apply a 9 mm (0.35 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

39. Install the oil pan and bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

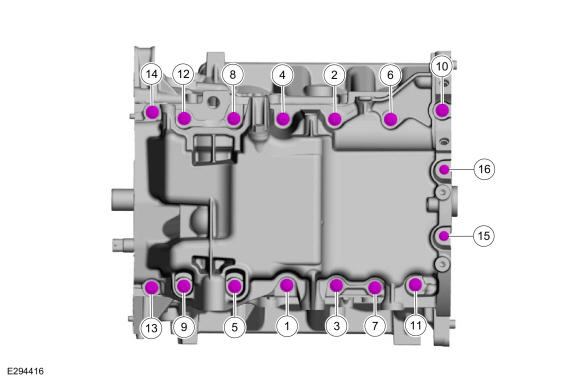

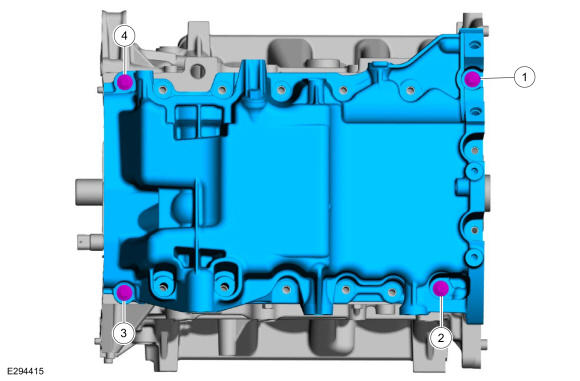

40. NOTE: The oil pan bolts must be installed and tightened within 10 minutes of the initial sealant application.
    • Install the remaining oil pan bolts. Tighten in the sequence shown.

      Torque: Stage 1: Tighten bolts 1-9 and 11-14 to: 177 lb.in (20 Nm) - Stage 2: Tighten bolts 1-9 and 11-14 an additional: 45° - Stage 3: Tighten bolt 10 to: 177 lb.in (20 Nm) - Stage 4: Tighten bolt 10 an additional: 90° - Stage 5: Tighten bolts 15 and 16 to: 89 lb.in (10 Nm) - Stage 6: Tighten bolts 15 and 16 an additional: 45°

    • Rotate the engine so the oil pan is facing downwards.

    Courtesy of FORD MOTOR COMPANY

41. Install the channel cover plate and the bolts.

    Torque: Stage 1: 89 lb.in (10 Nm) - Stage 2: 45°

    Courtesy of FORD MOTOR COMPANY

42. Install the KS and the bolts.

    Torque: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

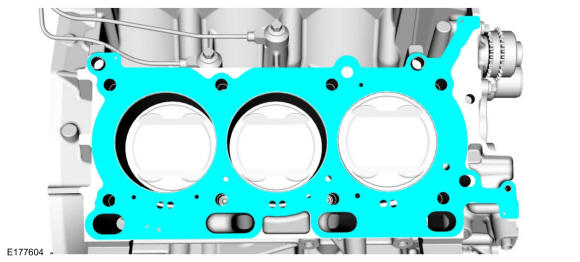

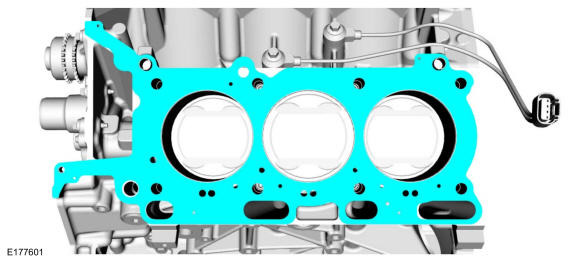

43. Install the LH cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

44. NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

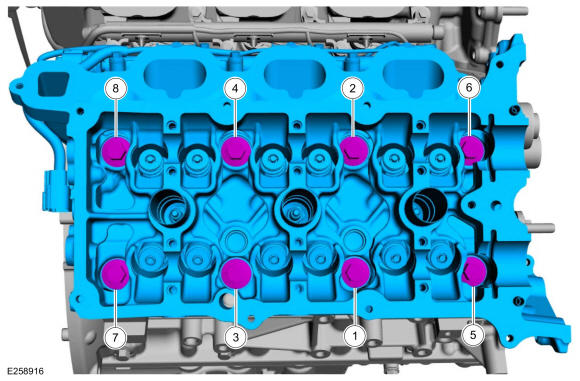

    Install the cylinder head and the new bolts.

    Torque: Stage 1: 177 lb.in (20 Nm) - Stage 2: 26 lb.ft (35 Nm) - Stage 3: 90° - Stage 4: 90° - Stage 5: 45°

    Courtesy of FORD MOTOR COMPANY

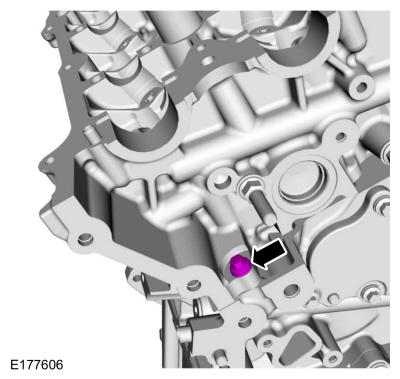

45. Install the M6 bolt.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

46. Install the RH cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

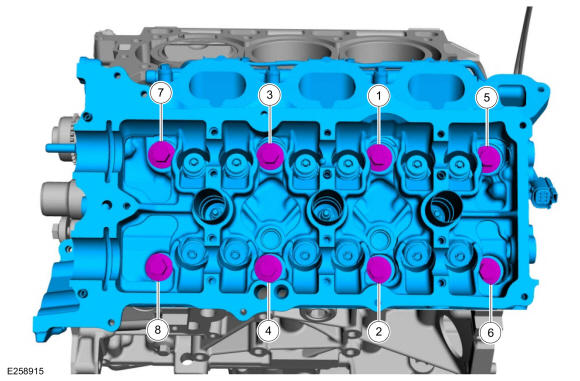

47. NOTE: If the cylinder head is replaced, a new secondary timing chain tensioner will need to be installed.

    Install the cylinder head and the new bolts.

    Torque: Stage 1: 177 lb.in (20 Nm) - Stage 2: 26 lb.ft (35 Nm) - Stage 3: 90° - Stage 4: 90° - Stage 5: 45°

    Courtesy of FORD MOTOR COMPANY

48. Install the M6 bolt.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

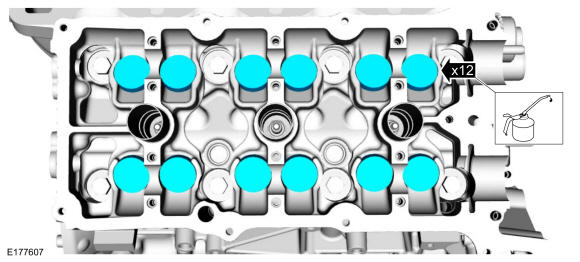

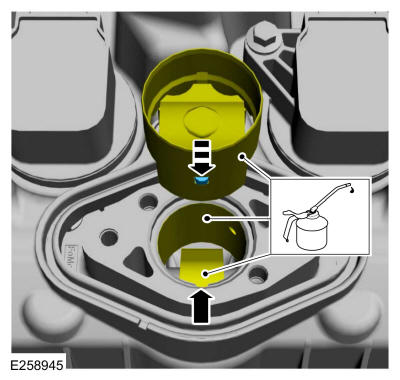

49. NOTE: Coat the valve tappets with clean engine oil prior to installation.
    NOTE: The valve tappets must be installed in their original positions.
    NOTE: RH shown, LH similar.

    Install the valve tappets.

    Courtesy of FORD MOTOR COMPANY

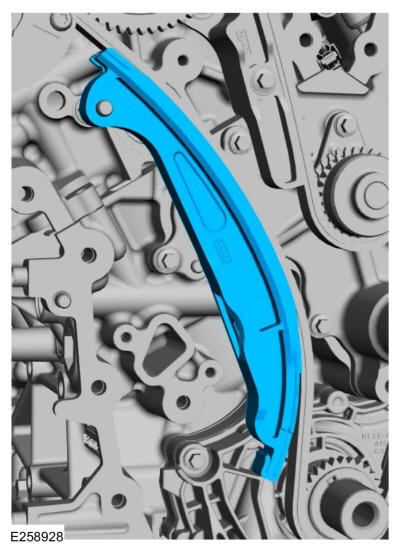

50. Install the LH upper primary timing chain guide and the bolt.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

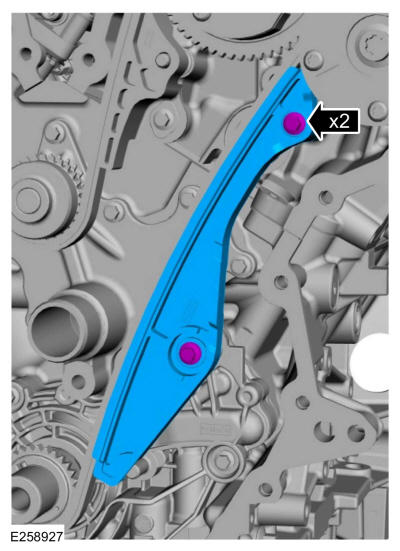

51. Install the RH primary timing chain guide and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

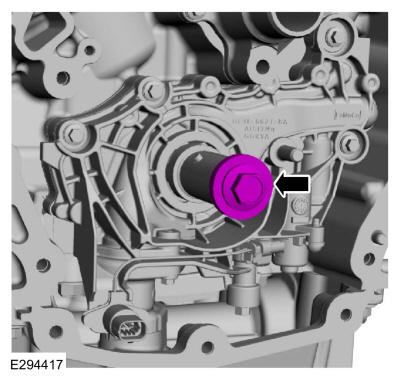

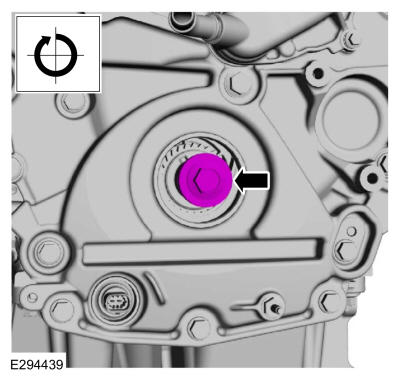

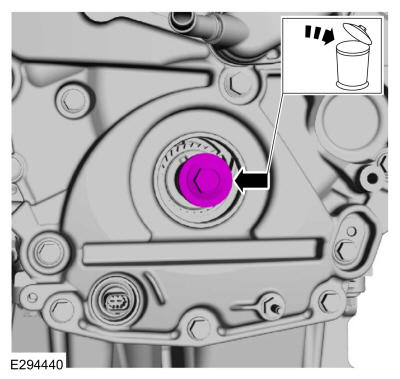

52. Install the original crankshaft bolt and washer.

    Courtesy of FORD MOTOR COMPANY

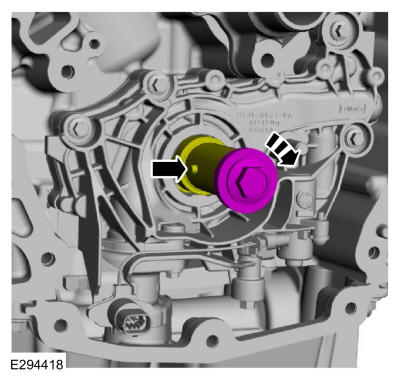

53. NOTE: The crankshaft must remain in the freewheeling position (crankshaft dowel pin at 9 o'clock) until after the camshafts are installed and the valve clearance is checked/adjusted. Do not turn the crankshaft until instructed to do so. Failure to follow this process will result in severe engine damage.

    Using the crankshaft bolt, position the crankshaft dowel pin in the 9 o'clock position.

    Courtesy of FORD MOTOR COMPANY

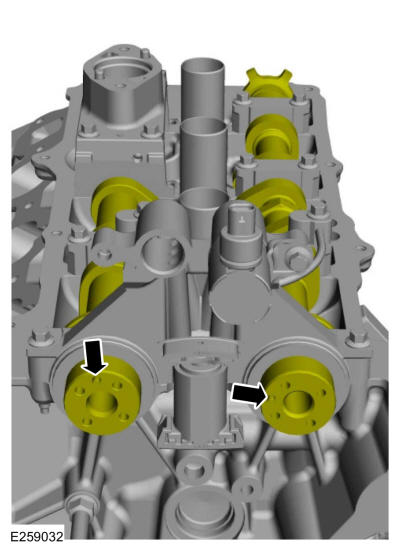

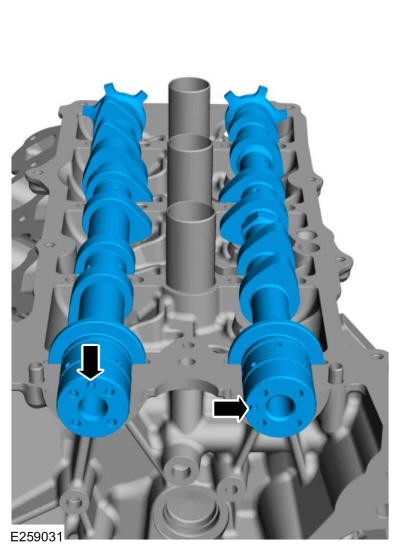

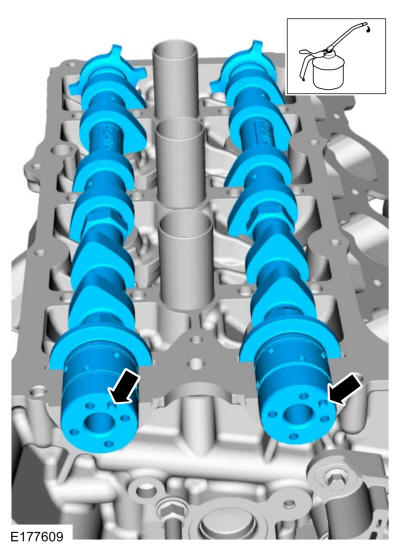

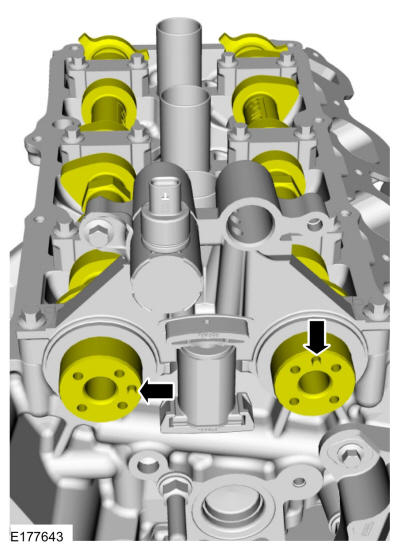

54. NOTE: Coat the camshafts with clean engine oil prior to installation.

    Lubricate the camshafts with clean engine oil and position the camshafts onto the RH cylinder head in the neutral position as shown.

    Courtesy of FORD MOTOR COMPANY

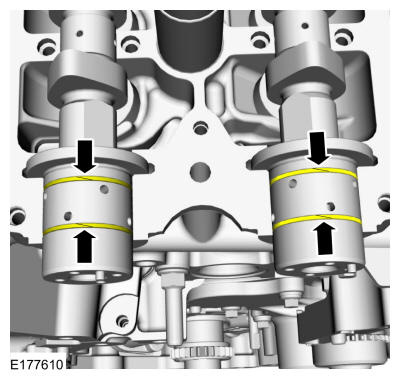

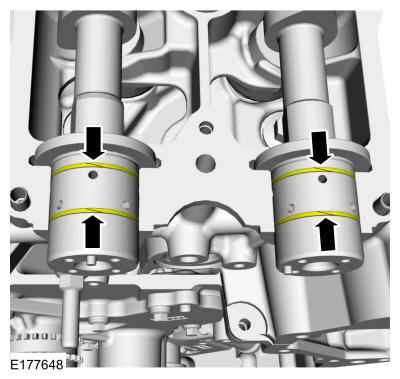

55. NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

    Position the RH camshaft seals gaps as shown.

    Courtesy of FORD MOTOR COMPANY

56. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
    • Install the camshaft caps, oil tube and the bolts.

      Torque: Stage 1: Tighten bolts 1, 2, 4, 5, 6 and 7 to: 71 lb.in (8 Nm) - Stage 2: Tighten bolts 1, 2, 4, 5, 6 and 7 an additional: 45° - Stage 3: Tighten bolts 8, 9, 10 and 11 to: 71 lb.in (8 Nm) - Stage 4: Tighten bolts 12, 13, 14 and 15 to: 71 lb.in (8 Nm) - Stage 5: Tighten bolts 12, 13, 14 and 15 an additional: 45°

    • The camshaft torque sequence (bolt 3) will be finished after the timing chain is installed.

    Courtesy of FORD MOTOR COMPANY

57. Loosen the camshaft cap bolts.

    Courtesy of FORD MOTOR COMPANY

58. Tighten the camshaft cap bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) - Stage 2: 60°.

    Courtesy of FORD MOTOR COMPANY

59. NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
    NOTE: Use a camshaft sprocket bolt to turn the camshafts.

    Confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the correct size. Refer to: Valve Clearance Adjustment . Use the General Equipment: Feeler Gauge

    Courtesy of FORD MOTOR COMPANY

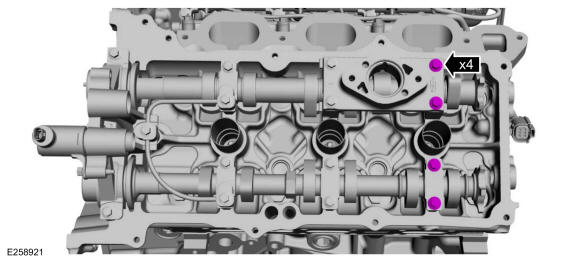

60. • Remove the bolts and the RH oil tube.
    • Loosen the 2 bolts.

    Courtesy of FORD MOTOR COMPANY

61. Rotate the RH camshafts to TDC.

    Courtesy of FORD MOTOR COMPANY

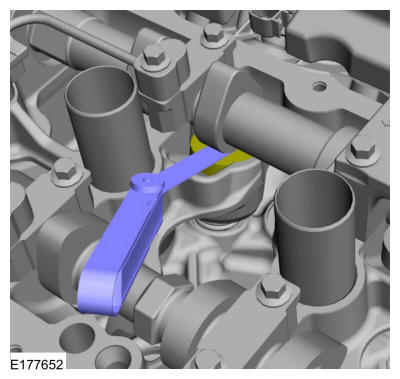

62. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

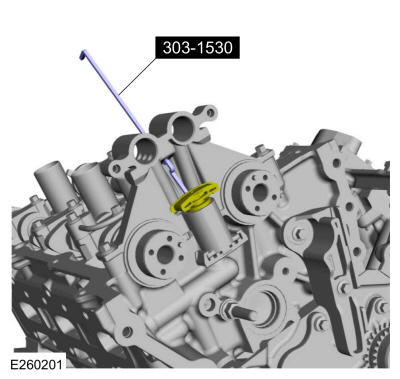

63. NOTE: The VCT oil control solenoids are removed for clarity.

    Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    Courtesy of FORD MOTOR COMPANY

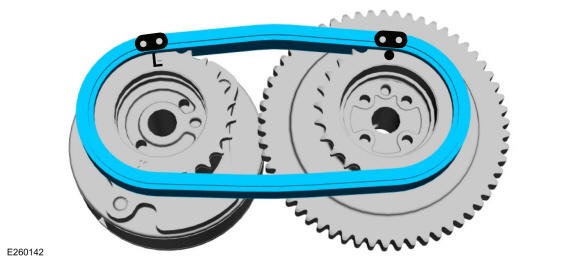

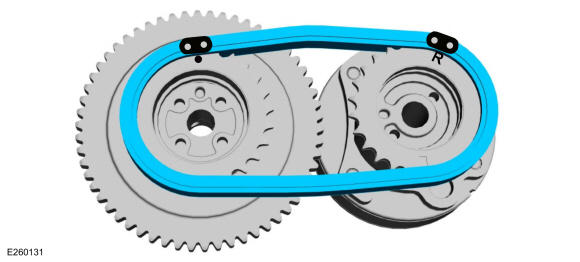

64. Align the colored links with the timing marks and assemble the RH VCT units.

    Courtesy of FORD MOTOR COMPANY

65. NOTE: It may be necessary to rotate the camshafts slightly, to install the RH secondary timing assembly.

    Position the RH VCT units and secondary timing chain onto the camshafts by aligning the holes in the VCT units with the dowel pins in the camshafts.

    Courtesy of FORD MOTOR COMPANY

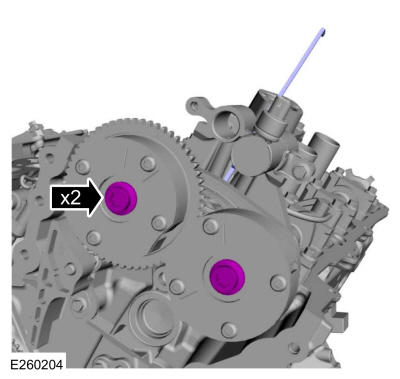

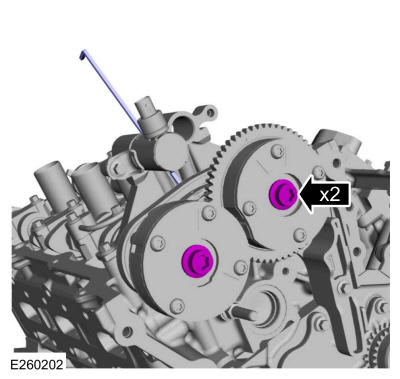

66. Install the new RH VCT unit bolts.

    Torque: Stage 1: 30 lb.ft (40 Nm) - Stage 2: Loosen: 1turn(s) - Stage 3: 18 lb.ft (25 Nm) - Stage 4: 180°

    Courtesy of FORD MOTOR COMPANY

67. NOTE: Make sure the secondary timing chain is centered on the timing chain tensioner guides.
    NOTE: The VCT oil control solenoids are removed for clarity.

    Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    Courtesy of FORD MOTOR COMPANY

68. NOTE: Coat the camshafts with clean engine oil prior to installation.

    Lubricate the camshafts with clean engine oil and position the camshafts onto the LH cylinder head in the neutral position as shown.

    Courtesy of FORD MOTOR COMPANY

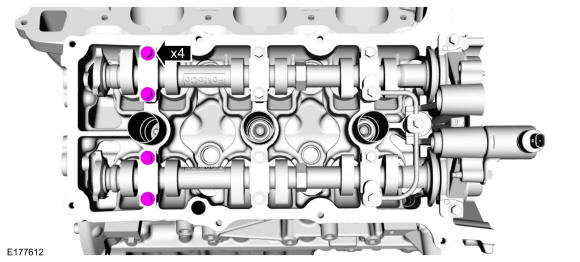

69. NOTE: The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.

    Position the LH camshaft seals gaps as shown.

    Courtesy of FORD MOTOR COMPANY

70. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
    • Install the camshaft caps, oil tube and the bolts.

      Torque: Stage 1: Tighten bolts 1, 2, 4, 5, 6 and 7 to: 71 lb.in (8 Nm) - Stage 2: Tighten bolts 1, 2, 4, 5, 6 and 7 an additional: 45° - Stage 3: Tighten bolts 8, 9, 10 and 11 to: 71 lb.in (8 Nm) - Stage 4: Tighten bolts 12, 13, 14 and 15 to: 71 lb.in (8 Nm) - Stage 5: Tighten bolts 12, 13, 14 and 15 an additional: 45°

    • The camshaft torque sequence (bolt 3) will be finished after the timing chain is installed.

    Courtesy of FORD MOTOR COMPANY

71. Loosen the camshaft cap bolts.

    Courtesy of FORD MOTOR COMPANY

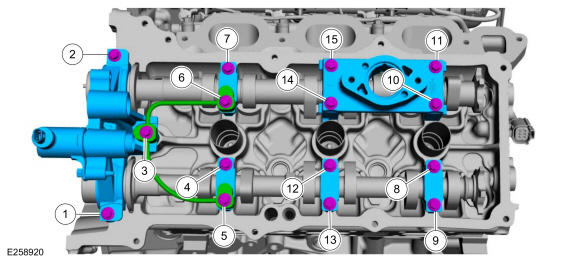

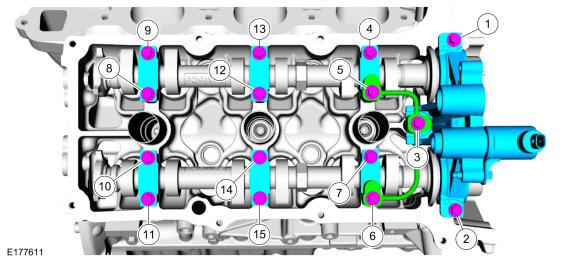

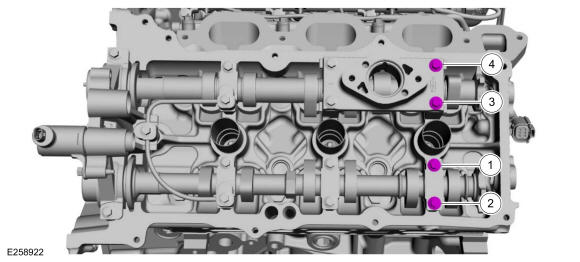

72. Tighten the camshaft cap bolts in sequence shown.

    Torque: Stage 1: 71 lb.in (8 Nm) - Stage 2: 60°

    Courtesy of FORD MOTOR COMPANY

73. NOTE: If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
    NOTE: Use a camshaft sprocket bolt to turn the camshafts.

    Confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the correct size. Refer to: Valve Clearance Adjustment .

    Courtesy of FORD MOTOR COMPANY

74. • Remove bolts and the LH oil tube.
    • Loosen the 2 bolts.

    Courtesy of FORD MOTOR COMPANY

75. Rotate the LH camshafts to TDC.

    Courtesy of FORD MOTOR COMPANY

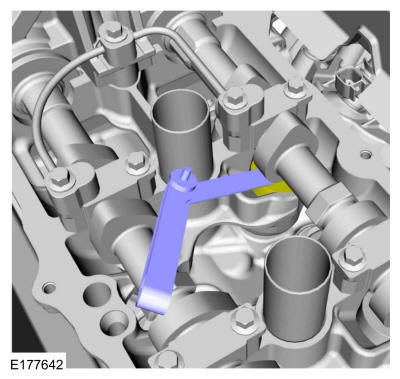

76. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

77. NOTE: The VCT oil control solenoids are removed for clarity.

    Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    Courtesy of FORD MOTOR COMPANY

78. Align the colored links with the timing marks and assemble the LH VCT units.

    Courtesy of FORD MOTOR COMPANY

79. NOTE: It may be necessary to rotate the camshafts slightly, to install the LH secondary timing assembly.

    Position the LH VCT units and secondary timing chain onto the camshafts by aligning the holes in the VCT units with the dowel pins in the camshafts.

    Courtesy of FORD MOTOR COMPANY

80. Install the new LH VCT unit bolts.

    Torque: Stage 1: 30 lb.ft (40 Nm) - Stage 2: Loosen: 1turn(s) - Stage 3: 18 lb.ft (25 Nm) - Stage 4: 180°

    Courtesy of FORD MOTOR COMPANY

81. NOTE: Make sure the secondary timing chain is centered on the timing chain tensioner guides.
    NOTE: The VCT oil control solenoids are removed for clarity.

    Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

    Courtesy of FORD MOTOR COMPANY

82. Using the crankshaft bolt, rotate the crankshaft clockwise 60 degrees to the TDC position (crankshaft dowel pin at 11 o'clock).

    Courtesy of FORD MOTOR COMPANY

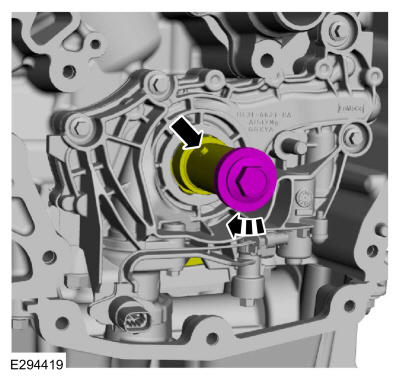

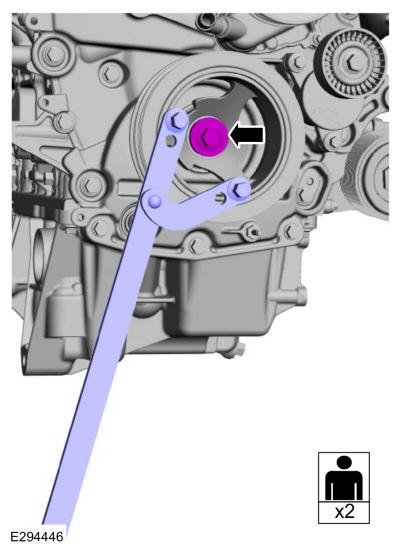

83. Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

84. Install the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

85. NOTE: It may be necessary to rotate the camshafts slightly, to align the timing marks.

    Install the timing chain with the colored links aligned with the timing marks on the VCT units and the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

86. Install the lower LH timing chain guide and the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

87. Install the timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

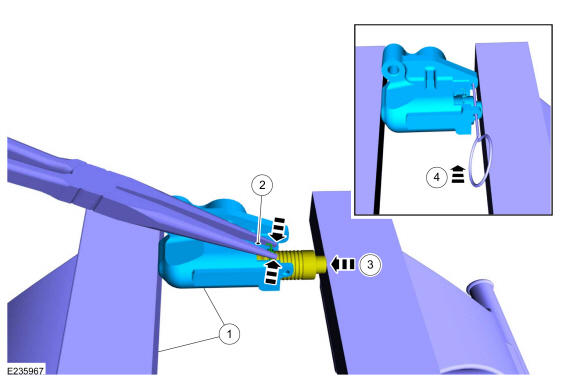

88. 1. Position the tensioner in a soft-jawed vise.
    2. Using pliers, squeeze the ends of the ratchet wire clip together.
    3. Using the soft-jawed vise, compress the plunger to the reset position.
    4. Install a locking pin in the 2 holes of the tensioner body to hold the plunger in place.

    Courtesy of FORD MOTOR COMPANY

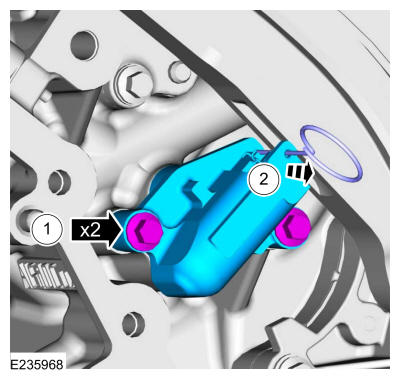

89. NOTE: It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.
    1. Install the timing chain tensioner and the bolts.

       Torque: 89 lb.in (10 Nm)

    2. Remove the lockpin.

    Courtesy of FORD MOTOR COMPANY

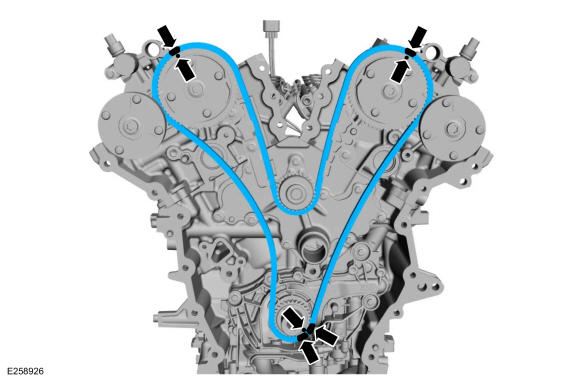

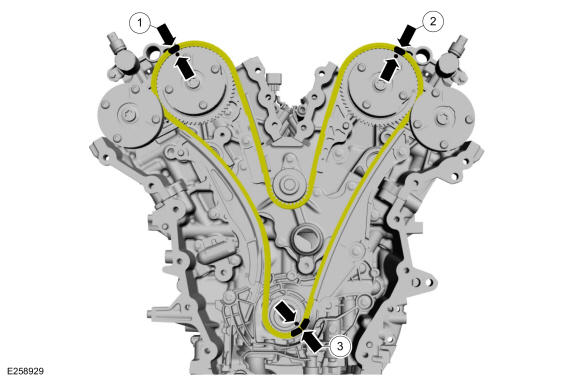

90. • As a post-check, verify correct alignment of all timing marks.
    • There are 48 links in between the RH intake VCT unit colored link (1) and the LH intake VCT unit colored link (2).
    • There are 35 links in between LH intake VCT unit colored link (2) and the 2 crankshaft sprocket links (3).

    Courtesy of FORD MOTOR COMPANY

91. NOTE: Do not use excessive force when installing the VCT oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.

    Install the VCT oil control solenoids and the bolts.

    Torque: Stage 1: 71 lb.in (8 Nm) - Stage 2: 20°

    Courtesy of FORD MOTOR COMPANY

92. Remove Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

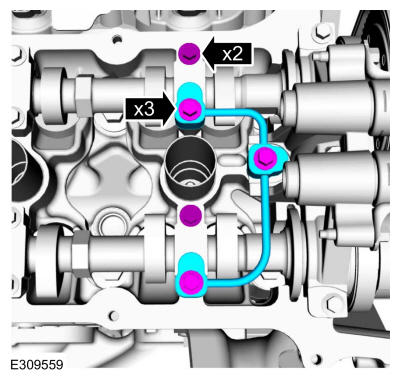

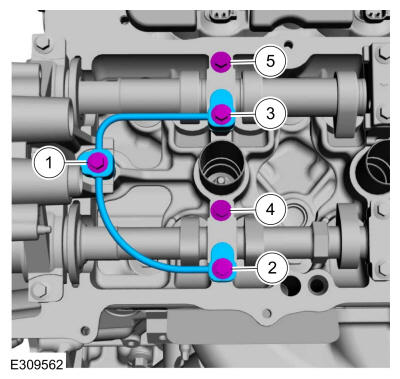

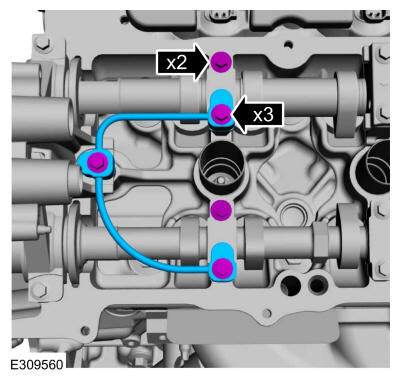

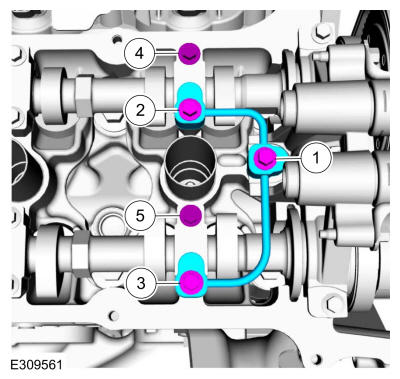

93. Install the RH oil tube and the bolts finger tight.

    Torque: Stage 1: Tighten bolts 1, 2 and 3 to: 71 lb.in (8 Nm) - Stage 2: Tighten bolts 1, 2 and 3 an additional: 60° - Stage 3: Tighten bolts 4 and 5 to: 71 lb.in (8 Nm) - Stage 4: Tighten bolts 4 and 5 an additional: 45°

    Courtesy of FORD MOTOR COMPANY

94. Remove Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

95. Install the LH oil tube and the bolts finger tight.

    Torque: Stage 1: Tighten bolts 1, 2 and 3 to: 71 lb.in (8 Nm) - Stage 2: Tighten bolts 1, 2 and 3 an additional: 60° - Stage 3: Tighten bolts 4 and 5 to: 71 lb.in (8 Nm) - Stage 4: Tighten bolts 4 and 5 an additional: 45°

    Courtesy of FORD MOTOR COMPANY

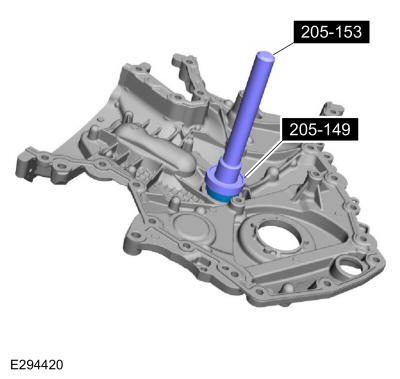

96. Using the special tools, install the front cover to coolant pipe seal. Use Special Service Tool: 205-149 (T80T-4000-R) Installer, Spindle Bearing, 205-153 (T80T-4000-W) Handle.

    Courtesy of FORD MOTOR COMPANY

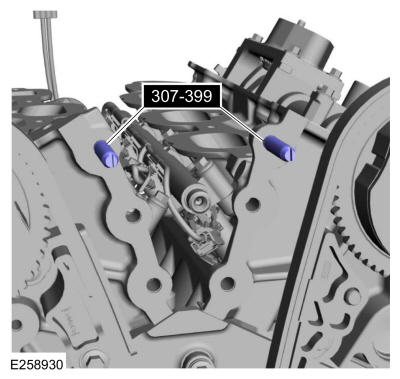

97. Install Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.

    Courtesy of FORD MOTOR COMPANY

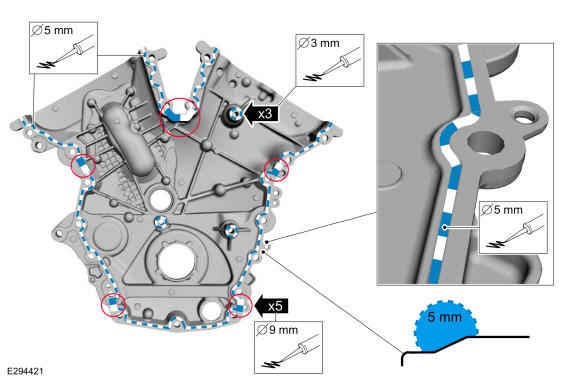

98. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The engine front cover and the 6 bolts must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 10 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. Failure to follow this procedure can cause future oil leakage.
    • Apply a 3 mm (0.12 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover inner bolt bosses.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    • Apply a 5 mm (0.19 in) bead of Motorcraft® High Performance Engine RTV Silicone on the chamfer, as shown.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    • Apply a 9 mm (0.35 in) bead of Motorcraft® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in places as indicated.

      Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

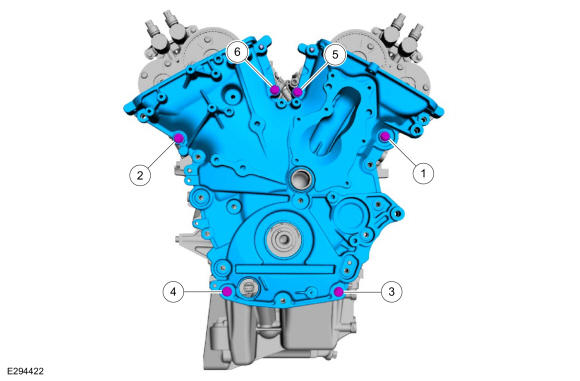

99. NOTE: Make sure the locating dowel pins are seated correctly in the cylinder block.

    Install the engine front cover and the bolts.

    Torque: 27 lb.in (3 Nm)

    Courtesy of FORD MOTOR COMPANY

100. Remove Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.

     Courtesy of FORD MOTOR COMPANY

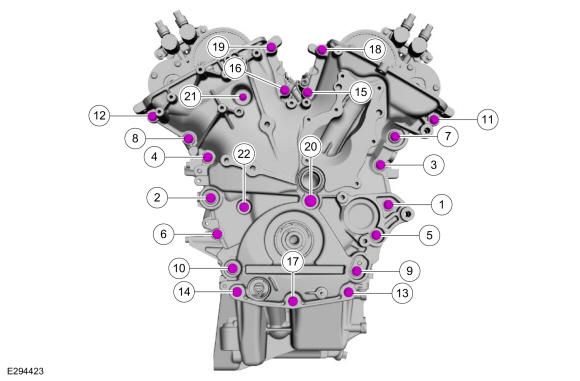

101. NOTE: The engine front cover bolts must be installed and tightened within 10 minutes of the initial sealant application.

     Install the remaining engine front cover bolts.

     Torque: Stage 1: Tighten bolts 1 through 20 to: 89 lb.in (10 Nm) - Stage 2: Tighten bolts 1 through 19 and 22 to: 177 lb.in (20 Nm) - Stage 3: Tighten bolts 1 through 19 and 22 an additional: 45- 3.3L - Stage 4: Tighten bolt 20 to: 177 lb.in (20 Nm) - Stage 5: Tighten bolt 20 an additional: 90° - Stage 6: Tighten bolt 21 to: 89 lb.in (10 Nm) - Stage 7: Tighten bolt 21 an additional: 45°

     Courtesy of FORD MOTOR COMPANY

102. Using the special tool and a hammer, install the oil pump electrical connector seal. Use Special Service Tool: 303-1663 Installer, VDOP Seal.

     Courtesy of FORD MOTOR COMPANY

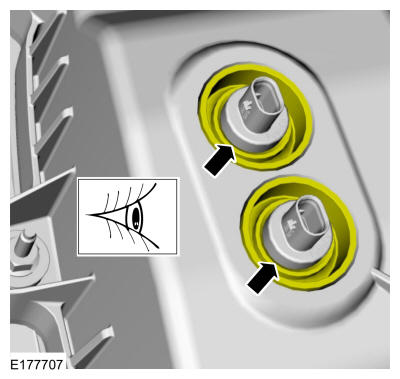

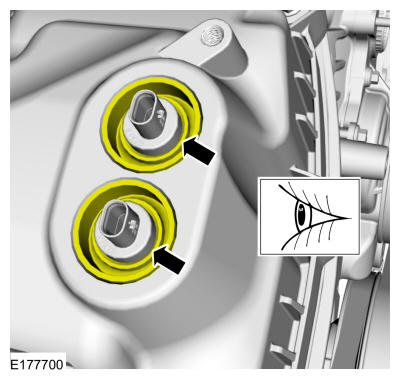

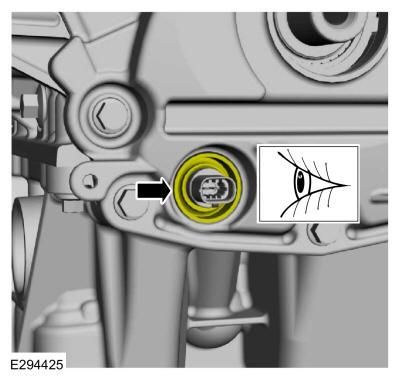

103. Make sure the oil pump electrical connector seal is below the top of the oil pump electrical connector or the oil pump electrical connector seal may leak oil.

     Courtesy of FORD MOTOR COMPANY

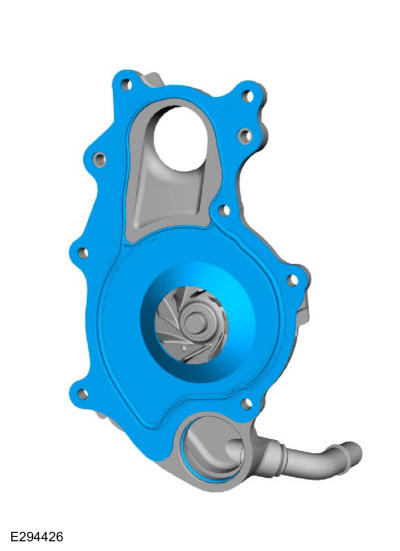

104. Install a new coolant pump gasket and O-ring seal.

     Courtesy of FORD MOTOR COMPANY

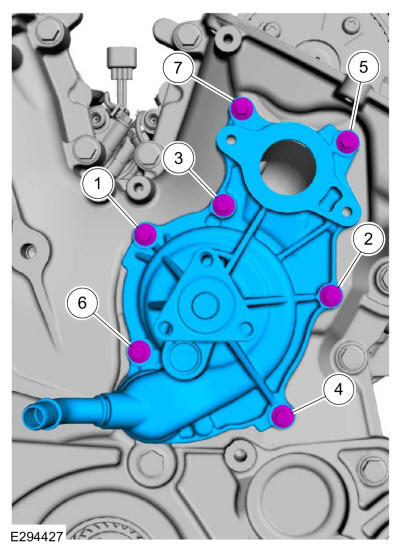

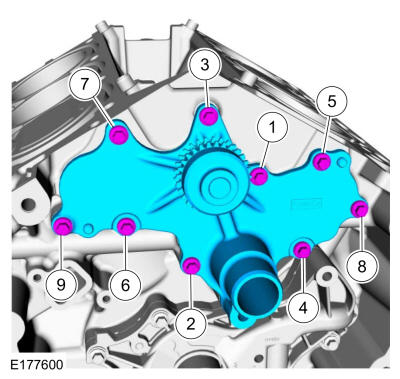

105. Install the coolant pump and the bolts.

     Torque: Stage 1: 89 lb.in (10 Nm) - Stage 2: 45°

     Courtesy of FORD MOTOR COMPANY

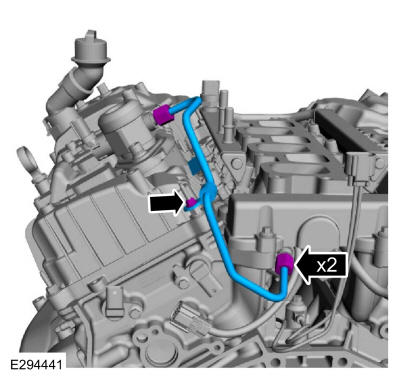

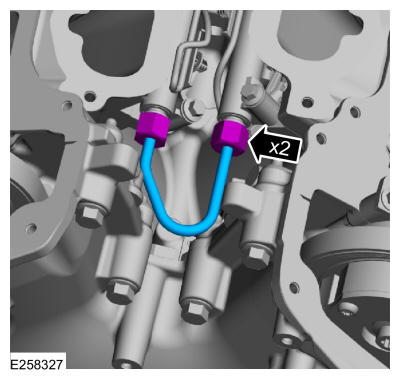

106. NOTE: Make sure that a new fuel rail to fuel rail high-pressure fuel tube is installed.
     • Install the fuel rail to fuel rail high-pressure fuel tube and finger tight the flare nuts.
     • Tighten the flare nuts in the following 3 stages.

       Torque: Stage 1: 62 lb.in (7 Nm) - Stage 2: 89 lb.in (10 Nm) - Stage 3: If the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 75 Nm (55 lb-ft), the high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube: 30°

     Courtesy of FORD MOTOR COMPANY

107. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

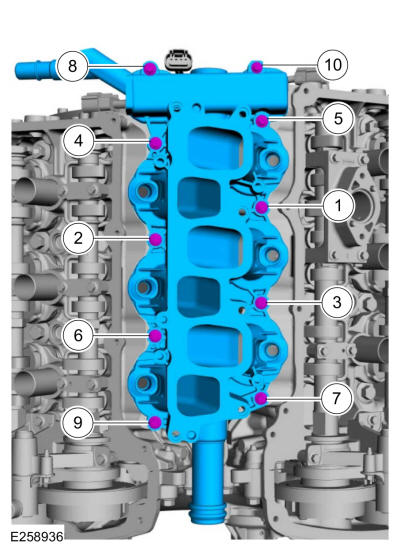

     Install the lower intake manifold and the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

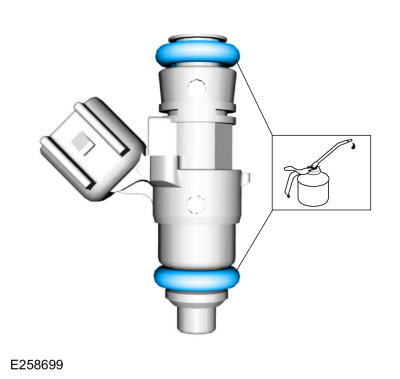

108. NOTE: Use O-ring seals that are made of special fuel-resistant material. Use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.
     NOTE: The upper and lower fuel injector O-ring seals are similar in appearance, but are not interchangeable.
     NOTE: Make sure that new fuel injector O-ring seals are installed.
     • Install the new fuel injector O-ring seals onto the fuel injectors.
     • Lubricate the new fuel injector O-ring seals with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

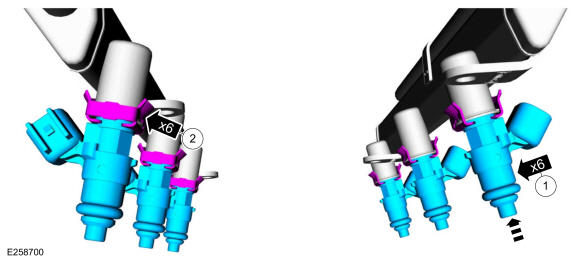

109. 1. Install the fuel injectors into the fuel rail.
     2. Install the fuel injectors retaining clips.

     Courtesy of FORD MOTOR COMPANY

110. Install the port injection fuel rail and the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

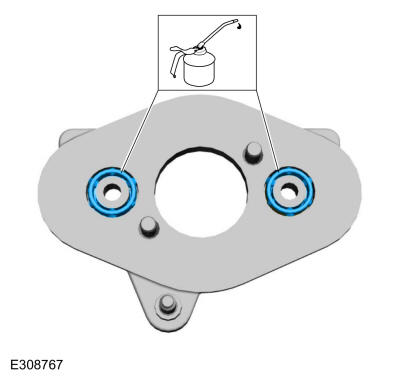

111. NOTE: Apply clean engine oil to the CMP sensor O-ring seals.

     Install the CMP sensors and the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

112. 1. Install the LH block coolant drain plug.

        Torque: 30 lb.ft (40 Nm)

     2. If equipped, install the block heater.

        Torque: 30 lb.ft (40 Nm)

     Courtesy of FORD MOTOR COMPANY

113. Install the RH block coolant drain plug.

     Torque: Stage 1: 142 lb.in (16 Nm) - Stage 2: 180°

     Courtesy of FORD MOTOR COMPANY

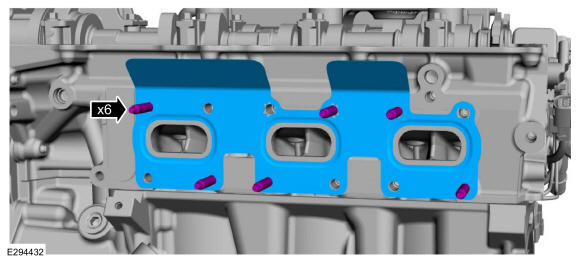

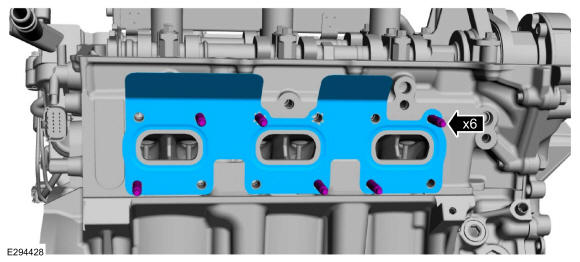

114. • Install the exhaust manifold studs.

       Torque: 106 lb.in (12 Nm)

     • Install the exhaust manifold gasket.

     Courtesy of FORD MOTOR COMPANY

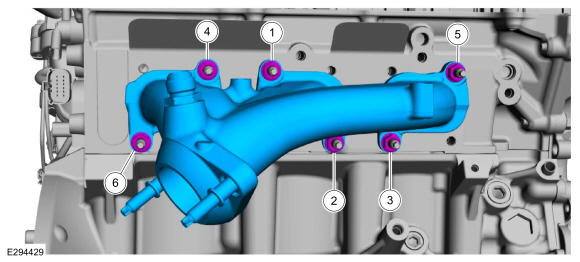

115. Install the exhaust manifold and the new nuts.

     Torque: Stage 1: 168 lb.in (19 Nm) - Stage 2: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

116. Install the RH exhaust manifold heat shield and the bolts.

     Torque: 106 lb.in (12 Nm)

     Courtesy of FORD MOTOR COMPANY

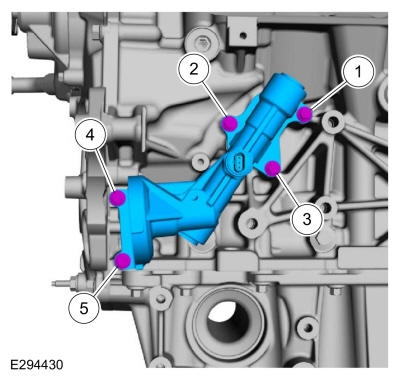

117. Install the oil filter adapter and the bolts.

     Torque: Stage 1: 89 lb.in (10 Nm) - Stage 2: 45°

     Courtesy of FORD MOTOR COMPANY

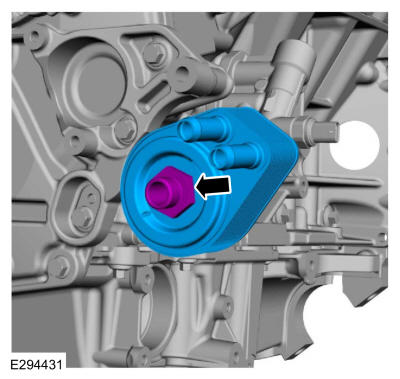

118. Install the oil cooler and the bolt.

     Torque: 43 lb.ft (58 Nm)

     Courtesy of FORD MOTOR COMPANY

119. • Install the exhaust manifold studs.

       Torque: 106 lb.in (12 Nm)

     • Install the exhaust manifold gasket.

     Courtesy of FORD MOTOR COMPANY

120. Install the exhaust manifold and the new nuts.

     Torque: Stage 1: 168 lb.in (19 Nm) - Stage 2: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

121. Install the LH exhaust manifold heat shield and the bolts.

     Torque: 106 lb.in (12 Nm)

     Courtesy of FORD MOTOR COMPANY

122. NOTE: Installation of new seals is only required if damaged seals were removed.

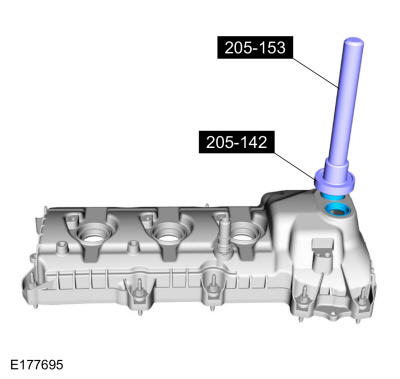

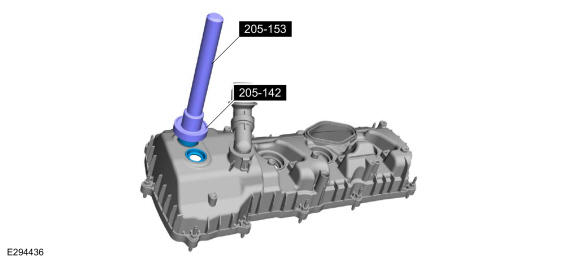

     If removed, using the special tools, install the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.

     Courtesy of FORD MOTOR COMPANY

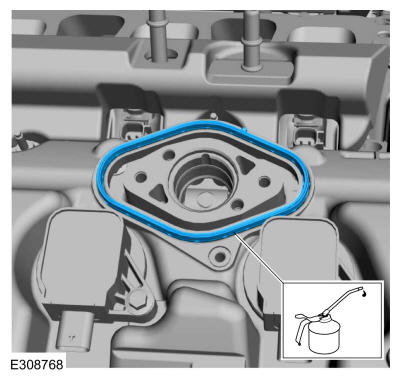

123. NOTE: Installation of new seals is only required if damaged seals were removed.

     If removed, using the special tools, install the VCT Oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

     Courtesy of FORD MOTOR COMPANY

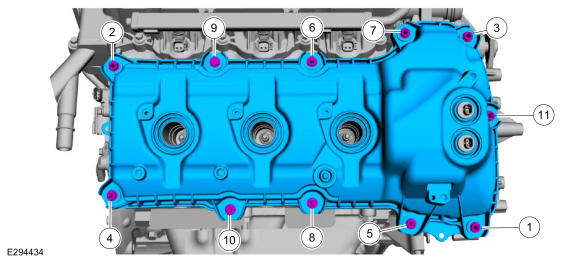

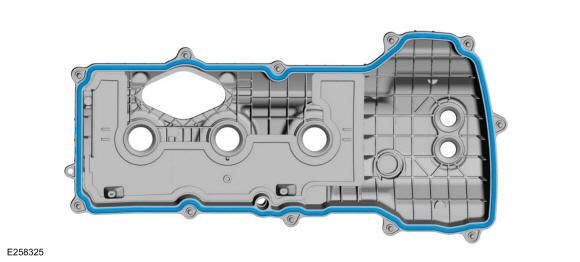

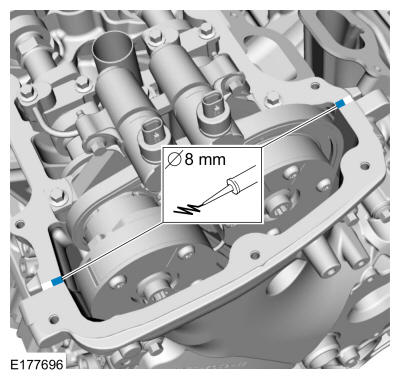

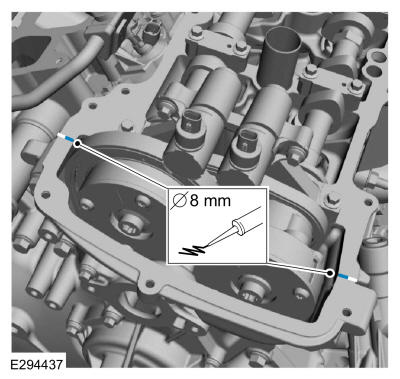

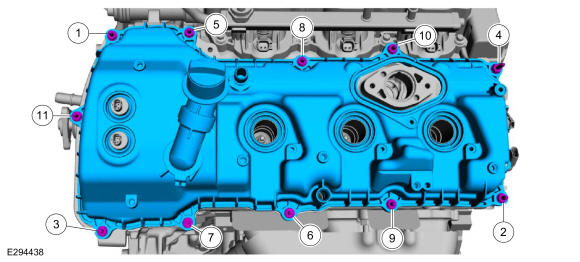

124. NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

     Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

     Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     Courtesy of FORD MOTOR COMPANY

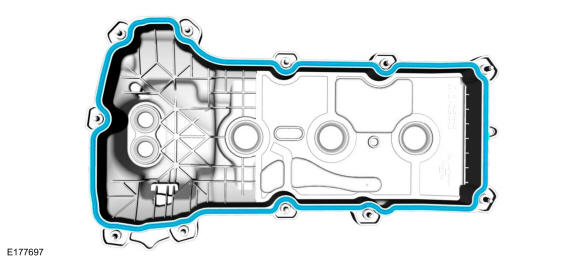

125. Install a new valve cover gasket.

     Courtesy of FORD MOTOR COMPANY

126. Install the valve cover and tighten the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

127. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.

     Courtesy of FORD MOTOR COMPANY

128. Install the RH coil-on-plugs and the bolts.

     Torque: Stage 1: 62 lb.in (7 Nm) - Stage 2: 50°.

     Courtesy of FORD MOTOR COMPANY

129. NOTE: Installation of new seals is only required if damaged seals were removed.

     If removed, using the special tools, install the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.

     Courtesy of FORD MOTOR COMPANY

130. NOTE: Installation of new seals is only required if damaged seals were removed.

     If removed, using the special tools, install the VCT Oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

     Courtesy of FORD MOTOR COMPANY

131. NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

     Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

     Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     Courtesy of FORD MOTOR COMPANY

132. Install a new valve cover gasket.

     Courtesy of FORD MOTOR COMPANY

133. Install the valve cover and tighten the bolts.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

134. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.

     Courtesy of FORD MOTOR COMPANY

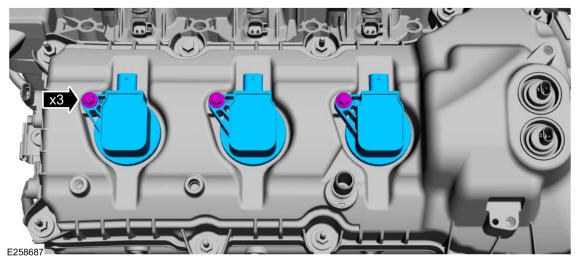

135. • Install the LH coil-on-plugs and the bolts.

       Torque: Stage 1: 62 lb.in (7 Nm) - Stage 2: 50°

     • Install the oil level indicator.

     Courtesy of FORD MOTOR COMPANY

136. NOTE: Only rotate the crankshaft clockwise or damage to the engine may occur.
     NOTE: The drive lobe for the high-pressure fuel pump must be at BDC for the high-pressure fuel pump installation.

     Using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC.

     Courtesy of FORD MOTOR COMPANY

137. Apply clean engine oil to the high-pressure fuel pump mounting pedestal bore, the drive lobe and the roller tappet and install the high-pressure fuel pump roller tappet.

     Courtesy of FORD MOTOR COMPANY

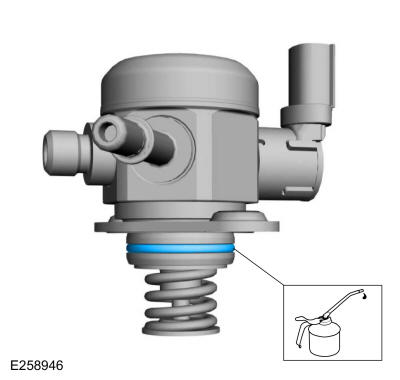

138. • Install a new high-pressure fuel pump O-ring seal.
     • Lubricate with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

139. Lubricate the high-pressure fuel pump mounting plate O-ring seals with clean engine oil and install.

     Courtesy of FORD MOTOR COMPANY

140. Lubricate the high-pressure fuel pump mounting plate seal with clean engine oil and install.

     Courtesy of FORD MOTOR COMPANY

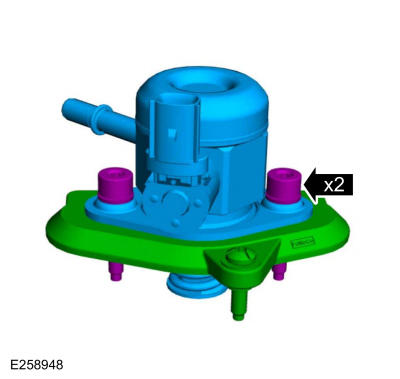

141. Install the high-pressure fuel pump mounting plate on to the high-pressure fuel pump and install the high-pressure fuel pump bolts.

     Courtesy of FORD MOTOR COMPANY

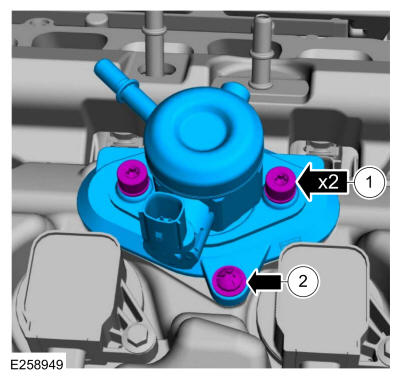

142. 1. Install the high-pressure fuel pump with the mounting plate, and finger tighten the high-pressure fuel pump bolts. Finger tighten the mounting plate bolt. Alternately tighten each high-pressure fuel pump bolt one complete revolution until seated. Tighten the fuel high-pressure fuel pump bolts in the following 2 stages.

        Torque: Stage 1: 89 lb.in (10 Nm) - Stage 2: 45°

     2. Tighten the high-pressure fuel pump mounting plate bolt.

        Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

143. • Remove the crankshaft pulley bolt and washer.
     • Discard the bolt.

     Courtesy of FORD MOTOR COMPANY

144. • Install the new fuel rail high-pressure fuel tube and finger tight the flare nuts.
     • Install the new high-pressure fuel pump to direct injection fuel rail tube nut finger tight.
     • Tighten the fuel rail high-pressure fuel tube flare nuts.

       Torque: Stage 1: 71 lb.in (8 Nm) - Stage 2: 89 lb.in (10 Nm) - Stage 3: If the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 75 Nm (55 lb-ft), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube: 30°

     • Tighten the high-pressure fuel pump to direct injection fuel rail tube nut.

       Torque: 62 lb.in (7 Nm)

     Courtesy of FORD MOTOR COMPANY

145. Install the fuel rail insulators.

     Courtesy of FORD MOTOR COMPANY

146. • Install the engine wiring harness and attach the wiring harness retainers.
     • Connect the ignition coil-on-plug electrical connectors.
     • Connect the VCT oil control solenoids electrical connectors.

     Courtesy of FORD MOTOR COMPANY

147. Connect the oil pressure control solenoid, EGR valve electrical connectors and attach the wiring harness retainers.

     Courtesy of FORD MOTOR COMPANY

148. • Connect the port injector fuel rail electrical connectors.
     • Attach the wiring harness retainer.
     • Connect the FRP temperature sensor electrical connector.

     Courtesy of FORD MOTOR COMPANY

149. • Attach the wiring harness retainers.
     • Connect the oil pressure switch electrical connector.
     • Connect the ignition coil-on-plug electrical connectors.
     • Connect the VCT oil control solenoids electrical connectors.
     • Connect the high-pressure fuel pump electrical connector.

     Courtesy of FORD MOTOR COMPANY

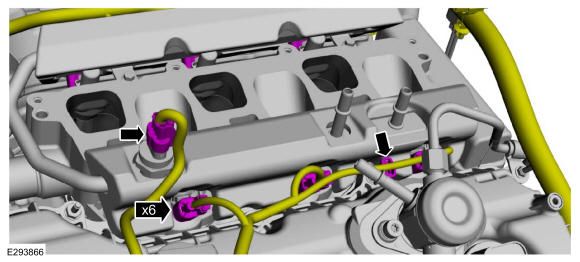

150. • Attach the wiring harness retainers.
     • Connect the direct injection fuel rail electrical connectors.
     • Connect the CMP sensor electrical connectors.
     • Connect the KS and CHT sensor electrical connectors.

     Courtesy of FORD MOTOR COMPANY

151. • Install the CKP sensor and the bolt.

       Torque: 53 lb.in (6 Nm)

     • Connect the CKP sensor electrical connector.

     Courtesy of FORD MOTOR COMPANY

152. Install the wiring harness grommet.

     Courtesy of FORD MOTOR COMPANY

153. Install the wiring harness retainer stud bolt.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

154. Install the heat shield, nut and bolt.

     Torque: 89 lb.in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

155. NOTE: The bolt will be tighten after the installation of the upper intake manifold.

     Install the upper intake manifold support bracket and bolt finger tight.

     Courtesy of FORD MOTOR COMPANY

156. • Install the coolant pump pulley and the bolts.

       Torque: 18 lb.ft (24 Nm)

     • Install the accessory drive belt tensioner and the bolts.

       Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

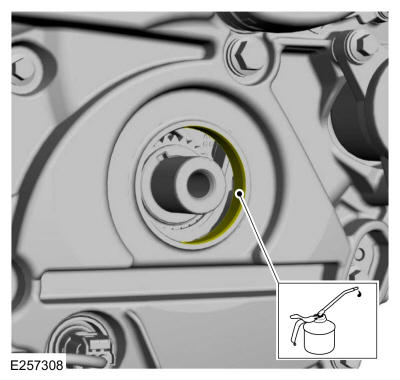

157. Lubricate the crankshaft front seal bore with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

158. Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-102 Installer, Crankshaft Pulley, 303-1251 Installer, Front Seal.

     Courtesy of FORD MOTOR COMPANY

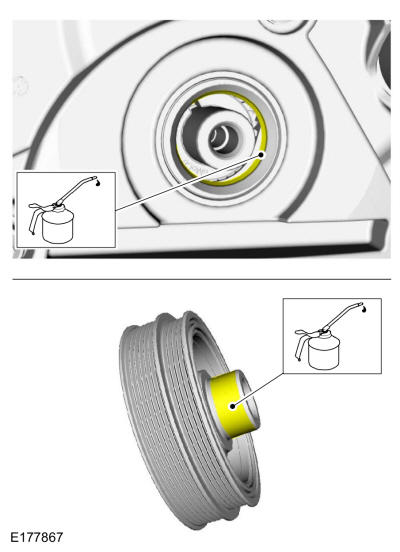

159. Lubricate the crankshaft front seal and the crankshaft pulley with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

160. Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-102 Installer, Crankshaft Pulley, 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal.

     Courtesy of FORD MOTOR COMPANY

161. NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).

     With the aid of an assistant, using a universal pulley holder, install and tighten a new crankshaft pulley bolt and the washer and tighten in 3 stages.

     Torque: Stage 1: 37 lb.ft (50 Nm) - Stage 2: 90° - Stage 3: 60°

     Courtesy of FORD MOTOR COMPANY

162. Install the transmission bolt.

     Courtesy of FORD MOTOR COMPANY

163. Install the new RH engine mount stud.

     Torque: 35 lb.ft (48 Nm)

     Courtesy of FORD MOTOR COMPANY

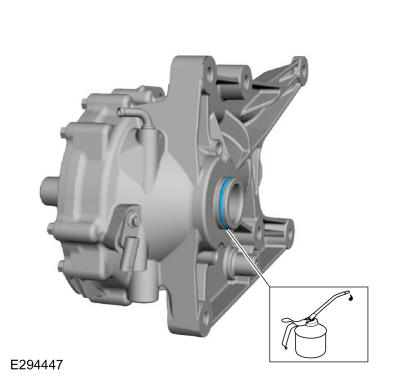

164. Install a new front axle assembly seal and lubricate.

     Courtesy of FORD MOTOR COMPANY

165. • Clean the front axle assembly-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.
     • Install the front axle assembly and the bolts.

       Torque: Stage 1: 66 lb.ft (90 Nm) - Stage 2: 90°

     Courtesy of FORD MOTOR COMPANY

166. Install a new axle connector seal and lubricate.

     Courtesy of FORD MOTOR COMPANY

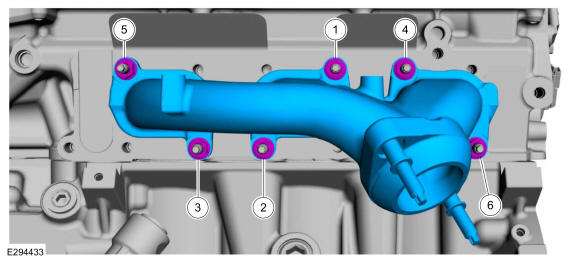

167. Install the LH axle connector and the bolts.

     Torque: 26 lb.ft (35 Nm)

     Courtesy of FORD MOTOR COMPANY

168. Clean the LH engine mount-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.

     Courtesy of FORD MOTOR COMPANY

169. Install the LH engine mount and the new bolts.

     Torque: 46 lb.ft (63 Nm)

     Courtesy of FORD MOTOR COMPANY

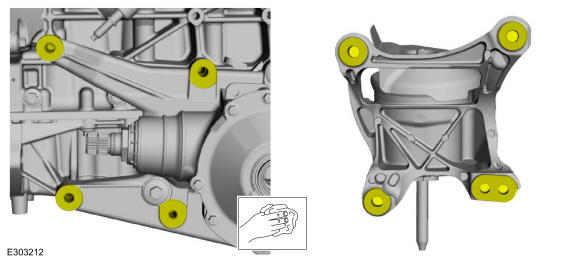

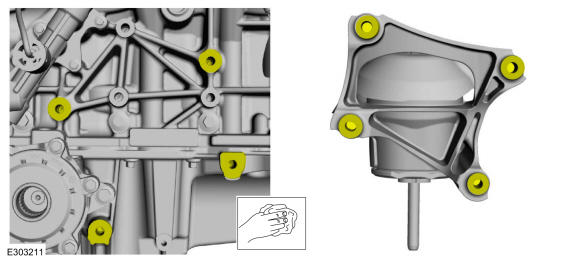

170. Clean the RH engine mount-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.

     Courtesy of FORD MOTOR COMPANY

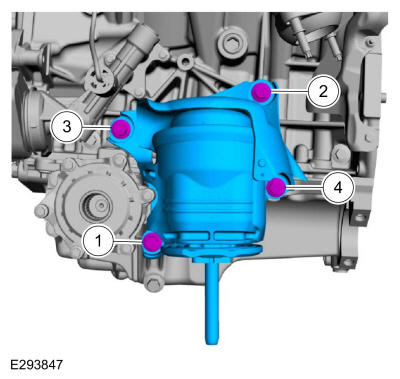

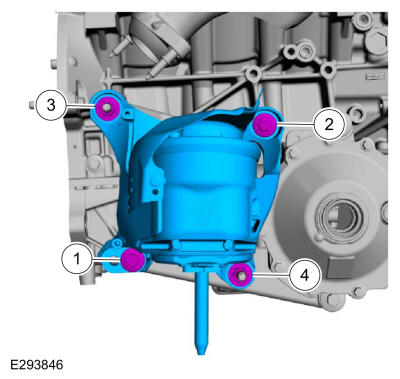

171. Install the RH engine mount and the new nuts and bolts.

     Torque: Stage 1: 66 lb.ft (90 Nm) - Stage 2: 90°

     Courtesy of FORD MOTOR COMPANY

172. Install the A/C compressor and the bolts.

     Torque: 18 lb.ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

173. Install the crankcase vent tube.

     Courtesy of FORD MOTOR COMPANY

174. If equipped with block heater, connect the block heater electrical connector and wiring harness retainers.

     Courtesy of FORD MOTOR COMPANY

175. If equipped with block heater, install the block heater electrical connector heat shield.

     Courtesy of FORD MOTOR COMPANY

176. Install the LH lift eye and the bolts. Use Special Service Tool: 303-1245 Engine Lift Eye.

     Torque: 18 lb.ft (24 Nm)

     Courtesy of FORD MOTOR COMPANY

177. Install the RH lift eye and the bolts. Use Special Service Tool: 303-1529 Lift Eye, Engine.

     Torque: 18 lb.ft (24 Nm)

     Courtesy of FORD MOTOR COMPANY

178. Install the floor crane and chains. Use the General Equipment: Floor Crane

     Courtesy of FORD MOTOR COMPANY

179. Remove the engine from the mounting stand. Use the General Equipment: Mounting Stand

     Courtesy of FORD MOTOR COMPANY

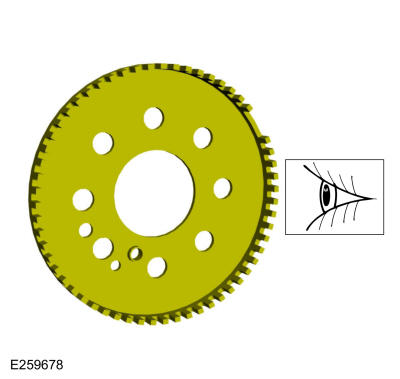

180. Inspect the ignition pulse ring for damage. If the ignition pulse ring has been dropped or has any visual damage, it must be replaced.

     Courtesy of FORD MOTOR COMPANY

181. NOTE: Make sure the crankshaft ignition pulse ring is aligned with the inset hole on the crankshaft flange.

     Install the crankshaft sensor ring and the engine-to-transmission spacer plate.

     Courtesy of FORD MOTOR COMPANY

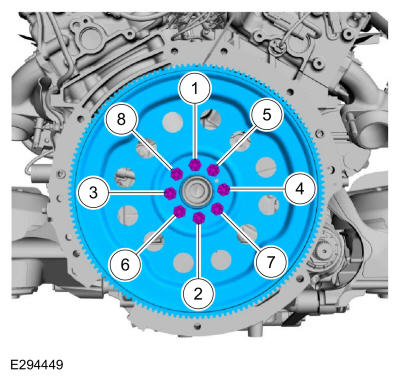

182. NOTE: One of the 8 flexplate holes are offset so the flexplate can only be installed in one position.
     • Install the flexplate aligning it with the offset hole and hand start bolts 5, 6, 7 and 8.
     • Tighten the bolts 5, 6, 7 and 8 in sequence one turn at a time until the flexplate is snug against the rear face of the crankshaft.
     • Torque the bolts 5, 6, 7 and 8 in sequence.

       Torque: 59 lb.ft (80 Nm)

     • Install the bolts 1, 2, 3 and 4 finger tight.
     • Torque the bolts 1, 2, 3 and 4 in sequence.

       Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
