Section 14 (Engine - 3.3L DURATEC-V6): Disassembly: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-142 (T80T-4000-J) Installer, Differential Bearing Cone
Courtesy of FORD MOTOR COMPANY	205-150 (T80T-4000-S) Installer, Spindle Bearing
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	303-1245 Engine Lift Eye TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1247 VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW

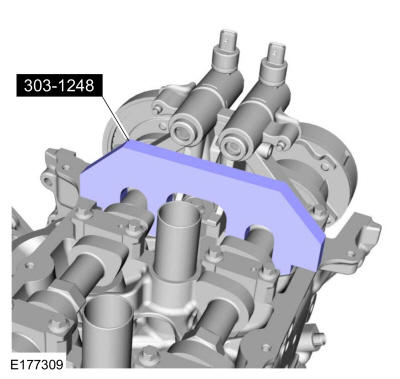

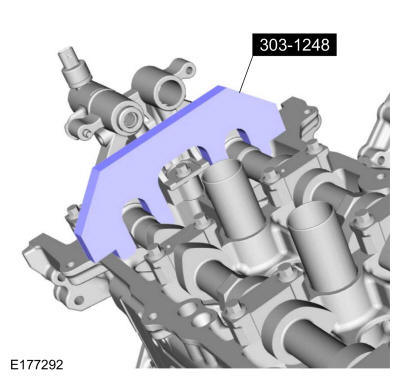

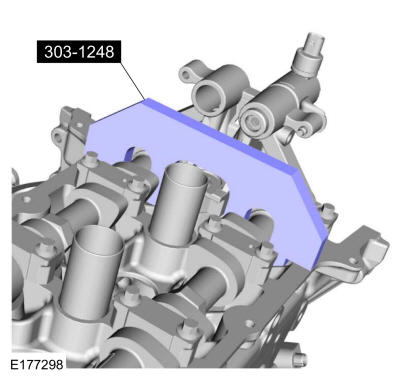

Courtesy of FORD MOTOR COMPANY	303-1248 Camshaft holding tools TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1529 Lift Eye, Engine TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW

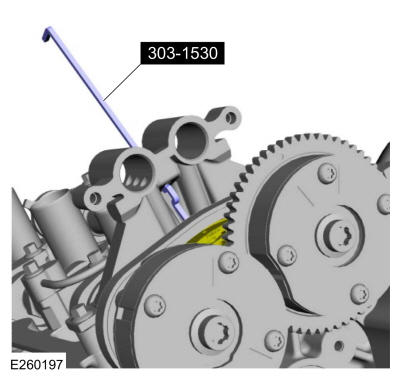

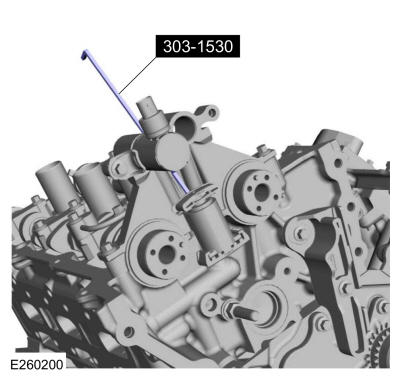

Courtesy of FORD MOTOR COMPANY	303-1530 Tool, Chain Tensioner Hold Down TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
Courtesy of FORD MOTOR COMPANY	303-409 (T92C-6700-CH) Remover, Crankshaft Seal TKIT-1992-FH/FMH/FLMH TKIT-1993-LMH/MH
Floor Crane
Mounting Stand
Plastic Scraper

Materials

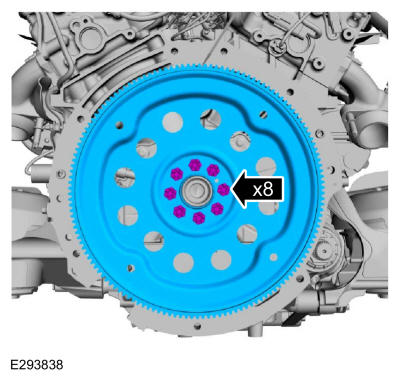

1. Remove the bolts and the flexplate.

   Courtesy of FORD MOTOR COMPANY

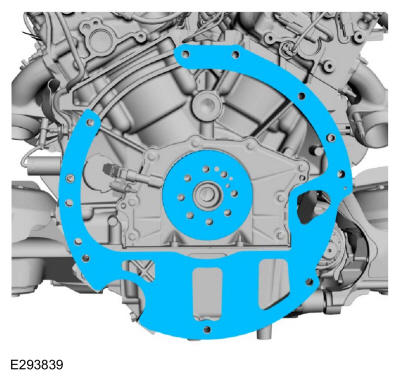

2. Remove the crankshaft sensor ring and the engine-to-transmission spacer plate.

   Courtesy of FORD MOTOR COMPANY

3. NOTE: Install the engine stand bolts into the cylinder block only. Do not install the bolts into the oil pan.

   Mount the engine to the mounting stand. Use the General Equipment: Mounting Stand

   Courtesy of FORD MOTOR COMPANY

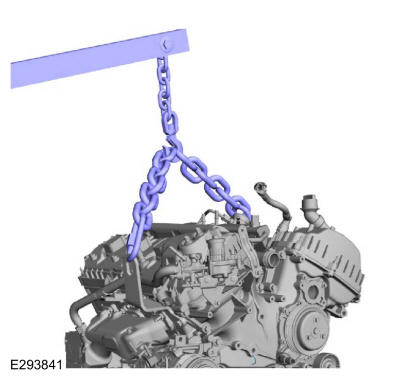

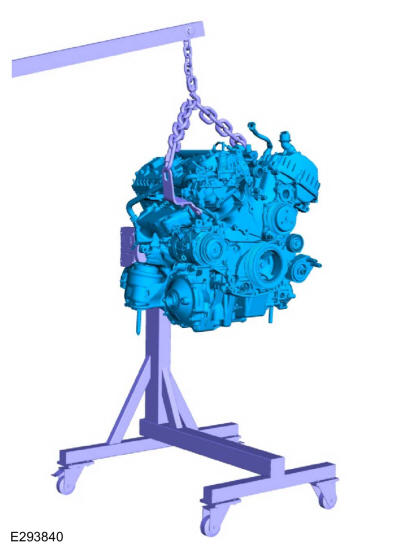

4. Remove the floor crane and the chains. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

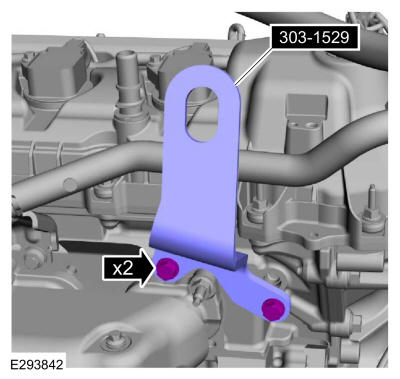

5. Remove Special Service Tool: 303-1529 Lift Eye, Engine.

   Courtesy of FORD MOTOR COMPANY

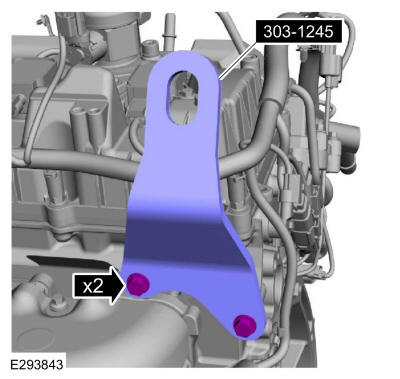

6. Remove Special Service Tool: 303-1245 Engine Lift Eye.

   Courtesy of FORD MOTOR COMPANY

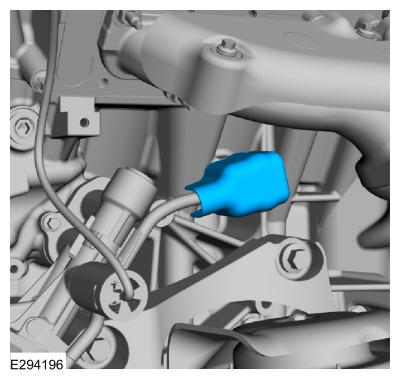

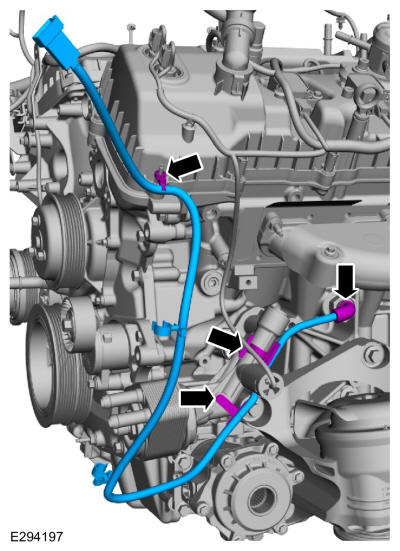

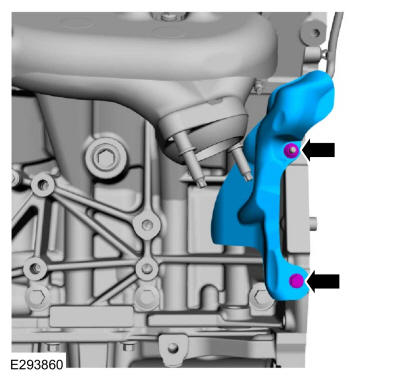

7. If equipped with block heater, remove the block heater electrical connector heat shield.

   Courtesy of FORD MOTOR COMPANY

8. If equipped with block heater, disconnect the block heater electrical connector and wiring harness retainers.

   Courtesy of FORD MOTOR COMPANY

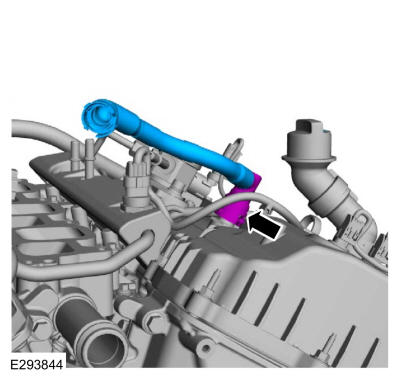

9. Remove the crankcase vent tube.

   Courtesy of FORD MOTOR COMPANY

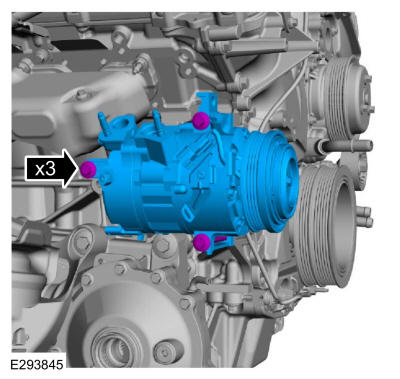

10. Remove the bolts and the A/C compressor.

    Courtesy of FORD MOTOR COMPANY

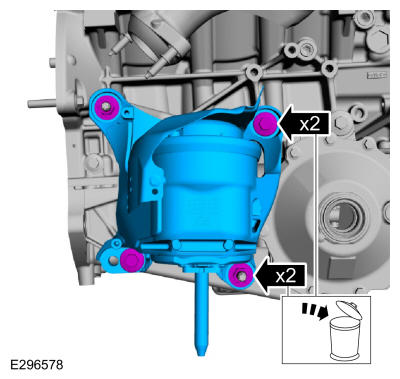

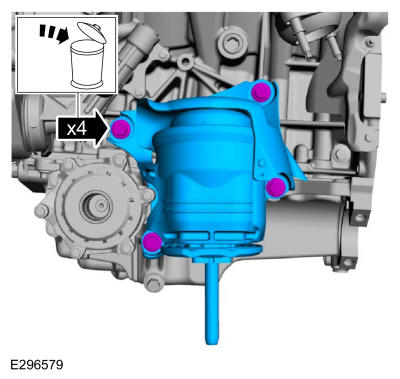

11. • Remove the nuts, bolts and the RH engine mount.
    • Discard the nuts and bolts.

    Courtesy of FORD MOTOR COMPANY

12. • Remove the bolts and the LH engine mount.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

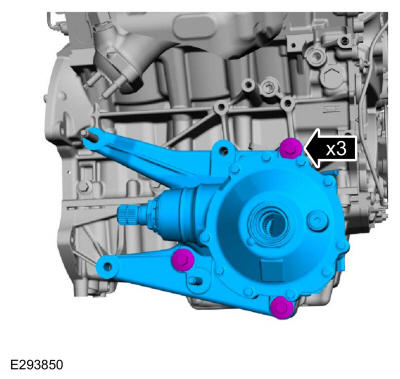

13. Remove the bolts and the LH axle connector.

    Courtesy of FORD MOTOR COMPANY

14. Remove and discard the axle connector seal.

    Courtesy of FORD MOTOR COMPANY

15. Remove the bolts and the front axle assembly.

    Courtesy of FORD MOTOR COMPANY

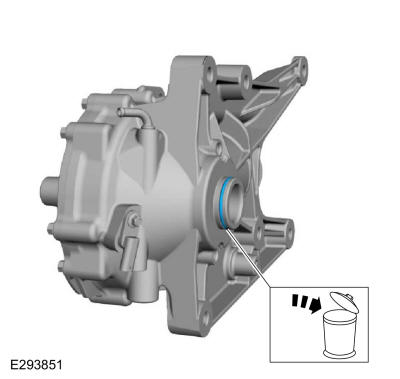

16. Remove and discard the front axle assembly seal.

    Courtesy of FORD MOTOR COMPANY

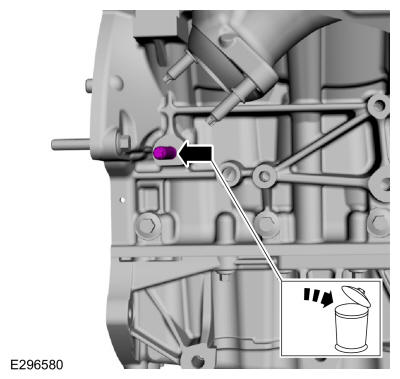

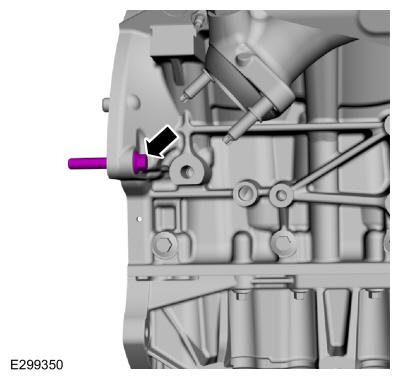

17. • Remove the RH engine mount stud.
    • Discard the stud.

    Courtesy of FORD MOTOR COMPANY

18. Remove the transmission bolt.

    Courtesy of FORD MOTOR COMPANY

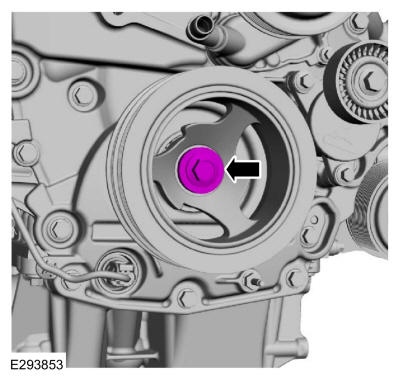

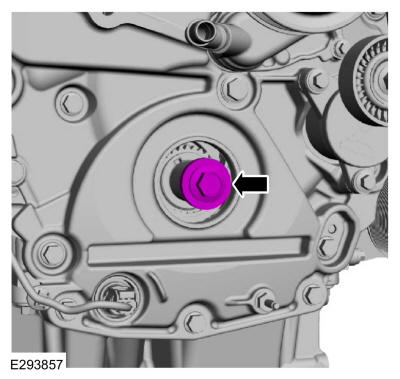

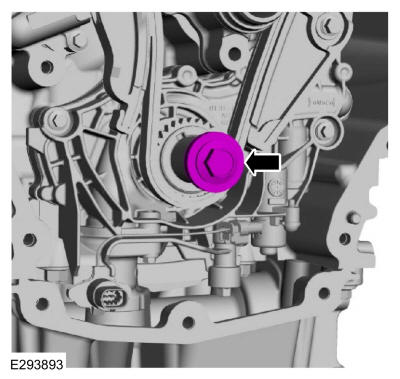

19. Remove the crankshaft pulley bolt and washer.

    Courtesy of FORD MOTOR COMPANY

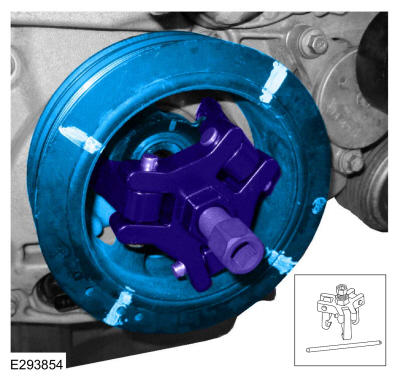

20. NOTE: Use a universal puller (such as an OTC 6667, or equivalent).

    Using a universal puller, remove the crankshaft pulley.

    Courtesy of FORD MOTOR COMPANY

21. Install the original crankshaft pulley bolt and washer.

    Courtesy of FORD MOTOR COMPANY

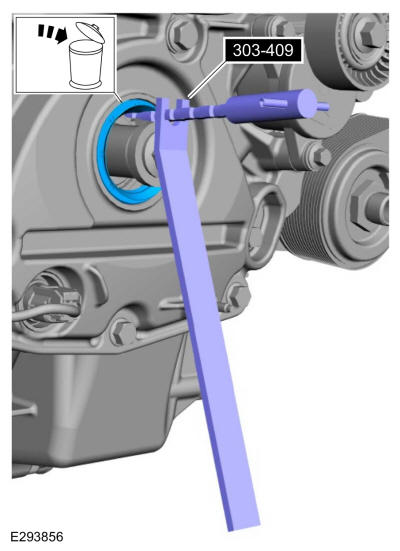

22. Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

    Courtesy of FORD MOTOR COMPANY

23. Remove the original crankshaft pulley bolt and washer.

    Courtesy of FORD MOTOR COMPANY

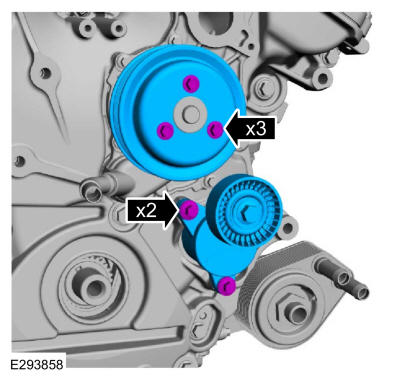

24. • Remove the bolts and the coolant pump pulley.
    • Remove the bolts and the accessory drive belt tensioner.

    Courtesy of FORD MOTOR COMPANY

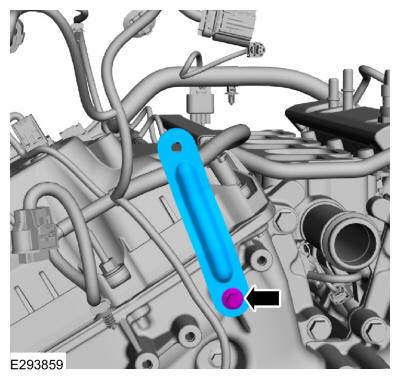

25. Remove the bolt and the upper intake manifold support bracket.

    Courtesy of FORD MOTOR COMPANY

26. Remove the nut, bolt and the heat shield.

    Courtesy of FORD MOTOR COMPANY

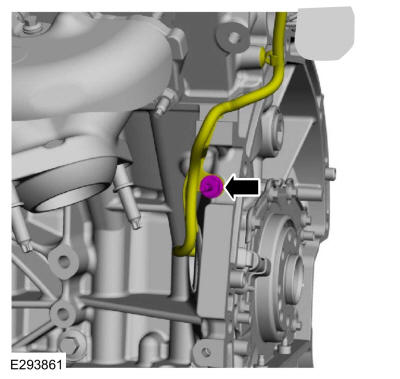

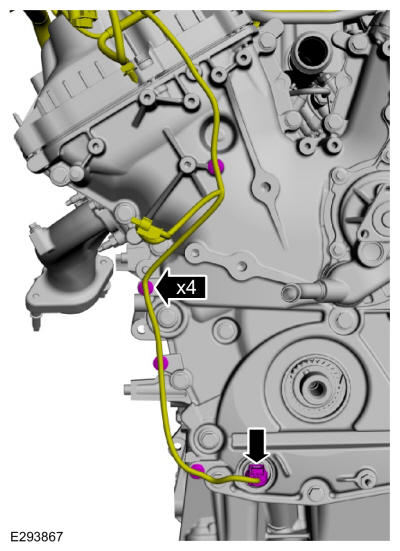

27. Remove the wiring harness retainer stud bolt.

    Courtesy of FORD MOTOR COMPANY

28. Remove the wiring harness grommet.

    Courtesy of FORD MOTOR COMPANY

29. • Disconnect the CKP sensor electrical connector.
    • Remove the bolt and the CKP sensor.

    Courtesy of FORD MOTOR COMPANY

30. • Disconnect the KS and CHT sensor electrical connectors.
    • Disconnect the CMP sensor electrical connectors.
    • Disconnect the direct injection fuel rail electrical connectors.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

31. • Disconnect the high-pressure fuel pump electrical connector.
    • Disconnect the VCT oil control solenoids electrical connectors.
    • Disconnect the ignition coil-on-plug electrical connectors.
    • Disconnect the oil pressure sensor electrical connector.
    • Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

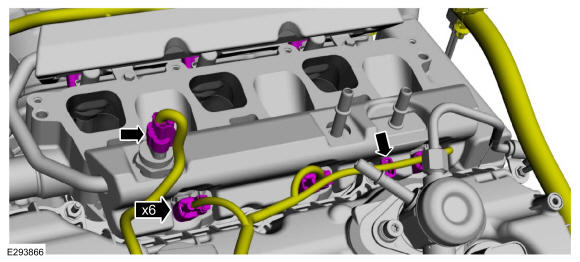

32. • Disconnect the FRP temperature sensor electrical connector.
    • Detach the wiring harness retainer.
    • Disconnect the port injector fuel rail electrical connectors.

    Courtesy of FORD MOTOR COMPANY

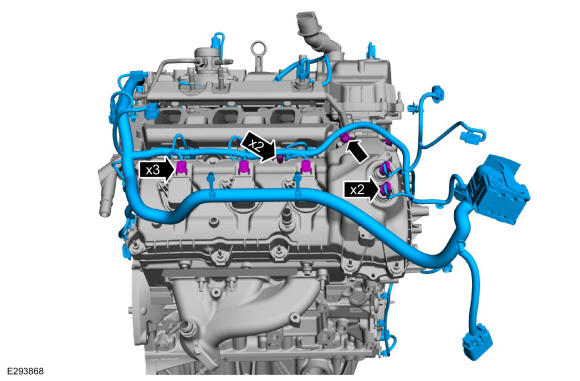

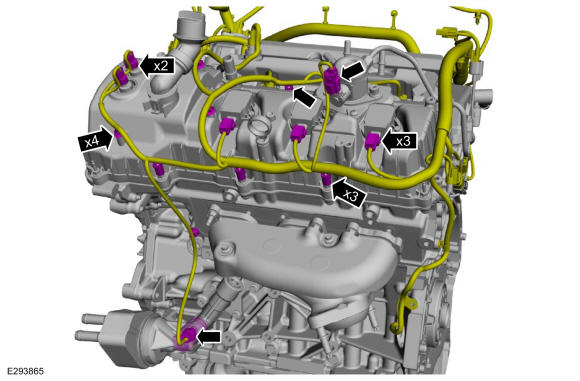

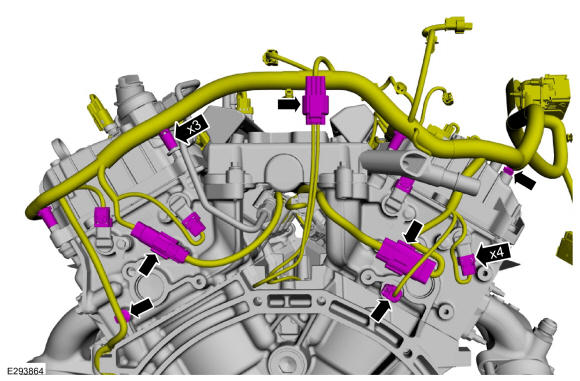

33. Disconnect the oil pressure control solenoid, EGR valve electrical connectors and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

34. • Disconnect the VCT oil control solenoids electrical connectors.
    • Disconnect the ignition coil-on-plug electrical connectors.
    • Detach the wiring harness retainers and remove the engine wiring harness.

    Courtesy of FORD MOTOR COMPANY

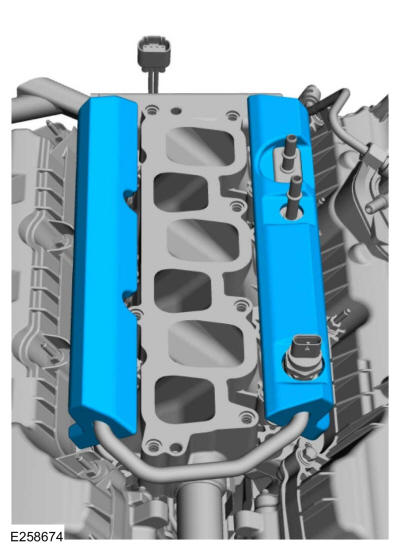

35. Remove the fuel rail insulators.

    Courtesy of FORD MOTOR COMPANY

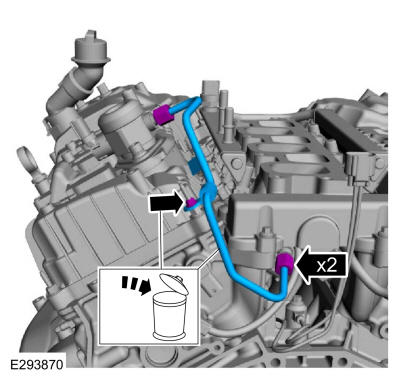

36. • Remove and discard the high-pressure fuel pump to direct injection fuel rail tube nut.
    • Loosen the high-pressure fuel pump to direct injection fuel rail tube flare nuts.
    • Remove and discard the high-pressure fuel pump to direct injection fuel rail tube.

    Courtesy of FORD MOTOR COMPANY

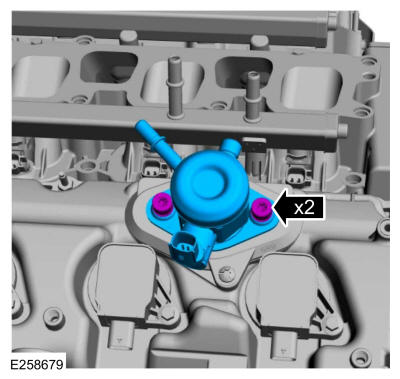

37. NOTE: Alternately loosen the high-pressure fuel pump bolts one complete revolution at a time.

    Remove the bolts and the high-pressure fuel pump.

    Courtesy of FORD MOTOR COMPANY

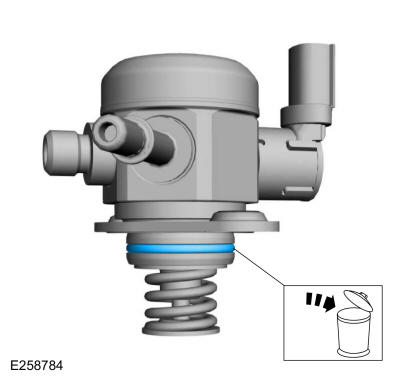

38. Remove and discard the high-pressure fuel pump O-ring seal.

    Courtesy of FORD MOTOR COMPANY

39. Remove the high-pressure fuel pump roller tappet.

    Courtesy of FORD MOTOR COMPANY

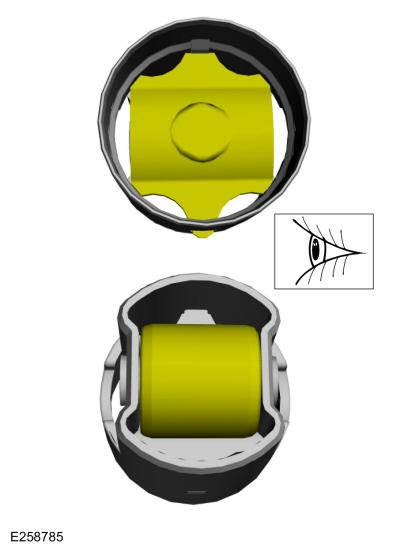

40. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as needed.

    Courtesy of FORD MOTOR COMPANY

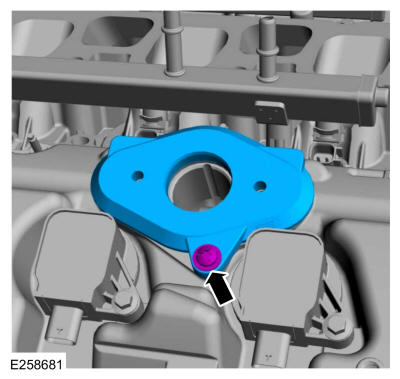

41. Loosen the high-pressure fuel pump mounting plate bolt and remove the mounting plate.

    Courtesy of FORD MOTOR COMPANY

42. Remove and discard the high-pressure fuel pump mounting plate seal.

    Courtesy of FORD MOTOR COMPANY

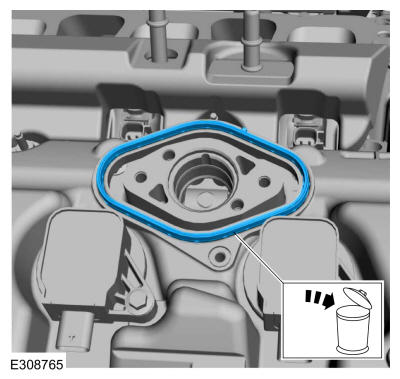

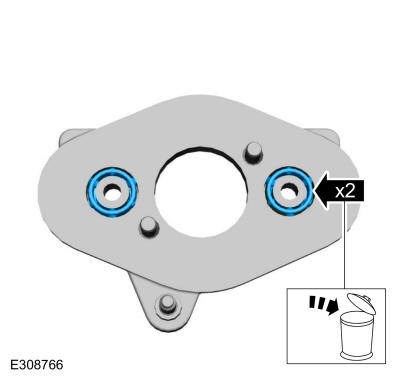

43. Remove and discard the high-pressure fuel pump mounting plate O-ring seals.

    Courtesy of FORD MOTOR COMPANY

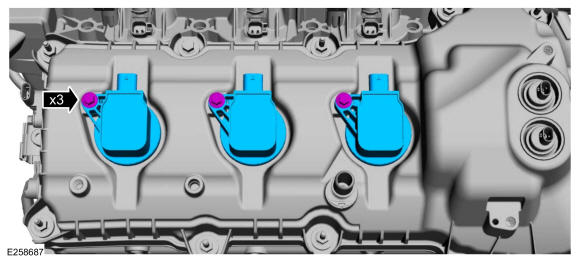

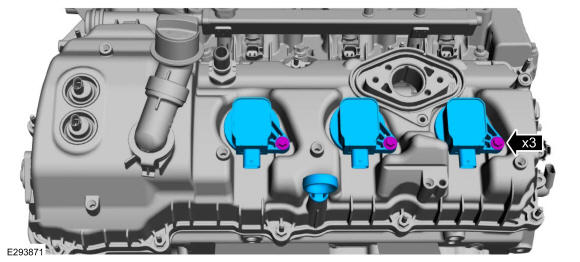

44. • NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
      NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

      Remove the bolts and the ignition coil-on-plugs.

    • Remove the oil level indicator.

    Courtesy of FORD MOTOR COMPANY

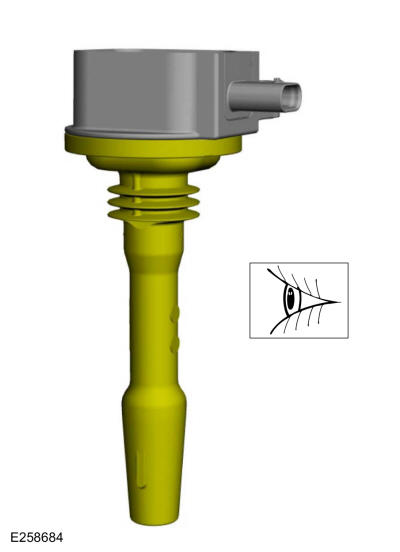

45. Inspect the coil seals for rips, nicks or tears and replace if necessary.

    Courtesy of FORD MOTOR COMPANY

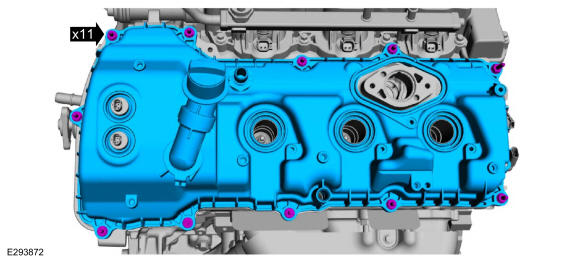

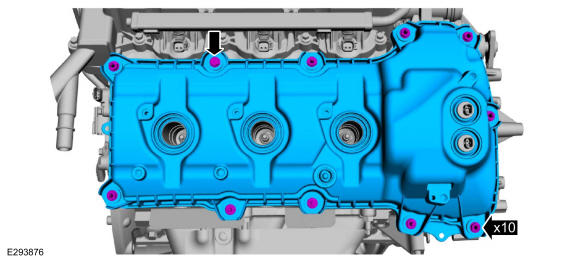

46. NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.
    NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

    Loosen the bolts, stud bolts and the LH valve cover.

    Courtesy of FORD MOTOR COMPANY

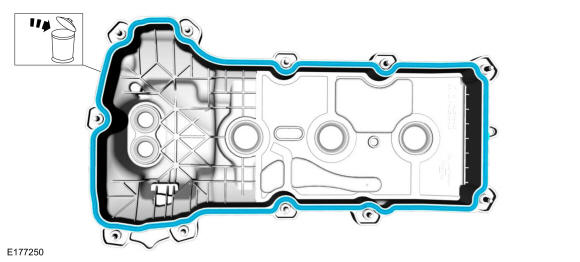

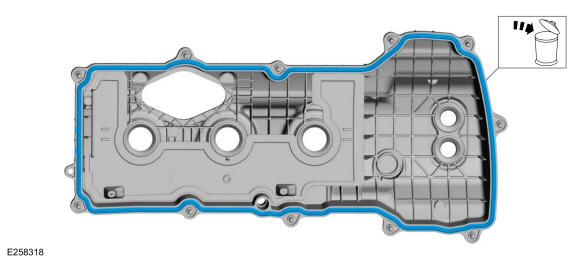

47. Discard the valve cover gasket.

    Courtesy of FORD MOTOR COMPANY

48. NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

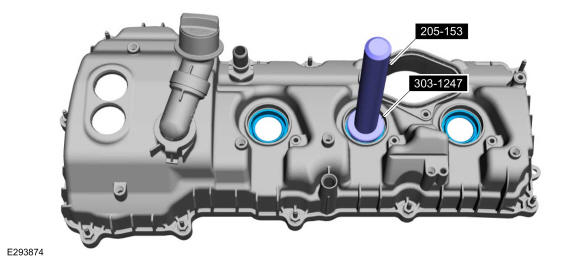

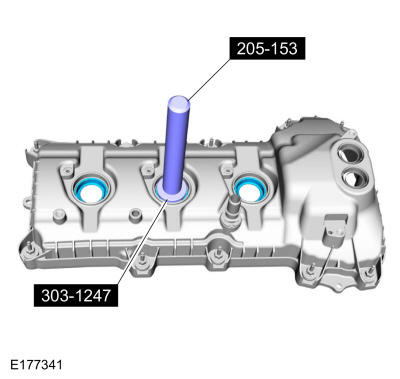

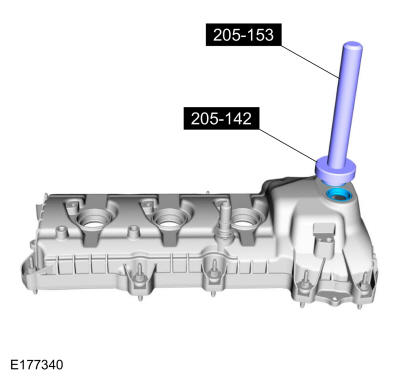

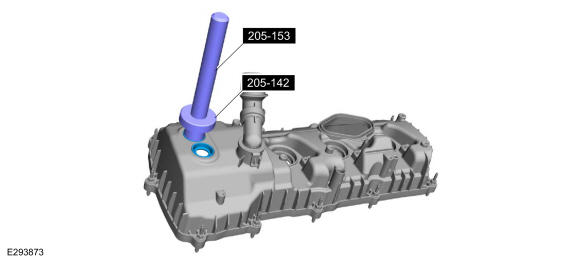

    Using the special tools, remove and discard the seal(s). Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

    Courtesy of FORD MOTOR COMPANY

49. NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

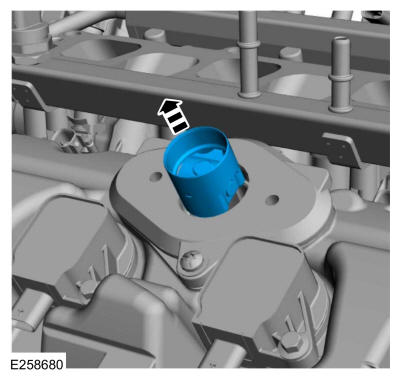

    Using the special tools, remove and discard the seal(s). Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

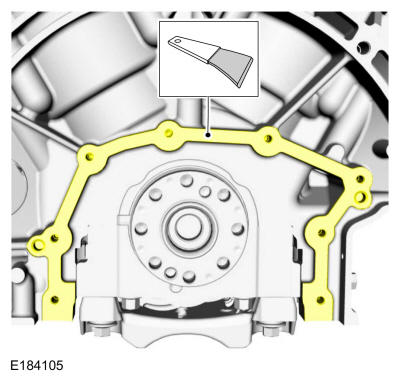

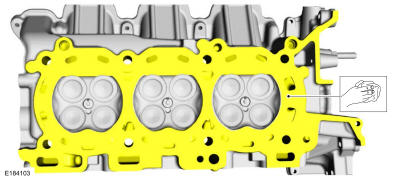

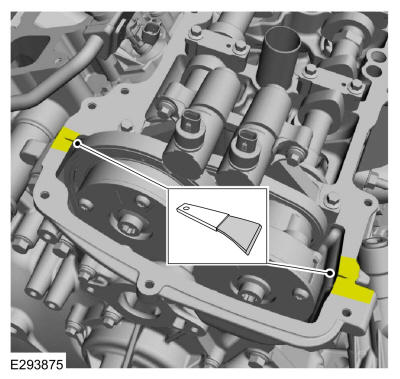

50. Make sure that the mating faces are clean and free of foreign material. Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

51. NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
    NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Remove the bolts and the ignition coil-on-plugs.

    Courtesy of FORD MOTOR COMPANY

52. Inspect the coil seals for rips, nicks or tears and replace if necessary.

    Courtesy of FORD MOTOR COMPANY

53. NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.
    NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

    Loosen the bolts and remove the RH valve cover.

    Courtesy of FORD MOTOR COMPANY

54. Discard the valve cover gasket.

    Courtesy of FORD MOTOR COMPANY

55. NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

    Using the special tools, remove and discard the seal(s). Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

    Courtesy of FORD MOTOR COMPANY

56. NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

    Using the special tools, remove and discard the seal(s). Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

57. Make sure that the mating faces are clean and free of foreign material. Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

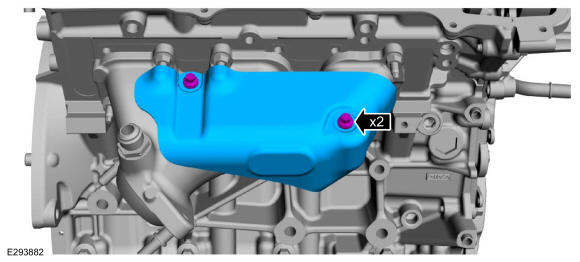

58. Remove the bolts and the LH exhaust manifold heat shield.

    Courtesy of FORD MOTOR COMPANY

59. • Remove the nuts and the LH exhaust manifold.
    • Discard the nuts.

    Courtesy of FORD MOTOR COMPANY

60. Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

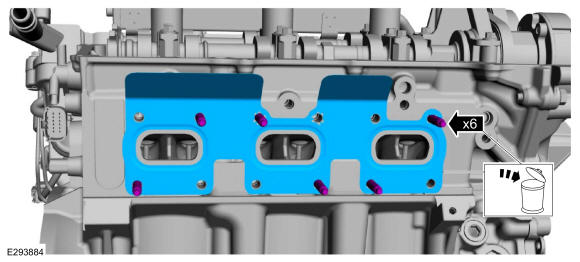

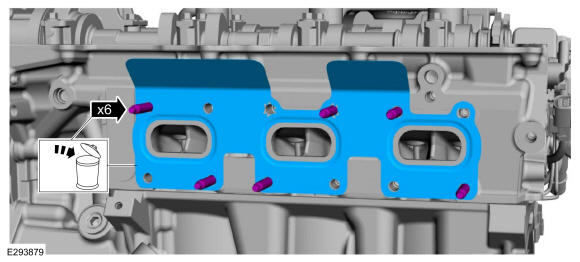

61. Remove and discard the LH exhaust manifold gasket and studs.

    Courtesy of FORD MOTOR COMPANY

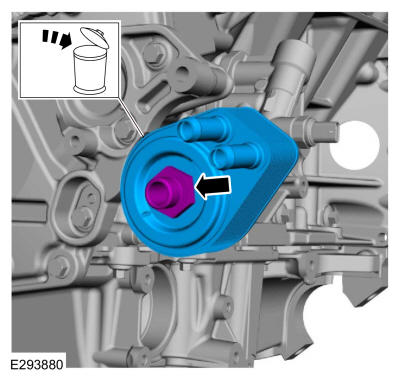

62. • Remove the bolt and the oil cooler.
    • Discard the oil cooler.

    Courtesy of FORD MOTOR COMPANY

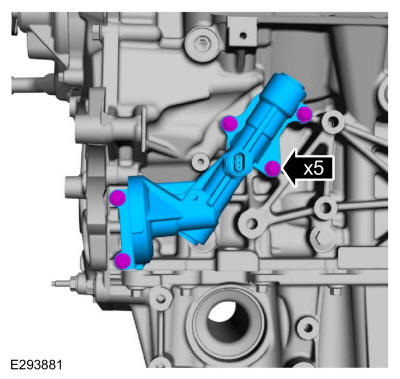

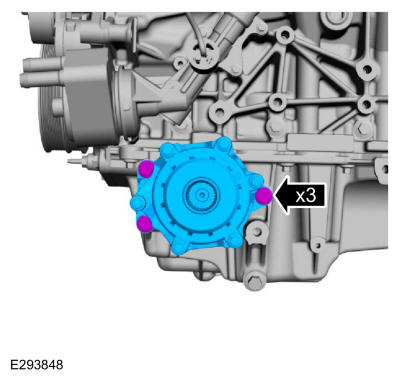

63. Remove the bolts and the oil filter adapter.

    Courtesy of FORD MOTOR COMPANY

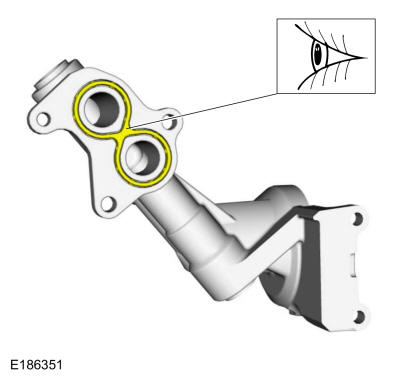

64. Inspect and replace if necessary.

    Courtesy of FORD MOTOR COMPANY

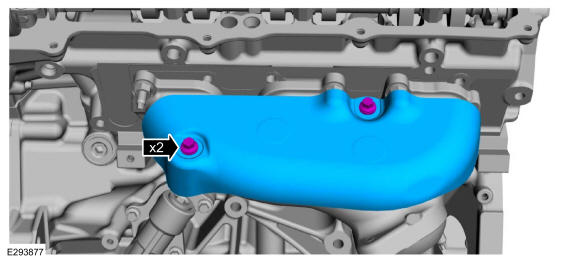

65. Remove the bolts and the RH exhaust manifold heat shield.

    Courtesy of FORD MOTOR COMPANY

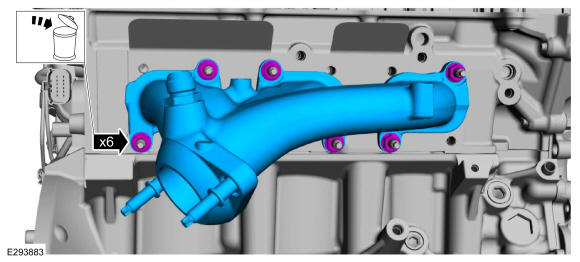

66. • Remove the nuts and the RH exhaust manifold.
    • Discard the nuts.

    Courtesy of FORD MOTOR COMPANY

67. Remove and discard the RH exhaust manifold gasket and studs.

    Courtesy of FORD MOTOR COMPANY

68. Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

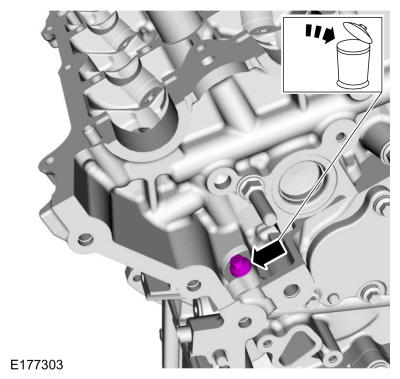

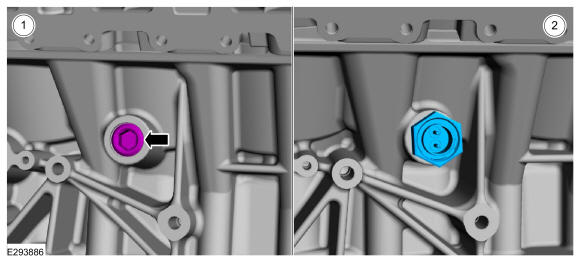

69. Remove the RH block coolant drain plug and allow coolant to drain from the cylinder block.

    Courtesy of FORD MOTOR COMPANY

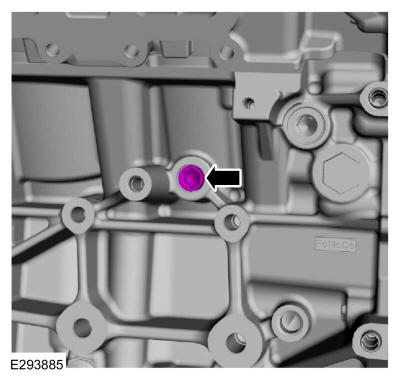

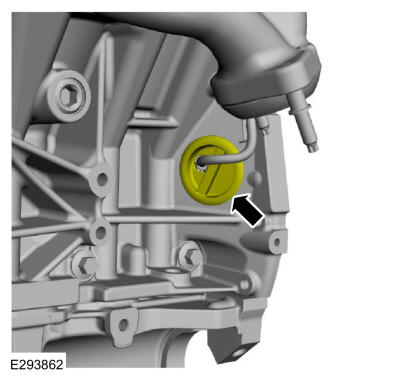

70. 1. Remove the LH block coolant drain plug and allow coolant to drain from the cylinder block.
    2. If equipped, remove the block heater and allow coolant to drain from the cylinder block.

    Courtesy of FORD MOTOR COMPANY

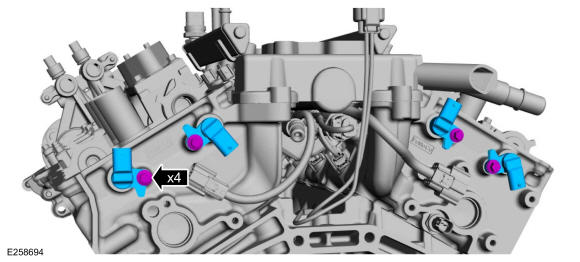

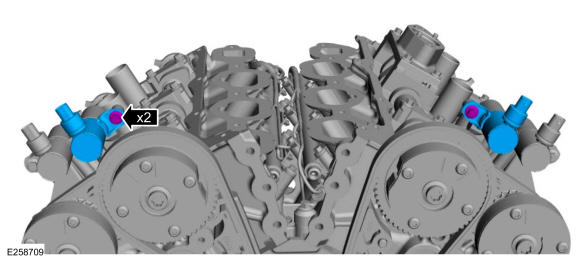

71. Remove the bolts and the CMP sensors.

    Courtesy of FORD MOTOR COMPANY

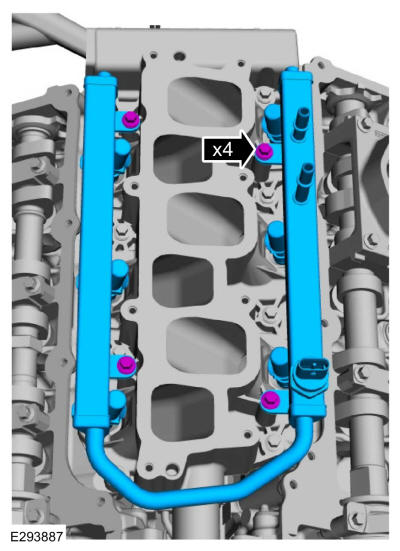

72. Remove and bolts and the port injection fuel rail.

    Courtesy of FORD MOTOR COMPANY

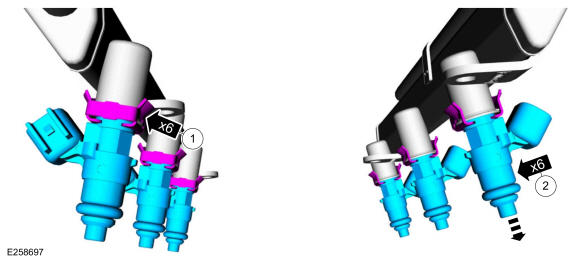

73. 1. Remove the fuel injector retaining clips.
    2. Remove the fuel injectors from the fuel rail.

    Courtesy of FORD MOTOR COMPANY

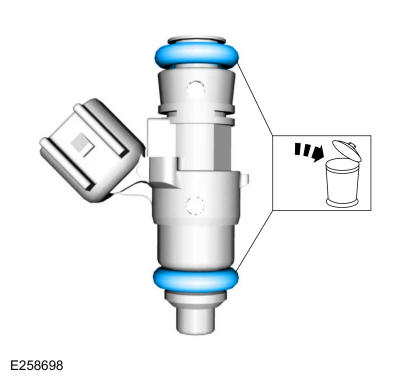

74. Remove and discard all of the fuel injector O-ring seals.

    Courtesy of FORD MOTOR COMPANY

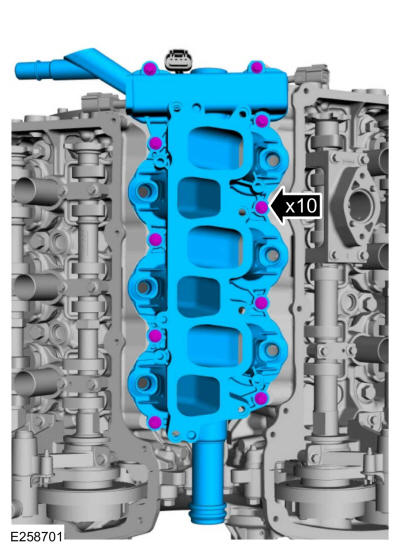

75. Remove the bolts and the lower intake manifold.

    Courtesy of FORD MOTOR COMPANY

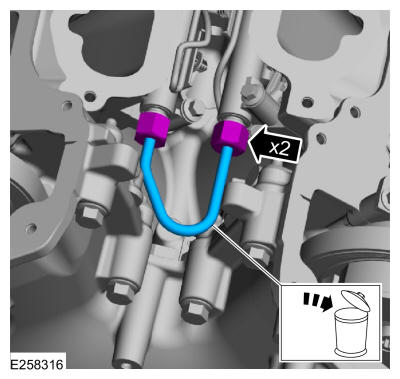

76. • Loosen the fuel rail to fuel rail high-pressure fuel tube flare nuts and remove.
    • Clean and inspect all sealing surfaces.

    Courtesy of FORD MOTOR COMPANY

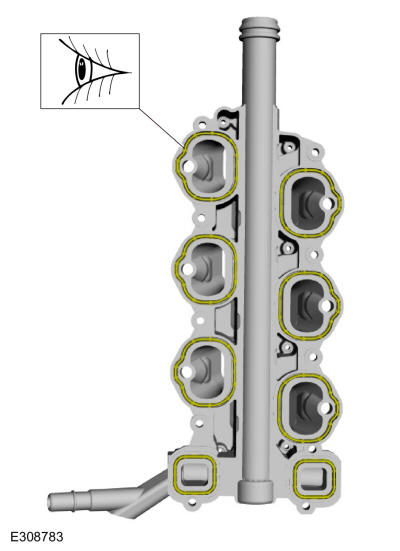

77. • Visually inspect the upper intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be re-used.

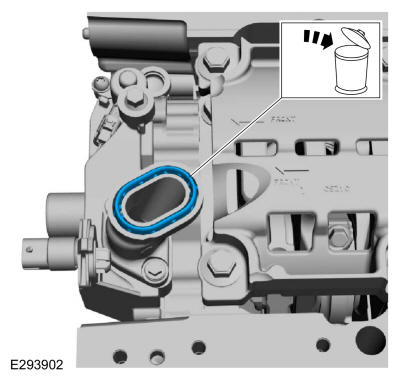

    • Discard the fuel rail to fuel rail high-pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

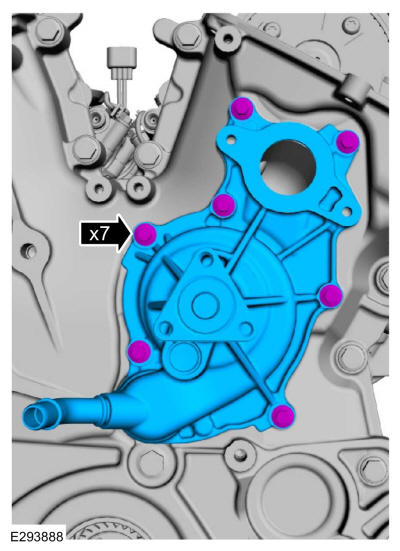

78. Remove the bolts and the coolant pump.

    Courtesy of FORD MOTOR COMPANY

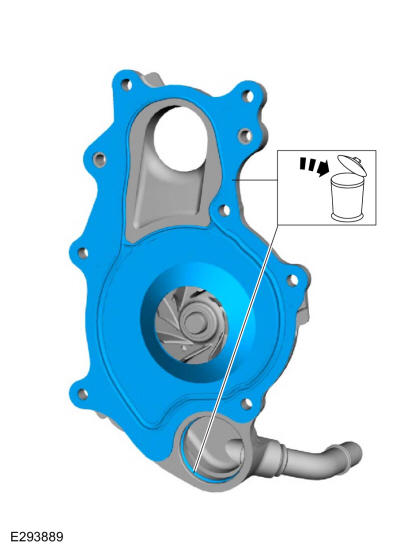

79. Remove and discard the coolant pump gasket and O-ring seal.

    Courtesy of FORD MOTOR COMPANY

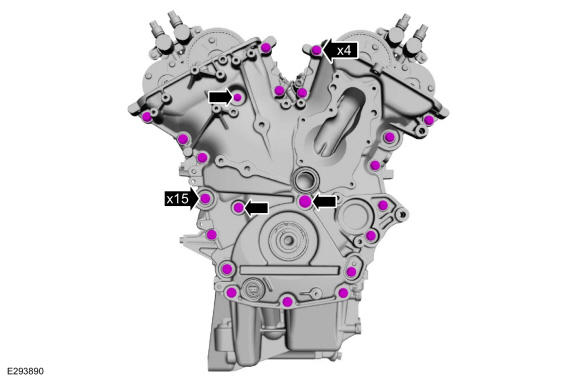

80. Remove the engine front cover bolts.

    Courtesy of FORD MOTOR COMPANY

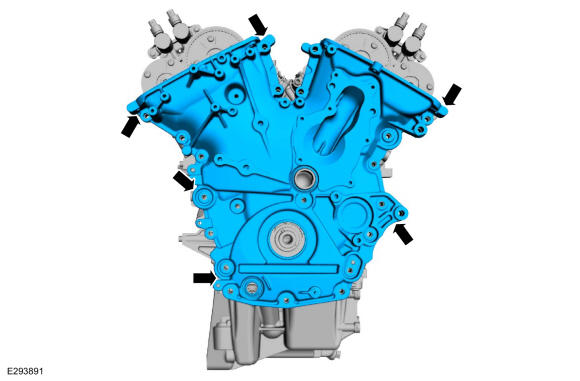

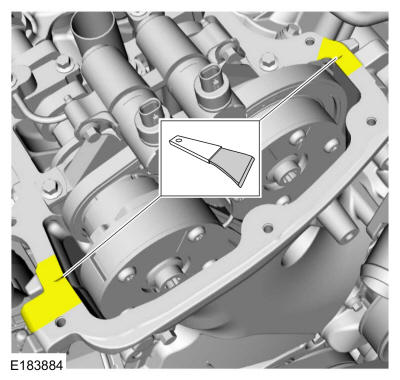

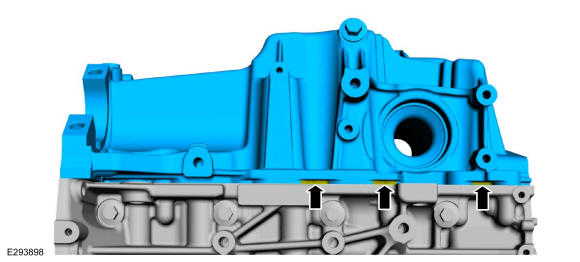

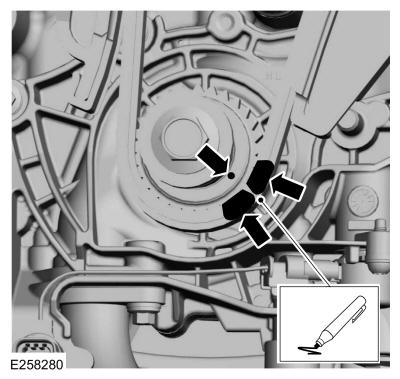

81. Using a pry tool, locate the pry pads shown and pry the engine front cover loose and remove.

    Courtesy of FORD MOTOR COMPANY

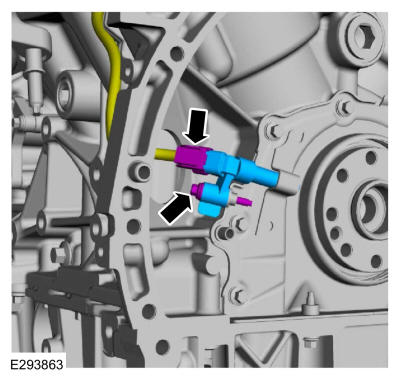

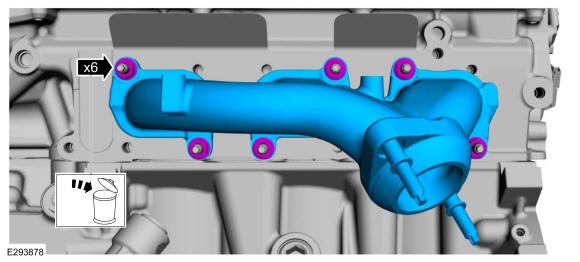

82. Using the special tools, remove the engine front cover to coolant pipe seal. Use Special Service Tool: 205-150 (T80T-4000-S) Installer, Spindle Bearing, 205-153 (T80T-4000-W) Handle.

    Courtesy of FORD MOTOR COMPANY

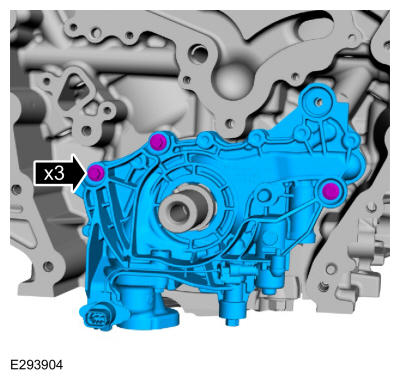

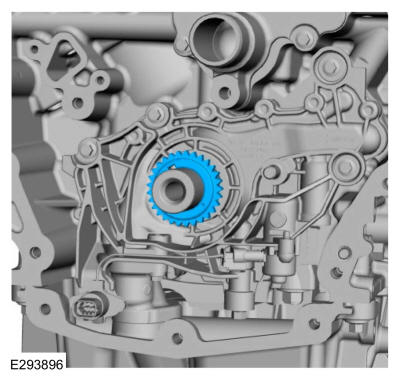

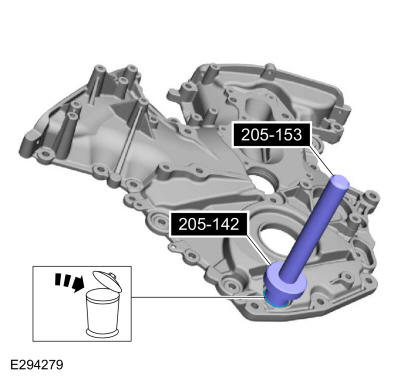

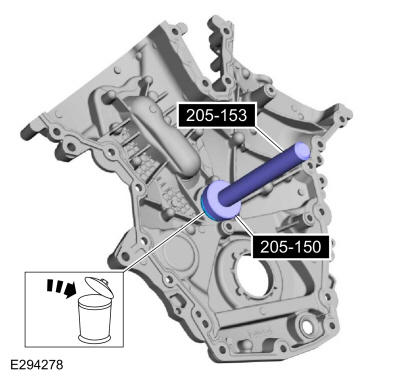

83. Using the special tools, remove and discard the oil pump electrical connector seal. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

    Courtesy of FORD MOTOR COMPANY

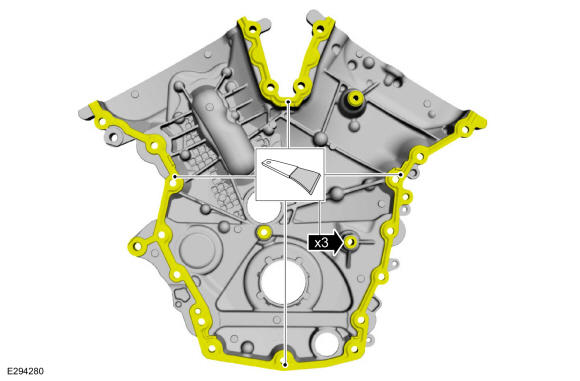

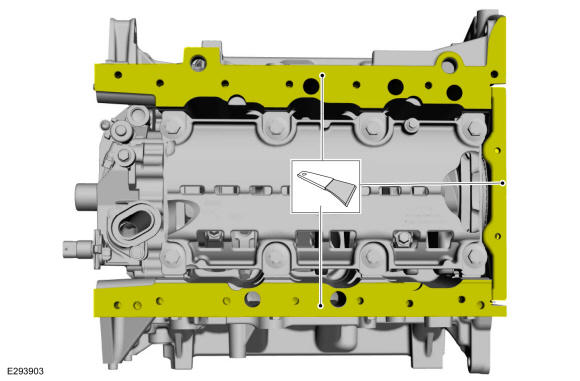

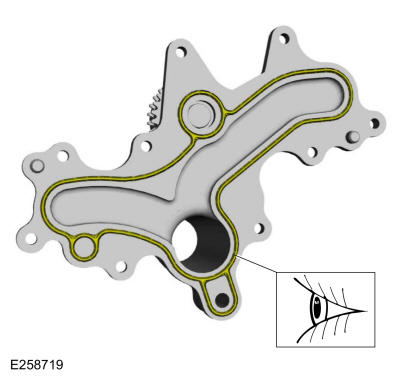

84. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm, to clean the engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.
    • Make sure that the mating faces of the front cover are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

      Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

      Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

    Courtesy of FORD MOTOR COMPANY

85. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the gasket.

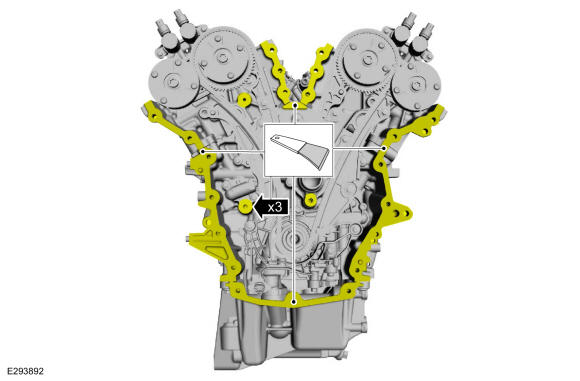

    Make sure that the mating faces of the engine block and oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Courtesy of FORD MOTOR COMPANY

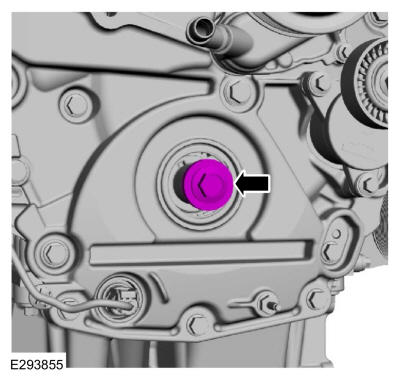

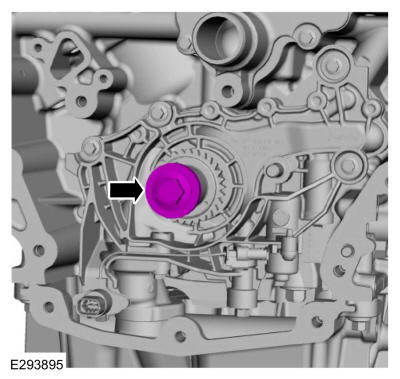

86. Install the original crankshaft pulley bolt and washer.

    Courtesy of FORD MOTOR COMPANY

87. NOTE: Rotate the crankshaft in a clockwise direction only.

    Using the crankshaft bolt, rotate the crankshaft clockwise and align the timing marks on the intake VCT units as shown.

    Courtesy of FORD MOTOR COMPANY

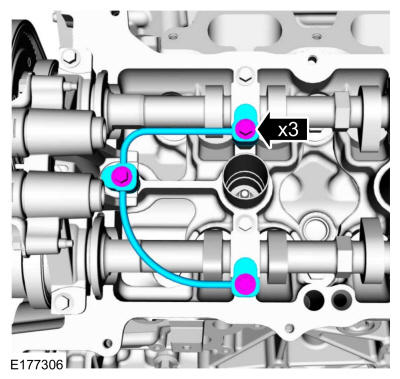

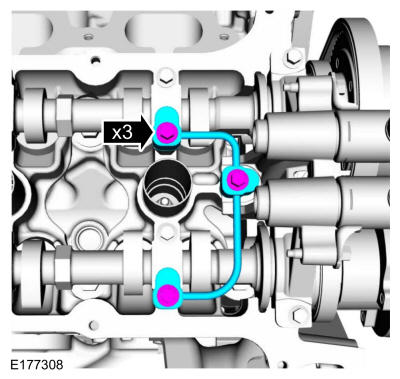

88. Remove the bolts and the LH oil tube.

    Courtesy of FORD MOTOR COMPANY

89. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

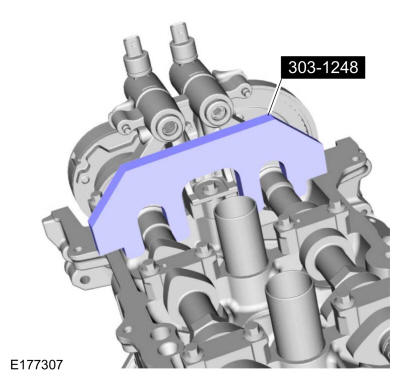

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

90. Remove the bolts and the RH oil tube.

    Courtesy of FORD MOTOR COMPANY

91. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

    NOTE: The following 3 steps are for primary timing chains that the colored links are not visible.

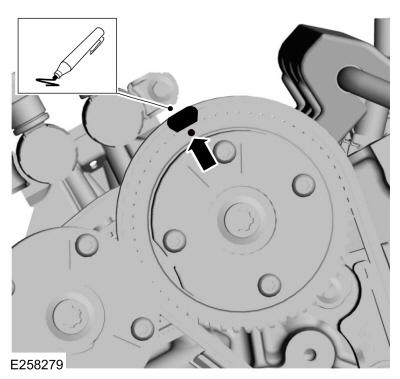

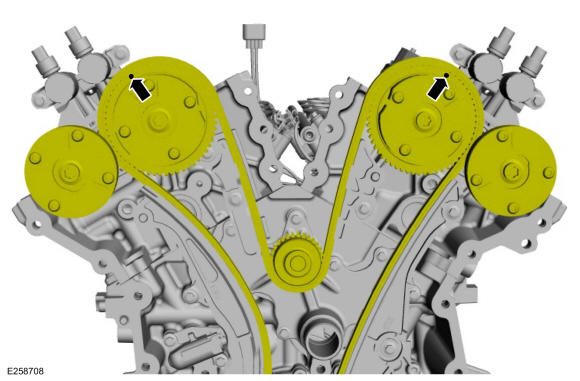

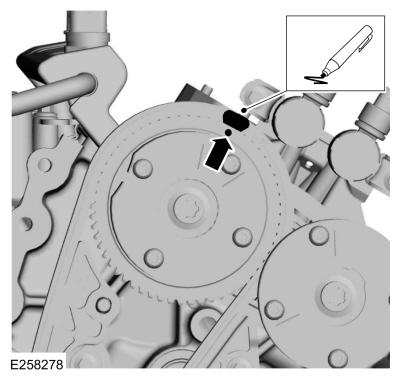

92. Mark the timing chain link that aligns with the timing mark on the LH intake VCT unit as shown.

    Courtesy of FORD MOTOR COMPANY

93. Mark the timing chain link that aligns with the timing mark on the RH intake VCT unit as shown.

    Courtesy of FORD MOTOR COMPANY

94. NOTE: The crankshaft sprocket timing mark should be between the colored links.

    Mark the timing chain links that aligns with the timing mark on the crankshaft sprocket as shown.

    Courtesy of FORD MOTOR COMPANY

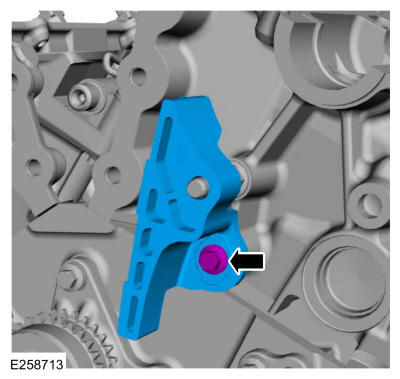

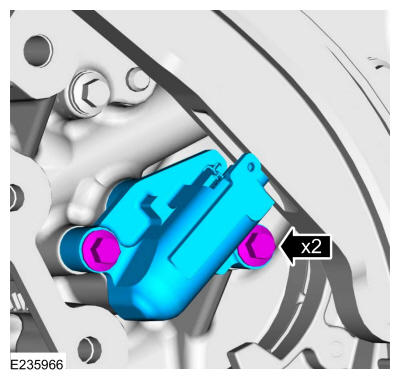

95. Remove the bolts and the timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

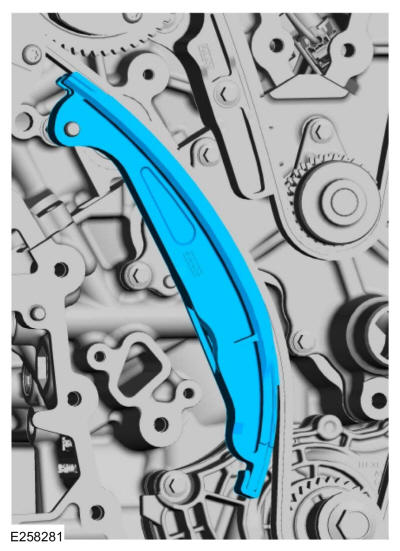

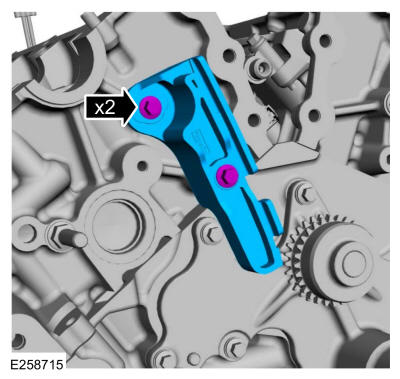

96. Remove the timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

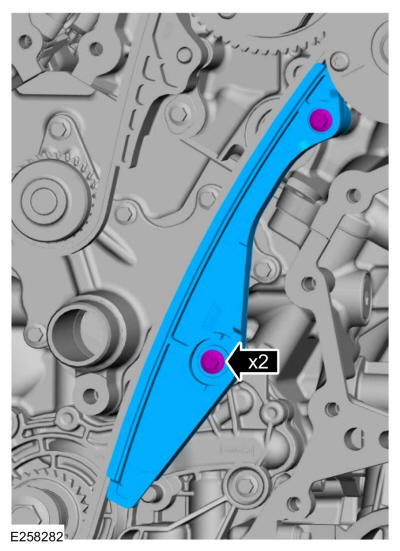

97. Remove the bolts and the lower LH timing chain guide.

    Courtesy of FORD MOTOR COMPANY

98. NOTE: Removal of the VCT oil control solenoid will aid in the removal of the timing chain.
    NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoids.
    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Remove the bolts and the VCT oil control solenoids.

    Courtesy of FORD MOTOR COMPANY

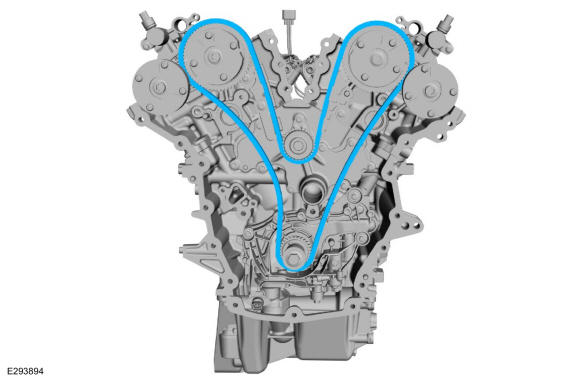

99. Remove the timing chain.

    Courtesy of FORD MOTOR COMPANY

100. Remove the crankshaft pulley bolt and washer.

     Courtesy of FORD MOTOR COMPANY

101. Remove the crankshaft sprocket.

     Courtesy of FORD MOTOR COMPANY

102. NOTE: The VCT oil control solenoids are removed for clarity.

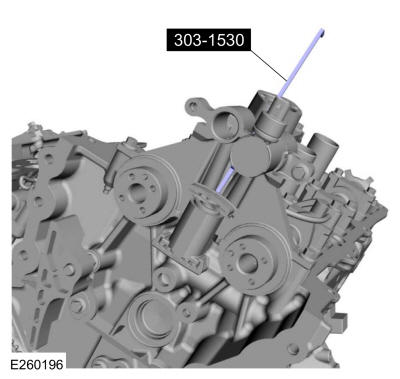

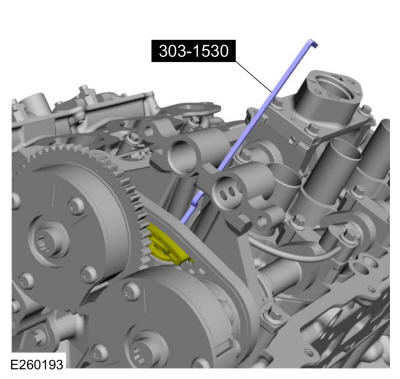

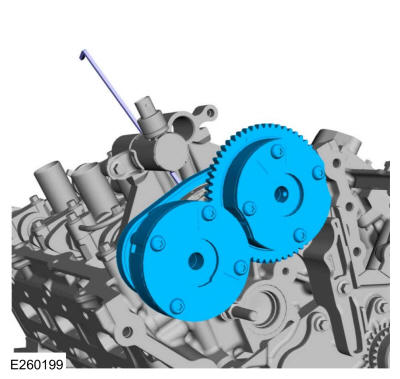

     Compress the LH secondary timing chain tensioner and install the special tool in the hole on the rear of the secondary timing chain tensioner guide and let it hold against the mega cap to retain the tensioner in the collapsed position. Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

     Courtesy of FORD MOTOR COMPANY

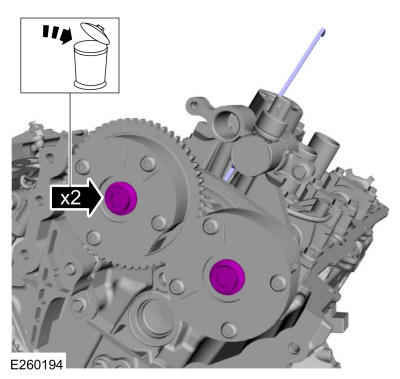

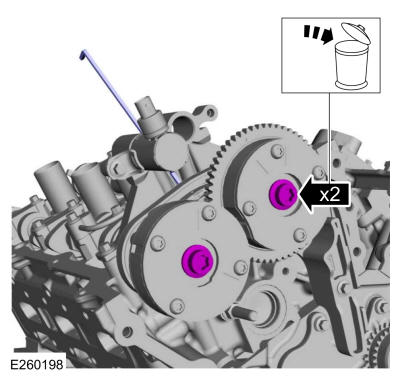

103. Remove and discard the LH VCT unit bolts.

     Courtesy of FORD MOTOR COMPANY

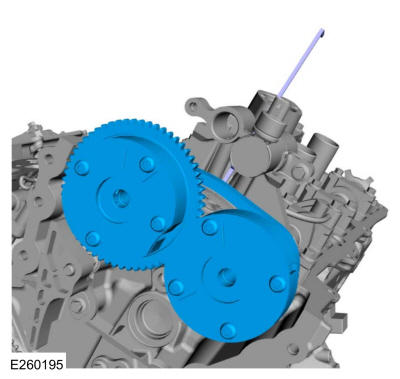

104. Remove the LH VCT units and secondary timing chain.

     Courtesy of FORD MOTOR COMPANY

105. Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

     Courtesy of FORD MOTOR COMPANY

106. Remove Special Service Tool: 303-1248 Camshaft holding tools.

     Courtesy of FORD MOTOR COMPANY

107. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
     NOTE: Mark the exhaust and intake camshafts for installation into their original locations.

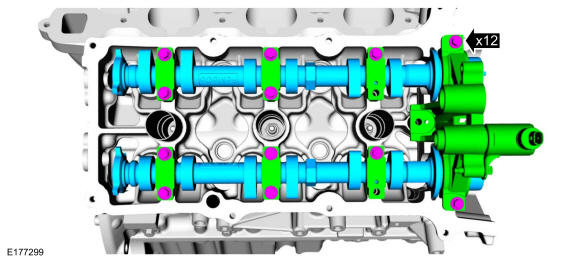

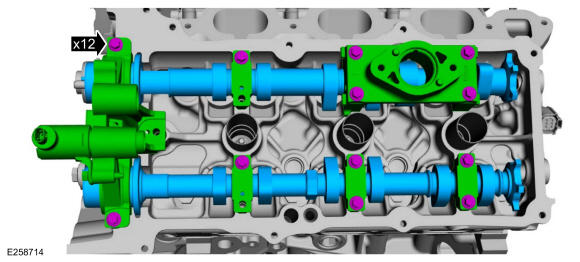

     Remove the bolts, camshaft caps and the camshafts.

     Courtesy of FORD MOTOR COMPANY

108. NOTE: The VCT oil control solenoids are removed for clarity.

     Compress the RH secondary timing chain tensioner and install the special tool in the hole on the rear of the secondary timing chain tensioner guide and let it hold against the mega cap to retain the tensioner in the collapsed position. Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

     Courtesy of FORD MOTOR COMPANY

109. Remove and discard the RH VCT unit bolts.

     Courtesy of FORD MOTOR COMPANY

110. Remove the RH VCT units and secondary timing chain.

     Courtesy of FORD MOTOR COMPANY

111. Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

     Courtesy of FORD MOTOR COMPANY

112. Remove Special Service Tool: 303-1248 Camshaft holding tools.

     Courtesy of FORD MOTOR COMPANY

113. NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
     NOTE: Mark the exhaust and intake camshafts for installation into their original locations.

     Remove the bolts, camshaft caps and the camshafts.

     Courtesy of FORD MOTOR COMPANY

114. NOTE: Do not use power tools to remove the bolt or damage to the RH primary timing chain guide may occur.

     Remove the bolts and the RH timing chain guide.

     Courtesy of FORD MOTOR COMPANY

115. NOTE: Do not use power tools to remove the bolt or damage to the LH primary timing chain guide may occur.

     Remove the bolt and the upper LH timing chain guide.

     Courtesy of FORD MOTOR COMPANY

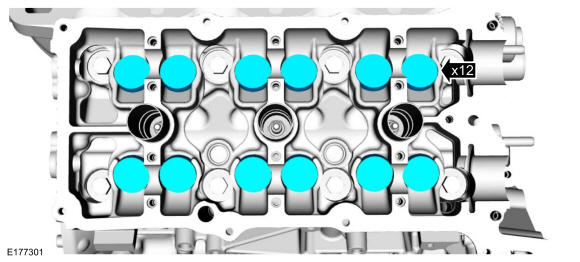

116. NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.
     NOTE: RH shown, LH similar.

     Remove the valve tappets from the cylinder heads.

     Courtesy of FORD MOTOR COMPANY

117. Inspect and install new components as necessary.

     Courtesy of FORD MOTOR COMPANY

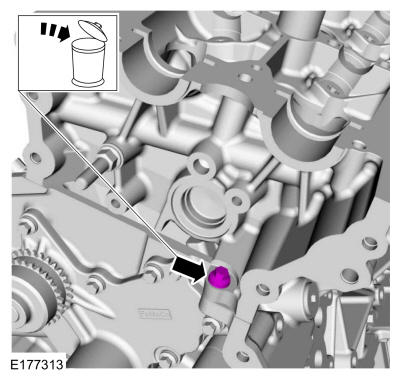

118. Remove and discard the M6 bolt.

     Courtesy of FORD MOTOR COMPANY

119. NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
     NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface
     NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.

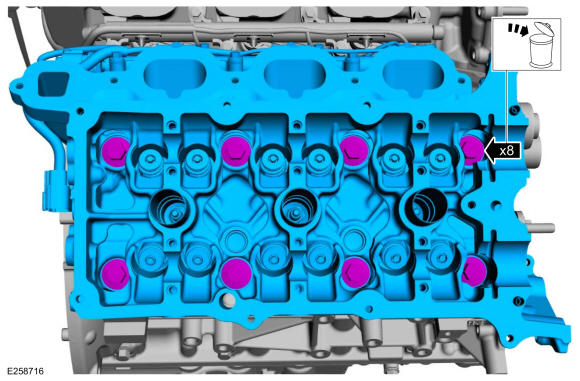

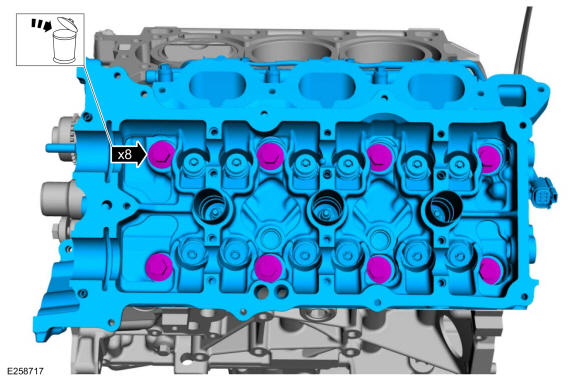

     • Remove and discard the bolts from the cylinder head.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

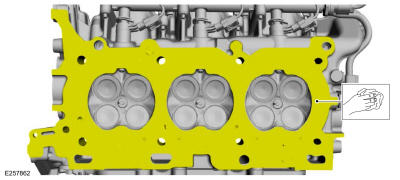

120. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

     Make sure that the mating faces of the cylinder head are clean and free of foreign material.

     Courtesy of FORD MOTOR COMPANY

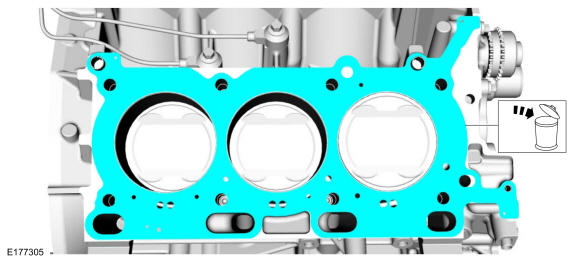

121. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

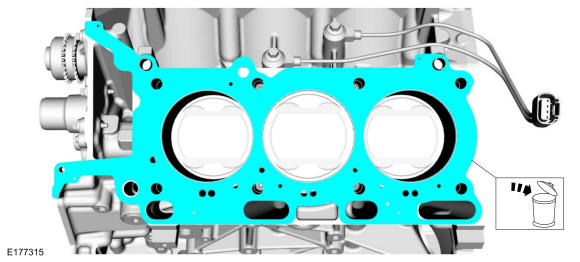

122. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
     NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

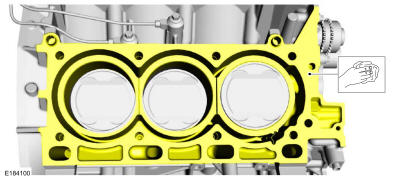

     Make sure that the mating faces of the engine block are clean and free of foreign material.

     Courtesy of FORD MOTOR COMPANY

123. Remove and discard the M6 bolt.

     Courtesy of FORD MOTOR COMPANY

124. NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
     NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface
     NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.
     • Remove and discard the bolts from the cylinder head.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

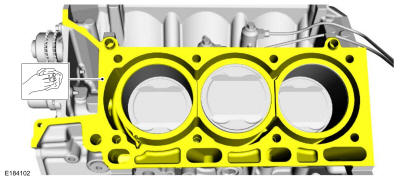

125. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

     Make sure that the mating faces of the cylinder head are clean and free of foreign material.

     Courtesy of FORD MOTOR COMPANY

126. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

127. NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
     NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

     Make sure that the mating faces of the engine block are clean and free of foreign material.

     Courtesy of FORD MOTOR COMPANY

128. Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion. Refer to: Cylinder Head Distortion .

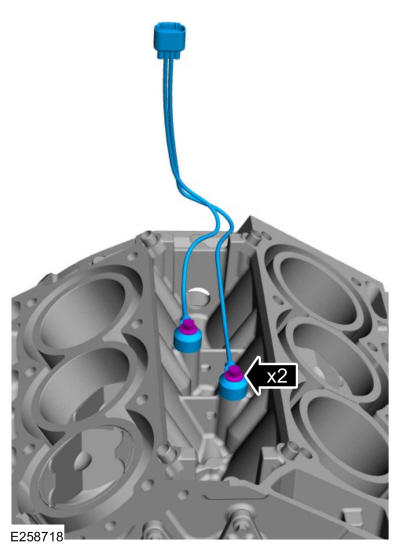

129. Remove the bolts and the KS.

     Courtesy of FORD MOTOR COMPANY

130. Remove the bolts and the channel cover plate.

     Courtesy of FORD MOTOR COMPANY

131. Inspect and replace if necessary.

     Courtesy of FORD MOTOR COMPANY

132. • Rotate the engine so the oil pan is facing upwards.
     • Remove the oil pan bolts.

     Courtesy of FORD MOTOR COMPANY

133. Using a pry tool, locate the pry pads at the side of the oil pan and pry the oil pan loose and remove.

     Courtesy of FORD MOTOR COMPANY

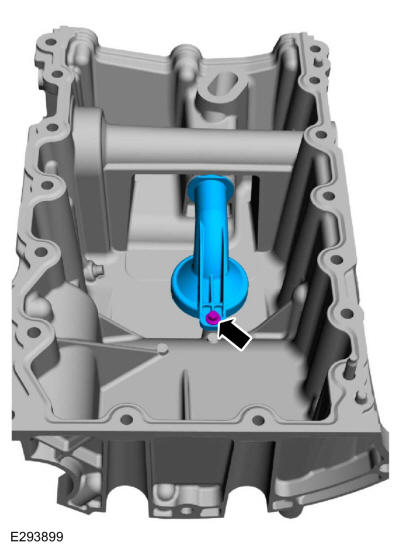

134. Remove the bolt and the oil pump screen and pickup tube.

     Courtesy of FORD MOTOR COMPANY

135. Remove and discard the oil pump screen and pickup tube O-ring seal.

     Courtesy of FORD MOTOR COMPANY

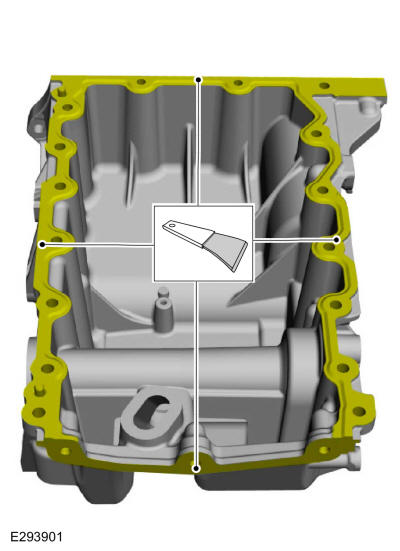

136. NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm, to clean the oil pan. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean. These tools cause scratches and gouges that make leak paths.
     • Make sure that the mating faces of the oil pan are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

       Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

       Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

       Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

     • Thoroughly wash the oil pan to remove any foreign material, including any abrasive particles created during the cleaning process.

     Courtesy of FORD MOTOR COMPANY

137. Remove and discard the oil pan-to-oil pump seal.

     Courtesy of FORD MOTOR COMPANY

138. NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

     Make sure that the mating faces of the engine block are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

     Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

     Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

     Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

     Courtesy of FORD MOTOR COMPANY

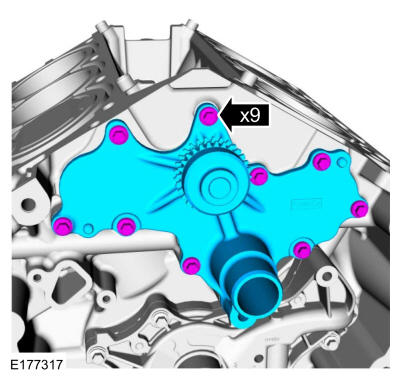

139. Remove the bolts and the oil pump.

     Courtesy of FORD MOTOR COMPANY

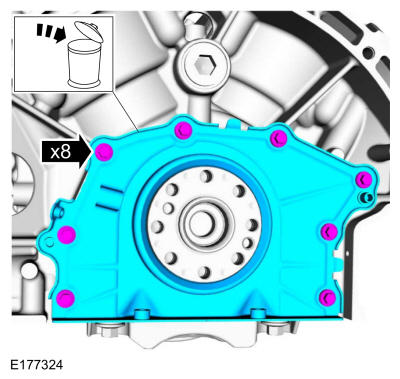

140. • Remove the bolts and the crankshaft rear seal.
     • Discard the crankshaft rear seal.

     Courtesy of FORD MOTOR COMPANY

141. NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces of the engine block. These tools cause scratches and gouges that make leak paths. They also cause contamination that causes premature engine failure. Remove all traces of the gasket.

     Make sure that the mating faces is clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

     Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

     Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

     Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

     Courtesy of FORD MOTOR COMPANY

142. Inspect and clean the specified component with a abrasive pad.

     Courtesy of FORD MOTOR COMPANY

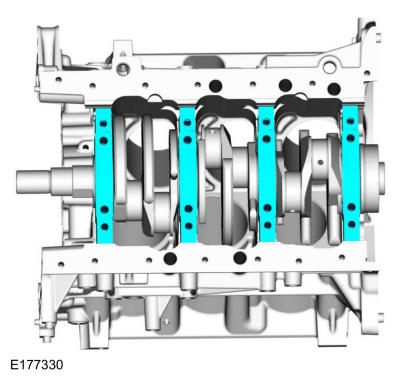

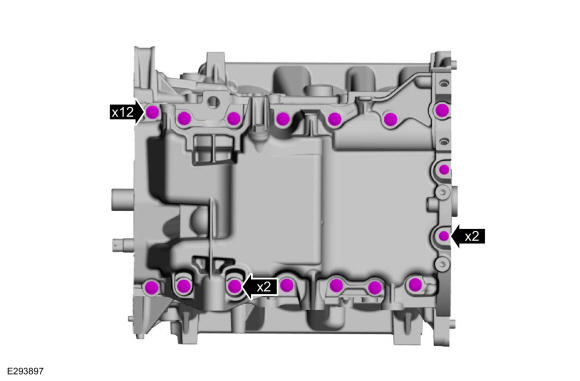

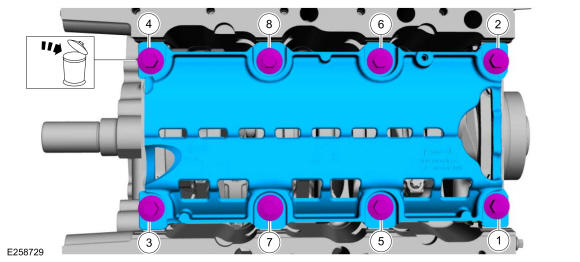

143. • Remove and discard the bolts in the sequence shown.
     • Remove the main bearing cap support brace.
     Fig 1: Main Bearing Cap Support Brace Loosening Sequence

     Courtesy of FORD MOTOR COMPANY
144. NOTE: The connecting rod cap bolts are a torque-to-yield design. The original connecting rod cap bolts will be used when measuring the connecting rod large end bore during assembly. The connecting rod cap bolts will be discarded after measurement.
     NOTE: Clearly mark the position and orientation of the connecting rods, connecting rod caps and connecting rod bearings for reassembly.

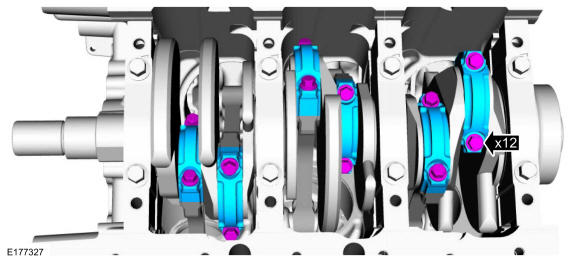

     Remove the connecting rod cap bolts and caps.

     Courtesy of FORD MOTOR COMPANY

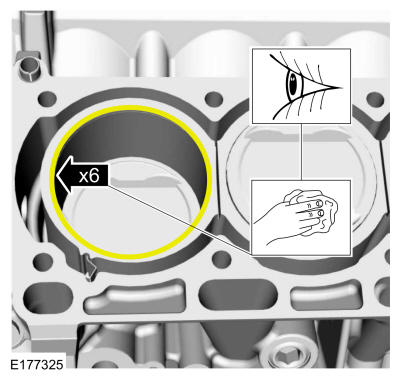

145. NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod while removing the pistons.

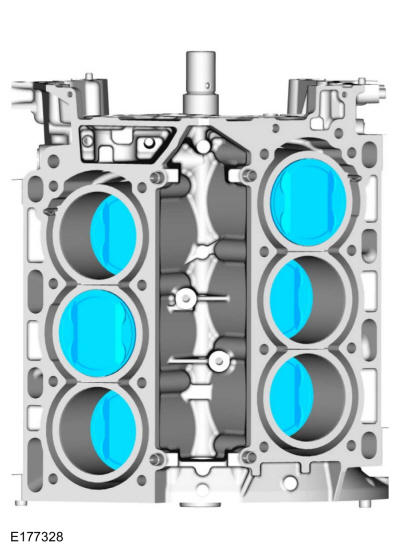

     Remove the piston/rod assembly from the engine block.

     Courtesy of FORD MOTOR COMPANY

146. Inspect the pistons. Refer to: Piston Inspection .
147. NOTE: Clearly mark the position and orientation of the main bearing caps for reassembly.

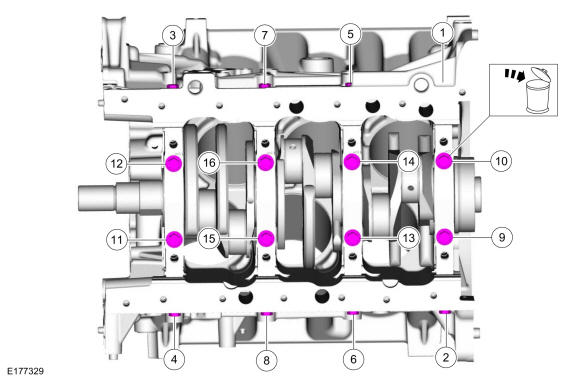

     Remove and discard the main bearing caps bolts in the sequence shown.

     Fig 2: Main Bearing Loosening Sequence

     Courtesy of FORD MOTOR COMPANY
148. NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.
     NOTE: Note the position of the thrust washer on the outside of the No. 4 rear main bearing cap.

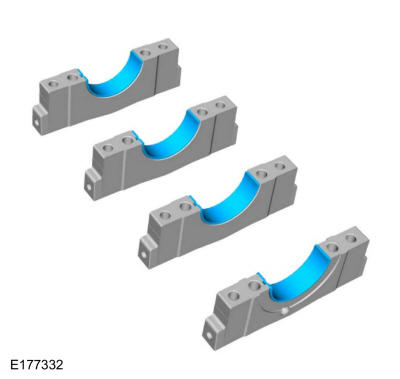

     Remove the main bearing caps.

     Courtesy of FORD MOTOR COMPANY

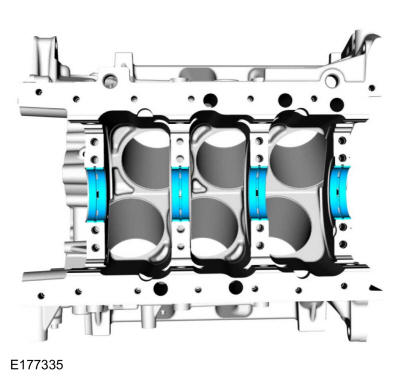

149. Remove the lower crankshaft thrust washer from the back side of the No. 4 rear main bearing cap.

     Courtesy of FORD MOTOR COMPANY

150. NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

     Remove the crankshaft main bearings from the main bearing caps.

     Courtesy of FORD MOTOR COMPANY

151. NOTE: Note the position of the 2 thrust washers on the inside and outside of the rear main bearing bulkhead.

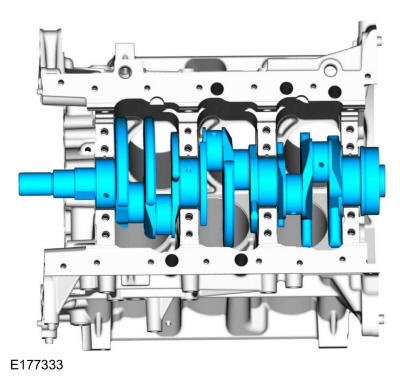

     Remove the crankshaft.

     Courtesy of FORD MOTOR COMPANY

152. Remove the crankshaft thrust bearings from the rear main bearing bulkhead.

     Courtesy of FORD MOTOR COMPANY

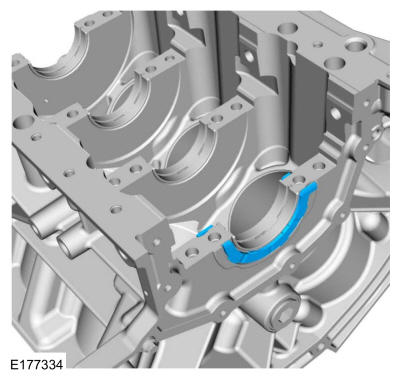

153. NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

     Remove the crankshaft main bearings from the cylinder block.

     Courtesy of FORD MOTOR COMPANY

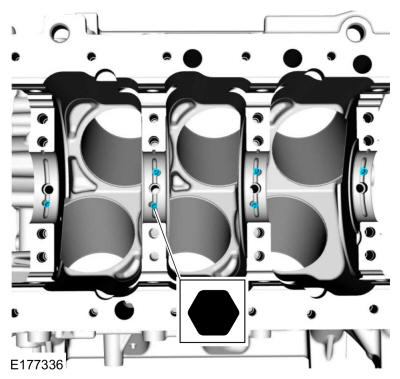

154. Using a hex bit, remove the piston oil cool valves.

     Courtesy of FORD MOTOR COMPANY

155. Inspect the cylinder block distortion. Refer to: Cylinder Block Distortion .
