Section 14 (Engine - 3.3L DURATEC-V6): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1245 Engine Lift Eye TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1529 Lift Eye, Engine TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
Adjustable Mounting Arm
Hose Clamp Remover/Installer
Wooden Block

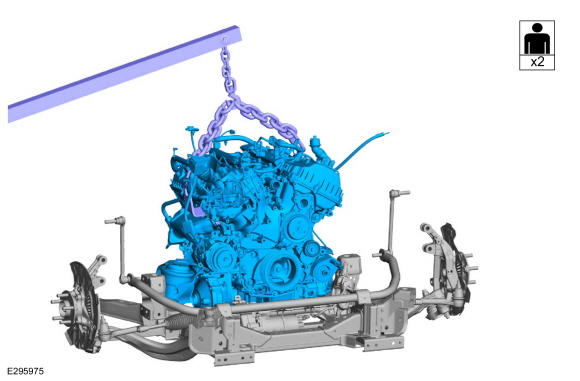

1. With the aid of an assistant and using the floor crane and chain, install the engine on the subframe.

   Courtesy of FORD MOTOR COMPANY

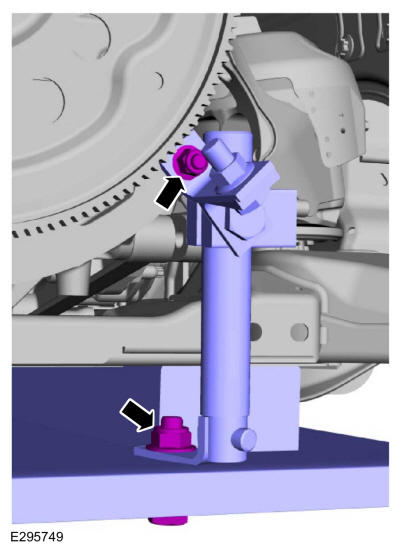

2. Install and adjust and tighten the adjustable mounting arm bolts. Use the General Equipment: Adjustable Mounting Arm

   Courtesy of FORD MOTOR COMPANY

3. Remove the floor crane and chain.

   Courtesy of FORD MOTOR COMPANY

4. Remove Special Service Tool: 303-1529 Lift Eye, Engine.

   Courtesy of FORD MOTOR COMPANY

5. Remove Special Service Tool: 303-1245 Engine Lift Eye.

   Courtesy of FORD MOTOR COMPANY

6. • Install the ground cable and attach the retainers.
   • Install the ground cable bolt.

     Torque: 80 lb.in (9 Nm)

   Courtesy of FORD MOTOR COMPANY

7. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

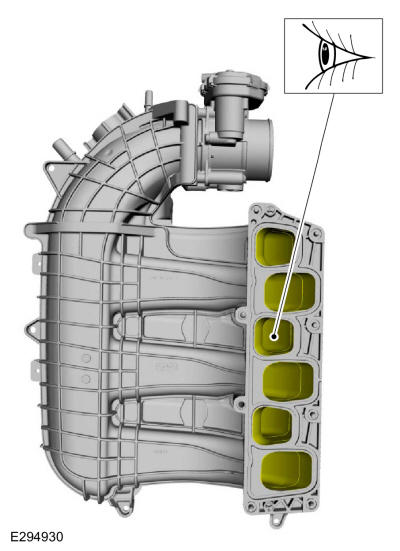

   Inspect the intake manifold for damage or metal debris.

   Courtesy of FORD MOTOR COMPANY

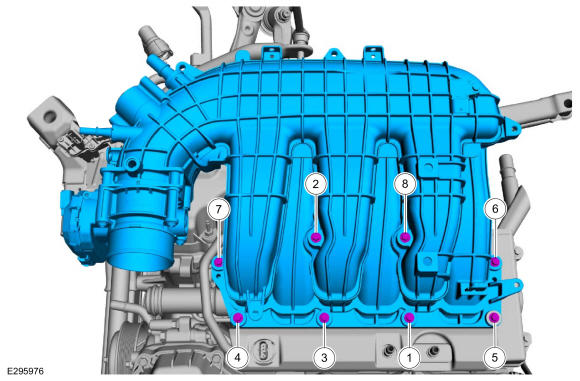

8. Install the upper intake manifold and tighten the bolts in sequence shown.

   Torque: Stage 1: 89 lb.in (10 Nm) - Stage 2: 45°

   Courtesy of FORD MOTOR COMPANY

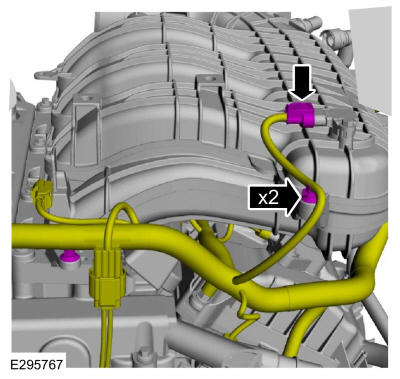

9. Connect the MAP sensor electrical connector and wiring harness retainers.

   Courtesy of FORD MOTOR COMPANY

10. Install the EGR valve. Refer to: Exhaust Gas Recirculation (EGR) Valve .

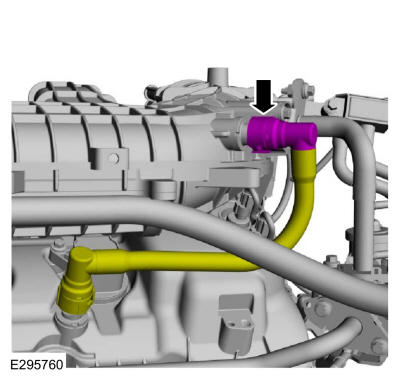

11. Connect the PCV tube quick connect coupling to the intake manifold. Refer to: QUICK RELEASE COUPLING - 3.3L .

    Courtesy of FORD MOTOR COMPANY

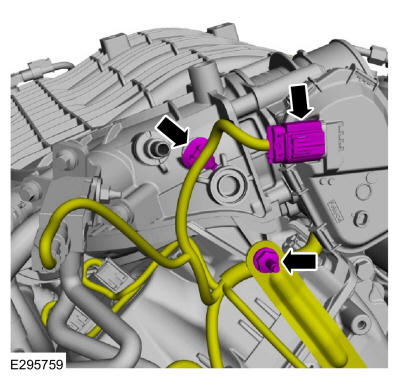

12. • Install the upper intake manifold support bracket and the bolt.

      Torque: 89 lb.in (10 Nm)

    • Connect the throttle body electrical connector and wire harness retainer.

    Courtesy of FORD MOTOR COMPANY

13. Attach the wiring harness retainers to the RH side of the intake manifold.

    Courtesy of FORD MOTOR COMPANY

14. • Install the EVAP canister purge valve and connect the quick release coupling. Refer to: QUICK RELEASE COUPLING - 3.3L .
    • Attach the EVAP canister purge valve retainers.
    • Connect the EVAP canister purge valve wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

15. With the aid of an assistant and using the powertrain jack, raise the powertrain and subframe as an assembly 25.4 mm (1 in) from the frame.

    Courtesy of FORD MOTOR COMPANY

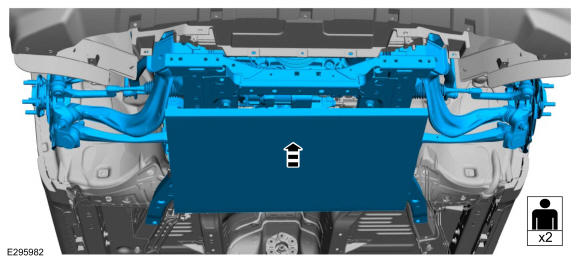

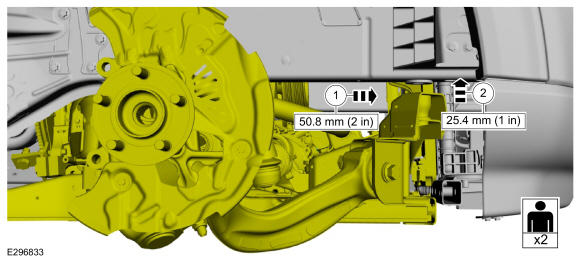

16. 1. With the aid of an assistant and using the powertrain jack, position the powertrain and subframe forwards 50.8 mm (2 in).
    2. With the aid of an assistant and using the powertrain jack, raise the powertrain and subframe 25.4 mm (1 in).

    Courtesy of FORD MOTOR COMPANY

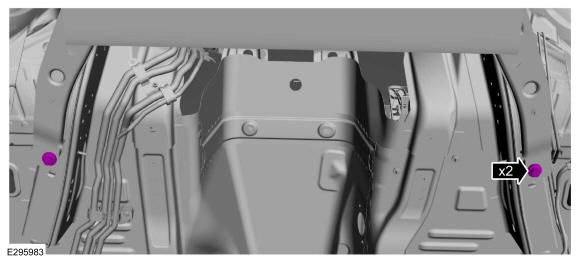

17. Install the new rear subframe bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

18. Install the new front subframe bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

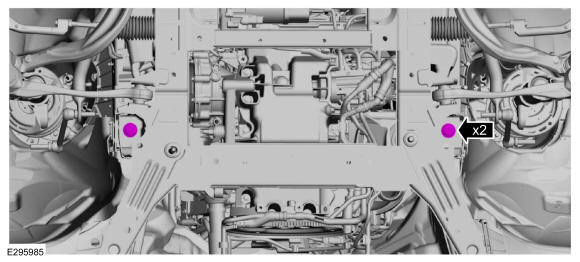

19. Install the new middle subframe bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

20. Tighten the rear subframe bolts.

    Torque: 52 lb.ft (70 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Tighten the front subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    Courtesy of FORD MOTOR COMPANY

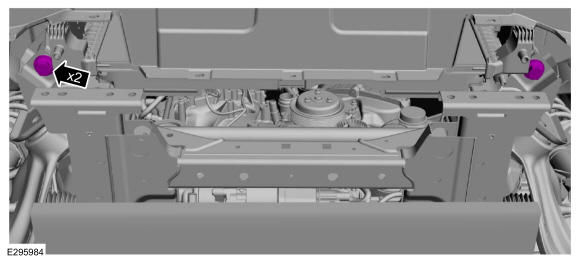

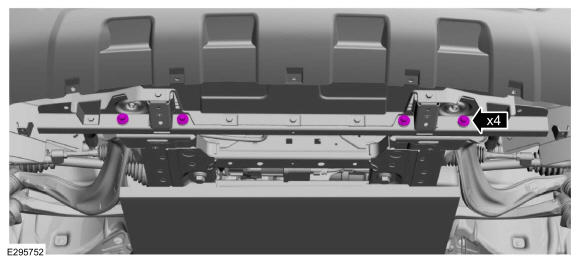

22. Install the front radiator support bar bolts.

    Torque: 46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Remove. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

24. Remove the powertrain jack and wooden blocks Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

25. Tighten the middle subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    Courtesy of FORD MOTOR COMPANY

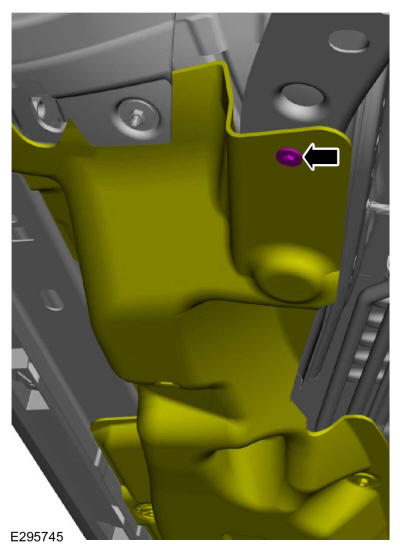

26. Position the LH underbody shield and install the bolt.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

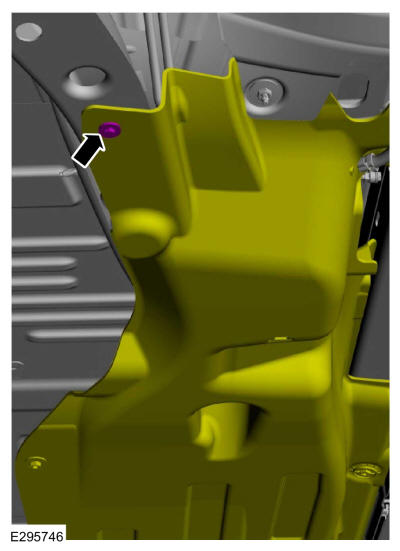

27. Position the RH underbody shield and install the bolt.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

28. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nut.

    Torque: 184 lb.ft (250 Nm)

    Courtesy of FORD MOTOR COMPANY

29. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    Install the new LH engine mount nut.

    Torque: 184 lb.ft (250 Nm)

    Courtesy of FORD MOTOR COMPANY

30. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

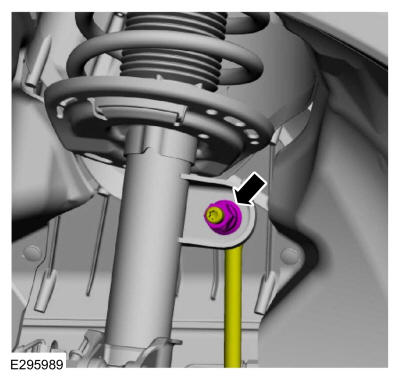

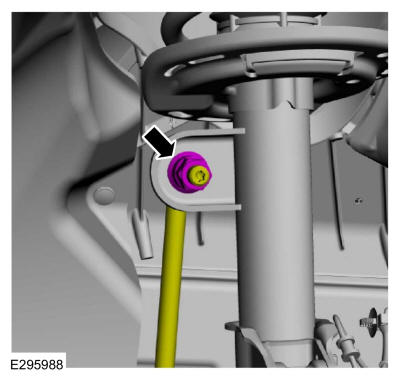

    Position the RH sway bar link and install the new nut.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

31. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the LH sway bar link and install the new nut.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

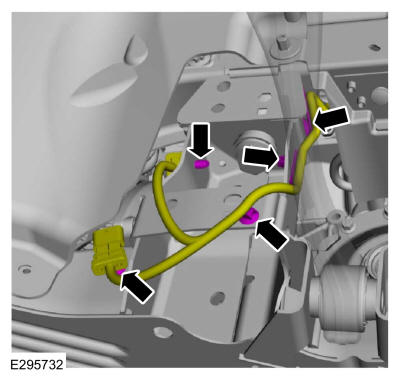

32. Attach the HO2S wiring harness retainers to LH subframe.

    Courtesy of FORD MOTOR COMPANY

33. Position the splash shield and install the pin-type retainer to the LH subframe.

    Courtesy of FORD MOTOR COMPANY

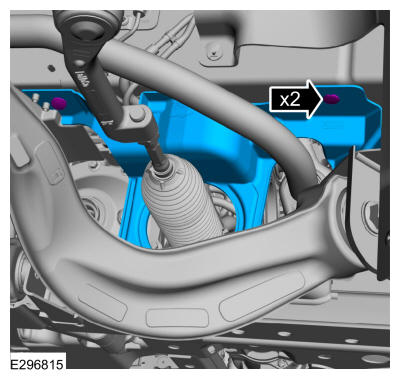

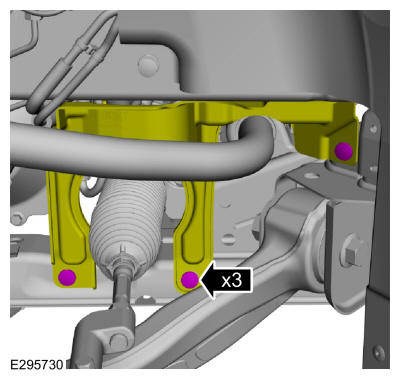

34. Install the steering shield and the pin-type retainers to the LH subframe.

    Courtesy of FORD MOTOR COMPANY

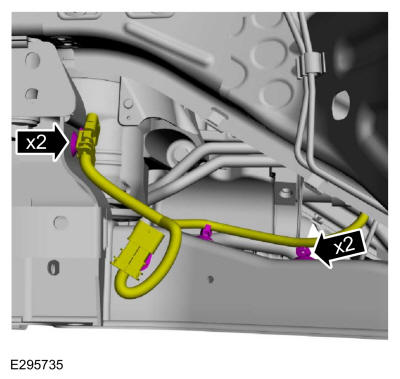

35. Attach the HO2S wiring harness retainers to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

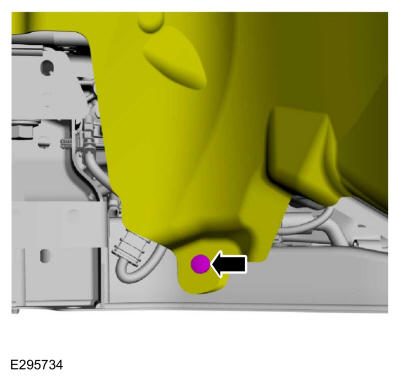

36. Install the splash shield pin-type retainer to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

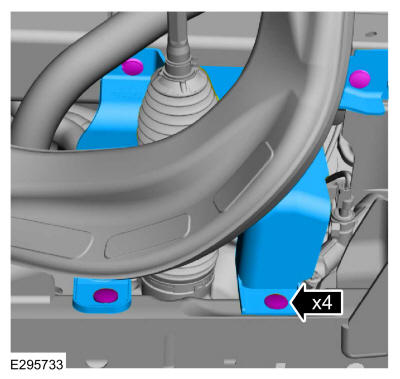

37. Install the steering shield and the pin-type retainers to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

38. Install the steering shield pin-type retainers to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

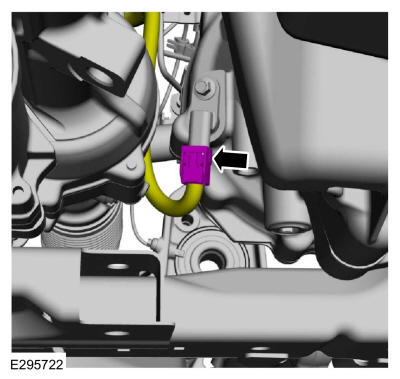

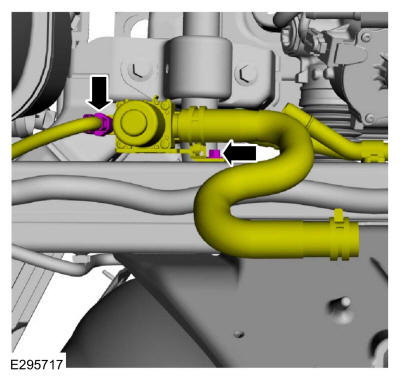

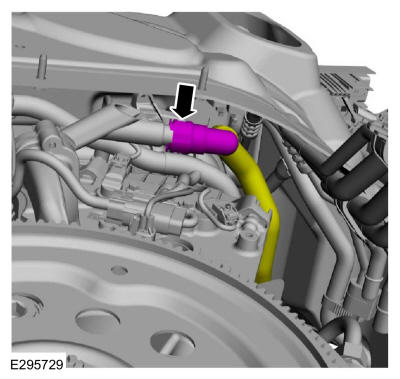

39. Connect the heater hose to the lower intake manifold at the rear of the engine.

    Courtesy of FORD MOTOR COMPANY

40. Attach the wiring harness retainers and position the ground wire and install the bolt.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

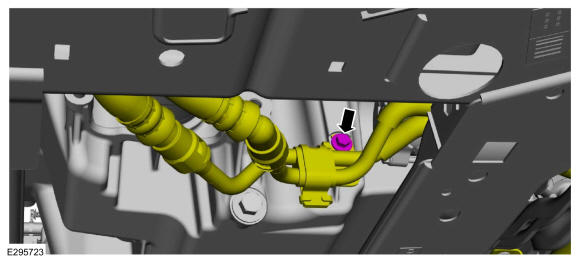

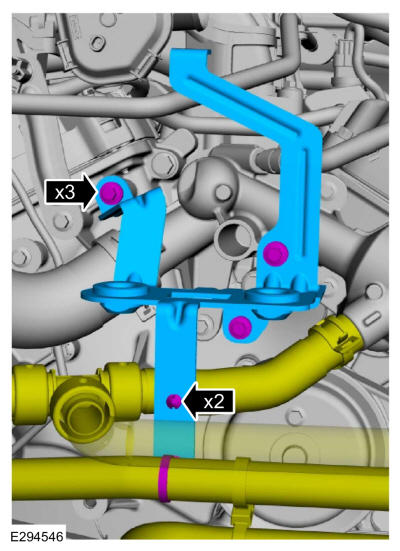

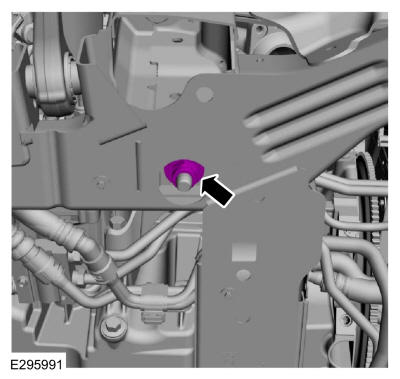

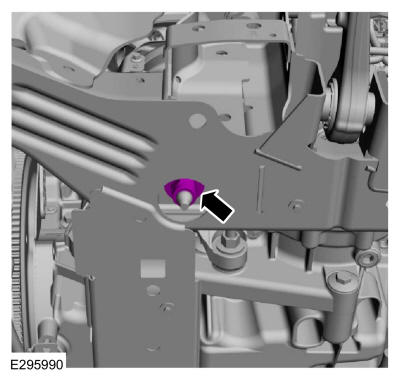

41. Position the transmission cooling tube bracket on the stud bolt and install the nut.

    Torque: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

42. NOTE: Do not fill the transmission until the engine is completely installed.

    Install the transmission.

    • If equipped with 10R60. Refer to: Transmission - 3.3L Duratec-V6 .
    • If equipped with 10R80. Refer to: Transmission - 3.3L Duratec-V6 .

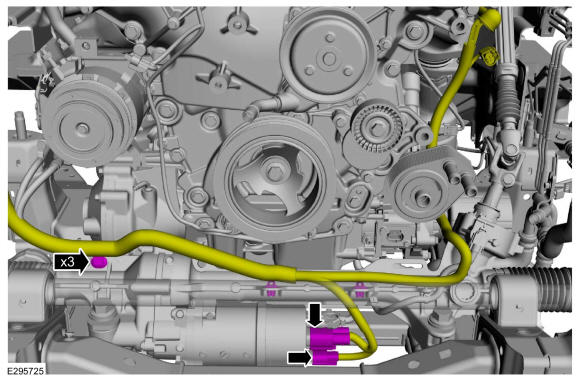

43. Position the wiring harness and connect the steering gear wiring harness electrical connectors and retainers.

    Courtesy of FORD MOTOR COMPANY

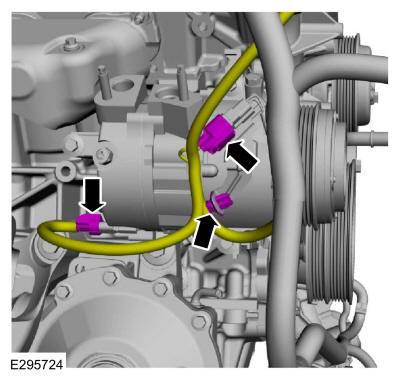

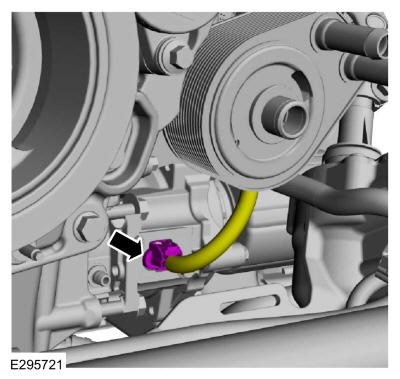

44. Connect the A/C compressor electrical connectors and the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

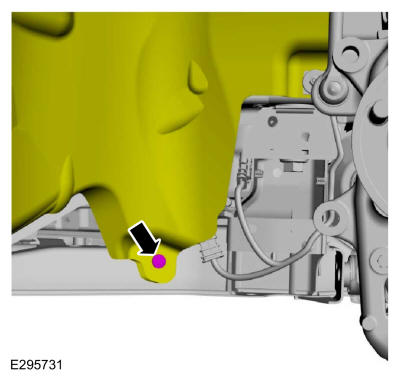

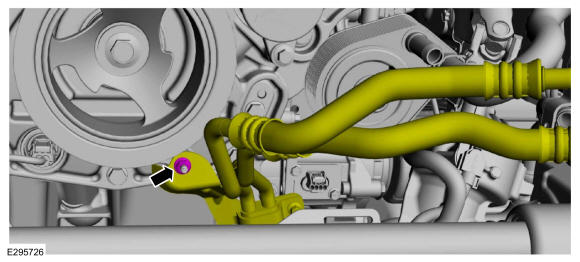

45. Position the coolant tubes and install the bolt in the oil pan.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

46. Connect the wiring harness electrical connector to the front axle assembly.

    Courtesy of FORD MOTOR COMPANY

47. Connect the wiring harness electrical connector to the LH axle connector.

    Courtesy of FORD MOTOR COMPANY

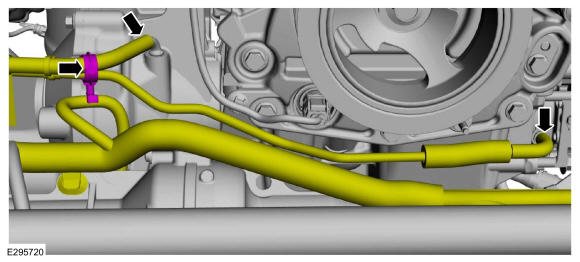

48. • Position the vent tubes and connect the vent hose to the front axle assembly.
    • Attach the wiring harness retainer to the vent tubes.
    • Connect the vent hose to the LH axle connector.

    Courtesy of FORD MOTOR COMPANY

49. NOTE: Make sure to tighten the new wheel hub nut after the brakes disc are installed.

    Install the RH and LH halfshaft. Refer to: Halfshaft .

50. Install both front brake disc. Refer to: Brake Disc .

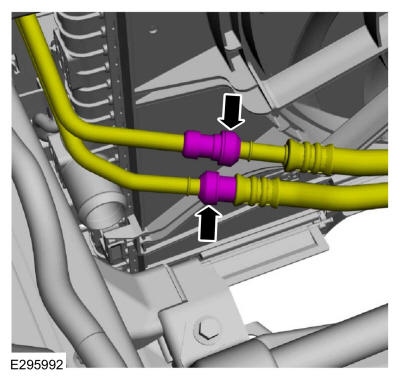

51. Connect the transmission fluid cooler tubes.

    Courtesy of FORD MOTOR COMPANY

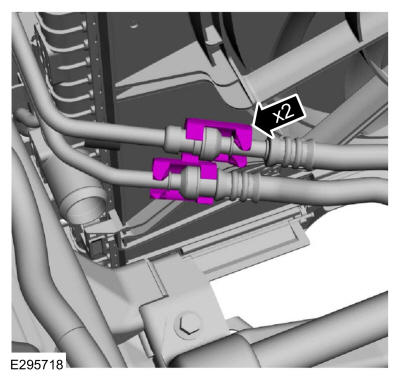

52. Install the transmission fluid cooler tube secondary latches.

    Courtesy of FORD MOTOR COMPANY

53. • Position the coolant solenoid bracket and install the bolt.

      Torque: 62 lb.in (7 Nm)

    • Connect the coolant solenoid wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

54. • Install the transmission cooler hose bracket bolt.

      Torque: 62 lb.in (7 Nm)

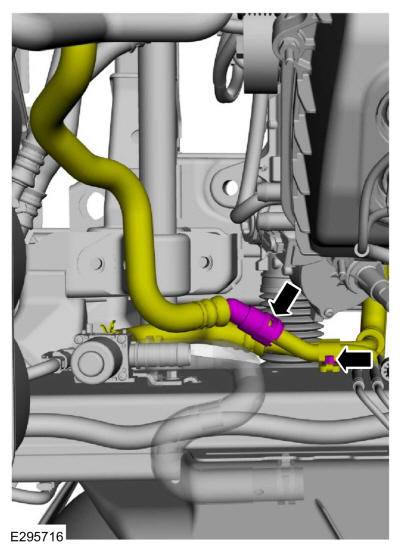

    • Connect the coolant hose to transmission cooler hose.

    Courtesy of FORD MOTOR COMPANY

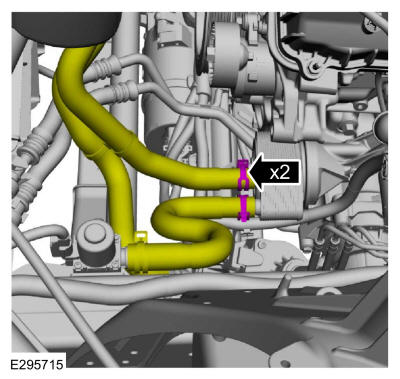

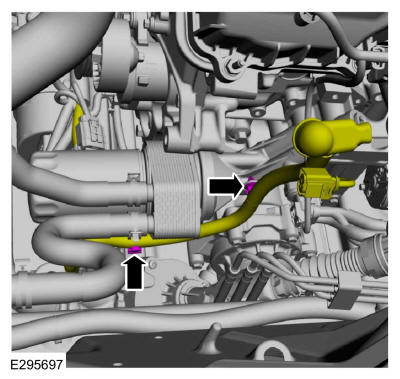

55. Connect the coolant hoses to the oil cooler. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

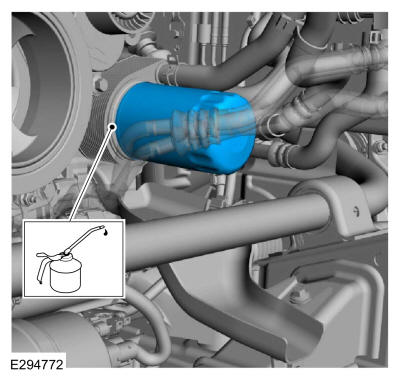

56. • Lubricate the oil filter seal with clean engine oil and install and tighten in 2 stages.
    • Stage 1: Install to initial gasket contact.
    • Stage 2: Tighten 3/4 to 1 turn.

    Courtesy of FORD MOTOR COMPANY

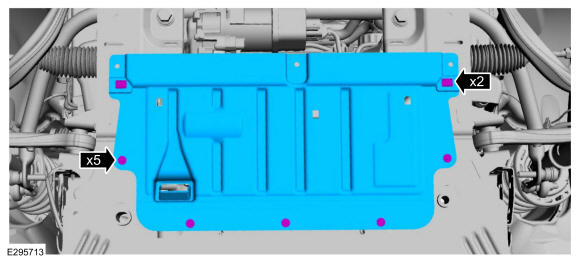

57. Install the rear underbody shield, bolts and the pin-type retainers.

    Torque: 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

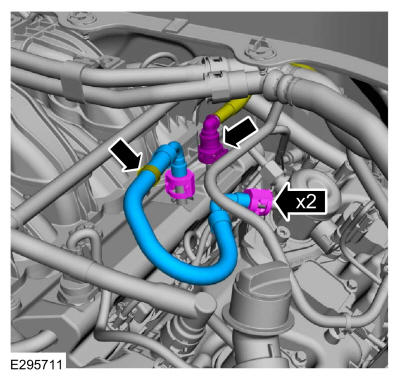

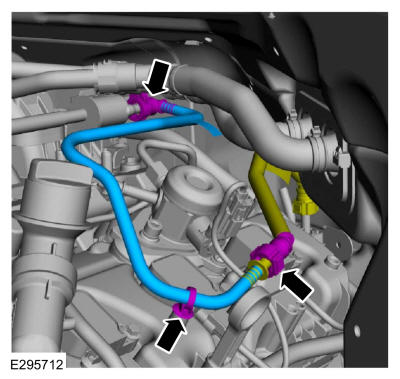

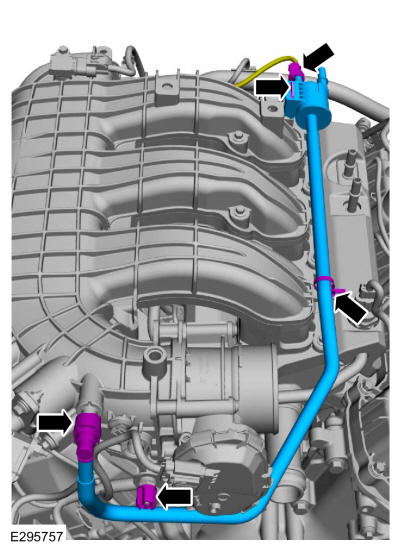

58. • Install the EVAP tube and connect the quick release couplings. Refer to: QUICK RELEASE COUPLING - 3.3L .
    • Attach the EVAP tube retainer.

    Courtesy of FORD MOTOR COMPANY

59. NOTE: The high-pressure fuel pump supply tube must be installed with the Oetiker® clamp end installed to the port fuel rail; if it is installed backwards a check valve will prevent the engine from running properly.
    • Install the high-pressure fuel pump to port injection fuel rail tube with the Oetiker® clamp end installed towards the port fuel rail and connect the quick release couplings. Refer to: QUICK RELEASE COUPLING - 3.3L .
    • Connect the fuel supply tube quick release coupling. Refer to: QUICK RELEASE COUPLING - 3.3L .

    Courtesy of FORD MOTOR COMPANY

60. NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

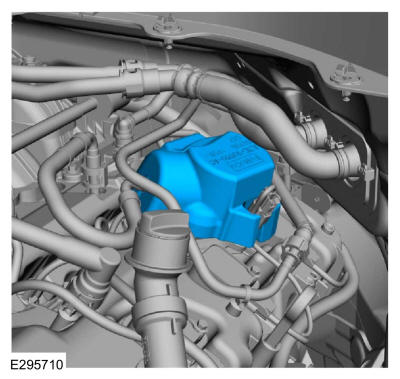

    Install the high-pressure fuel pump noise insulator.

    Courtesy of FORD MOTOR COMPANY

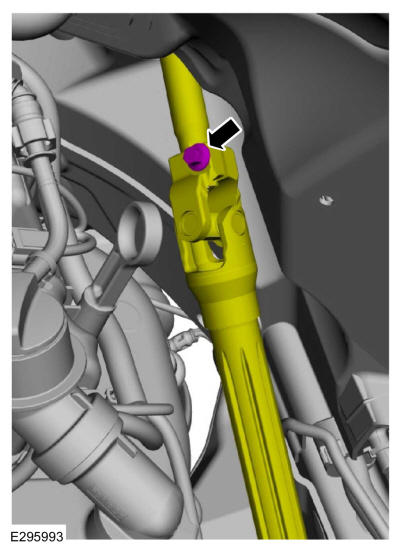

61. Install the new steering shaft bolt.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

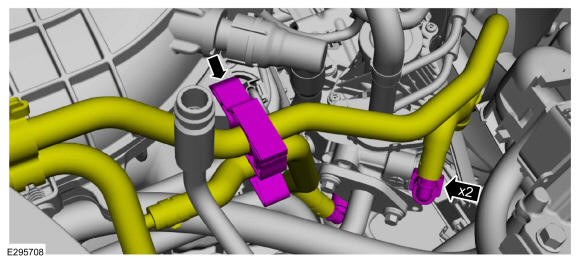

62. • Connect the coolant hoses to the EGR valve.
    • Attach coolant tubes retainer to the upper intake manifold.

    Courtesy of FORD MOTOR COMPANY

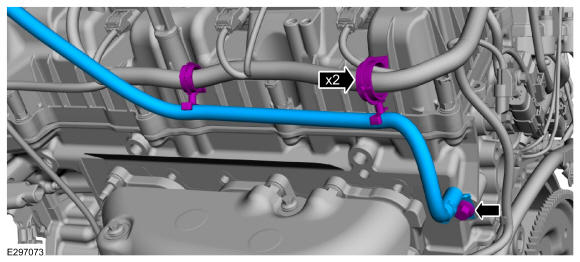

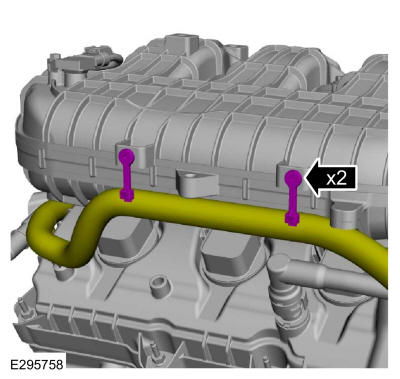

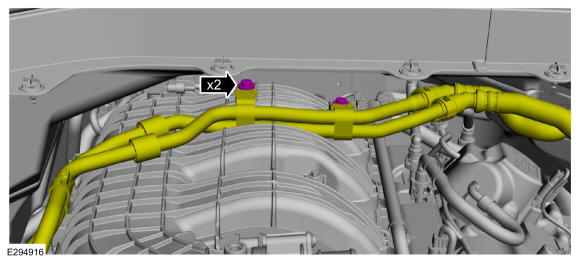

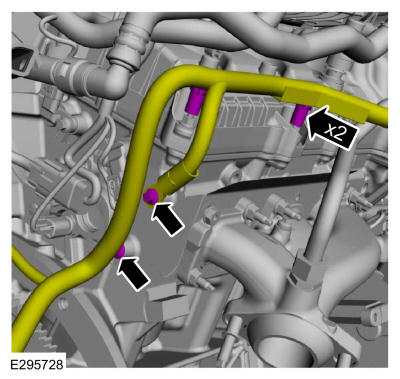

63. Install the coolant tube bolts to the top of intake manifold.

    Torque: 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

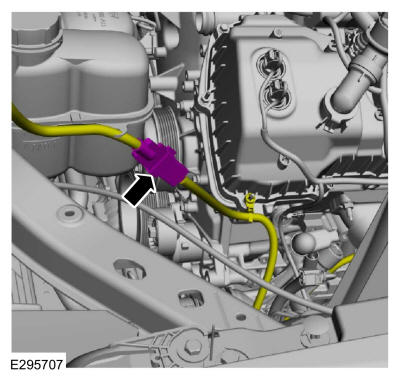

64. If equipped, connect the block heater.

    Courtesy of FORD MOTOR COMPANY

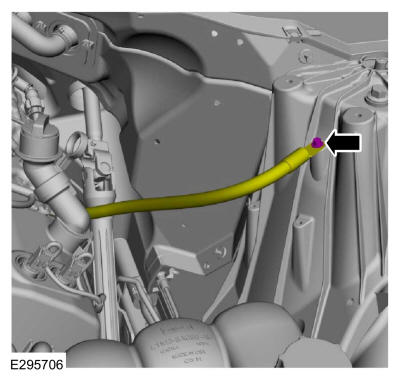

65. Position the ground and install the bolt to the LH shock tower.

    Torque: 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

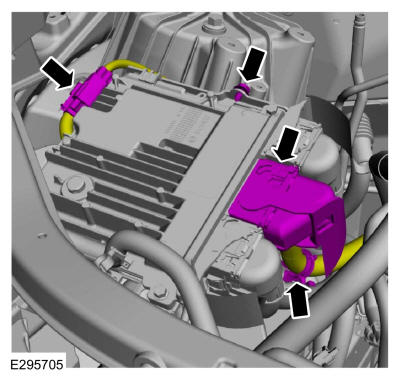

66. • Connect the engine harness electrical connector and retainer.
    • Connect the center PCM electrical connector and wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

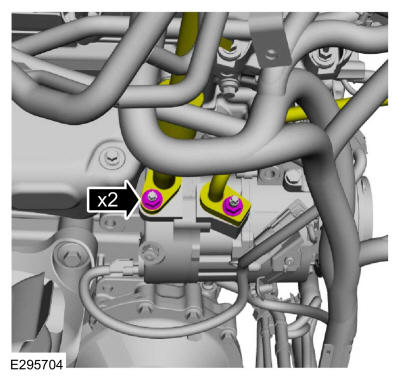

67. • Install a new O-ring seals.
    • Connect the A/C lines and install the nuts.

      Torque: 133 lb.in (15 Nm)

    Courtesy of FORD MOTOR COMPANY

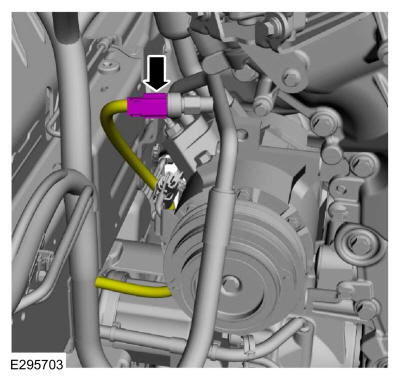

68. Connect the A/C pressure switch.

    Courtesy of FORD MOTOR COMPANY

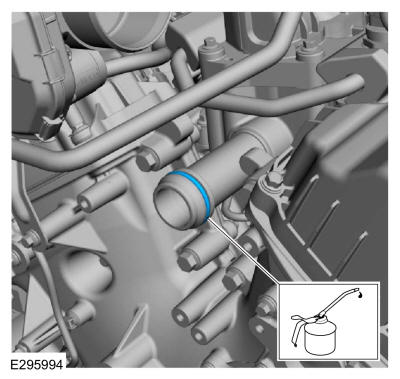

69. Install a new thermostat housing O-ring seal and lubricate with clean engine coolant.

    Courtesy of FORD MOTOR COMPANY

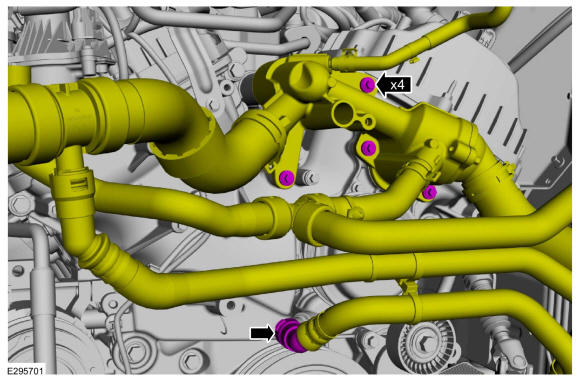

70. • Position the thermostat housing and coolant hoses and install the bolts.

      Torque: Stage 1: 71 lb.in (8 Nm) - Stage 2: 45°

    • Connect the coolant hose to the coolant pump.

    Courtesy of FORD MOTOR COMPANY

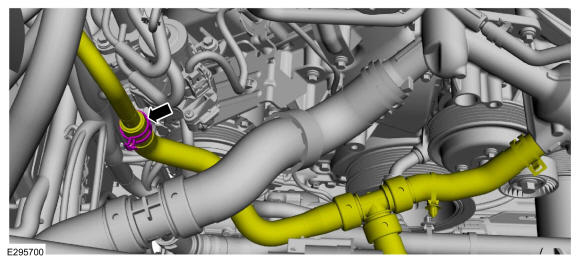

71. Connect the metal coolant hose to the thermostat housing coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

72. • Install the air cleaner bracket and the bolts.

      Torque: 97 lb.in (11 Nm)

    • Attach the coolant hose retainers.

    Courtesy of FORD MOTOR COMPANY

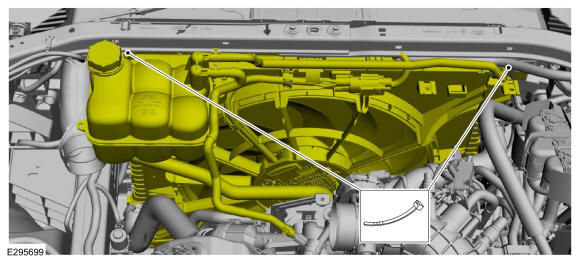

73. Remove the radiator support cable ties or mechanics wire.

    Courtesy of FORD MOTOR COMPANY

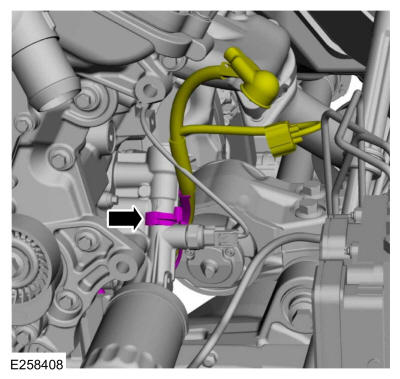

74. Attach the generator wiring harness retainer to the oil filter adapter.

    Courtesy of FORD MOTOR COMPANY

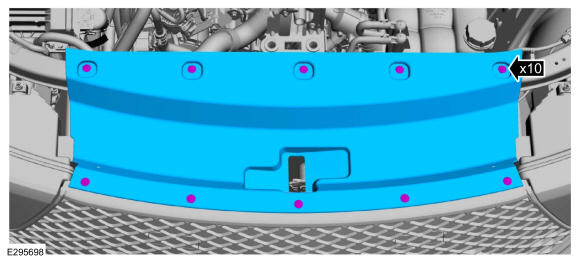

75. Install the upper radiator panel and the retainers.

    Courtesy of FORD MOTOR COMPANY

76. Attach the generator wiring harness retainers to the oil filter adapter.

    Courtesy of FORD MOTOR COMPANY

77. Install the following items:
    1. Install the generator. Refer to: Generator - 3.3L Duratec-V6 .
    2. Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
    3. Install the air cleaner. Refer to: Air Cleaner .
    4. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

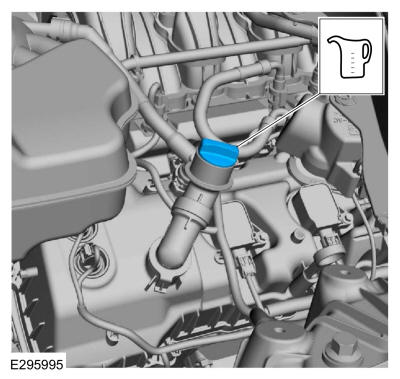

78. Fill the engine with clean engine oil. Refer to: Specifications .

    Courtesy of FORD MOTOR COMPANY

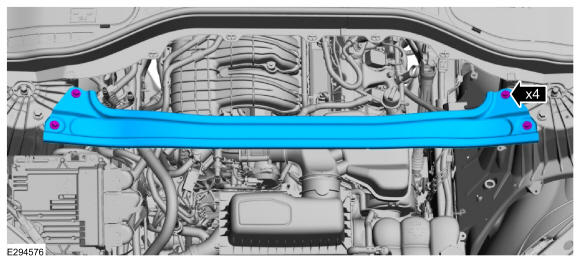

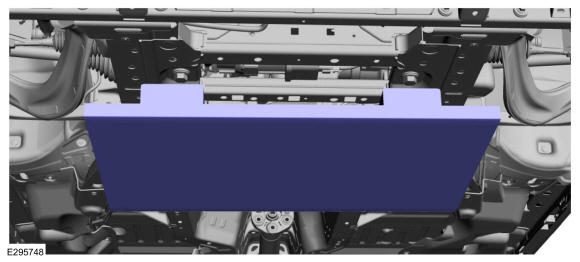

79. Install the suspension support bar and the bolts.

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

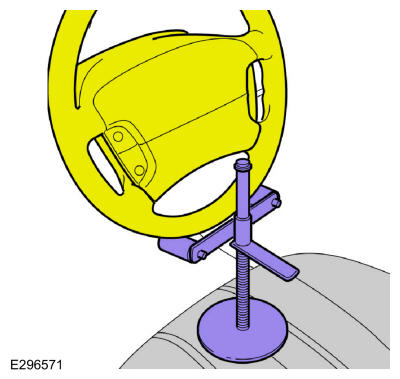

80. Remove the holding device.

    Courtesy of FORD MOTOR COMPANY

81. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
82. Charge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
83. Check front axle assembly fluid level. Refer to: Differential Fluid Level Check .
84. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
85. Check the transmission fluid level.
    • If equipped with 10R60. Refer to: Transmission Fluid Level Check .
    • If equipped with 10R80. Refer to: Transmission Fluid Level Check .

86. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
87. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
88. Start and check the exhaust system for leaks.
