Section 14 (Engine - 3.3L DURATEC-V6): Removal: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1245 Engine Lift Eye TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1529 Lift Eye, Engine TKIT-2010A-F TKIT-2010A-LM TKIT-2010A-ROW
Courtesy of FORD MOTOR COMPANY	307-569 Disconnect Tool TOC Line (1/2) TKIT-2006U-F/FM TKIT-2006U-FLM/LM TKIT-2006U-ROW1 TKIT-2006U-ROW2
Adjustable Mounting Arm
Oil Drain Equipment
Cable Ties
Hose Clamp Remover/Installer
Powertrain Jack
Wooden Block

Materials

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

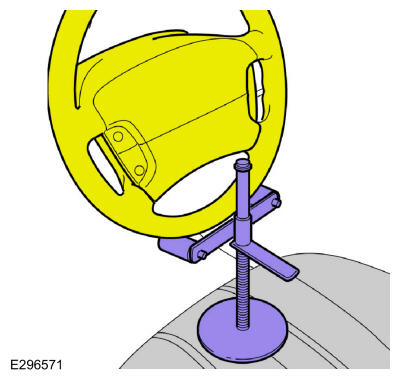

2. Using a holding device, hold the steering wheel.

   Courtesy of FORD MOTOR COMPANY

3. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
4. Disconnect the battery ground. Refer to: Battery Disconnect and Connect .
5. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
6. Recover the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
7. Remove the bolts and the suspension support bar.

   Courtesy of FORD MOTOR COMPANY

8. Remove the following items:
   1. Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
   2. Remove the air cleaner. Refer to: Air Cleaner .
   3. Remove the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
   4. Remove the generator. Refer to: Generator - 3.3L Duratec-V6 .

9. Detach the generator wiring harness retainers from the oil filter adapter.

   Courtesy of FORD MOTOR COMPANY

10. Remove the retainers and the upper radiator panel.

    Courtesy of FORD MOTOR COMPANY

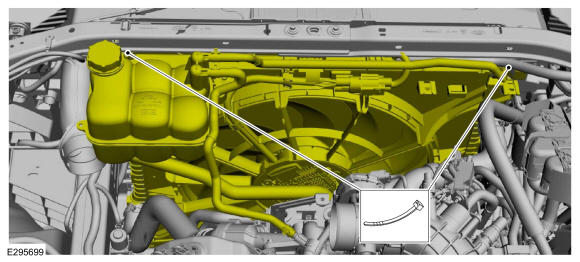

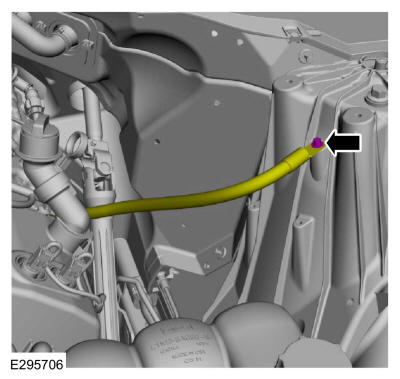

11. Using cable ties or mechanics wire through the upper location holes, to support the cooling module. Use the General Equipment: Cable Ties

    Courtesy of FORD MOTOR COMPANY

12. • Detach the coolant hose retainers.
    • Remove the bolts and the air cleaner bracket.

    Courtesy of FORD MOTOR COMPANY

13. Disconnect the metal coolant hose from the thermostat housing coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

14. • Disconnect the coolant hose from the coolant pump.
    • Remove the bolts and position the thermostat housing and coolant hoses aside.

    Courtesy of FORD MOTOR COMPANY

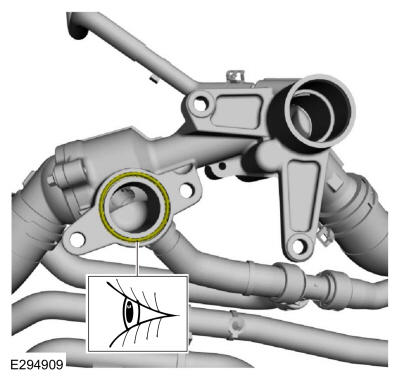

15. Inspect the O-ring seal and replace if necessary.

    Courtesy of FORD MOTOR COMPANY

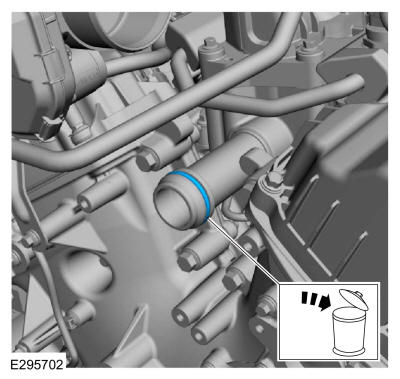

16. Remove and discard the thermostat housing O-ring seal.

    Courtesy of FORD MOTOR COMPANY

17. Disconnect the A/C pressure switch.

    Courtesy of FORD MOTOR COMPANY

18. • Remove the nuts and the A/C lines from A/C compressor.
    • Discard the O-ring seal.
    • Make sure that all openings are sealed.

    Courtesy of FORD MOTOR COMPANY

19. • Disconnect the center PCM electrical connector and wiring harness retainer.
    • Disconnect the engine harness electrical connector, retainer and position the engine wiring harness on the engine.

    Courtesy of FORD MOTOR COMPANY

20. Remove the bolt from the LH shock tower and position the ground aside.

    Courtesy of FORD MOTOR COMPANY

21. If equipped, disconnect the block heater.

    Courtesy of FORD MOTOR COMPANY

22. Remove the coolant tube bolts from the top of intake manifold.

    Courtesy of FORD MOTOR COMPANY

23. • Detach coolant tubes retainer from the upper intake manifold.
    • Disconnect the coolant hoses from the EGR valve.

    Courtesy of FORD MOTOR COMPANY

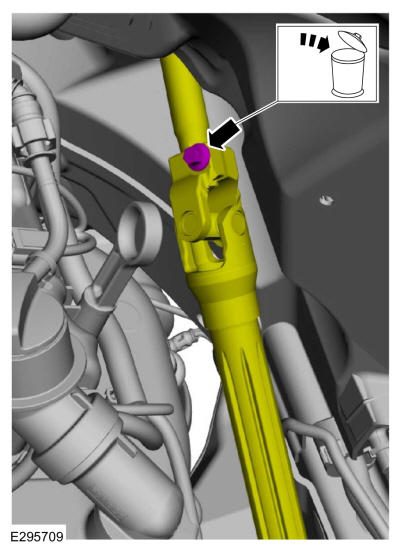

24. • Remove the bolt and disconnect the steering shaft.
    • Discard the bolt.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: When removing or installing the high-pressure fuel pump noise insulator, spreading the openings will reduce the risk of damage.

    Remove the high-pressure fuel pump noise insulator.

    Courtesy of FORD MOTOR COMPANY

26. NOTE: Make note of the high-pressure fuel pump supply Oetiker® clamp end location for correct installation.
    • Disconnect the quick release coupling and position the fuel supply tube aside. Refer to: QUICK RELEASE COUPLING - 3.3L .
    • Disconnect the quick release couplings and remove the high-pressure fuel pump to port injection fuel rail tube. Refer to: QUICK RELEASE COUPLING - 3.3L .

    Courtesy of FORD MOTOR COMPANY

27. • Detach the EVAP tube retainer.
    • Disconnect the quick release couplings and remove the EVAP tube. Refer to: QUICK RELEASE COUPLING - 3.3L .

    Courtesy of FORD MOTOR COMPANY

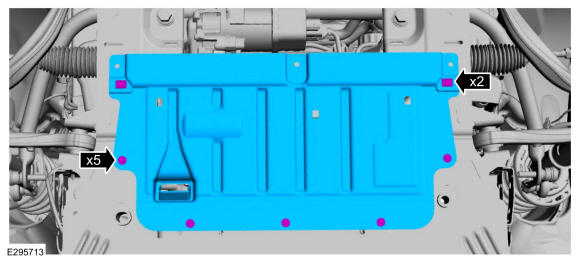

28. Remove the pin-type retainer, bolts and the rear underbody shield.

    Courtesy of FORD MOTOR COMPANY

29. • Remove the oil pan drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
    • Install the oil drain plug.

      Torque: 19 lb.ft (26 Nm)

    Courtesy of FORD MOTOR COMPANY

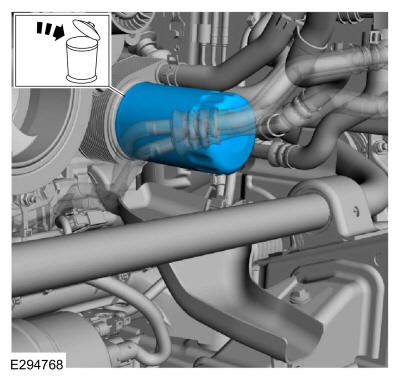

30. Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

    Courtesy of FORD MOTOR COMPANY

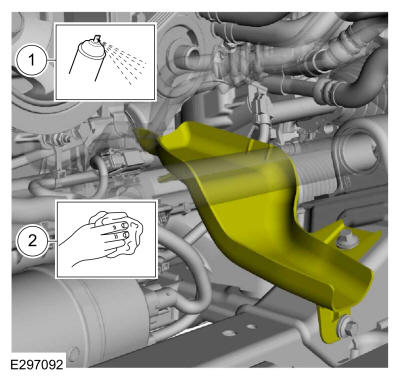

31. 1. Using brake cleaner, clean the drain trough. Use the General Equipment: Oil Drain Equipment

       Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. Wipe the drain trough clean.

    Courtesy of FORD MOTOR COMPANY

32. Disconnect the coolant hoses from the oil cooler. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

33. • Disconnect the coolant hose from transmission cooler hose.
    • Remove the transmission cooler hose bracket bolt.

    Courtesy of FORD MOTOR COMPANY

34. • Disconnect the coolant solenoid wiring harness electrical connector.
    • Remove the coolant solenoid bracket bolt and position aside.

    Courtesy of FORD MOTOR COMPANY

35. Remove the transmission fluid cooler tube secondary latches.

    Courtesy of FORD MOTOR COMPANY

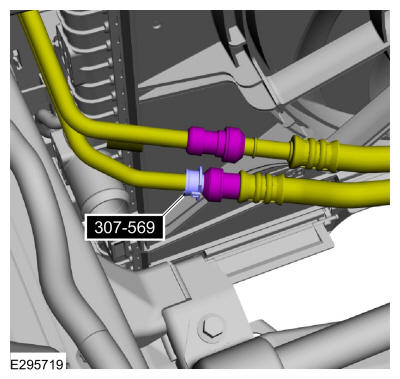

36. Using the special tool, disconnect the transmission fluid cooler tubes. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).

    Courtesy of FORD MOTOR COMPANY

37. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Remove both front brake disc. Refer to: Brake Disc .

38. Remove the RH and LH halfshafts. Refer to: Halfshaft .
39. • Disconnect the vent hose from the LH axle connector.
    • Detach the wiring harness retainer from the vent tubes.
    • Disconnect the vent hose from the front axle assembly and position the vent tubes aside.

    Courtesy of FORD MOTOR COMPANY

40. Disconnect the wiring harness electrical connector from the LH axle connector.

    Courtesy of FORD MOTOR COMPANY

41. Disconnect the wiring harness electrical connector from the front axle assembly.

    Courtesy of FORD MOTOR COMPANY

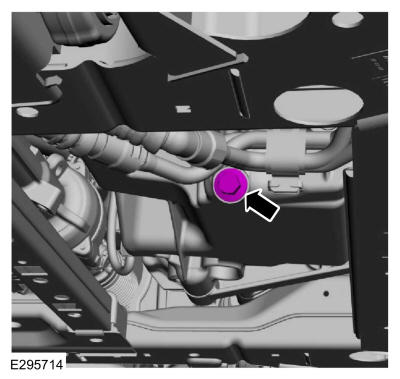

42. Remove the bolt from oil pan and position the coolant tubes aside.

    Courtesy of FORD MOTOR COMPANY

43. Disconnect the A/C compressor electrical connectors and the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

44. Disconnect the steering gear wiring harness electrical connectors, retainers and position the wiring harness to the RH side of vehicle.

    Courtesy of FORD MOTOR COMPANY

45. Remove the transmission.
    • If equipped with 10R60. Refer to: Transmission - 3.3L Duratec-V6 .
    • If equipped with 10R80. Refer to: Transmission - 3.3L Duratec-V6 .

46. Remove the nut from engine front cover and position the transmission cooling tube bracket off the stud bolt.

    Courtesy of FORD MOTOR COMPANY

47. Remove the bolt, detach the wiring harness retainers and position the ground wire aside.

    Courtesy of FORD MOTOR COMPANY

48. Disconnect the heater hose from the lower intake manifold at the rear of the engine.

    Courtesy of FORD MOTOR COMPANY

49. Remove the steering shield pin-type retainers from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

50. Remove the pin-type retainers and the steering shield from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

51. Remove the splash shield pin-type retainer from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

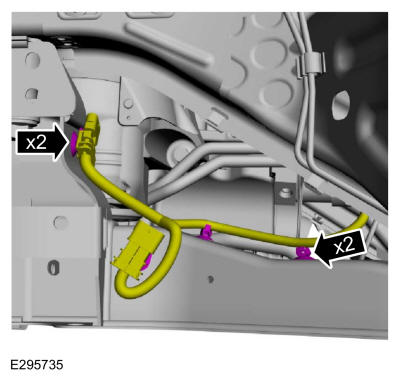

52. Detach the HO2S wiring harness retainers from the RH subframe.

    Courtesy of FORD MOTOR COMPANY

53. Remove the pin-type retainers and the steering shield from the LH subframe.

    Courtesy of FORD MOTOR COMPANY

54. Remove the splash shield pin-type retainer from the LH subframe and position aside.

    Courtesy of FORD MOTOR COMPANY

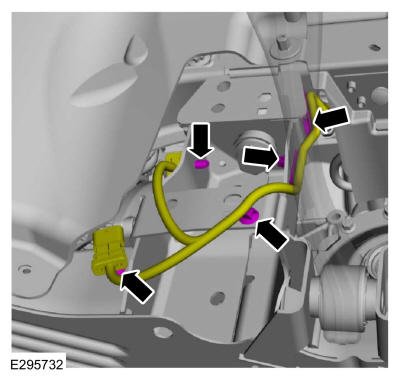

55. Detach the HO2S wiring harness retainers from the LH subframe.

    Courtesy of FORD MOTOR COMPANY

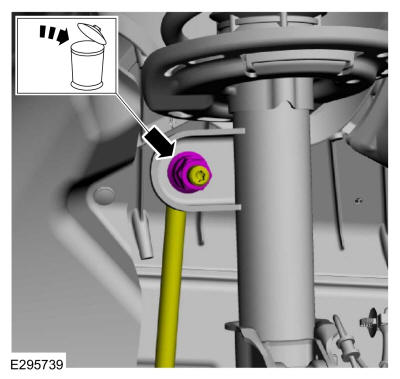

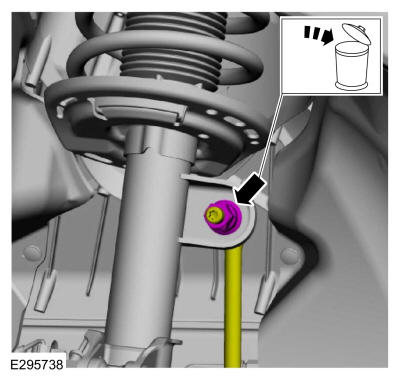

56. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the LH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

57. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    Courtesy of FORD MOTOR COMPANY

58. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.
    • Remove the LH engine mount nut.
    • Discard the engine mount nut.

    Courtesy of FORD MOTOR COMPANY

59. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.
    • Remove the RH engine mount nut.
    • Discard the engine mount nut.

    Courtesy of FORD MOTOR COMPANY

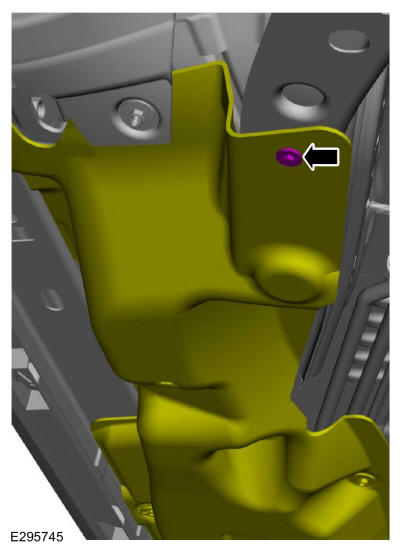

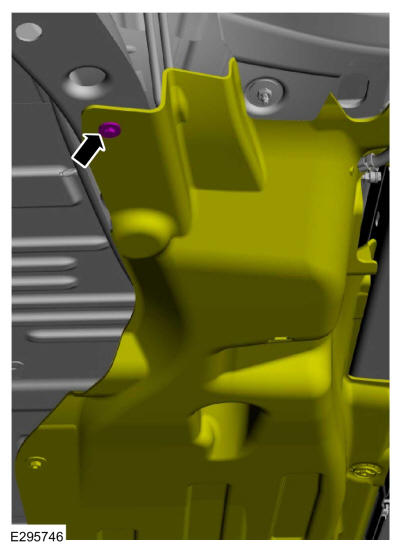

60. Remove the bolt and position the RH underbody shield aside.

    Courtesy of FORD MOTOR COMPANY

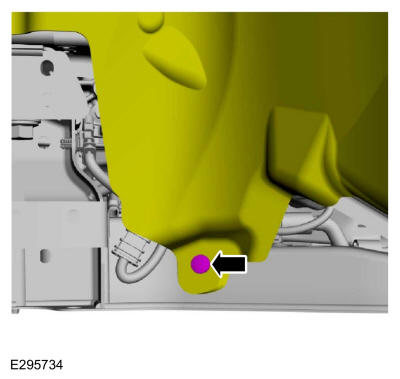

61. Remove the bolt and position the LH underbody shield aside.

    Courtesy of FORD MOTOR COMPANY

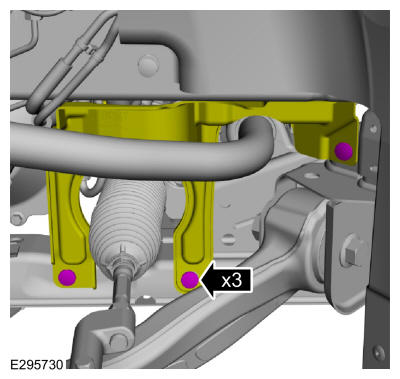

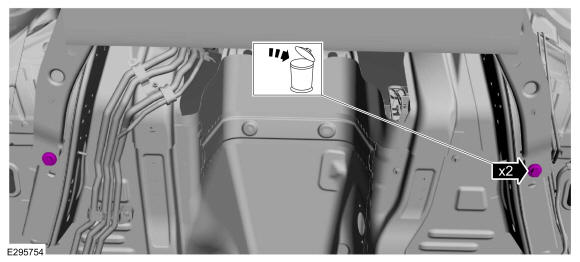

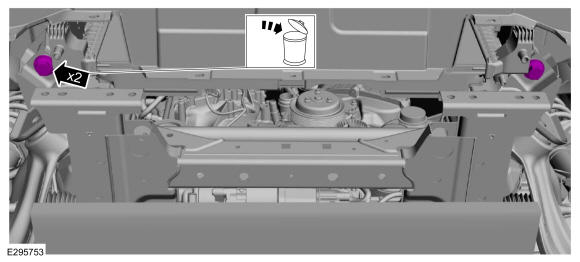

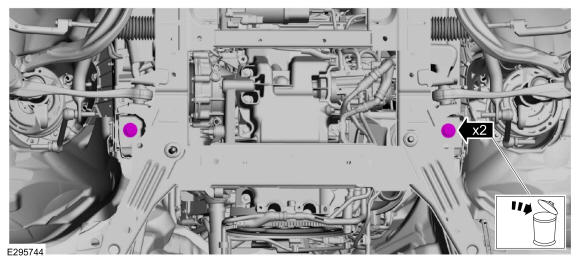

62. • Remove the middle subframe bolts.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

63. Position two boards onto the powertrain jack as shown.

    Courtesy of FORD MOTOR COMPANY

64. Position the powertrain jack and blocks of wood under the powertrain and subframe. Use the General Equipment: Powertrain Jack Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

65. Install and adjust and tighten the adjustable mounting arm bolts. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

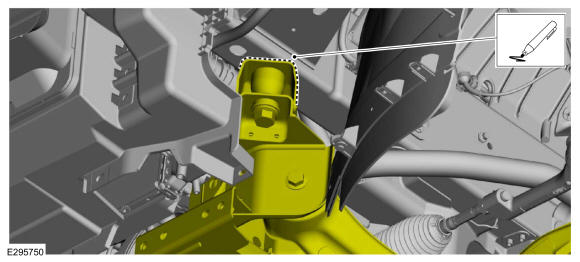

66. Mark the front subframe location.

    Courtesy of FORD MOTOR COMPANY

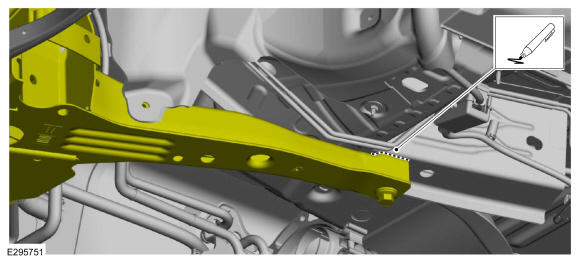

67. Mark the rear subframe location.

    Courtesy of FORD MOTOR COMPANY

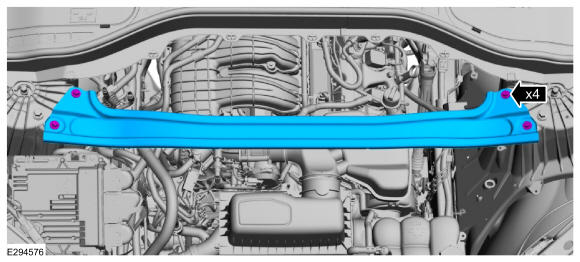

68. Remove the front radiator support bar bolts.

    Courtesy of FORD MOTOR COMPANY

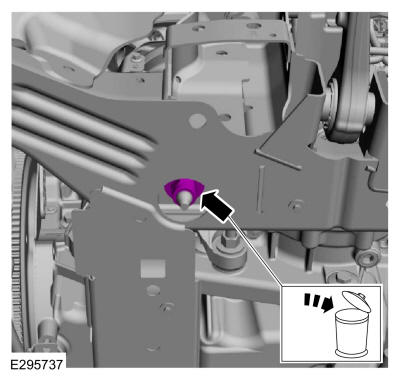

69. • Remove the front subframe bolts.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

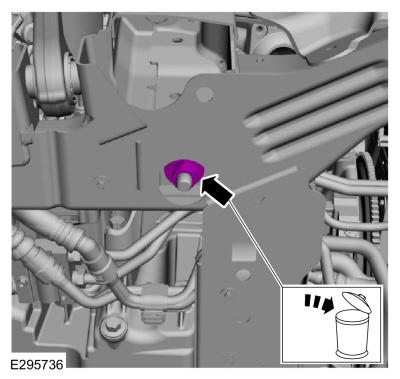

70. • Remove the rear subframe bolts.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

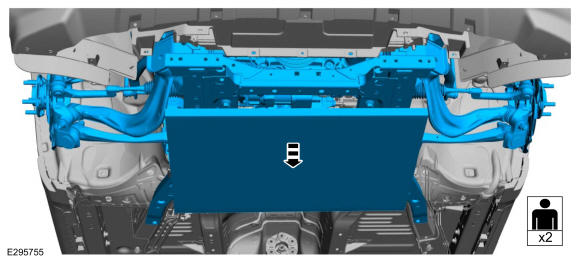

71. 1. With the aid of an assistant and using the powertrain jack, lower the powertrain and subframe 25.4 mm (1 in).
    2. With the aid of an assistant and using the powertrain jack, position the powertrain and subframe rearwards 50.8 mm (2 in).

    Courtesy of FORD MOTOR COMPANY

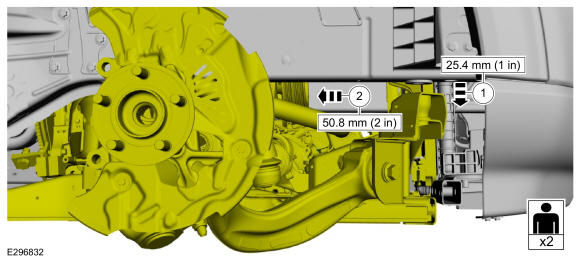

72. With the aid of an assistant and using the powertrain jack, lower the powertrain and subframe as an assembly.

    Courtesy of FORD MOTOR COMPANY

73. • Disconnect the EVAP canister purge valve wiring harness electrical connector.
    • Detach the EVAP canister purge valve retainers.
    • Disconnect the quick release coupling and remove the EVAP canister purge valve. Refer to: QUICK RELEASE COUPLING - 3.3L .

    Courtesy of FORD MOTOR COMPANY

74. Detach the wiring harness retainers from the RH side of the intake manifold.

    Courtesy of FORD MOTOR COMPANY

75. • Disconnect the throttle body electrical connector and wire harness retainer.
    • Remove bolt for the upper intake manifold support bracket.

    Courtesy of FORD MOTOR COMPANY

76. Disconnect the PCV tube quick connect coupling from the intake manifold. Refer to: QUICK RELEASE COUPLING - 3.3L .

    Courtesy of FORD MOTOR COMPANY

77. Remove the EGR valve. Refer to: Exhaust Gas Recirculation (EGR) Valve .
78. Disconnect the MAP sensor electrical connector and wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

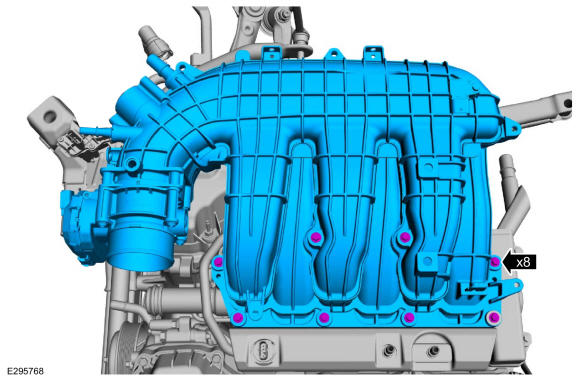

79. Loosen the bolts and remove the upper intake manifold.

    Courtesy of FORD MOTOR COMPANY

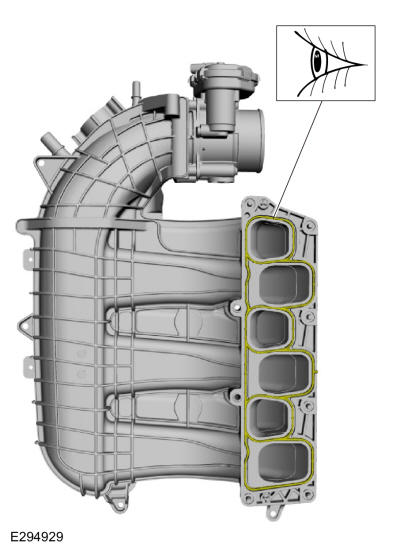

80. • Visually inspect the upper intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be re-used.
    • Clean and inspect all of the sealing surfaces of the upper and lower intake manifold.

    Courtesy of FORD MOTOR COMPANY

81. • Remove the ground cable bolt.
    • Detach the ground cable retainers and remove.

    Courtesy of FORD MOTOR COMPANY

82. Install Special Service Tool: 303-1245 Engine Lift Eye.

    Courtesy of FORD MOTOR COMPANY

83. Install Special Service Tool: 303-1529 Lift Eye, Engine.

    Courtesy of FORD MOTOR COMPANY

84. Install the floor crane and chain.

    Courtesy of FORD MOTOR COMPANY

85. Remove. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

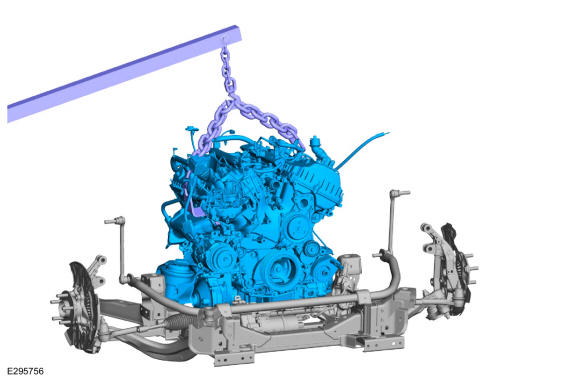

86. Using the floor crane and chain, remove the engine from subframe.
