Lighting Control Module (LCM): Removal

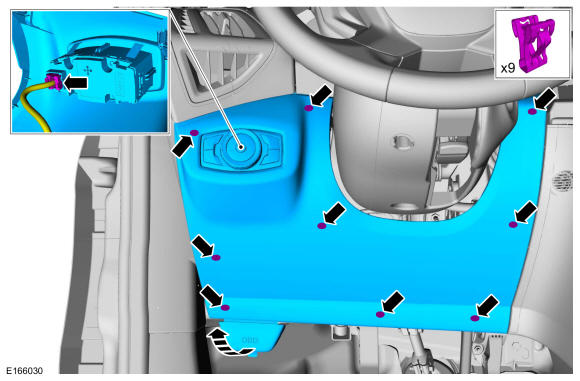

  1. Release the clips and remove the lower steering column shroud.

    • Disconnect the electrical connector.

    GFD573467Courtesy of FORD MOTOR COMPANY

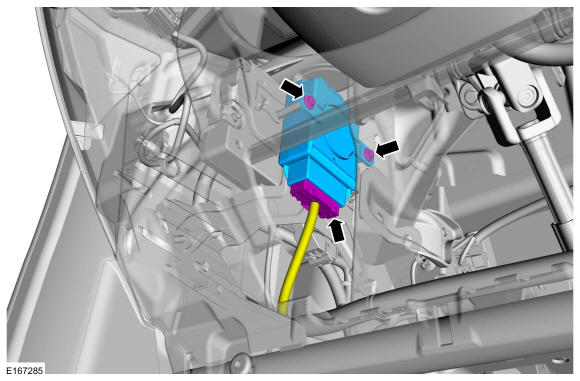

  2. Disconnect the electric connector, remove the retainers and the LCM.
GFD573468Courtesy of FORD MOTOR COMPANY
