Connector Repair Procedures

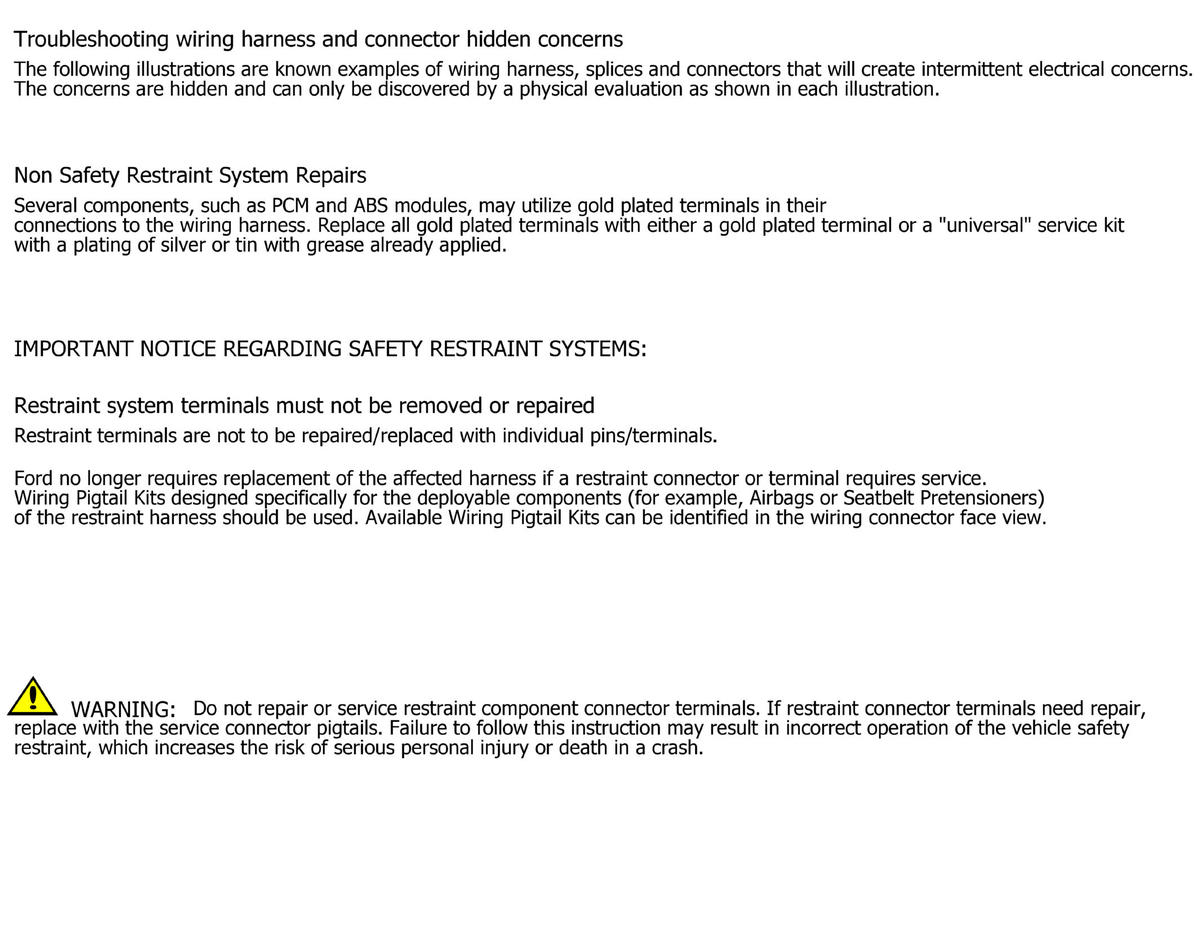

GFDWR177090Courtesy of FORD MOTOR COMPANY

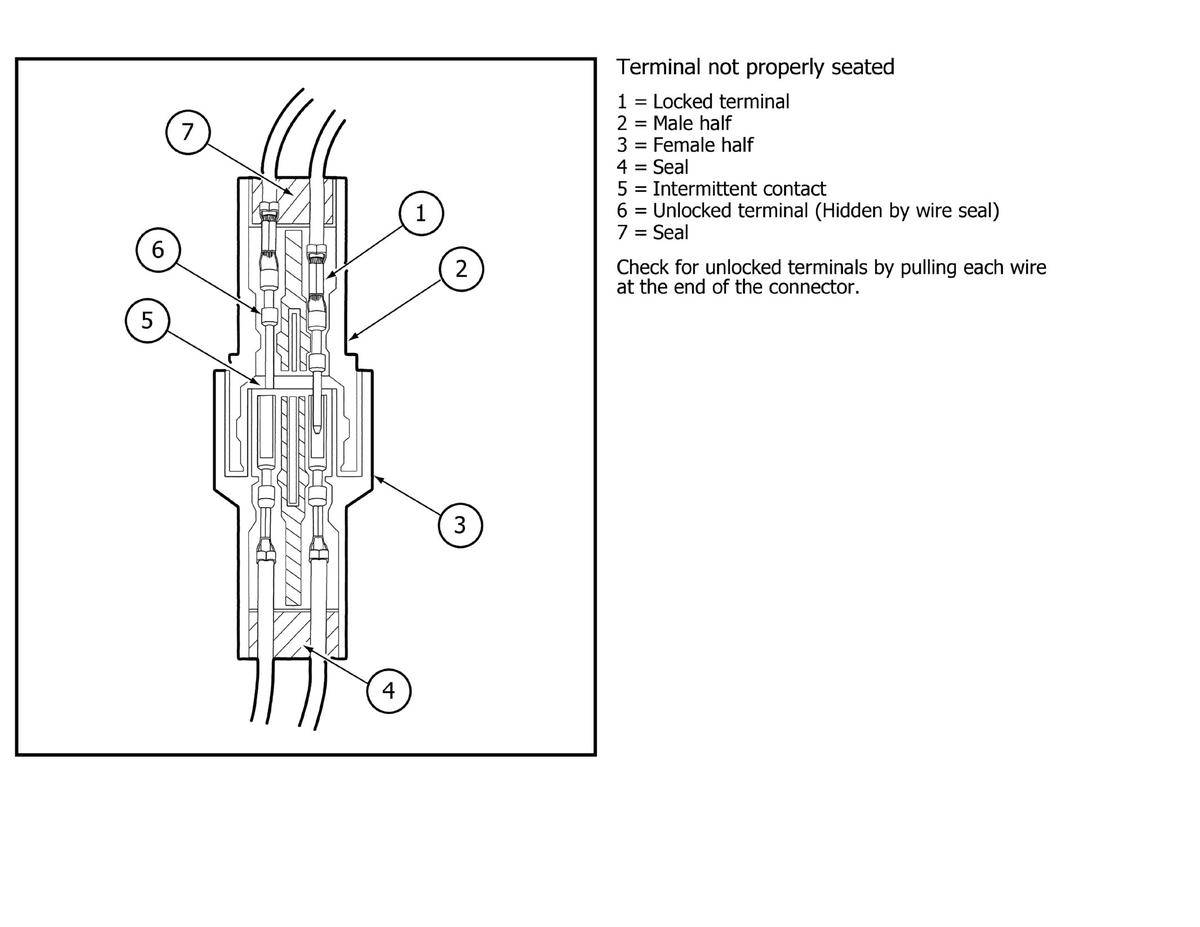

GFDWR177091Courtesy of FORD MOTOR COMPANY

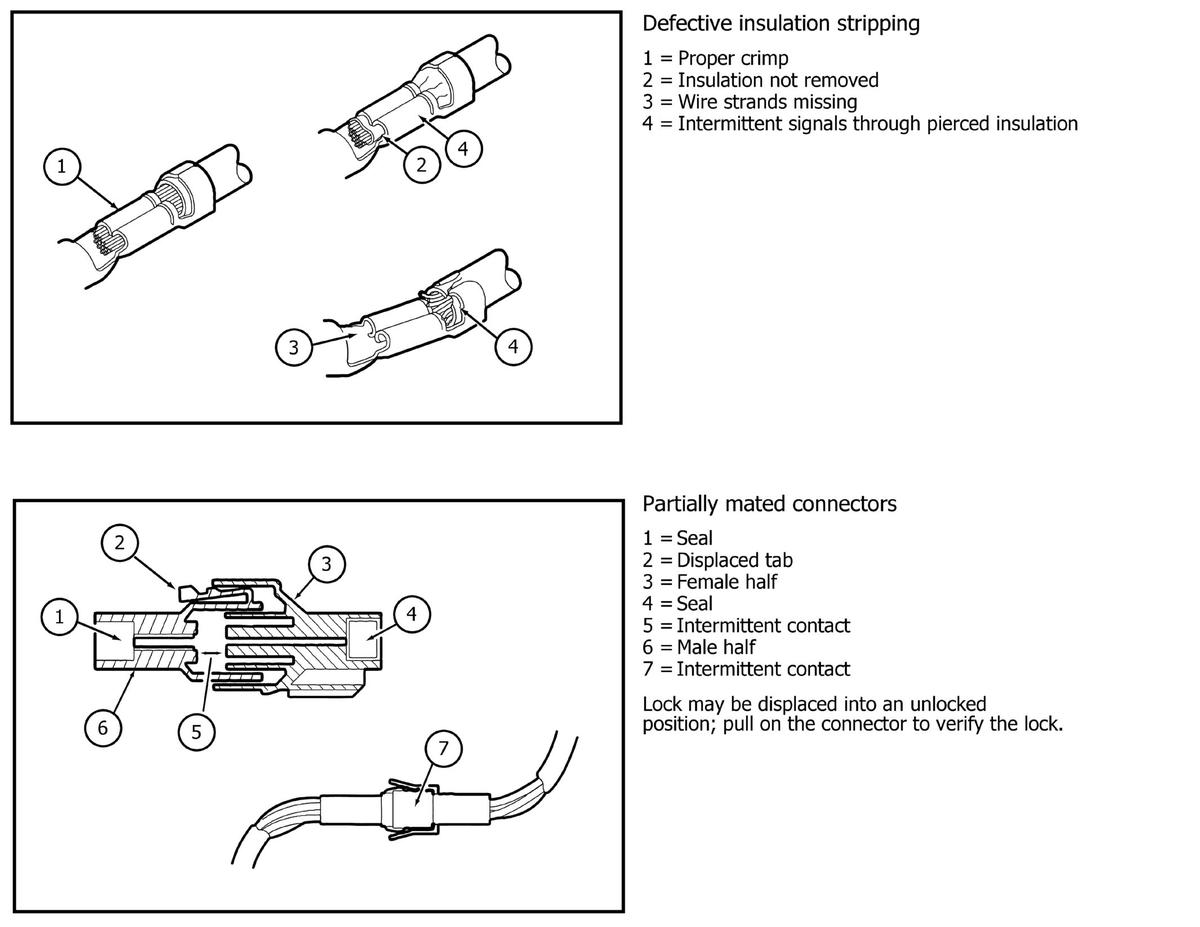

GFDWR177092Courtesy of FORD MOTOR COMPANY

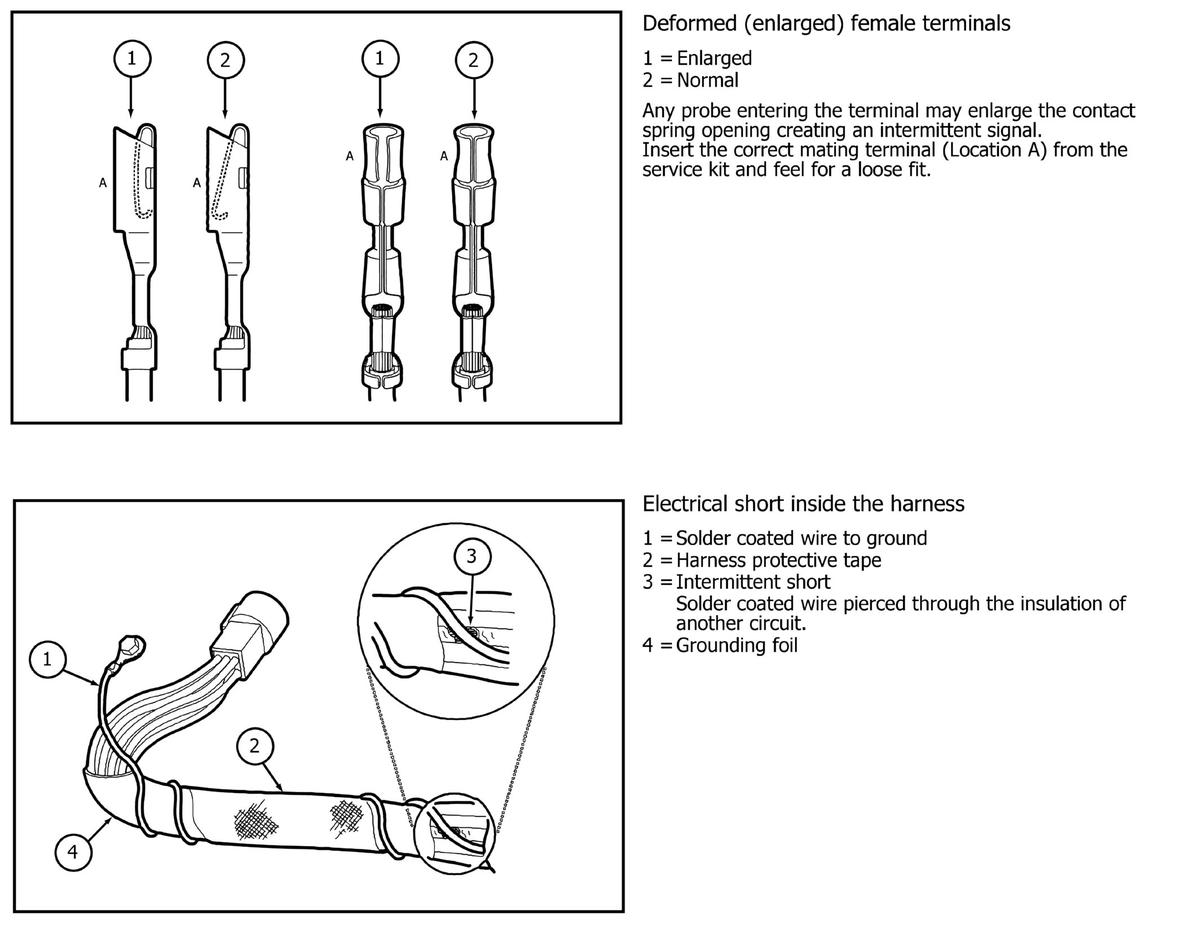

GFDWR177093Courtesy of FORD MOTOR COMPANY

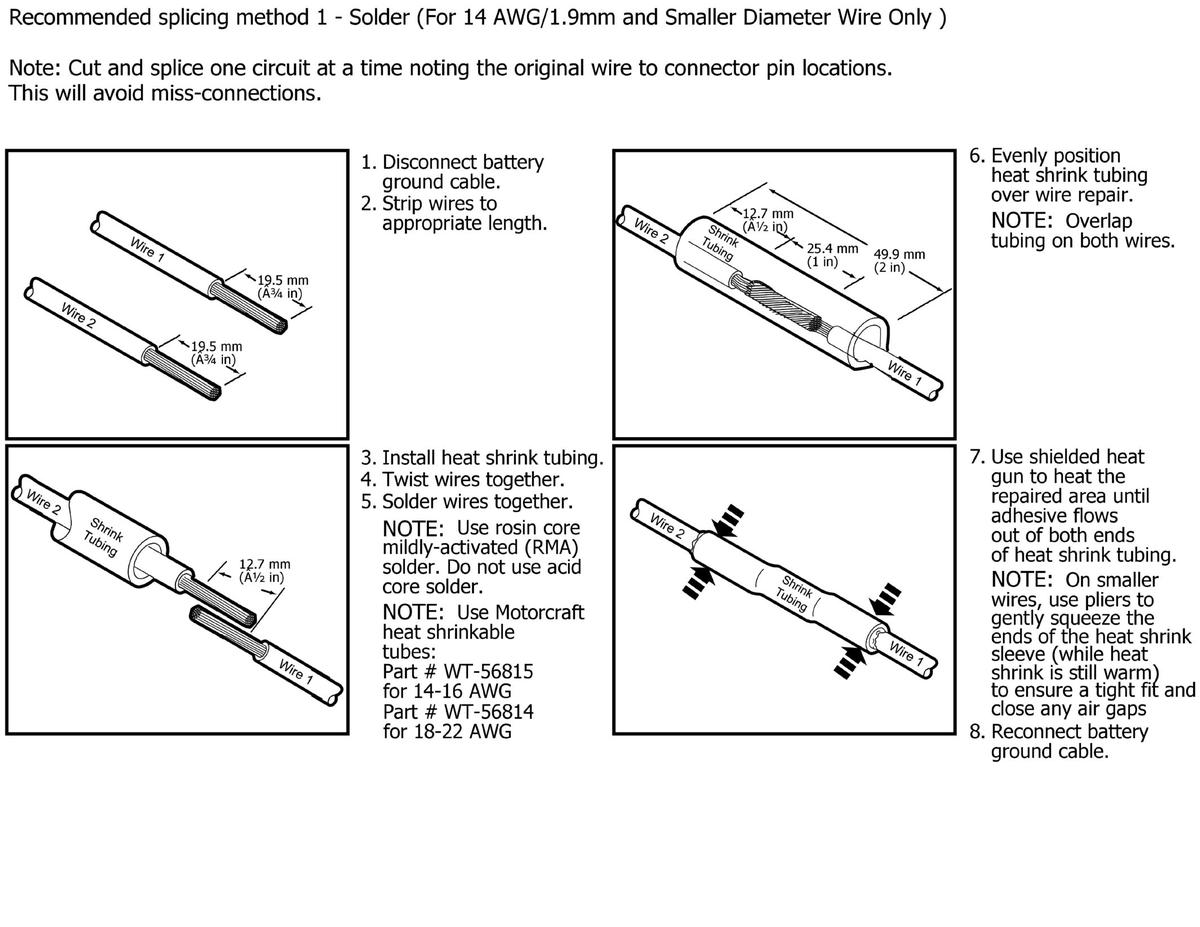

GFDWR177094Courtesy of FORD MOTOR COMPANY

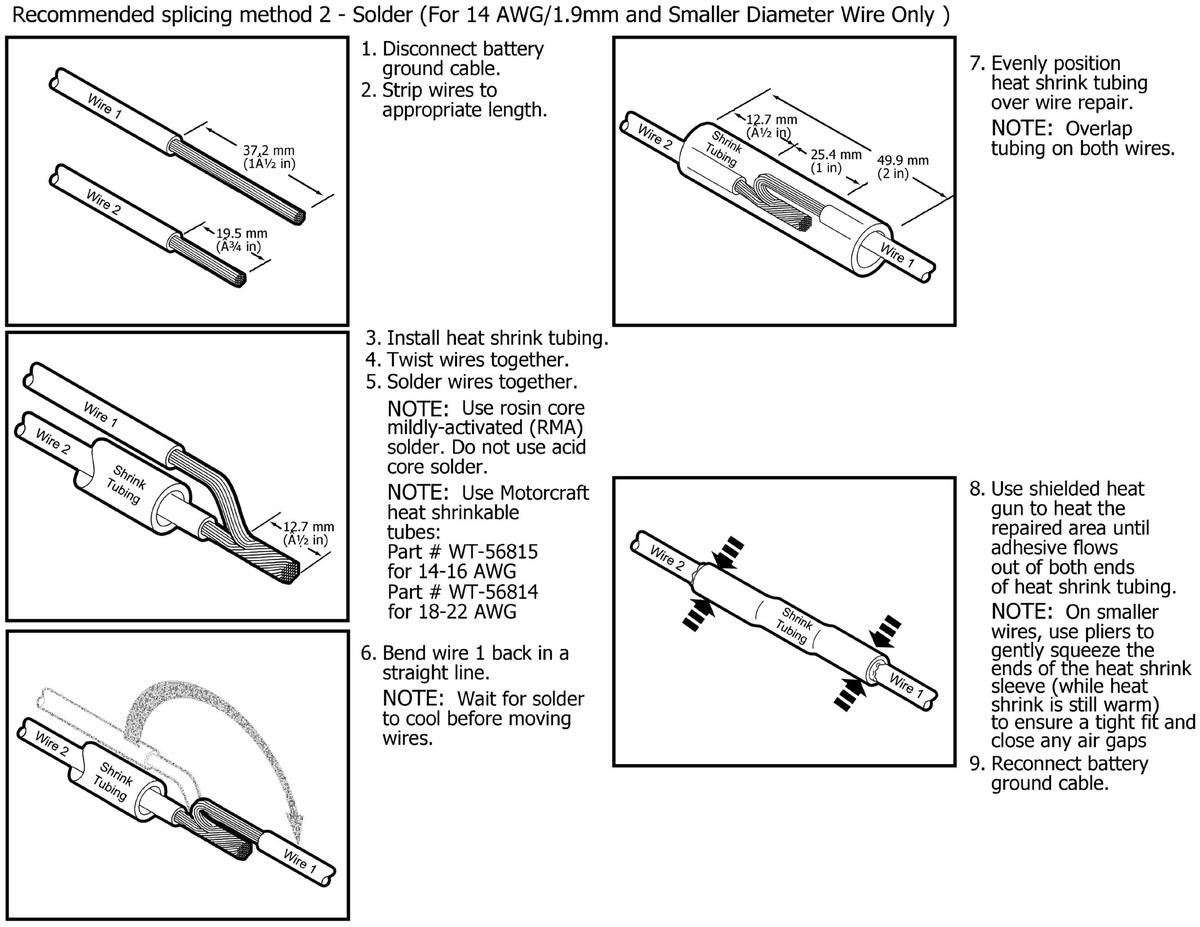

GFDWR177095Courtesy of FORD MOTOR COMPANY

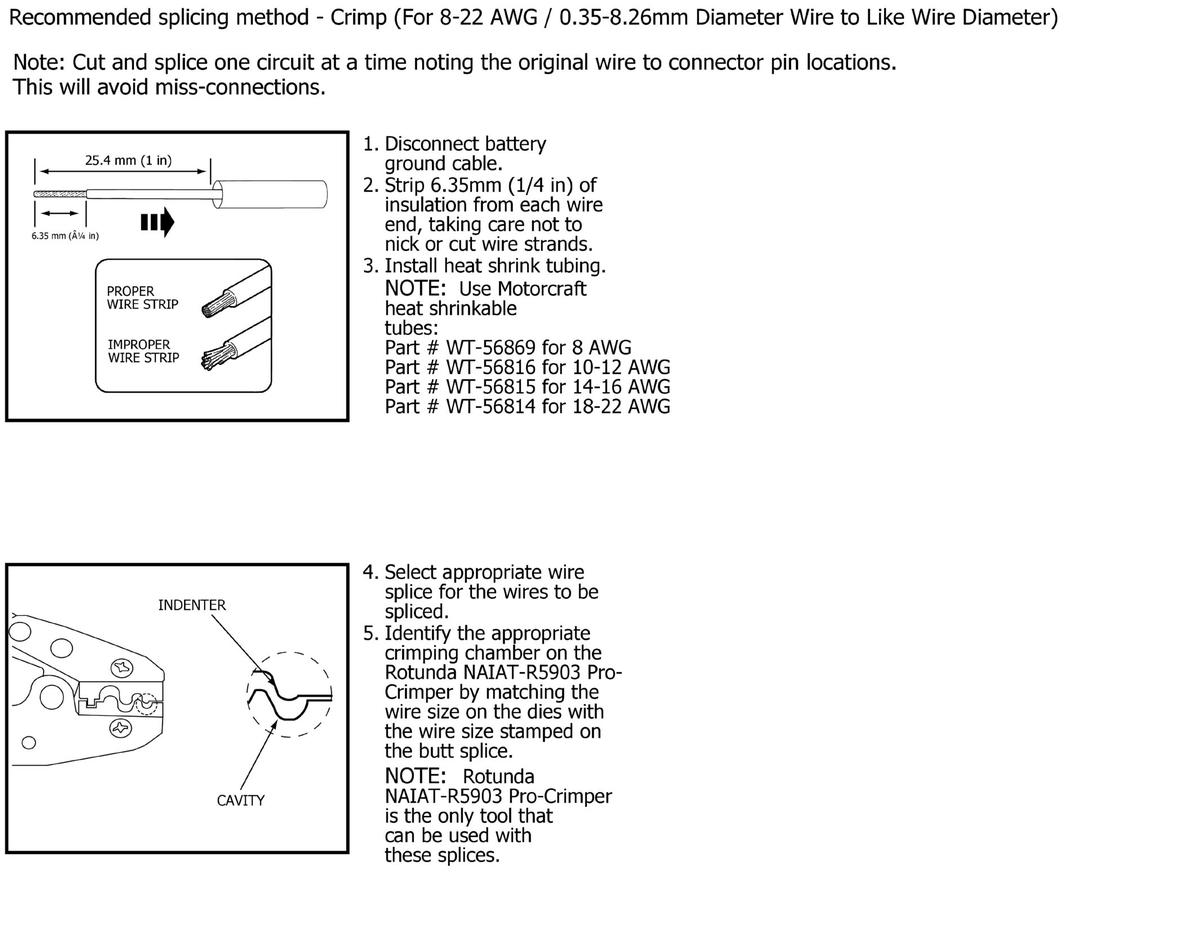

GFDWR177096Courtesy of FORD MOTOR COMPANY

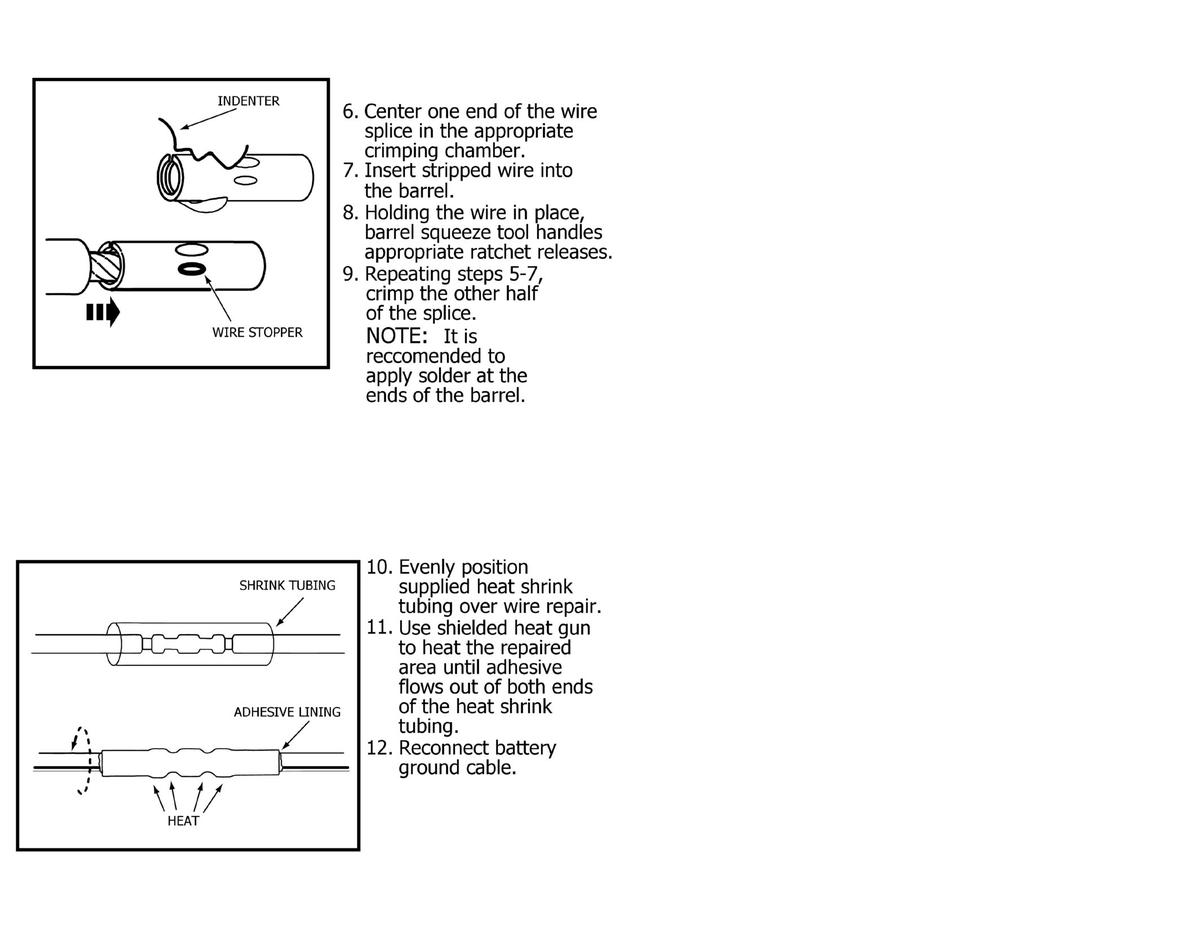

GFDWR177097Courtesy of FORD MOTOR COMPANY

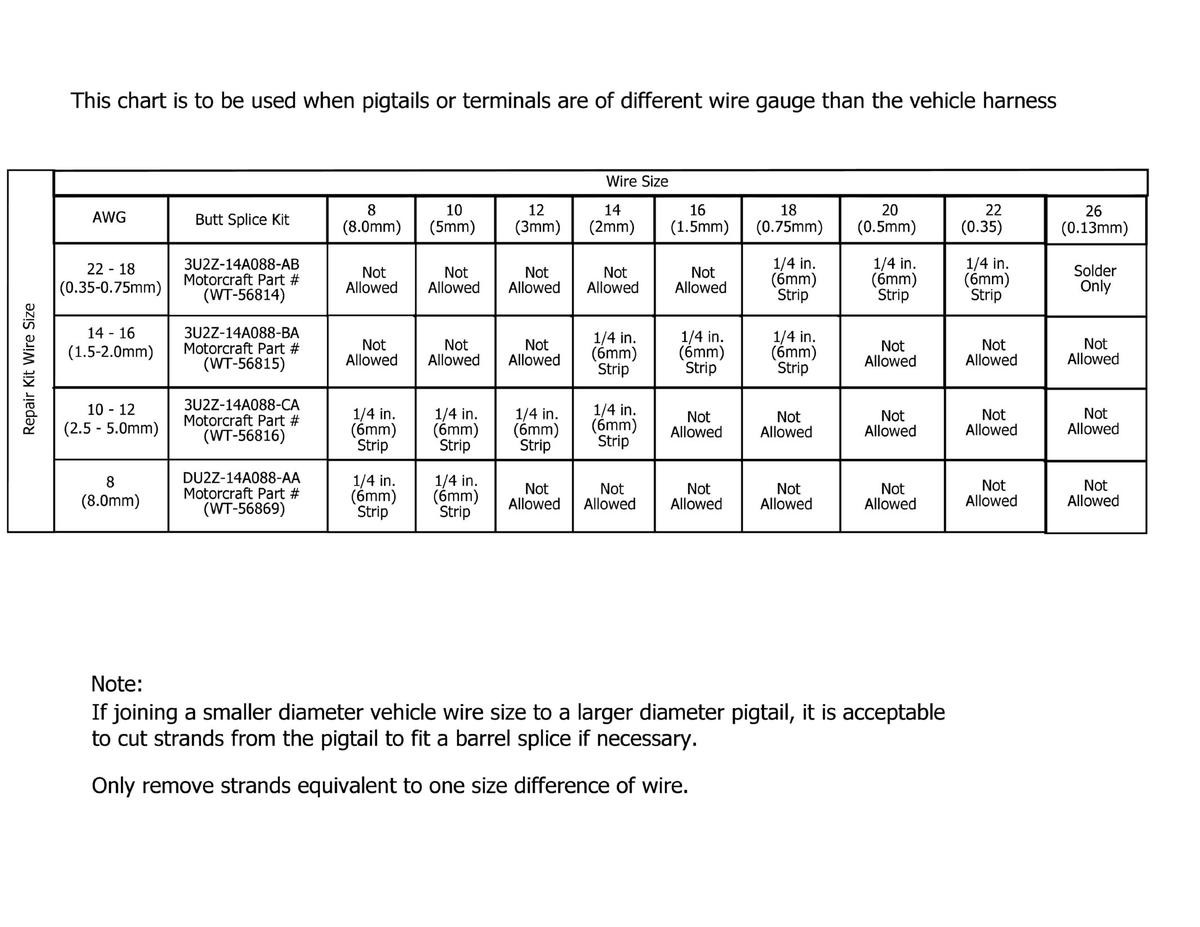

GFDWR177098Courtesy of FORD MOTOR COMPANY
