Connector Repair Procedures

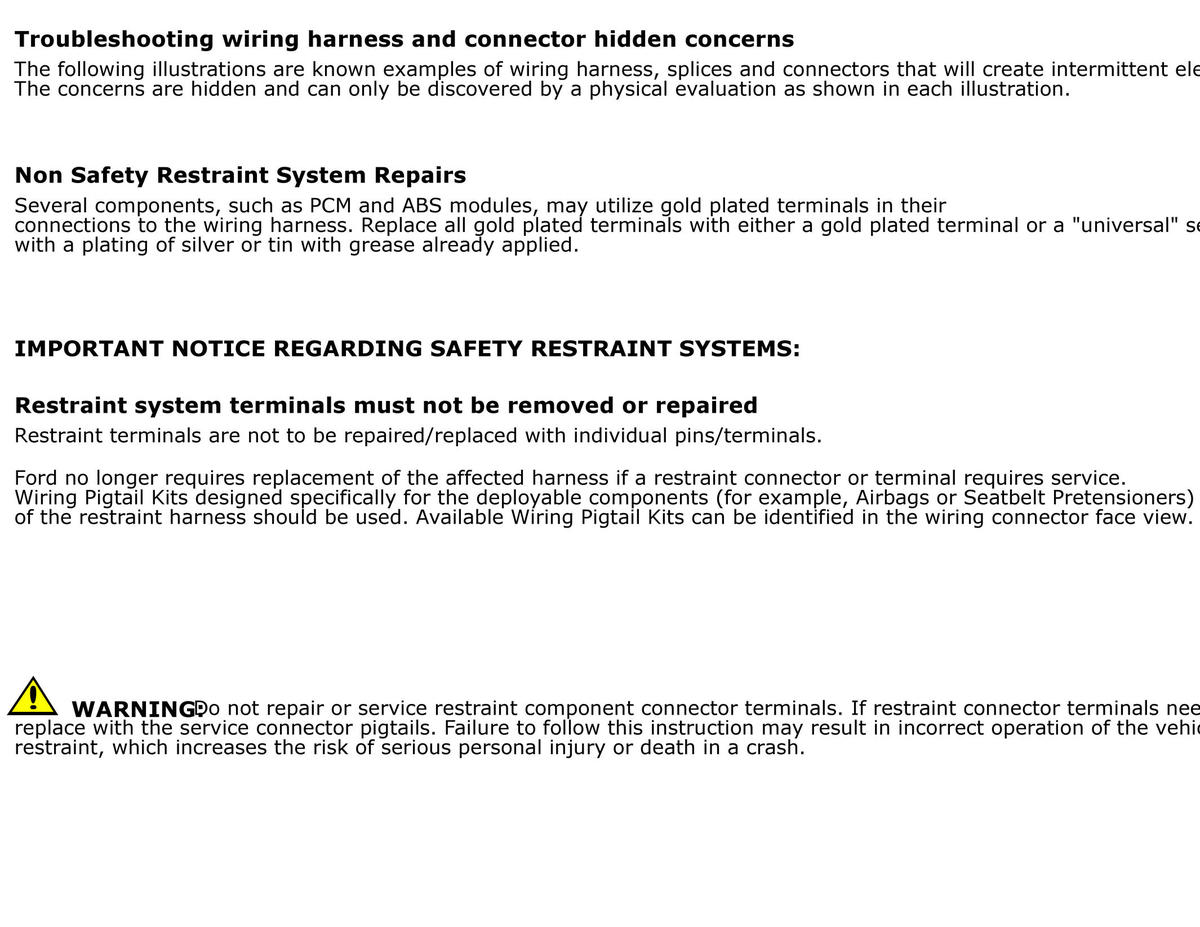

GFDWR200250Courtesy of FORD MOTOR COMPANY

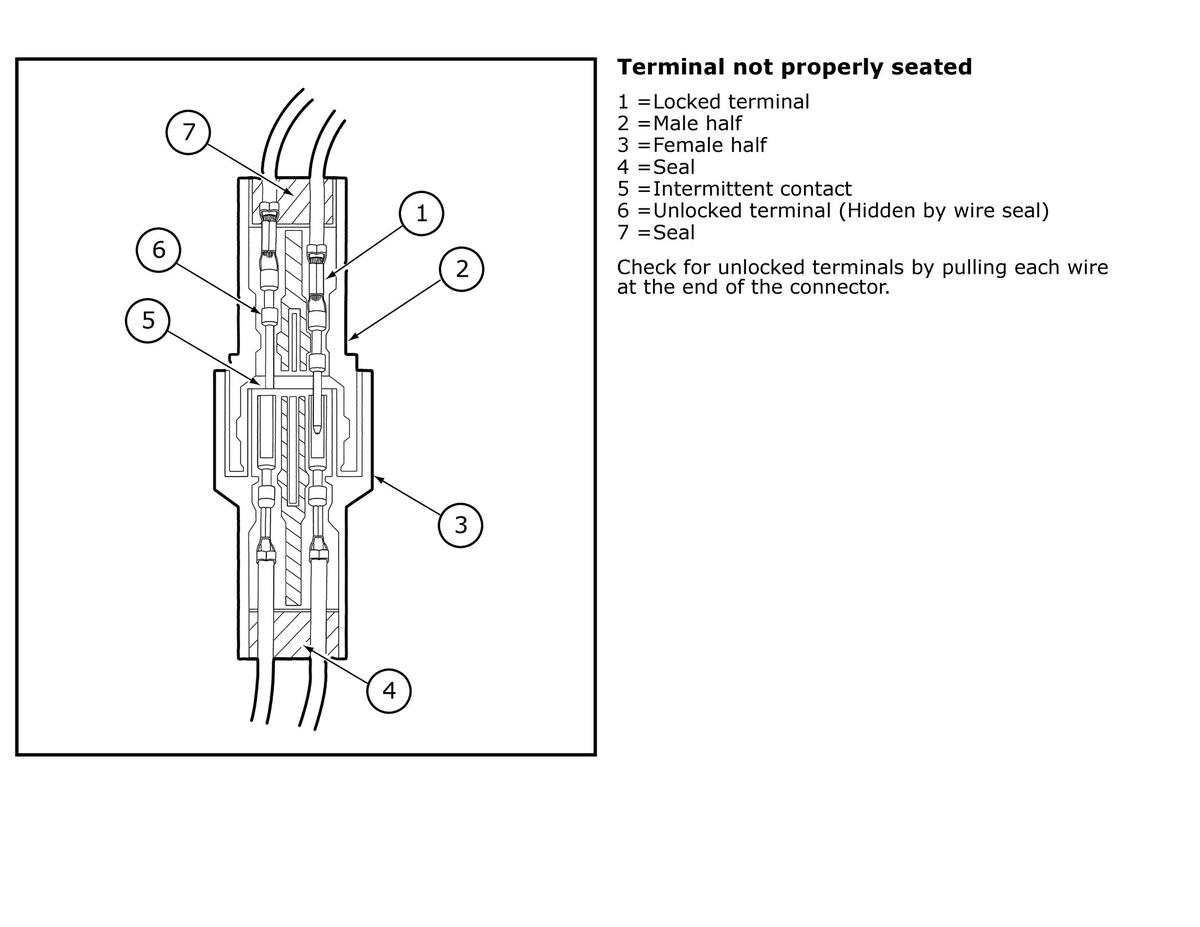

GFDWR200251Courtesy of FORD MOTOR COMPANY

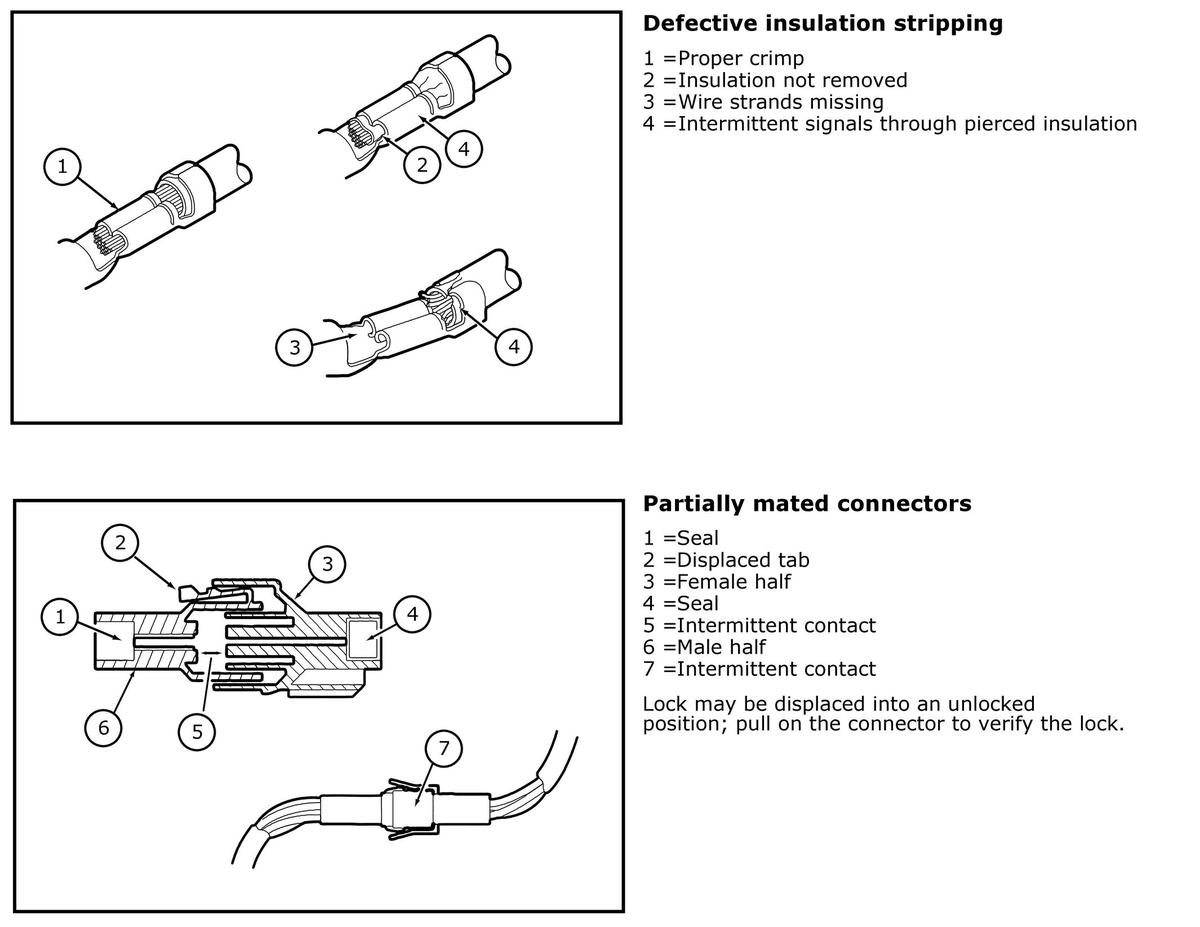

GFDWR200252Courtesy of FORD MOTOR COMPANY

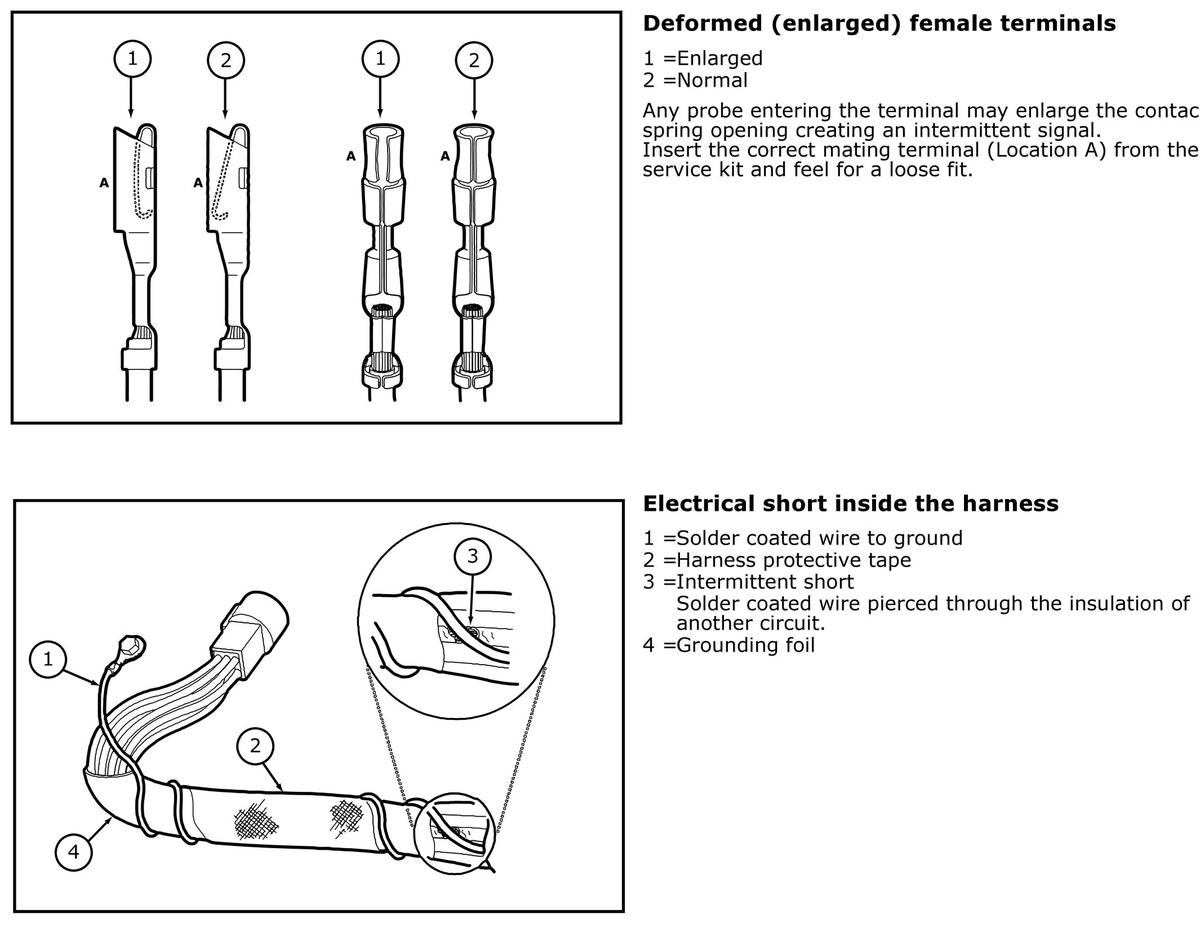

GFDWR200253Courtesy of FORD MOTOR COMPANY

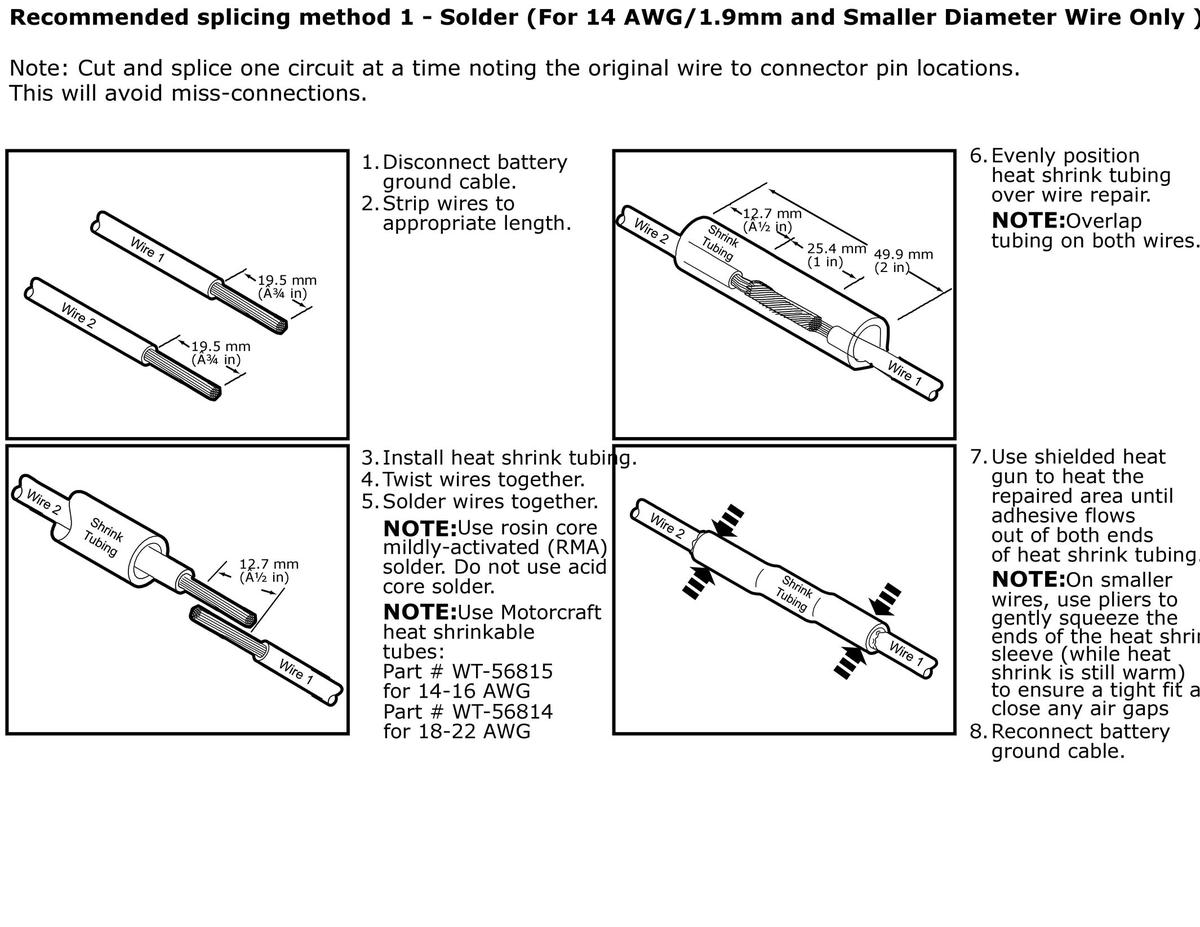

GFDWR200254Courtesy of FORD MOTOR COMPANY

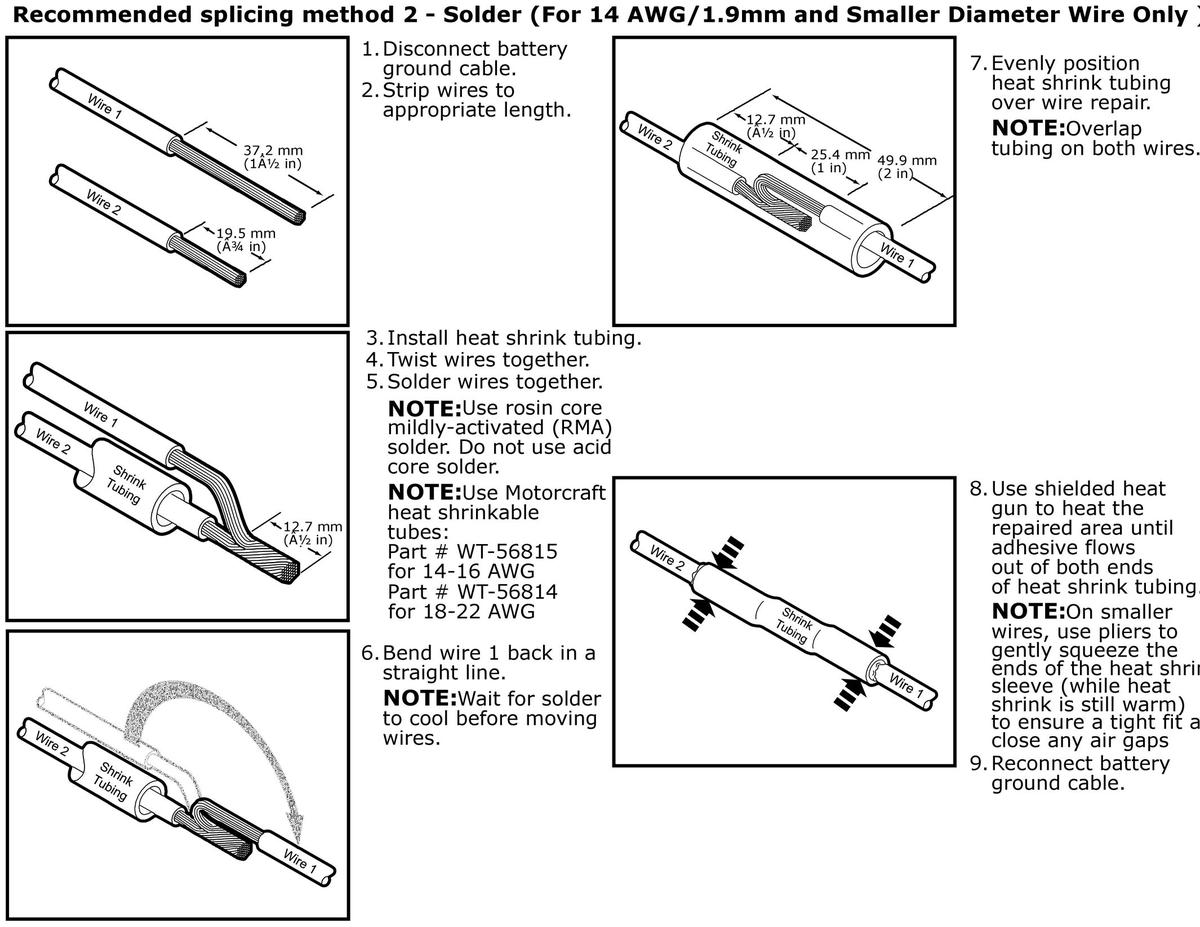

GFDWR200255Courtesy of FORD MOTOR COMPANY

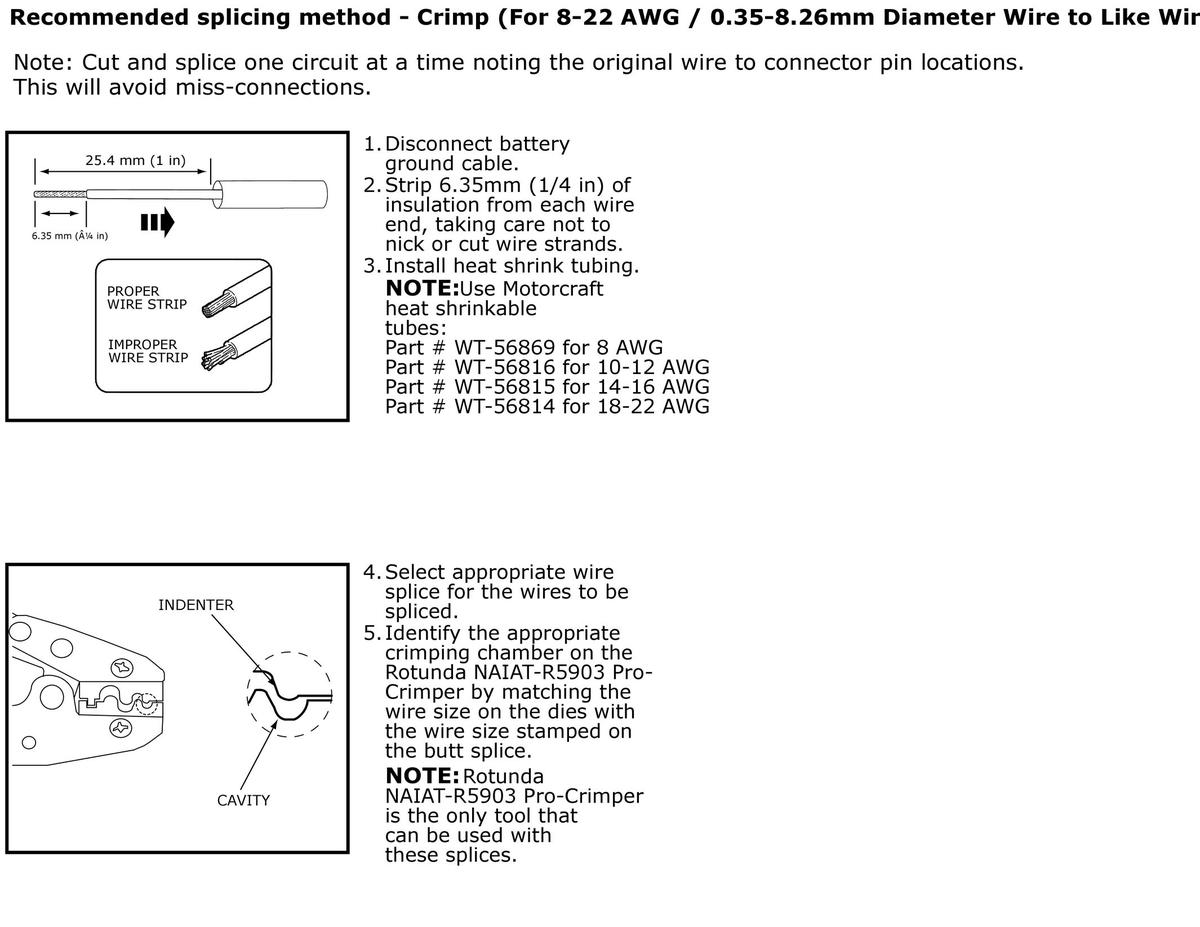

GFDWR200256Courtesy of FORD MOTOR COMPANY

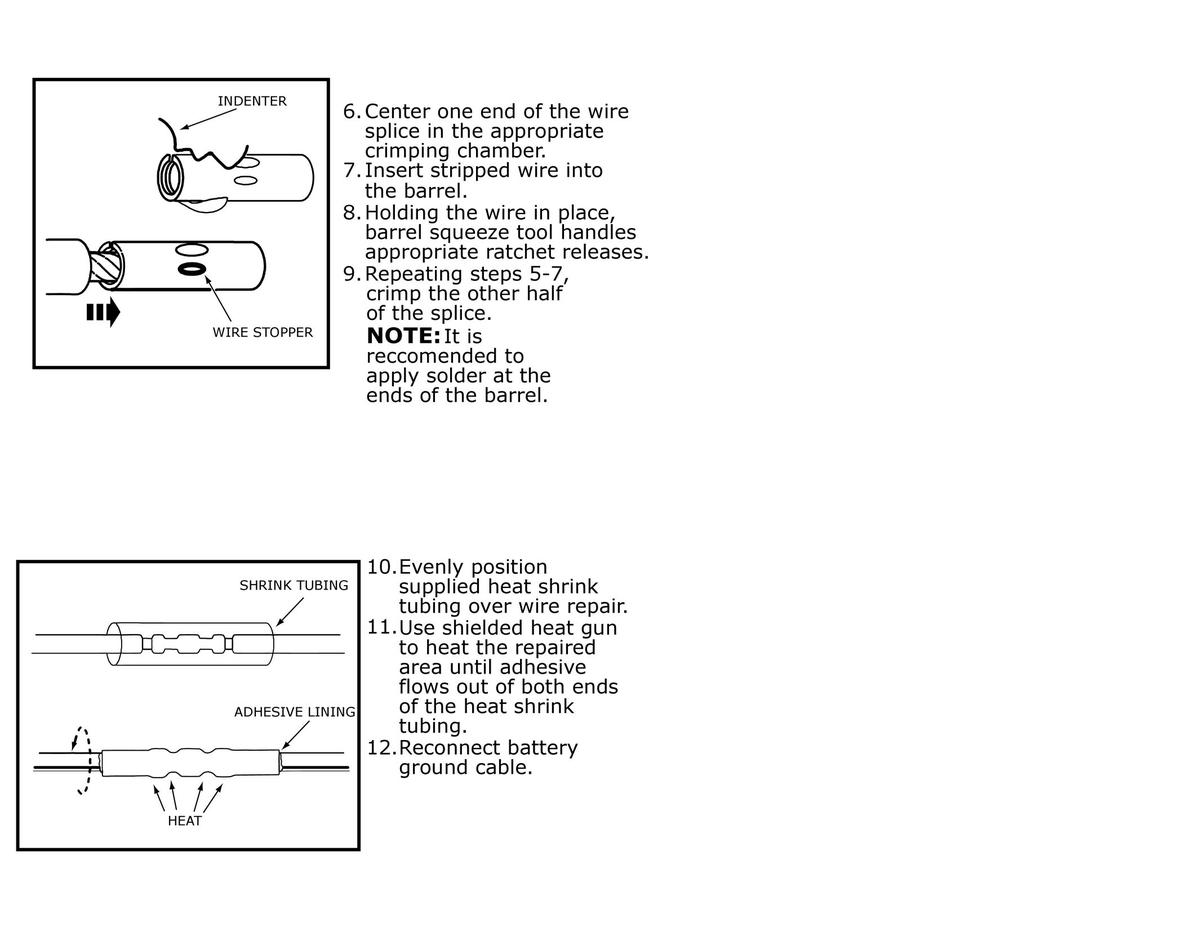

GFDWR200257Courtesy of FORD MOTOR COMPANY

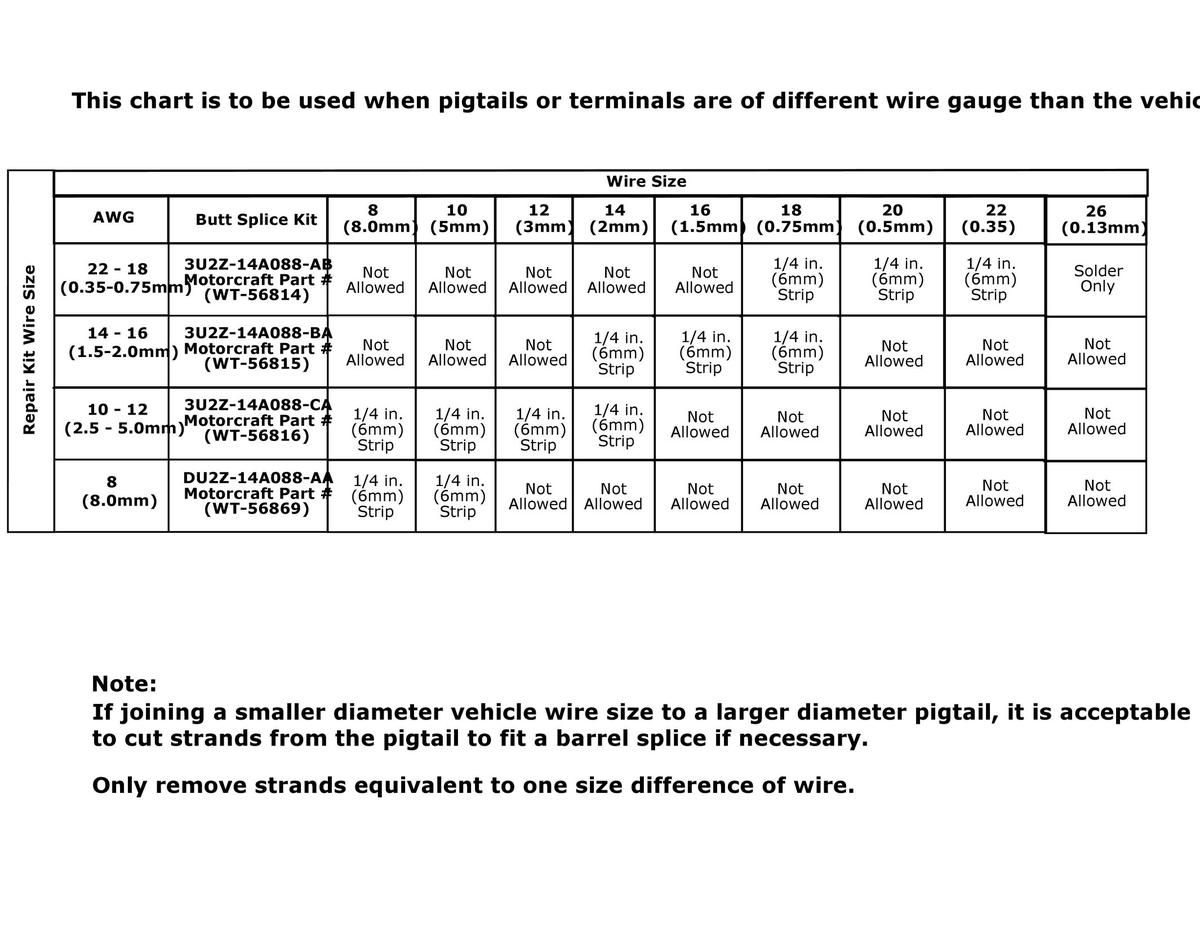

GFDWR200258Courtesy of FORD MOTOR COMPANY
