Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

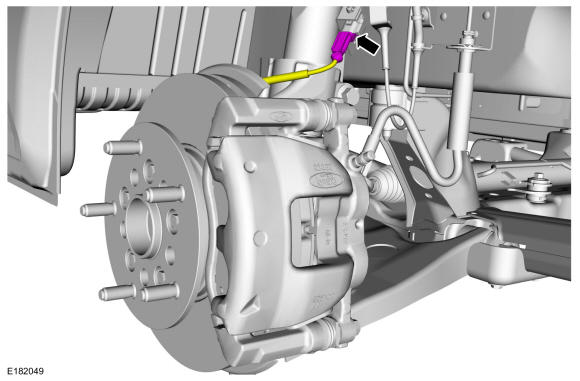

  2. Disconnect the electrical connector.
    GFD783723Courtesy of FORD MOTOR COMPANY

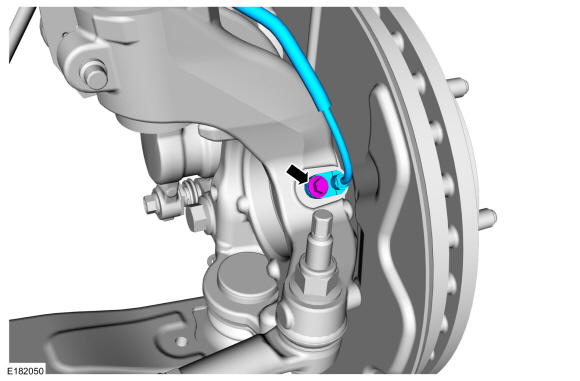

  3. Using compressed air, clean the sensor housing area. Remove the bolt and the rear wheel speed sensor.

    Torque

    : 97 lb.in (11 Nm)

GFD783724Courtesy of FORD MOTOR COMPANY
