Radio Transceiver Module (RTM): Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Carry out the PMI procedure for the RTM.
- Lower the headliner. Refer to: Headliner - Lowering .

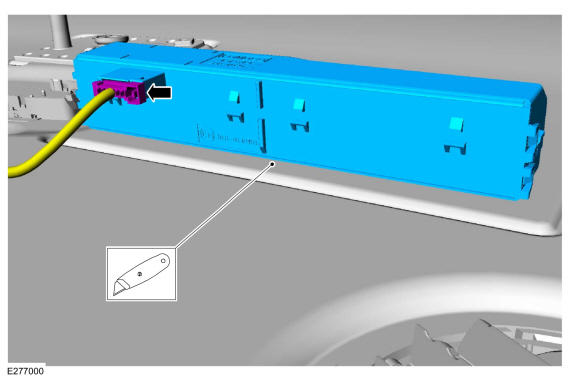

- Using a knife, carefully cut the RTM-to-headliner adhesive and remove the RTM.
- Disconnect the electrical connector.
