Section 1013 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

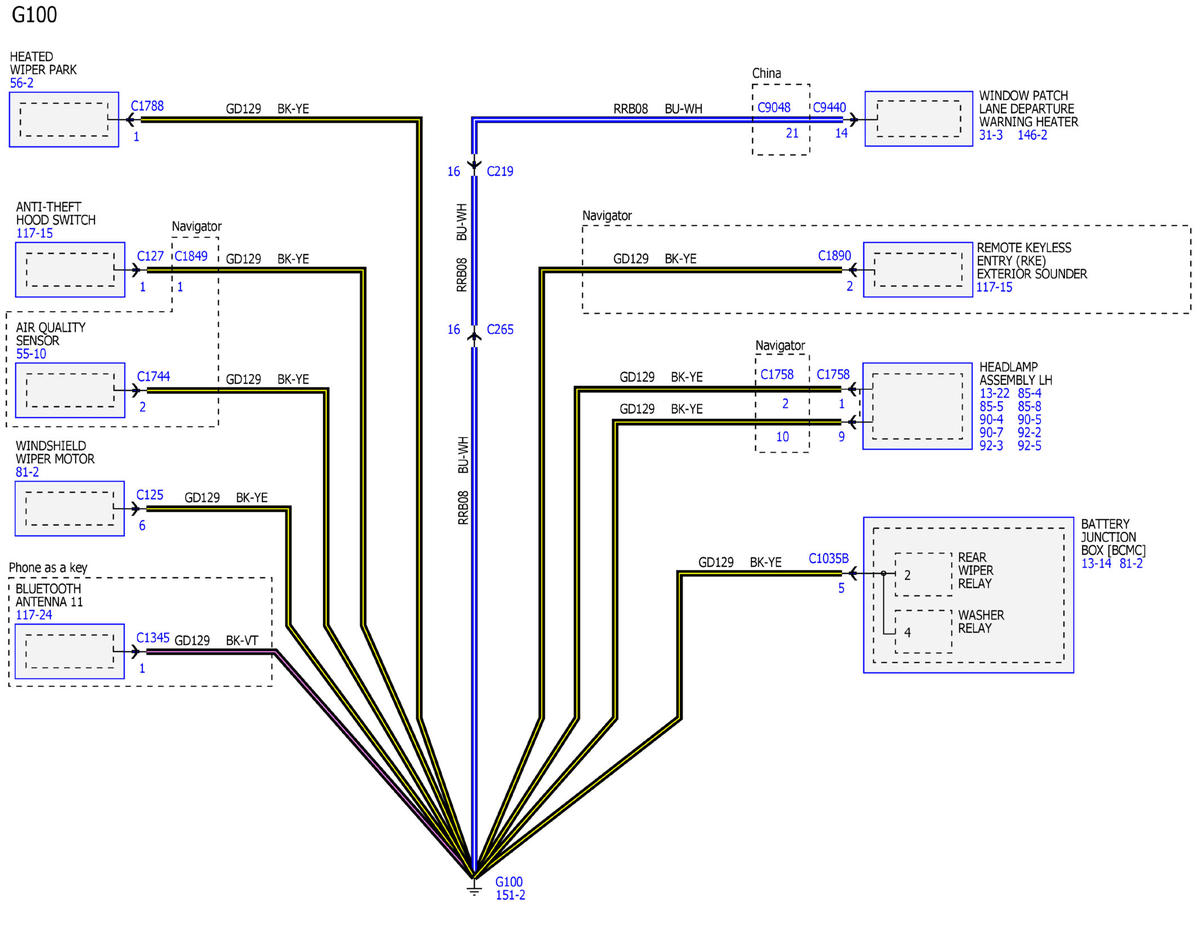

GFDWR184752Courtesy of FORD MOTOR COMPANY

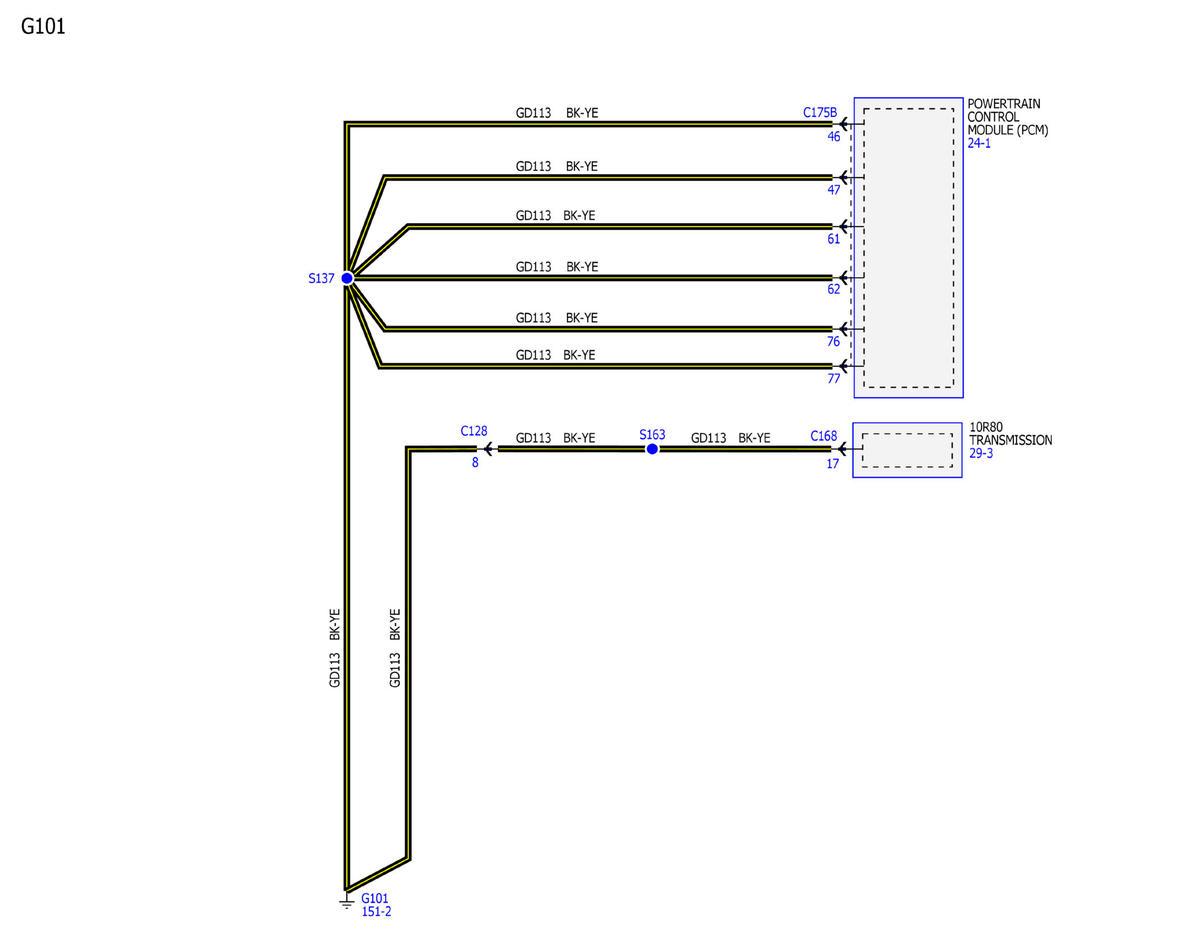

GFDWR184763Courtesy of FORD MOTOR COMPANY

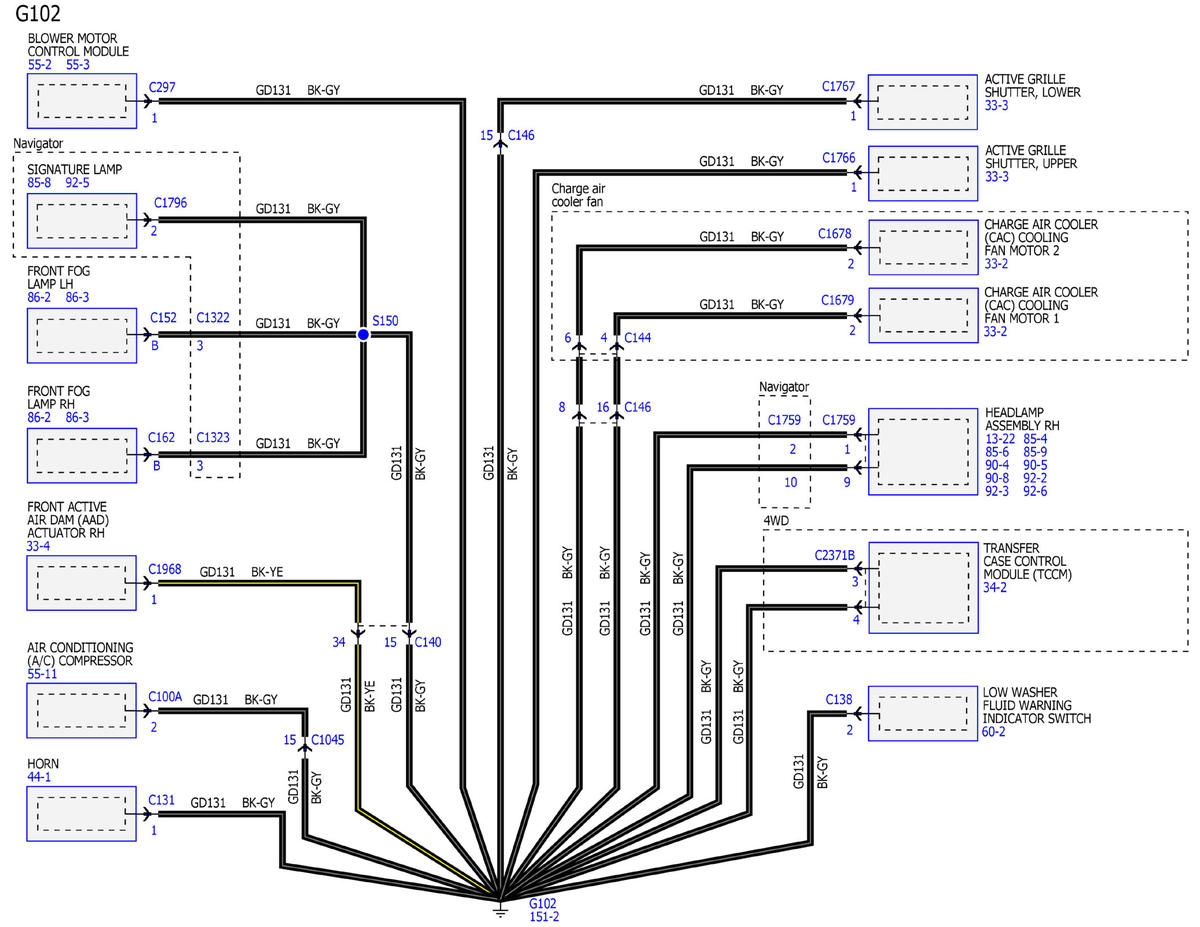

GFDWR184768Courtesy of FORD MOTOR COMPANY

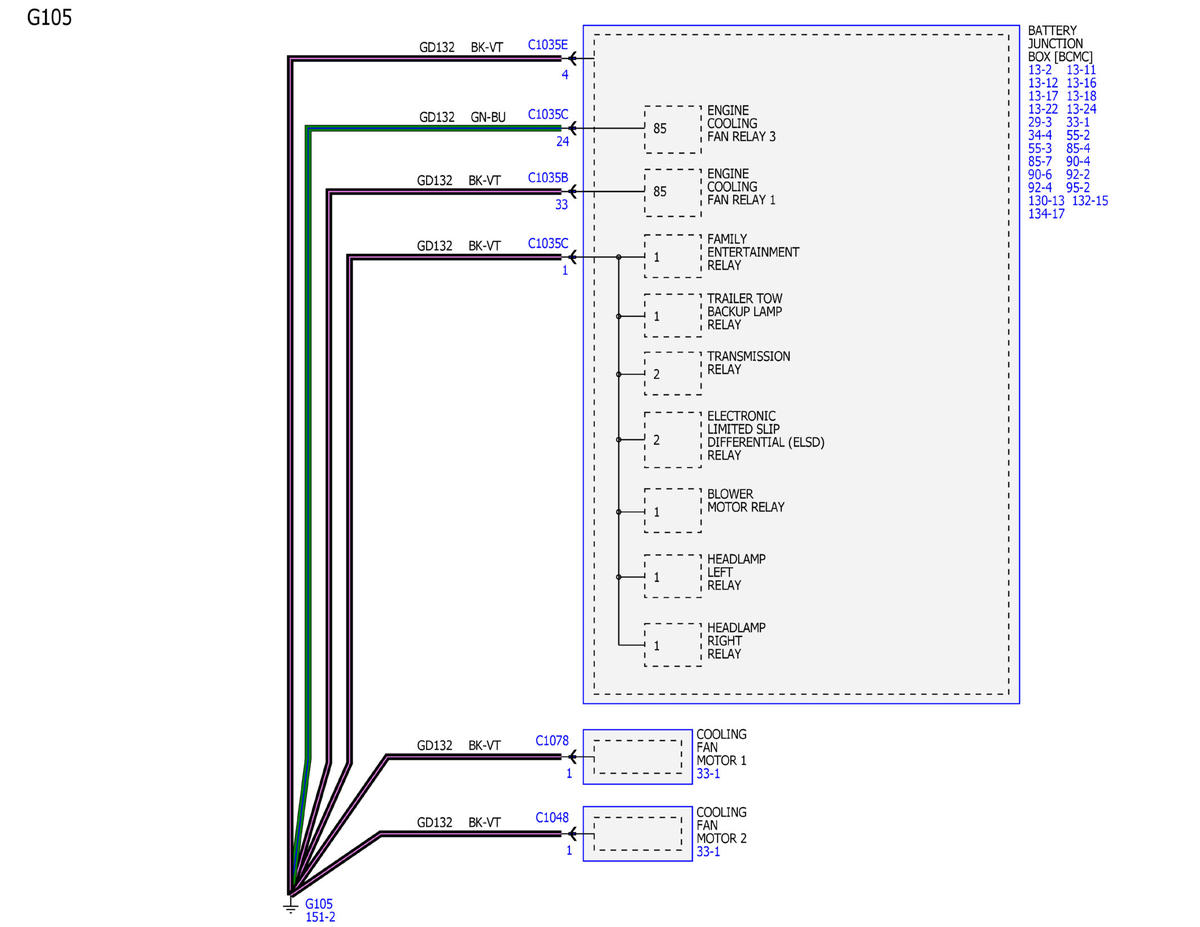

GFDWR184769Courtesy of FORD MOTOR COMPANY

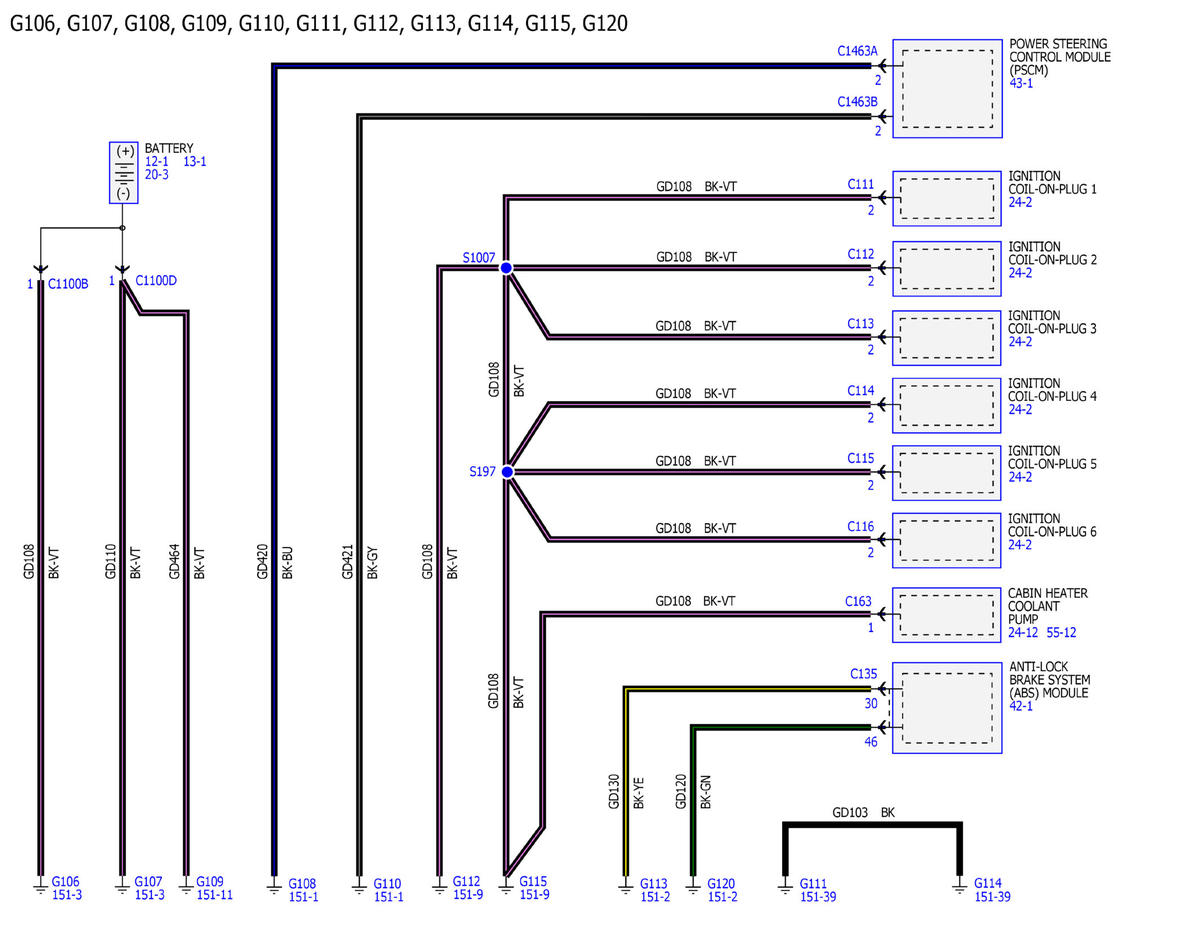

GFDWR184770Courtesy of FORD MOTOR COMPANY

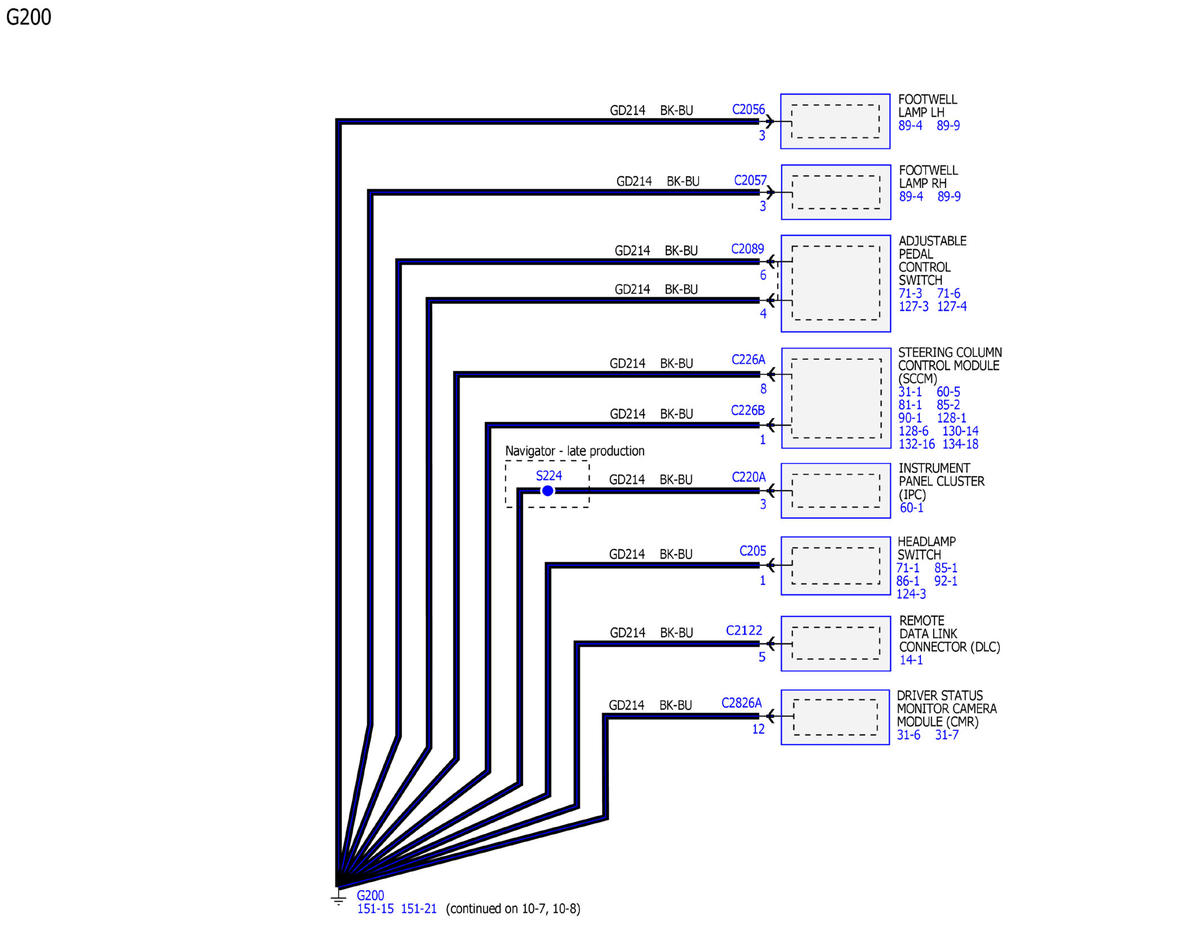

GFDWR184771Courtesy of FORD MOTOR COMPANY

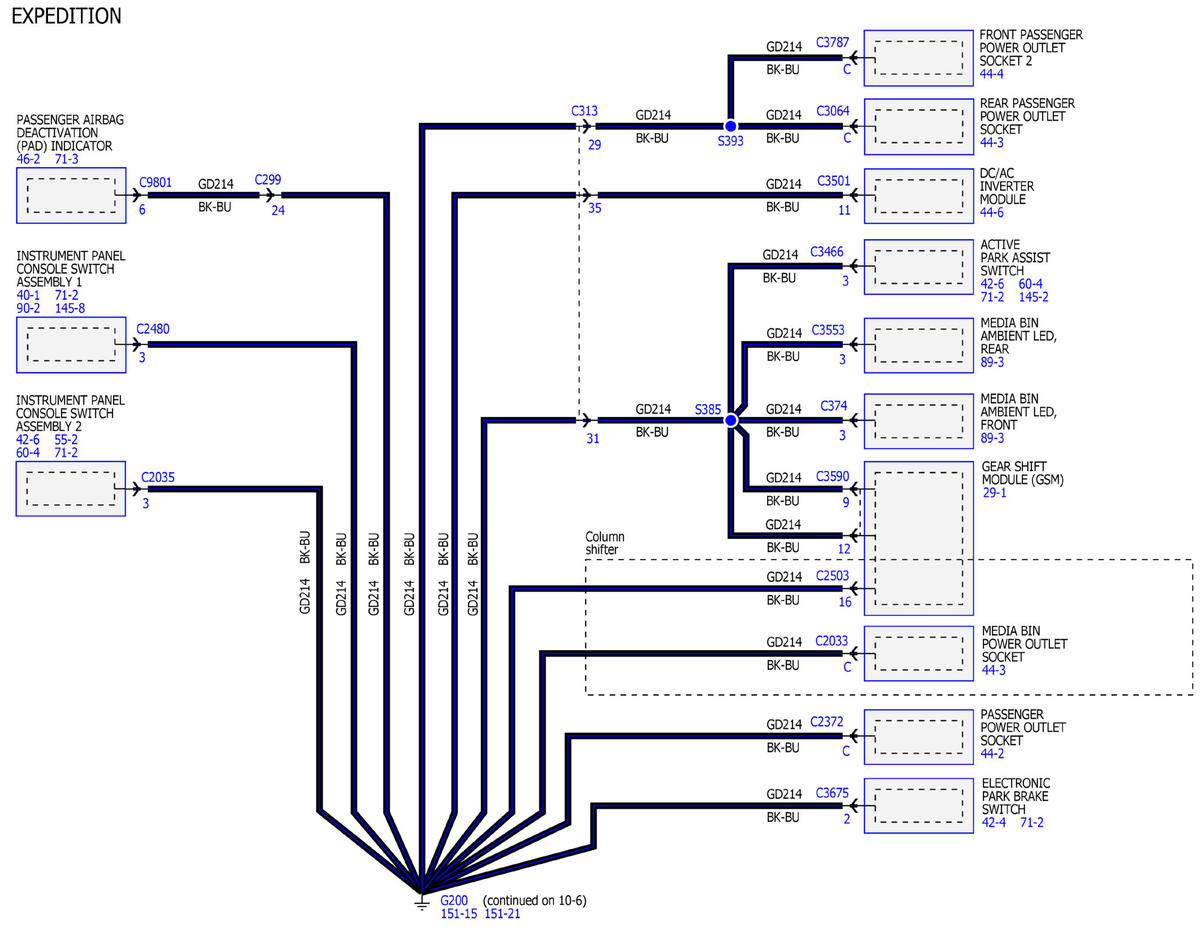

GFDWR184772Courtesy of FORD MOTOR COMPANY

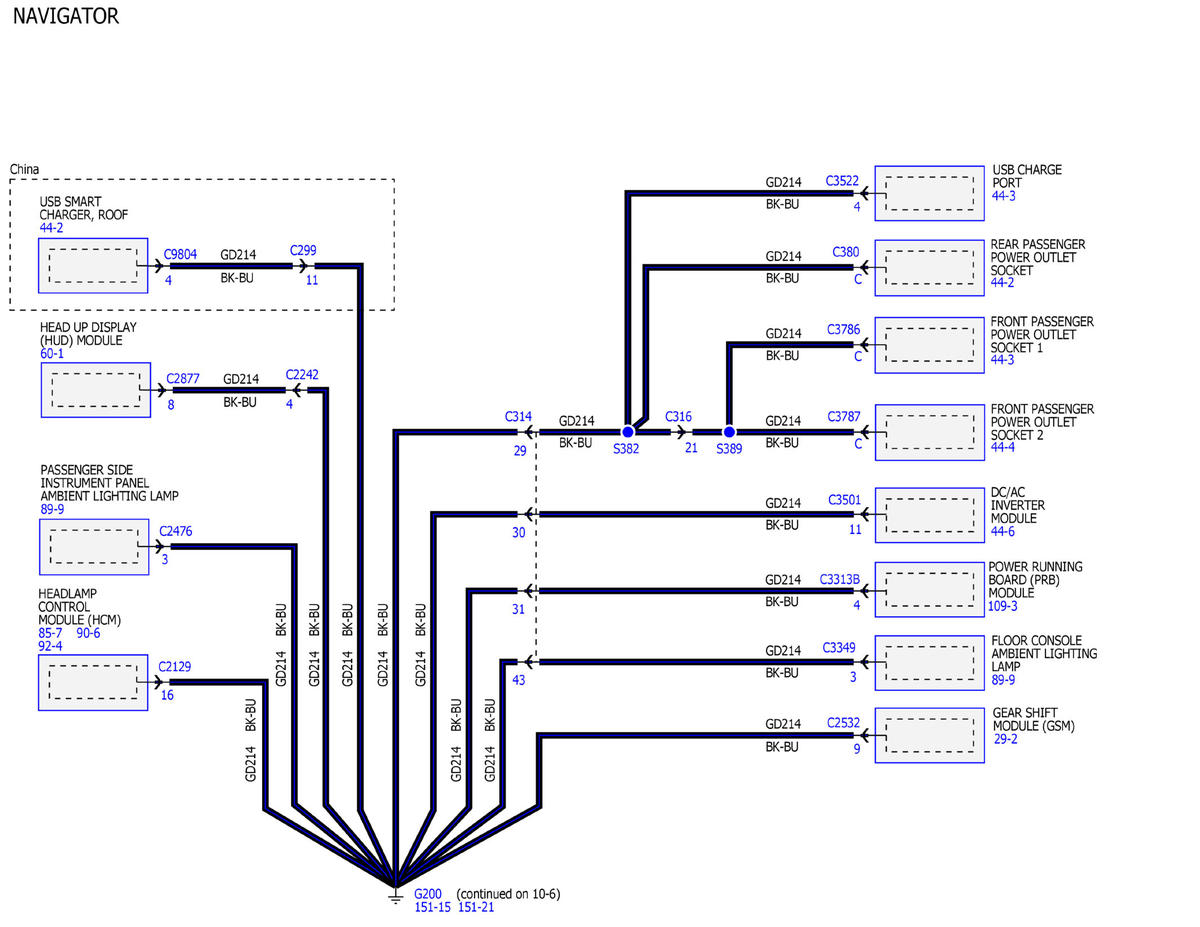

GFDWR184773Courtesy of FORD MOTOR COMPANY

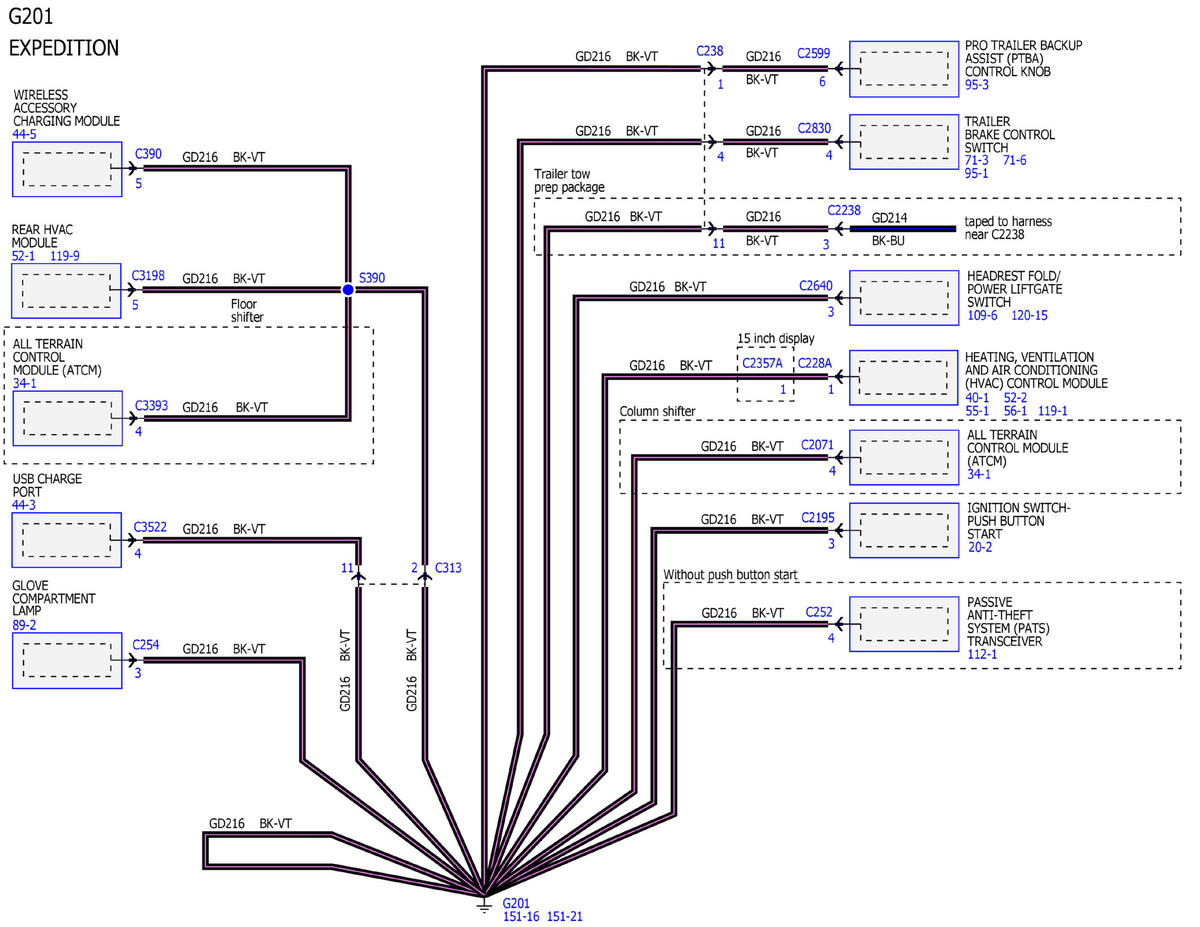

GFDWR184774Courtesy of FORD MOTOR COMPANY

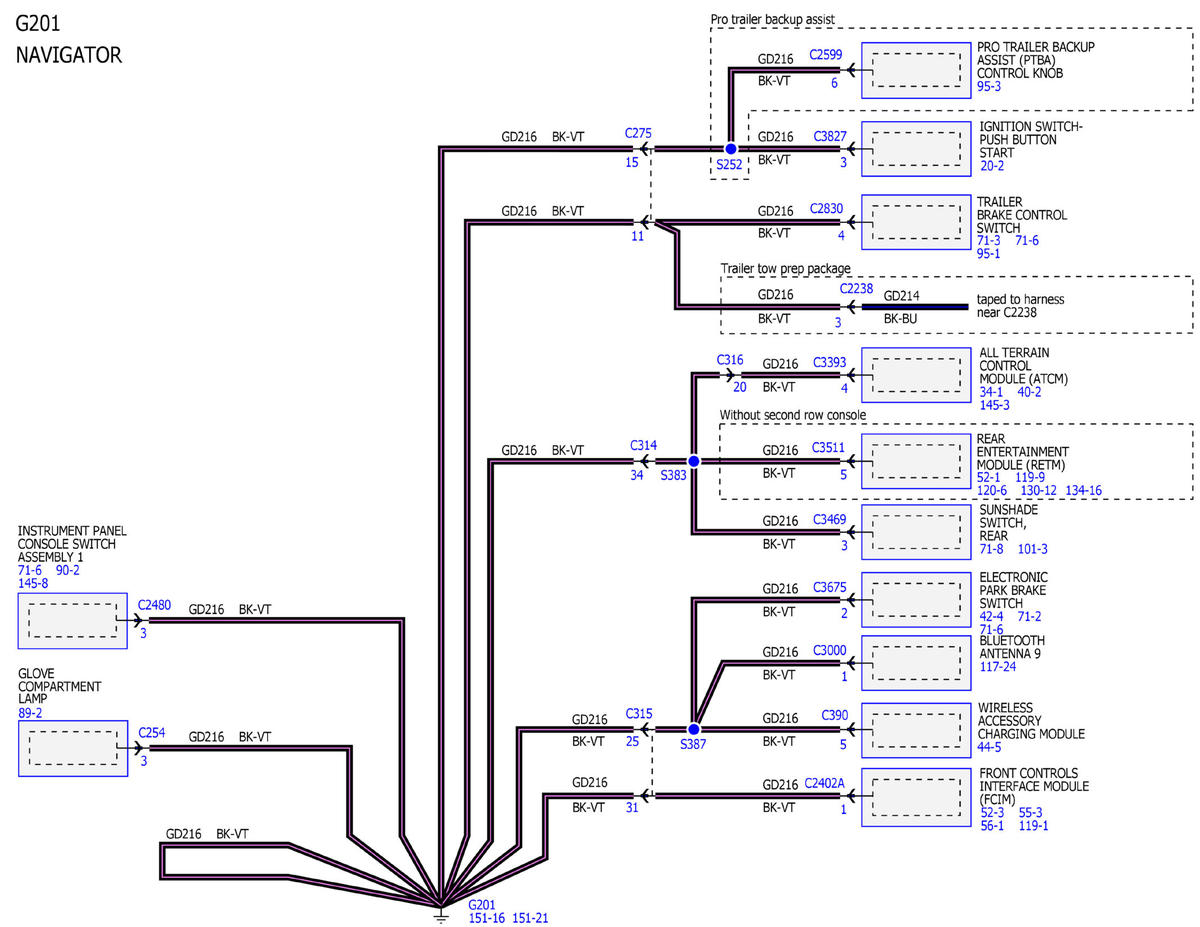

GFDWR184753Courtesy of FORD MOTOR COMPANY

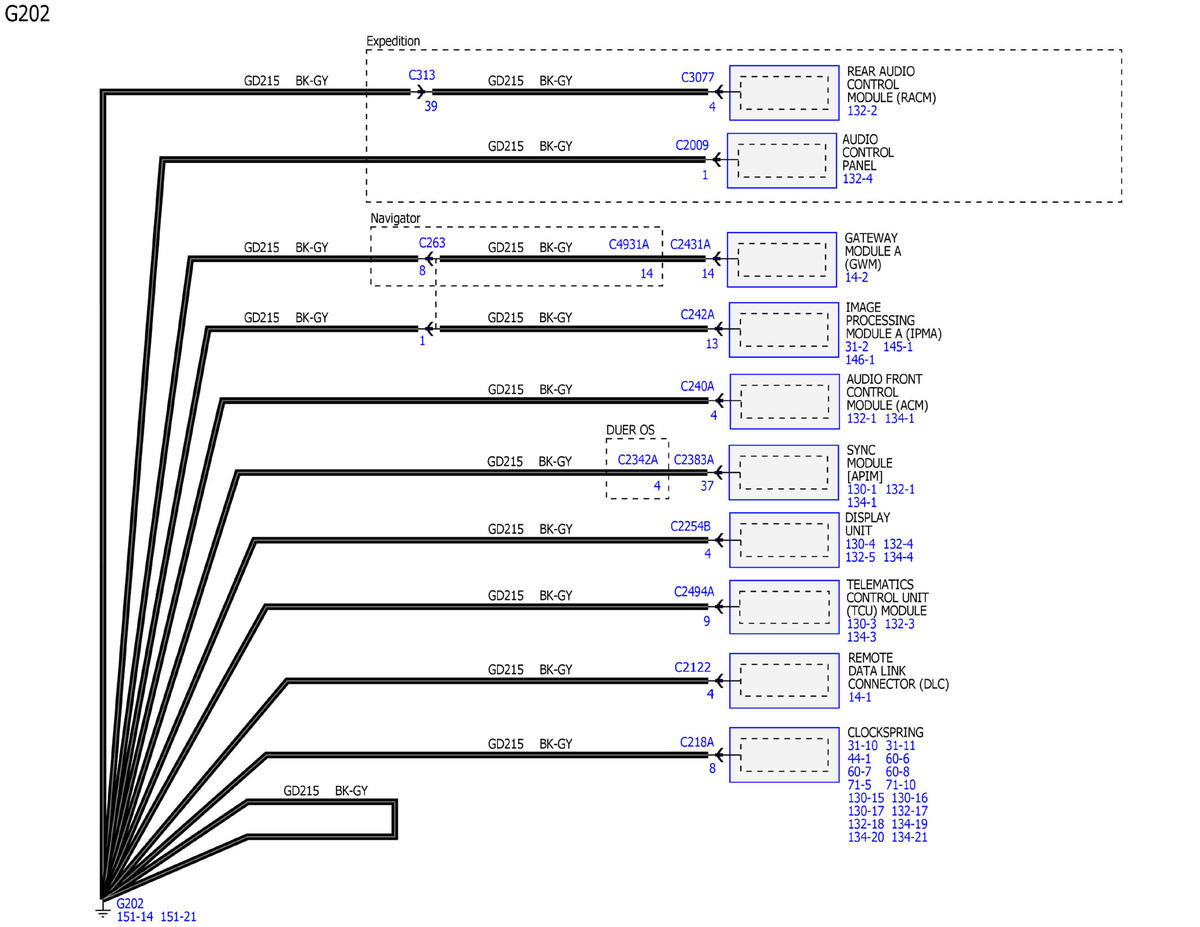

GFDWR184754Courtesy of FORD MOTOR COMPANY

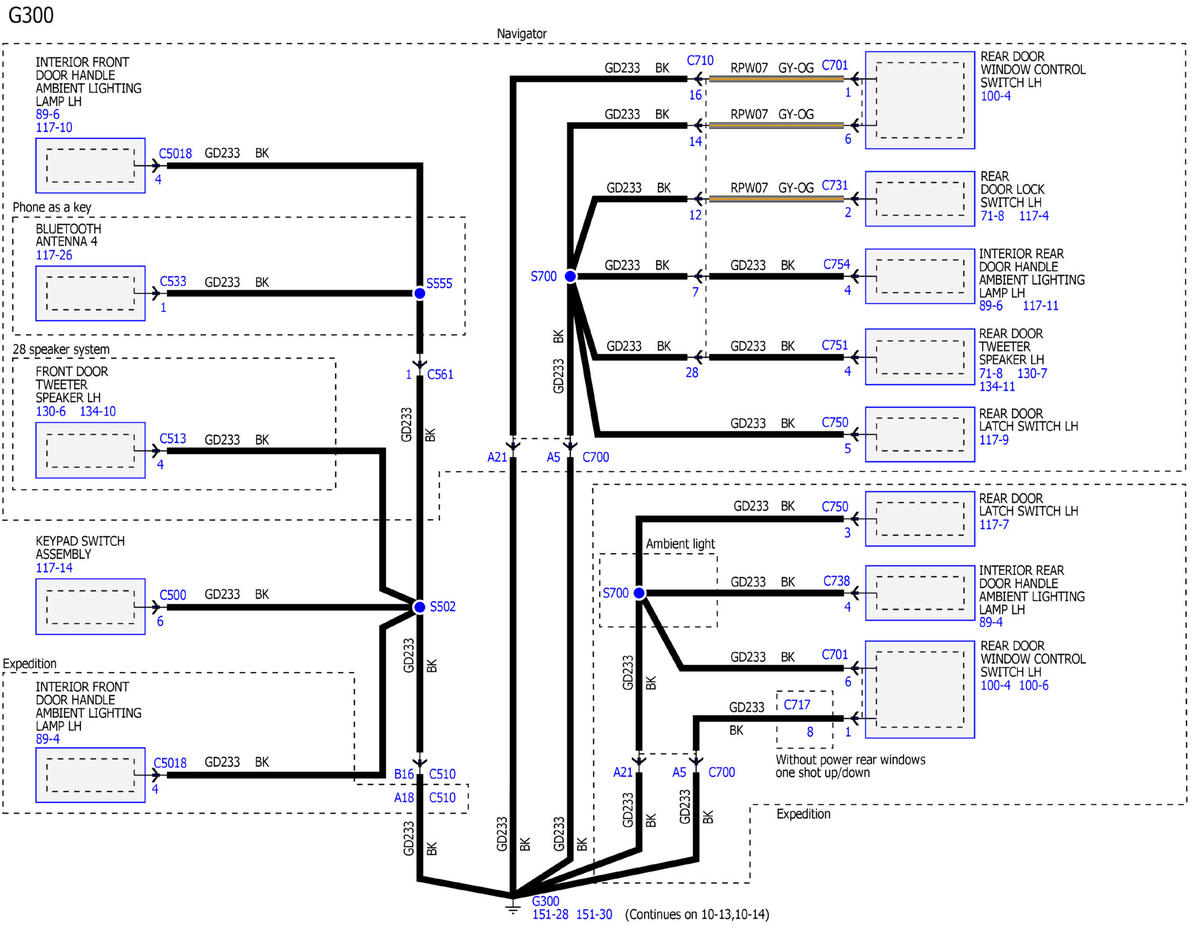

GFDWR184755Courtesy of FORD MOTOR COMPANY

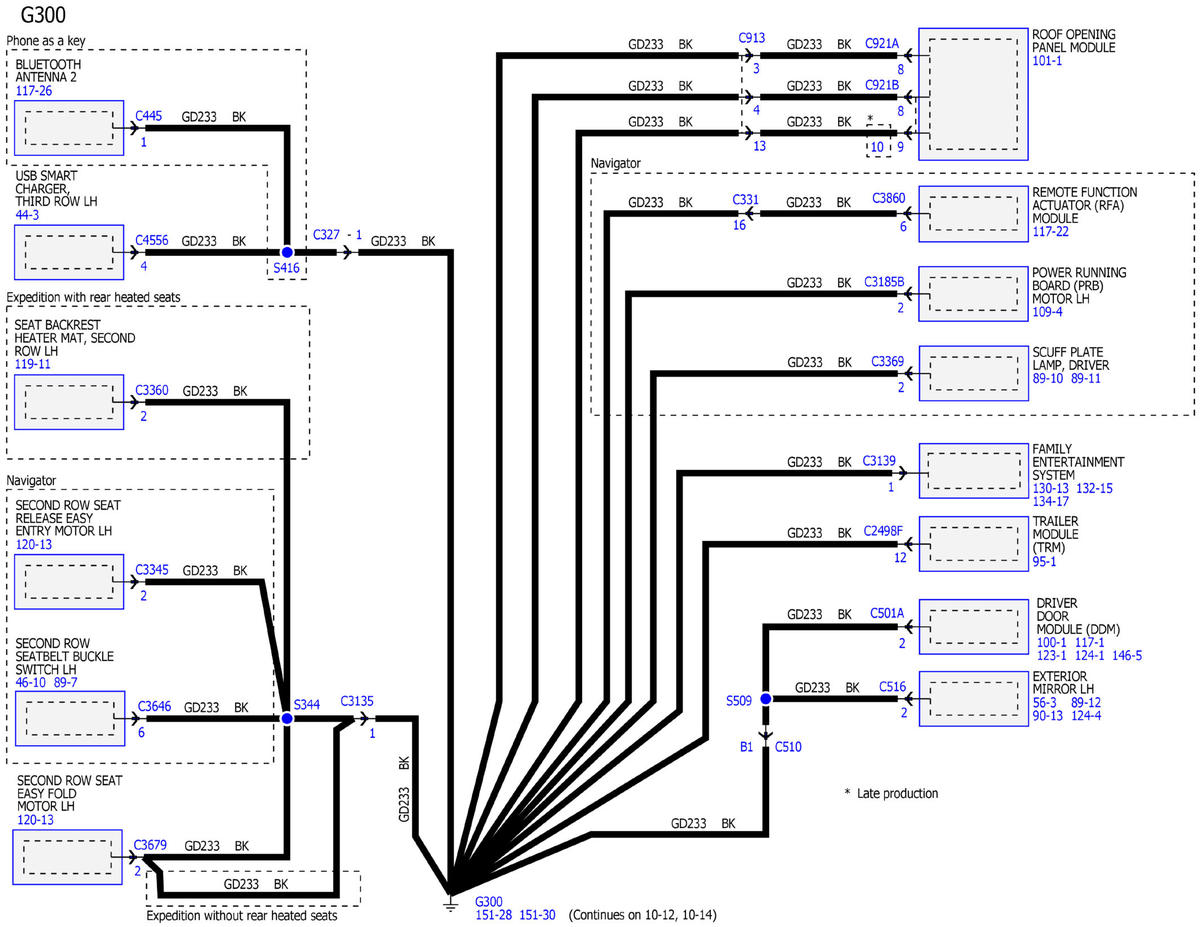

GFDWR184756Courtesy of FORD MOTOR COMPANY

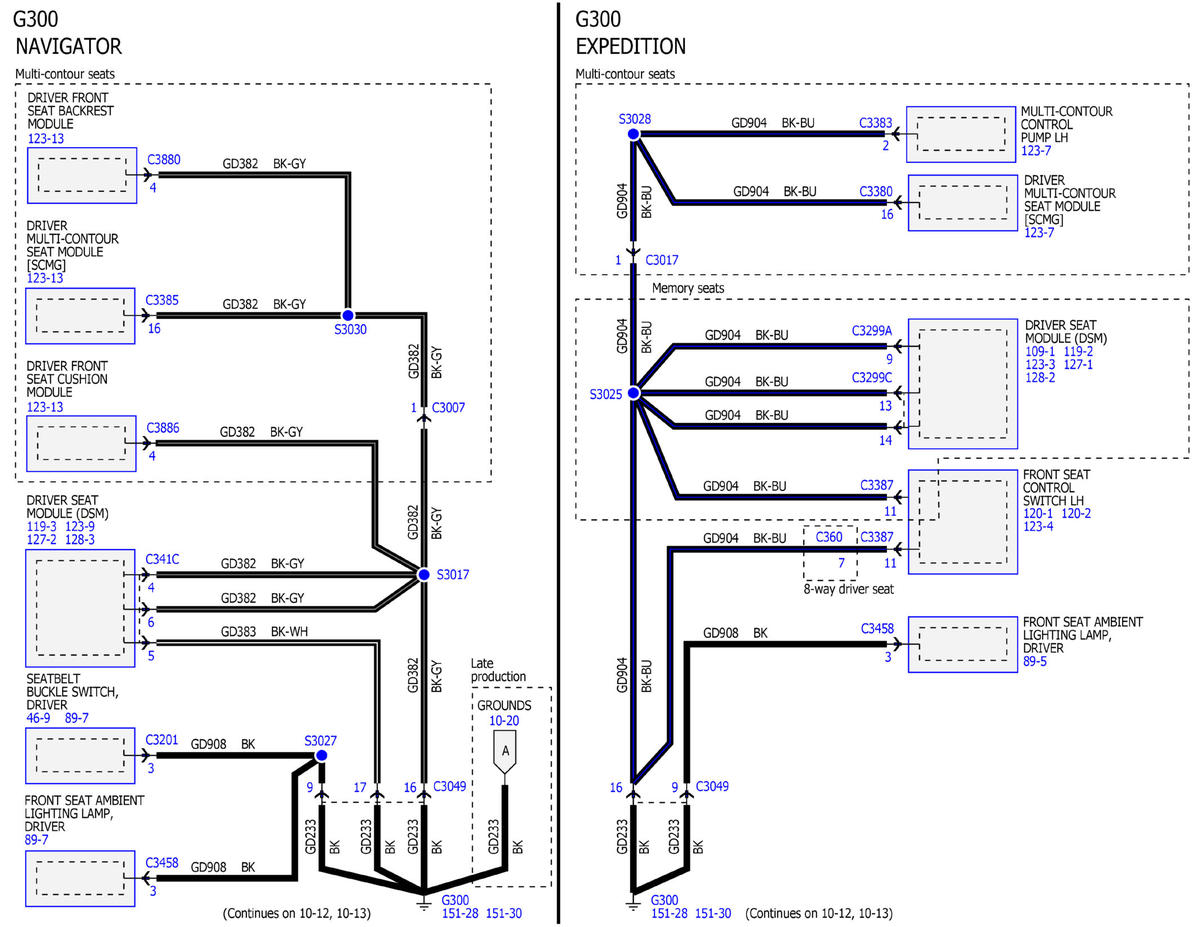

GFDWR184757Courtesy of FORD MOTOR COMPANY

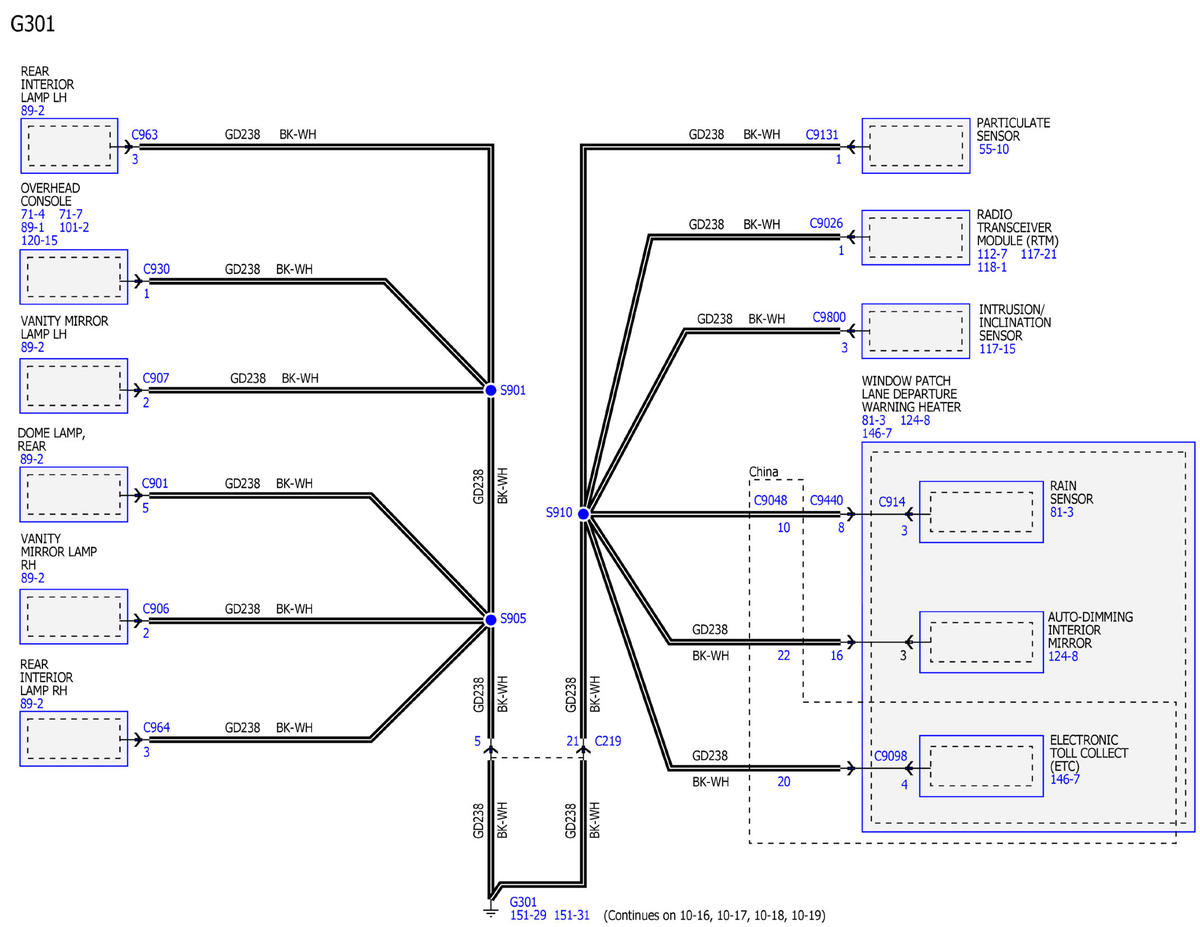

GFDWR184758Courtesy of FORD MOTOR COMPANY

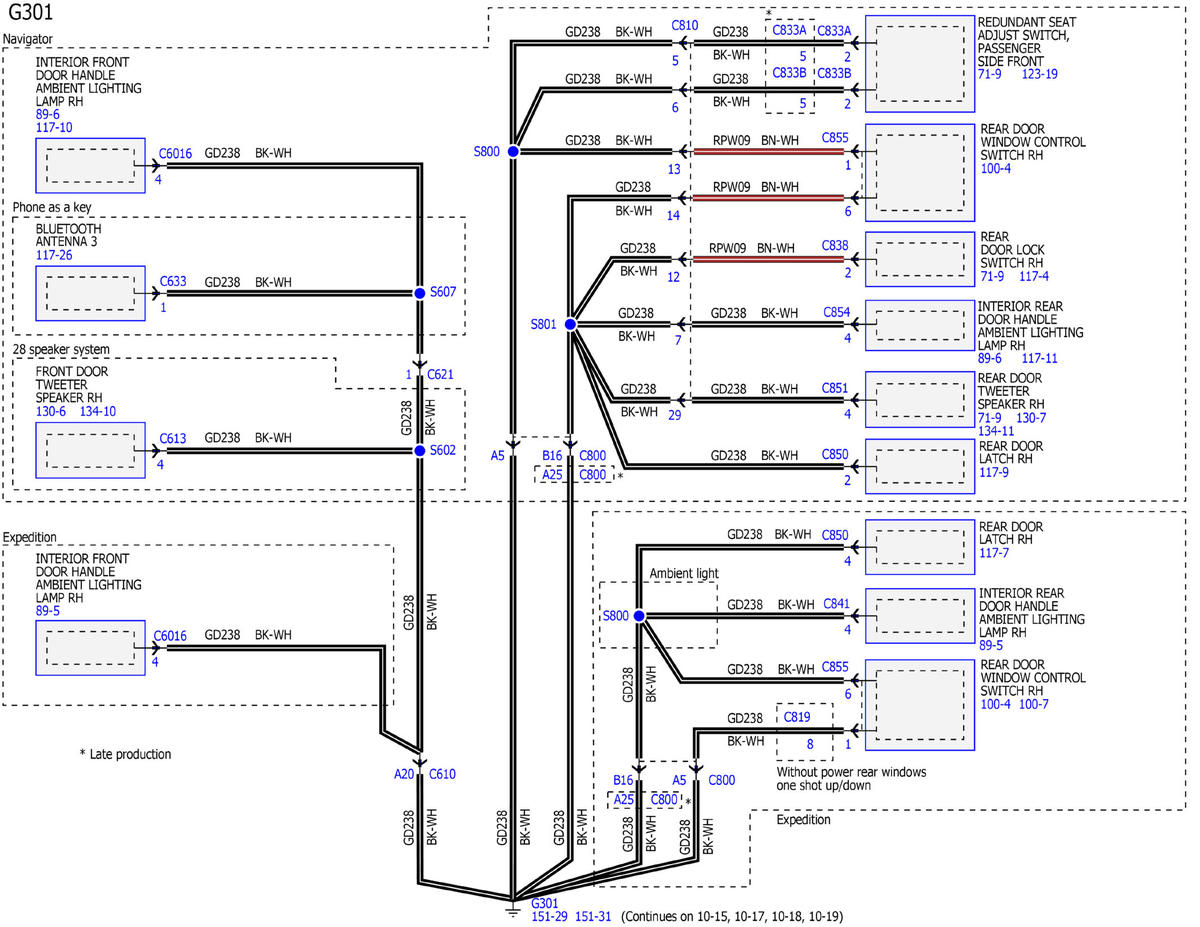

GFDWR184759Courtesy of FORD MOTOR COMPANY

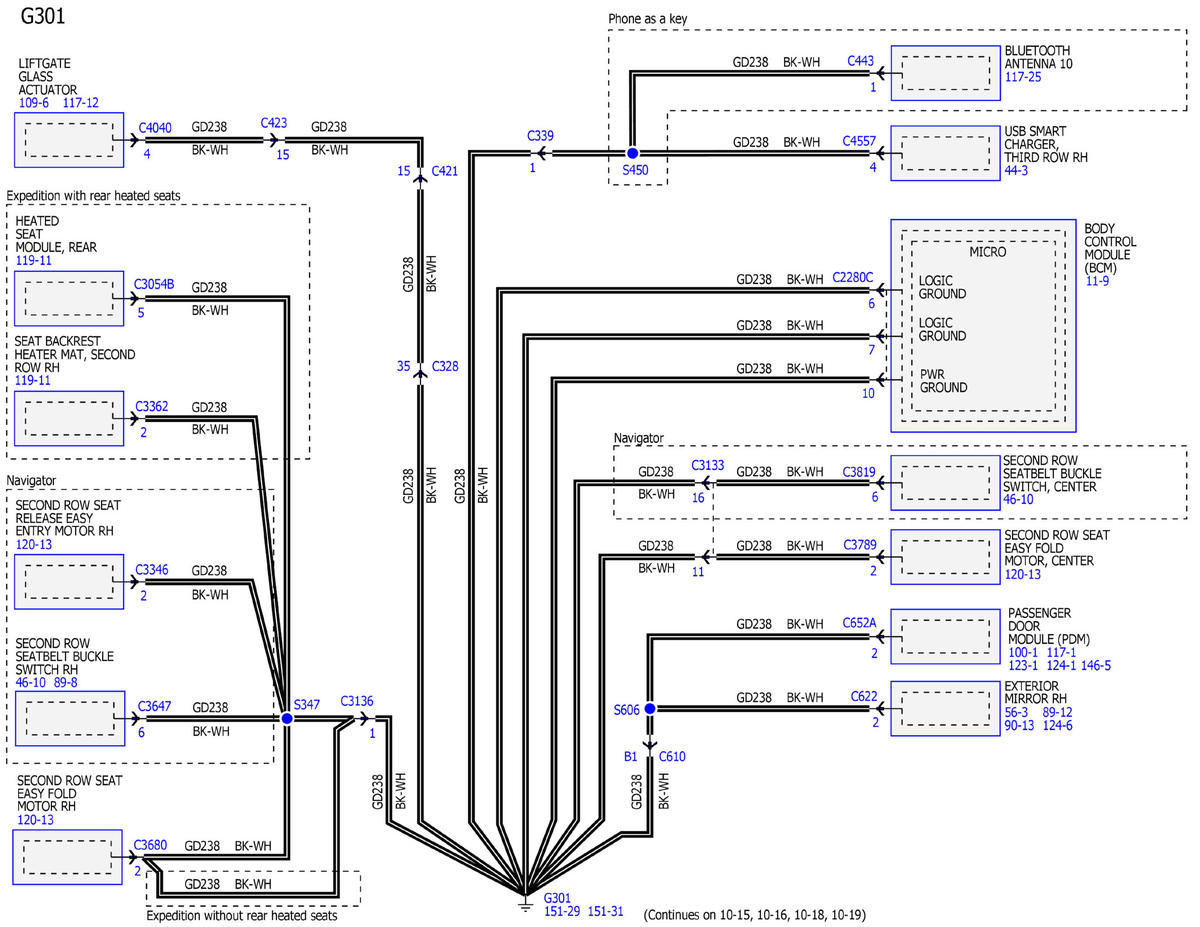

GFDWR184760Courtesy of FORD MOTOR COMPANY

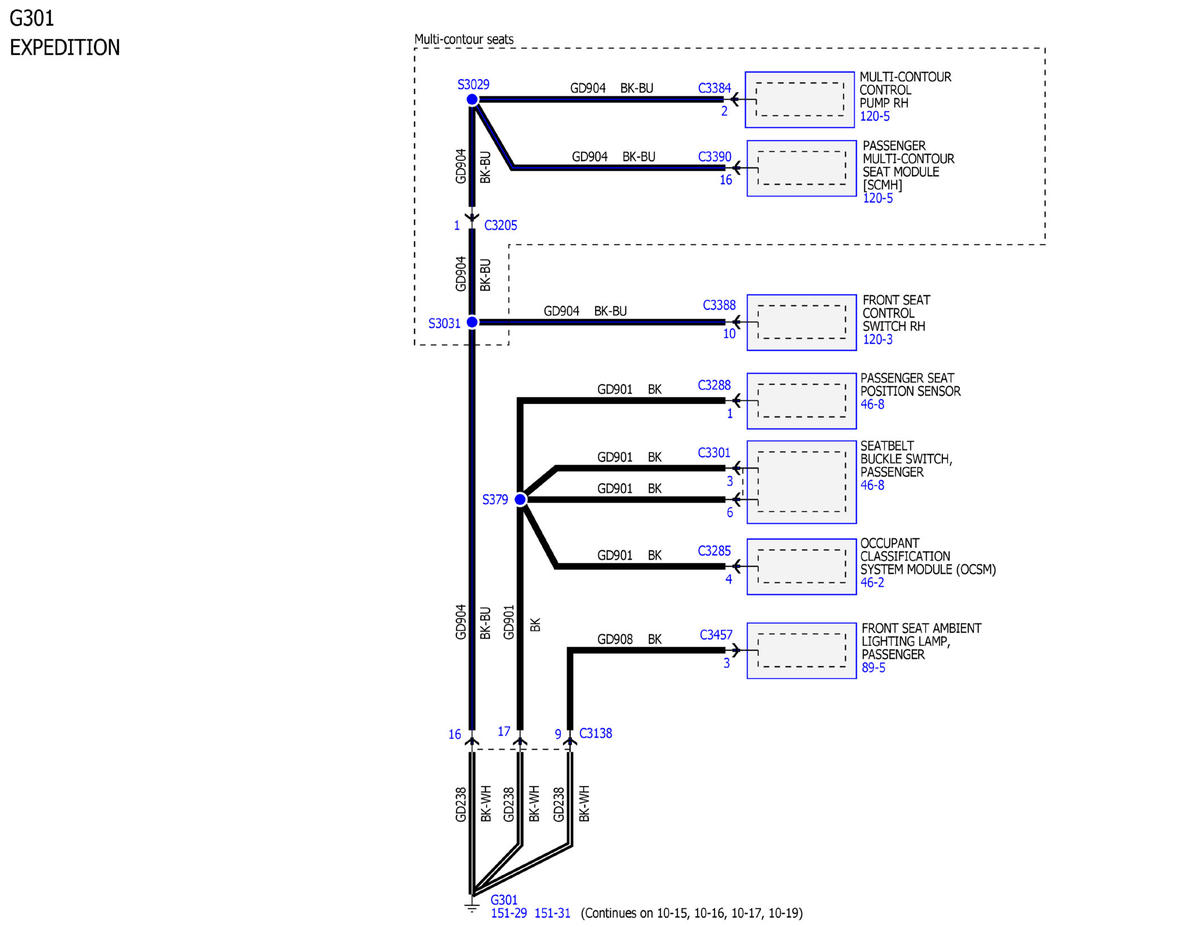

GFDWR184761Courtesy of FORD MOTOR COMPANY

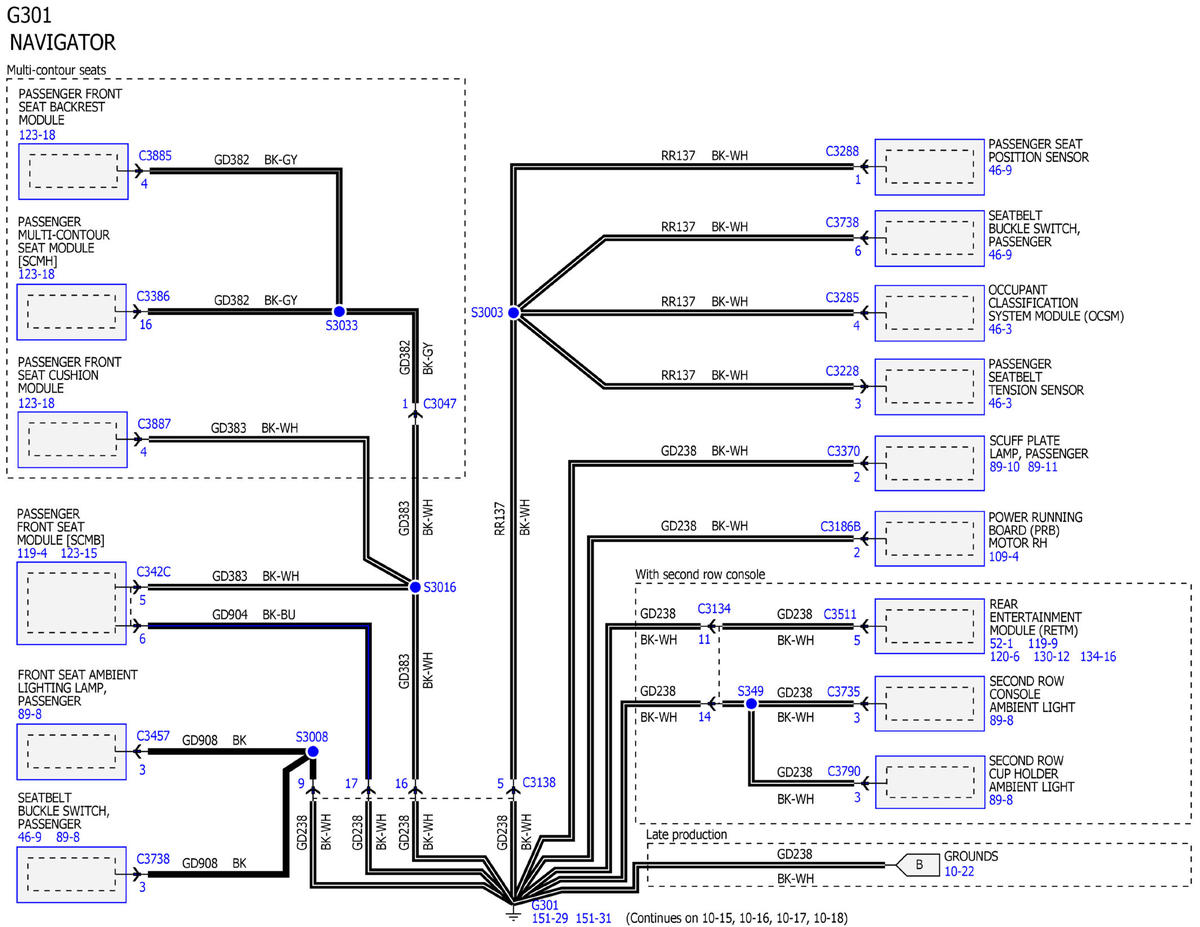

GFDWR184762Courtesy of FORD MOTOR COMPANY

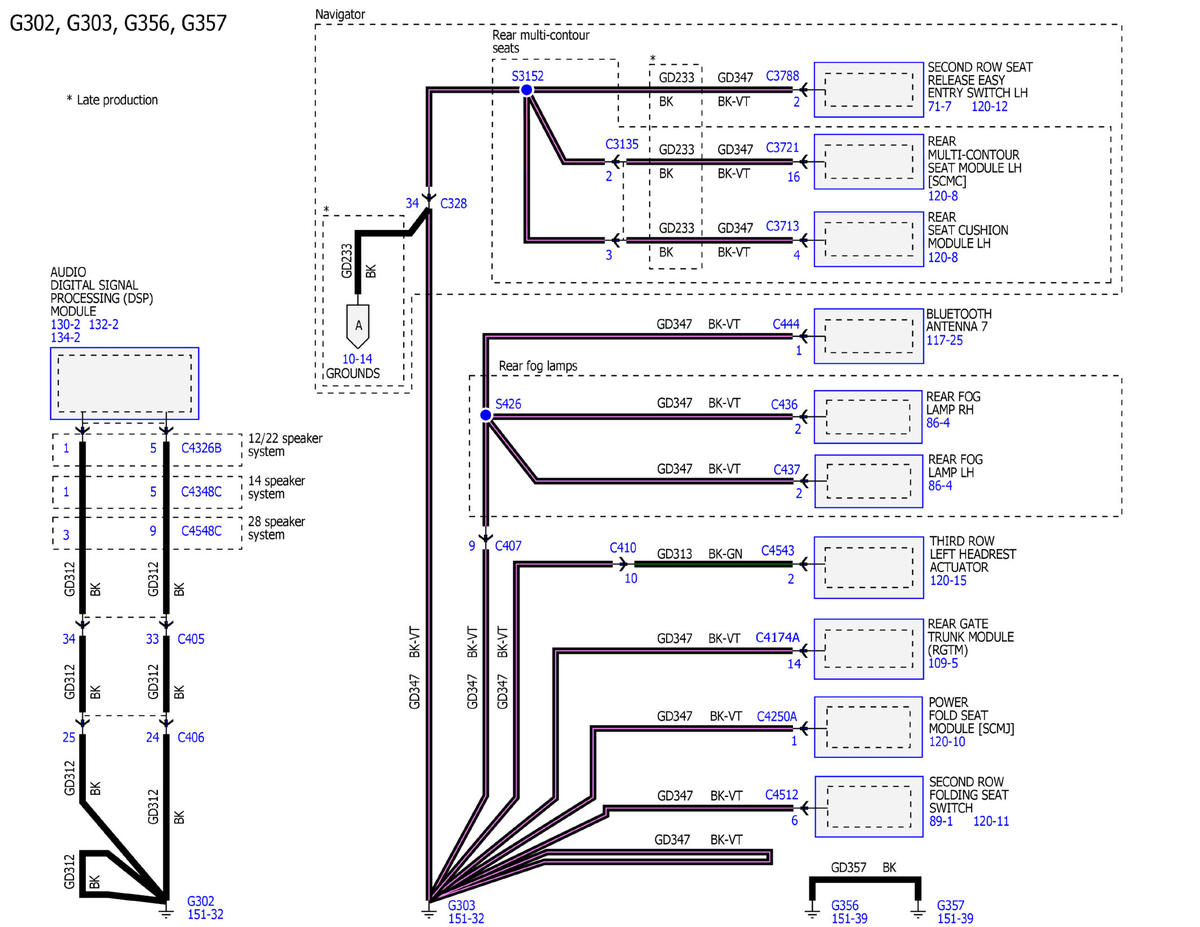

GFDWR184764Courtesy of FORD MOTOR COMPANY

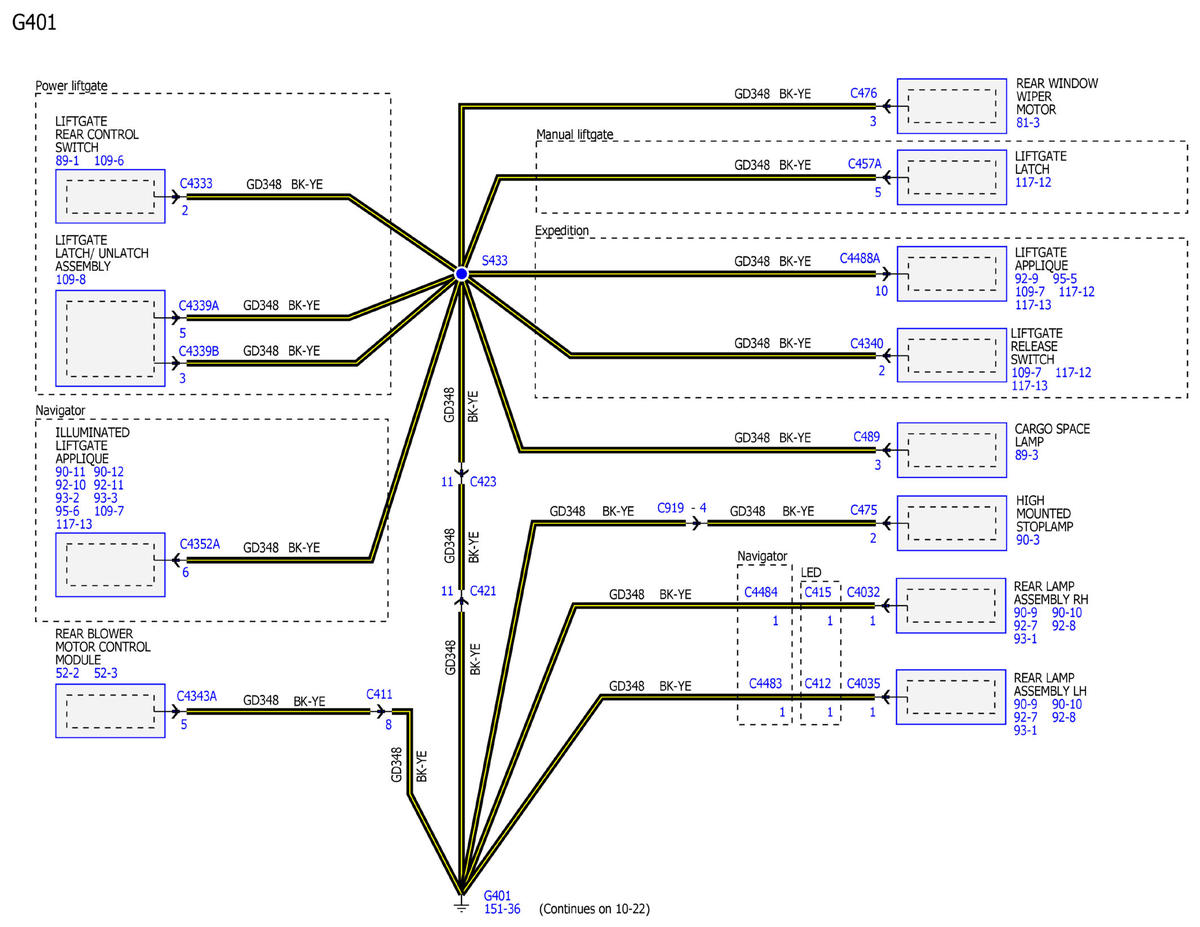

GFDWR184765Courtesy of FORD MOTOR COMPANY

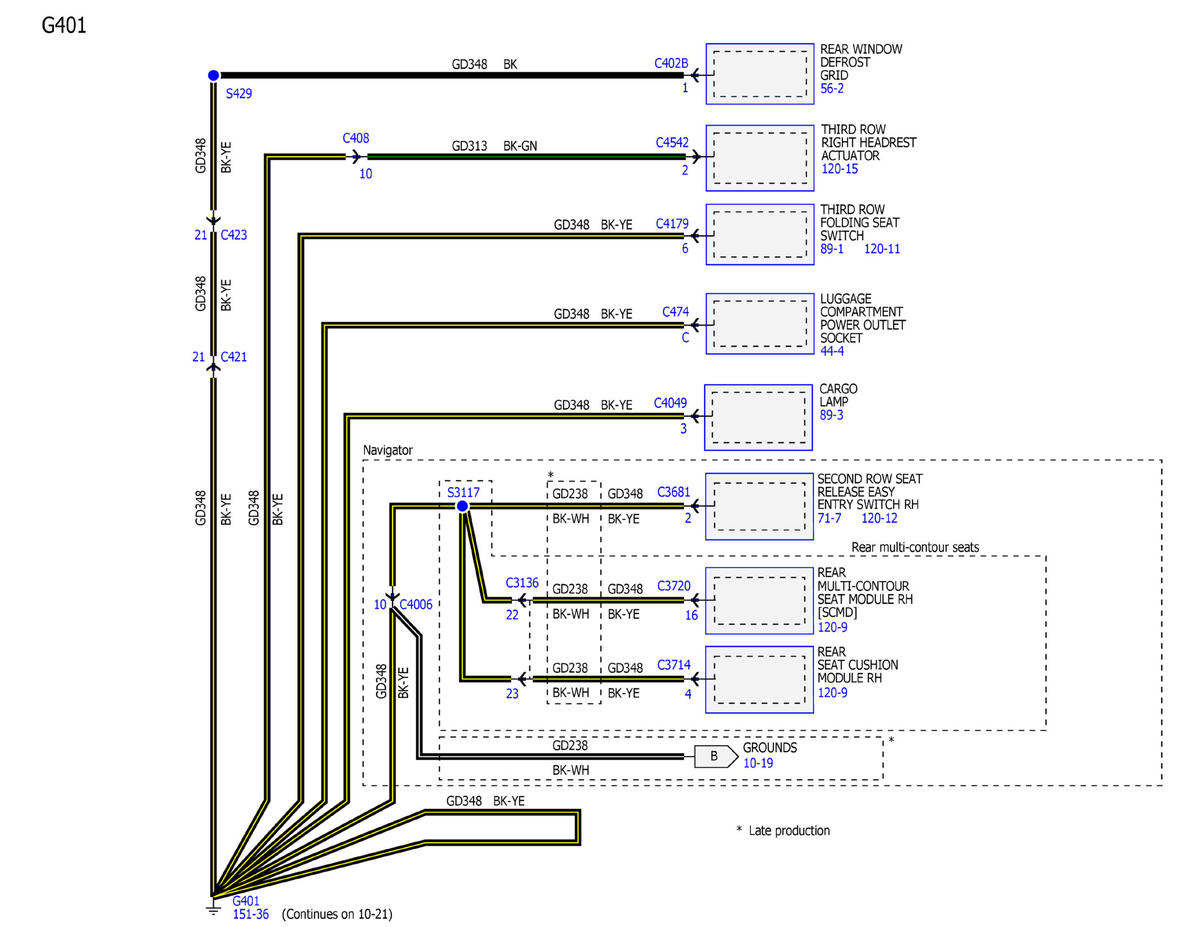

GFDWR184766Courtesy of FORD MOTOR COMPANY

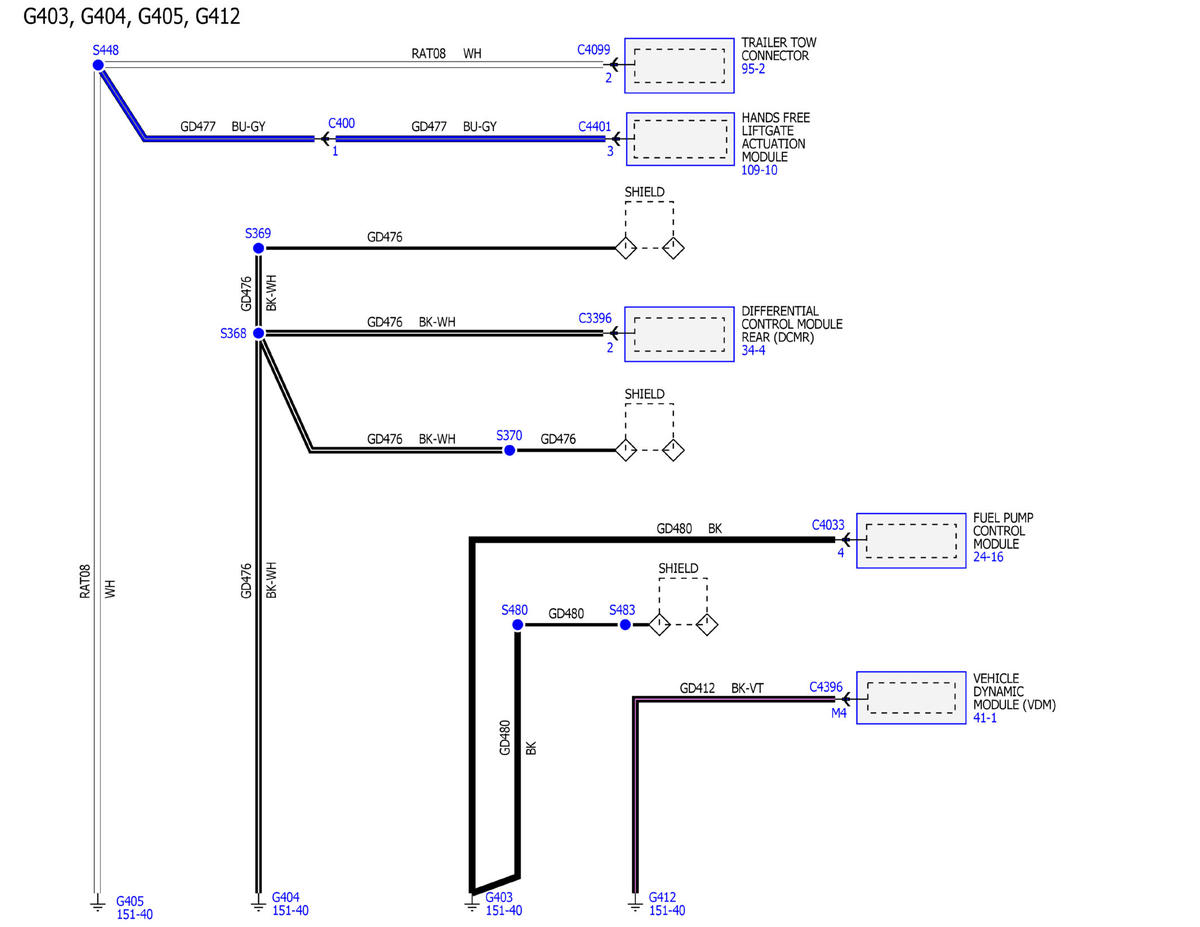

GFDWR184767Courtesy of FORD MOTOR COMPANY
