Differential Case Runout Check

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-1016 Installer, Differential Bearing TKIT-2014D-ROW2TKIT-2014D-FL_ROW
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	205-D061 (D83T-4205-C2) Step Plate
Dial Indicator
Three Leg Puller
Punch
Copper Hammer

Check

Remove the differential. Refer to: Differential Carrier .

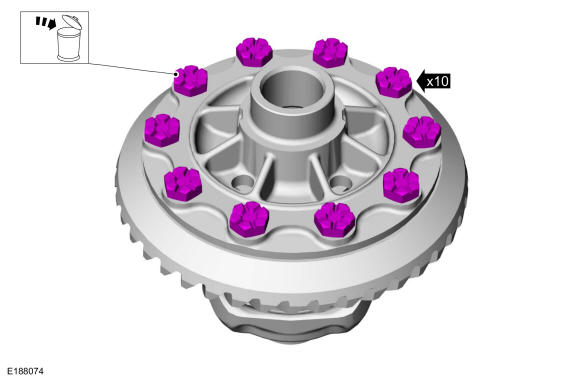

Remove and discard the ring gear bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Care should be taken not to damage the differential ring gear bolt hole threads.

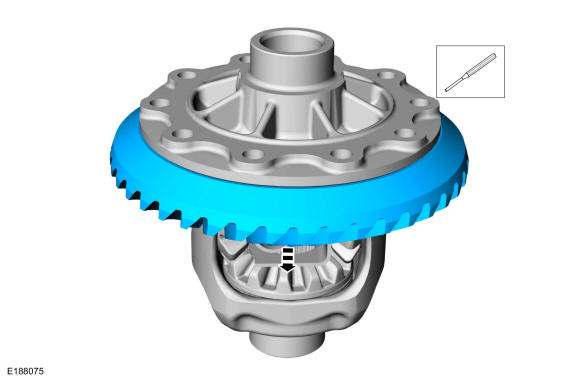

Using the general equipments, remove the ring gear. Use the General Equipment: Punch Use the General Equipment: Copper Hammer

Courtesy of FORD MOTOR COMPANY

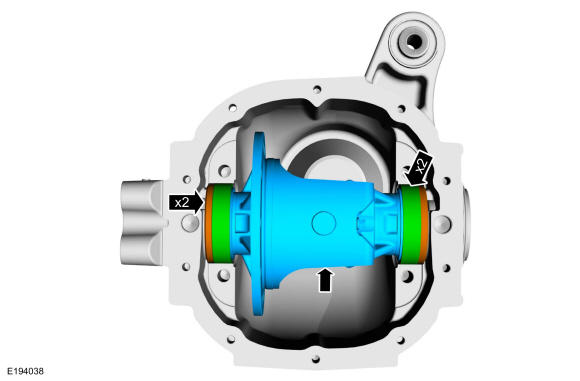

Install the Differential carrier, differential carrier bearing cups and differential bearing preload shims.

Courtesy of FORD MOTOR COMPANY

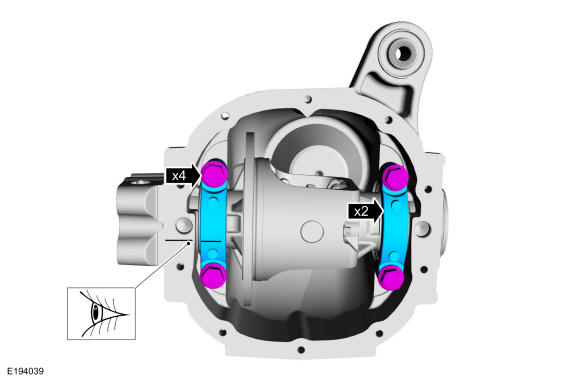

Install the differential bearing caps and bolts. Align the differential bearing caps in there original location.
Torque: 94 lb.ft (128 Nm)

Courtesy of FORD MOTOR COMPANY

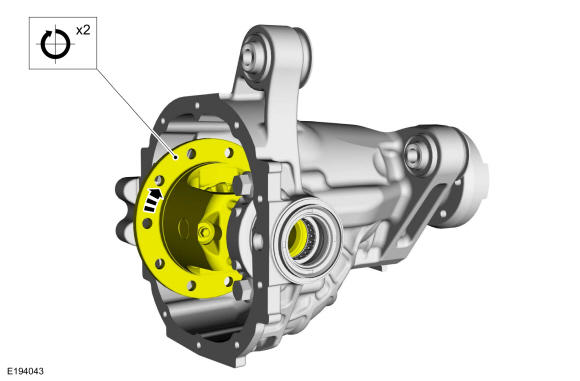

Rotate the differential carrier to make sure the bearings have seated correctly.

Courtesy of FORD MOTOR COMPANY

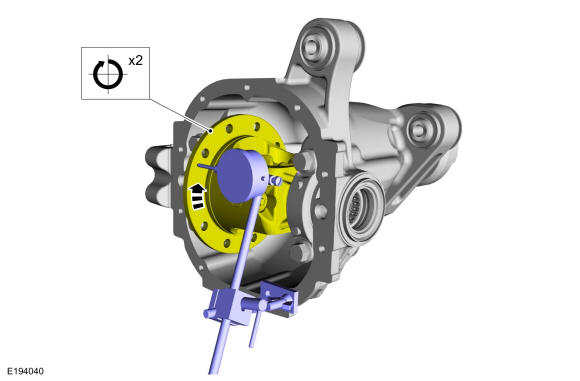

Using the dial indicator, rotate the differential carrier and measure the differential carrier runout.
- If the runout does not exceed the specification, install a new ring gear and pinion. Use the General Equipment: Dial Indicator
- If runout exceeds the specification, the ring gear is true and the condition is due to differential carrier/differential bearing damage.
- Inspect the differential bearings and the differential carrier. Always install new differential bearings when installing a new differential carrier, or if a bearing condition is questionable.
Courtesy of FORD MOTOR COMPANY

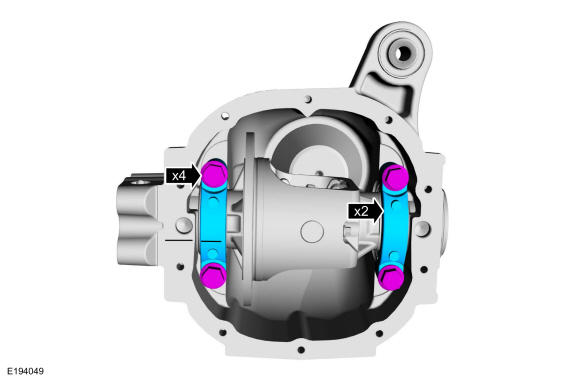

Remove the bolts and the differential bearing caps.

Courtesy of FORD MOTOR COMPANY
Remove the differential carrier, differential bearing cups, and differential bearing preload shims.

Courtesy of FORD MOTOR COMPANY
NOTE: If necessary.

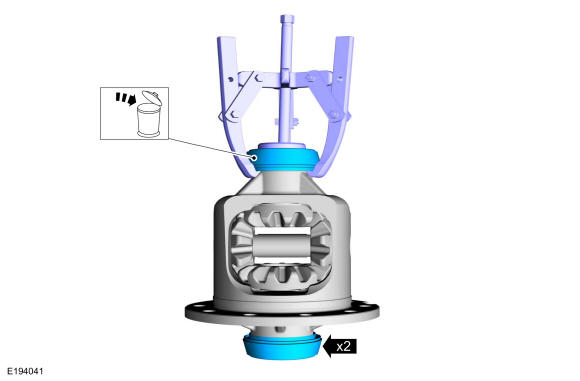

Using the special tool and the general equipment, remove and discard the differential bearings. Use Special Service Tool: 205-D061 (D83T-4205-C2) Step Plate. Use the General Equipment: Three Leg Puller

Courtesy of FORD MOTOR COMPANY

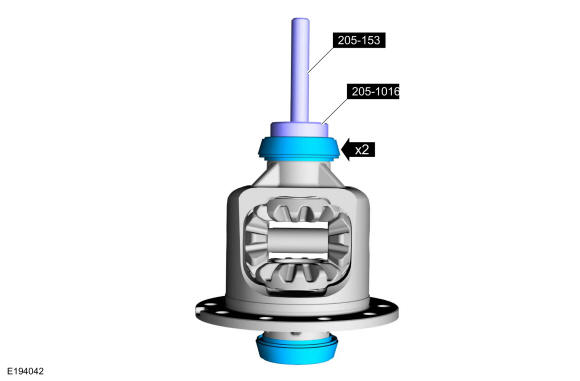

Using the special tools, install the new differential bearings. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-1016 Installer, Differential Bearing.

Courtesy of FORD MOTOR COMPANY
Install the Differential carrier, differential carrier bearing cups and differential bearing preload shims.

Courtesy of FORD MOTOR COMPANY
Install the differential bearing caps and bolts. Align the differential bearing caps in there original location.

Courtesy of FORD MOTOR COMPANY
Rotate the differential carrier to make sure the bearings have seated correctly.

Courtesy of FORD MOTOR COMPANY
NOTE: If the runout is still excessive, install a new differential case.

Using the dial indicator, rotate the differential carrier and measure the differential carrier runout. Use the General Equipment: Dial Indicator

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the differential bearing caps.

Courtesy of FORD MOTOR COMPANY
Remove the differential carrier, differential bearing cups, and differential bearing preload shims.

Courtesy of FORD MOTOR COMPANY

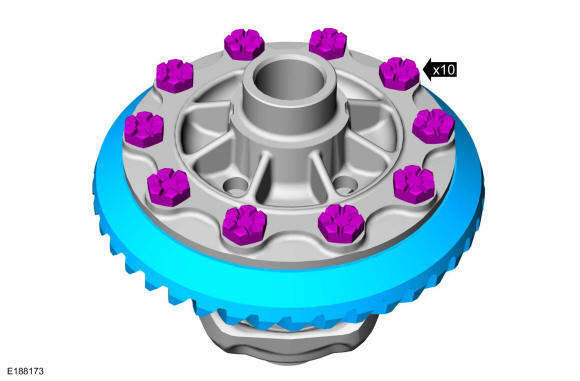

NOTE: Tighten the ring gear bolts in a cross pattern.

Install the ring gear and the new ring gear bolts.

Torque: 94 lb.ft (128 Nm)

Courtesy of FORD MOTOR COMPANY
Install the differential carrier. Refer to: Differential Carrier .
