Axle Assembly: Removal

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The removal steps may contain installation instructions.

Remove the front driveshaft. Refer to: Front Driveshaft .
Remove the front halfshafts. Refer to: Halfshaft .
NOTE: If equipped.

Remove the bolts and remove the underbody shield.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

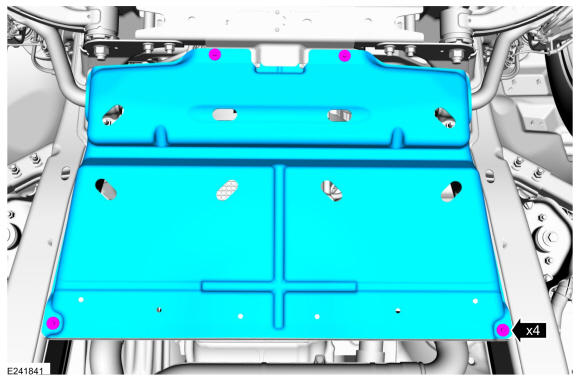

Remove the bolts and remove the underbody shield.

Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

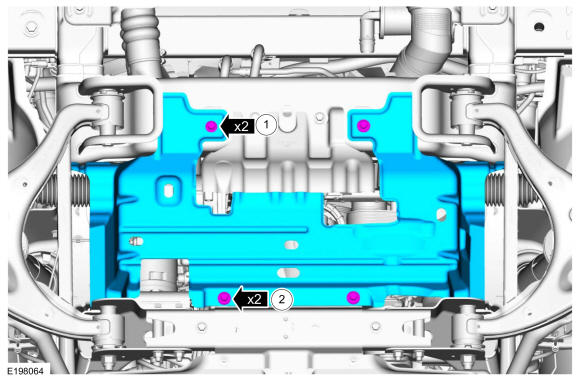

Remove the engine front undershield.
1. Remove the bolts.
  Torque: 30 lb.ft (40 Nm)
2. Remove the bolts.
  Torque: 71 lb.in (8 Nm)
Courtesy of FORD MOTOR COMPANY

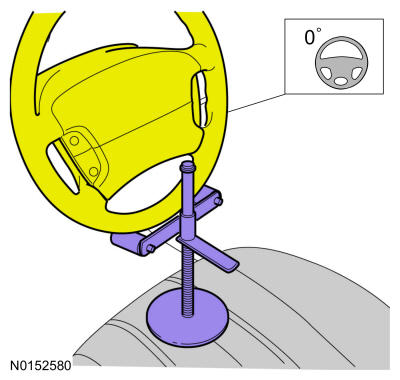

Using a holding device, hold the steering wheel in the straight-ahead position.

Courtesy of FORD MOTOR COMPANY

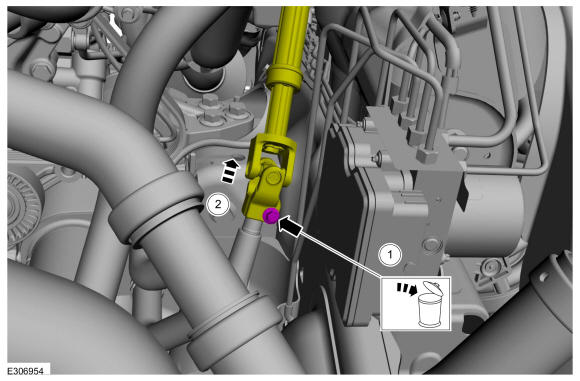

1. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

  Remove and discard the steering column shaft bolt.

  Torque: 35 lb.ft (48 Nm)
2. Separate the steering column shaft U-joint from the steering gear.
Courtesy of FORD MOTOR COMPANY

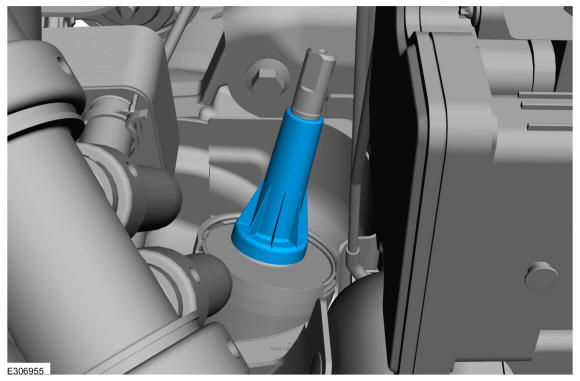

Remove the steering gear boot.

Courtesy of FORD MOTOR COMPANY

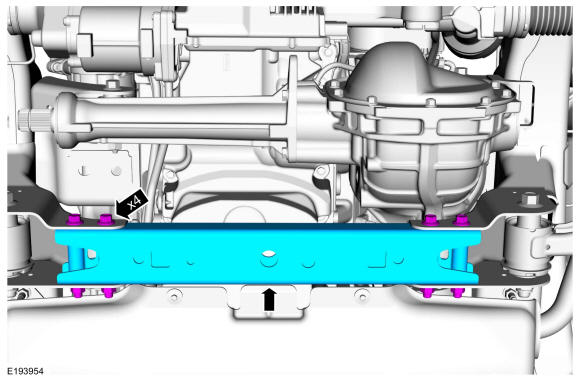

Remove the nuts, bolts and the crossmember.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

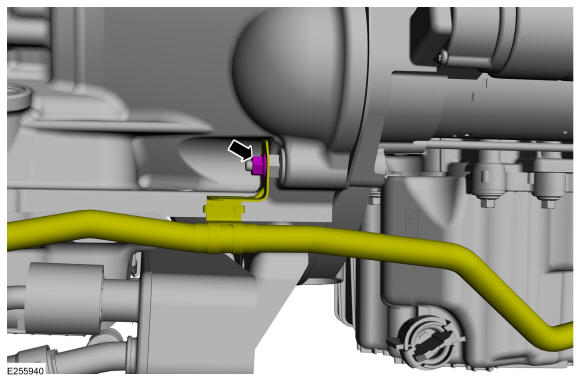

Remove the nut and position the transmission cooler tube bracket aside.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

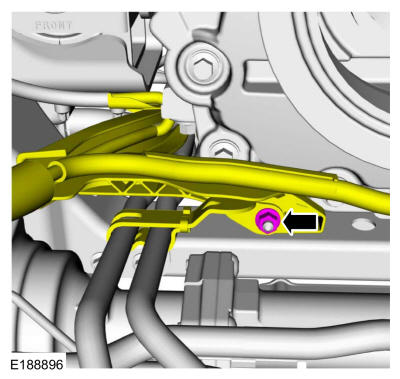

Remove the nut and position out the transmission cooler tube bracket. Position out the engine wiring harness.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

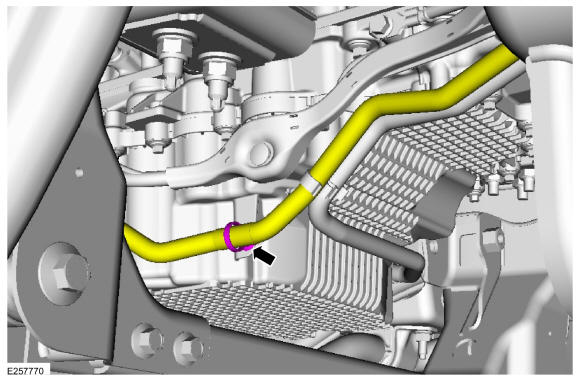

Remove the pin-type retainer and position the transmission cooler tube aside.

Courtesy of FORD MOTOR COMPANY

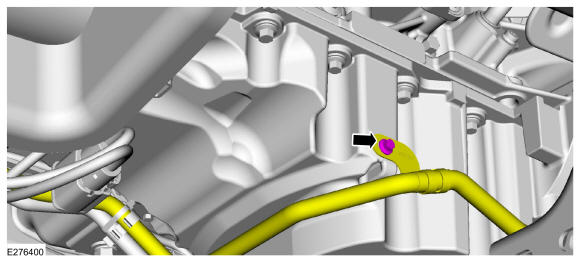

Remove the bolt and position the transmission cooler tube aside.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

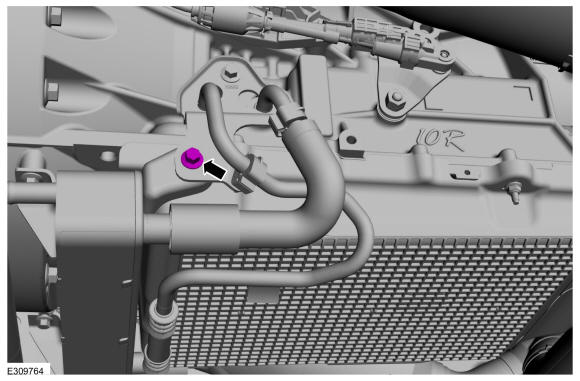

Remove the transmission cooler bracket bolt.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

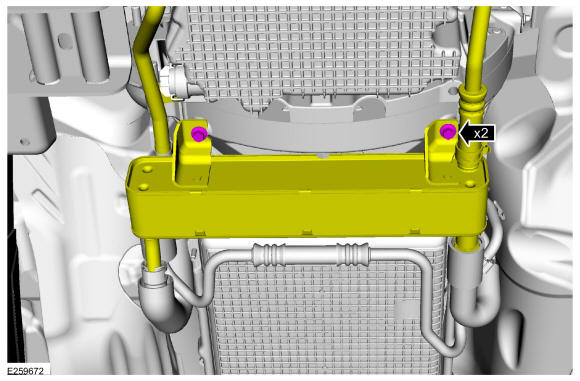

Remove the bolts and position transmission cooler down.
Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

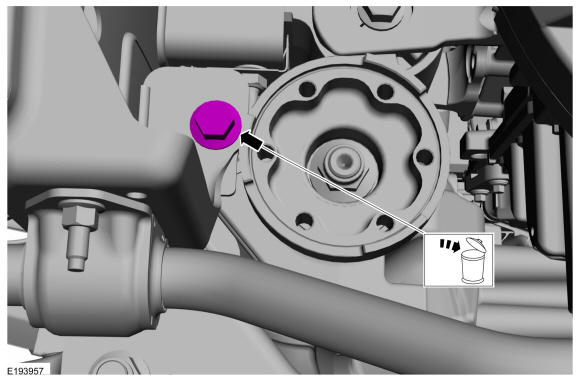

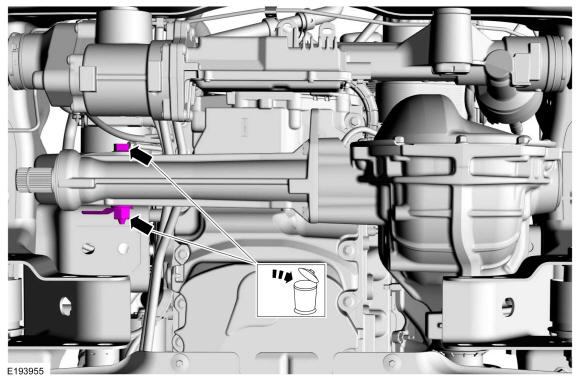

Remove and discard the axle tube bushing bolt and flagnut.
Torque: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The transmission jack is not shown for clarity.
- With the transmission jack in place to secure the front axle assembly. Use the General Equipment: Transmission Jack
- Remove and discard the front axle housing bushing bolt.
  Torque: 129 lb.ft (175 Nm)
Courtesy of FORD MOTOR COMPANY

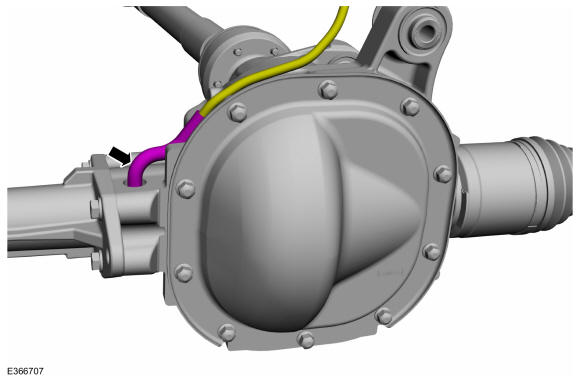

Disconnect the front differential breather hose and position aside.

Courtesy of FORD MOTOR COMPANY
NOTE: The transmission jack is not shown for clarity.

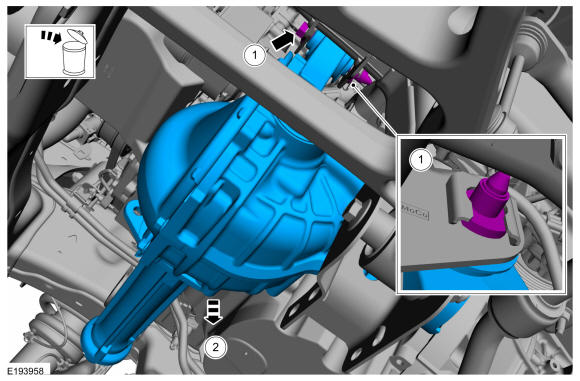

Remove the front axle assembly.
1. Remove and discard the front axle housing bolt and T-nut.
  Torque: 111 lb.ft (150 Nm)
2. Lower the front axle assembly.
