Front Wheel Speed Sensor: Removal
WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the brake disc shield. Refer to: Brake Disc Shield .

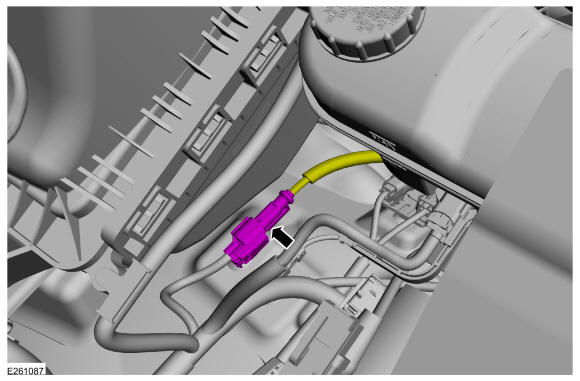

- Disconnect the wheel speed sensor electrical connector.

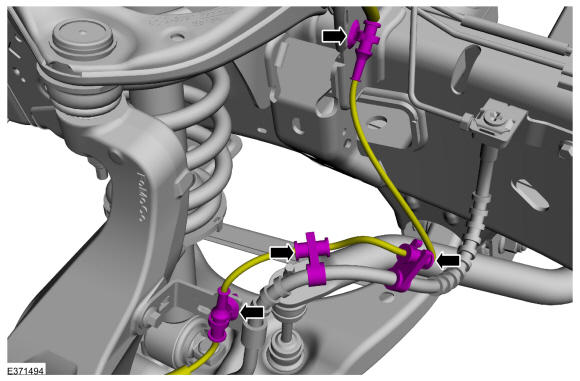

- Detach the wiring retainers.

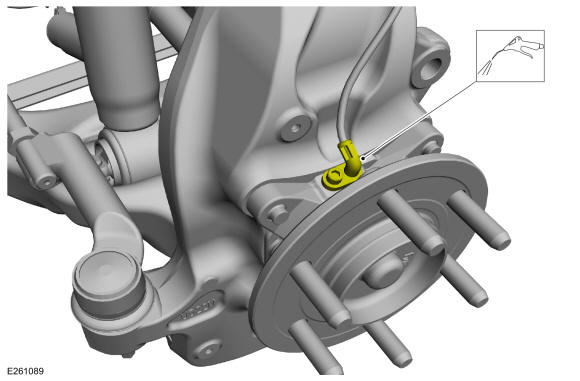

- Using compressed air, clean the area surrounding the front wheel speed sensor.

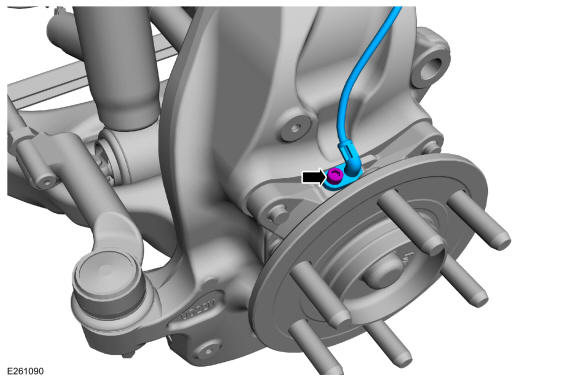

- Remove the bolt and the front wheel speed sensor.
Torque: 150 lb.in (17 Nm)
