Frame Members-Front Frame Section: Installation

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Front Frame Short Section

NOTE: LH side shown, RH side similar.
  1. Verify dimensional accuracy before  performing any welding operations. Refer to: appropriate Body and Frame article.
  2. NOTE: Check that the Front End Sheet Metal (FESM) body mount bracket lines up with the sheet metal hole for the body mount bolt.

    Install the front frame section inside the mid front rail of the frame and tack weld at 4 locations. Refer to: BODY SYSTEM - GENERAL INFORMATION

    Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers

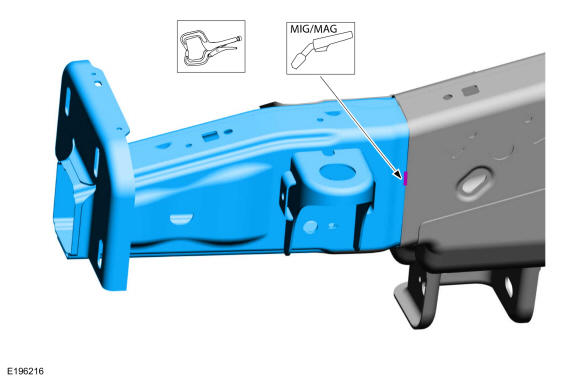

    GFD710158Courtesy of FORD MOTOR COMPANY
  3. Re-check the frame replacement alignment by lowering the body, and then raise it. Weld the joint completely if this alignment is correct. Use the General Equipment: MIG/MAG Welding Equipment

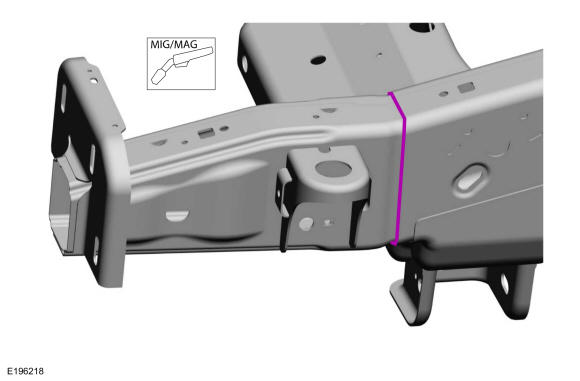

    GFD710159Courtesy of FORD MOTOR COMPANY
  4. Metal finish the repair area using typical metal finishing techniques.
  5. Refinish using a Ford approved paint system.
  6. Restore corrosion protection. Refer to: the appropriate Corrosion Prevention article.

    Front Frame Section

  7. With the help of an assistant, position the new front frame section into place on the vehicle.

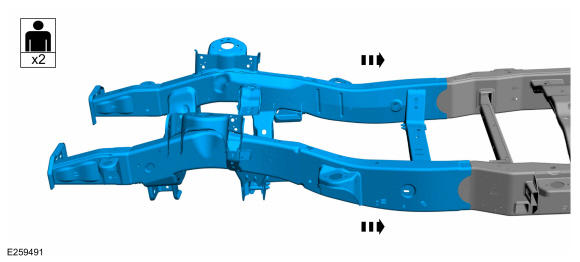

    GFD710160Courtesy of FORD MOTOR COMPANY
  8. Verify dimensional accuracy before  performing any welding operations. Refer to: the appropriate Body and Frame article.
  9. Support the new section, and loosely clamp the replacement section in a preliminary position.

    • Verify correct dimensions, then solid weld the new section to the original on all overlap joints. Refer to: BODY SYSTEM - GENERAL INFORMATION Refer to: the appropriate Body and frame article.

      Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers

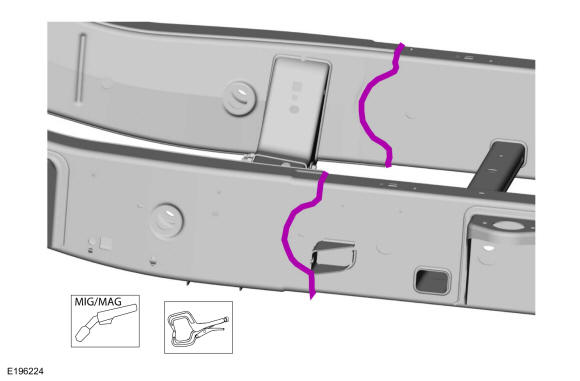

    GFD710161Courtesy of FORD MOTOR COMPANY
  10. Metal finish the repair area using typical metal finishing techniques.
  11. Refinish using a Ford approved paint system.
  12. Restore corrosion protection. Refer to: the appropriate Corrosion Prevention article.
  13. Install the following items:

    1. Refer to: Transmission Support Crossmember .
    2. If equipped. Refer to: Front Driveshaft .
    3. If equipped.
    4. Refer to: Shock Absorber and Spring Assembly - 4WD . Refer to: Shock Absorber and Spring Assembly - RWD .
    5. Install the lower control arm, if equipped with 2WD. Refer to: Lower Arm .
    6. Install the lower control arm, if equipped with 4WD. Refer to: Lower Arm .
    7. Install the upper control arm, if equipped with 2WD. Refer to: Upper Arm .
    8. Install the upper control arm, if equipped with 4WD. Refer to: Upper Arm .
    9. Refer to: Steering Gear .
    10. Reposition the engine and transmission assembly. Refer to: Engine Mount RH . Refer to: Engine Mount LH .
    11. Reconnect the exhaust system to the engine. Refer to: Catalytic Converter RH . Refer to: Catalytic Converter LH .

    All vehicles

  14. Install the following items:

    1. Refer to: Front Bumper .
    2. Refer to: Fender .
