Hood Alignment: Inspection
WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

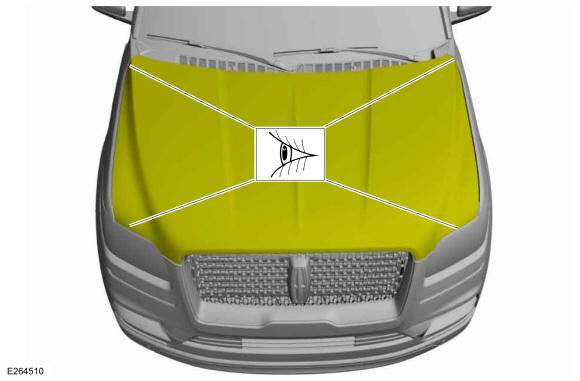

- Inspect the hood-to-body dimensions. Refer to:
.
All alignments
- Remove the hood latch. Refer to: Hood Latch
.
Hood fore and aft, left and right alignments

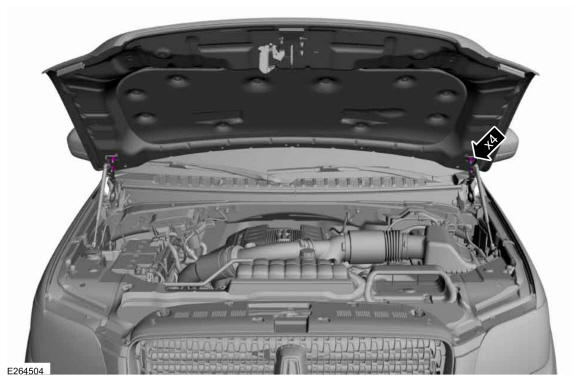

- Loosen the nuts to permit movement of the hood.

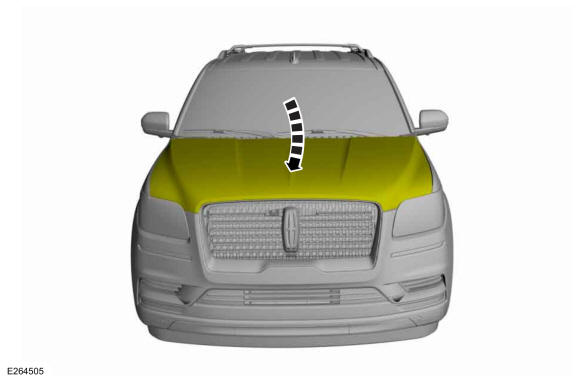

- Carefully close the hood.

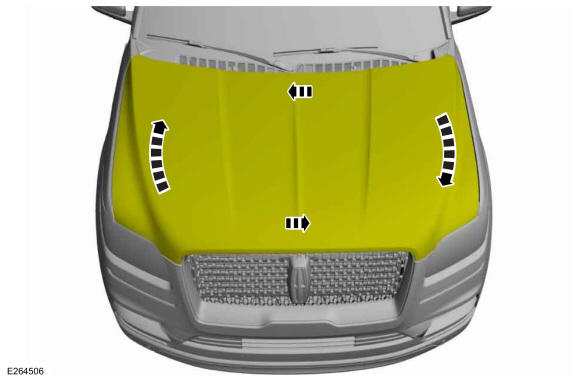

- Adjust the hood to specification. Refer to:
.

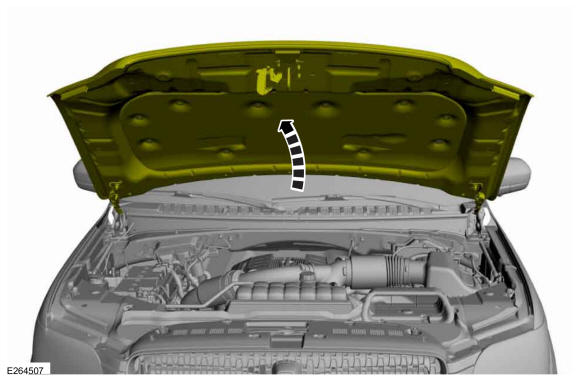

- Carefully open the hood.
- Tighten the nuts.
Torque: 17 lb.ft (23 Nm)
Hood front up and down alignments

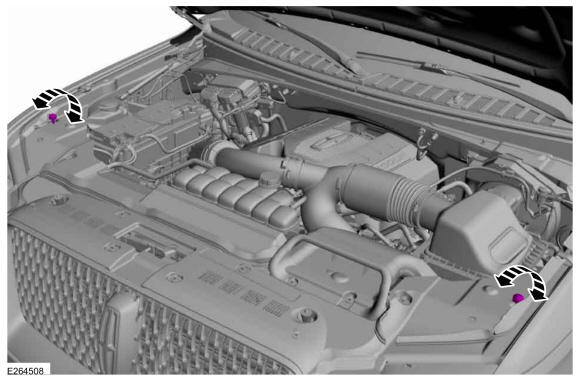

- Adjust the bump stop rubbers.
- Carefully close the hood.
- Adjust the hood to specification. Refer to:
.
All alignments
- Install the hood latch. Refer to: Hood Latch .
- Inspect the body-to-hood dimensions. Refer to: .
