Vehicle Dynamics Control Module (VDM): Removal

WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The current PMI process must begin with the current VDM installed. If the current VDM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the VDM following the on-screen instructions.

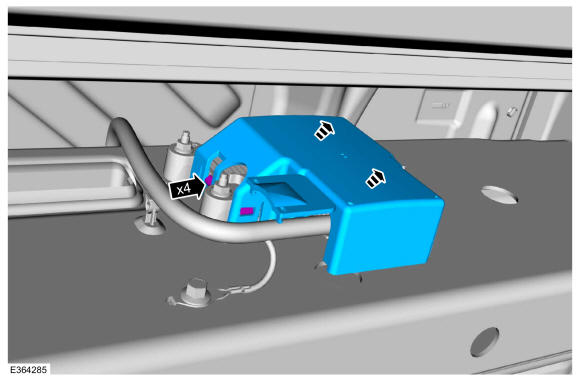

Release the clips and remove the VDM cover.

Courtesy of FORD MOTOR COMPANY

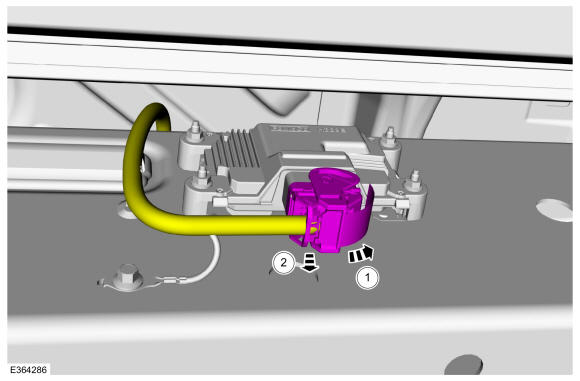

1. Unlatch the VDM electrical connector.
2. Disconnect the VDM electrical connector.
Courtesy of FORD MOTOR COMPANY

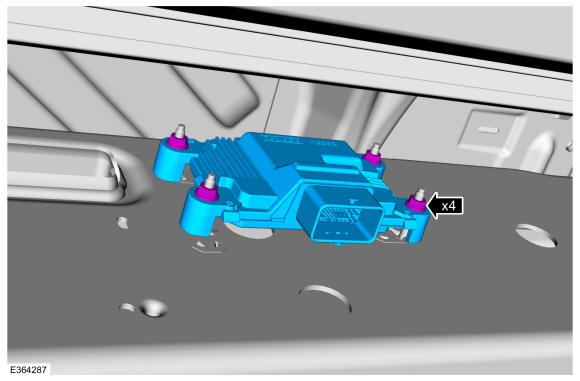

NOTE: The VDM is mounted to the LH outside frame rail.

Remove the retainers and the VDM.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
