Hood Alignment

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Inspection

NOTE: Removal steps in this procedure may contain installation details.

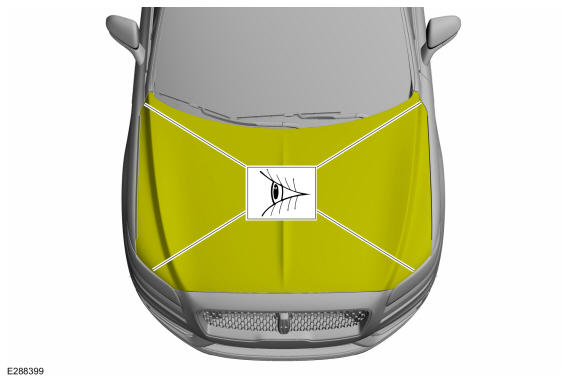

Inspect the hood-to-body dimensions. Refer to: the appropriate service information. .
All alignments

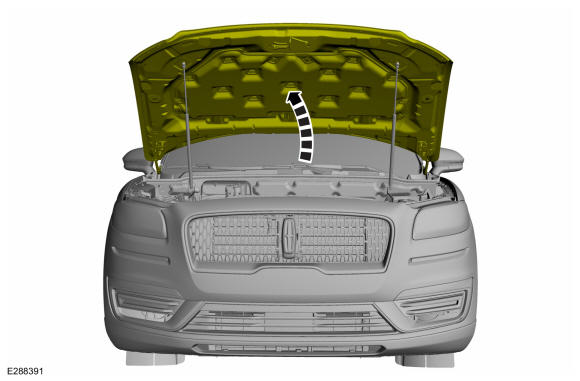

Open the hood.

Courtesy of FORD MOTOR COMPANY
NOTE: Support the hood before removing the struts. Failure to follow this direction may result in damage to the components.

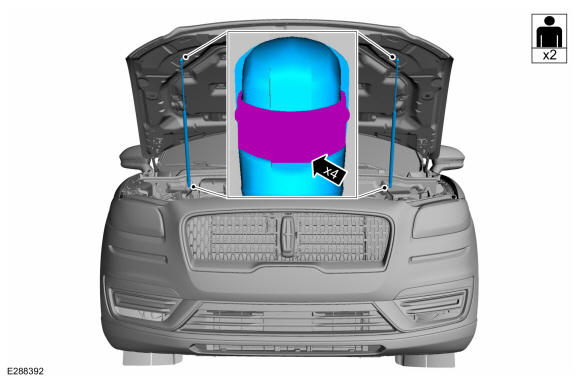

Release the clips and remove the struts.

Courtesy of FORD MOTOR COMPANY
Remove the hood latch. Refer to: Hood Latch .
Hood fore and aft, left and right alignments

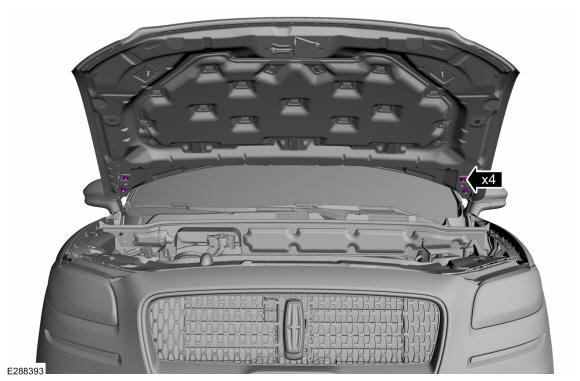

Loosen the nuts enough to permit movement of the hood.

Courtesy of FORD MOTOR COMPANY

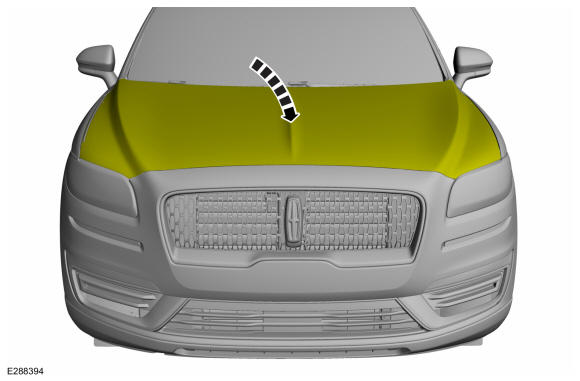

Carefully close the hood.

Courtesy of FORD MOTOR COMPANY

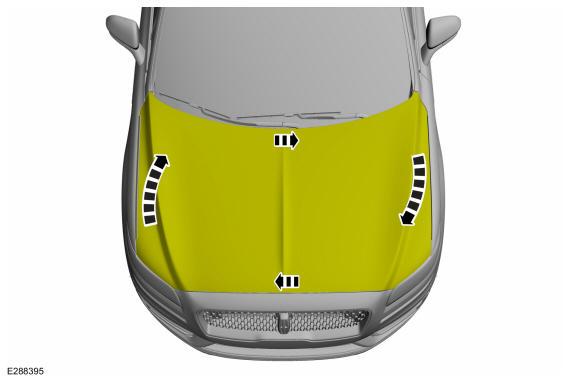

Adjust the hood to specification. Refer to: the appropriate service information. .

Courtesy of FORD MOTOR COMPANY

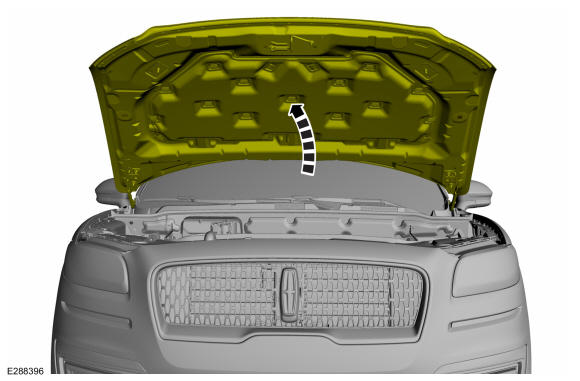

Carefully open the hood.

Courtesy of FORD MOTOR COMPANY
Tighten the nuts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Hood front up and down alignments

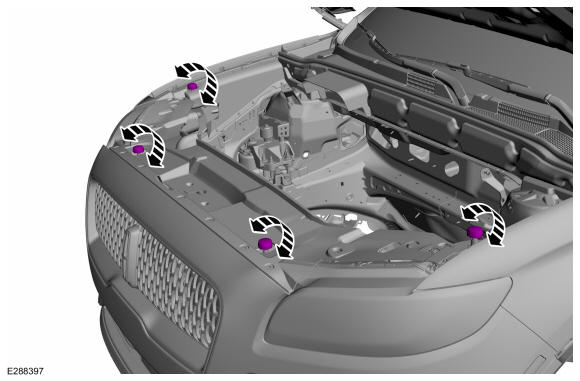

Adjust the bump stop rubbers.

Courtesy of FORD MOTOR COMPANY
Carefully close the hood.

Courtesy of FORD MOTOR COMPANY
Adjust the hood to specification. Refer to: the appropriate service information. .

Courtesy of FORD MOTOR COMPANY

All alignments
Carefully open the hood.

Courtesy of FORD MOTOR COMPANY
Install the struts and secure the clips.

Courtesy of FORD MOTOR COMPANY
Install the hood latch. Refer to: Hood Latch .
Inspect the body-to-hood dimensions. Refer to: the appropriate service information. .

Courtesy of FORD MOTOR COMPANY
