Differential Fluid Level Check
WARNING: This page is about a different car, the 2023 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL | WSS-M2C942-A |
Check
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting .
-
NOTE: If equipped.

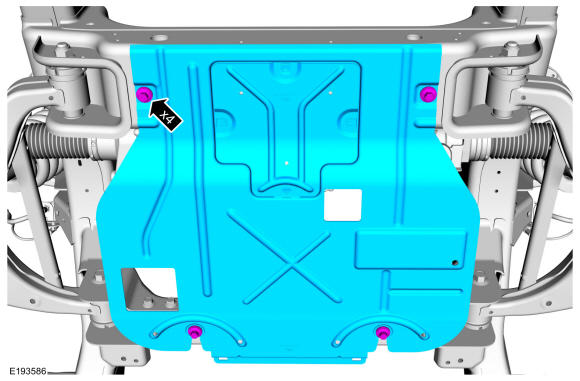

Remove the bolts and remove the underbody shield.
-
NOTE: If equipped.

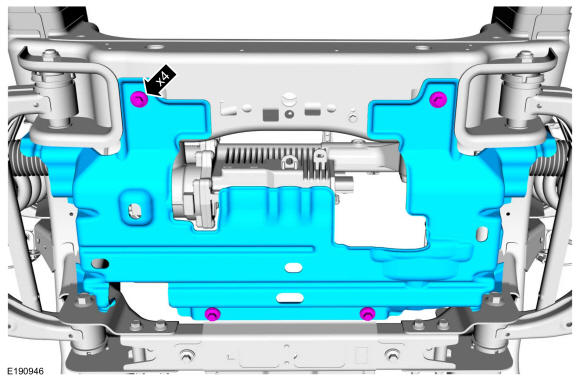

Remove the bolts, and remove the underbody shield.
-
NOTE: If equipped.

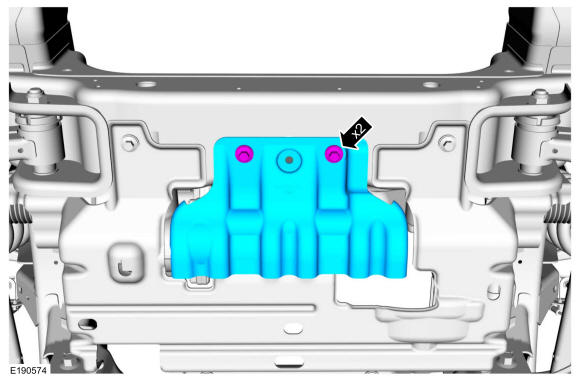

Remove the bolts and remove the underbody shield.

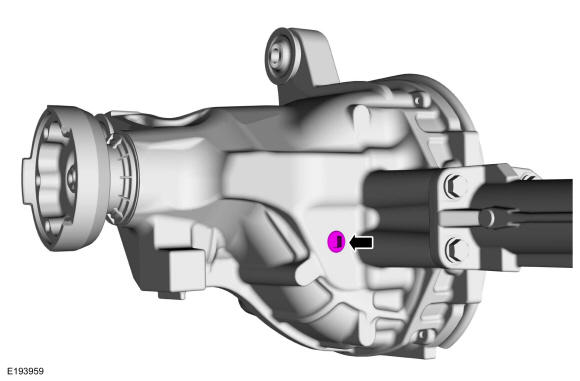

- Remove the front differential fill plug.

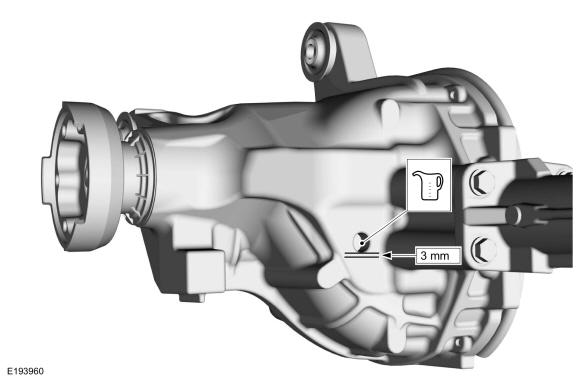

- Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 3mm (0.118 in.) from the fluid level fill plug opening. Install the differential fill plug.
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
- Install the front differential fill plug.
Torque: 18 lb.ft (25 Nm)
-
NOTE: If equipped.
Install the underbody shield and underbody shield bolts.
Torque: 71 lb.in (8 Nm)
-
NOTE: If equipped.
Install the underbody shield and the bolts.
Torque: 30 lb.ft (40 Nm)
-
NOTE: If equipped.
Install the underbody shield and the bolts.
Torque: 71 lb.in (8 Nm)
