Body Control Module C (BCMC): Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: If the BCMC (body control module C) did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair. This step is only necessary if the BCMC (body control module C) is being replaced.
Using a diagnostic scan tool, begin the PMI process for the BCMC following the on-screen instructions.
- Disconnect the battery. Refer to: Battery Disconnect and Connect .
- Remove the LH fender splash shield. Refer to: Fender Splash Shield .

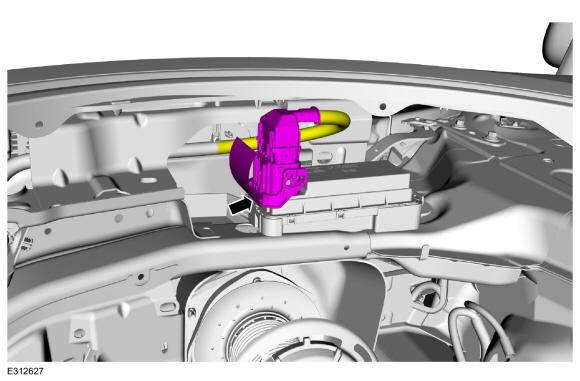

- Disconnect the BCMC wiring connector.

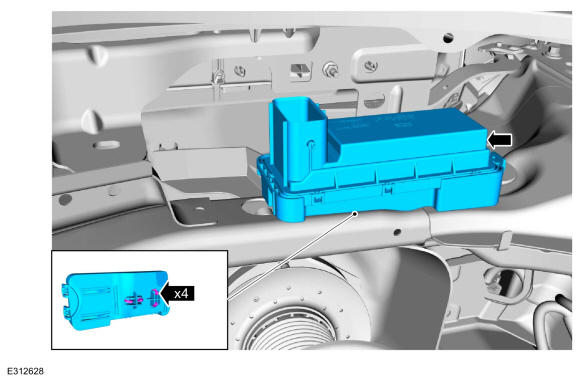

- Gently release the clips and remove the BCMC.
