Front Door Alignment

WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Interior Trim Remover

Inspection

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

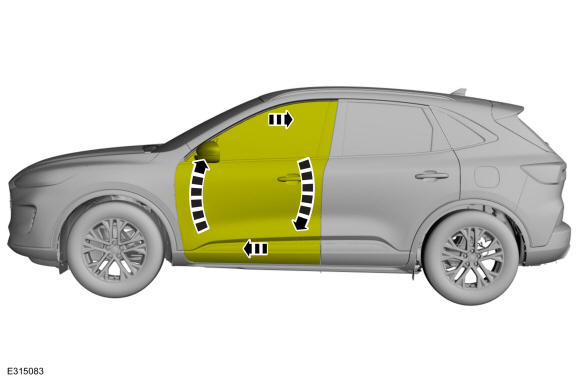

Inspect the front door-to-body dimensions.

Courtesy of FORD MOTOR COMPANY

Adjustment

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

All alignments

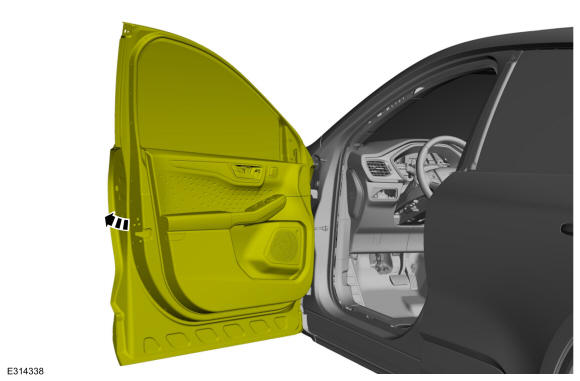

Open the door.

Courtesy of FORD MOTOR COMPANY

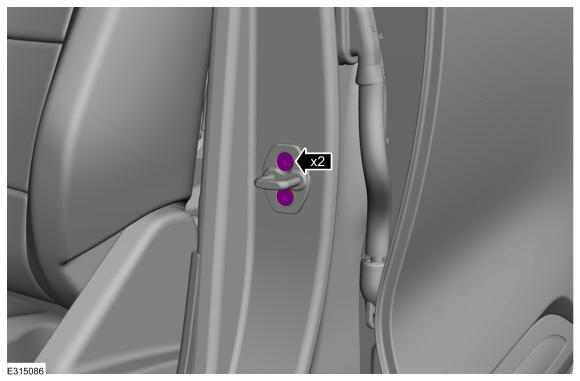

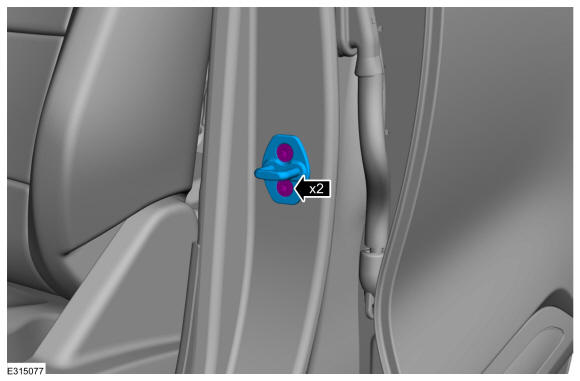

Remove the bolts and the striker assembly.

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment

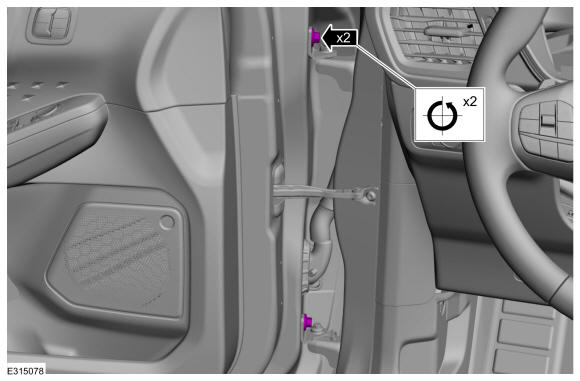

Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Adjust door to specification. Refer to: Body And Frame .

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment

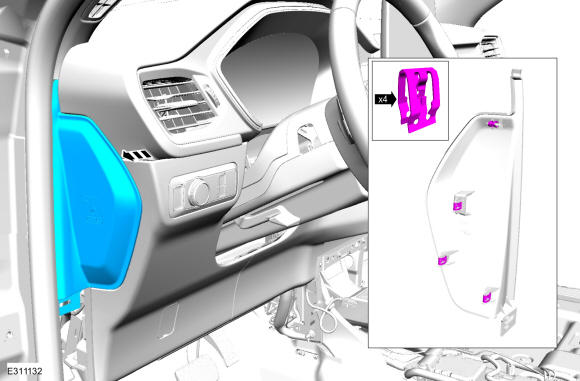

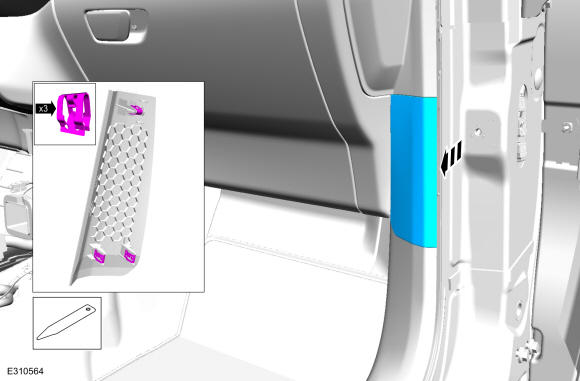

On driver side. Release the clips and remove the LH instrument panel end cap. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

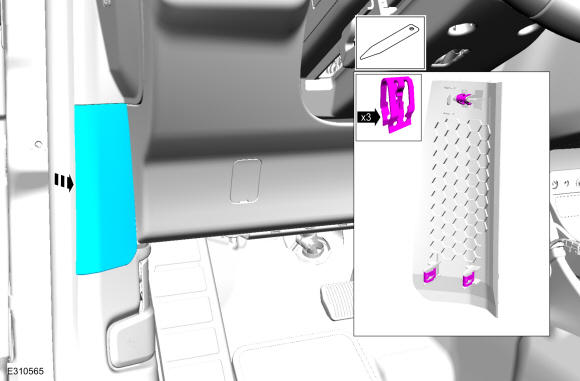

On driver side. Release the clips and remove the LH instrument panel end cap.

Courtesy of FORD MOTOR COMPANY

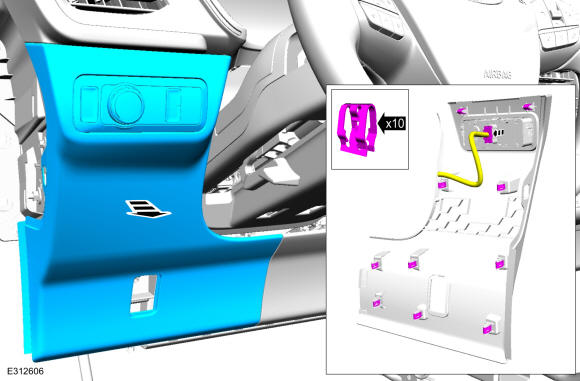

On driver side. Release the clips and remove the LH trim panel. Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
On passenger side. Position the front door weatherstrip aside, release the clips and remove the instrument finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

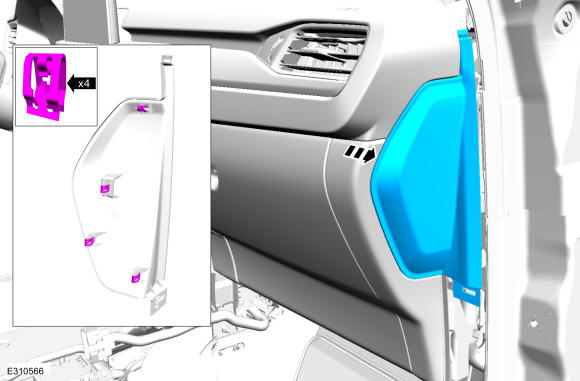

On passenger side. Release the clips and remove the RH instrument panel end cap.

Courtesy of FORD MOTOR COMPANY

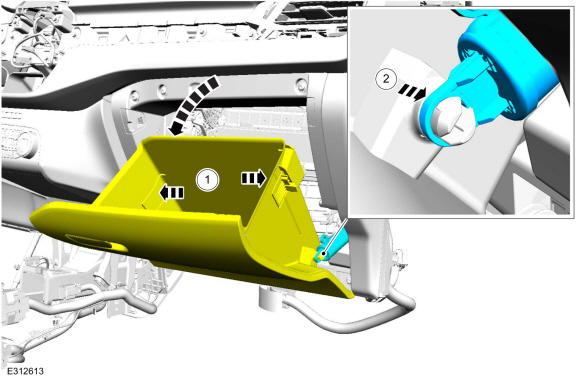

On passenger side.
1. Release the stop and fully lower the glove compartment.
2. Remove the glove compartment check strap.
Courtesy of FORD MOTOR COMPANY

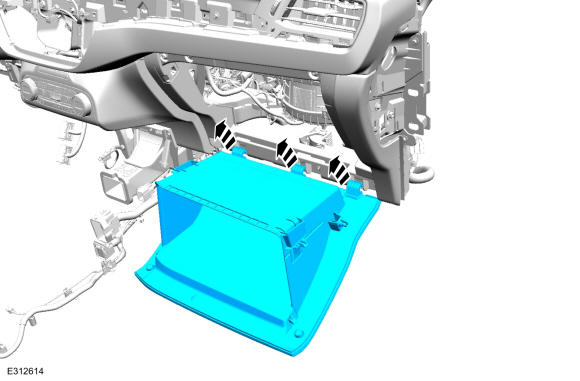

On passenger side. Lift the glove compartment off the hinges remove.

Courtesy of FORD MOTOR COMPANY
NOTE: Driver side shown, passenger side similar.

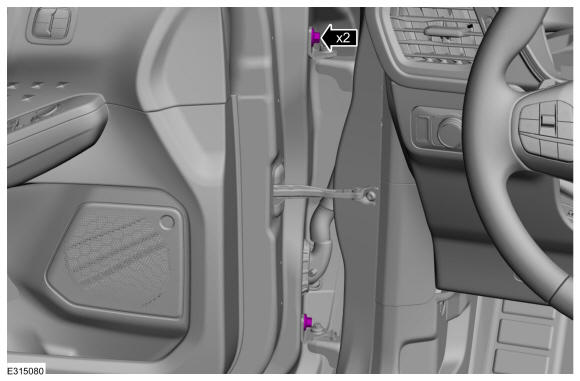

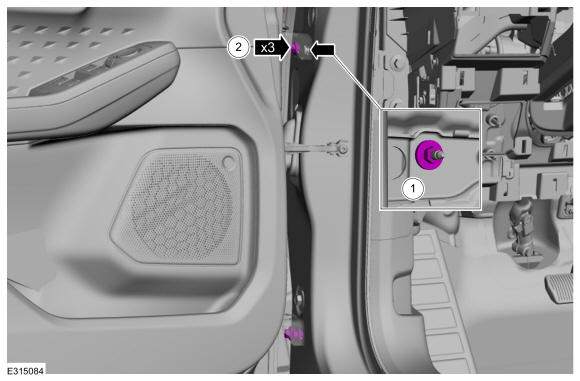

- Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)
- Loosen the nut and washer to permit movement of the door. Loosen: : 2 turn(s)
Courtesy of FORD MOTOR COMPANY
Carefully close the door.

Courtesy of FORD MOTOR COMPANY
Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Carefully open the door.

Courtesy of FORD MOTOR COMPANY
1. Tighten the fastener.
  Torque: 22 lb.ft (30 Nm)
2. Tighten the fasteners.
  Torque: 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY

All alignments
Install the striker assembly.

Courtesy of FORD MOTOR COMPANY

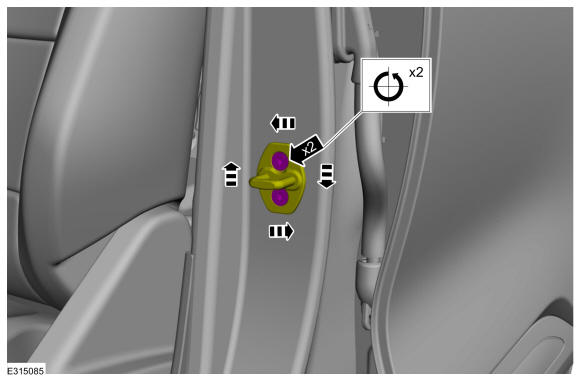

Loosen the bolts to permit movement of the striker assembly. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Tighten the fasteners.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Inspect the body-to-front door dimensions.

Courtesy of FORD MOTOR COMPANY
