Liftgate Alignment
WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Special Tool(s) / General Equipment
| Interior Trim Remover |
|---|
Inspection
NOTE:
Removal steps in this procedure may contain installation details.

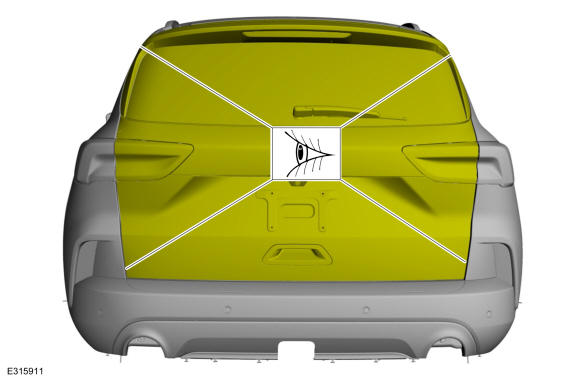

- Inspect the body-to-liftgate door dimensions.

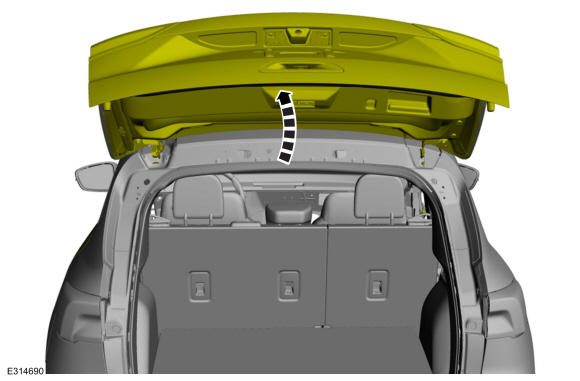

- Open the liftgate.

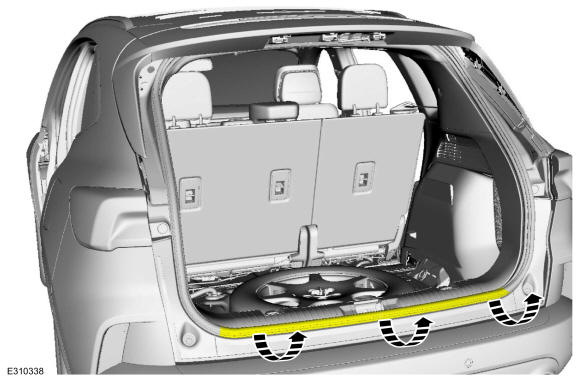

- Position the liftgate opening weather strip aside.

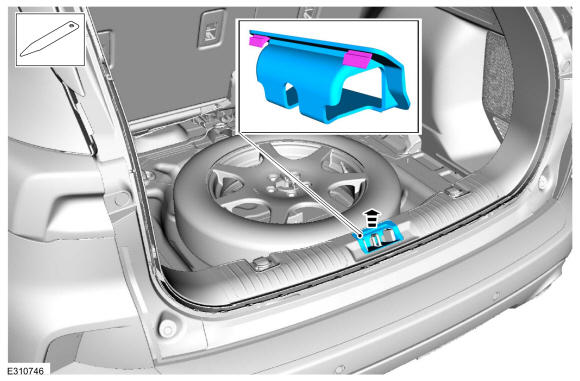

- Release the tabs and remove the liftgate striker cover. Use the General Equipment: Interior Trim Remover

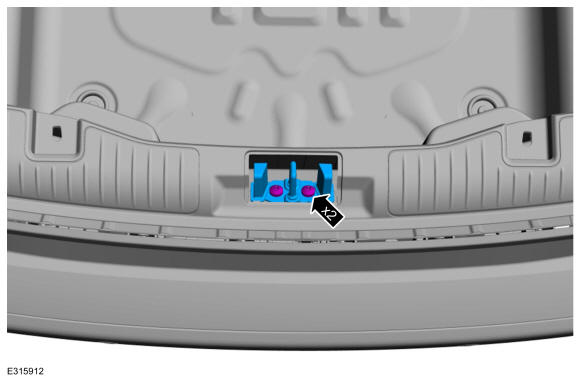

- Remove the fasteners and liftgate striker.
Torque: 18 lb.ft (25 Nm)

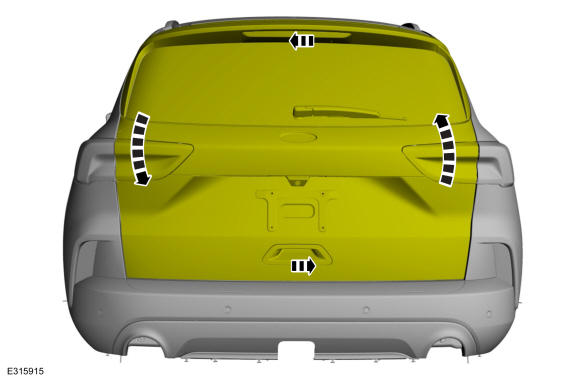

Liftgate left and right, up and down alignment

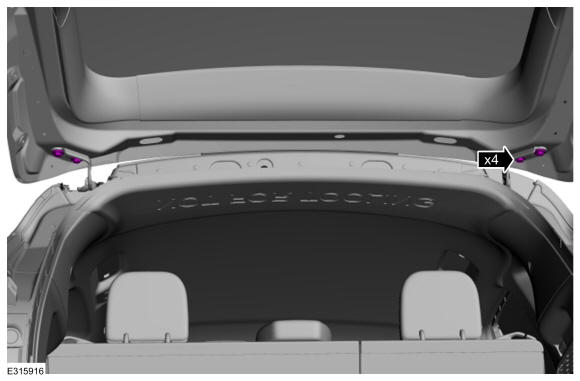

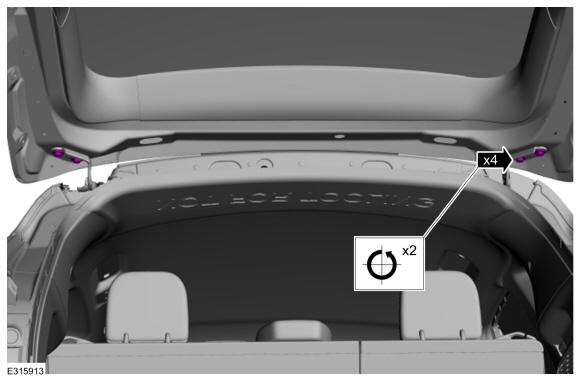

- Loosen the bolts to permit movement of the liftgate. Loosen: : 2 turn(s)

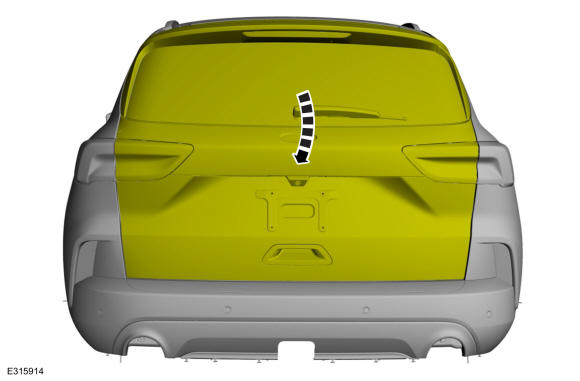

- Carefully close the liftgate.
- Adjust the liftgate as required.
- Carefully open the liftgate.
- Tighten the fasteners.
Torque: 22 lb.ft (30 Nm)

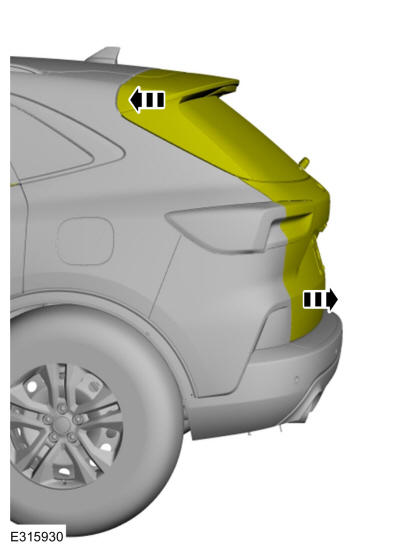

Liftgate in and out alignment

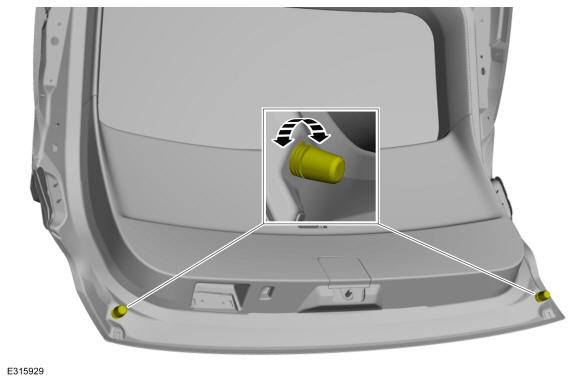

- Adjust the stops.
- Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .
-
- Release the clips.

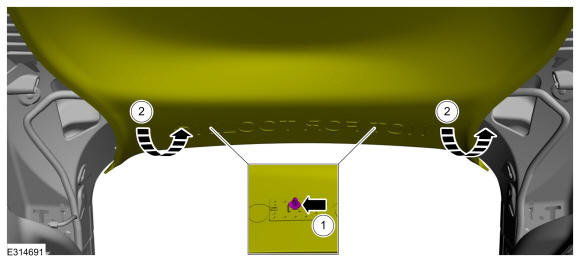

- Lower the rear headliner.

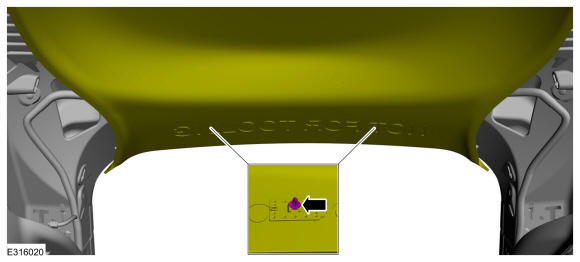

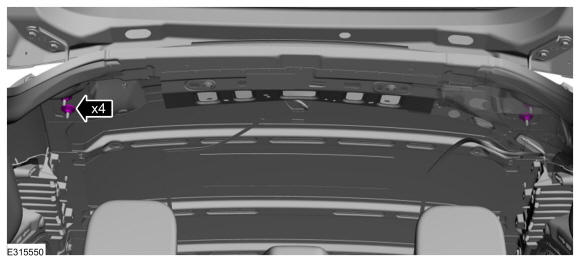

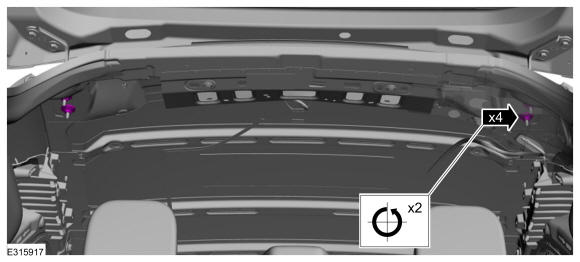

- Loosen the bolts to permit movement of the liftgate. Loosen: : 2 turn(s)
- Adjust the liftgate as required.
- Tighten the fasteners.
Torque: 22 lb.ft (30 Nm)
-
- Attach the clips.
- Position back the rear headliner.
- Install the C-pillar trim panel. Refer to: C-Pillar Trim Panel
.
All alignments
- Inspect the liftgate dimensions.
- If equipped with power liftgate, carry out the power liftgate initialization. Refer to: Power Liftgate Initialization .
