Differential Fluid Level Check
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to: OEM Color Coding
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL | WSS-M2C942-A |
Check
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

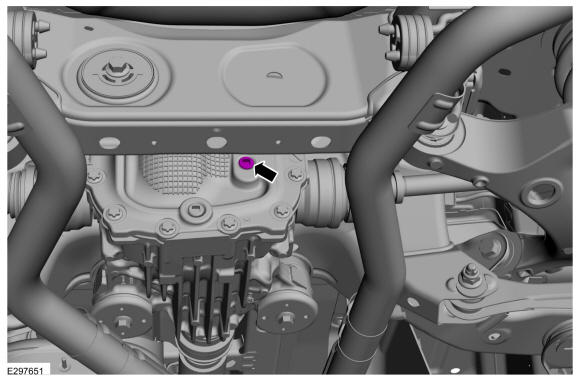

- Remove the differential fluid fill plug.

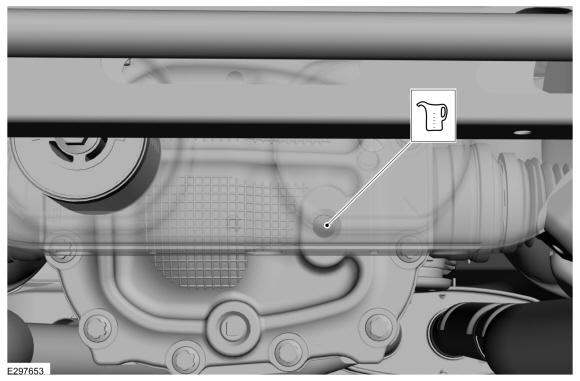

- Check and top-off the differential with clean differential gear lubricant. The differential gear lubricant level should be to the bottom of the fluid fill plug opening. Refer to: Specifications
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

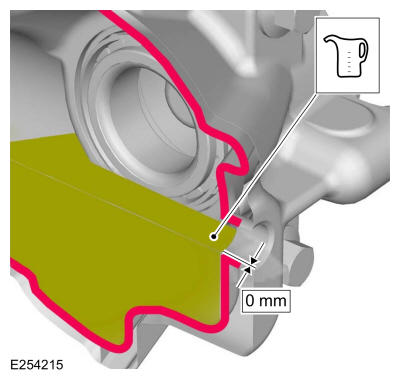

- Ensure the RDU gear lubricant level to the bottom of the filler hole (as shown).
- Install the differential fluid fill plug.
Torque: 25 lb.ft (34 Nm)
