Front Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

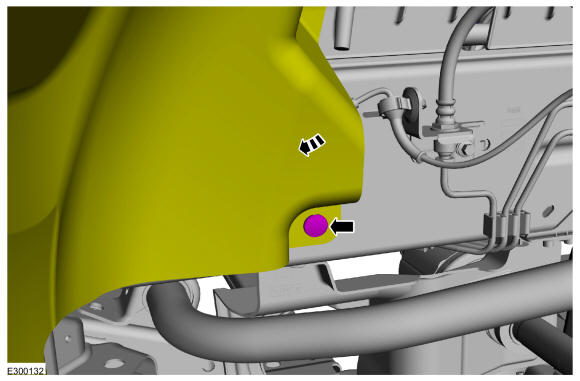

  2. Remove the pin-type retainer and position the fender splash shield aside.
    GFD655447Courtesy of FORD MOTOR COMPANY

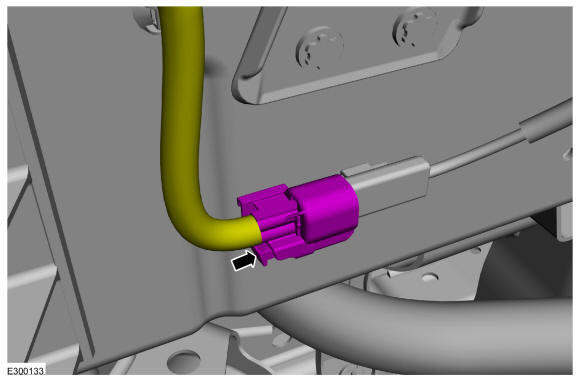

  3. Disconnect the electrical connector.
    GFD655448Courtesy of FORD MOTOR COMPANY

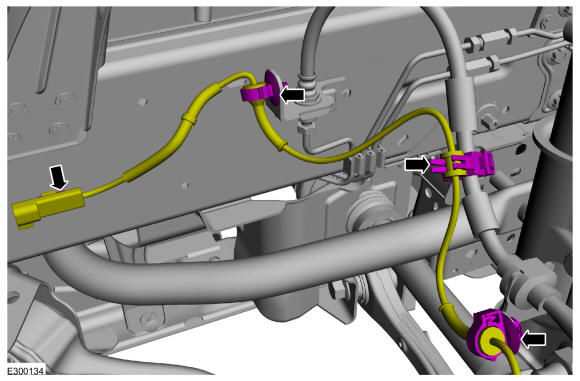

  4. NOTE: Route the wheel speed sensor harness as shown or contact with the wheel may occur causing damage to the harness.

    Detach the wiring retainers.

    GFD655449Courtesy of FORD MOTOR COMPANY

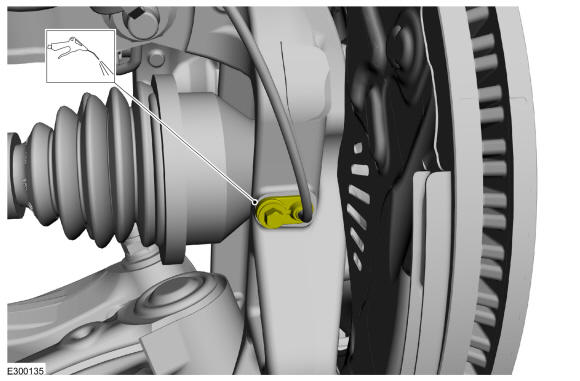

  5. NOTE: Make sure that the sensor housing area is clean and free of foreign material before the sensor is removed.

    Using compressed air, clean the sensor housing area.

    GFD655450Courtesy of FORD MOTOR COMPANY

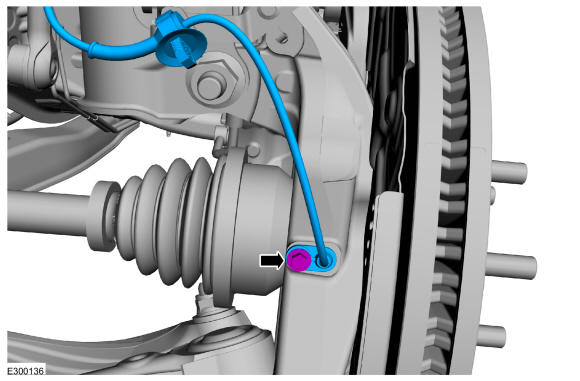

  6. Remove the bolt and the front wheel speed sensor.

    Torque: 106 lb.in (12 Nm)

GFD655451Courtesy of FORD MOTOR COMPANY
