Windshield Washer Fluid Level Sensor: Removal
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

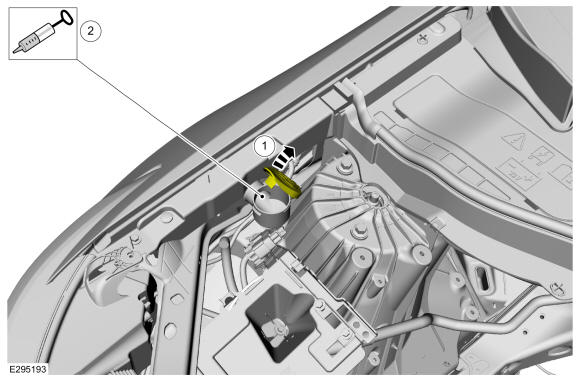

- Siphon the windshield washer fluid out.
- Open the windshield washer fluid reservoir cap.
- Siphon the windshield washer fluid. Use the General Equipment: Fluid Suction Gun Use the General Equipment: Fluid Container
- Remove the RH fender splash shield. Refer to: Fender Splash Shield

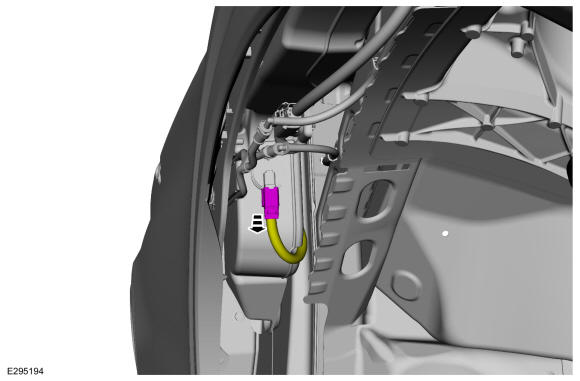

- Disconnect the windshield washer fluid level sensor electrical connector.
-
NOTE: Be prepared to collect escaping fluid.

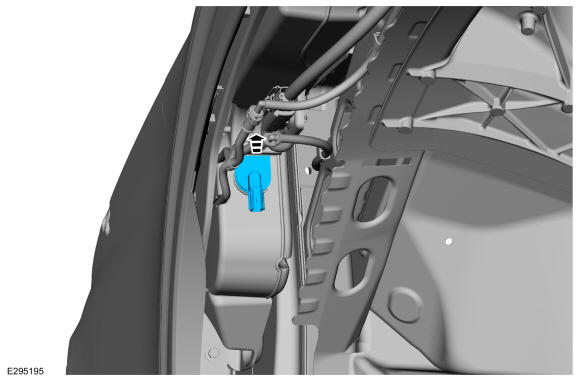

Remove the windshield washer fluid level sensor. Use the General Equipment: Fluid Container
