Hood Alignment
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Adjustment
NOTE:
Removal steps in this procedure may contain installation details.
All alignments
- Remove the hood latch. Refer to: Hood Latch .

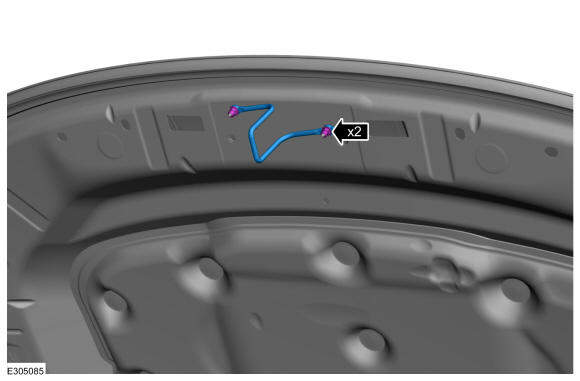

- Remove the nuts and the striker assembly.
Torque: 80 lb.in (9 Nm)
Hood fore and aft, left and right alignments

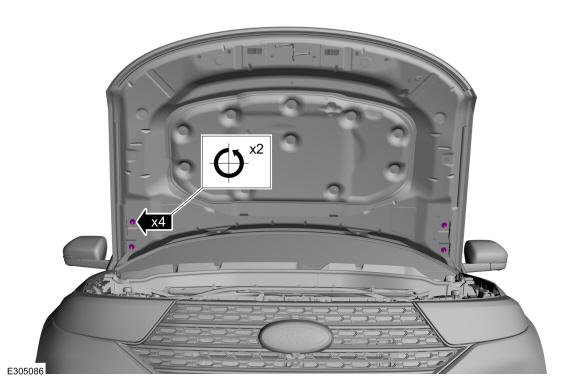

- Loosen the nuts to permit movement of the hood. Loosen: 2 turn(s)

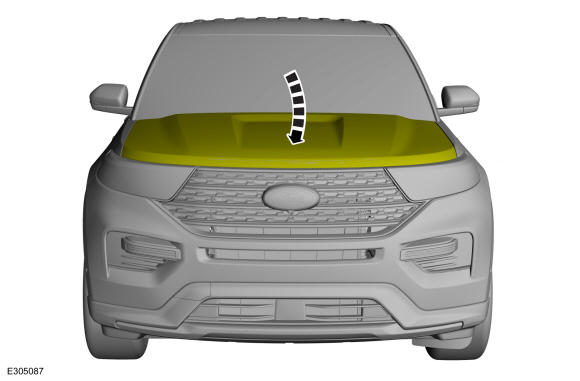

- Carefully close the hood.

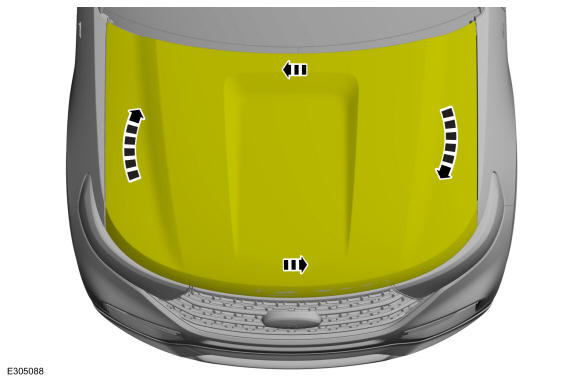

- Adjust the hood as required.

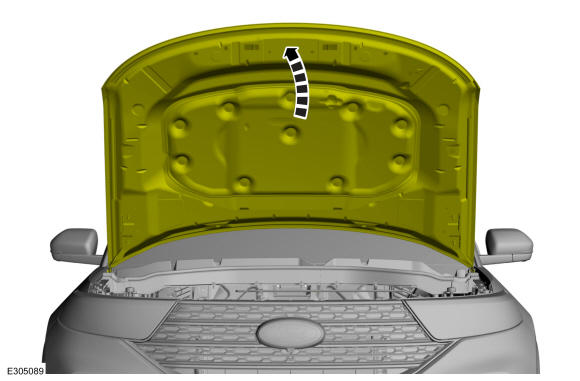

- Carefully open the hood.

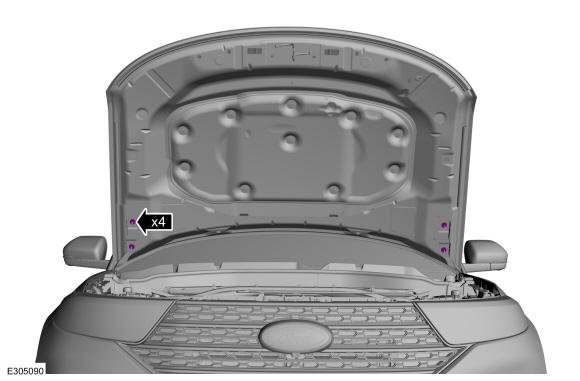

- Tighten the nuts.
Torque: 159 lb.in (18 Nm)

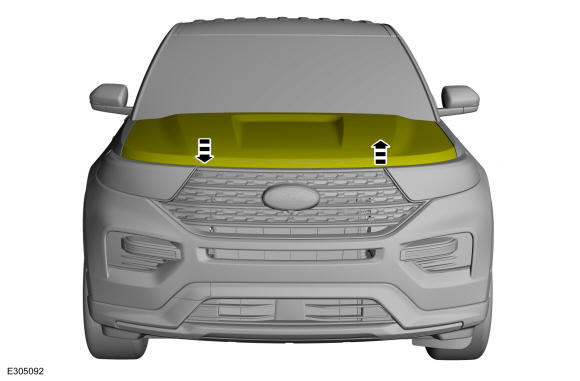

Hood front up and down alignments

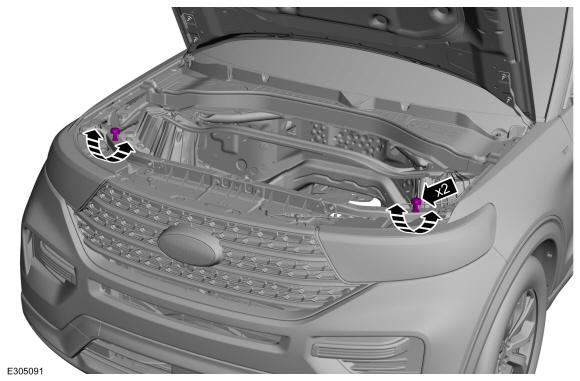

- Adjust the bump stop rubbers.
- Adjust the hood as required.
All alignments
- Install the striker assembly.
Torque: 80 lb.in (9 Nm)

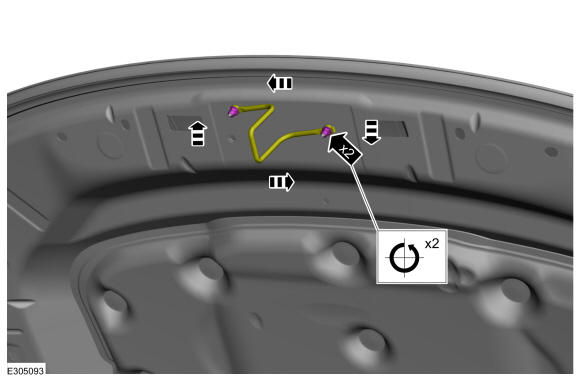

- Loosen the nuts to permit movement of the striker assembly. Loosen: 2 turn(s)
- Tighten the nuts.
Torque: 80 lb.in (9 Nm)

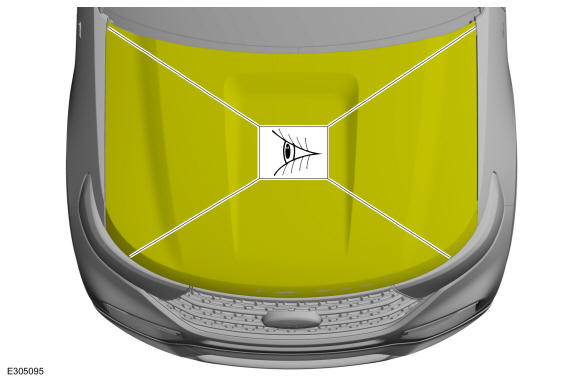

- Inspect the body-to-hood alignment.
- Install the removed components.
