Liftgate Alignment
WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| Interior Trim Remover |
|---|
Materials
| Name | Specification |
|---|---|
| Seam Sealer TA-2-B, 3M™ 08308, LORD Fusor® 803 DTM | - |
Adjustment
NOTE:
Removal steps in this procedure may contain installation details.
All alignments

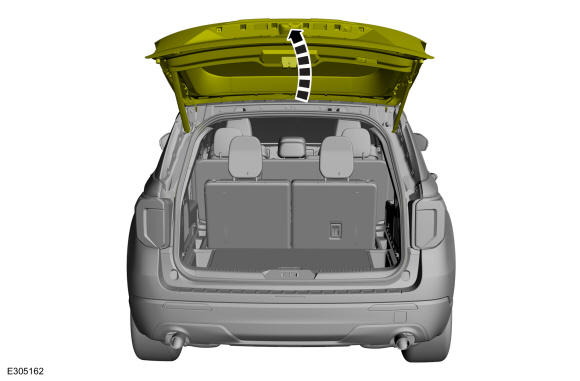

- Open the liftgate.

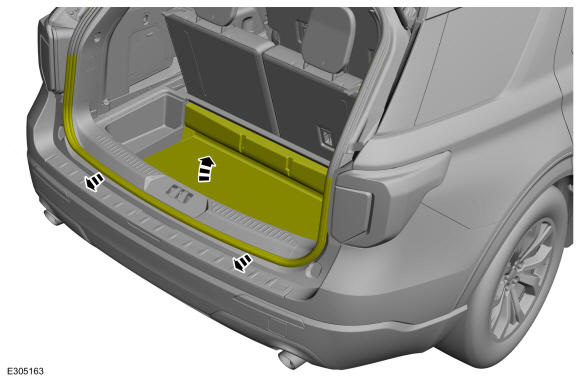

- Position aside the liftgate weatherstrip and the load compartment cover.

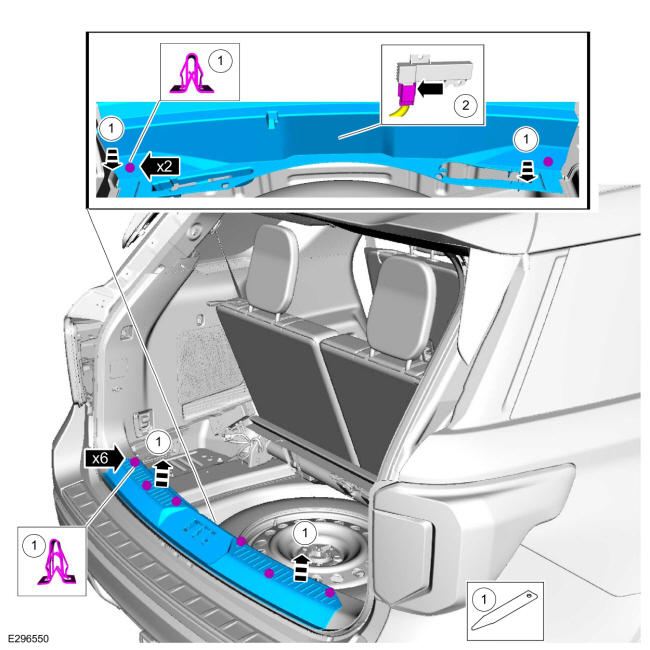

- Remove the liftgate scuff plate trim panel.
- Release the liftgate scuff plate trim panel clips. Use the General Equipment: Interior Trim Remover
- If equipped Disconnect the keyless entry rear antenna electrical connector.

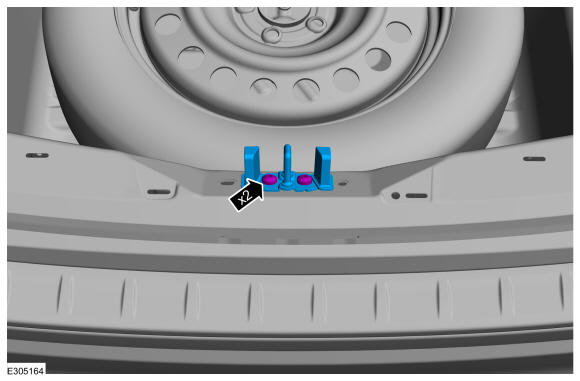

- Remove the liftgate striker.
Torque: 18 lb.ft (25 Nm)
Liftgate left and right, up and down alignment

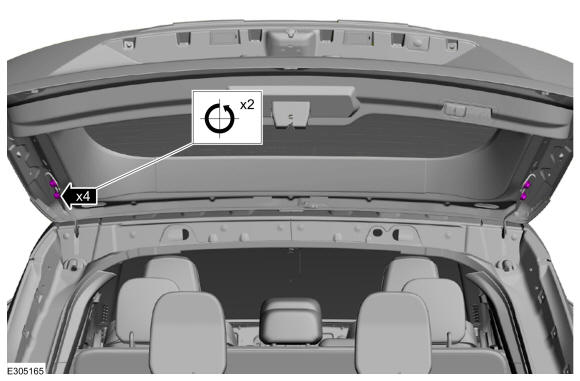

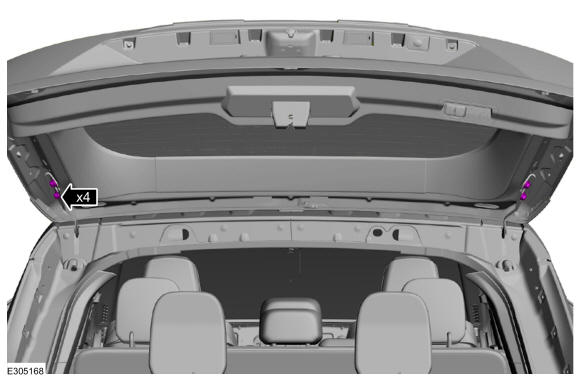

- Loosen the bolts. Loosen: 2 turn(s)

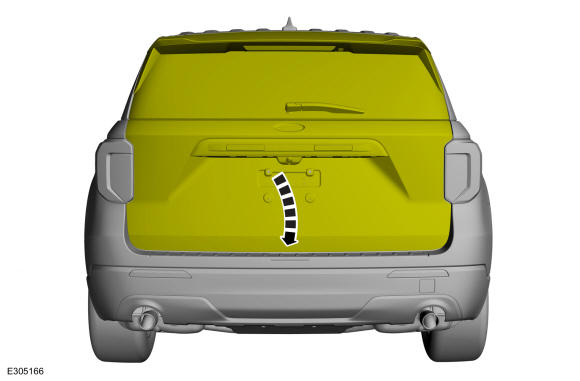

- Carefully close the liftgate.

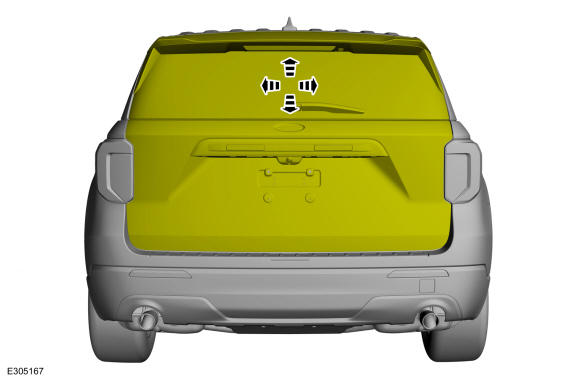

- Adjust the liftgate as required.
- Carefully open the liftgate.
- Tighten the bolts.
Torque: 22 lb.ft (30 Nm)
Liftgate in and out alignment

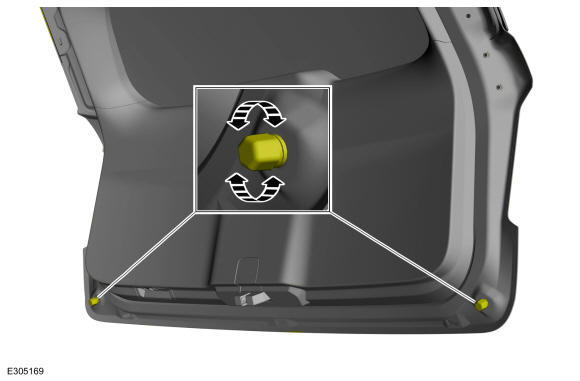

- Adjust the stops.

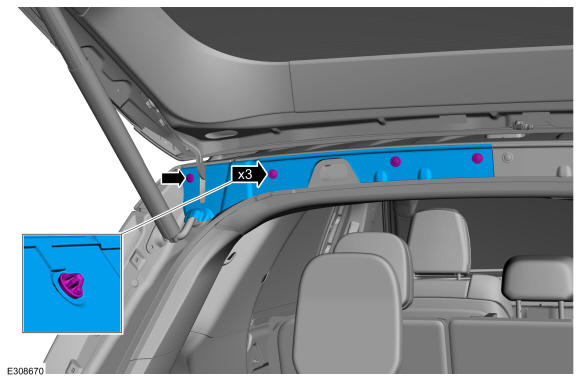

- On both sides Remove pin type retainer and the drip molding.

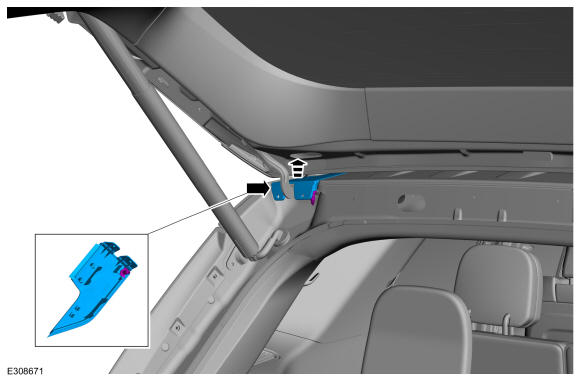

- On both sides Remove the hinge cover.
- Carefully close the liftgate.

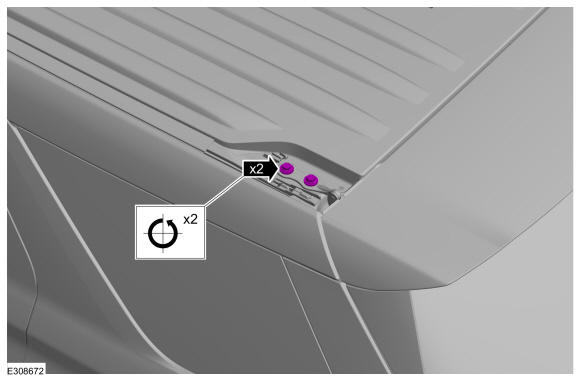

- On both sides Loosen the bolts. Loosen: 2 turn(s)

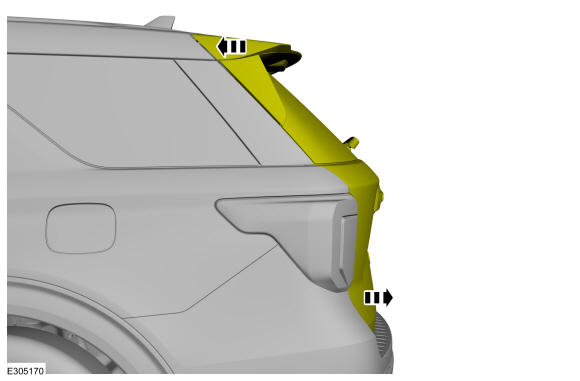

- Adjust the liftgate as required.

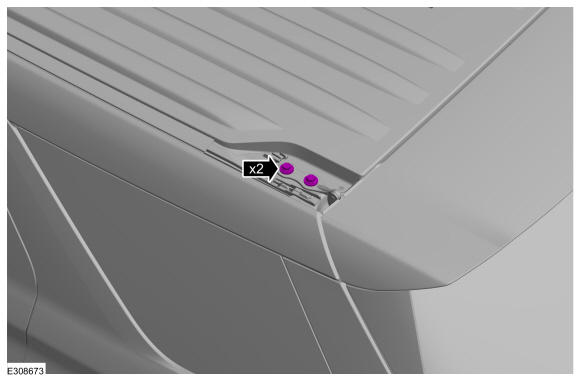

- On both sides Tighten the bolts.
Torque: 26 lb.ft (35 Nm)

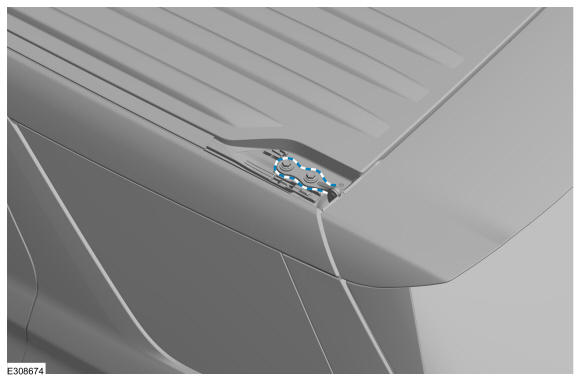

- On both sides Apply seam sealer
Material: Seam Sealer / TA-2-B, 3M™ 08308, LORD Fusor® 803 DTM
All alignments

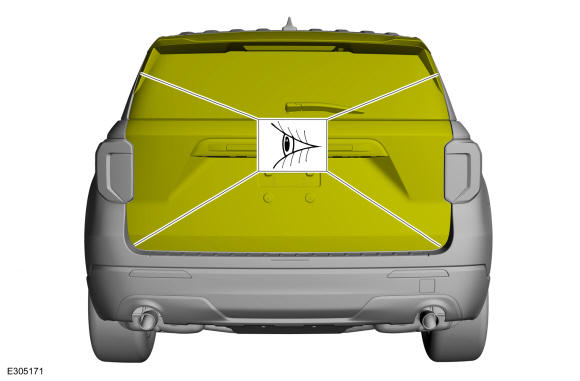

- Inspect the body-to-liftgate door alignment.
- Install the position aside and removed components.
- If equipped with power liftgate, carry out the power liftgate initialization. Refer to: Power Liftgate Initialization .
