Heated Second Row Seat Module: Removal

WARNING: This page is about a different car, the 2022 Ford Police Interceptor Utility and 2022 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The heated second row seat module is located under the RH (right hand) second row seat cushion frame.

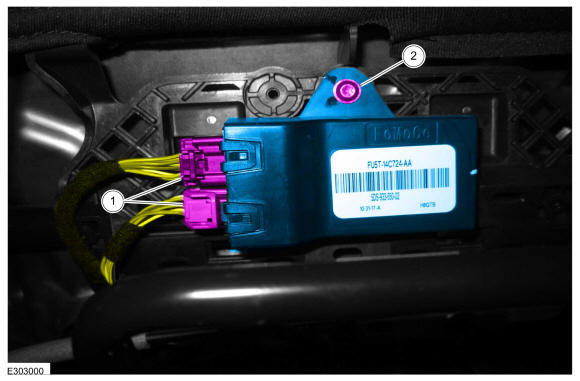

Remove the heated second row seat module.
1. Disconnect the electrical connectors.
2. Remove the bolt.
  Torque: 71 lb.in (8 Nm)
