Hood Alignment

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Inspection

  1. Inspect the hood-to-body dimensions. Refer to: BODY DIMENSIONS .

    All alignments

  2. Remove the hood latch. Refer to: Hood Latch .

    Hood fore and aft, left and right alignments

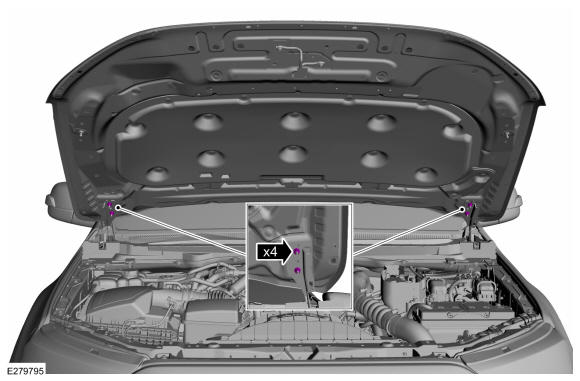

  3. Loosen the nuts to permit movement of the hood.
    GFD674780Courtesy of FORD MOTOR COMPANY

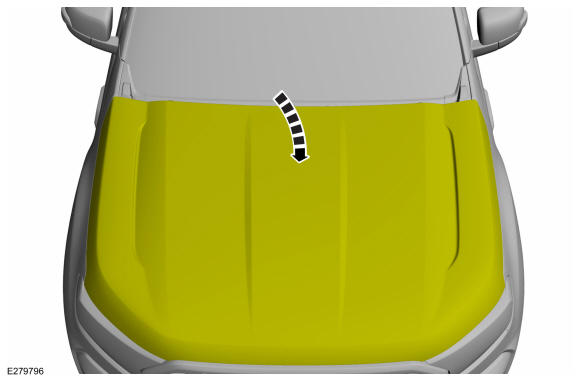

  4. Carefully close the hood.
    GFD674781Courtesy of FORD MOTOR COMPANY

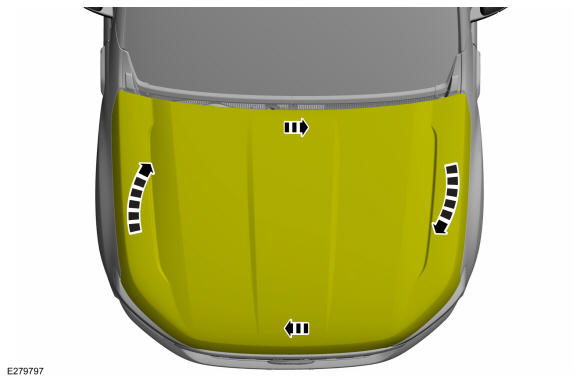

  5. Adjust the hood to specification. Refer to: BODY DIMENSIONS .
    GFD674782Courtesy of FORD MOTOR COMPANY

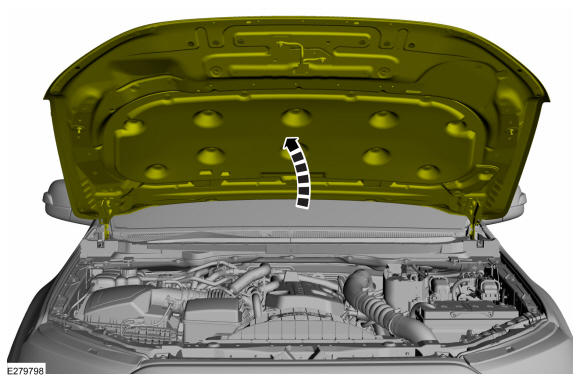

  6. Carefully open the hood.
    GFD674783Courtesy of FORD MOTOR COMPANY
  7. Tighten the nuts.

    Torque

    : 18 lb.ft (25 Nm)

    GFD674780Courtesy of FORD MOTOR COMPANY

    Hood front up and down alignments

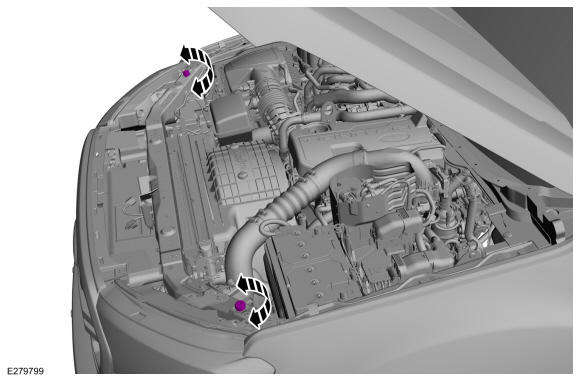

  8. Adjust the bump stop rubbers.
    GFD674784Courtesy of FORD MOTOR COMPANY
  9. Carefully close the hood.
    GFD674781Courtesy of FORD MOTOR COMPANY

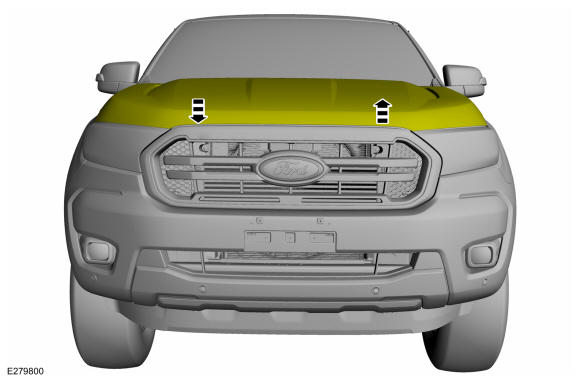

  10. Adjust the hood to specification. Refer to: BODY DIMENSIONS .
    GFD674785Courtesy of FORD MOTOR COMPANY

    All alignments

  11. Install the hood latch. Refer to: Hood Latch .

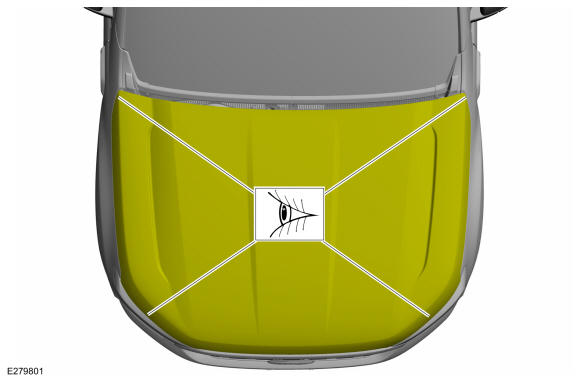

  12. Inspect the body-to-hood dimensions. Refer to: BODY DIMENSIONS .
GFD674786Courtesy of FORD MOTOR COMPANY
