Hood Alignment

WARNING: This page is about a different car, the 2022 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Inspection

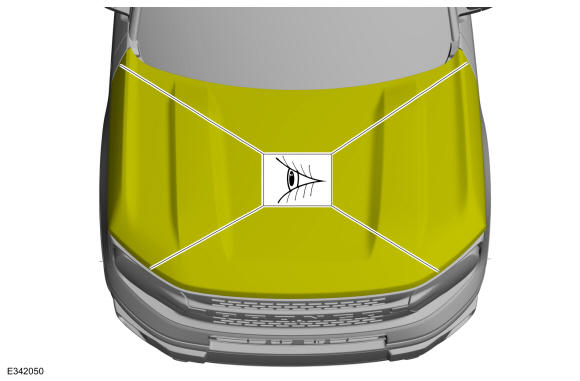

Inspect the hood-to-body dimensions.

Courtesy of FORD MOTOR COMPANY

All alignments

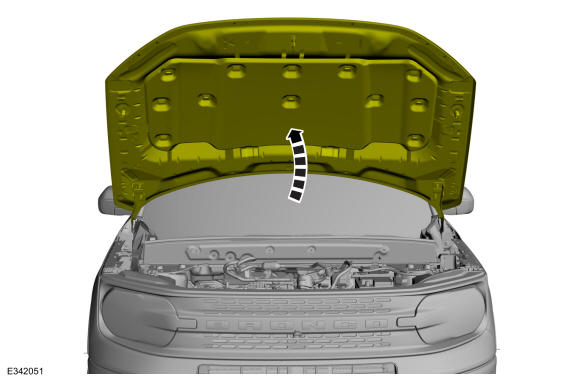

Open the hood.

Courtesy of FORD MOTOR COMPANY
Remove the hood latch. Refer to: Hood Latch .
Hood fore and aft, left and right alignments

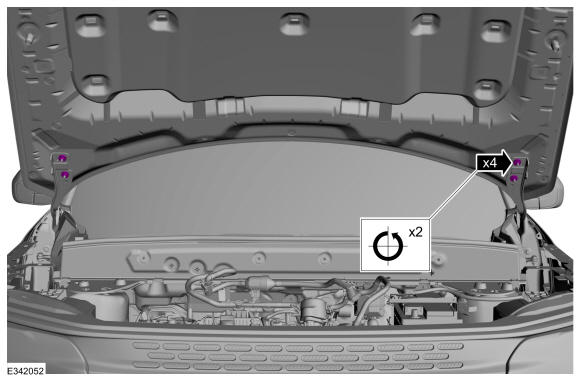

Loosen the nuts enough to permit movement of the hood. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

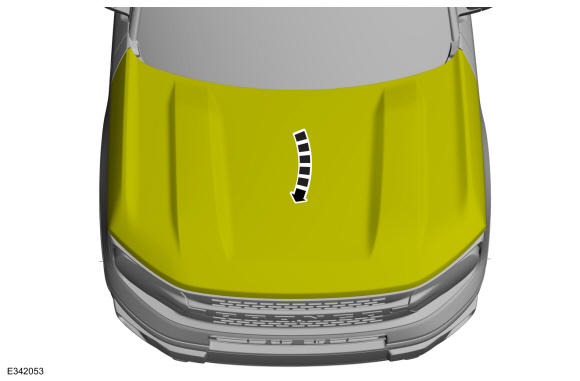

Carefully close the hood.

Courtesy of FORD MOTOR COMPANY

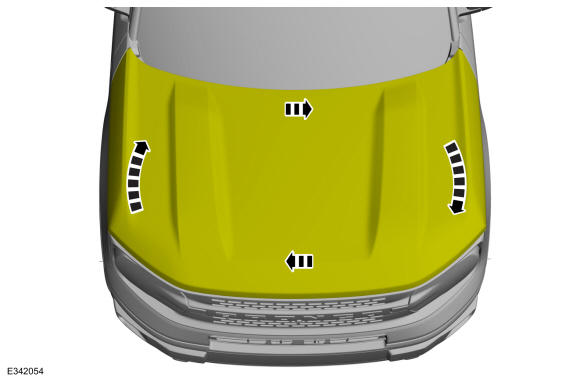

Adjust the hood as required.

Courtesy of FORD MOTOR COMPANY
Carefully open the hood.

Courtesy of FORD MOTOR COMPANY

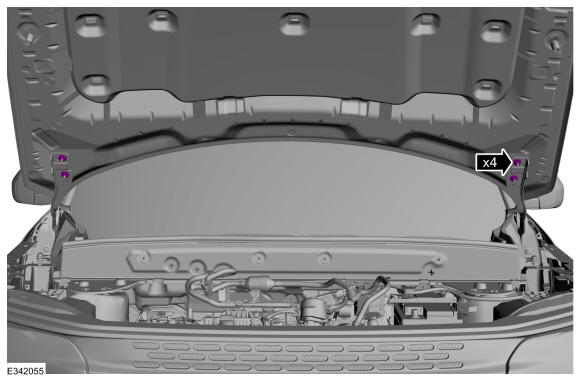

Tighten the nuts.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

Hood front up and down alignments

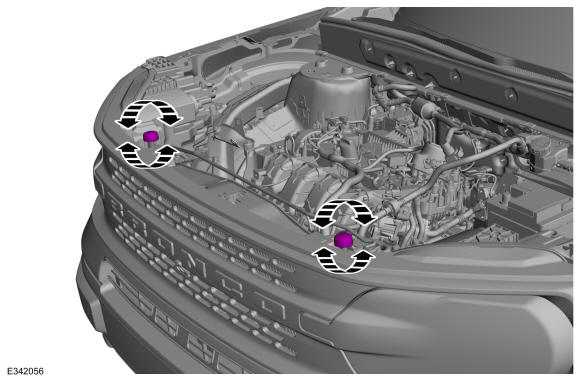

Adjust the bump stop rubbers.

Courtesy of FORD MOTOR COMPANY
Carefully close the hood.

Courtesy of FORD MOTOR COMPANY

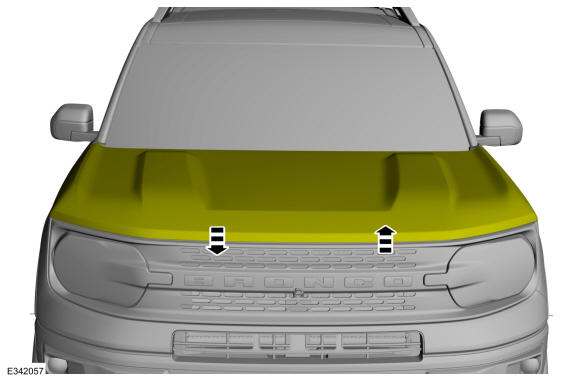

Adjust the hood as required.

Courtesy of FORD MOTOR COMPANY

All alignments
Install the hood latch. Refer to: Hood Latch .
Inspect the body-to-hood dimensions.

Courtesy of FORD MOTOR COMPANY
